Replacement of lamp bulbs11-28 Maintenance
11
E01004600679

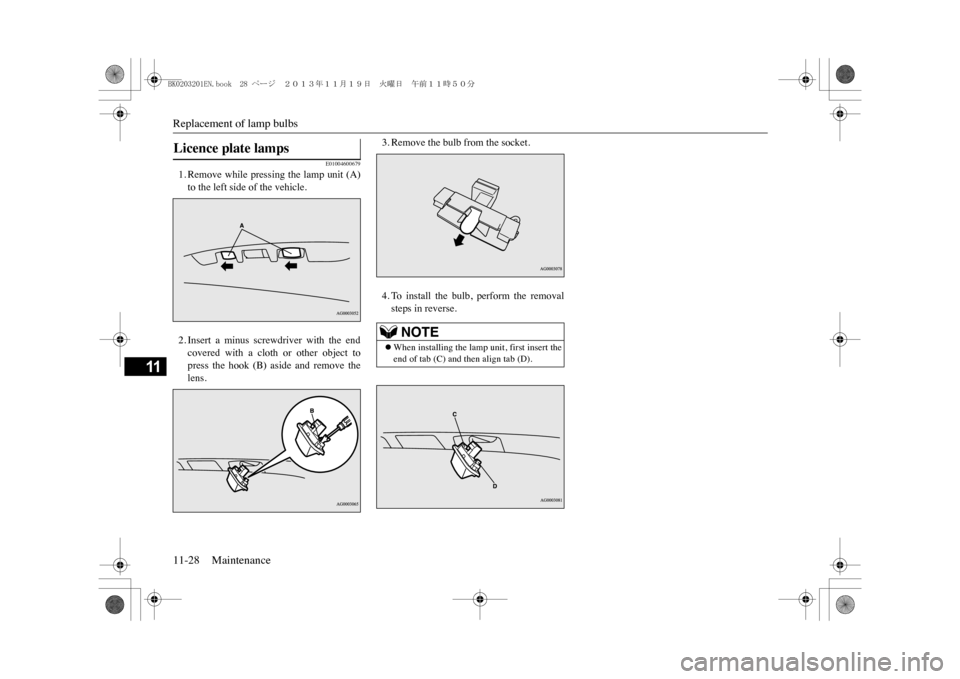

1. Remove while pressing the lamp unit (A)to the left side of the vehicle.2. Insert a minus screwdriver with the endcovered with a cloth or other object topress the hook (B) aside and remove thelens.
3. Remove the bulb from the socket.4. To install the bulb, perform the removalsteps in reverse.
Licence plate lamps
NOTE
zWhen installing the lamp unit, first insert theend of tab (C) and then align tab (D).
BK0203201EN.book 28 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

12
SpecificationsVe h i c l e l a b e l i n g . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 2 - 2Ve h i c l e d i m e n s i o n s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 2 - 4Ve h i c l e p e r f o r m a n c e . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 2 - 5Ve h i c l e m a s s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 2 - 5Engine specifications ......................................................................12-6Charging system specifications .....................................................12-7Electric motor specifications .........................................................12-8Low voltage electrical system ........................................................12-8Ty r e s a n d w h e e l s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 2 - 8Other specifications ........................................................................12-9Refill capacities ............................................................................12-10
BK0203201EN.book 1 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Vehicle labeling12-2 Specifications
12
E01100104372

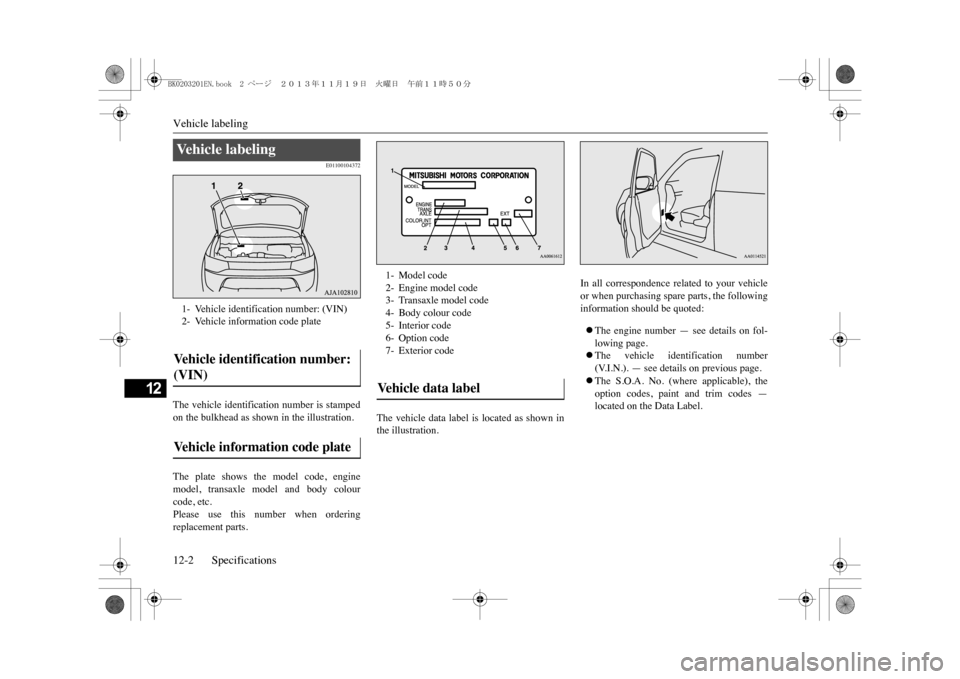

The vehicle identification number is stampedon the bulkhead as shown in the illustration.The plate shows the model code, enginemodel, transaxle model and body colourcode, etc.Please use this number when orderingreplacement parts.
The vehicle data label is located as shown inthe illustration.
In all correspondence related to your vehicleor when purchasing spare parts, the followinginformation should be quoted:zThe engine number — see details on fol-lowing page.zThe vehicle identification number(V.I.N.). — see details on previous page.zThe S.O.A. No. (where applicable), theoption codes, paint and trim codes —located on the Data Label.
Ve h i c l e l a b e l i n g 1- Vehicle identification number: (VIN)2- Vehicle information code plateVe h i c l e i d e n t i f i c a t i o n n u m b e r : (VIN) Ve h i c l e i n f o r m a t i o n c o d e p l a t e
1- Model code2- Engine model code3- Transaxle model code4- Body colour code5- Interior code6- Option code7- Exterior codeVe h i c l e d a t a l a b e l
BK0203201EN.book 2 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Vehicle labeling
Specifications 12-3
12

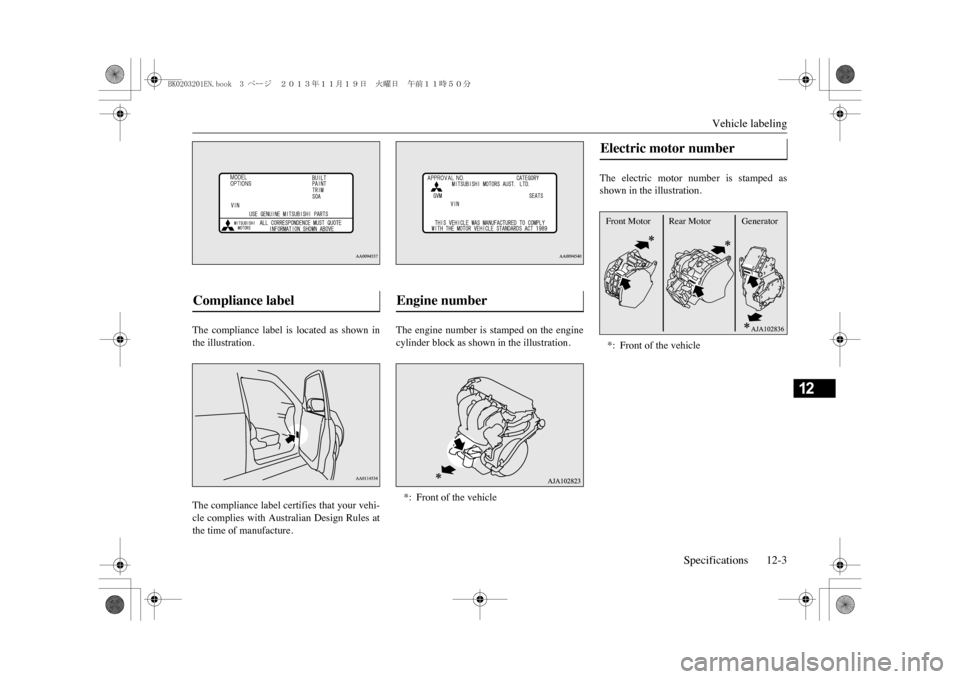

The compliance label is located as shown inthe illustration.The compliance label certifies that your vehi-cle complies with Australian Design Rules atthe time of manufacture.
The engine number is stamped on the enginecylinder block as shown in the illustration.
The electric motor number is stamped asshown in the illustration.
Compliance label
Engine number *: Front of the vehicle
Electric motor number *: Front of the vehicleFront Motor Rear Motor Generator
BK0203201EN.book 3 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Vehicle dimensions12-4 Specifications
12
E01100203956

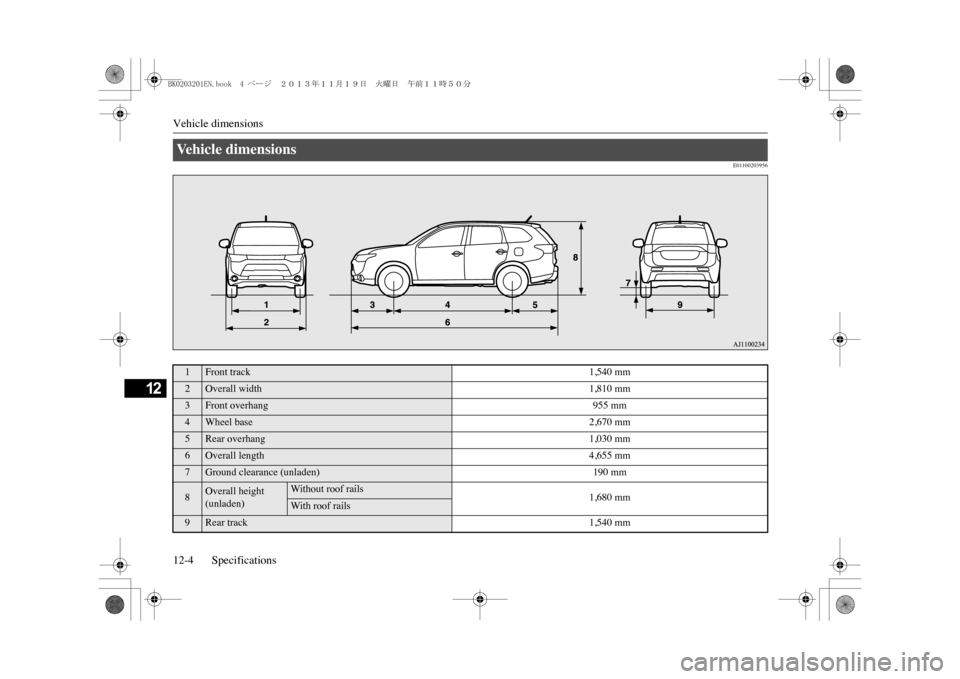

Ve h i c l e d i m e n s i o n s 1
Front track
1,540 mm
2
Overall width
1,810 mm
3
Front overhang
955 mm
4
Wheel base
2,670 mm
5
Rear overhang
1,030 mm
6
Overall length
4,655 mm
7
Ground clearance (unladen)
190 mm
8
Overall height (unladen)
Without roof rails
1,680 mm
With roof rails
9
Rear track
1,540 mm
BK0203201EN.book 4 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Vehicle performanceSpecifications 12-5
12
E01100303540E01100501740
Minimum turning radius
Body
5.73 m
Wheel
5.3 m
Vehicle performance Maximum speed
170 km/h
Ve h i c l e m a s s Kerb mass
Without optional parts
1,810 kg
With full optional parts
1,871 kg
Maximum gross vehicle mass
2,310 kg
Maximum axle mass
Front
1,160 kg
Rear
1,255 kg
Maximum towable mass
With brake
1,500 kg
Without brake
750 kg
Maximum trailer-nose mass
150 kg
Maximum roof load
80 kg
Maximum gross combination mass
3,810 kg
Seating capacity
5 persons
NOTE
zTo w i n g c a p a c i t y a n d t o w b a l l l o a d a r e w h e n f i t t
ed with a MITSUBISHI MOTORS Genuine Part
s tow bar. The capacity may be reduced i
f a non MITSUB-
ISHI MOTORS Genuine Parts tow bar is fitted. For further inform
ation when towing, including warranty coverage, refer to the sec
tion entitled “Towing
caravans and trailers” on page 7-71.
BK0203201EN.book 5 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Engine specifications12-6 Specifications
12
E01100603934
zWhen loading luggage and/or towing trailer, make sure
not to exceed any of the a
bove maximum ma
ss all th
e time.
zThe vehicle kerb mass specified may vary depe
nding on the equipment installed to the vehicle.
Engine specifications Engine type
Four-cylinder, in line, water-cooled four-cycle, double overhead cam-
shaft
Engine model Total displacement Bore Stroke Compression ratio
4B111,998 cc86.0 mm86.0 mm10.5
Firing order
1-3-4-2
NOTE
BK0203201EN.book 6 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Charging system specifications
Specifications 12-7
12
E01101901044
Charging system specifications Normal charging sys-tem
Rated input voltage
AC 240V (single phase)
Rated input frequency
50 Hz/60 Hz
Maximum rated current
10 A*
1
Maximum power consumption
3.6 kVA*
2
Applicable standards
Charging cable (with connector and control box)
EN61851-1EN61851-21IEC61851-1IEC61851-21IEC62196-1HD21.13HD22.4
On board charger
EN61851-1EN61851-21IEC61851-1IEC61851-21
Leakage current sensitivity in cable control box
20 mA
Charging mode
Based on IEC61851-1Mode 2/Case B*
1
Mode 3/Case C*
2
*1:When using a genuine charging cable with control box
*2:When using a home or public charging device (EVSE: Electric Vehicles Supply Equipment)
BK0203201EN.book 7 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分
