2014 MITSUBISHI OUTLANDER SPORT Owners Manual

Audio Files (MP3/WMA/AAC)8-20 For pleasant driving
8
format that has a higher compression ratiothan MP3.Specifications for WMA files that can beplayed are as below.
E00736801033
AAC is an abbreviation of Advanced AudioCoding, and this is an audio compressionstandard used in “MPEG-2” and “MPEG-4”.This features 1.4x the compression of MP3,with comparable audio quality.
Specifications for AAC files that can beplayed are as below.
NOTE
zMicrosoft, Windows Media, and Windowsare registered trademarks of Microsoft Cor-poration (USA) and in
other countries.
CAUTIONzWMA supports digital rights management(DRM). This product cannot play backWMA files protected using this system.zWMA files different to the standards at rightmay not play back correctly, or file/foldernames may not be di
splayed correctly.
z“Pro”, “Lossless”, and “Voice” are not sup-ported.
Standards for WMA Files That Can Be Played Back
Item
Details
Specification Windows Media Audio
Ve r s i o n 7 . 0 / 8 . 0 / 9 . 0
Sampling fre-quency [kHz]
32/44.1/48
Bit rate [kbps] 48 to 320
VBR
(variable bit rate)
Support
Channel mode Stereo/MonauralFile extension wmaSupported tag information
WMA tagsTitle name, Artist name, Album name
Maximum num-ber of characters that can be indi-cated on the dis-
play
64 characters
What Is AAC?
CAUTIONzAAC supports digital rights management(DRM). This product cannot play back AACfiles protected using this system.
Item
Details
zAAC files different to
the standards at right
may not play back correctly, or file/foldernames may not be displayed correctly.
St an d a r d s fo r A A C F il es T h a t C a n Be Played Back
Item
Details
Specification Advanced Audio
CodingMPEG4/AAC-LCMPEG2/AAC-LC
Sampling
fre-quency [kHz]
MPEG4 8/11.025/12/16/22.05/
24/32/44.1/48
MPEG2 8/11.025/12/16/22.05/
24/32/44.1/48
Bit rate [kbps]
MPEG4 8 to 320MPEG2 8 to 320
VBR (variable bit
rate)
Support
Channel mode Stereo/MonauralFile extension m4aCAUTION
BK0203201EN.book 20 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Important Points on Safety for the Customer
For pleasant driving 8-21
8
E00737000035
This product features a number of pictorialindications as well as points concerning han-dling so that you can use the product cor-rectly and in a safe manner, as well as preventinjury or damage to yourself, other users, orproperty.
Supported tag information
AAC tags or ID3 tagsTitle, Artist name, Album name
Maximum number of characters that can be indicated on
the display
64 characters
Important Points on Safety for the Customer
WA R N I N GzThe driver should not pay close attentionto the display while driving.This may prevent the driver lookingwhere they are going, and cause an acci-dent.
Item
Details
zThe driver should not perform compli-cated operations while driving.Performing complicated operations whiledriving may prevent the driver lookingwhere they are going, and cause an acci-dent.Therefore stop the vehicle in a safe loca-tion before performing such operations.zDo not use during malfunctions, such aswhen no sound is audible.This may lead to acci
dent, fire, or electric
shock.zEnsure water or other foreign objects donot enter the product.This may lead to smoking, fire, electricshock, or malfunction.zDo not insert foreign objects into the discslot.This may lead to fire, electric shock, ormalfunction.zIn the event of abnormalities occurringwhen foreign objects or water enter theproduct, resulting in smoke or a strangesmell, immediately st
op using the product,
and consult a MITSUBISHI MOTORSAuthorised Service Point.Continuing to use the product may resultin accident, fire,
or electric shock.
zDo not disassemble or modify the product.This may lead to malfunction, fire, or elec-tric shock.WA R N I N G
zDuring thunderstorms, do not touch theantenna or the front panel.This may lead to electrical shock fromlightning.CAUTIONzDo not block ventilati
on holes or heat sinks
on the product.Blocking ventilation holes or heat sinks mayprevent heat from escaping from within theproduct, leading to fire or malfunction.zDo not turn the volume up to the extent thatyou cannot hear sounds from outside thevehicle while driving.Driving without being able to hear soundsfrom outside the vehicle may result in anaccident.zDo not insert your hand or fingers into thedisc slot.This may result in injury.WA R N I N G
BK0203201EN.book 21 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Operation Keys8-22 For pleasant driving
8
E00737100023E00737200024
1. Press the PWR/VOL key.Turn the power on, and resume playbackfrom the previous status.2. Press the PWR/VOL key.Turn the power OFF.
E00737300025
1. Turn the PWR/VOL key to adjust the vol-ume.Turn the PWR/VOL key clockwise toincrease, and counter- clockwise todecrease the volume.
E00737400026
1. Insert the disc into the disc slot with thelabel surface up.Push the disc in a certain amount, and theproduct will pull the disc in, and playbackwill start.2. Press the key.This will eject the disc from the product,so remove the disc.
Operation Keys Tu r n t h e P o w e r O N / O F F
NOTE
zHold down the steering MODE key to alsoturn the audio
function ON/OFF.
Adjust Volume
NOTE
zThe maximum value for volume is 45, andthe minimum is 0.zThe initial setting for volume is “17”.
Insert/Eject Discs
CAUTIONzWhen replacing discs, first ensure that thevehicle is stopped in an area in which stop-ping is permitted.zDo not insert your hand, fingers, or foreignobjects into the disc slot. This may lead toinjury, smoking, or fire.z8 cm CDs are not supported.
Disc slot
Disc*Label side
BK0203201EN.book 22 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Operation Keys
For pleasant driving 8-23
8
E00737501079

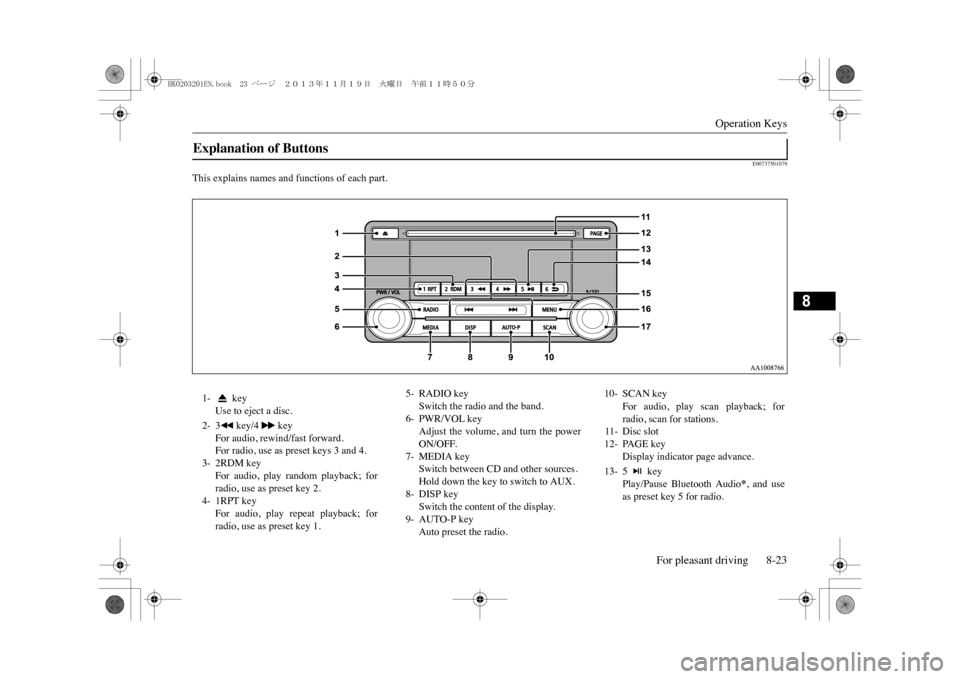

This explains names and functions of each part.Explanation of Buttons 1- key
Use to eject a disc.
2- 3 key/4 key
For audio, rewind/fast forward.For radio, use as preset keys 3 and 4.
3- 2RDM key
For audio, play random playback; forradio, use as preset key 2.
4- 1RPT key
For audio, play repeat playback; forradio, use as preset key 1.
5- RADIO key
Switch the radio and the band.
6- PWR/VOL key
Adjust the volume, and turn the powerON/OFF.
7- MEDIA key
Switch between CD and other sources.Hold down the key to switch to AUX.
8- DISP key
Switch the content of the display.
9- AUTO-P key
Auto preset the radio.
10- SCAN key
For audio, play scan playback; forradio, scan for stations.
11- Disc slot12- PAGE key
Display indicator page advance.
13- 5 key
Play/Pause Bluetooth Audio
*, and use
as preset key 5 for radio.
BK0203201EN.book 23 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Listen to Radio8-24 For pleasant driving
8
E00737601155
E00737700029
This explains how to listen to AM and FMradio broadcasts.Press the RADIO key to switch the band.Switch between AM and FM bands.The selected band is indicated on the display.
14-
6 keyReturn during audio track search, andstop Bluetooth Audio
*.
For radio, use as preset key 6.
15-
key/ key
For audio, select audio track/file; forradio, perform automatic station selec-tion.
16- MENU key
Switch to Menu mode.
17-
/SEL key
Adjust audio quality and select items.For radio, manually select stations.
*:Requires a separately-purchased Blue-tooth-capable audio device in equip-ment by type.
Ste er in g wheel audio remot e control switches 1- Vol + key, - key
Adjust audio functions and the mobilephone function volume.
2-
CH key, keySelect CD and other audio source tracksand radio stations.Hold down to skip up and down throughtracks.
3- MODE key
Hold down to turn the audio functionON/OFF. Additionally, each time this ispressed, this switches the audio source.The order of switching is as shownbelow.If devices are not connected, then theseare to be skipped, and the next sourceselected.
*1:An iPod cable (available separately) isrequired.
*2:Requires a separately-purchased Blue-tooth-capable audio device.
Listen to Radio To Listen to the Radio
NOTE
zThis switches between AM and FM.
BK0203201EN.book 24 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Listen to Radio
For pleasant driving 8-25
8
Turn the /SEL key to the frequency to lis-ten to.Collective search for stations that can bereceived.Press the SCAN key.When a station is received, this is played for 5seconds, then the product searches for thenext station.
Register the broadcast station in advance, andselect this at a later time.1. Tune in to the frequency to register.2. Hold down any of the keys from the 1RPTkey to the 6 key.A “Beep” sounds, and the preset key isregistered.
The top 6 stations with a strong signal can beautomatically registered in order with presetkeys in the AUTO-P mode.Hold down the AUTO-P key.Switch to the AUTO-P mode, and start auto-matic station selection.After completion of operations, the productwill receive the station registered in the presetkey [1].
Manual/Seek Station Selection
/SEL key(counter-clockwise)
Reduces the frequency being received.
/SEL key(clockwise)
Increases the frequency being received.
key
(hold down)
Release the button to start seek station selection, and when a station is received, scanning stops.
key
(hold down)Scan Station Selection
NOTE
zPress this button again while receiving thestation to return to normal reception.
Preset Memory
NOTE
zThe preset memory can register a maximumof 6 stations for each band.zIf a preset key that al
ready has a station reg-
istered is selected, then this is overwrittenwith the new preset.zPressing the preset key will select the previ-ously registered frequency.
Auto Preset
CAUTIONzPlease be aware that the formerly-registeredfrequency in the memory will be overwrit-ten.NOTE
zSeparate to normal re
ception preset keys,
this registers in preset keys in the AUTO-Pmode.zPressing the preset key will select the previ-ously registered frequency.zEach time the AUTO-P key is pressed, thisswitches between normal reception andAUTO-P mode.zIn the AUTO-P mode, manual/seek stationselection, as well as scan operation is alsopossible.
BK0203201EN.book 25 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Listen to CDs8-26 For pleasant driving
8
E00737800033
This explains how to listen to audio CDs(CD-DA/CD-TEXT).Insert the disc.Insert a disc to automatically start playback.m “Insert/Eject Discs” (P.8-22)If a disc is already within the product, pressthe MEDIA key to switch to CD as thesource.Press the key or key to select thetrack.This enables selection of the next or previoustrack.Hold down the 3 key or the 4 key.Fast forward/rewind is possible.
Repeat playback, random playback, and scanplayback are possible.Press the 1RPT key.Repeat playback of the track currently beingplayed.Press the 2RDM key.Play the tracks on the disc in a random order.
Press the SCAN key.Play the first 10 seconds of each of the trackson the whole disc in order.
E00737900034
This explains how to listen to audio files on adisc.Insert the disc.Insert a disc to automatically start playback.m “Insert/Eject Discs” (P.8-22)
Listen to CDs Play CDs Select the Track Fast Forward or Rewind
Switch Playback Mode Repeat Playback (RPT)
NOTE
zPressing again will cancel.zSelecting a track, ejecting, fast forwarding,or rewinding will cancel.
Random Playback (RDM)
NOTE
zPressing again will cancel.zEjecting will cancel this.
Scan Playback (SCAN)
NOTE
zPress this button agai
n during playback if
you wish to hear that track, and that trackwill play normally.
Listen to MP3s
CAUTIONzCD-ROM and CD-R/RW media can onlyplay back MP3 format audio files.
To L i s t e n t o M P 3 s
BK0203201EN.book 26 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Listen to MP3s
For pleasant driving 8-27
8
If a disc is already within the product, pressthe MEDIA key to switch to CD as thesource.Press the key or key to select thetrack.This enables selection of the next or previoustrack.Hold down the 3 key or the 4 key.Fast forward/rewind is possible.Repeat playback, random playback, and scanplayback are possible.
Press the 1RPT key.Repeat playback of the track currently beingplayed.Hold down the 1RPT key.Repeat playback of the tracks within thefolder currently being played.Press the 2RDM key.
Play the tracks in the folder in a randomorder.Hold down the 2RDM key.Play all tracks in folders on the disc in a ran-dom order.Press the SCAN key.Play the first 10 seconds of each of the tracksin the folder currently being played in order.Search folders and files, and select a track.1. Turn the /SEL key to select the folder.
NOTE
zDepending on the file structure, it may takesome time to read the contents of the disc.
Select the Track (File) Fast Forward or Rewind Switch Playback Mode
Repeat Playback (RPT)
NOTE
zPressing again will cancel.zSelecting a file, ejecti
ng, fast forwarding, or
rewinding will cancel.
Folder Repeat Playback
NOTE
zPressing again will cancel.zEven if the file is selected, folder repeatplayback will not be cancelled.
Random Playback (RDM)
NOTE
zPressing again will cancel.
Folder Random Playback
NOTE
zPressing again will cancel.
Scan Playback (SCAN) Search Tracks
BK0203201EN.book 27 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分
