Adaptive Cruise Control System (ACC)*7-46 Starting and driving
7
When the ACC no longer detects any vehiclein front, a buzzer sounds and the symbol ofvehicle running ahead disappears from thescreen. The vehicle is slowly accelerated toresume the set speed and continues running atthat speed.
E00634701079

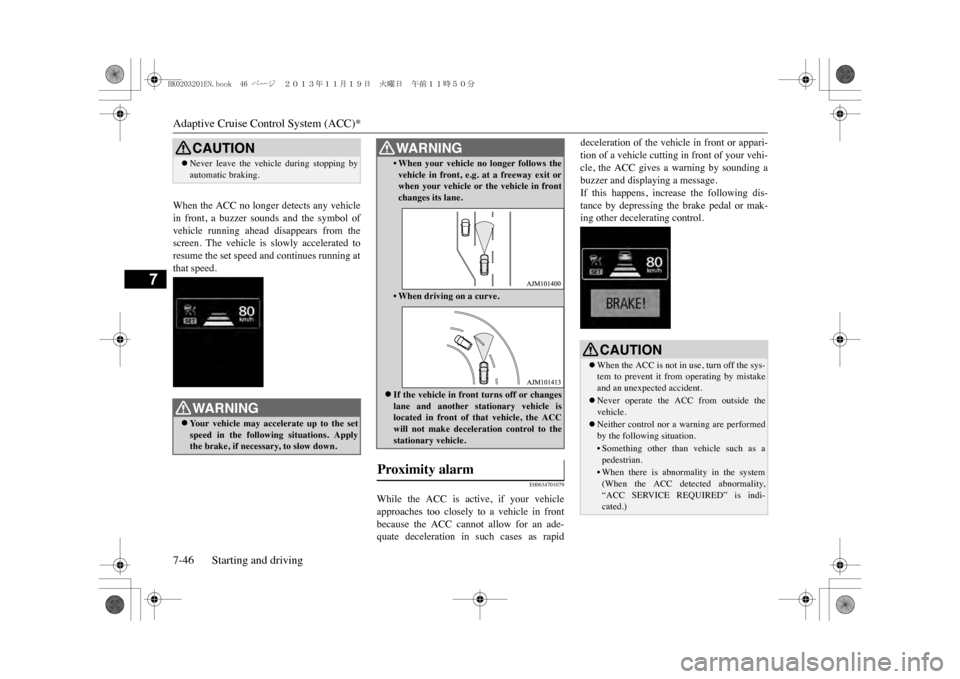

While the ACC is active, if your vehicleapproaches too closely to a vehicle in frontbecause the ACC cannot allow for an ade-quate deceleration in such cases as rapid
deceleration of the vehicle in front or appari-tion of a vehicle cutting in front of your vehi-cle, the ACC gives a warning by sounding abuzzer and displaying a message.If this happens, increase the following dis-tance by depressing the brake pedal or mak-ing other decelerating control.
CAUTIONzNever leave the vehi
cle during stopping by
automatic braking.WA R N I N GzYo u r v e h i c l e m a y a c c e l e r a t e u p t o t h e s e tspeed in the following situations. Applythe brake, if necessary, to slow down.
•When your vehicle no longer follows thevehicle in front, e.g. at a freeway exit orwhen your vehicle or the vehicle in frontchanges its lane.•When driving on a curve.zIf the vehicle in fron
t turns off or changes
lane and another stationary vehicle islocated in front of that vehicle, the ACCwill not make deceleration control to thestationary vehicle.
Proximity alarm

WA R N I N G
CAUTIONzWhen the ACC is not in use, turn off the sys-tem to prevent it from operating by mistakeand an unexpected accident.zNever operate the A
CC from outside the
vehicle.zNeither control nor a warning are performedby the following situation.•Something other than vehicle such as apedestrian.•When there is abnormality in the system(When the ACC detected abnormality,“ACC SERVICE REQUIRED” is indi-cated.)
BK0203201EN.book 46 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Adaptive Cruise Control System (ACC)*
Starting and driving 7-47
7
E00634801025
zThe ACC makes neither acceleration nordeceleration control and only issues warningin the following situation.•The vehicle in front is in a park or movingat an extremely slow speed.

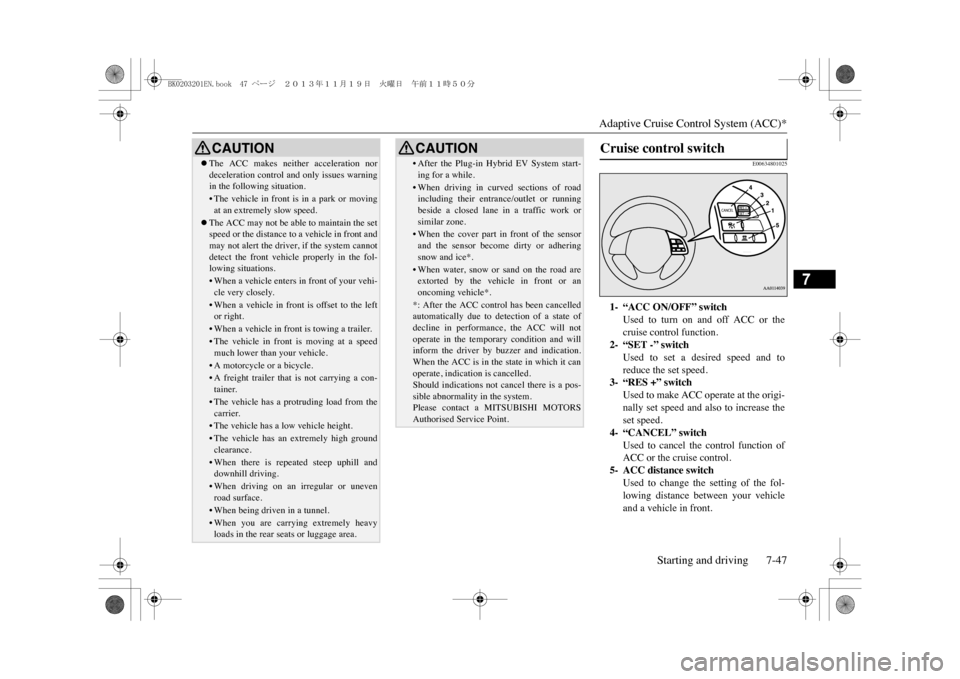

zThe ACC may not be able to maintain the setspeed or the distance to a vehicle in front andmay not alert the driver, if the system cannotdetect the front vehicle properly in the fol-lowing situations.• When a vehicle enters in front of your vehi-cle very closely.•When a vehicle in front is offset to the leftor right.•When a vehicle in front is towing a trailer.•The vehicle in front is moving at a speedmuch lower than your vehicle.•A motorcycle or a bicycle.•A freight trailer that is not carrying a con-tainer.•The vehicle has a protruding load from thecarrier.•The vehicle has a low vehicle height.•The vehicle has an extremely high groundclearance.•When there is repeated steep uphill anddownhill driving.•When driving on an
irregular or uneven
road surface.•When being driven in a tunnel.•When you are carrying extremely heavyloads in the rear s
eats or luggage area.
CAUTION
•After the Plug-in Hybrid EV System start-ing for a while.•When driving in curved sections of roadincluding their entrance/outlet or runningbeside a closed lane in a traffic work orsimilar zone.•When the cover part in
front of the sensor
and the sensor become dirty or adheringsnow and ice*.•When water, snow or sand on the road areextorted by the vehicle in front or anoncoming vehicle*.*: After the ACC control has been cancelledautomatically due to detection of a state ofdecline in performance, the ACC will notoperate in the temporary condition and willinform the driver by buzzer and indication.When the ACC is in the state in which it canoperate, indication is cancelled.Should indications not
cancel there
is a pos-
sible abnormality in the system.Please contact a MITSUBISHI MOTORSAuthorised Service Point.CAUTION
Cruise control switch

1- “ACC ON/OFF” switch
Used to turn on and off ACC or thecruise control function.
2- “SET -” switch
Used to set a desired speed and toreduce the set speed.
3- “RES +” switch
Used to make ACC operate at the origi-nally set speed and also to increase theset speed.
4- “CANCEL” switch
Used to cancel the control function ofACC or the cruise control.
5- ACC distance switch
Used to change the setting of the fol-lowing distance between your vehicleand a vehicle in front.
BK0203201EN.book 47 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Adaptive Cruise Control System (ACC)*7-48 Starting and driving
7
E00634901042
E00635001095
With the operation mode set to “ON”, press“ACC ON/OFF” switch shortly to activatethe ACC.The display on the information screen of themulti-information display will switch to showinformation on the ACC.When the ACC is activated, it is placed in the‘standby state’ at which any control functionis not started.
NOTE
zOperate the individual switches correctly andone after another. The ACC may be turned off or its controlfunction may be cancelled if two or moreswitches are pressed concurrently.
Driving aid display

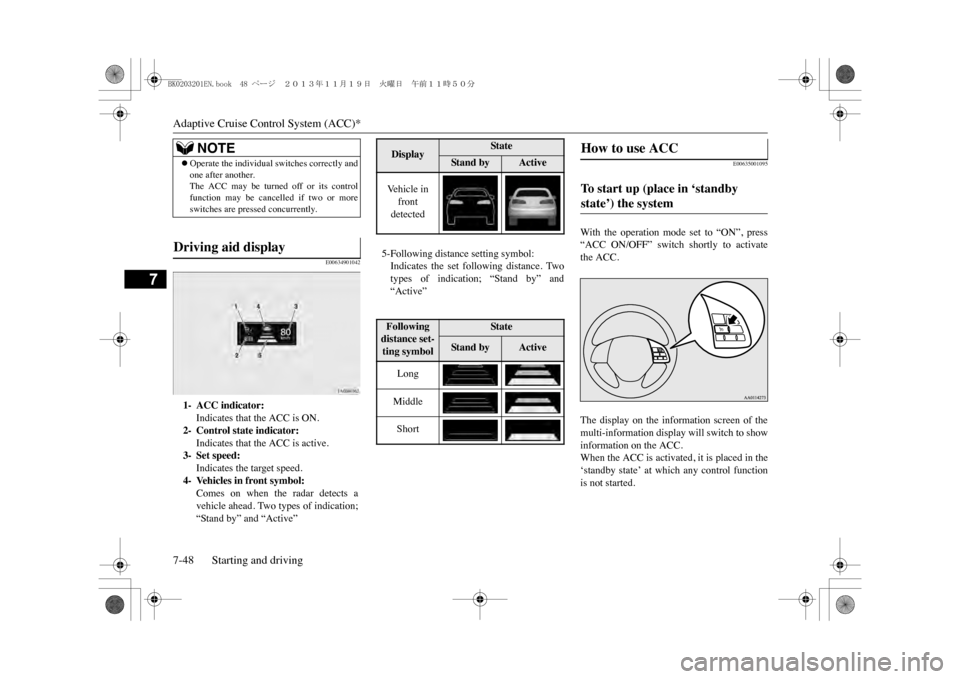

1- ACC indicator:
Indicates that the ACC is ON.
2- Control state indicator:
Indicates that the ACC is active.
3- Set speed:
Indicates the target speed.
4- Vehicles in front symbol:
Comes on when the radar detects avehicle ahead. Two types of indication;“Stand by” and “Active”
Display
Sta te
Sta nd by
Active
Ve h i c l e i n front detected5-Following distance setting symbol:Indicates the set following distance. Twotypes of indication; “Stand by” and“Active”Following distance set-ting symbol
Sta te
Sta nd by
Active
LongMiddleShort
How to use ACC

To s t a r t u p ( p l a c e i n ‘ s t a n d b y state’) the system

BK0203201EN.book 48 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Adaptive Cruise Control System (ACC)*
Starting and driving 7-49
7
Wi t h t h e A C C tu r ned on ( i n th e ‘ s t an dbystate’), push down the “SET -” switch whiledriving.When your desired speed is reached, releasethe “SET -” switch; then this speed is set andthe ACC initiates the speed control to the setspeed.
The set speed is indicated on the informationscreen of the multi-information display.The ACC can be selected between approxi-mately 40 km/h to 180 km/h.Yo u c a n s e t a n d i n i t i a t e t h e s p e e d c o n t r o lwhen driving at approximately 10-40 km/hwhile a vehicle in front is being detected. Inthis case, the target speed is set to 40 km/h.Setting to any speed outside this range doesnot cause the ACC to start the control.When the ACC is initialized, a buzzer soundis heard and the “SET” indicator lights up onthe screen. At the same time, the displayshowing the following distance setting andthe running-ahead vehicle symbol (only whenthe ACC is detecting a vehicle in front) isswitched to the in-control mode display.
NOTE
zEven if the ACC is in the activated statewhen the operation mode is set to “OFF”, thesystem does not automatically become acti-vated when the operation mode is set to“ON” next time.
To a c t i v a t e A C C c o n t r o l

NOTE
zThe ACC cannot start the control when anyof the following conditions is present. Youare alerted to this state by a sounding buzzer.•When the vehicle speed is lower thanapproximately 10 km/h or 180 km/h orhigher.•When the vehicle is running at a speedbetween approximately 10 and 40 km/h andthe ACC is not detecting any vehicle infront.•When the ASC is in the OFF state.•When ABS, ASC or TCL is working.•When the selector lever is in a positionother than “D” (DRIVE).• While the brake pedal is being depressed.•When the parking brake is engaged.•When the system determines that its perfor-mance has been degraded due to contami-nants adhered to the sensor.•When there is any abnormality in the sys-tem.
BK0203201EN.book 49 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Adaptive Cruise Control System (ACC)*7-50 Starting and driving
7

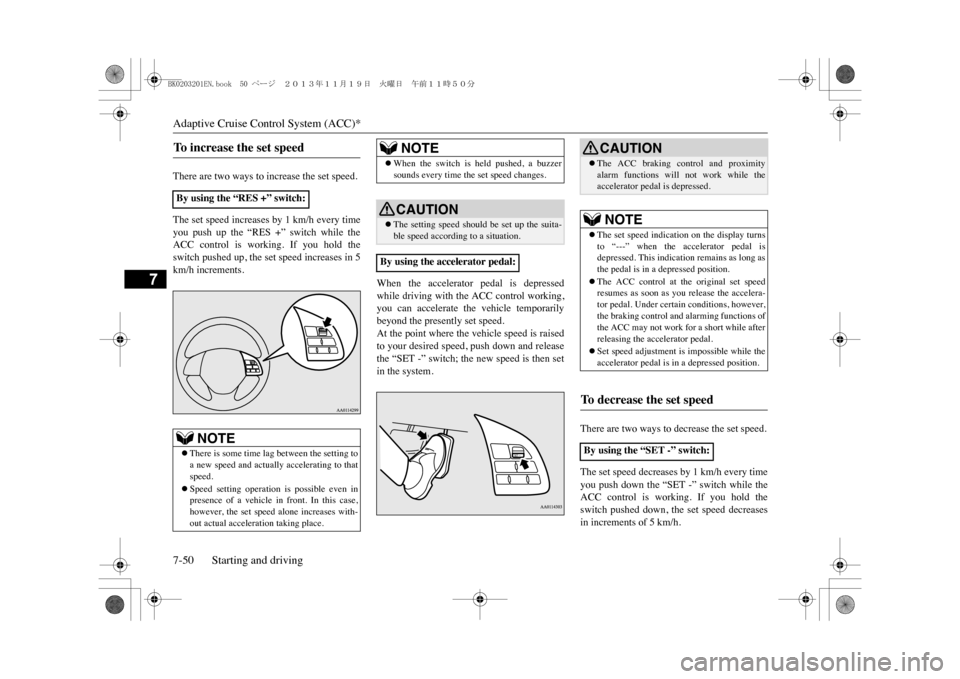

There are two ways to increase the set speed.The set speed increases by 1 km/h every timeyou push up the “RES +” switch while theACC control is working. If you hold theswitch pushed up, the set speed increases in 5km/h increments.

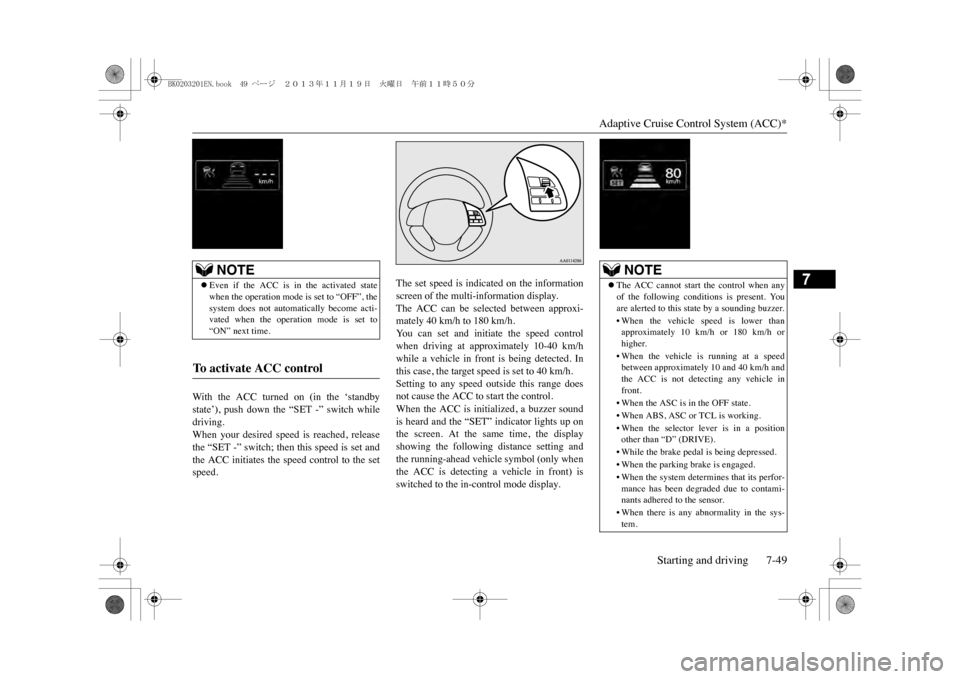

When the accelerator pedal is depressedwhile driving with the ACC control working,you can accelerate the vehicle temporarilybeyond the presently set speed.At the point where the vehicle speed is raisedto your desired speed, push down and releasethe “SET -” switch; the new speed is then setin the system.
There are two ways to decrease the set speed.The set speed decreases by 1 km/h every timeyou push down the “SET -” switch while theACC control is working. If you hold theswitch pushed down, the set speed decreasesin increments of 5 km/h.
To i n c r e a s e t h e s e t s p e e d

By using the “RES +” switch:
NOTE
zThere is some time lag between the setting toa new speed and actually accelerating to thatspeed.zSpeed setting operation is possible even inpresence of a vehicle in front. In this case,however, the set speed alone increases with-out actual acceleration taking place.
zWhen the switch is held pushed, a buzzersounds every time the set speed changes.CAUTIONzThe setting speed should be set up the suita-ble speed according to a situation.
By using the accelerator pedal:
NOTE
CAUTIONzThe ACC braking control and proximityalarm functions will not work while theaccelerator pedal is depressed.NOTE
zThe set speed indication on the display turnsto “---” when the accelerator pedal isdepressed. This indication remains as long asthe pedal is in a depressed position.zThe ACC control at the original set speedresumes as soon as you release the accelera-tor pedal. Under certain conditions, however,the braking control and alarming functions ofthe ACC may not work for a short while afterreleasing the accelerator pedal.zSet speed adjustment is impossible while theaccelerator pedal is in a depressed position.
To d e c r e a s e t h e s e t s p e e d

By using the “SET -” switch:
BK0203201EN.book 50 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Adaptive Cruise Control System (ACC)*
Starting and driving 7-51
7
If you depress the brake pedal while the ACCcontrol is working, the control is cancelled,allowing you to decelerate the vehicle. At the point where the vehicle slows down toyour desired speed, push down the “SET -”switch; the new speed is then set in the sys-tem.
Simply depress the accelerator pedal to tem-porarily accelerate the vehicle. Releasing thepedal automatically slows down the vehicleto the set speed and the ACC restarts its con-trol.
NOTE
zThere is some time lag between the setting toa new speed and actually decelerating to thatspeed.zIf there is a vehicle in front and your vehicleis following that vehicle at a speed lowerthan the set speed, the set speed alonedecreases with no actual deceleration takingplace.zWhen the switch is held pushed, a buzzersounds every time the set speed changes.CAUTIONzThe setting speed should be set up the suita-ble speed according to a situation.
By using the brake pedal:
NOTE
zThe ACC control is ca
ncelled if you depress
the brake pedal and the ACC control doesnot resume even when you release the pedal.
To t e m p o r a r i l y a c c e l e r a t e t h e v e h i -cle
CAUTIONzThe ACC braking control and proximityalarm functions will not work while theaccelerator pedal is depressed.zThe setting speed should be set up the suita-ble speed according to a situation.
BK0203201EN.book 51 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Adaptive Cruise Control System (ACC)*7-52 Starting and driving
7
Yo u c a n c a n c e l t h e A C C c o n t r o l b y u s i n geither of the methods below. When the control is cancelled, the system isplaced in the ‘standby state’. You can makethe system restart the control by using the“SET -” or “RES +” switch if the conditionsfor activating the control are met.zPress the “CANCEL” switch.zDepress the brake pedal.
When the system shifts into the ‘standbystate’ as a result of cancellation of the ACCcontrol, the “SET” indicator goes out. At thesame time, the display of the following dis-tance setting and running-ahead vehicle sym-bol (only when the ACC is detecting avehicle) is placed in the standby state of dis-play.
The ACC control is automatically cancelledand the ACC is placed in the ‘standby’ statein any of the situations listed below; you arealerted to this condition by the sound of abuzzer and a message on the display. You canmake the system restart the control by usingthe “SET -”” or “RES +” switch if the condi-tions for resuming the control are reestab-lished.zWhen your vehicle stops as the vehicle infront stops.zWhen the ASC is turned off.zWhen ABS, ASC or TCL is in operation.
NOTE
zThe set speed indication on the display turnsto “---” when the accelerator pedal isdepressed. This indication remains as long asthe pedal is in a depressed position.zIn certain conditions, the braking control andalarming functions of the ACC may not workfor a short while after releasing the accelera-tor pedal.zSet speed adjustment is impossible while theaccelerator pedal is
in a depressed position.
To t e r m i n a t e A C C c o n t r o l

To c a n c e l o f A C C c o n t r o l
NOTE
zYo u c a n a l s o c a n c e l t h e A C C c o n t r o l b ypressing the “ACC ON/OFF” switch. If thisswitch is pressed, the ACC is turned off.
BK0203201EN.book 52 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Adaptive Cruise Control System (ACC)*
Starting and driving 7-53
7

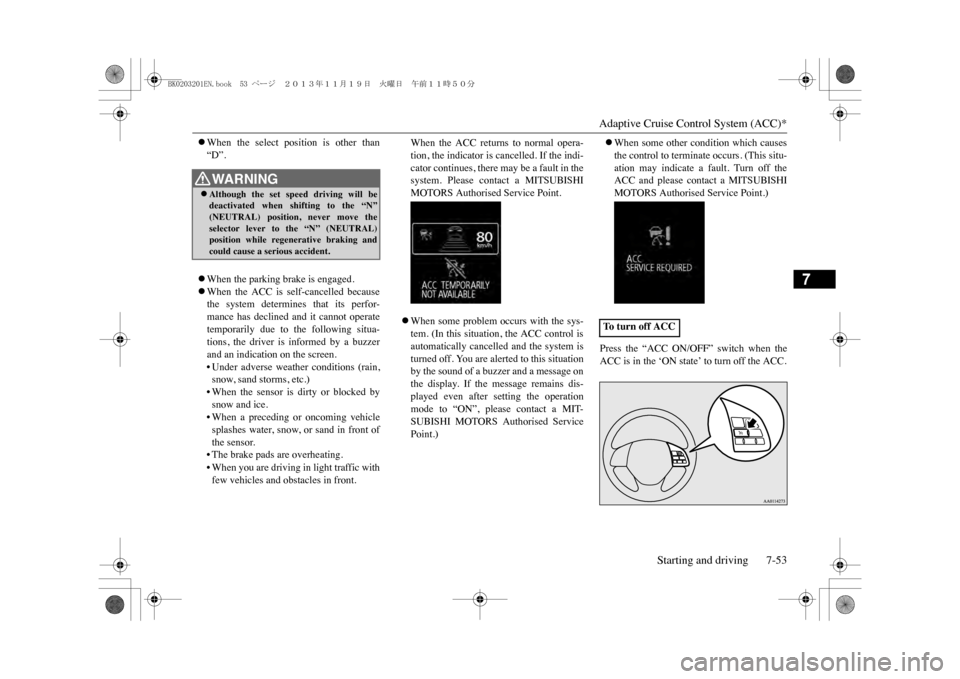

zWhen the select position is other than“D”.zWhen the parking brake is engaged.zWhen the ACC is self-cancelled becausethe system determines that its perfor-mance has declined and it cannot operatetemporarily due to the following situa-tions, the driver is informed by a buzzerand an indication on the screen.•Under adverse weather conditions (rain,snow, sand storms, etc.)•When the sensor is dirty or blocked bysnow and ice.•When a preceding or oncoming vehiclesplashes water, snow, or sand in front ofthe sensor.•The brake pads are overheating.•When you are driving in light traffic withfew vehicles and obstacles in front.
When the ACC returns to normal opera-tion, the indicator is cancelled. If the indi-cator continues, there may be a fault in thesystem. Please contact a MITSUBISHIMOTORS Authorised Service Point.zWhen some problem occurs with the sys-tem. (In this situation, the ACC control isautomatically cancelled and the system isturned off. You are alerted to this situationby the sound of a buzzer and a message onthe display. If the message remains dis-played even after setting the operationmode to “ON”, please contact a MIT-SUBISHI MOTORS Authorised ServicePoint.)
zWhen some other condition which causesthe control to terminate occurs. (This situ-ation may indicate a fault. Turn off theACC and please contact a MITSUBISHIMOTORS Authorised Service Point.)
Press the “ACC ON/OFF” switch when theACC is in the ‘ON state’ to turn off the ACC.
WA R N I N GzAlthough the set speed driving will bedeactivated when shifting to the “N”(NEUTRAL) position, never move theselector lever to the “N” (NEUTRAL)position while regenerative braking andcould cause a serious accident.
To turn off ACC
