Electric motor specifications12-8 Specifications
12
E01100603947E01100803747E01100904211
Normal charging system
IP degrees
IP44: When a charge connector is connected
IP55: When charging lid is closed and vehicle is moving
Electric motor specifications
Item
Front Motor
Rear Motor
Electric motor model
S61
Y61
Maximum output (ECE net)
60 kW
Maximum torque
137 N•m
195 N•m
Maximum 30 minutes power
25 kW
Low voltage electrical system Vo l t a g e
12 V
Auxiliary battery
Ty p e ( J I S )
S46B24L(S)
Capacity (5HR)
36 Ah
Spark plug type
NGK
DIFR5C11
Ty r e s a n d w h e e l s Ty r e
215/70R16 100H
225/55R18 98H
Wheel
Size
16x6 1/2JJ
18x7J
Offset
38 mm
BK0203201EN.book 8 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Other specifications
Specifications 12-9
12
E01101002185
NOTE
zContact your MITSUBISHI MOTORS Aut
horised Service Point for details on
the combination used on your vehicle.
Other specifications Fuel system
Fuel control
Electric controlled injection
Fuel pump
Electric motor type
Steering system
Rack and pinion type, power assisted
Suspension
Front
Independent type, MacPherson strut, coil spring
Rear
Independent type, multi-link, coil spring
Service brakes
Ty p e
Hydraulic, dual diagonal circuit with power assistance,
anti-lock brake system with electronic brake force distribution function
and regenerative brake system
Front
Ve n t i l a t e d d i s c b r a k e s
Rear
Disc brakes
Parking brakes
Parking brake acts mechanically on rear wheels
NOTE
zYo u r v e h i c l e c a n n o t b e r u n o n L .
P. G. ( L i q u i d P e t r o l e u m G a s ) .
BK0203201EN.book 9 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Refill capacities12-10 Specifications
12
E01101305642

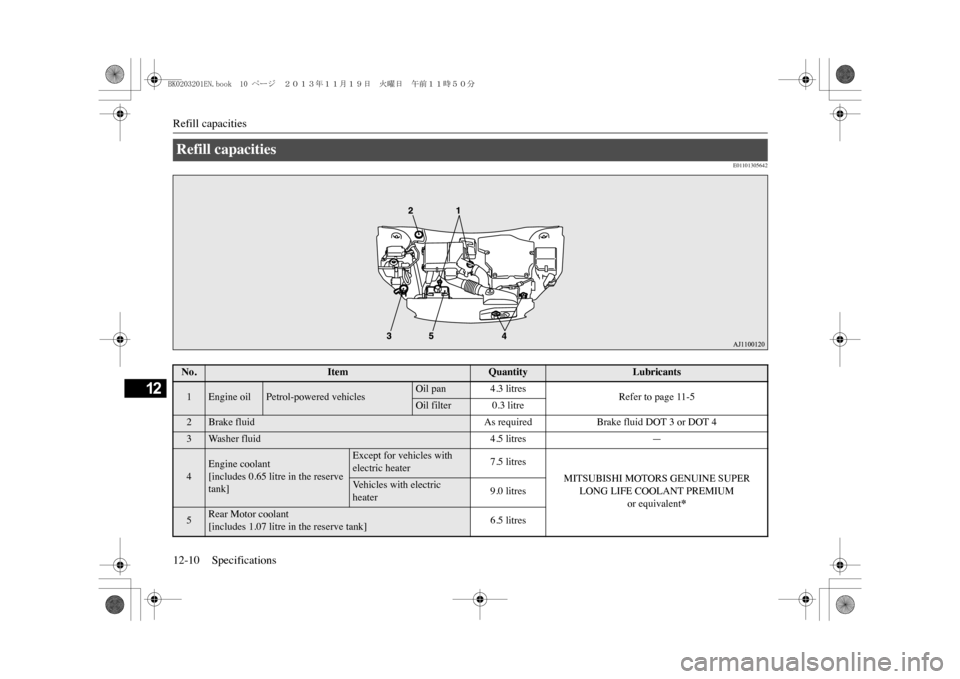

Refill capacities No.
Item
Quantity
Lubricants
1
Engine oil
Petrol-powered vehicles
Oil pan 4.3 litres
Refer to page 11-5
Oil filter 0.3 litre
2
Brake fluid
As required
Brake fluid DOT 3 or DOT 4
3
Wa s h e r f l u i d
4.5 litres
—
4
Engine coolant[includes 0.65 litre in the reserve tank]
Except for vehicles with electric heater
7.5 litres
MITSUBISHI MOTORS GENUINE SUPER
LONG LIFE COOLANT PREMIUM
or equivalent
*
Ve h i c l e s w i t h e l e c t r i c heater
9.0 litres
5
Rear Motor coolant[includes 1.07 litre in the reserve tank]
6.5 litres
BK0203201EN.book 10 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Refill capacities
Specifications 12-11
12
*: Similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid
organic acid tech-
nology
6
Front Motor fluid
2.2 litres MITSUBISHI MOTORS GENUINE CVTF-J4
7
Transaxle fluid
Front 3.46 litres
MITSUBISHI MOTORS GENUINE ATF SP III
Rear
0.85 litres
CAUTIONzFor the transaxle fluid, use only th
e MITSUBISHI MOTORS GENUINE ATF.
Use of a different fluid could damage the transaxle.No.
Item
Quantity
Lubricants
8
Refrigerant (air conditioner)
570 - 610 g
HFC-134a
No.
Item
Quantity
Lubricants
BK0203201EN.book 11 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

BK0203201EN.book 12 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分
