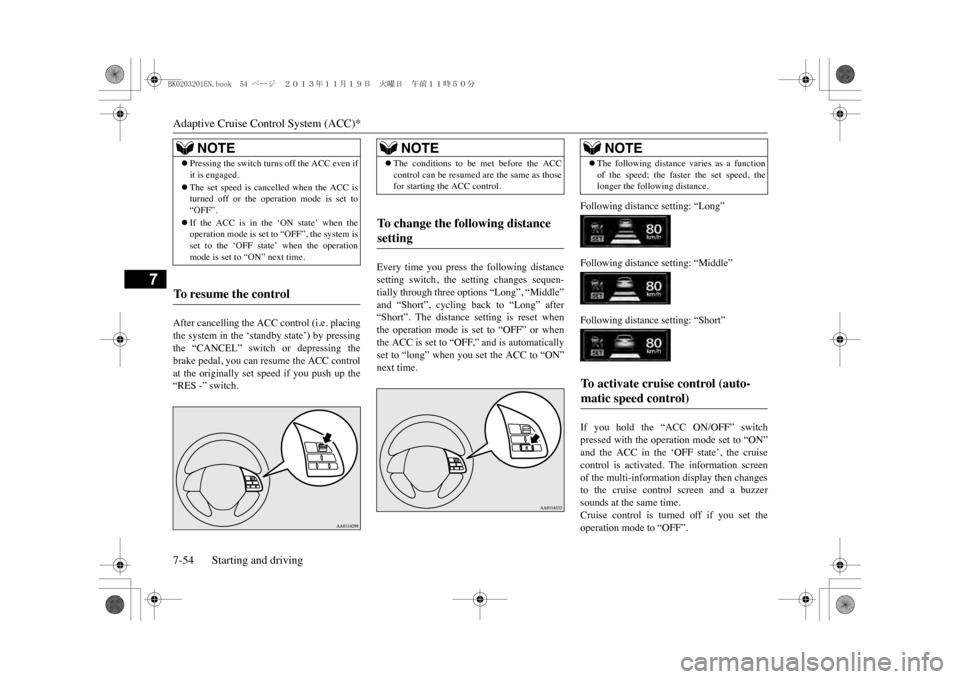

Adaptive Cruise Control System (ACC)*7-54 Starting and driving
7
After cancelling the ACC control (i.e. placingthe system in the ‘standby state’) by pressingthe “CANCEL” switch or depressing thebrake pedal, you can resume the ACC controlat the originally set speed if you push up the“RES -” switch.
Every time you press the following distancesetting switch, the setting changes sequen-tially through three options “Long”, “Middle”and “Short”, cycling back to “Long” after“Short”. The distance setting is reset whenthe operation mode is set to “OFF” or whenthe ACC is set to “OFF,” and is automaticallyset to “long” when you set the ACC to “ON”next time.
Following distance setting: “Long”Following distance setting: “Middle”Following distance setting: “Short”If you hold the “ACC ON/OFF” switchpressed with the operation mode set to “ON”and the ACC in the ‘OFF state’, the cruisecontrol is activated. The information screenof the multi-information display then changesto the cruise control screen and a buzzersounds at the same time.Cruise control is turned off if you set theoperation mode to “OFF”.
NOTE
zPressing the switch turns off the ACC even ifit is engaged.zThe set speed is cancelled when the ACC isturned off or the operation mode is set to“OFF”.zIf the ACC is in the ‘ON state’ when theoperation mode is set to “OFF”, the system isset to the ‘OFF state’ when the operationmode is set to
“ON” ne
xt time.
To r e s u m e t h e c o n t r o l

NOTE
zThe conditions to be met before the ACCcontrol can be resumed are the same as thosefor starting the ACC control.
To c h a n g e t h e f o l l o w i n g d i s t a n c e setting

NOTE
zThe following distance varies as a functionof the speed; the fast
er the set speed, the
longer the following distance.
To a c t i v a t e c r u i s e c o n t r o l ( a u t o -matic speed control)

BK0203201EN.book 54 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

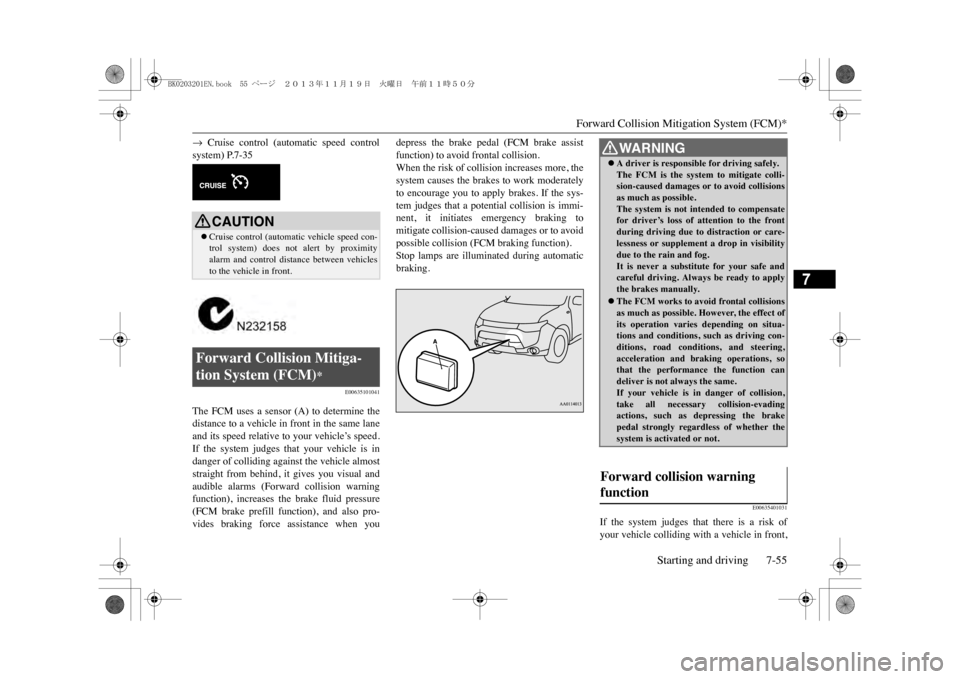

Forward Collision Mitigation System (FCM)*
Starting and driving 7-55
7
m Cruise control (automatic speed controlsystem) P.7-35
E00635101041
The FCM uses a sensor (A) to determine thedistance to a vehicle in front in the same laneand its speed relative to your vehicle’s speed.If the system judges that your vehicle is indanger of colliding against the vehicle almoststraight from behind, it gives you visual andaudible alarms (Forward collision warningfunction), increases the brake fluid pressure(FCM brake prefill function), and also pro-vides braking force assistance when you
depress the brake pedal (FCM brake assistfunction) to avoid frontal collision.When the risk of collision increases more, thesystem causes the brakes to work moderatelyto encourage you to apply brakes. If the sys-tem judges that a potential collision is immi-nent, it initiates emergency braking tomitigate collision-caused damages or to avoidpossible collision (FCM braking function).Stop lamps are illuminated during automaticbraking.
E00635401031
If the system judges that there is a risk ofyour vehicle colliding with a vehicle in front,
CAUTIONzCruise control (automa
tic vehicle speed con-
trol system) does not alert by proximityalarm and control dist
ance between vehicles
to the vehicle in front.
Forward Collision Mitiga-tion System (FCM)
*
WA R N I N GzA driver is responsible for driving safely.The FCM is the system to mitigate colli-sion-caused da
mages or to avoid collisions
as much as possible.The system is not intended to compensatefor driver’s loss of attention to the frontduring driving due to distraction or care-lessness or supplement a drop in visibilitydue to the rain and fog.It is never a substitute for your safe andcareful driving. Always be ready to applythe brakes manually.zThe FCM works to avoi
d frontal collisions
as much as possible.
However, the effect of
its operation varies
depending on situa-
tions and conditions, such as driving con-ditions, road conditions, and steering,acceleration and braking operations, sothat the performanc
e the function can
deliver is not always the same.If your vehicle is in danger of collision,take all necessary
collision-evading
actions, such as de
pressing the brake
pedal strongly regardless of whether thesystem is activated or not.
Forward collision warning function

BK0203201EN.book 55 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Forward Collision Mitigation System (FCM)*7-56 Starting and driving
7
this function warns you of the potential haz-ard with visual and audible alarms.When this function is triggered, a buzzersounds and, at the same time, a “BRAKE!”message appears on the information screen ofthe multi-information display.
E00635200016
If the system judges that there is a risk ofyour vehicle colliding with a vehicle in front,
this function prefills the brake line with addi-tional brake fluid to make the brakes moreresponsive to your brake pedal operation.
E00635301027
If the system judges that there is a risk ofyour vehicle colliding with a vehicle in front,this function deploys the brake assist soonerthe brake assist operation.
E00635501104
If the system judges that there is a high risk ofyour vehicle colliding with a vehicle in front,the system applies the brakes moderately toencourage you to apply the brakes. If the system judges that a collision is una-voidable, it initiates emergency braking con-
trol to mitigate collision-caused damages or,if the situation permits, to avoid a collision.When the emergency braking control is trig-gered, you are warned of the hazard with vis-ual and audible alarms like with the FCMalarm function.Once the emergency braking has worked, youare alerted to this by a message on the infor-mation screen of the multi-information dis-play.
CAUTIONzThis function does not work for a vehicle infront which is moving extremely slower thanyour vehicle.zUnder certain conditions, the audible alarmmay not work at all or may be scarcely audi-ble. Do not overly rely on the system; if yourvehicle is in danger of collision, take all nec-essary collision-evading actions, such asdepressing the brake pedal strongly regard-less of whether the system is activated or not.
FCM brake prefill function

FCM brake assist function

CAUTIONzThe brake assist function may not be trig-gered when the brake pedal is operated incertain ways.Do not overly rely on the system; if yourvehicle is in danger of collision, take all nec-essary collision-evading actions, such asdepressing the brake pedal strongly regard-less of whether the system is activated or not.
FCM braking function

CAUTIONzDo not use the FCM as a normal braking.zAfter your vehicle has stopped following theactivation of the FCM, automatic braking isreleased. As the vehicle will then start creep-ing, be sure to depress the brake pedal tohold the vehicle stationary.zWhen applying the brake during the auto-matic braking condition the pedal will feelfirm.This is not abnormal.Yo u c a n a p p l y m o r e p r e s s u r e t o t h e p e d a l t oassist in braking.
BK0203201EN.book 56 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

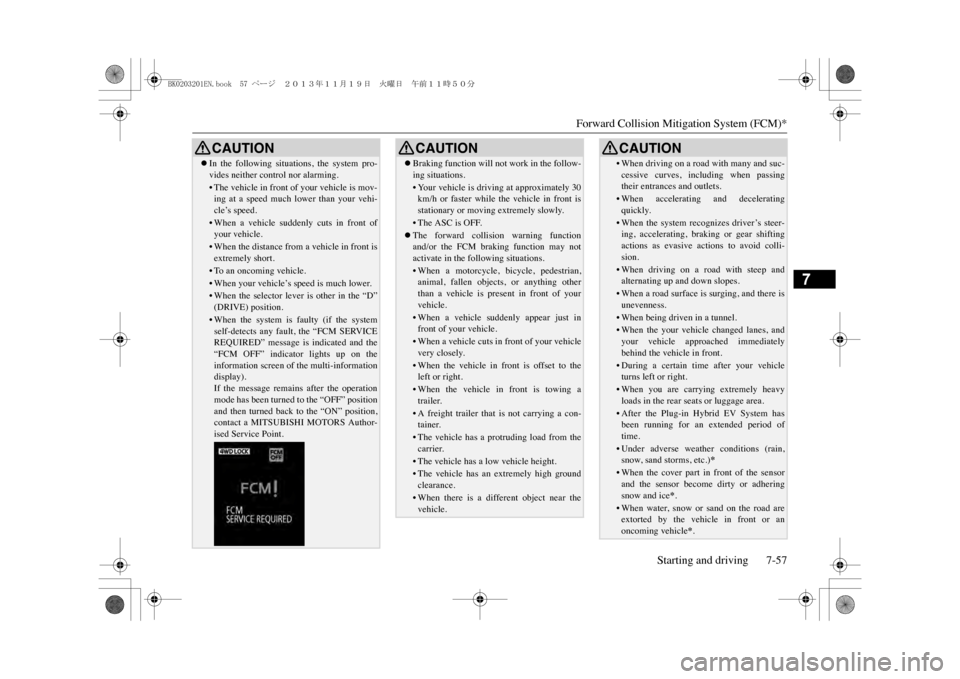

Forward Collision Mitigation System (FCM)*
Starting and driving 7-57
7
zIn the following situations, the system pro-vides neither cont
rol nor alarming.
•The vehicle in front of your vehicle is mov-ing at a speed much lower than your vehi-cle’s speed.•When a vehicle suddenl
y cuts in front of
your vehicle.•When the distance from a vehicle in front isextremely short.•To an oncoming vehicle.•When your vehicle’s speed is much lower.•When the selector leve
r is other in the “D”
(DRIVE) position.•When the system is faulty (if the systemself-detects any fault, the “FCM SERVICEREQUIRED” message is indicated and the“FCM OFF” indicator lights up on theinformation screen of the multi-informationdisplay).If the message remains after the operationmode has been turned to the “OFF” positionand then turned back to the “ON” position,contact a MITSUBISHI MOTORS Author-ised Service Point.CAUTION
zBraking function will not work in the follow-ing situations.•Your vehicle is driving at approximately 30km/h or faster while the vehicle in front isstationary or moving extremely slowly.•The ASC is OFF.zThe forward collision warning functionand/or the FCM braking function may notactivate in the following situations.•When a motorcycle, bicycle, pedestrian,animal, fallen objects, or anything otherthan a vehicle is present in front of yourvehicle.•When a vehicle suddenly appear just infront of your vehicle.•When a vehicle cuts in front of your vehiclevery closely.•When the vehicle in front is offset to theleft or right.•When the vehicle in front is towing atrailer.•A freight trailer that is not carrying a con-tainer.•The vehicle has a pr
otruding load from the
carrier.•The vehicle has a low vehicle height.•The vehicle has an extremely high groundclearance.•When there is a different object near thevehicle.CAUTION
•When driving on a road with many and suc-cessive curves, including when passingtheir entrances and outlets.•When accelerating and deceleratingquickly.•When the system recognizes driver’s steer-ing, accelerating, braking or gear shiftingactions as evasive actions to avoid colli-sion.•When driving on a road with steep andalternating up
and down slopes.
•When a road surface is surging, and there isunevenness.•When being driven in a tunnel.•When the your vehicle
changed lanes, and
your vehicle approached immediatelybehind the vehicle in front.•During a certain time after your vehicleturns left or right.•When you are carrying extremely heavyloads in the rear seats or luggage area.•After the Plug-in Hybrid EV System hasbeen running for an extended period oftime.•Under adverse weather conditions (rain,snow, sand storms, etc.)
*
•When the cover part in
front of the sensor
and the sensor become dirty or adheringsnow and ice
*.
•When water, snow or sand on the road areextorted by the vehicle in front or anoncoming vehicle
*.
CAUTION
BK0203201EN.book 57 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

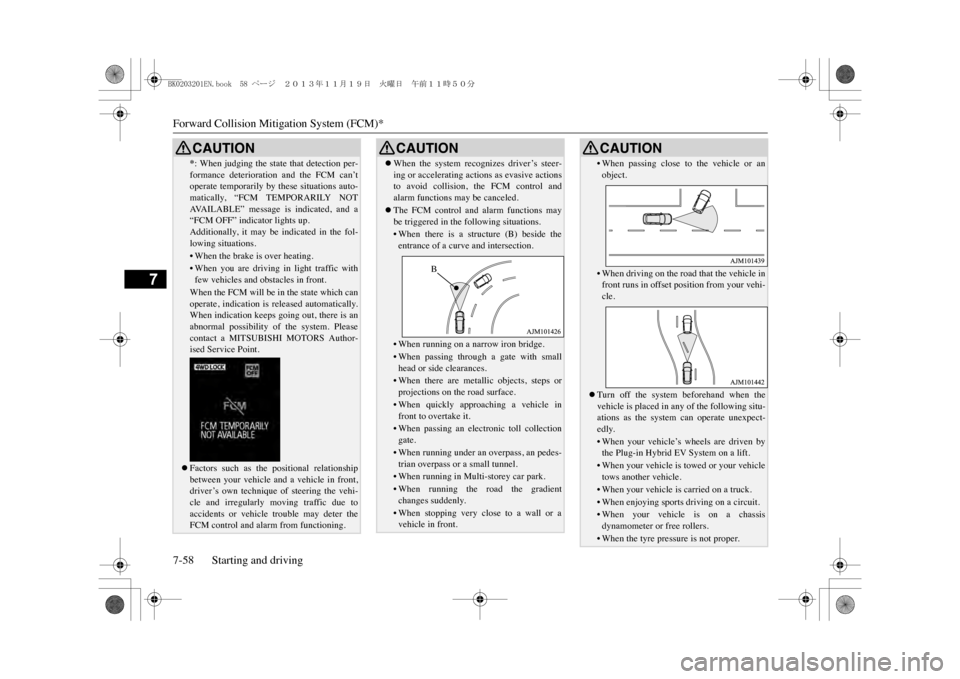

Forward Collision Mitigation System (FCM)*7-58 Starting and driving
7
*: When judging the state that detection per-formance deterioration and the FCM can’toperate temporarily by these situations auto-matically, “FCM TEMPORARILY NOTAVA I L A B L E ” m e s s a g e i s i n d i c a t e d , a n d a“FCM OFF” indicator lights up.Additionally, it may be indicated in the fol-lowing situations.•When the brake is over heating.•When you are driving in light traffic withfew vehicles and obs
tacles in front.
When the FCM will be in the state which canoperate, indication is released automatically.When indication keeps going out, there is anabnormal possibility of the system. Pleasecontact a MITSUBISHI MOTORS Author-ised Service Point.zFactors such as the positional relationshipbetween your vehicle and a vehicle in front,driver’s own technique of steering the vehi-cle and irregularly moving traffic due toaccidents or vehicle trouble may deter theFCM control and alarm from functioning.CAUTION
zWhen the system recognizes driver’s steer-ing or accelerating actions as evasive actionsto avoid collision, the FCM control andalarm functions may be canceled.zThe FCM control and alarm functions maybe triggered in the following situations.•When there is a structure (B) beside theentrance of a curve and intersection.•When running on a na
rrow iron bridge.
•When passing through a gate with smallhead or side clearances.•When there are metallic objects, steps orprojections on the road surface.•When quickly approaching a vehicle infront to overtake it.•When passing an electronic toll collectiongate.•When running under an
overpass, an pedes-
trian overpass or a small tunnel.•When running in Multi-storey car park.•When running the road the gradientchanges suddenly.•When stopping very close to a wall or avehicle in front.CAUTION
B
•When passing close to the vehicle or anobject.•When driving on the road that the vehicle infront runs in offset
position from your vehi-
cle.
zTurn off the system beforehand when thevehicle is placed in a
ny of the following situ-
ations as the system can operate unexpect-edly.•When your vehicle’s wheels are driven bythe Plug-in Hybrid EV System on a lift.•When your vehicle is towed or your vehicletows another vehicle.•When your vehicle is carried on a truck.•When enjoying sports driving on a circuit.•When your vehicle is on a chassisdynamometer or free rollers.•When the tyre pressure is not proper. CAUTION
BK0203201EN.book 58 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

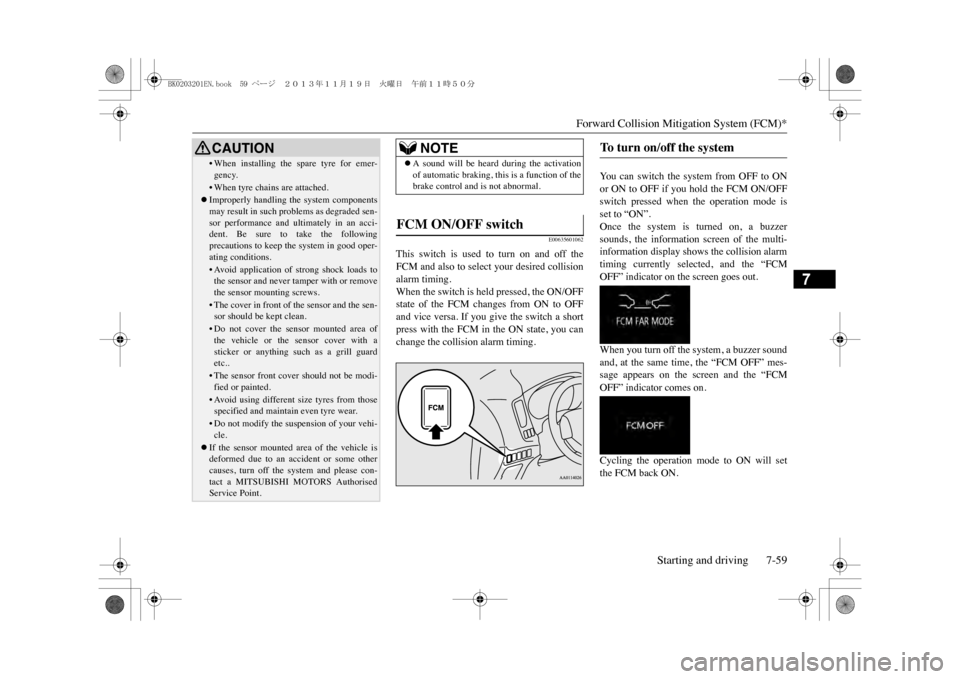

Forward Collision Mitigation System (FCM)*
Starting and driving 7-59
7
E00635601062
This switch is used to turn on and off theFCM and also to select your desired collisionalarm timing.When the switch is held pressed, the ON/OFFstate of the FCM changes from ON to OFFand vice versa. If you give the switch a shortpress with the FCM in the ON state, you canchange the collision alarm timing.
Yo u c a n s w i t c h t h e s y s t e m f r o m O F F t o O Nor ON to OFF if you hold the FCM ON/OFFswitch pressed when the operation mode isset to “ON”.Once the system is turned on, a buzzersounds, the information screen of the multi-information display shows the collision alarmtiming currently selected, and the “FCMOFF” indicator on the screen goes out.When you turn off the system, a buzzer soundand, at the same time, the “FCM OFF” mes-sage appears on the screen and the “FCMOFF” indicator comes on.Cycling the operation mode to ON will setthe FCM back ON.
•When installing the spare tyre for emer-gency.•When tyre chains are attached.zImproperly handling the system componentsmay result in such problems as degraded sen-sor performance and ultimately in an acci-dent. Be sure to take the followingprecautions to keep the system in good oper-ating conditions.•Avoid application of
strong shock loads to
the sensor and never tamper with or removethe sensor mounting screws.• The cover in front of the sensor and the sen-sor should be kept clean.•Do not cover the sensor mounted area ofthe vehicle or the sensor cover with asticker or anything such as a grill guardetc..•The sensor front cove
r should not be modi-
fied or painted.•Avoid using different
size tyres from those
specified and maintain even tyre wear.•Do not modify the suspension of your vehi-cle.
zIf the sensor mounted area of the vehicle isdeformed due to an acci
dent or some other
causes, turn off the system and please con-tact a MITSUBISHI MOTORS AuthorisedService Point.CAUTION
NOTE
zA sound will be heard during the activationof automatic braking, this is a function of thebrake control and is not abnormal.
FCM ON/OFF switch

To t u r n o n / o f f t h e s y s t e m

BK0203201EN.book 59 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

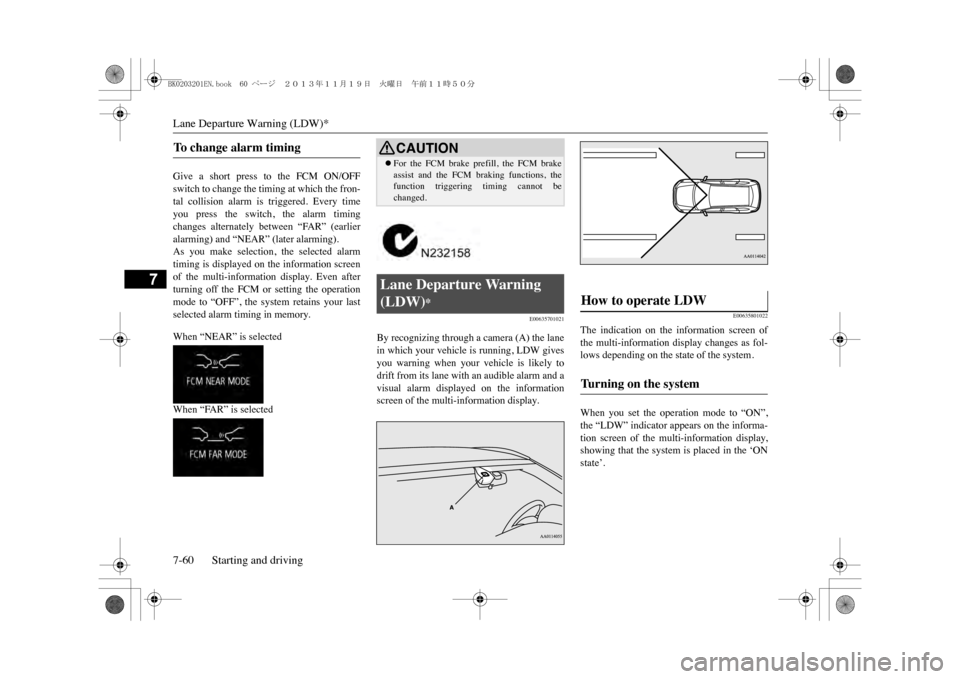

Lane Departure Warning (LDW)*7-60 Starting and driving
7
Give a short press to the FCM ON/OFFswitch to change the timing at which the fron-tal collision alarm is triggered. Every timeyou press the switch, the alarm timingchanges alternately between “FAR” (earlieralarming) and “NEAR” (later alarming).As you make selection, the selected alarmtiming is displayed on the information screenof the multi-information display. Even afterturning off the FCM or setting the operationmode to “OFF”, the sy
stem retains your last
selected alarm timing in memory.When “NEAR” is selectedWhen “FAR” is selected
E00635701021
By recognizing through a camera (A) the lanein which your vehicle is running, LDW givesyou warning when your vehicle is likely todrift from its lane with an audible alarm and avisual alarm displayed on the informationscreen of the multi-information display.
E00635801022
The indication on the information screen ofthe multi-information display changes as fol-lows depending on the state of the system.When you set the operation mode to “ON”,the “LDW” indicator appears on the informa-tion screen of the multi-information display,showing that the system is placed in the ‘ONstate’.
To c h a n g e a l a r m t i m i n g

CAUTIONzFor the FCM brake prefill, the FCM brakeassist and the FCM braking functions, thefunction triggering timing cannot bechanged.
Lane Departure Warning (LDW)
*
How to operate LDW

Tu r n i n g o n t h e s y s t e m

BK0203201EN.book 60 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Lane Departure Warning (LDW)*
Starting and driving 7-61
7
When you press the LDW switch, the “LDW”indicator on the information screen of themulti-information display goes out, showingthat the system is placed in the ‘OFF state’.Press the switch again, the system returns to“ON”.
In the standby mode, the system is capable ofrecognizing the lane in which your vehicle ispositioned and issuing audible warning whenyour vehicle goes out of the lane.The system automatically shifts from the ‘ONstate’ to the ‘standby state’ if all of the fol-lowing conditions are simultaneously met.The “LDW” indicator in the information dis-play change to indicator (green).zThe vehicle speed is approximately 65km/h or higher.zThe turn-signal lever is not operated.zThe hazard lamp is not activated.zThe brake pedal is not depressed.zEnvironmental conditions are adequatefor the system to recognize the lane mark-ings on both sides.zThe system has been placed in the ‘ONstate’.
A buzzer sounds intermittently and indicationof “LANE DEPARTURE” appears in theinformation display, indicator flashing inamber when your vehicle is about to leave orhas left the lane in the standby mode.
Tu r n i n g o f f t h e s y s t e m

NOTE
zWhen you set the operation mode to “OFF”with the system “OFF,” the system will berestored “ON.”
Standby state

NOTE
zThe system stays in the “ON” state for about7 seconds after the hazard lamp has stoppedflashing or the turn-si
gnal lever has returned
to the home position.
Lane departure warning
