Selector Lever (Joystick Type)7-14 Starting and driving
7
If the operation mode is in OFF and thedriver’s door is opened with the keyless oper-ation key in the key slot, the outer buzzersounds for approximately 3 seconds and theinner buzzer sounds for approximately 1 min-ute or warning display will appear to remindyou to remove the key.
E00636100054
E00636200026
Operate the selector lever slowly and securelyin the following method.˙ (home position) to “D” or “R”: Simply shiftthe lever.˙ (home position) to “N”: Shift and hold at“N” position for a while.˙ (home position) to “B”: You can shift theselector lever to “B” only when the selectposition is in “D” position.When shifted from
˙ (home position) to “B”,
the regenerative brake force will increase byone step.When shifted to “B” once again, the regener-ative brake force will become the maximum.When you shift the selector lever to “D”, theselect position returns to “D”.
The selector lever always returns to its homeposition when it is released.
Selector Lever (Joystick Ty p e )
Selector lever operation
(home position)
NOTE
zIf you operate the select lever to (B) twicetoo quickly, the regenerative brake force maynot become the maximum.WA R N I N GzDo not replace the selector lever knobother than MITSUBISHI MOTORS genu-ine part. In addition, do not hang anobject on the selector
lever as it may be a
cause of an accident.zWhen you shift the selector lever to “D” or“R” position, always
depress the brake
pedal with your right foot for your safety.Never shift the lever while depressing theaccelerator pedal. Doing so will start yourvehicle abruptly, which
may lead to a seri-
ous accident. It may also be a cause of fail-ure of vehicle.NOTE
zYo u c a n n o t o p e r a t e t h e r e g e n e r a t i v e b r a k ewhile the adaptive cruise control system(ACC) is operating.zEvery time operating the selector lever, besure to check the position displayed on theindicator.
BK0203201EN.book 14 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Select Position indicator
Starting and driving 7-15
7
E00636300027
This indicator displays the selector lever posi-tion in the meter.When “B” position is selected, selectedregenerative brake force position is also dis-played at “B” position.
E00636400028
The wheel are locked. When you park yourvehicle, be sure to apply the parking brakeand press the electrical parking switch.
This position is to back up.No power is transmitted to the wheels. Thewheels are not locked.This position is for normal driving.This position is for the regenerative braking.Yo u c a n a d j u s t t h e r e g e n e r a t i v e b r a k i n g f o r c eup to two level.Refer to “Selector lever operation” on page7-14.
zIf you perform the following operation, thebuzzer may sound and the select positionmay automatically shifts to “N” position.•Presses the electrical parking switch duringrunning•Shifts the selector lever to “R” while driv-ing forward•Shifts the selector lever to “D” while driv-ing backward•Shifts the selector lever to “B” in “R” posi-tion
zIf you perform the following operation, thebuzzer sounds and the select lever operationis cancelled.•When in “P” position,
shifts the selector
lever without depres
sing the brake pedal
•When in “P” or “N” position, shifts theselector lever to (B)•Operates the selector lever with the EVcharging cable connected
zIf you shift and hold the selector lever forabout 15 seconds or longer, the buzzersounds.The buzzer stops sounding when you releasethe selector lever.zIf the driver’s door is opened while the vehi-cle is stopped or is running at very low speedwith the select position in other than “P”position and the READY indicator in themeter is illuminating, the buzzer sounds. Thebuzzer stops sounding if you close the dooror shift the selector lever to “P”.NOTE
Select Position indicator Selector lever positions “P” PARK
“R” REVERSE “N” NEUTRAL
WA R N I N GzNever move the select
or lever to the “N”
(NEUTRAL) position
while driving, you
will lose Regene
rative braking.
zAlways keep you
r right foot on the brake
pedal when shifting into or out of “N”, tominimize the risk of loss of control.
“D” DRIVE “B” REGENERATIVE BRAKE
BK0203201EN.book 15 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Electrical Parking switch7-16 Starting and driving
7
Refer to “When driving downhill” on page7-26.
E00636600020
When you park your vehicle, be sure to applythe parking brake and press the electricalparking switch to lock the wheels. The indi-cator on the switch illuminates in green andthe select position indicator displays “P” onthe information screen in the meter.
If the driver’s door is opened with the selectposition other than “P” when the vehicle is ata stop, the buzzer sounds to warn to press theelectrical parking switch.
WA R N I N GzSudden Regenerative brake may cause thetyres to skid.Select this position
according to the road
conditions and vehicle speed.
Electrical Parking switch
CAUTIONzIf you operate the electrical parking switchand the select lever repeatedly within a shorttime, the shifting from the “P” position or tothe “P” position is restrained for a certainperiod for the system protection. In such acase, wait for a while and then perform theoperation.zIf the parking lock mechanism is faulty, awarning is displayed on the informationscreen in the multi-information display.When this warning is displayed, park on aflat place with the parking brake securelyapplied. Have your ve
hicle inspected by a
MITSUBISHI MOTORS Authorized ServicePoint.
zIf you press the electrical parking switchbefore your vehicle stops completely, thevehicle makes a sudden stop, which maycause injury to passengers. This also can be acause of failure of the vehicle.zDo not place a object around the electricalparking switch. The electrical parking switchmay be pressed by the object when you placeit there or when you somehow touch it. Thiswill cause unintentional shifting to “P” or“N” position, which may lead to an accident.zBe careful not to spill beverages, etc. aroundthe electrical parking switch. The electricalparking switch may be stuck to the pressedposition when it is pressed.NOTE
zWhen the selector lever is shifted from the“P” position or to the “P” position, operatingnoise and vibration of the parking lock arefelt, but this is normal.
Electrical Parking switch reminder buzzer
CAUTION
BK0203201EN.book 16 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

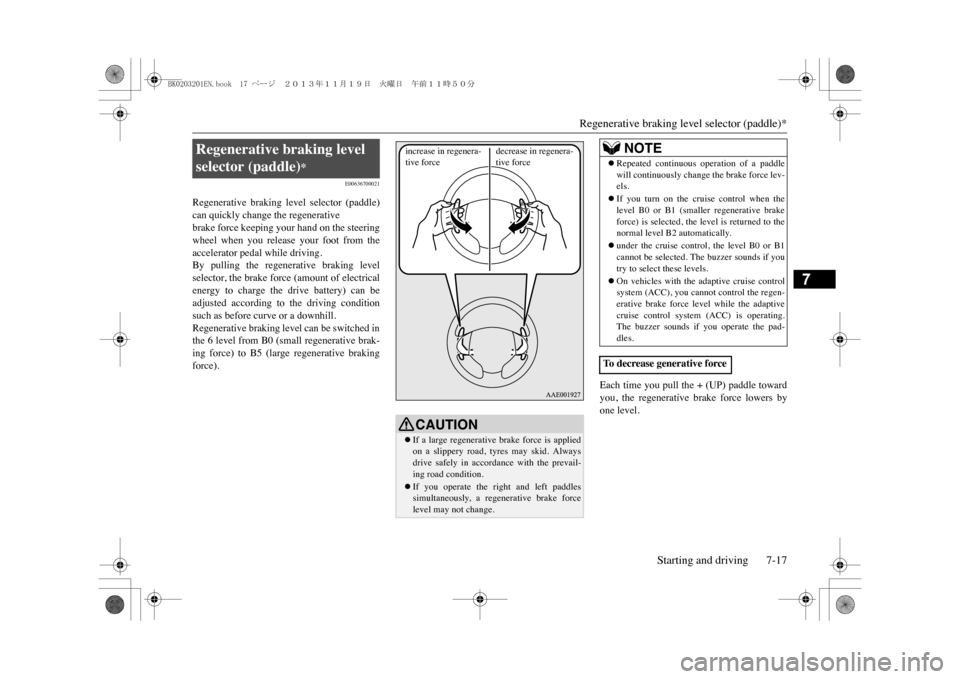

Regenerative braking level selector (paddle)*
Starting and driving 7-17
7
E00636700021
Regenerative braking level selector (paddle)can quickly change the regenerative brake force keeping your hand on the steeringwheel when you release your foot from theaccelerator pedal while driving.By pulling the regenerative braking levelselector, the brake force (amount of electricalenergy to charge the drive battery) can beadjusted according to the driving conditionsuch as before curve or a downhill.Regenerative braking level can be switched inthe 6 level from B0 (small regenerative brak-ing force) to B5 (large regenerative brakingforce).
Each time you pull the + (UP) paddle towardyou, the regenerative brake force lowers byone level.
Regenerative braking level selector (paddle)
*
CAUTIONzIf a large regenerative brake force is appliedon a slippery road, ty
res may skid. Always
drive safely in accord
ance with the prevail-
ing road condition.zIf you operate the right
and left paddles
simultaneously, a regenerative brake forcelevel may not change.
decrease in regenera-tive force
increase in regenera-tive force
NOTE
zRepeated continuous
operation of a paddle
will continuously change
the brake force lev-
els.zIf you turn on the cruise control when thelevel B0 or B1 (smaller regenerative brakeforce) is selected, the level is returned to thenormal level B2 automatically.zunder the cruise control, the level B0 or B1cannot be selected. The buzzer sounds if youtry to select these levels.zOn vehicles with the adaptive cruise controlsystem (ACC), you cannot control the regen-erative brake force le
vel while the adaptive
cruise control system
(ACC) is operating.
The buzzer sounds if you operate the pad-dles.
To d e c r e a s e g e n e r a t i v e f o r c e
BK0203201EN.book 17 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

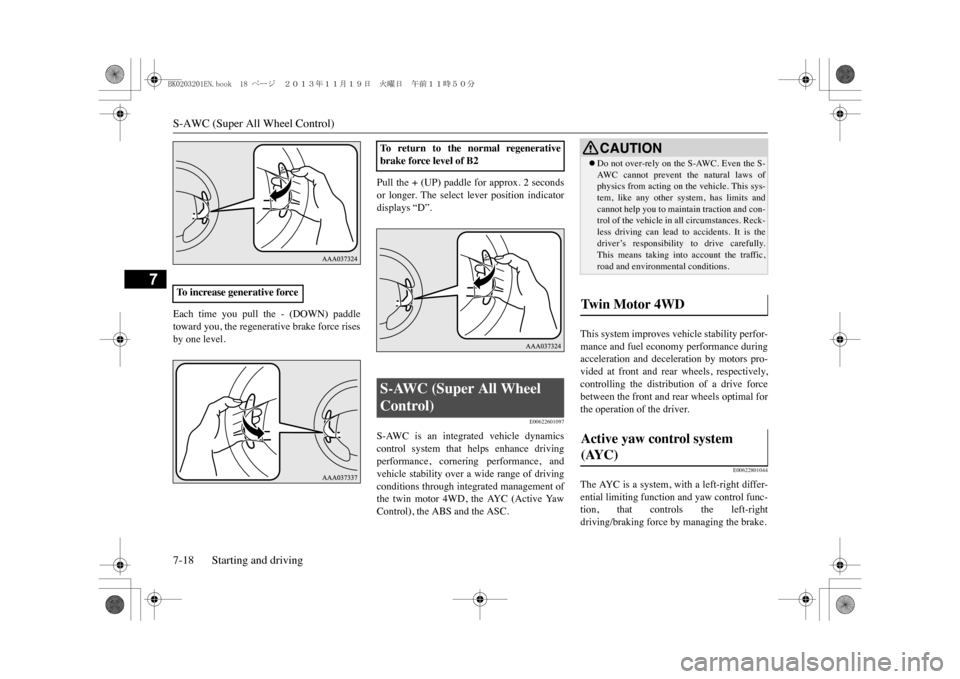

S-AWC (Super All Wheel Control)7-18 Starting and driving
7
Each time you pull the - (DOWN) paddletoward you, the regenerative brake force risesby one level.
Pull the + (UP) paddle for approx. 2 secondsor longer. The select lever position indicatordisplays “D”.
E00622601097
S-AWC is an integrated vehicle dynamicscontrol system that helps enhance drivingperformance, cornering performance, andvehicle stability over a wide range of drivingconditions through integrated management ofthe twin motor 4WD, the AYC (Active YawControl), the ABS and the ASC.
This system improves vehicle stability perfor-mance and fuel economy performance duringacceleration and deceleration by motors pro-vided at front and rear wheels, respectively,controlling the distribution of a drive forcebetween the front and rear wheels optimal forthe operation of the driver.
E00622801044
The AYC is a system, with a left-right differ-ential limiting function and yaw control func-tion, that controls the left-rightdriving/braking force by managing the brake.
To i n c r e a s e g e n e r a t i v e f o r c e
To r e t u r n t o t h e n o r m a l r e g e n e r a t i v ebrake force level of B2S-AWC (Super All Wheel Control)
CAUTIONzDo not over-rely on the S-AWC. Even the S-AW C c a n n o t p r e v e n t t h e n a t u r a l l a w s o fphysics from acting on the vehicle. This sys-tem, like any other system, has limits andcannot help you to maintain traction and con-trol of the vehicle in all circumstances. Reck-less driving can lead to accidents. It is thedriver’s responsibility to drive carefully.This means taking into account the traffic,road and environmental conditions.
Tw i n M o t o r 4 W D Active yaw control system (AYC)
BK0203201EN.book 18 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

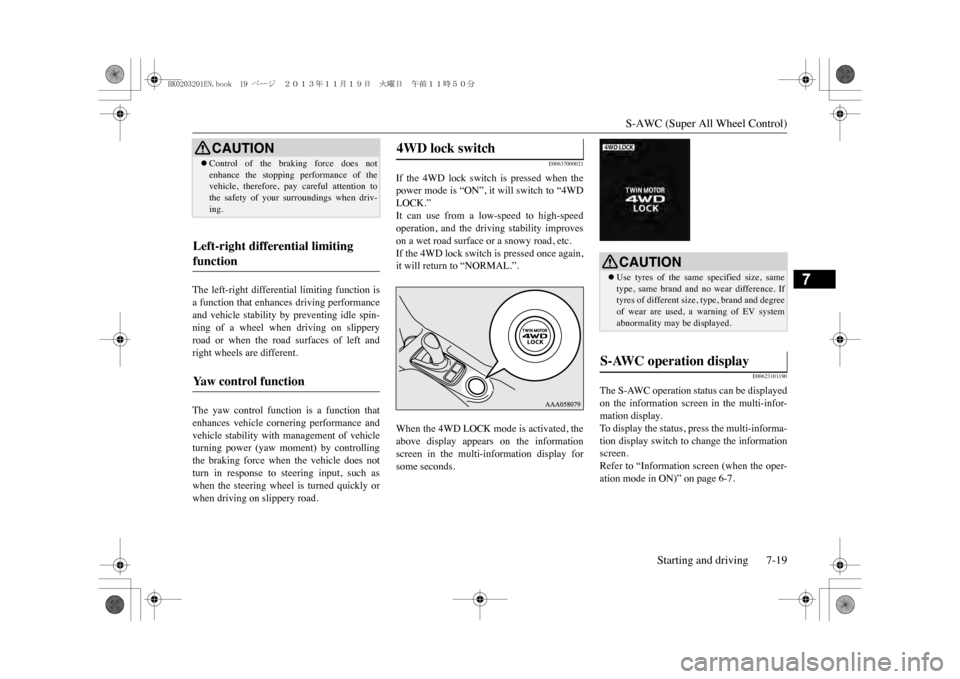

S-AWC (Super All Wheel Control)
Starting and driving 7-19
7
The left-right differential limiting function isa function that enhances driving performanceand vehicle stability by preventing idle spin-ning of a wheel when driving on slipperyroad or when the road surfaces of left andright wheels are different.The yaw control function is a function thatenhances vehicle cornering performance andvehicle stability with management of vehicleturning power (yaw moment) by controllingthe braking force when the vehicle does notturn in response to steering input, such aswhen the steering wheel is turned quickly orwhen driving on slippery road.
E00637000021
If the 4WD lock switch is pressed when thepower mode is “ON”, it will switch to “4WDLOCK.” It can use from a low-speed to high-speedoperation, and the driving stability improveson a wet road surface or a snowy road, etc. If the 4WD lock switch is pressed once again,it will return to “NORMAL.”. When the 4WD LOCK mode is activated, theabove display appears on the informationscreen in the multi-information display forsome seconds.
E00623101190
The S-AWC operation status can be displayedon the information screen in the multi-infor-mation display.To display the status, press the multi-informa-tion display switch to change the informationscreen.Refer to “Information screen (when the oper-ation mode in ON)” on page 6-7.
CAUTIONzControl of the braking force does notenhance the stopping performance of thevehicle, therefore, pay careful attention tothe safety of your surroundings when driv-ing.
Left-right differential limiting function Ya w c o n t r o l f u n c t i o n
4WD lock switch
CAUTIONzUse tyres of the same specified size, sametype, same brand and no wear difference. Iftyres of different size, type, brand and degreeof wear are used, a warning of EV systemabnormality may be displayed.
S-AWC operation display
BK0203201EN.book 19 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

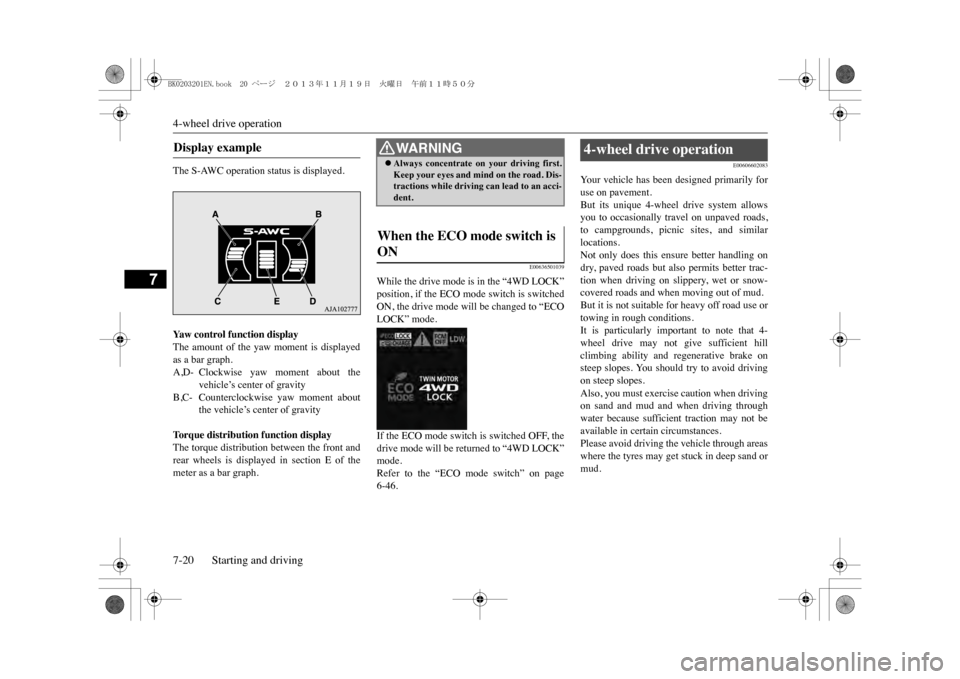

4-wheel drive operation7-20 Starting and driving
7
The S-AWC operation status is displayed.
E00636501039
While the drive mode is in the “4WD LOCK”position, if the ECO mo
de switch is switched
ON, the drive mode will be changed to “ECOLOCK” mode.If the ECO mode switch is switched OFF, thedrive mode will be returned to “4WD LOCK”mode.Refer to the “ECO mode switch” on page6-46.
E00606602083
Yo u r v e h i c l e h a s b e e n d e s i g n e d p r i m a r i l y f o ruse on pavement.But its unique 4-wheel drive system allowsyou to occasionally travel on unpaved roads,to campgrounds, picnic sites, and similarlocations.Not only does this ensure better handling ondry, paved roads but also permits better trac-tion when driving on slippery, wet or snow-covered roads and when moving out of mud.But it is not suitable for heavy off road use ortowing in rough conditions.It is particularly important to note that 4-wheel drive may not give sufficient hillclimbing ability and regenerative brake onsteep slopes. You should try to avoid drivingon steep slopes.Also, you must exercise caution when drivingon sand and mud and when driving throughwater because sufficient traction may not beavailable in certain circumstances.Please avoid driving the vehicle through areaswhere the tyres may get stuck in deep sand ormud.
Display example Ya w c o n t r o l f u n c t i o n d i s p l a yThe amount of the yaw moment is displayedas a bar graph.A,D- Clockwise yaw moment about the
vehicle’s center of gravity
B,C- Counterclockwise yaw moment about
the vehicle’s center of gravity
To r q u e d i s t r i b u t i o n f u n c t i o n d i s p l a yThe torque distribution between the front andrear wheels is displayed in section E of themeter as a bar graph.
WA R N I N GzAlways concentrate on
your driving first.
Keep your eyes and mind on the road. Dis-tractions while driving can lead to an acci-dent.
When the ECO mode switch is ON
4-wheel drive operation
BK0203201EN.book 20 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Inspection and maintenance following rough road operation
Starting and driving 7-21
7
Yo u r v e h i c l e m a y n o t p r o v i d e s u f f i c i e n t h i l lclimbing ability and regenerative brake onsteep slope. Avoid driving on steep slopeseven though the vehicle is an 4-wheel drivevehicle.
E00606701407
After operating the vehicle in rough road con-ditions, be sure to perform the followinginspection and maintenance procedures:zCheck that the vehicle has not been dam-aged by rocks, gravel, etc.zCarefully wash the vehicle with water.Drive the vehicle slowly while lightlydepressing the brake pedal in order to dryout the brakes. If the brakes still do notfunction properly, we recommend you tohave the brakes checked as soon as possi-ble.zRemove the insects, dried grass, etc. clog-ging the radiator core.zCheck the inside of the vehicle. If waterentry is found, dry the carpet etc.zInspect the headlamps, If the headlampbulb is flooded with water, we recom-mend you to have it drained.
WA R N I N GzDo not over-rely on the 4-wheel drive vehi-cles. Even 4-wheel drive vehicles have lim-its to the system and ability to maintaincontrol and traction.
Reckless driving may
lead to accidents. Always drive carefully,taking account of the road conditions.zImproperly operating this vehicle on oroff-pavement can cause an accident orrollover in which you and your passengerscould be seriously injured or killed.•Follow all instructions and guidelines inthe owner’s manual.•Keep your speed low and do not drivefaster than conditions.NOTE
zDriving on rough roads can be hard on avehicle. Before you leave the pavement, besure all scheduled maintenance and servicehas been done, and that
you have inspected
your vehicle. Pay special attention to thecondition of the tyres, and check the tyrepressures.zMITSUBISHI MOTORS
is not responsible
to the operator for any damage or injurycaused or liability incurred by improper andnegligent operation of a vehicle. All tech-niques of vehicle operation depend on theskill and experience of the operator and otherparticipating parties.
Any deviation from the
recommended operating instructions aboveis at their own risk.
zNote that the stopping
distance required of
the 4-wheel drive vehicle differs very littlefrom that of the 2-wheel
drive vehicle. When
driving on a snow-covered
road or a slippery,
muddy surface, make sure that you keep asufficient distance between your vehicle andthe one ahead of you.zThe driving posture s
hould be more upright;
adjust the seat to a good position for easysteering and pedal operati
on. Be sure to wear
the seat belt.zAfter driving on rough roads, check eachpart of the vehicle and wash it thoroughlywith water. Refer to the “Inspection andmaintenance following rough road opera-tion” section and “Maintenance” sections.
Climbing/descending sharp grades
NOTE
Inspection and maintenance following rough road opera-tion
