2014 MITSUBISHI OUTLANDER SPORT Owners Manual

Outside (Rear)1-7 Overview
1
E00100506764

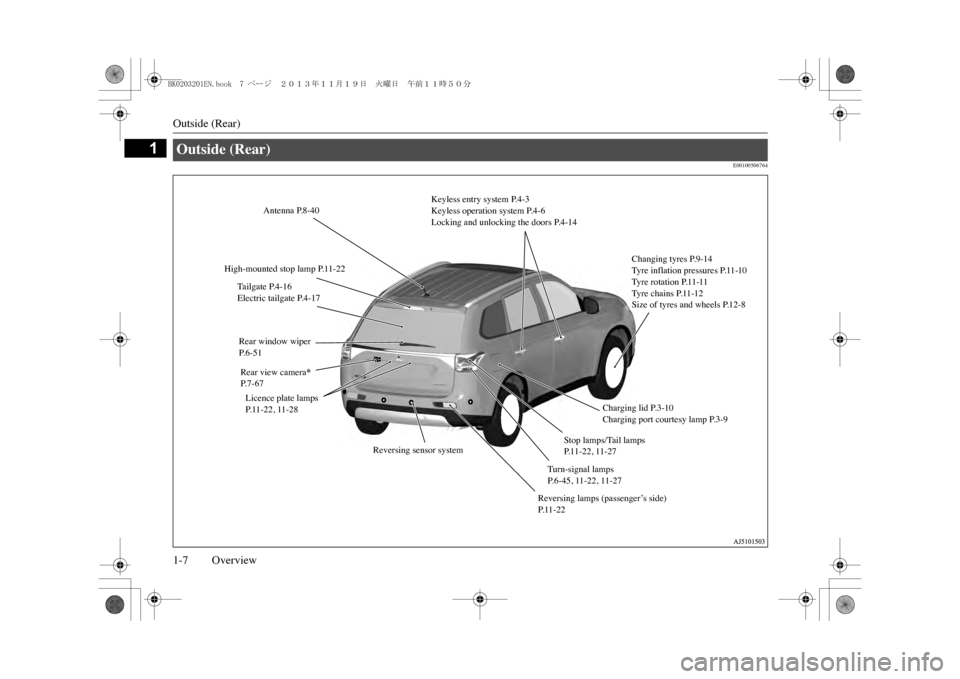

Outside (Rear)
Antenna P.8-40
High-mounted stop lamp P.11-22
Rear window wiperP. 6 - 5 1Rear view camera
*
P. 7 - 6 7Licence plate lamps P.11-22, 11-28
Reversing lamps (passenger’s side) P. 1 1 - 2 2
Stop lamps/Tail lamps P. 1 1 - 2 2 , 1 1 - 2 7
Turn-signal lamps P. 6 - 4 5 , 1 1 - 2 2 , 1 1 - 2 7
Changing tyres P.9-14Ty r e i n f l a t i o n p r e s s u r e s P. 11 -1 0Ty r e r o t a t i o n P. 11 -11Ty r e c h a i n s P. 11 -1 2Size of tyres and wheels P.12-8
Keyless entry system P.4-3Keyless operation system P.4-6Locking and unlocking the doors P.4-14
Ta i l g a t e P. 4 - 1 6Electric tailgate P.4-17
Charging lid P.3-10Charging port courtesy lamp P.3-9
Reversing sensor system
BK0203201EN.book 7 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

2
General informationPlug-in Hybrid EV System .............................................................. 2-2Cautions and actions to deal with intense heat ................................2-8Cautions and actions to deal with intense cold ................................2-9Fuel selection ..................................................................................2-12Filling the fuel tank .........................................................................2-13Installation of accessories ............
...................................................2-14
Modification/alterations to the electrical or fuel systems ...............2-15Genuine Parts ..................................................................................2-15Safety and disposal information for used engine oil ......................2-15Do not carry fuel-filled containers or spray cans inside your vehicle ....................................................2-16Ta k i n g y o u r v e h i c l e o v e r s e a s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 1 6
BK0203201EN.book 1 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Plug-in Hybrid EV System2-2 General information
2
E00203500025E00203600026
It is operated as electric vehicle in the EVdrive mode using the electrical power storedin the drive battery,*
1 according to the
remaining amount of the drive battery. It isalso automatic control*
2 for driving in series
hybrid mode or parallel hybrid mode usingengine power from EV drive mode accordingto the driving condition or if the charginglevel of the drive battery is decreased.
zWi t h th e h i gh perfo rman ce m ot or, n oi seand vibration during driving are greatlylimited and powerful acceleration can alsobe obtained.zWi t h t h e r eg ene r at iv e b r ake , t h e dr i v e ba t-tery is automatically charged when theaccelerator is released.zThe vehicle can be charged from EVcharge power outlets (rated AC 240 V).zThe vehicle is driven by the motors onlyusing electrical power stored in the drivebattery. However, EV drive mode is can-celled depending on the drive batterylevel, vehicle speed, and air conditioneroperating conditions. Pay attention to thefollowing points:•Check the EV cruising range in theinformation screen. Refer to “EV cruis-ing range display/Total cruising rangedisplay” on page 6-13.•Drive your vehicle at moderate speedsavoiding quick acceleration/decelera-tion. Repeated quick acceleration/decel-eration causes the drive battery level todecrease quickly, which extremelyreduces the EV cruising range.
zThe vehicle is driven by the motors onlyusing the electricity generated by theengine. This mode is used when the drivebattery level is low, at quick acceleration,or when power is required like climbinguphill. zThe vehicle is driven by the power of theengine, assisted by motors. This mode isused during high-speed driving with bet-ter engine efficiency.
Plug-in Hybrid EV System Main features *1:If there is a remaining amount in thedrive battery, it is actively driven in theEV drive mode. The cruising range var-ies depending on the remaining charge inthe drive battery, vehicle speed, and airconditioner operating conditions.
*2:Yo u c a n a d j u s t t h e t i m i n g t o s w i t c h t othe EV drive mode by using the batterysave switch. Refer to “Battery saveswitch” on page 7-22.
EV drive mode
Series hybrid mode Parallel hybrid mode
BK0203201EN.book 2 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Plug-in Hybrid EV SystemGeneral information 2-3
2
Motion energy is converted into electric energy using the motor as a power generator.Then a braking force generates and converted electric energy will be charged to the drive battery.zIf you lift your foot off the accelerator pedal during driving, a braking force that equivalent to engine braking of a combusti
on engine vehicle
will be generated. Also, if you shift the select position into “B” (BRAKE) from “D” (DRIVE), effectiveness of the regenerative
braking is get-
ting strong. Shift the selector lever into “B” (
BRAKE) position according to the driving condition.
zRegenerative brake force increases with the foot brake force when the brake pedal is depressed.zIf a problem occurs in the Plug-in hybrid EV system, or if the
ABS and/or the ASC have been activated, the regenerative braking
will be
restricted. The foot brake will still operate.
E00203700027
zEven when the vehicle is driving in EVdrive mode, it may be automaticallychanged to series hybrid mode or parallelhybrid mode in the following cases:•The plug-in hybrid EV system is too hotor too cold.
•Quick acceleration is applied.•The air conditioner is operating.•The accelerator pedal is depressed hardon an uphill road or expressway.•In cold weather•The vehicle has not been refueled for along time.•The drive battery level is low.
In addition to the above, there are morecases where EV drive mode is automati-cally changed to series or parallel hybridmode.zEven while the vehicle is stopped, theengine may automatically be started in thefollowing cases:•The drive battery level is low.
The roles of the motors and engine in each drive mode
Motor
Engine
Driving conditions
EV Drive Mode
ON
OFF
Driving on streets and commuting
Series Hybrid Mode
ON
Generates electricity
Powerful acceleration uphill road
such as mountain road
Parallel Hybrid Mode
ON
Drivers front wheels and generates
electricity
High-speed driving
Regenerative braking Operation of gasoline engine
BK0203201EN.book 3 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Plug-in Hybrid EV System2-4 General information
2
•The plug-in hybrid EV system is too hotor too cold.•The air conditioner is used.•The vehicle has not been used for a longtime.•The engine has not been operated for along time.
E00203800028
zIf the warning display appears, refuel assoon as possible.If the vehicle is runs out of fuel, theengine will not start even in a situationneed to be generated electricity, the fol-lowing conditions will occur.•The driving performance falls (sinceonly the electrical power stored in thedrive battery can be used for the driv-ing).•The heating performance cannot beavailable (except vehicles with electricheater).•The effectiveness of the heater is insuffi-cient (vehicles with electric heater).•The catalytic converter may be damageddue to excessive high temperature.
Refer to “Filling the fuel tank” on page 2-13.Refer to “Fuel remaining display screen” onpage 6-9.
E00203900029
zIt is the battery to operate the motor andthe air conditioning.In addition to the drive battery, OutlanderPHEV has the auxiliary battery to operatelamps, wipers, etc.zCompact, light-weight lithium ion batterywith high energy density is used for thedrive battery.zThe drive battery has the following char-acteristics.Please read this carefully paying attentionto the following:zThe same as ordinary lithium-ion batter-ies, the battery capacity of the drive bat-tery gradually reduces with time, resultingin reduced cruising range. Depending onthe usage conditions, such as frequentquick acceleration/deceleration,extremely hot weather, storing the vehiclein high ambient temperatures, etc., therate of battery capacity drop will increase.
Refueling (gasoline)
CAUTIONzDepending on the opera
ting conditions of
your vehicle, the fuel in the fuel tank maynot be used for a long time and stay in thetank, resulting in deterioration of the fuelquality. As this may af
fect the engine and
fuel system parts, observe the followinginstructions:•Run the engine by pressing the batterycharge switch at least once in 3 months.Refer to “Battery charge switch” on page7-23.• Refuel 20 litres or more of fuel every 6months (to make the total refueling amountin 6 months be 20 litres or more).
zIf refueling of the above
amount is not possi-
ble due to a high fuel level because the vehi-cle has not been used for a long time or forsome other reason, consult a MITSUBISHIMOTORS Authorised Service Point.
Drive battery
WA R N I N GzA sealed lithium ion
high voltage battery
(drive battery) is
adopted for Outlander
PHEV. If the drive battery is disposed ofimproperly, there is a
risk of severe burns
and electrical shock that may result inserious injury or death and there is also arisk of environmental damage.
zNever attempt to use the drive battery forany other purpose.
Characteristics
WA R N I N G
BK0203201EN.book 4 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Plug-in Hybrid EV SystemGeneral information 2-5
2
zThe performance may be changed due tothe outside temperature.At low temperature, in particular, the EVcruising range is short and the chargingtime is long, compared to operation atnormal temperature.zThe battery is gradually discharged with-out use and the battery charge is lowered.zIt is not necessary to consume the batterycompletely before charging.zIf your vehicle is not used for a long time,check the drive battery level display every3 months.If the drive battery level display shows 0,charge the battery until some indicationappears. Alternately, put the operationmode of the power switch in “ON” to startthe engine automatically, wait for theengine to stop automatically, then put theoperation mode of the power switch in“OFF”.zMitsubishi Motors collects drive batteries.If you scrap your vehicle, please consult aMitsubishi Motors Authorised ServicePoint.
E00204000027
zEven if the charge level is the same, theEV cruising range may vary depending ondriving conditions. Since driving at highspeed or climbing on a hill requires higherconsumption of the drive battery thanusual, the EV cruising range is shortened.zSince the air conditioning (cooling orheating) consumes power of the drive bat-tery, its operation results in a shorter EVcruising range. Maintain an appropriatetemperature.zPut the selector lever to “B” (BRAKE)position according to the road condition.To c h a rg e t h e d r i v e b a t t e r y w i t h a p p r o p r i -ate use of the regenerative brake, it can beincreased the EV cruising range.
E00204100028
The Acoustic Vehicle Alerting System(AVAS) is device that uses sound to alertpedestrians of the presence of the vehicle.The system operates when the vehicle speedis about 35 km/h or less and the engine is notrunning.Refer to “Acoustic Vehicle Alerting System(AVAS)” on page 7-24.
E00204200029
A crash or impact significant enough torequire an emergency response for conven-tional vehicles would also require the sameresponse for Outlander PHEV.Also follow the instructions described belowto avoid severe burns and electrical shock thatmay result in serious injury or death.
Precautions for operation
EV cruising range Acoustic Vehicle Alerting Sys-tem (AVAS)
WA R N I N GzEven if the Acoustic Vehicle Alerting Sys-tem (AVAS) sounds, pay special attentionto pedestrians.Pedestrians may not notice the oncomingvehicle, which may cause an accidentresulting in serious
personal injury or
death.
In case of a collision
WA R N I N GzIf your vehicle is dr
ivable, pull your vehi-
cle off the road to a safe, nearby locationand remain on the scene.Also, if possible, do the following opera-tions and stay out of the way of anyoncoming traffic while awaiting thearrival of emergency responders.•Apply chocks to the wheels.•Put the select position in “P”(PARK)position.•Apply the parking brake.
BK0203201EN.book 5 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Plug-in Hybrid EV System2-6 General information
2
•Open the windows, doors and tailgate.•Put the operation mode in OFF.•Turn on the hazard warning flashers.• Move the key away from the vehicle toprevent unintended start-up of the sys-tem by inadvertent contact with a switchor impact from the crash.
zNever touch high-voltage wiring, connec-tors, and other high-vol
tage parts, such as
the inverter unit and drive battery. Anelectric shock may occur if exposed elec-tric wires are visible when viewed frominside or outside of
your vehicle. For their
locations, see “High-
voltage components”
on page 2-7.zIf the vehicle receives a strong impact tothe floor while driving, stop the vehicle ina safe place and
check the floor.
zNever start the plug-in hybrid EV systemif you found the leak
of a liquid (except
water of the air conditioner) while check-ing the outside of the vehicle because thereis possibility the fuel system has beendamaged and causing of fire or exploding.In such case, immediately contact yourMITSUBISHI MOTORS Authorized Ser-vice Point.WA R N I N G
zLeaks or damage to the drive battery mayresult in a fire. If you discover them, con-tact emergency services immediately.Since the fluid leak may be lithium man-ganite from the Lithium-ion battery, nevertouch any fluid leaking from the inside oroutside of the vehicle. If the fluid contactsyour skin or eyes, wash
it off immediately
with a large amount of water and receiveimmediate medical attention to help avoidserious injury.zIf you are unable to safely assess the vehi-cle due to vehicle damage, do not touchthe vehicle. Leave the vehicle and contactemergency services. Advise emergencyresponders that this is a Plug-in Hybridvehicle.zIf a fire occurs in this vehicle, leave thevehicle as soon as possible and contactemergency services. Do not attempt toextinguish a fire by yourself. If the fireinvolves a lithium-ion battery, it willrequire large, sustained volumes of waterfor extinguishment. Using a small amountof water or the incorrect fire extinguishercan result in serious injury or death fromelectrical shock.zWhen you leave the vehicle, if possible,open the windows, doors and tailgate toprevent accumulation of poisonous/com-bustible gasses. This will
also assist in the
rescue and fire fighting process.WA R N I N G
zAs with any vehicle fire, the byproducts ofcombustion can be toxic. Do not inhalesmoke, vapors, or gas from the vehicle.Move to a safe distance upwind and uphillfrom the vehicle fire and out of the way ofany oncoming traffic while awaiting thearrival of emergency responders.zIf you detect leaking fluids, sparks, smoke,flames, gurgling, popping or hissing noisesoriginating from the high voltage batterycompartment, contact emergency servicesimmediately. This may result in a fire.zPhysical damage to the vehicle or highvoltage battery may result in immediate ordelayed release of toxic and/or flammablegases and fire.zIf your vehicle needs to be towed, trans-port the vehicle on a
flatbed truck or tow
the vehicle with all wheels off the ground.If the any wheels are on the ground whentowing, this may cause damage to the elec-tric motors. This may also cause a fire, ifwiring in the electric motor unit roombecomes damaged. Refer to “Towing” onpage 9-19.zDo not attempt to repair a damaged Plug-in Hybrid vehicle by yourself. Please con-tact a MITSUBISHI MOTORS Author-ised Service Point for service.WA R N I N G
BK0203201EN.book 6 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Plug-in Hybrid EV SystemGeneral information 2-7
2
E00204300020
When performing inspection and mainte-nance, be careful in the following points.
zIn the event of an accident that requiresbody repair and painting, the vehicleshould be delivered to a MITSUBISHIMOTORS Authorised Service Point tohave the drive battery and high voltageparts such as the inverter, including theattached wiring harness, removed prior topainting. If exposed to heat in the paintbooth, the drive battery will experiencebattery capacity loss.A damaged drive battery can also posesafety risks to untr
ained mechanics and
repair personnel.NOTE
zThe emergency shut-off system will be acti-vated and the high-voltage system will auto-matically turn off under the followingconditions:•Certain front, side or rear collisions.•Certain Plug-in Hybrid EV system mal-functions.
zWhen the emergency shut
-off system is acti-
vated, the ready indicator
is turned off. Refer
to “Indicator and warning lamps” on page6-21.zIf the emergency shut-off system activates,contact a MITSUBISHI
MOTORS Author-
ised Service Point.WA R N I N G
Inspection and maintenance
WA R N I N GzBefore performing inspection or mainte-nance, be sure to disconnect the chargeconnector from the vehicle and confirmthat put the operation mode of the powerswitch in “OFF”.zNever touch, disassemble, remove orreplace highvolt
age parts, exposed electri-
cal components, cables or connectors.Failure to follow this instruction canresult in severe burns or electric shockcausing serious injury or death. High-volt-age cables are colored orange. The vehiclehigh voltage system has no user servicea-ble parts. Take your vehicle to a MITSUB-ISHI MOTORS Authorised Service Pointfor any necessary maintenance.zNever touch the service plug under therear seat. Improper ha
ndling of this could
cause an electric shock which result in aserious injury or death. The service plug isused to shut off the high voltage from thedrive battery when repairing the vehicleat a MITSUBISHI MOTORS AuthorisedService Point.
High-Voltage components 1- On board charger/DC-DC converter 2- Rear motor3- Service plug4- Electric heater*5- Drive Battery6- Front motor7- Generator8- Air conditioner compressor9- Power drive unit (PDU)10- Rear electric motor control unit (MCU)11- Charge port
