Headlamp levelling6-44 Instruments and controls
6
E00517400103E00517500612
The direction of the headlamp beam (thedirection which the light shines in) altersaccording to the number of people and theload in the vehicle. Lower the headlamp
angle if it is too high due to the number ofpeople and/or the load in the vehicle so thatthe headlamps’ glare does not distract thedrivers of approaching vehicles. First set thelight switch to the “ ” position, then turnthe headlamp levelling switch knob to lowerthe beam. The greater the number on theheadlamp levelling switch knob, the lowerthe beam will point.Set the switch to the appropriate position sothat the headlamp beam is level with the road.
E00517601551
This mechanism automatically adjusts thedirection of the headlamps (beam position)depending on changes in the condition of thevehicle, such as the number of occupants orluggage weight. When the headlamps are illu-minated with the operation mode in ON, thebeam position of the headlamps is automati-cally adjusted when the vehicle is stopped.
•Turn the combination headlamps and dip-per switch to the “ ” or “ ” position.•Put the operation mode in ON.zIt is possible to modify
functions as follows:
•The time that the headlamps remain on canbe changed.•The coming home light function can bedeactivated.For further informati
on, please contact your
MITSUBISHI MOTORS Authorised ServicePoint.On vehicles equipped
with Mitsubishi Multi-
Communication System (MMCS), screenoperations can be used to make the adjust-ment. Refer to the separate owner’s manualfor details.

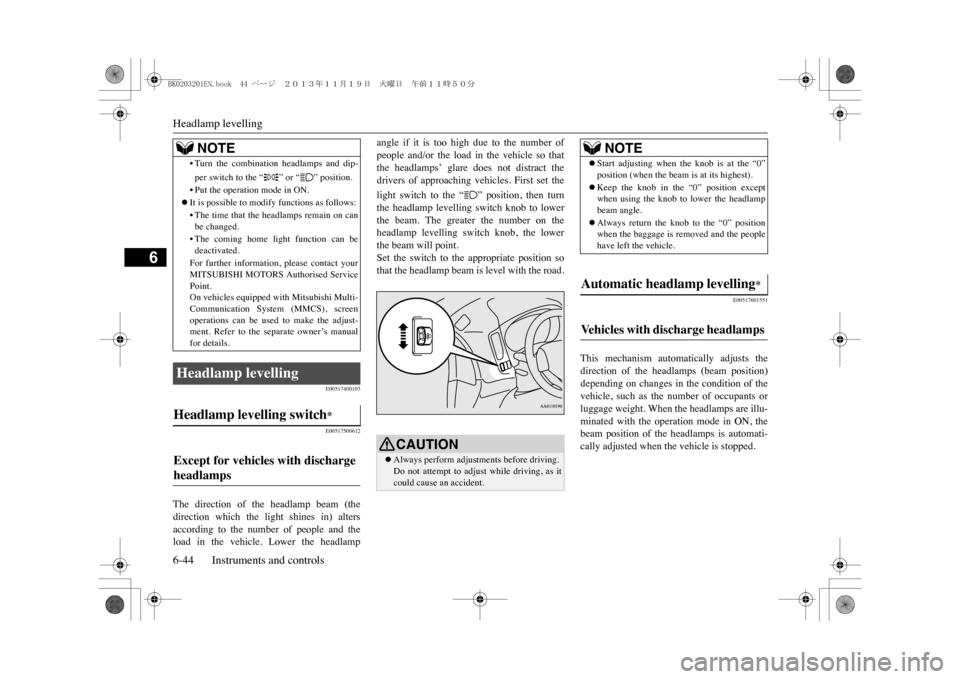

Headlamp levelling Headlamp levelling switch
*
Except for vehicles with discharge headlamps

NOTE
CAUTIONzAlways perform adjust
ments before driving.
Do not attempt to adjust while driving, as itcould cause an accident.
NOTE
zStart adjusting when the knob is at the “0”position (when the beam
is at its highest).
zKeep the knob in the “0” position exceptwhen using the knob to lower the headlampbeam angle.zAlways return the knob to the “0” positionwhen the baggage is removed and the peoplehave left the vehicle.
Automatic headlamp levelling
*
Ve h i c l e s w i t h d i s c h a r g e h e a d l a m p s

BK0203201EN.book 44 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Turn-signal lever
Instruments and controls 6-45
6
E00506502645
E00506602024
Use the hazard warning flasher switch whenthe vehicle has to be parked on the road forany emergency.The hazard warning flashers can always beoperated, regardless of the operation mode.Push the switch to turn on the hazard warningflashers, all turn signal lamps flash continu-ously. To turn them off, push the switchagain.

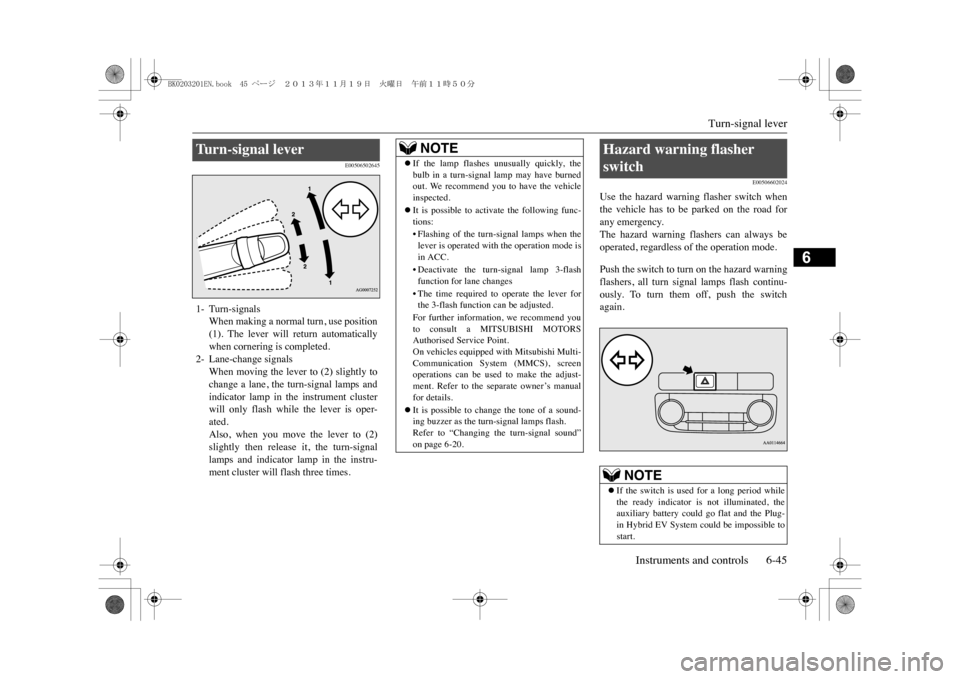

Tu r n - s i g n a l l e v e r 1- Turn-signals
When making a normal turn, use position(1). The lever will return automaticallywhen cornering is completed.
2- Lane-change signals
When moving the lever to (2) slightly tochange a lane, the turn-signal lamps andindicator lamp in the instrument clusterwill only flash while the lever is oper-ated.Also, when you move the lever to (2)slightly then release it, the turn-signallamps and indicator lamp in the instru-ment cluster will flash three times.
NOTE
zIf the lamp flashes unusually quickly, thebulb in a turn-signal lamp may have burnedout. We recommend you to have the vehicleinspected.zIt is possible to activate the following func-tions:•Flashing of the turn-signal lamps when thelever is operated with the operation mode isin ACC.•Deactivate the turn-signal lamp 3-flashfunction for lane changes•The time required to operate the lever forthe 3-flash function can be adjusted.For further information, we recommend youto consult a MITSUBISHI MOTORSAuthorised Service Point.On vehicles equipped
with Mitsubishi Multi-
Communication System (MMCS), screenoperations can be used to make the adjust-ment. Refer to the separate owner’s manualfor details.zIt is possible to change the tone of a sound-ing buzzer as the turn-signal lamps flash.Refer to “Changing the turn-signal sound”on page 6-20.
Hazard warning flasher switch
NOTE
zIf the switch is used for a long period whilethe ready indicator is not illuminated, theauxiliary battery coul
d go flat and the Plug-
in Hybrid EV System could be impossible tostart.
BK0203201EN.book 45 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

ECO mode switch6-46 Instruments and controls
6
E00531801049

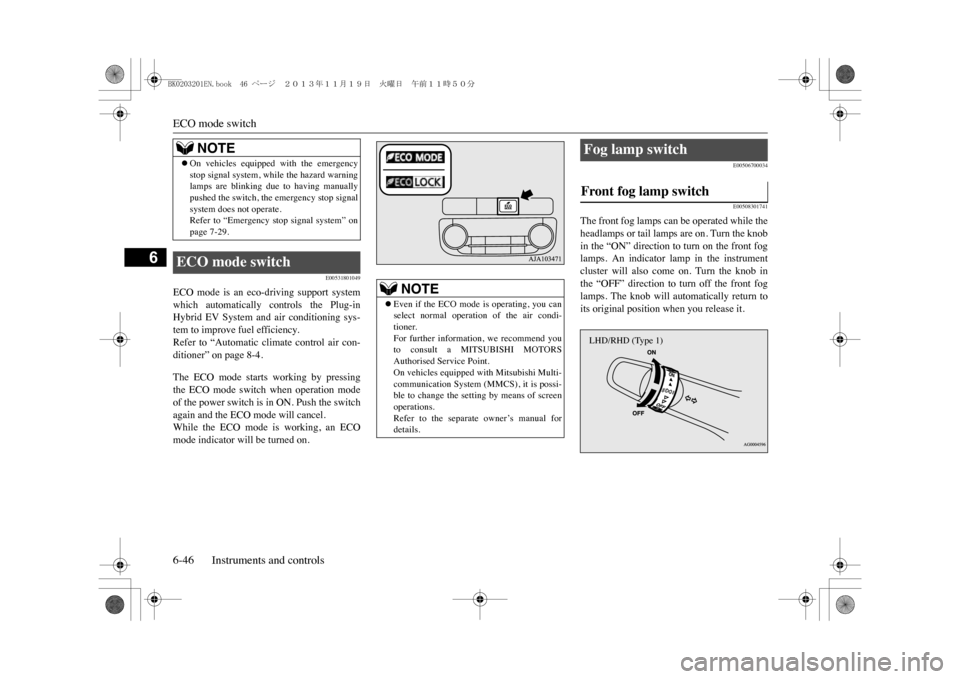

ECO mode is an eco-driving support systemwhich automatically controls the Plug-inHybrid EV System and air conditioning sys-tem to improve fuel efficiency.Refer to “Automatic climate control air con-ditioner” on page 8-4.The ECO mode starts working by pressingthe ECO mode switch when operation modeof the power switch is in ON. Push the switchagain and the ECO mode will cancel.While the ECO mode is working, an ECOmode indicator will be turned on.
E00506700034E00508301741
The front fog lamps can be operated while theheadlamps or tail lamps are on. Turn the knobin the “ON” direction to turn on the front foglamps. An indicator lamp in the instrumentcluster will also come on. Turn the knob inthe “OFF” direction to turn off the front foglamps. The knob will automatically return toits original position when you release it.
zOn vehicles equipped with the emergencystop signal system, while the hazard warninglamps are blinking due to having manuallypushed the switch, the emergency stop signalsystem does not operate.Refer to “Emergency stop signal system” onpage 7-29.
ECO mode switch
NOTE
NOTE
zEven if the ECO mode is operating, you canselect normal operation of the air condi-tioner.For further informati
on, we recommend you
to consult a MITSUBISHI MOTORSAuthorised Service Point.On vehicles equipped
with Mitsubishi Multi-
communication System (MMCS), it is possi-ble to change the setting by means of screenoperations.Refer to the separate owner’s manual fordetails.
Fog lamp switch Front fog lamp switch LHD/RHD (Type 1)
BK0203201EN.book 46 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Wiper and washer switch
Instruments and controls 6-47
6
E00508401612
The rear fog lamp can be operated when theheadlamps or front fog lamps turn on.An indicator lamp in the instrument clustercomes on when the rear fog lamp is turnedon.

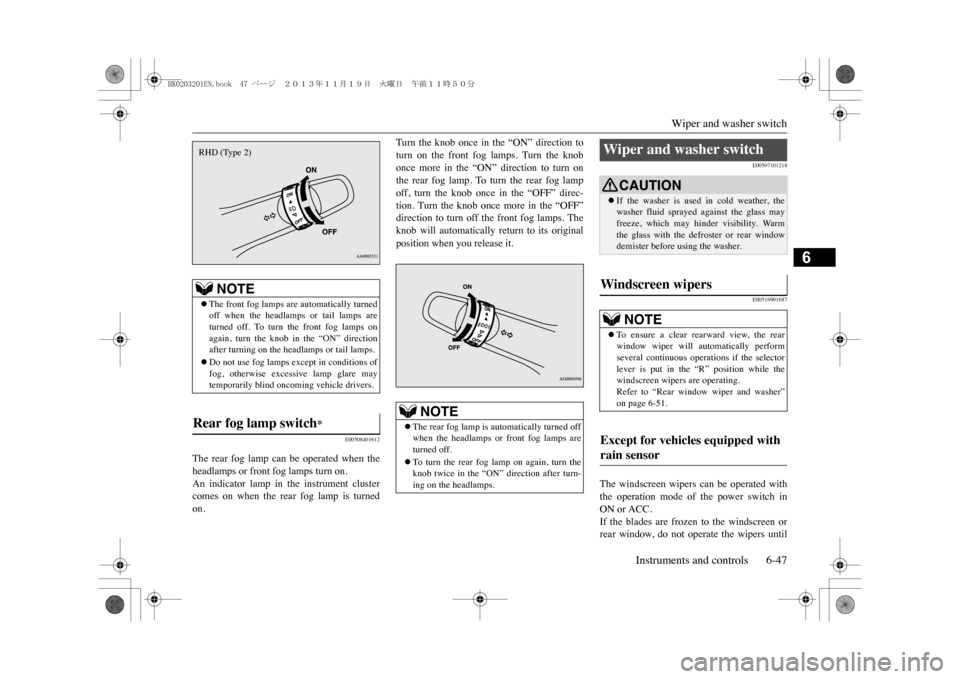

Turn the knob once in the “ON” direction toturn on the front fog lamps. Turn the knobonce more in the “ON” direction to turn onthe rear fog lamp. To turn the rear fog lampoff, turn the knob once in the “OFF” direc-tion. Turn the knob once more in the “OFF”direction to turn off the front fog lamps. Theknob will automatically return to its originalposition when you release it.
E00507101218E00516901687
The windscreen wipers can be operated withthe operation mode of the power switch inON or ACC.If the blades are frozen to the windscreen orrear window, do not operate the wipers until
NOTE
zThe front fog lamps are automatically turnedoff when the headlamps or tail lamps areturned off. To turn the front fog lamps onagain, turn the knob in
the “ON” direction
after turning on the headlamps or tail lamps.zDo not use fog lamps except in conditions offog, otherwise excessi
ve lamp glare may
temporarily blind oncoming vehicle drivers.
Rear fog lamp switch
*
RHD (Type 2)
NOTE
zThe rear fog lamp is automatically turned offwhen the headlamps or front fog lamps areturned off.zTo t u r n t h e r e a r f o g l a m p o n a g a i n , t u r n t h eknob twice in the “ON” direction after turn-ing on the headlamps.
Wiper and washer switch
CAUTIONzIf the washer is used in cold weather, thewasher fluid sprayed against the glass mayfreeze, which may hinder visibility. Warmthe glass with the de
froster or rear window
demister before using the washer.
Windscreen wipers
NOTE
zTo e n s u r e a c l e a r r e a r w a r d v i e w, t h e r e a rwindow wiper will automatically performseveral continuous
operations if the selector
lever is put in the “R” position while thewindscreen wipers are operating. Refer to “Rear window wiper and washer”on page 6-51.
Except for vehicles equipped with rain sensor
BK0203201EN.book 47 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Wiper and washer switch6-48 Instruments and controls
6

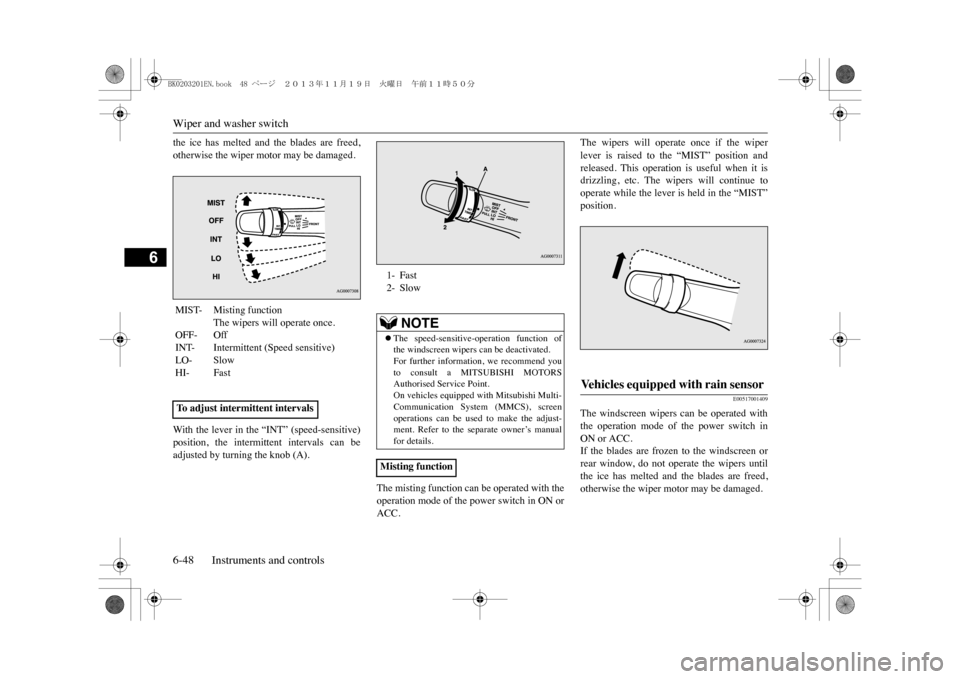

the ice has melted and the blades are freed,otherwise the wiper motor may be damaged.With the lever in the “INT” (speed-sensitive)position, the intermittent intervals can beadjusted by turning the knob (A).
The misting function can be operated with theoperation mode of the power switch in ON orACC.
The wipers will operate once if the wiperlever is raised to the “MIST” position andreleased. This operation is useful when it isdrizzling, etc. The wipers will continue tooperate while the lever is held in the “MIST”position.
E00517001409
The windscreen wipers can be operated withthe operation mode of the power switch inON or ACC.If the blades are frozen to the windscreen orrear window, do not operate the wipers untilthe ice has melted and the blades are freed,otherwise the wiper motor may be damaged.
MIST- Misting function
The wipers will operate once.
OFF- OffINT- Intermittent (Speed sensitive)LO- SlowHI- FastTo a d j u s t i n t e r m i t t e n t i n t e r v a l s
1- Fast2- Slow
NOTE
zThe speed-sensitive-operation function ofthe windscreen wipers can be deactivated.For further informati
on, we recommend you
to consult a MITSUBISHI MOTORSAuthorised Service Point.On vehicles equipped
with Mitsubishi Multi-
Communication System (MMCS), screenoperations can be used to make the adjust-ment. Refer to the se
parate owner’s manual
for details.
Misting function
Ve h i c l e s e q u i p p e d w i t h r a i n s e n s o r
BK0203201EN.book 48 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Wiper and washer switch
Instruments and controls 6-49
6

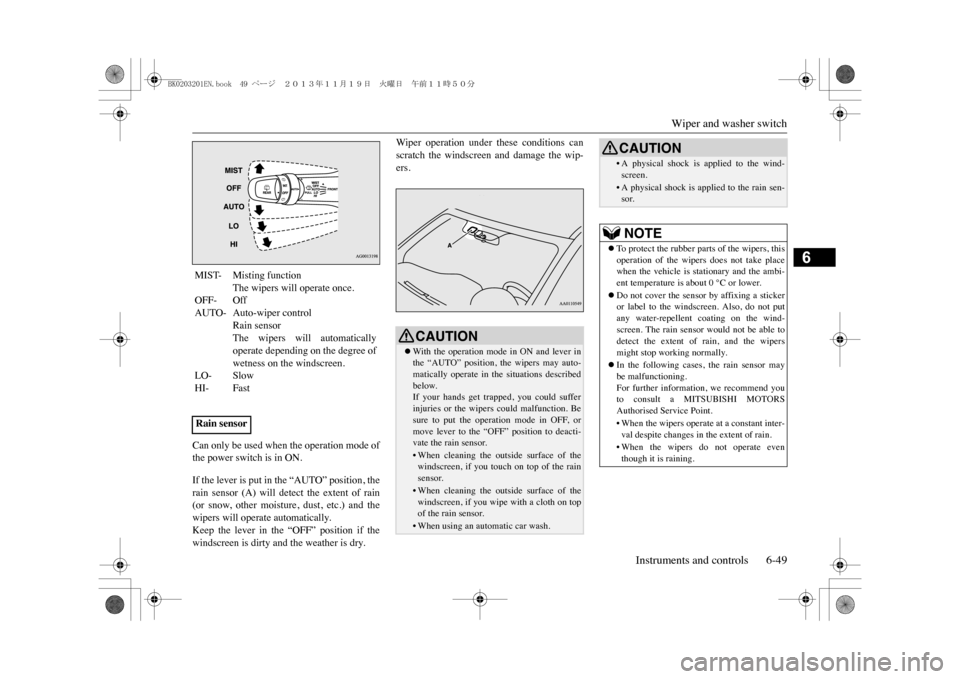

Can only be used when the operation mode ofthe power switch is in ON.If the lever is put in the “AUTO” position, therain sensor (A) will detect the extent of rain(or snow, other moisture, dust, etc.) and thewipers will operate automatically.Keep the lever in the “OFF” position if thewindscreen is dirty and the weather is dry.
Wiper operation under these conditions canscratch the windscreen and damage the wip-ers.
MIST- Misting function
The wipers will operate once.
OFF- OffAUTO- Auto-wiper control
Rain sensorThe wipers will automaticallyoperate depending on the degree ofwetness on the windscreen.
LO- SlowHI- FastRain sensor
CAUTIONzWith the operation mode in ON and lever inthe “AUTO” position, the wipers may auto-matically operate in the situations describedbelow.If your hands get trapped, you could sufferinjuries or the wipers could malfunction. Besure to put the operation mode in OFF, ormove lever to the “OFF” position to deacti-vate the rain sensor.•When cleaning the outside surface of thewindscreen, if you touch on top of the rainsensor.•When cleaning the outside surface of thewindscreen, if you wipe with a cloth on topof the rain sensor.•When using an automatic car wash.
•A physical shock is applied to the wind-screen.•A physical shock is applied to the rain sen-sor.NOTE
zTo p r o t e c t t h e r ub b e r p a r t s o f t h e w i pe r s , t h i soperation of the wipers
does not take place
when the vehicle is stationary and the ambi-ent temperature is about 0 °C or lower.zDo not cover the sensor by affixing a stickeror label to the windscreen. Also, do not putany water-repellent coating on the wind-screen. The rain sensor would not be able todetect the extent of rain, and the wipersmight stop working normally.zIn the following cases, the rain sensor maybe malfunctioning.For further informati
on, we recommend you
to consult a MITSUBISHI MOTORSAuthorised Service Point.•When the wipers operate
at a constant inter-
val despite changes in the extent of rain.•When the wipers do not operate eventhough it is raining.CAUTION
BK0203201EN.book 49 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Wiper and washer switch6-50 Instruments and controls
6

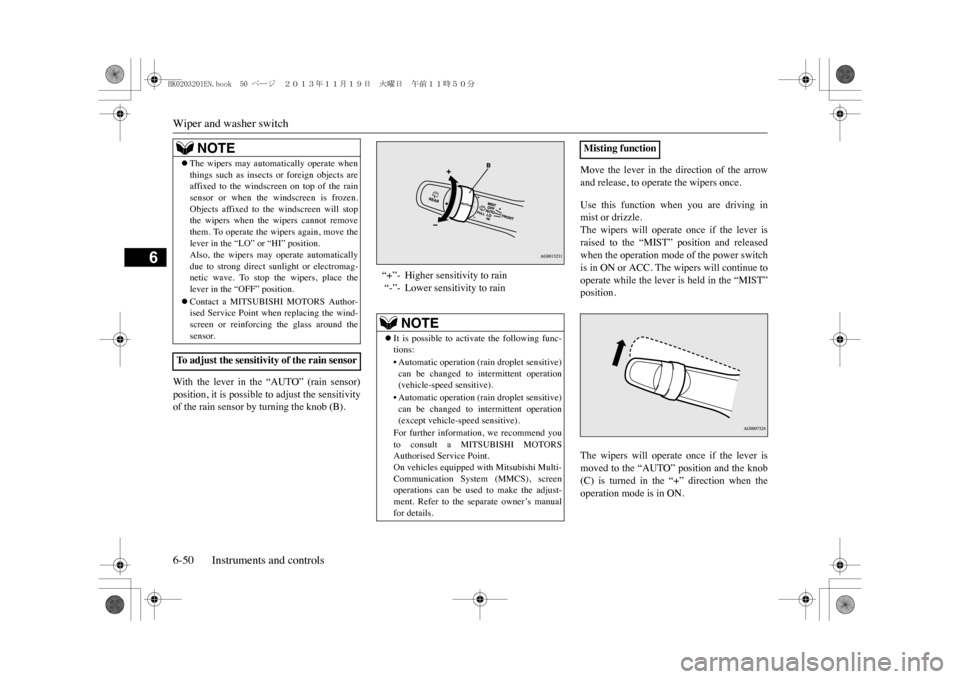

With the lever in the “AUTO” (rain sensor)position, it is possible to adjust the sensitivityof the rain sensor by turning the knob (B).
Move the lever in the direction of the arrowand release, to operate the wipers once.Use this function when you are driving inmist or drizzle.The wipers will operate once if the lever israised to the “MIST” position and releasedwhen the operation mode of the power switchis in ON or ACC. The wipers will continue tooperate while the lever is held in the “MIST”position.The wipers will operate once if the lever ismoved to the “AUTO” position and the knob(C) is turned in the “+” direction when theoperation mode is in ON.
zThe wipers may automatically operate whenthings such as insects
or foreign objects are
affixed to the windscreen on top of the rainsensor or when the windscreen is frozen.Objects affixed to the windscreen will stopthe wipers when the wipers cannot removethem. To operate the wipers again, move thelever in the “LO” or “HI” position.Also, the wipers may operate automaticallydue to strong direct s
unlight or electromag-
netic wave. To stop the wipers, place thelever in the “OFF” position.zContact a MITSUBISHI MOTORS Author-ised Service Point when replacing the wind-screen or reinforcing the glass around thesensor.
To a d j u s t t h e s e n s i t i v i t y o f t h e r a i n s e n s o r
NOTE
“+”- Higher sensitivity to rain“-”- Lower sensitivity to rain
NOTE
zIt is possible to activate the following func-tions:•Automatic operation (rain droplet sensitive)can be changed to intermittent operation(vehicle-speed sensitive).• Automatic operation (rain droplet sensitive)can be changed to intermittent operation(except vehicle-speed sensitive).For further informati
on, we recommend you
to consult a MITSUBISHI MOTORSAuthorised Service Point.On vehicles equipped
with Mitsubishi Multi-
Communication System (MMCS), screenoperations can be used to make the adjust-ment. Refer to the se
parate owner’s manual
for details.
Misting function
BK0203201EN.book 50 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Wiper and washer switch
Instruments and controls 6-51
6
E00507202317

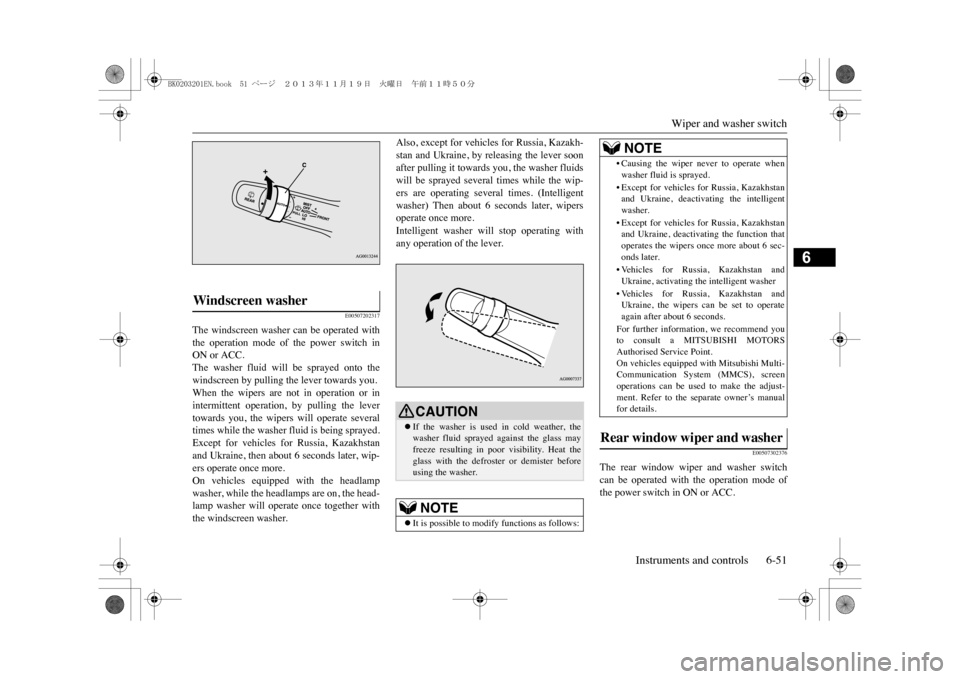

The windscreen washer can be operated withthe operation mode of the power switch inON or ACC.The washer fluid will be sprayed onto thewindscreen by pulling the lever towards you.When the wipers are not in operation or inintermittent operation, by pulling the levertowards you, the wipers will operate severaltimes while the washer fluid is being sprayed.Except for vehicles for Russia, Kazakhstanand Ukraine, then about 6 seconds later, wip-ers operate once more.On vehicles equipped with the headlampwasher, while the headlamps are on, the head-lamp washer will operate once together withthe windscreen washer.
Also, except for vehicles for Russia, Kazakh-stan and Ukraine, by releasing the lever soonafter pulling it towards you, the washer fluidswill be sprayed several times while the wip-ers are operating several times. (Intelligentwasher) Then about 6 seconds later, wipersoperate once more.Intelligent washer will stop operating withany operation of the lever.
E00507302376
The rear window wiper and washer switchcan be operated with the operation mode ofthe power switch in ON or ACC.
Windscreen washer
CAUTIONzIf the washer is used in cold weather, thewasher fluid sprayed against the glass mayfreeze resulting in poor visibility. Heat theglass with the defroster or demister beforeusing the washer.NOTE
zIt is possible to modify
functions as follows:
•Causing the wiper never to operate whenwasher fluid is sprayed.•Except for vehicles for Russia, Kazakhstanand Ukraine, deactivating the intelligentwasher.•Except for vehicles for Russia, Kazakhstanand Ukraine, deactivating the function thatoperates the wipers on
ce more about 6 sec-
onds later.•Vehicles for Russia, Kazakhstan andUkraine, activating the intelligent washer•Vehicles for Russia, Kazakhstan andUkraine, the wipers can be set to operateagain after about 6 seconds.For further informati
on, we recommend you
to consult a MITSUBISHI MOTORSAuthorised Service Point.On vehicles equipped
with Mitsubishi Multi-
Communication System (MMCS), screenoperations can be used to make the adjust-ment. Refer to the se
parate owner’s manual
for details.
Rear window wiper and washer
NOTE
