Indicator lamp, warning lamp, and information screen display list6-28 Instruments and controls
6

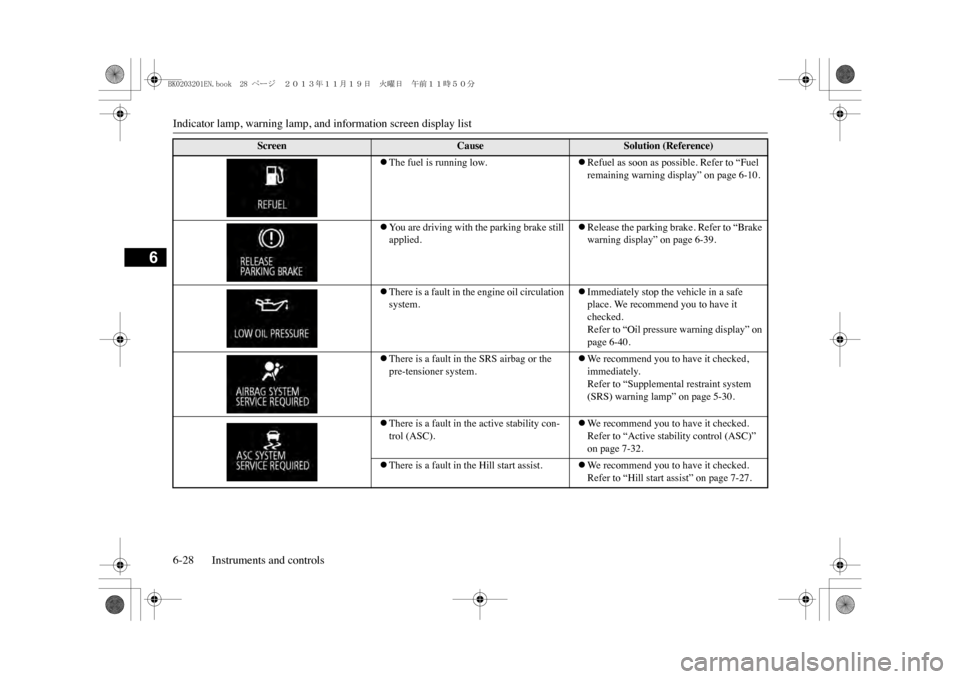

zThe fuel is running low.
zRefuel as soon as possible. Refer to “Fuel remaining warning display” on page 6-10.
zYo u a r e d r i v i n g w i t h t h e p a r k i n g b r a k e s t i l l applied.
zRelease the parking brake. Refer to “Brake warning display” on page 6-39.
zThere is a fault in the engine oil circulation system.
zImmediately stop the vehicle in a safe place. We recommend you to have it checked.Refer to “Oil pressure warning display” on page 6-40.
zThere is a fault in the SRS airbag or the pre-tensioner system.
zWe r e c o m m e n d y o u t o h a v e i t c h e c k e d , immediately.Refer to “Supplemental restraint system (SRS) warning lamp” on page 5-30.
zThere is a fault in the active stability con-trol (ASC).
zWe r e c o m m e n d y o u t o h a v e i t c h e c k e d .Refer to “Active stability control (ASC)” on page 7-32.
zThere is a fault in the Hill start assist.
zWe r e c o m m e n d y o u t o h a v e i t c h e c k e d .Refer to “Hill start assist” on page 7-27.
Screen
Cause
Solution (Reference)
BK0203201EN.book 28 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Indicator lamp, warning lamp, and information screen display list
Instruments and controls 6-29
6
zThe outside temperature is 3 °C (37 °F) or less.
zBe careful of ice on the road.zThe road can be icy even when this warn-ing is not displayed, so drive carefully.
zThe Adaptive Cruise Control System (ACC) has detected the approach of the vehicles in front.
zIncrease the following distance by depress-ing the brake pedal or marking other decel-erating control.Refer to “Adaptive Cruise Control System (ACC): Proximity alarm” on page 7-46.
zThe Forward Collision Mitigation System (FCM) has detected the danger of collision.
zTa k e a p p r o p r i a t e a c t i o n s u c h a s d e p r e s s i n g the brake to avoid collision.Refer to “FCM braking function” on page 7-56.
zThe Adaptive Cruise Control System (ACC) detected a stop of the vehicle in front and stopped your vehicle, but the brake will be released soon.
zDepress the brake pedal as soon as your vehicle comes to a stop.Refer to “Adaptive Cruise Control System (ACC)” on page 7-43.
Screen
Cause
Solution (Reference)
BK0203201EN.book 29 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Indicator lamp, warning lamp, and information screen display list6-30 Instruments and controls
6

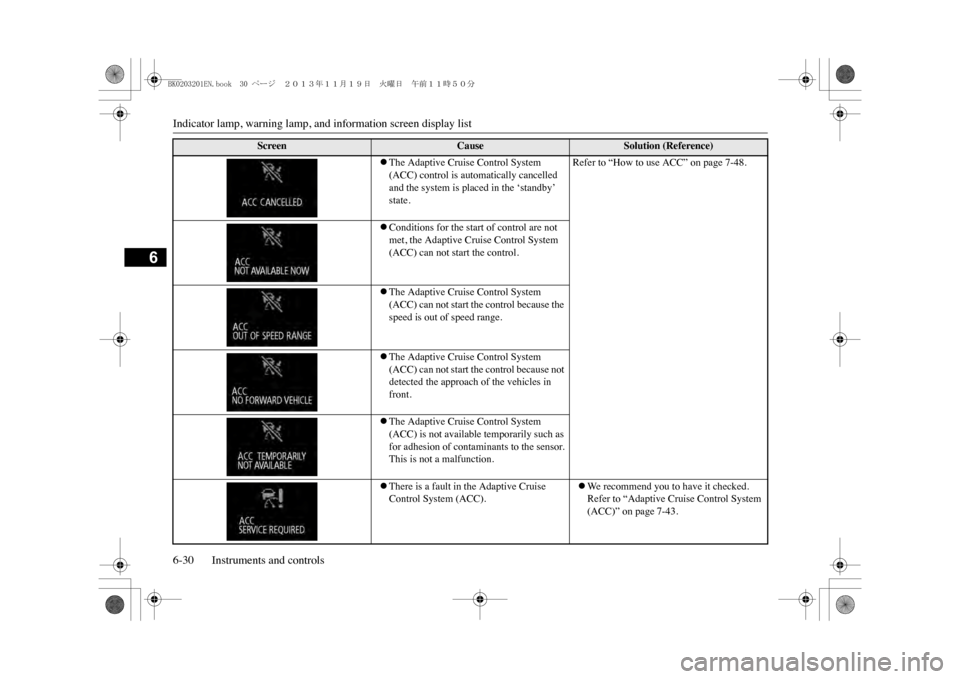

zThe Adaptive Cruise Control System (ACC) control is automatically cancelled and the system is placed in the ‘standby’ state.
Refer to “How to use ACC” on page 7-48.
zConditions for the start of control are not met, the Adaptive Cruise Control System (ACC) can not start the control.zThe Adaptive Cruise Control System (ACC) can not start the control because the speed is out of speed range.zThe Adaptive Cruise Control System (ACC) can not start the control because not detected the approach of the vehicles in front.zThe Adaptive Cruise Control System (ACC) is not available temporarily such as for adhesion of contaminants to the sensor.This is not a malfunction.zThere is a fault in the Adaptive Cruise Control System (ACC).
zWe r e c o m m e n d y o u t o h a v e i t c h e c k e d .Refer to “Adaptive Cruise Control System (ACC)” on page 7-43.
Screen
Cause
Solution (Reference)
BK0203201EN.book 30 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Indicator lamp, warning lamp, and information screen display list
Instruments and controls 6-31
6

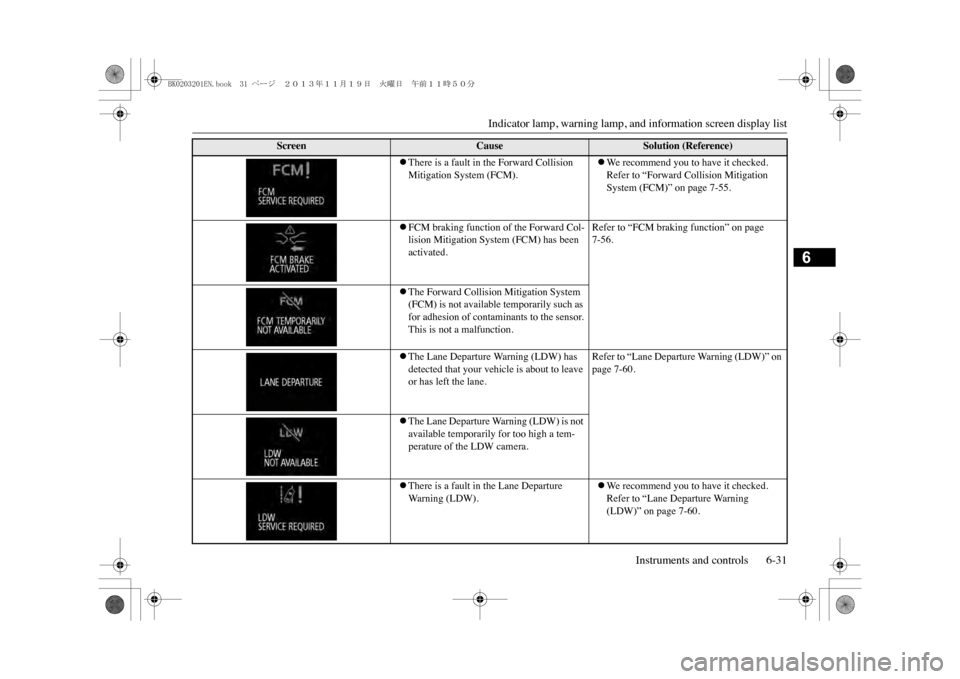

zThere is a fault in the Forward Collision Mitigation System (FCM).
zWe r e c o m m e n d y o u t o h a v e i t c h e c k e d .Refer to “Forward Collision Mitigation System (FCM)” on page 7-55.
zFCM braking function of the Forward Col-lision Mitigation System (FCM) has been activated.
Refer to “FCM braking function” on page 7-56.
zThe Forward Collision Mitigation System (FCM) is not available temporarily such as for adhesion of contaminants to the sensor.This is not a malfunction.zThe Lane Departure Warning (LDW) has detected that your vehicle is about to leave or has left the lane.
Refer to “Lane Departure Warning (LDW)” on page 7-60.
zThe Lane Departure Warning (LDW) is not available temporarily for too high a tem-perature of the LDW camera.zThere is a fault in the Lane Departure Wa r n i n g ( L D W ) .
zWe r e c o m m e n d y o u t o h a v e i t c h e c k e d .Refer to “Lane Departure Warning (LDW)” on page 7-60.
Screen
Cause
Solution (Reference)
BK0203201EN.book 31 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Indicator lamp, warning lamp, and information screen display list6-32 Instruments and controls
6
E00531401032

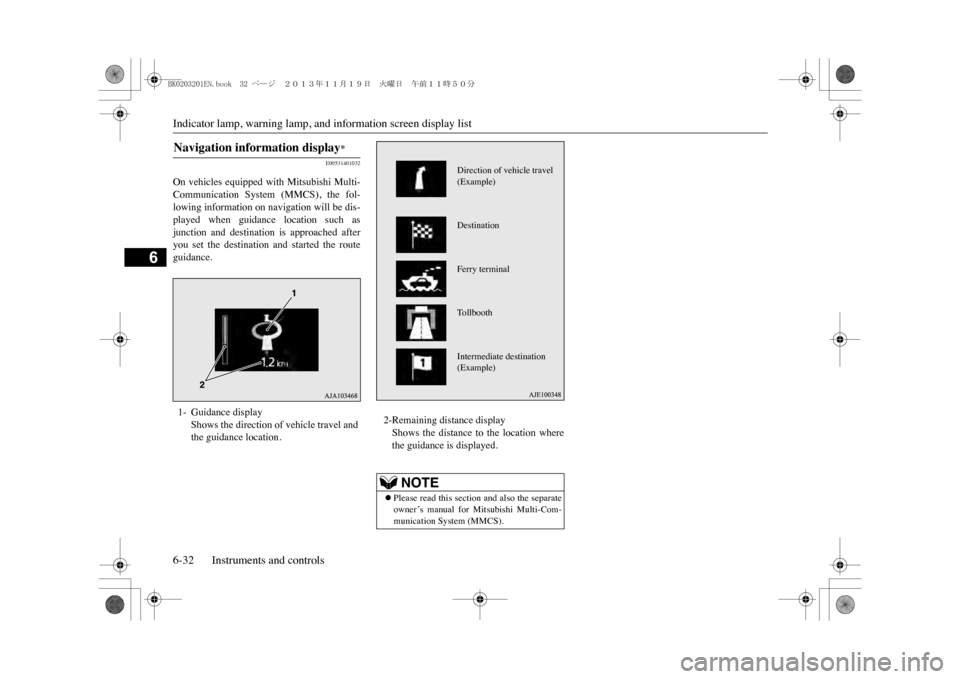

On vehicles equipped with Mitsubishi Multi-Communication System (MMCS), the fol-lowing information on navigation will be dis-played when guidance location such asjunction and destination is approached afteryou set the destination and started the routeguidance.Navigation information display
*
1- Guidance display
Shows the direction of vehicle travel andthe guidance location.
2-Remaining distance displayShows the distance to the location wherethe guidance is displayed.NOTE
zPlease read this section and also the separateowner’s manual for Mitsubishi Multi-Com-munication System (MMCS).
Direction of vehicle travel (Example)DestinationFerry terminalTo l l b o o t hIntermediate destination (Example)
BK0203201EN.book 32 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Indicator lamp, warning lamp, and information screen display list
Instruments and controls 6-33
6
E00524201836
The operation status of each system is displayed on the information screen. Refer to the appropriate page for the system for fu
rther details.
Other interrupt displays
Screen
System operation status
Reference

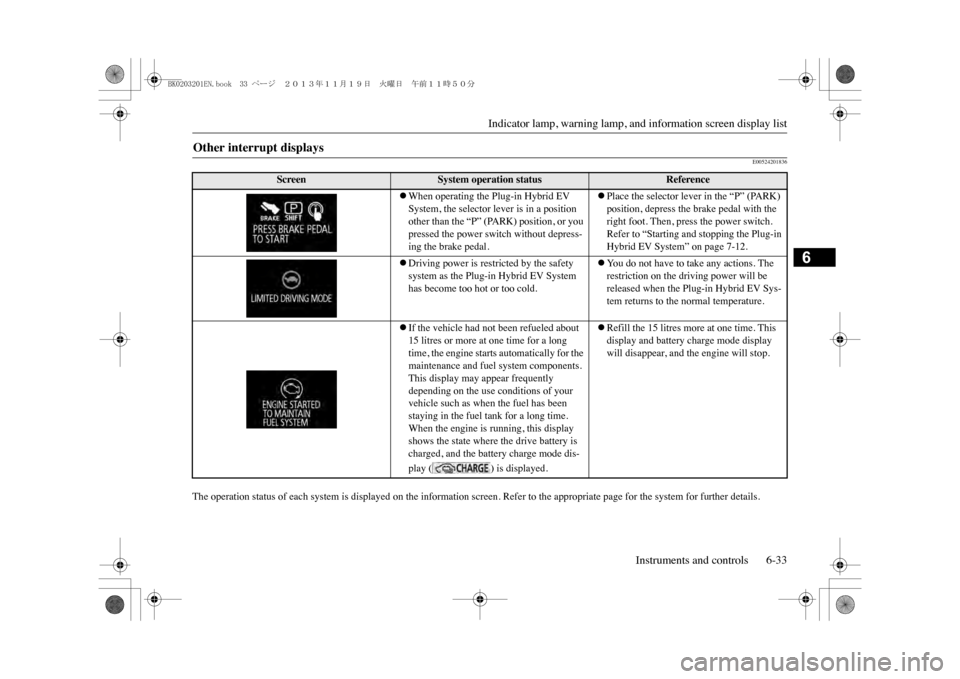

zWhen operating the Plug-in Hybrid EV System, the selector lever is in a position other than the “P” (PARK) position, or you pressed the power switch without depress-ing the brake pedal.
zPlace the selector lever in the “P” (PARK) position, depress the brake pedal with the right foot. Then, press the power switch.Refer to “Starting and stopping the Plug-in Hybrid EV System” on page 7-12.
zDriving power is restricted by the safety system as the Plug-in Hybrid EV System has become too hot or too cold.
zYo u d o n o t h a v e t o t a k e a n y a c t i o n s . T h e restriction on the driving power will be released when the Plug-in Hybrid EV Sys-tem returns to the normal temperature.
zIf the vehicle had not been refueled about 15 litres or more at one time for a long time, the engine starts automatically for the maintenance and fuel system components.This display may appear frequently depending on the use conditions of your vehicle such as when the fuel has been staying in the fuel tank for a long time.When the engine is running, this display shows the state where the drive battery is charged, and the battery charge mode dis-play (
) is displayed.
zRefill the 15 litres more at one time. This display and battery charge mode display will disappear, and the engine will stop.
BK0203201EN.book 33 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Indicator lamp, warning lamp, and information screen display list6-34 Instruments and controls
6
Screen
System operation status
Reference

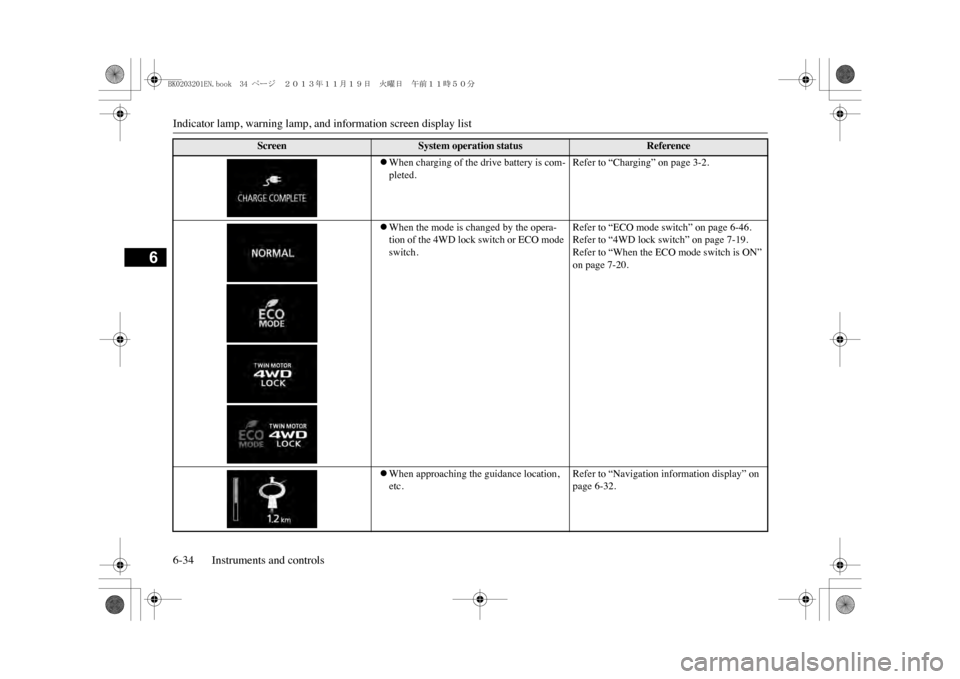

zWhen charging of the drive battery is com-pleted.
Refer to “Charging” on page 3-2.
zWhen the mode is changed by the opera-tion of the 4WD lock switch or ECO mode switch.
Refer to “ECO mode switch” on page 6-46.Refer to “4WD lock switch” on page 7-19.Refer to “When the ECO mode switch is ON” on page 7-20.
zWhen approaching the guidance location, etc.
Refer to “Navigation information display” on page 6-32.
BK0203201EN.book 34 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Indicator lamp, warning lamp, and information screen display list
Instruments and controls 6-35
6
This informs you that a periodic inspection is due.
zWhen the battery save mode is activated. Refer to “Battery save switch” on page 7-22.zWhen the battery charge mode is activated. Refer to “Battery charge switch” on page 7-23.zWhen the reversing sensor system detect an obstruction.
Refer to “Reversing sensor system” on page 7-63.
zWhen the Forward Collision Mitigation System (FCM) is activated or the timing of an alarm is changed.
Refer to “FCM ON/OFF switch” on page 7-59.
zWhen the Forward Collision Mitigation System (FCM) is deactivated.
Screen
System operation status
Reference
