2001 LAND ROVER FREELANDER Workshop Manual

AIR CONDITIONING
82-10REPAIRS
Condenser
$% 82.15.07
Remove
1.Disconnect battery earth lead.
2.Recover refrigerant from A/C system.

+ AIR CONDITIONING, REFRIGERANT
RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.
3. Td4 models: Remove intercooler.

+ FUEL DELIVERY SYSTEM - DIESEL,
REPAIRS, Intercooler.
4. Remove bumper valance.

+ EXTERIOR FITTINGS, REPAIRS,
Bumper - assembly - front - up to 04MY.
5. KV6 models: Remove 2 bolts securing PAS
fluid cooler to armature.
6. Up to 04MY: Remove 4 nuts and 4 bolts
securing armature to body, remove armature.
7. 04MY on: Remove 4 bolts securing armature to
crash cans and remove armature.8.If fitted, remove 4 scrivets securing LH and RH
air deflectors, remove both deflectors.
9.Remove 2 bolts securing condenser to radiator.
10.Remove 2 bolts securing receiver drier
mounting brackets to radiator.

M76 4176

AIR CONDITIONING
REPAIRS 82-11
11.Remove 2 bolts securing A/C pipes to
condenser and release pipes from condenser.
CAUTION: Before disconnecting or
removing components, ensure the
immediate area around joint faces and
connections are clean. Plug open
connections to prevent contamination.
12.Remove and discard 'O' rings from A/C pipes.
13.Remove condenser.
14.Remove 8 screws, securing 4 mounting
brackets to condenser and move aside.
15.Remove and discard receiver drier, plug
connections.Refit
1.Fit condenser mounting brackets, fully tighten
LH screws. Leave RH screws loose until
receiver drier is fitted.
CAUTION: Ensure that bolts of the correct
length are used on refit.
2.Lubricate new 'O' rings with clean refrigerant
oil, fit one seal to each condenser pipe.
3.Position A/C pipes to condenser, fit bolts and
tighten to 8 Nm (6 lbf.ft).
4.Fit bolts securing condenser to radiator and
tighten to 8 Nm (6 lbf.ft).
5.Fit receiver drier assembly to condenser.

+ AIR CONDITIONING, REPAIRS,
Receiver drier.
6.Fit air deflectors and secure with scrivets.
7. Up to 04MY: Position armature, fit and tighten
4 nuts and bolts securing armature to body to
25 Nm (18 lbf.ft).
8. 04MY on: Position armature, fit bolts securing
armature to crash cans and tighten to 25 Nm
(18 lbf.ft).
9. KV6 models:Align PAS fluid cooler and tighten
bolts to 8 Nm (6 lbf.ft).
10.Fit bumper valance.

+ EXTERIOR FITTINGS, REPAIRS,
Bumper - assembly - front - up to 04MY.
11. Td4 models: Fit intercooler.

+ FUEL DELIVERY SYSTEM - DIESEL,
REPAIRS, Intercooler.
12.Recharge A/C system.

+ AIR CONDITIONING, REFRIGERANT
RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.
13.Connect battery earth lead.
M82 0706

AIR CONDITIONING
82-12REPAIRS
Receiver drier
$% 82.17.03
Remove
1.Disconnect battery earth lead.
2.Recover refrigerant from A/C system.

+ AIR CONDITIONING, REFRIGERANT
RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.
3. Remove bumper valance.

+ EXTERIOR FITTINGS, REPAIRS,
Bumper - assembly - front - up to 04MY.
4. KV6 models: Remove 2 bolts securing PAS
fluid cooler to armature.
5. Up to 04MY: Remove 4 nuts and 4 bolts
securing armature to body and remove
armature.
6. 04MY on: Remove 4 bolts securing armature to
crash cans and remove armature.
7.If fitted, remove 2 scrivets securing LH air
deflector and remove air deflector.8. Td4 models: Remove intercooler.

+ FUEL DELIVERY SYSTEM - DIESEL,
REPAIRS, Intercooler.
9.Remove 4 screws from clamps securing
receiver drier to condenser.
10.Remove receiver drier from condenser.
CAUTION: Before disconnecting or
removing components, ensure the
immediate area around joint faces and
connections are clean. Plug open
connections to prevent contamination.
11.Discard dust shield and 'O' ring seals.

M76 4176

AIR CONDITIONING
REPAIRS 82-13
Refit
1.Lubricate new 'O' rings, dust shield and
condenser thread with refrigerant oil.
2.Fit 'O' rings and dust shield to receiver drier.
CAUTION: Do not remove receiver/dryer
from packaging until immediately before
installation.
3.Fit receiver drier to condenser and tighten to 12
Nm (9 lbf.ft).
4.Tighten clamps securing receiver drier to
condenser.
5.If fitted, fit air deflector and secure with scrivets.
6. Td4 models: Fit intercooler.

+ FUEL DELIVERY SYSTEM - DIESEL,
REPAIRS, Intercooler.
7. Up to 04MY: Position armature, fit and tighten
4 nuts and bolts securing armature to body to
25 Nm (18 lbf.ft).
8. 04MY on: Position armature, fit bolts securing
armature to crash cans and tighten bolts to 25
Nm (18 lbf.ft).
9. KV6 models: Align PAS fluid cooler and
tighten bolts to 8 Nm (6 lbf.ft).
10.Fit bumper valance.

+ EXTERIOR FITTINGS, REPAIRS,
Bumper - assembly - front - up to 04MY.
11.Recharge A/C system.

+ AIR CONDITIONING, REFRIGERANT
RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.
12.Connect battery earth lead.
Switch - control
$% 82.20.07
Remove
1.Remove radio.

+ IN CAR ENTERTAINMENT,
REPAIRS, Radio - up to 04MY.
2.Remove 3 heater control knobs.
3.Remove 2 screws securing heater control
finisher to heater controls and remove finisher.
4.Disconnect multiplug from A/C control switch.
5.Remove switch from heater controls.
Refit
1.Fit A/C control switch and connect multiplug.
2.Fit heater control finisher and secure with
screws.
3.Fit heater control knobs.
4.Fit radio.

+ IN CAR ENTERTAINMENT,
REPAIRS, Radio - up to 04MY.

AIR CONDITIONING
82-14REPAIRS
Sensor - refrigerant pressure
$% 82.20.38
Remove
1.Disconnect battery earth lead.
2.Recover refrigerant from A/C system.

+ AIR CONDITIONING, REFRIGERANT
RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.
3. Td4 & KV6 models: Remove underbelly panel.

+ EXTERIOR FITTINGS, REPAIRS,
Panel - underbelly.
4.Release multiplug from refrigerant pressure
sensor.
WARNING: Under no circumstances should
refrigerant hoses be disconnected without
first discharging the system.
5.Remove refrigerant pressure sensor from A/C
pipe mounting. Use two spanners to avoid
straining A/C pipe mounting.
CAUTION: Before disconnecting or
removing components, ensure the
immediate area around joint faces and
connections are clean. Plug open
connections to prevent contamination.
6.Discard 'O' ring.Refit
1.Clean refrigerant pressure switch and
surrounding area.
2.Fit new 'O' ring to sensor and tighten to 10 Nm
(7.5 lbf.ft).
3.Fit multiplug to sensor.
4. Td4 & KV6 models: Fit underbelly panel.

+ EXTERIOR FITTINGS, REPAIRS,
Panel - underbelly.
5.Recharge A/C system.

+ AIR CONDITIONING, REFRIGERANT
RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.
6.Connect battery earth lead.

AIR CONDITIONING
REPAIRS 82-15
Valve - thermostatic expansion (TXV)
$% 82.25.01
Remove
1.Disconnect battery earth lead.
2.Recover refrigerant from A/C system.

+ AIR CONDITIONING, REFRIGERANT
RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.
3.Remove bolt securing A/C pipes to TXV,
disconnect pipes and discard 'O' rings. Plug A/
C connections.
WARNING: Under no circumstances should
refrigerant hoses be disconnected without
first discharging the system.4.Remove 2 Allen screws securing TXV to
bulkhead, withdraw assembly and discard 'O'
rings.
CAUTION: Before disconnecting or
removing components, ensure the
immediate area around joint faces and
connections are clean. Plug open
connections to prevent contamination.
Refit
1.Clean mating faces and seal recesses on
evaporator, TXV and block and pipe assembly.
2.Lubricate new 'O' rings with clean refrigerant oil
and fit to TXV pipes.
3.Fit block and pipe assembly to TXV and tighten
bolts to 5 Nm (3.5 lbf.ft).
4.Recharge A/C system.

+ AIR CONDITIONING, REFRIGERANT
RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.
5.Connect battery earth lead.

AIR CONDITIONING
82-16REPAIRS
Evaporator
$% 82.25.20
Remove
1.Depressurise A/C system.

+ AIR CONDITIONING, REFRIGERANT
RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.

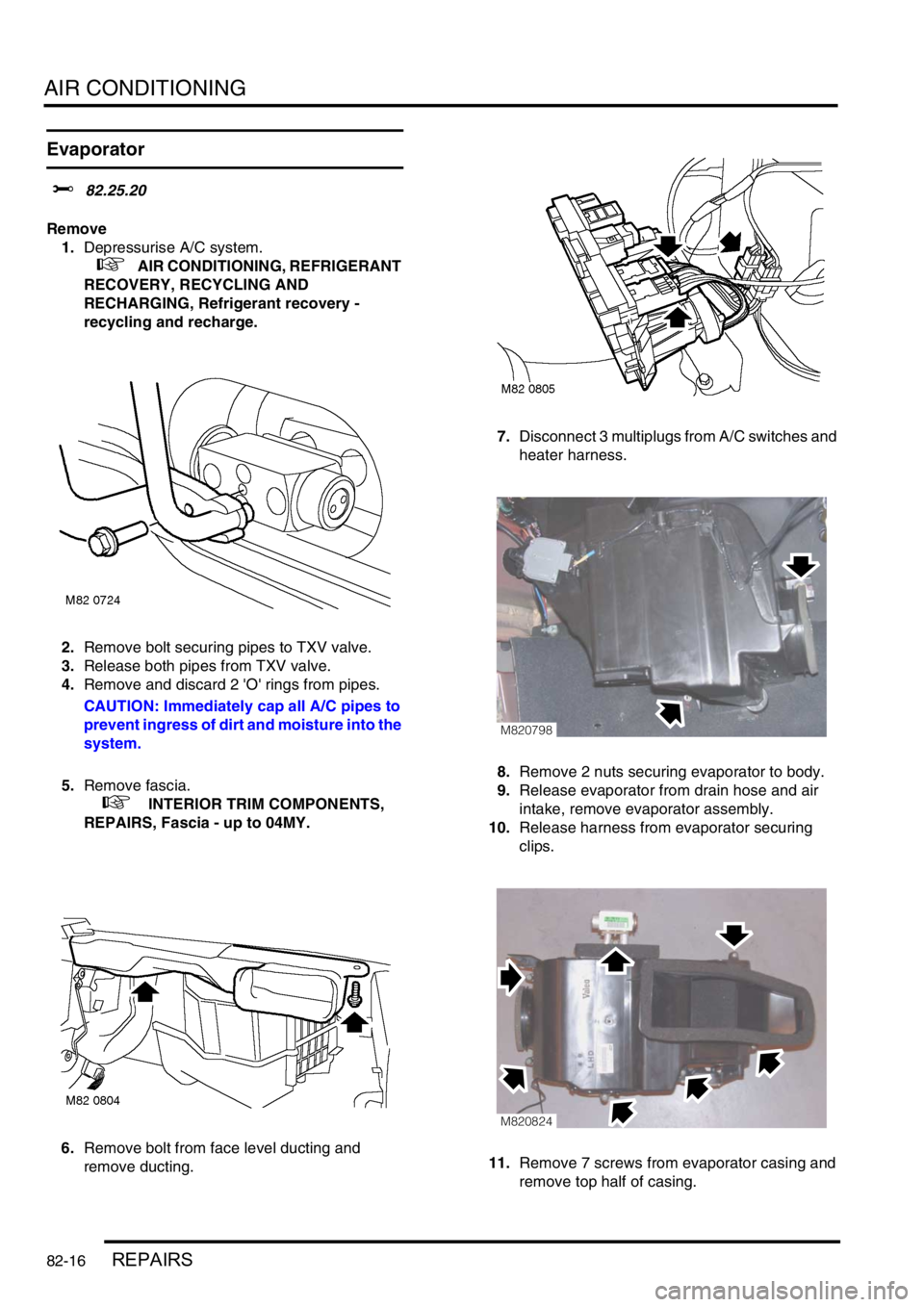

2.Remove bolt securing pipes to TXV valve.
3.Release both pipes from TXV valve.
4.Remove and discard 2 'O' rings from pipes.
CAUTION: Immediately cap all A/C pipes to
prevent ingress of dirt and moisture into the
system.
5.Remove fascia.

+ INTERIOR TRIM COMPONENTS,
REPAIRS, Fascia - up to 04MY.
6.Remove bolt from face level ducting and
remove ducting.7.Disconnect 3 multiplugs from A/C switches and
heater harness.
8.Remove 2 nuts securing evaporator to body.
9.Release evaporator from drain hose and air
intake, remove evaporator assembly.
10.Release harness from evaporator securing
clips.
11.Remove 7 screws from evaporator casing and
remove top half of casing.
M820798
M820824

AIR CONDITIONING
REPAIRS 82-17
12.Remove evaporator from casing.
13.Remove 2 Allen key bolts securing TXV valve,
remove valve and discard 2 'O' rings.
Refit
1.Lubricate new 'O' rings with clean refrigerant oil
and fit to evaporator pipes
2.Fit evaporator pipes to TXV valve and fit
bracket, fit and tighten bolt to 10 Nm (7 lbf.ft).
3.Carefully fit evaporator to casing.
4.Fit top half of evaporator casing.
5.Fit 7 screws to casing.
6.Fit harness in securing clips.
7.Locate evaporator assembly to drain hose and
air intake, position evaporator to body.
8.Fit and tighten nuts securing evaporator to
body.
9.Connect multiplugs to heater harness and A/C
switches.
10.Position face level vent ducting, fit and tighten
bolt.
11.Fit fascia.

+ INTERIOR TRIM COMPONENTS,
REPAIRS, Fascia - up to 04MY.
12.Clean evaporator pipes.
13.Lubricate new 'O' rings with refrigerant oil.
14.Fit 'O' rings to evaporator pipes.
15.Clean evaporator pipes.
16.Fit pipes to TXV valve and fit bracket, tighten
bolt to 10 Nm (7 lbf.ft).
17.Charge A/C system.

+ AIR CONDITIONING, REFRIGERANT
RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.
M820825
