2015 TOYOTA HILUX Owners Manual (in English)

4577-2. Steps to take in an emergency
7
When trouble arises
HILUX_OM_OM0K219E_(EE)

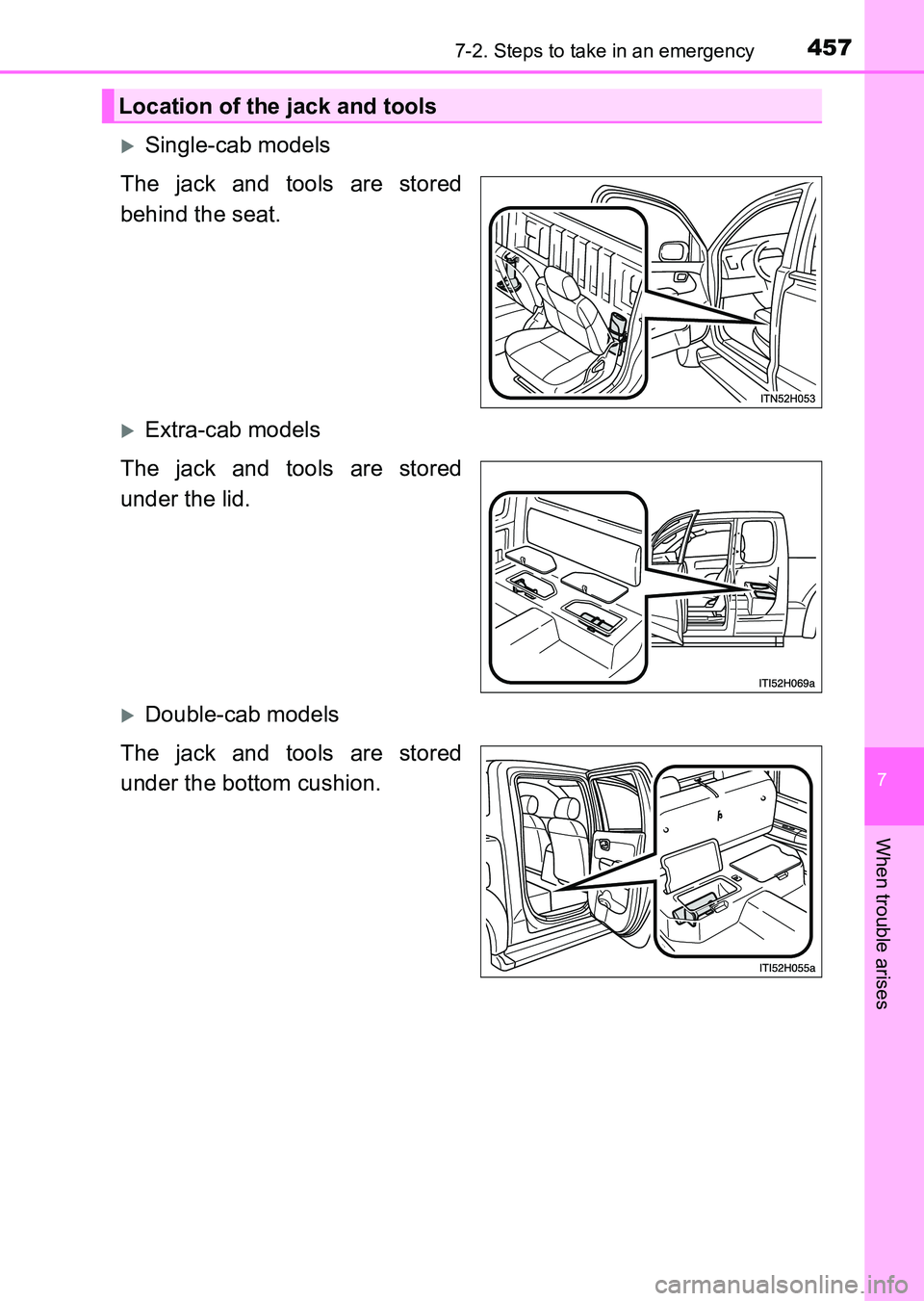

XSingle-cab models
The jack and tools are stored
behind the seat.
XExtra-cab models
The jack and tools are stored
under the lid.
XDouble-cab models
The jack and tools are stored
under the bottom cushion.
Location of the jack and tools
HILUX_OM_OM0K219E_(EE).book Page 457 Wednesday, May 14, 2014 3:06 PM

4587-2. Steps to take in an emergency
HILUX_OM_OM0K219E_(EE)

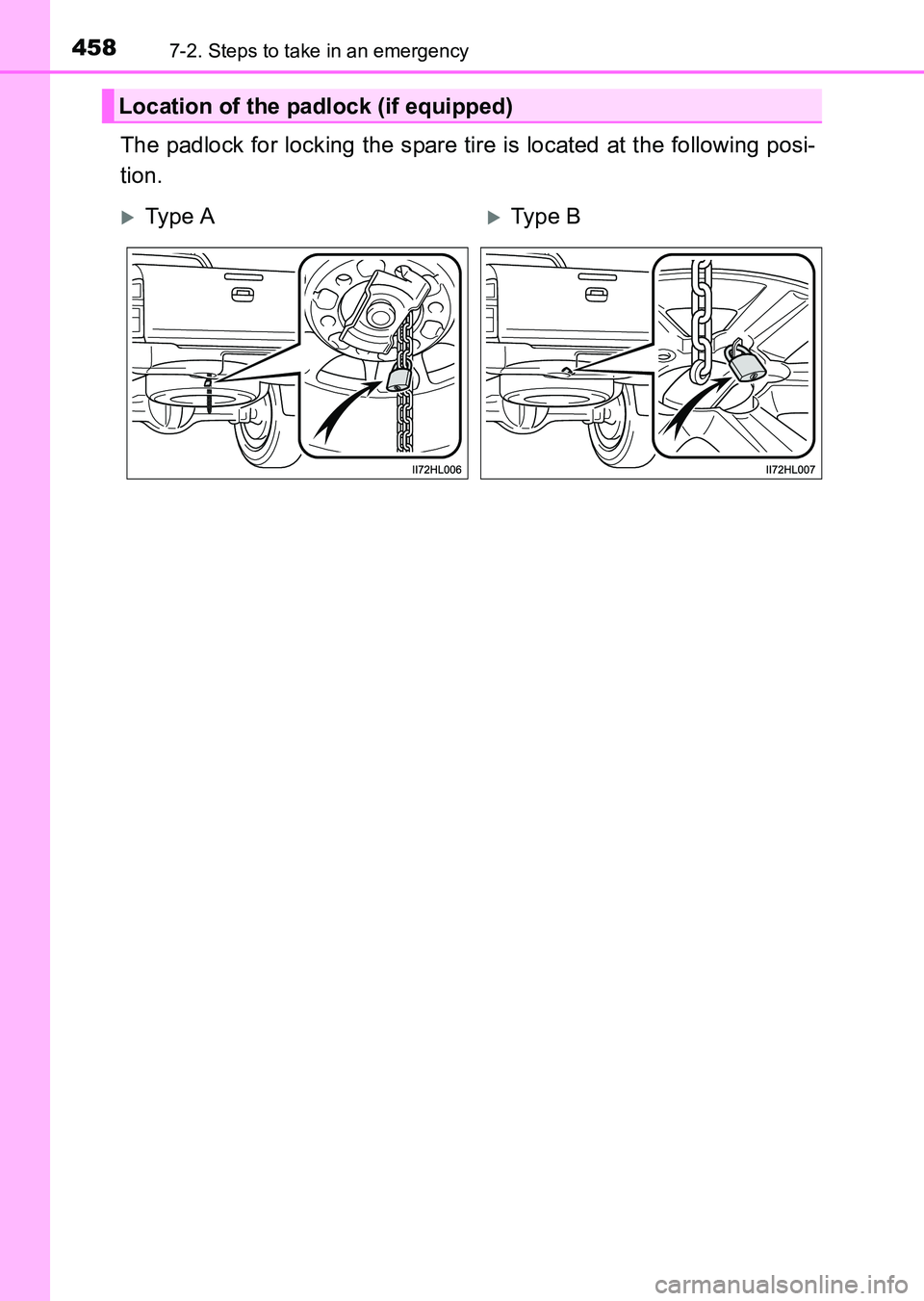

The padlock for locking the spare tire is located at the following posi-
tion.
Location of the padlock (if equipped)
XTy pe AXType B
HILUX_OM_OM0K219E_(EE).book Page 458 Wednesday, May 14, 2014 3:06 PM

4597-2. Steps to take in an emergency
7
When trouble arises
HILUX_OM_OM0K219E_(EE)

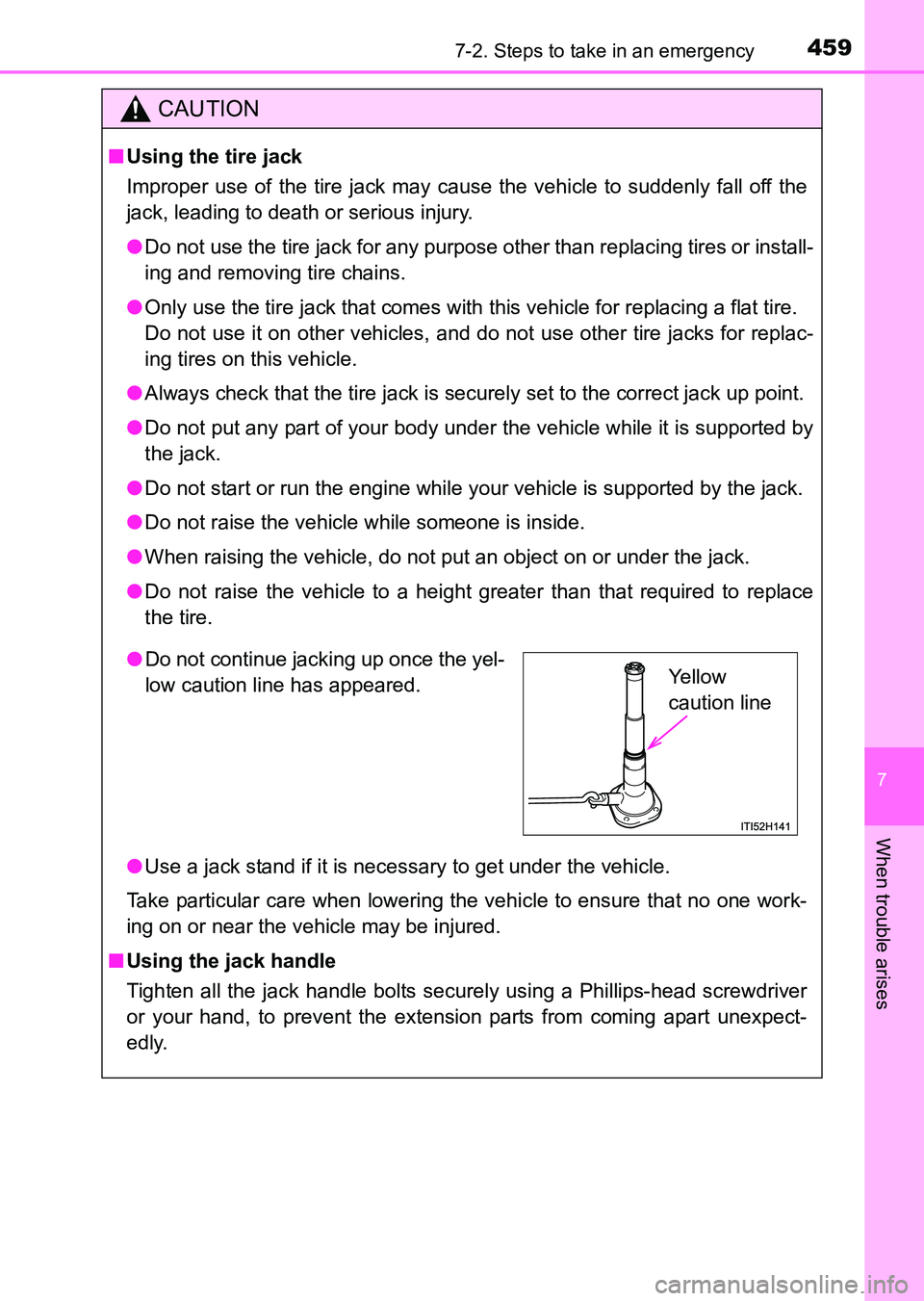

CAUTION
■Using the tire jack
Improper use of the tire jack may cause the vehicle to suddenly fall off the
jack, leading to death or serious injury.
● Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
● Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
● Always check that the tire jack is securely set to the correct jack up point.
● Do not put any part of your body under the vehicle while it is supported by
the jack.
● Do not start or run the engine while your vehicle is supported by the jack.
● Do not raise the vehicle while someone is inside.
● When raising the vehicle, do not put an object on or under the jack.
● Do not raise the vehicle to a height greater than that required to replace
the tire.
● Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one work-
ing on or near the vehicle may be injured.
■
Using the jack handle
Tighten all the jack handle bolts securely using a Phillips-head screwdriver
or your hand, to prevent the extens ion parts from coming apart unexpect-
edly.
● Do not continue jacking up once the yel-
low caution line has appeared.Ye l l o w
caution line
HILUX_OM_OM0K219E_(EE).book Page 459 Wednesday, May 14, 2014 3:06 PM

4607-2. Steps to take in an emergency
HILUX_OM_OM0K219E_(EE)

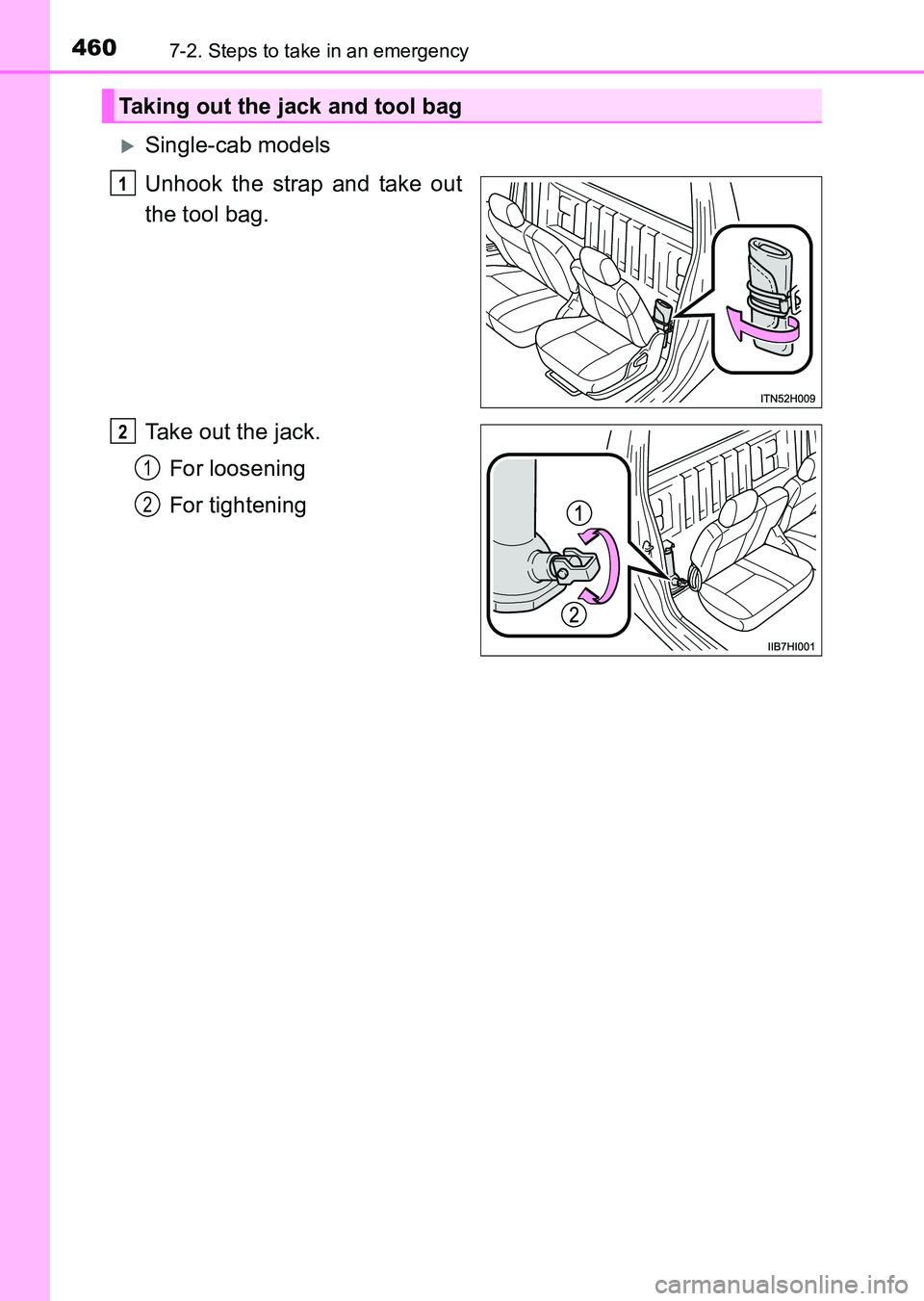

XSingle-cab models
Unhook the strap and take out
the tool bag.
Take out the jack.For loosening
For tightening
Taking out the jack and tool bag
1
2
1
2
HILUX_OM_OM0K219E_(EE).book Page 460 Wednesday, May 14, 2014 3:06 PM

4617-2. Steps to take in an emergency
7
When trouble arises
HILUX_OM_OM0K219E_(EE)

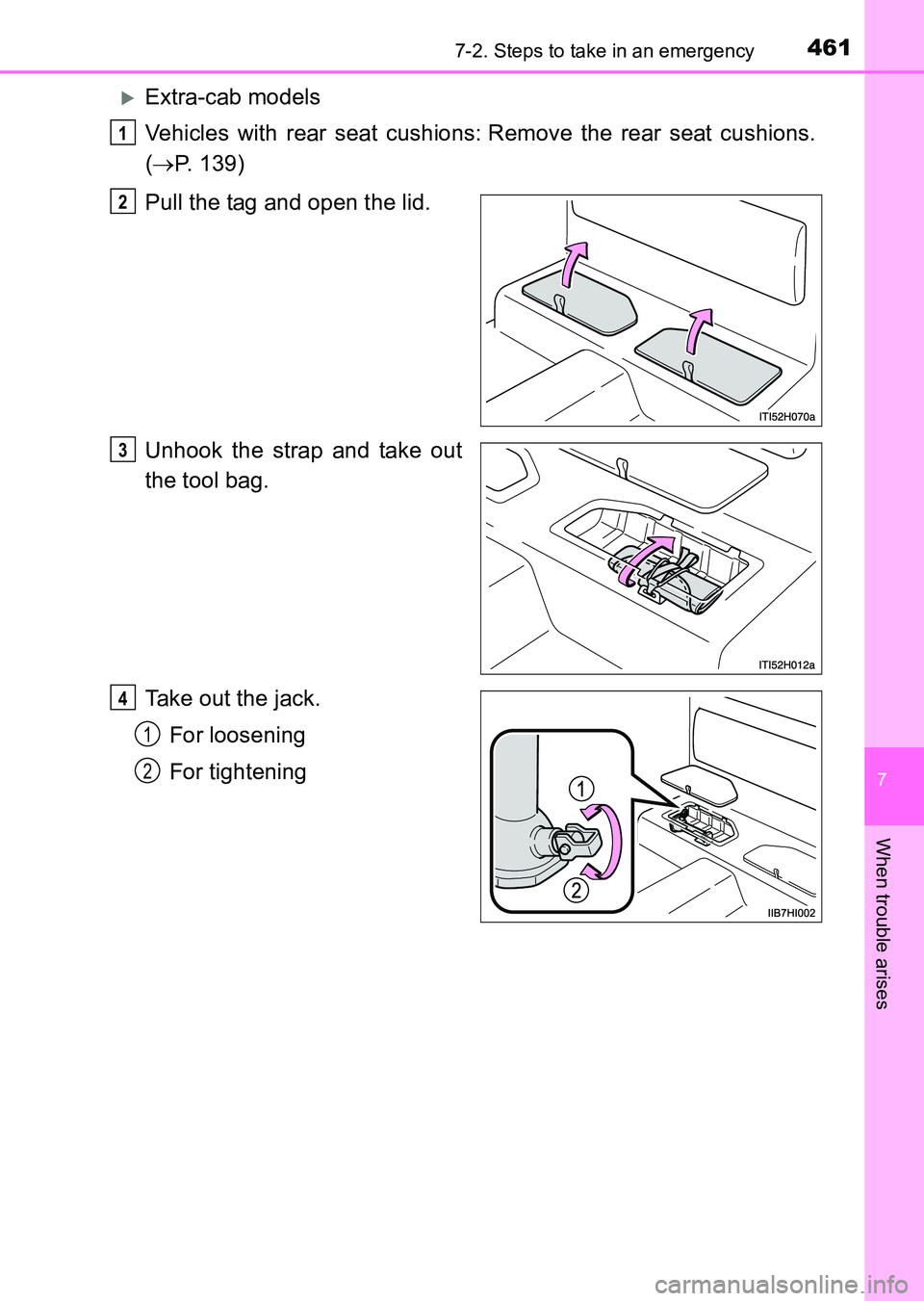

XExtra-cab models
Vehicles with rear seat cushions:
Remove the rear seat cushions.
( → P. 139)
Pull the tag and open the lid.
Unhook the strap and take out
the tool bag.
Take out the jack. For loosening
For tightening1
2
3
4
1
2
HILUX_OM_OM0K219E_(EE).book Page 461 Wednesday, May 14, 2014 3:06 PM

4627-2. Steps to take in an emergency
HILUX_OM_OM0K219E_(EE)

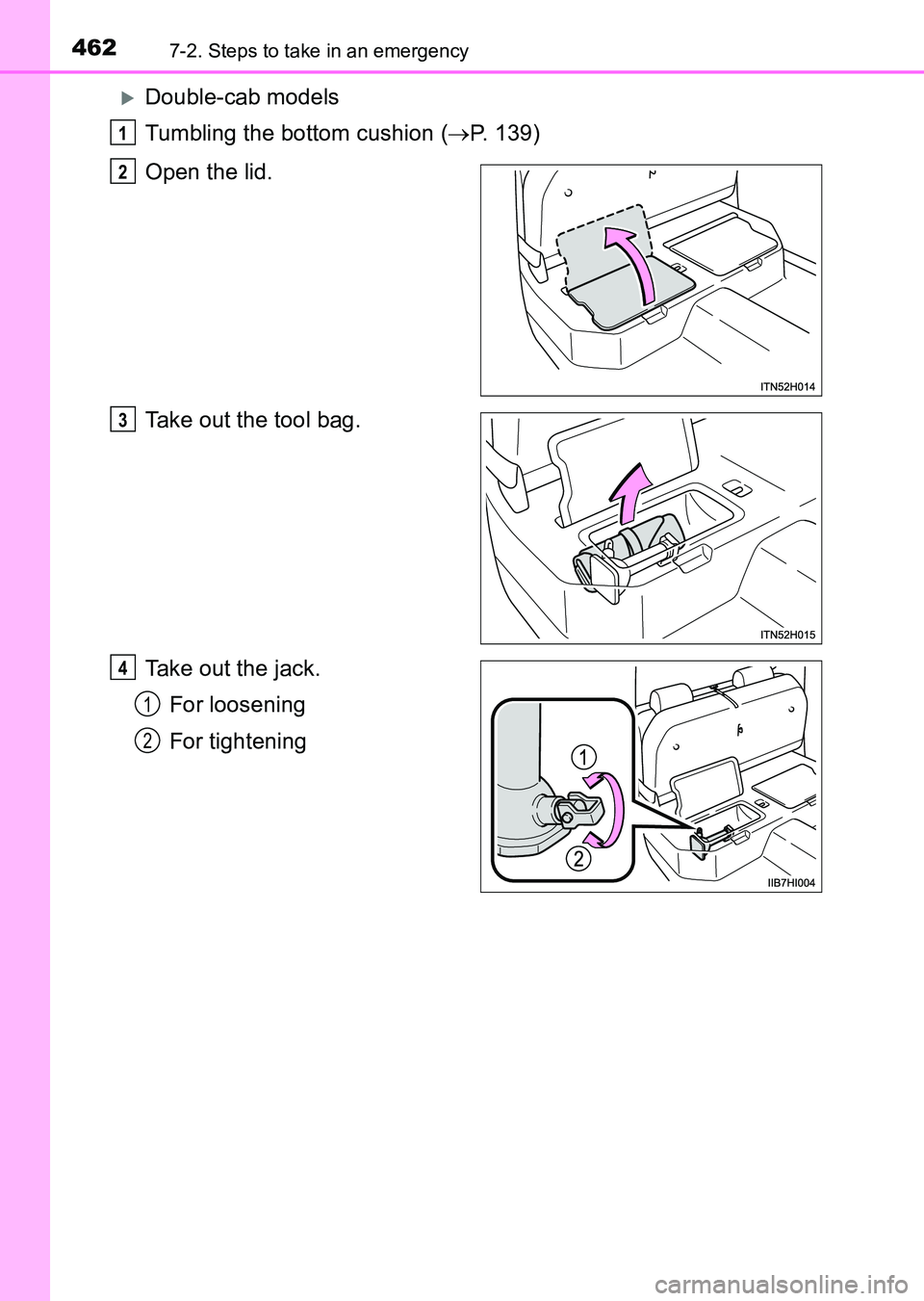

XDouble-cab models
Tumbling the bottom cushion (→P. 139)
Open the lid.
Take out the tool bag.
Take out the jack. For loosening
For tightening
1
2
3
4
1
2
HILUX_OM_OM0K219E_(EE).book Page 462 Wednesday, May 14, 2014 3:06 PM

4637-2. Steps to take in an emergency
7
When trouble arises
HILUX_OM_OM0K219E_(EE)

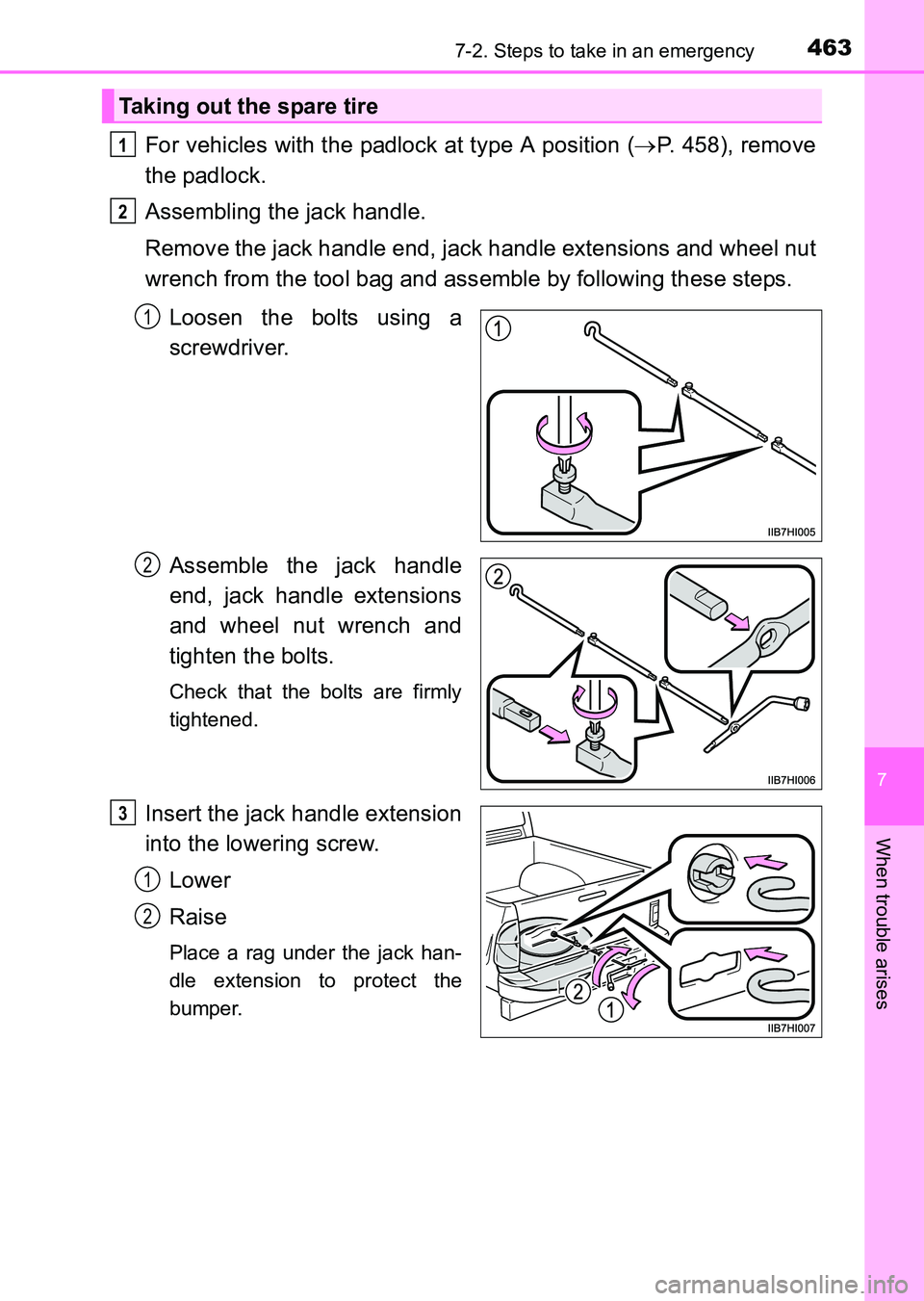

For vehicles with the padlock at type A position (→P. 458), remove
the padlock.
Assembling the jack handle.
Remove the jack handle end, jack handle extensions and wheel nut
wrench from the tool bag and assemble by following these steps.
Loosen the bolts using a
screwdriver.
Assemble the jack handle
end, jack handle extensions
and wheel nut wrench and
tighten the bolts.
Check that the bolts are firmly
tightened.
Insert the jack handle extension
into the lowering screw.Lower
Raise
Place a rag under the jack han-
dle extension to protect the
bumper.
Taking out the spare tire
1
2
1
2
3
1
2
HILUX_OM_OM0K219E_(EE).book Page 463 Wednesday, May 14, 2014 3:06 PM

4647-2. Steps to take in an emergency
HILUX_OM_OM0K219E_(EE)

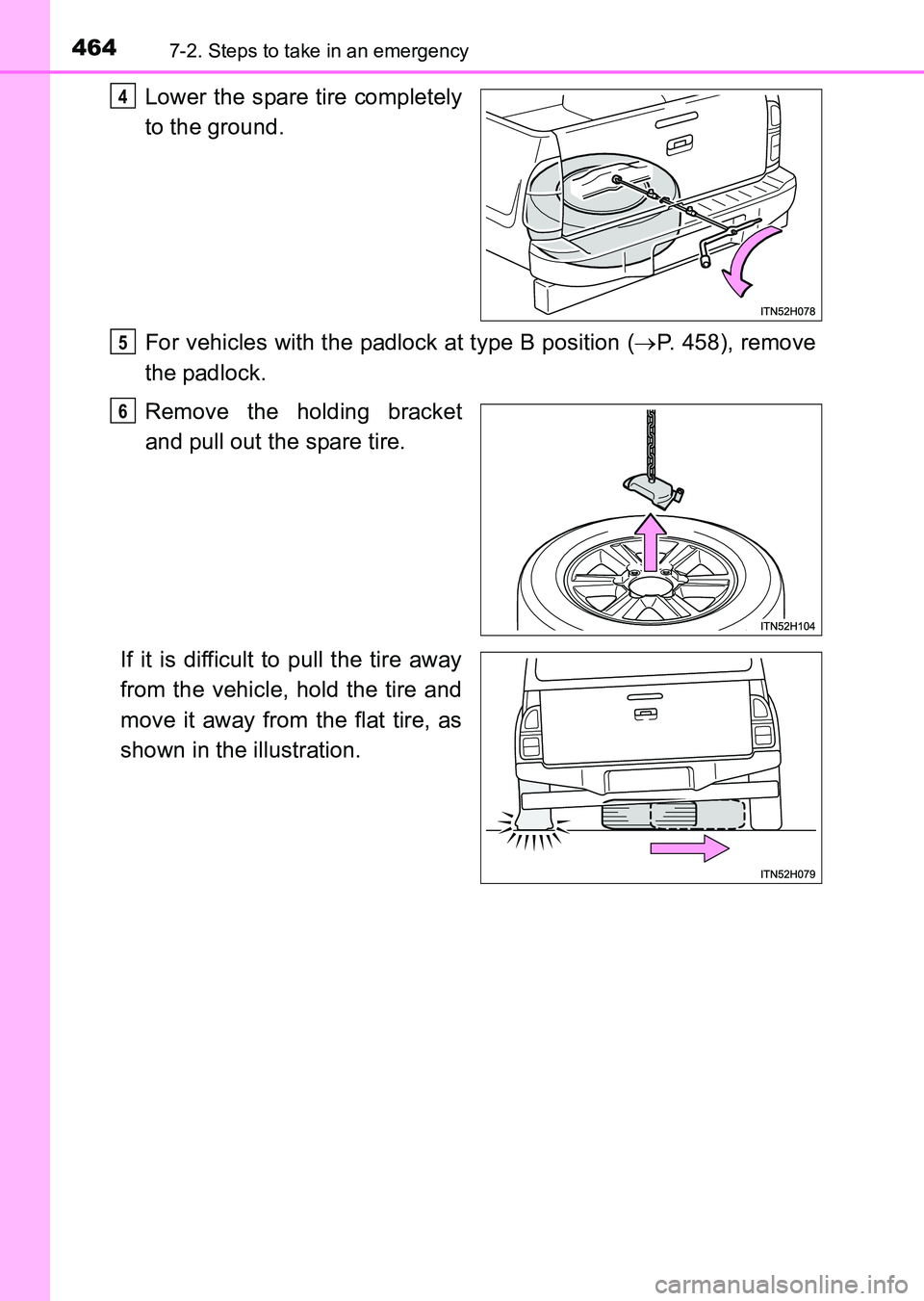

Lower the spare tire completely
to the ground.
For vehicles with the padlock at type B position (→P. 458), remove
the padlock.
Remove the holding bracket
and pull out the spare tire.
If it is difficult to pull the tire away
from the vehicle, hold the tire and
move it away from the flat tire, as
shown in the illustration.4
5
6
HILUX_OM_OM0K219E_(EE).book Page 464 Wednesday, May 14, 2014 3:06 PM
