2015 TOYOTA HILUX Owners Manual (in English)

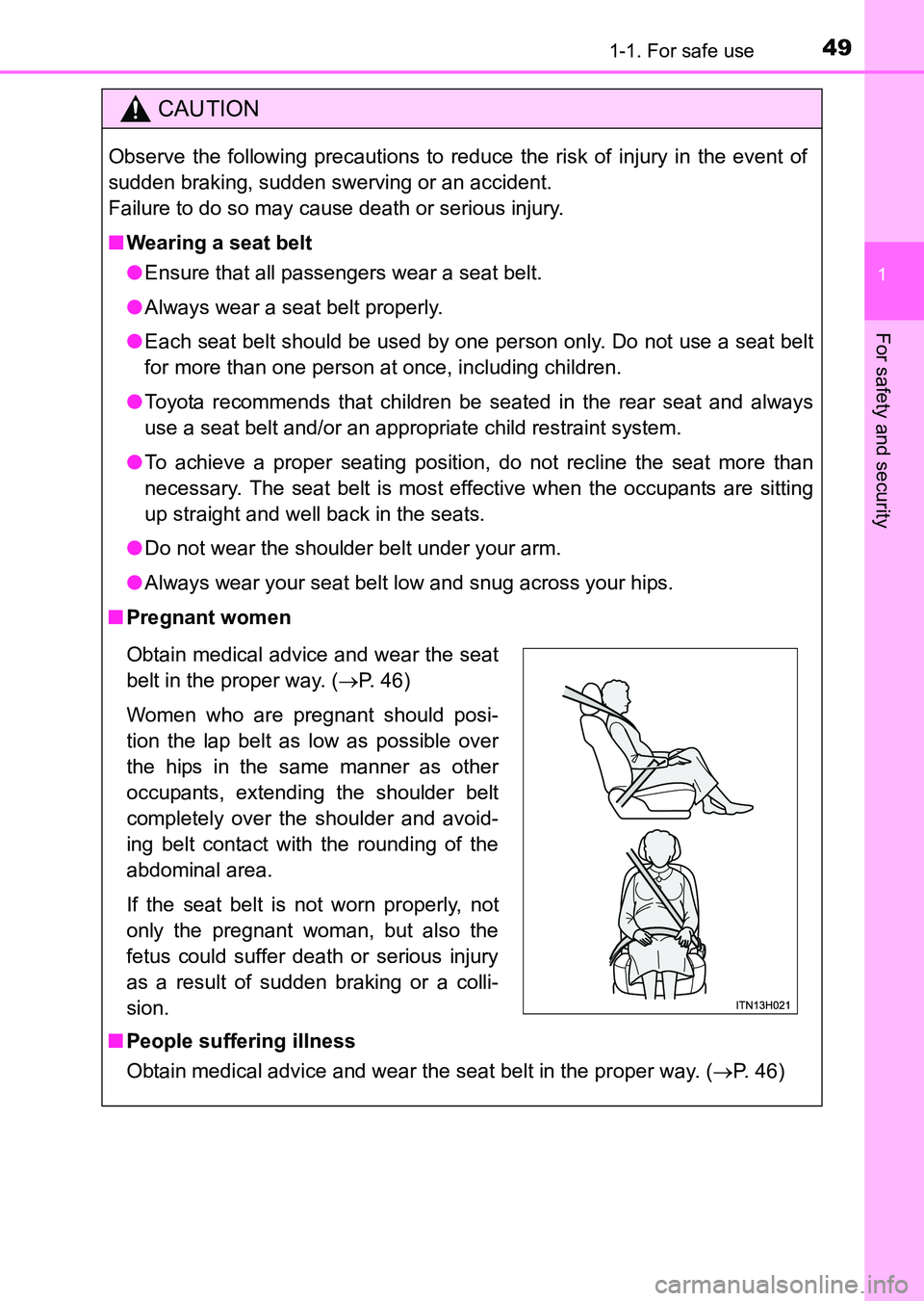

491-1. For safe use
1
HILUX_OM_OM0K219E_(EE)
For safety and security
CAUTION
Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
■Wearing a seat belt
● Ensure that all passengers wear a seat belt.
● Always wear a seat belt properly.
● Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.
● Toyota recommends that children be seated in the rear seat and always
use a seat belt and/or an appropriate child restraint system.
● To achieve a proper seating position, do not recline the seat more than
necessary. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.
● Do not wear the shoulder belt under your arm.
● Always wear your seat belt low and snug across your hips.
■ Pregnant women
■ People suffering illness
Obtain medical advice and wear the seat belt in the proper way. ( →P. 46)
Obtain medical advice and wear the seat
belt in the proper way. ( →P. 46)
Women who are pregnant should posi-
tion the lap belt as low as possible over
the hips in the same manner as other
occupants, extending the shoulder belt
completely over the shoulder and avoid-
ing belt contact with the rounding of the
abdominal area.
If the seat belt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a colli-
sion.
HILUX_OM_OM0K219E_(EE).book Page 49 Wednesday, May 14, 2014 3:06 PM

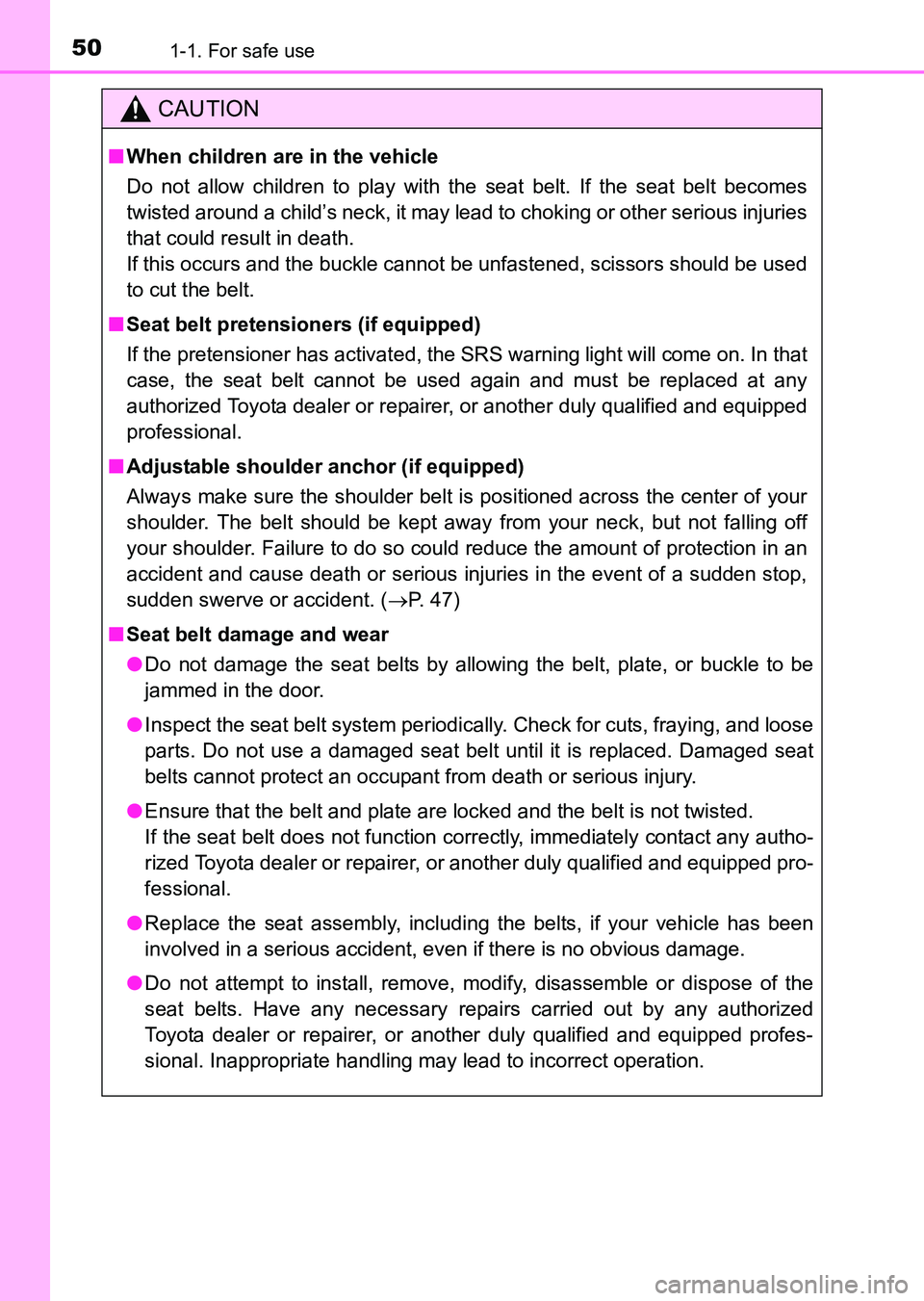

501-1. For safe use
HILUX_OM_OM0K219E_(EE)
CAUTION
■When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■
Seat belt pretensioners (if equipped)
If the pretensioner has activated, the SRS warning light will come on. In that
case, the seat belt cannot be used again and must be replaced at any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional.
■
Adjustable shoulder anchor (if equipped)
Always make sure the shoulder belt is positioned across the center of your
shoulder. The belt should be kept away from your neck, but not falling off
your shoulder. Failure to do so could reduce the amount of protection in an
accident and cause death or serious injuries in the event of a sudden stop,
sudden swerve or accident. ( →P. 47)
■
Seat belt damage and wear
● Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
● Inspect the seat belt system periodicall y. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belts cannot protect an occupant from death or serious injury.
● Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
● Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there is no obvious damage.
● Do not attempt to install, remove, modify, disassemble or dispose of the
seat belts. Have any necessary repairs carried out by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional. Inappropriate handling may lead to incorrect operation.
HILUX_OM_OM0K219E_(EE).book Page 50 Wednesday, May 14, 2014 3:06 PM

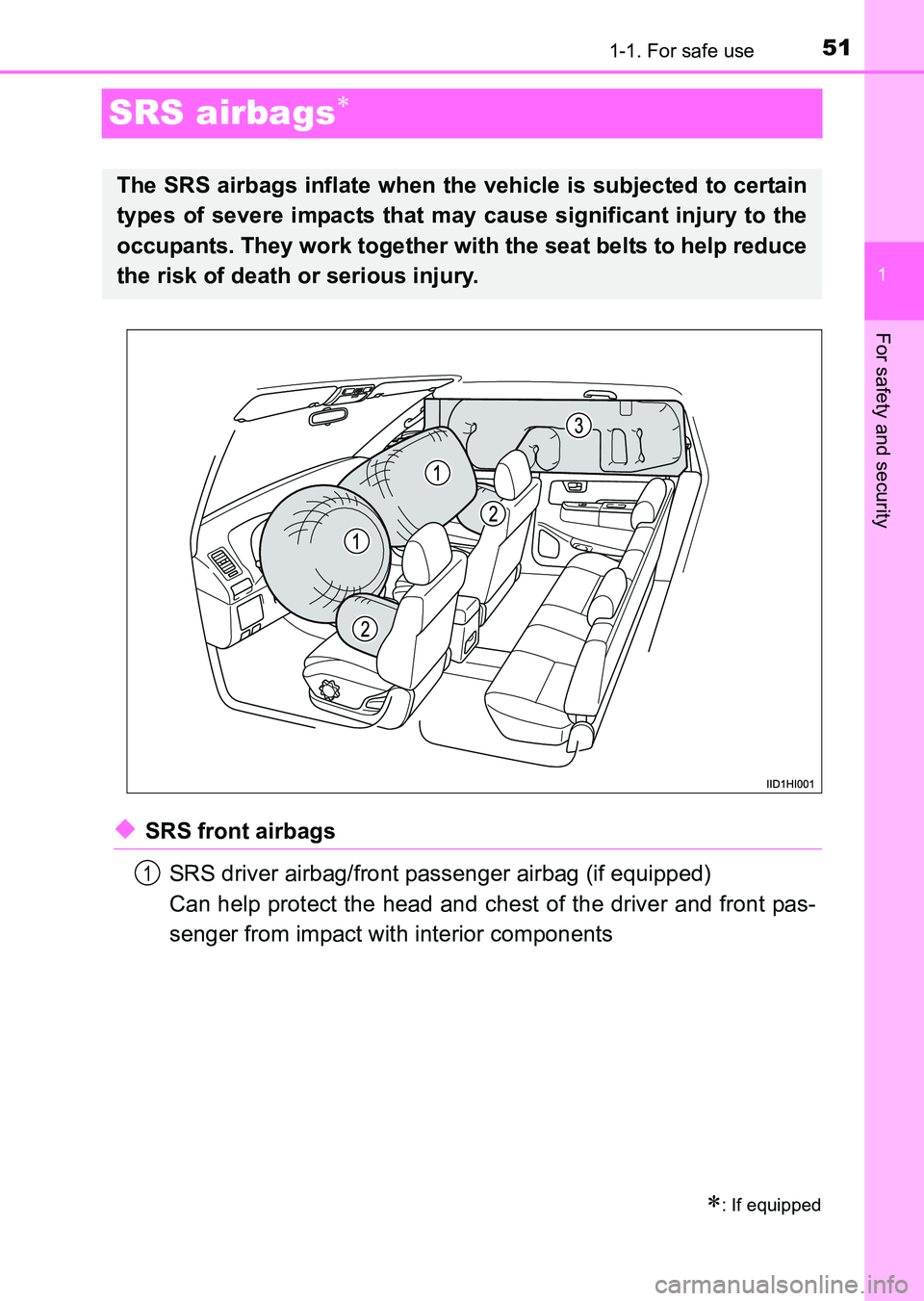

511-1. For safe use
1
For safety and security
HILUX_OM_OM0K219E_(EE)
SRS airbags∗
◆SRS front airbagsSRS driver airbag/front passenger airbag (if equipped)
Can help protect the head and chest of the driver and front pas-
senger from impact with interior components
∗: If equipped
The SRS airbags inflate when the vehicle is subjected to certain
types of severe impacts that may cause significant injury to the
occupants. They work together with the seat belts to help reduce
the risk of death or serious injury.
1
HILUX_OM_OM0K219E_(EE).book Page 51 Wednesday, May 14, 2014 3:06 PM

521-1. For safe use
HILUX_OM_OM0K219E_(EE)
◆SRS side and curtain shield airbagsSRS side airbags (if equipped)
Can help protect the torso of the front seat occupants
SRS curtain shield airbags (if equipped)
Can help protect primarily the head of occupants in the outer
seats
SRS airbag system components
2
3
Front impact sensors
Front passenger airbag
(if equipped)
Side impact sensors (front)
(if equipped)
Seat belt pretensioners and
force limiters (if equipped)
Side impact sensors (rear)
(if equipped) Side airbags (if equipped)
Curtain shield airbags
(if equipped)
SRS warning light
Driver airbag
Airbag sensor assembly1
2
3
4
5
6
7
8
9
10
HILUX_OM_OM0K219E_(EE).book Page 52 Wednesday, May 14, 2014
3:06 PM

531-1. For safe use
1
HILUX_OM_OM0K219E_(EE)
For safety and security
The main SRS airbag system components are shown above. The
SRS airbag system is controlled by the airbag sensor assembly. As
the airbags deploy, a chemical reaction in the inflators quickly fills the
airbags with non-toxic gas to help restrain the motion of the occu-
pants.
Bench type front seat: The SRS airbags are designed to protect the
driver and front outside passenger, and they are not designed to pro-
tect an occupant in the front center seating position.
CAUTION
■SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
● The driver and all passengers in the v ehicle must wear their seat belts
properly.
The SRS airbags are supplemental devices to be used with the seat belts.
● The SRS driver airbag deploys with considerable force, and can cause
death or serious injury especially if the driver is very close to the airbag.
Since the risk zone for the driver’s airbag is the first 50 - 75 mm (2 - 3 in.)
of inflation, placing yourself 250 mm ( 10 in.) from your driver airbag pro-
vides you with a clear margin of safety. This distance is measured from
the center of the steering wheel to your breastbone. If you sit less than
250 mm (10 in.) away now, you can change your driving position in sev-
eral ways:
• Move your seat to the rear as far as you can while still reaching the ped- als comfortably.
• Slightly recline the back of the seat. Although vehicle designs vary, many drivers can achieve the 250 mm
(10 in.) distance, even with the driver seat all the way forward, simply by
reclining the back of the seat somewhat. If reclining the back of your
seat makes it hard to see the road, raise yourself by using a firm, non-
slippery cushion, or raise the seat if your vehicle has that feature.
• If your steering wheel is adjustable, tilt it downward. This points the air- bag toward your chest instead of your head and neck.
The seat should be adjusted as recommended above, while still maintain-
ing control of the foot pedals, steering wheel, and your view of the instru-
ment panel controls.
HILUX_OM_OM0K219E_(EE).book Page 53 Wednesday, May 14, 2014 3:06 PM

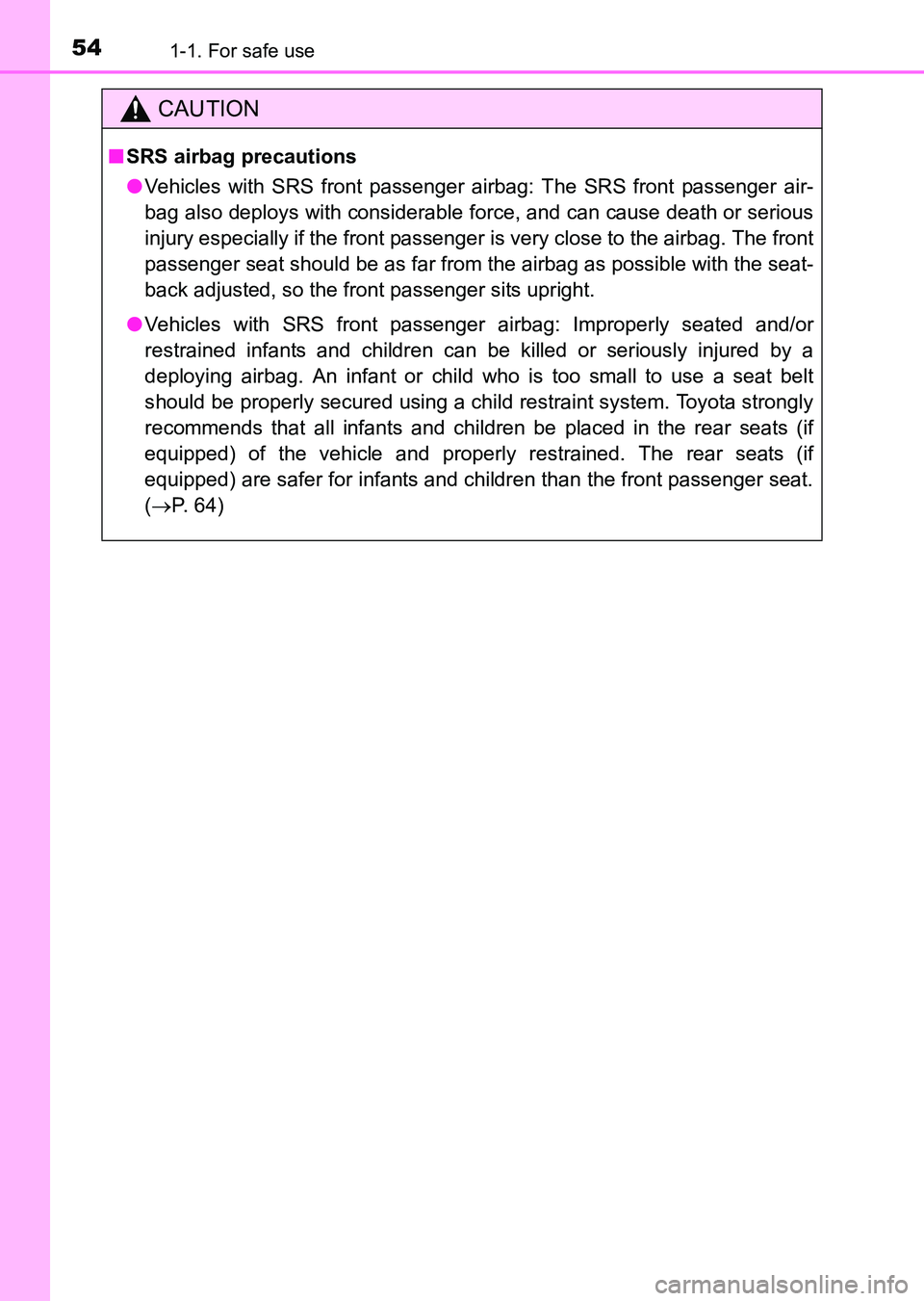

541-1. For safe use
HILUX_OM_OM0K219E_(EE)
CAUTION
■SRS airbag precautions
● Vehicles with SRS front passenger airbag: The SRS front passenger air-
bag also deploys with considerable force, and can cause death or serious
injury especially if the front passenger is very close to the airbag. The front
passenger seat should be as far from the airbag as possible with the seat-
back adjusted, so the front passenger sits upright.
● Vehicles with SRS front passenger airbag: Improperly seated and/or
restrained infants and children can be killed or seriously injured by a
deploying airbag. An infant or child who is too small to use a seat belt
should be properly secured using a child restraint system. Toyota strongly
recommends that all infants and children be placed in the rear seats (if
equipped) of the vehicle and properly restrained. The rear seats (if
equipped) are safer for infants and children than the front passenger seat.
( → P. 64)
HILUX_OM_OM0K219E_(EE).book Page 54 Wednesday, May 14, 2014 3:06 PM

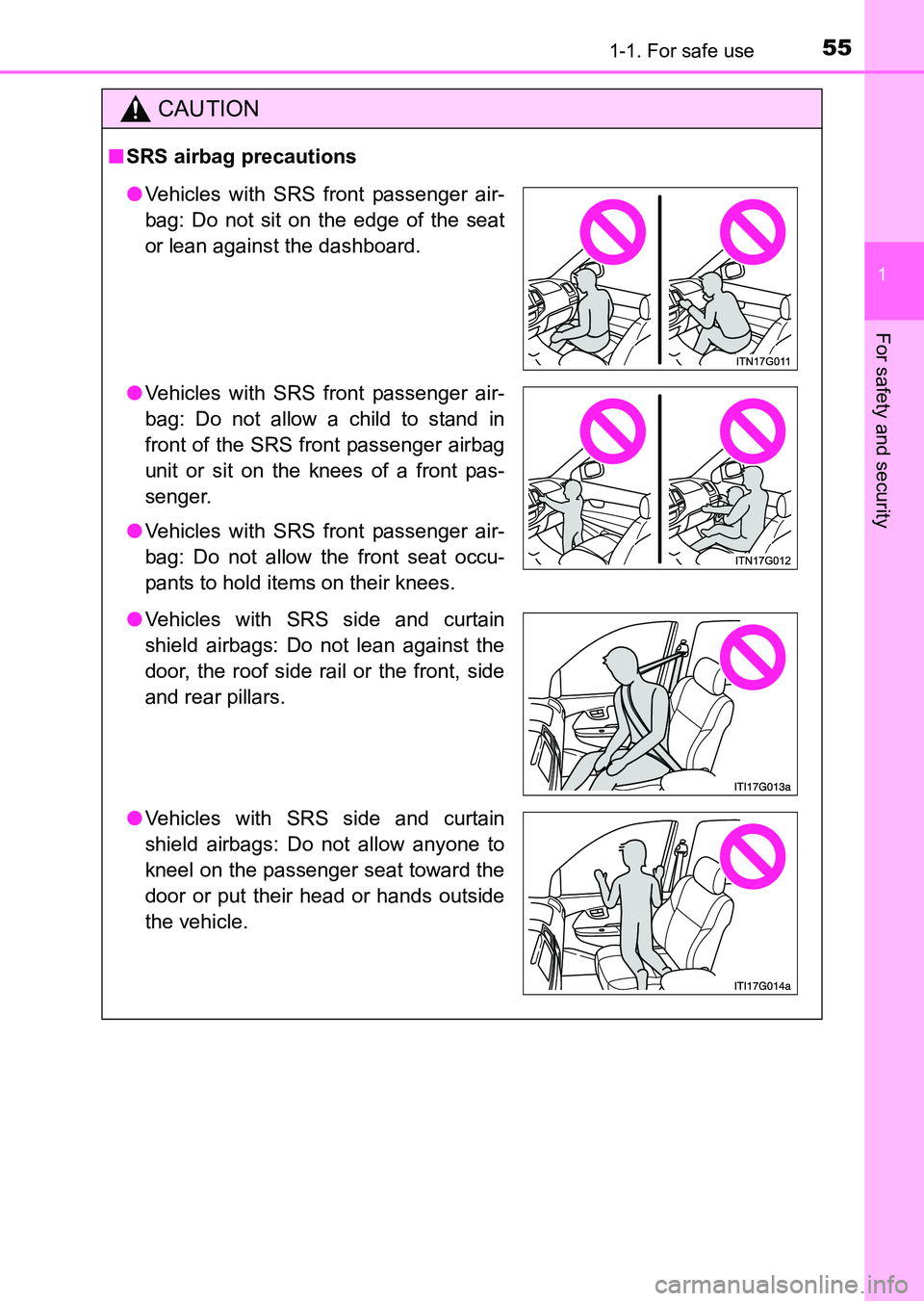

551-1. For safe use
1
HILUX_OM_OM0K219E_(EE)
For safety and security
CAUTION
■SRS airbag precautions
●Vehicles with SRS front passenger air-
bag: Do not sit on the edge of the seat
or lean against the dashboard.
●
Vehicles with SRS front passenger air-
bag: Do not allow a child to stand in
front of the SRS front passenger airbag
unit or sit on the knees of a front pas-
senger.
●
Vehicles with SRS front passenger air-
bag: Do not allow the front seat occu-
pants to hold items on their knees.
●
Vehicles with SRS side and curtain
shield airbags: Do not lean against the
door, the roof side rail or the front, side
and rear pillars.
●
Vehicles with SRS side and curtain
shield airbags: Do not allow anyone to
kneel on the passenger seat toward the
door or put their head or hands outside
the vehicle.
HILUX_OM_OM0K219E_(EE).book Page 55 Wednesday, May 14, 2014 3:06 PM

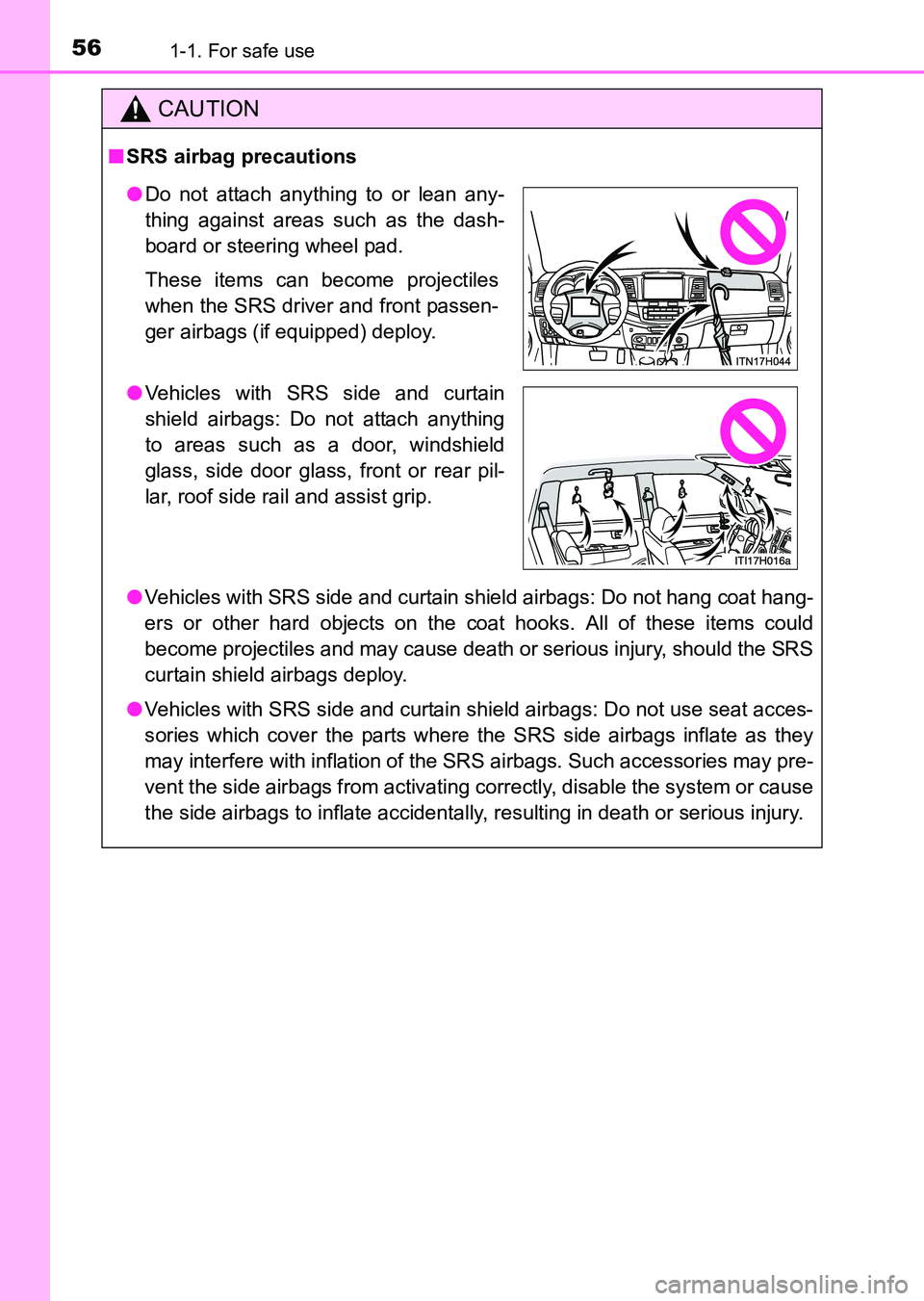

561-1. For safe use
HILUX_OM_OM0K219E_(EE)
CAUTION
■SRS airbag precautions
● Vehicles with SRS side and curtain shield airbags: Do not hang coat hang-
ers or other hard objects on the coat hooks. All of these items could
become projectiles and may cause death or serious injury, should the SRS
curtain shield airbags deploy.
● Vehicles with SRS side and curtain shield airbags: Do not use seat acces-
sories which cover the parts where the SRS side airbags inflate as they
may interfere with inflation of the SRS airbags. Such accessories may pre-
vent the side airbags from activating co rrectly, disable the system or cause
the side airbags to inflate accidentally, resulting in death or serious injury.
●Do not attach anything to or lean any-
thing against areas such as the dash-
board or steering wheel pad.
These items can become projectiles
when the SRS driver and front passen-
ger airbags (if equipped) deploy.
●
Vehicles with SRS side and curtain
shield airbags: Do not attach anything
to areas such as a door, windshield
glass, side door glass, front or rear pil-
lar, roof side rail and assist grip.
