1052. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K219E_(EE)■

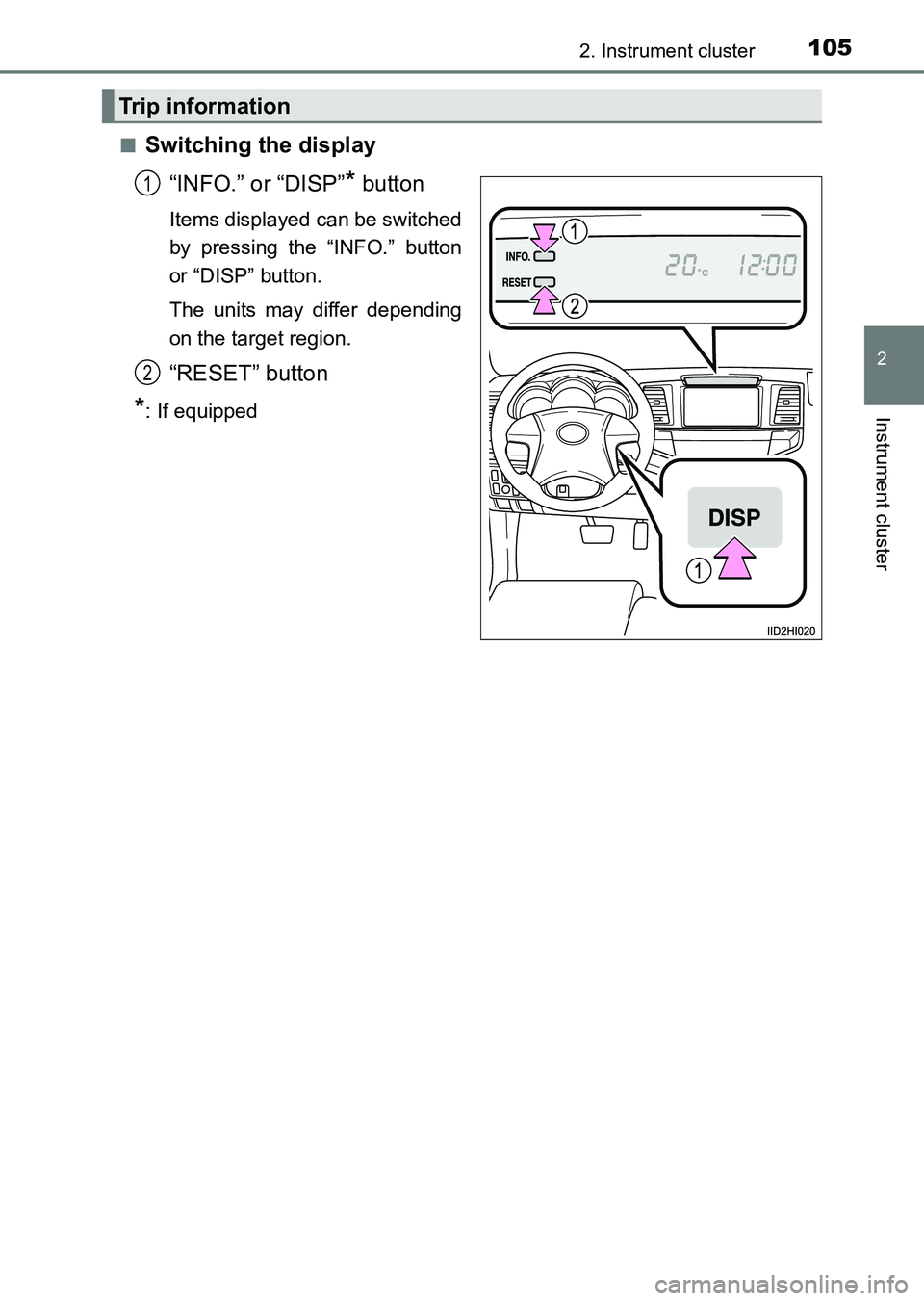

Switching the display
“INFO.” or “DISP”
* button
Items displayed can be switched
by pressing the “INFO.” button
or “DISP” button.
The units may differ depending
on the target region.
“RESET” button
*: If equipped
Trip information
1
2
HILUX_OM_OM0K219E_(EE).book Page 105 Wednesday, May 14, 2014 3:06 PM

1062. Instrument cluster
HILUX_OM_OM0K219E_(EE)■
Outside temperature
■Average fuel consumption
■Current fuel consumption
■Average vehicle speed
Displays the outside temperature.
The temperature range that can be displayed is
from -40°C (-40°F) to 50°C (122°F).
Displays the average fuel consumption since
the engine switch is turned to the “ON” posi-
tion.
• The function can be reset by pressing the
“RESET” button for longer than 1 second when
the average fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.
Displays the current rate of fuel consumption.
Displays the average vehicle speed since the
engine switch is turned to the “ON” position.
The function can be reset by pressing the
“RESET” button for longer than 1 second when
the average vehicle speed is displayed.
HILUX_OM_OM0K219E_(EE).book Page 106 Wednesday, May 14, 2014 3:06 PM

1072. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K219E_(EE)■

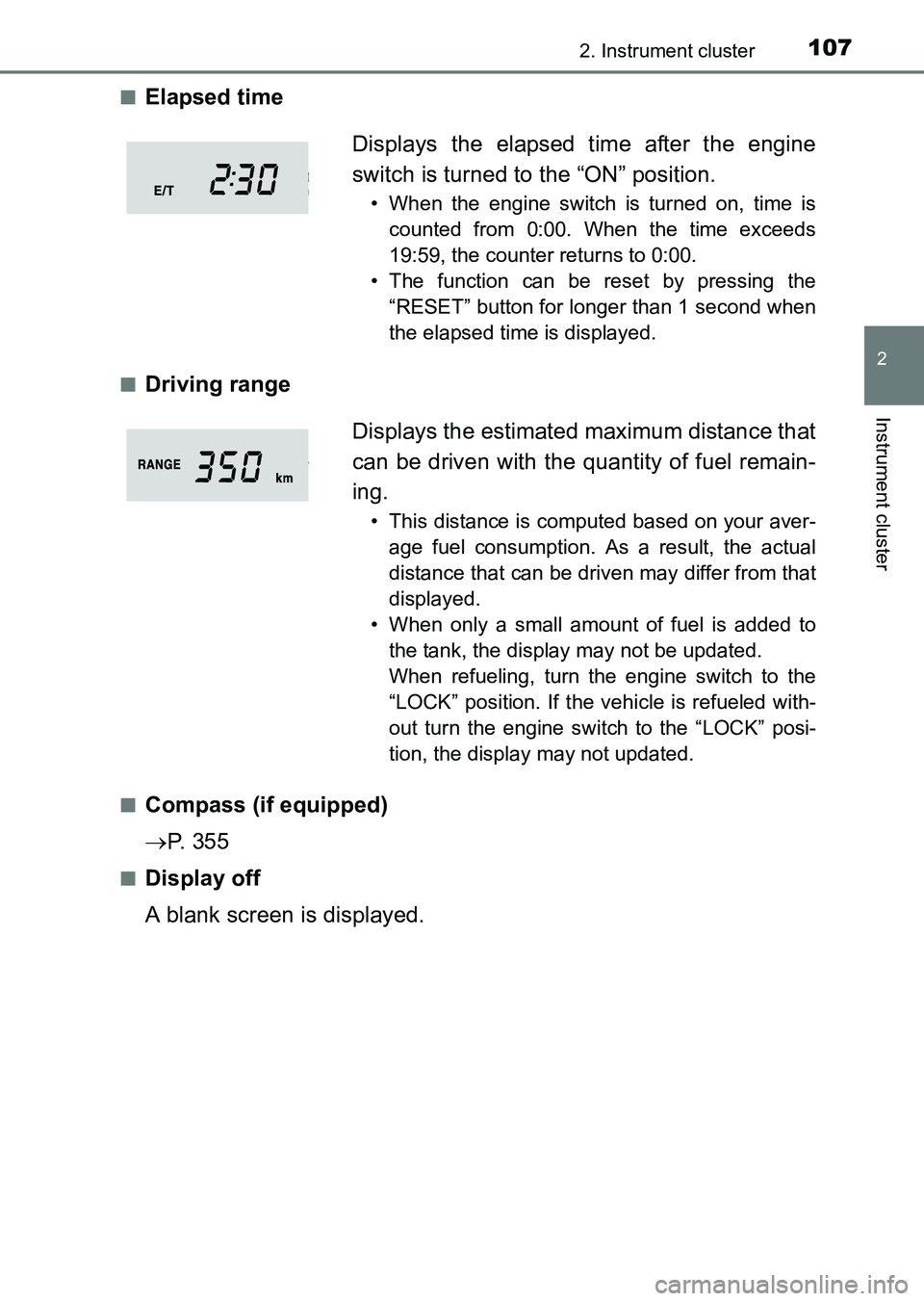

Elapsed time
■Driving range
■Compass (if equipped)
→
P. 3 5 5
■Display off
A blank screen is displayed. Displays the elapsed time after the engine
switch is turned to the “ON” position.
• When the engine switch is turned on, time is
counted from 0:00. When the time exceeds
19:59, the counter returns to 0:00.
• The function can be reset by pressing the “RESET” button for longer than 1 second when
the elapsed time is displayed.
Displays the estimated maximum distance that
can be driven with the quantity of fuel remain-
ing.
• This distance is computed based on your aver-age fuel consumption. As a result, the actual
distance that can be driven may differ from that
displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
When refueling, turn the engine switch to the
“LOCK” position. If the vehicle is refueled with-
out turn the engine switch to the “LOCK” posi-
tion, the display may not updated.
HILUX_OM_OM0K219E_(EE).book Page 107 Wednesday, May 14, 2014 3:06 PM

1082. Instrument cluster
HILUX_OM_OM0K219E_(EE)

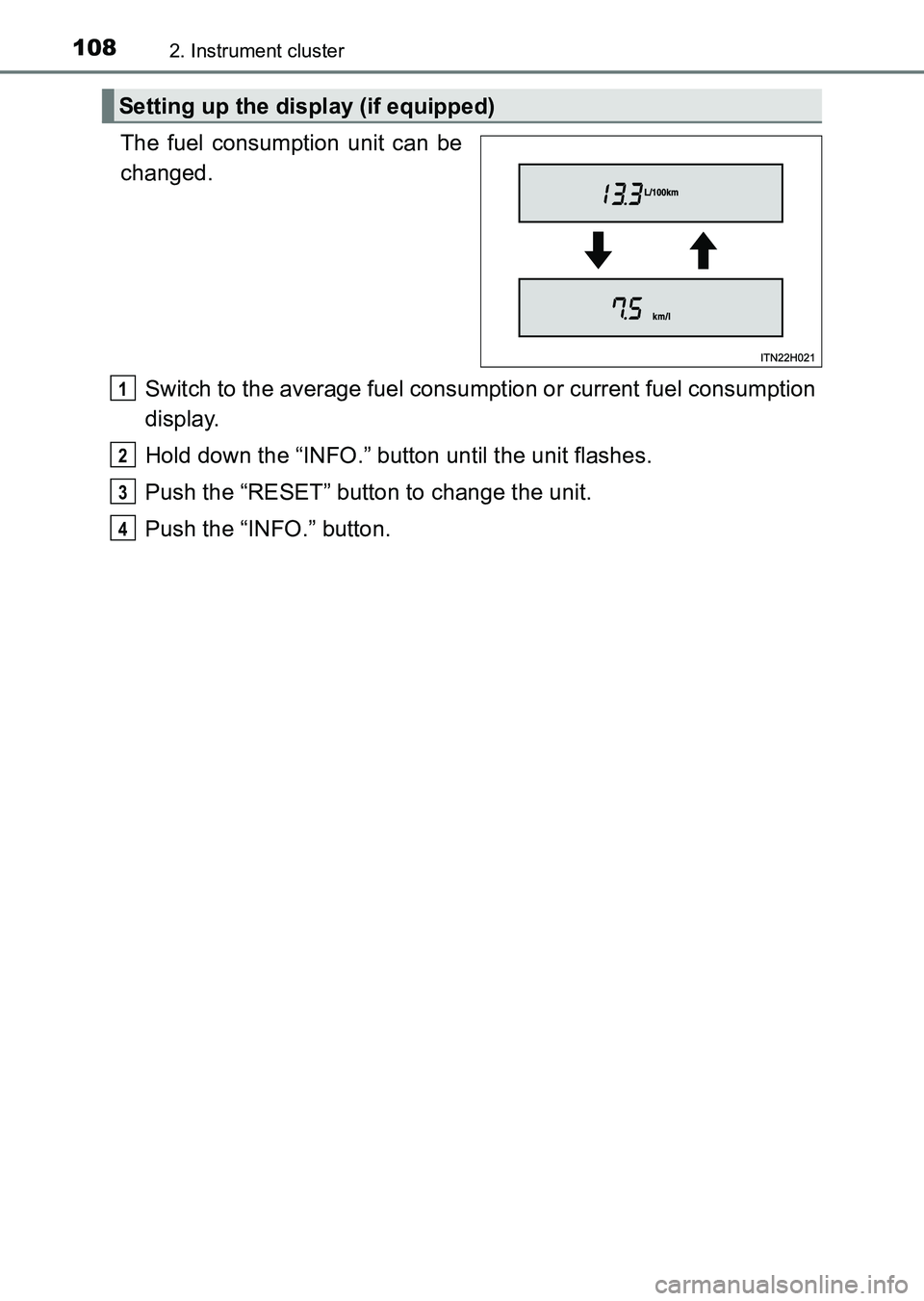

The fuel consumption unit can be
changed.Switch to the average fuel consumption or current fuel consumption
display.
Hold down the “INFO.” button until the unit flashes.
Push the “RESET” button to change the unit.
Push the “INFO.” button.
Setting up the display (if equipped)
1
2
3
4
HILUX_OM_OM0K219E_(EE).book Page 108 Wednesday, May 14, 2014 3:06 PM

1092. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K219E_(EE)

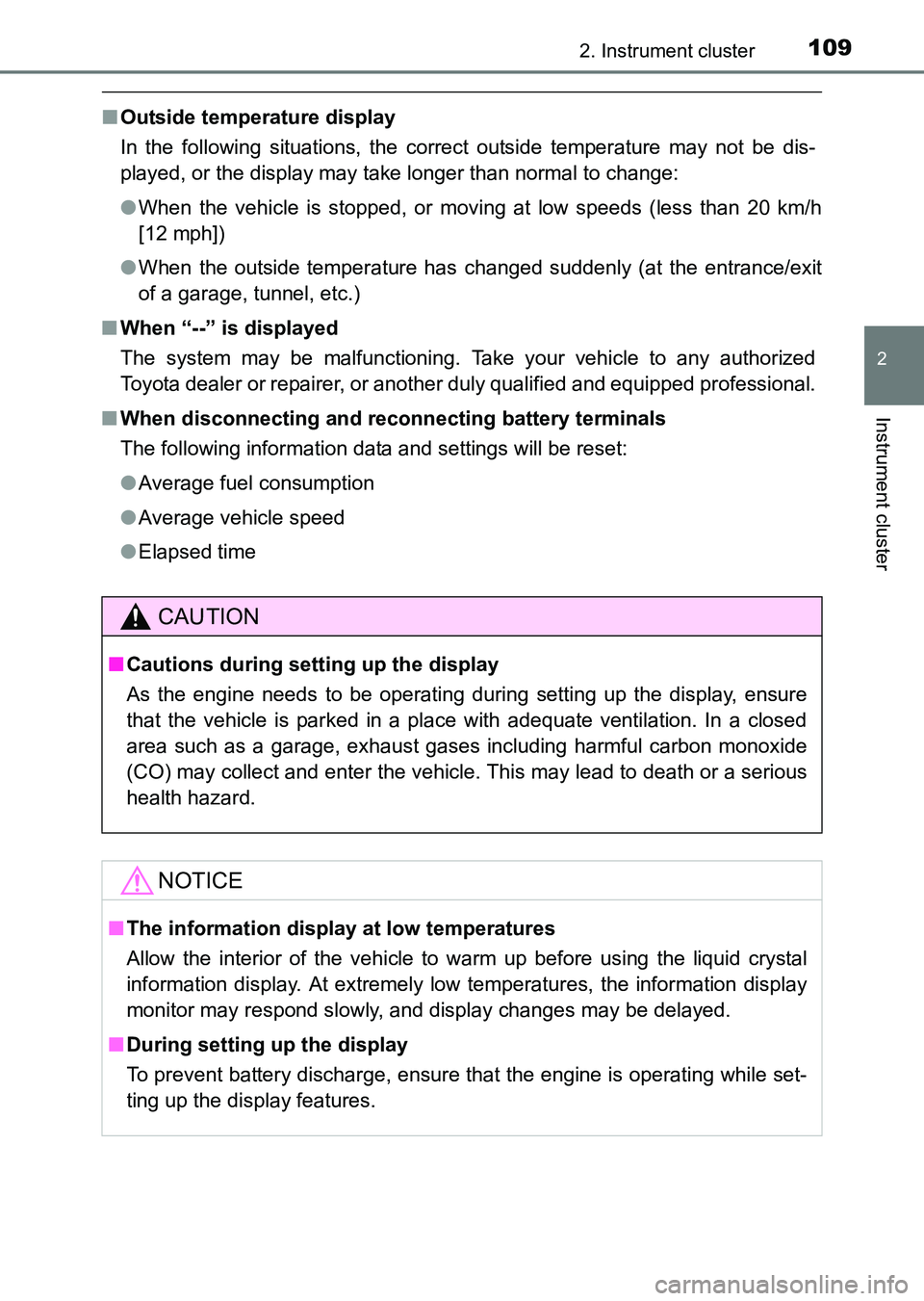

■Outside temperature display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change:
●When the vehicle is stopped, or moving at low speeds (less than 20 km/h
[12 mph])
● When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)
■ When “--” is displayed
The system may be malfunctioning. Take your vehicle to any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional.
■ When disconnecting and reconnecting battery terminals
The following information data and settings will be reset:
●Average fuel consumption
● Average vehicle speed
● Elapsed time
CAUTION
■Cautions during setting up the display
As the engine needs to be operating during setting up the display, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed
area such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
■
During setting up the display
To prevent battery discharge, ensure that the engine is operating while set-
ting up the display features.
HILUX_OM_OM0K219E_(EE).book Page 109 Wednesday, May 14, 2014 3:06 PM

1102. Instrument cluster
HILUX_OM_OM0K219E_(EE)
