4256-3. Do-it-yourself maintenance
6
Maintenance and care
HILUX_OM_OM0K219E_(EE)

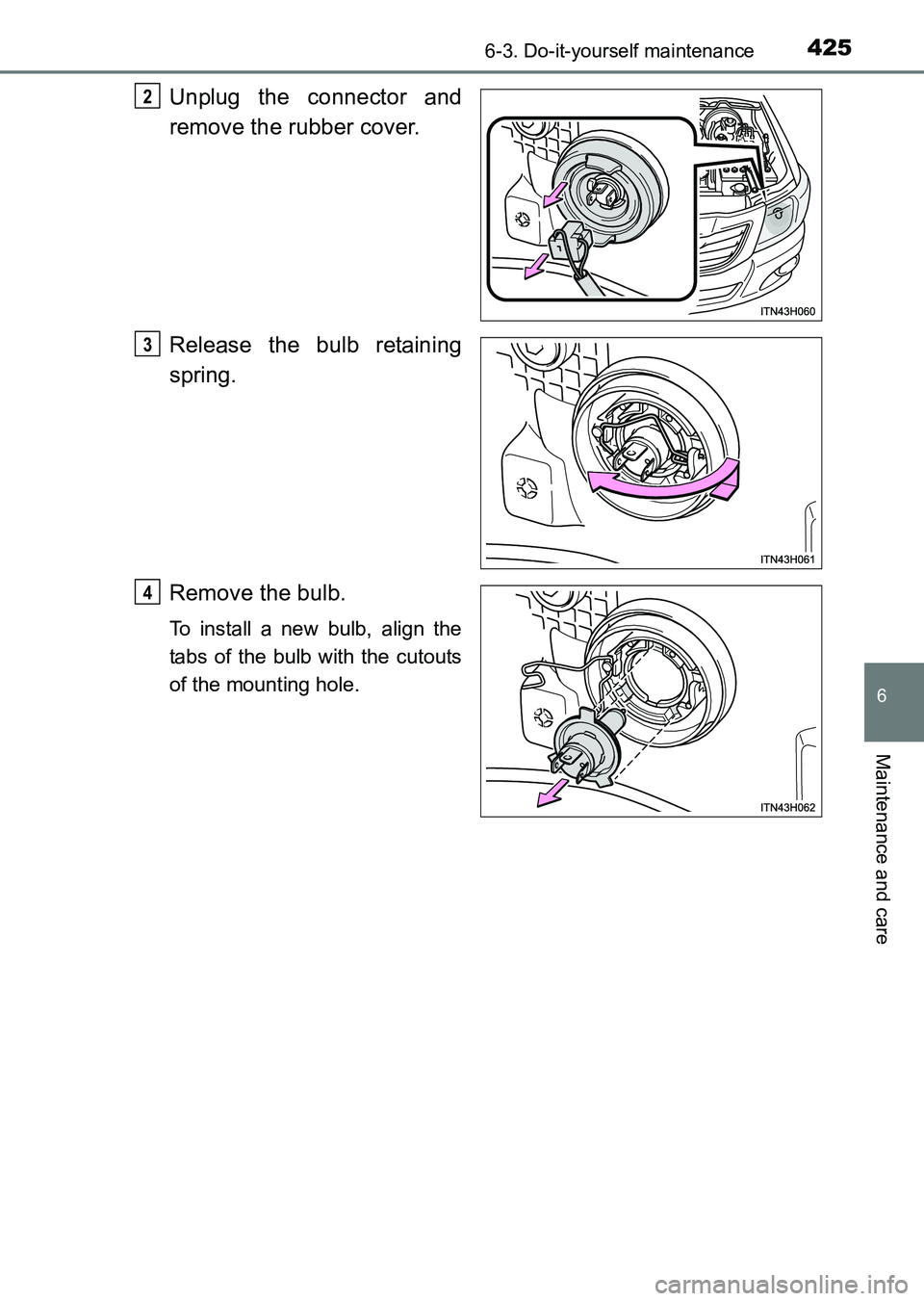

Unplug the connector and
remove the rubber cover.
Release the bulb retaining
spring.
Remove the bulb.
To install a new bulb, align the
tabs of the bulb with the cutouts
of the mounting hole.
2
3
4
HILUX_OM_OM0K219E_(EE).book Page 425 Wednesday, May 14, 2014 3:06 PM

4266-3. Do-it-yourself maintenance
HILUX_OM_OM0K219E_(EE)■

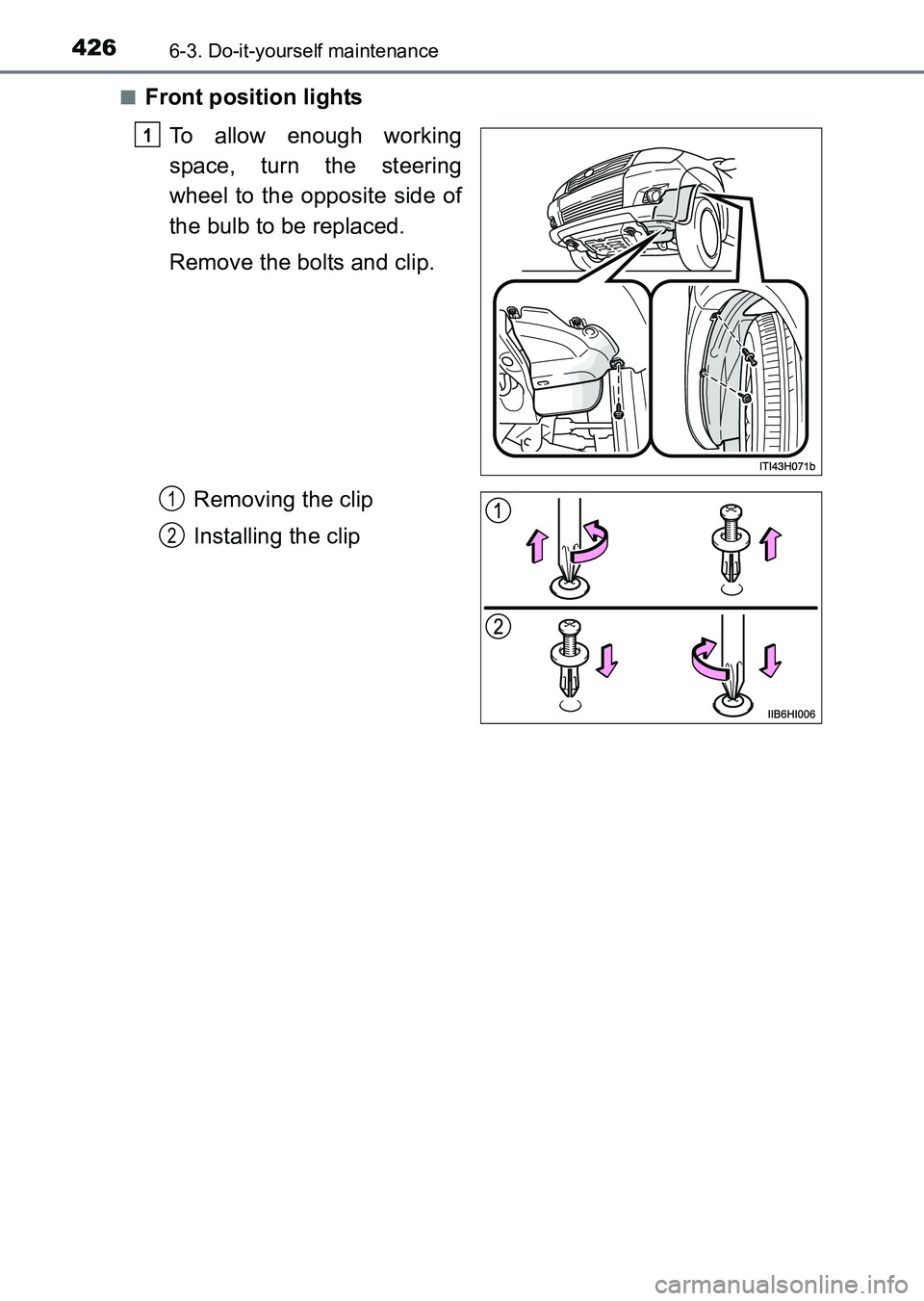

Front position lights
To allow enough working
space, turn the steering
wheel to the opposite side of
the bulb to be replaced.
Remove the bolts and clip.
Removing the clip
Installing the clip
1
1
2
HILUX_OM_OM0K219E_(EE).book Page 426 Wednesday, May 14, 2014 3:06 PM

4276-3. Do-it-yourself maintenance
6
Maintenance and care
HILUX_OM_OM0K219E_(EE)

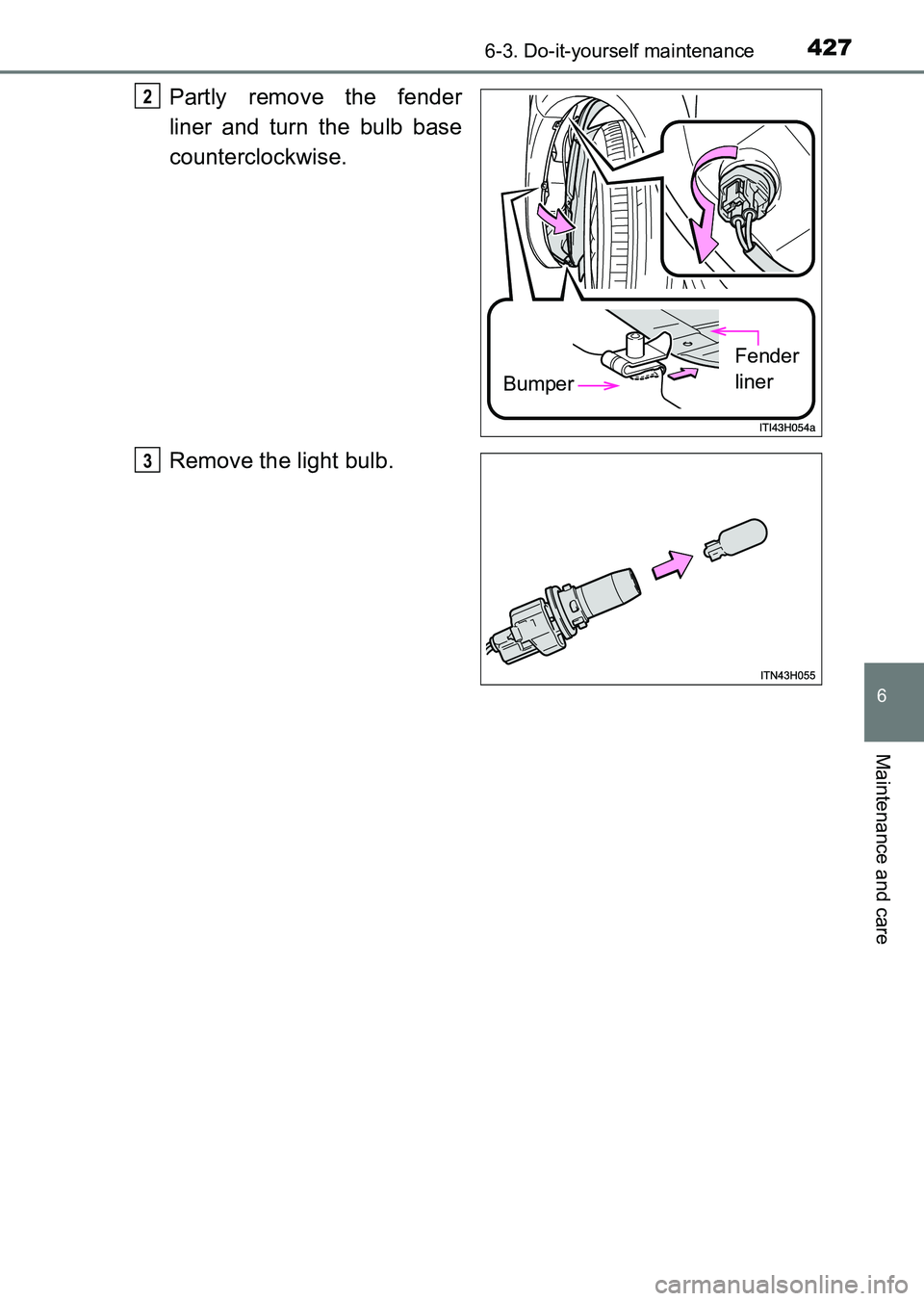

Partly remove the fender
liner and turn the bulb base
counterclockwise.
Remove the light bulb.
Bumper
Fender
liner
2
3
HILUX_OM_OM0K219E_(EE).book Page 427 Wednesday, May 14, 2014 3:06 PM

4286-3. Do-it-yourself maintenance
HILUX_OM_OM0K219E_(EE)■

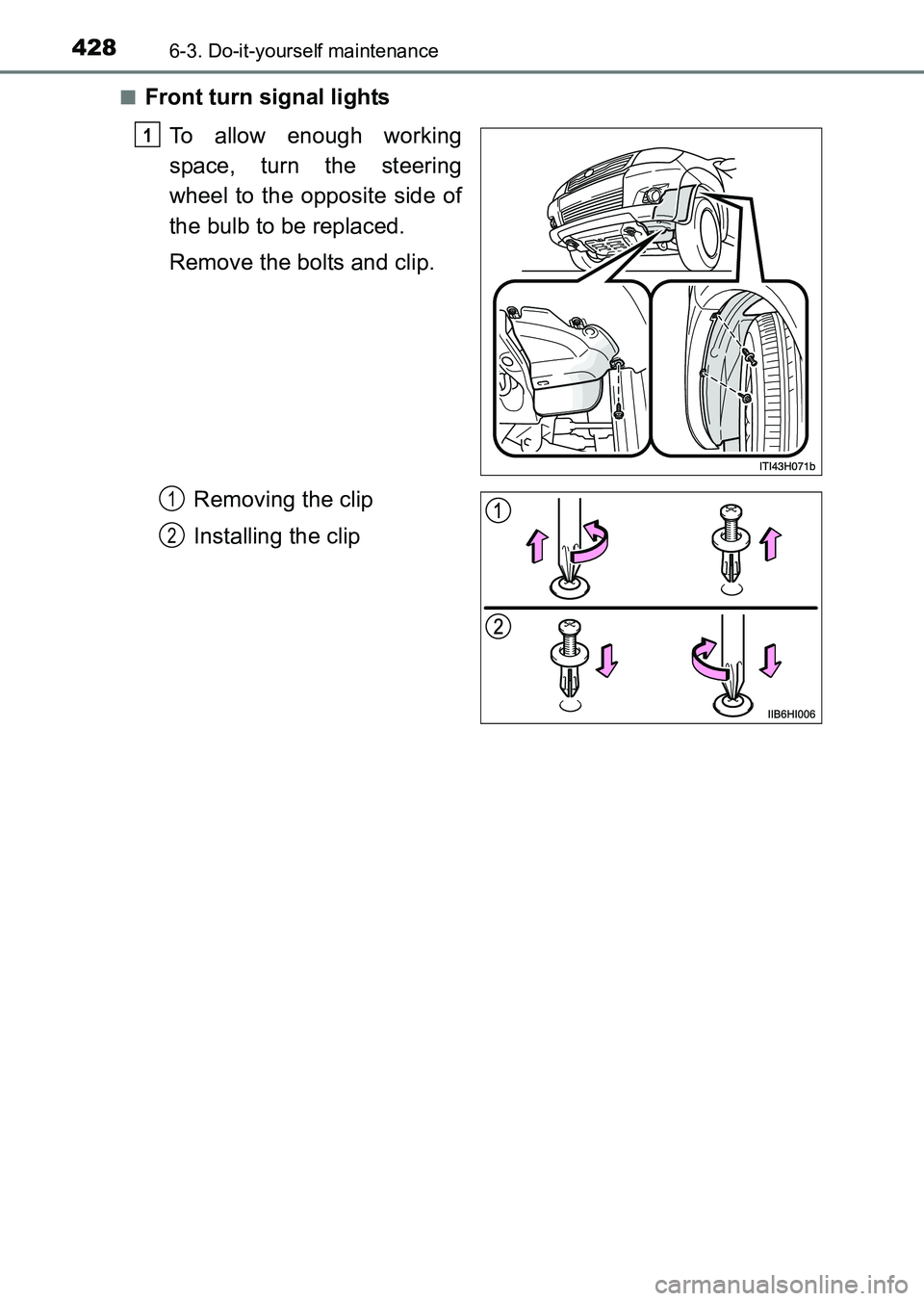

Front turn signal lights
To allow enough working
space, turn the steering
wheel to the opposite side of
the bulb to be replaced.
Remove the bolts and clip.
Removing the clip
Installing the clip
1
1
2
HILUX_OM_OM0K219E_(EE).book Page 428 Wednesday, May 14, 2014 3:06 PM

4296-3. Do-it-yourself maintenance
6
Maintenance and care
HILUX_OM_OM0K219E_(EE)

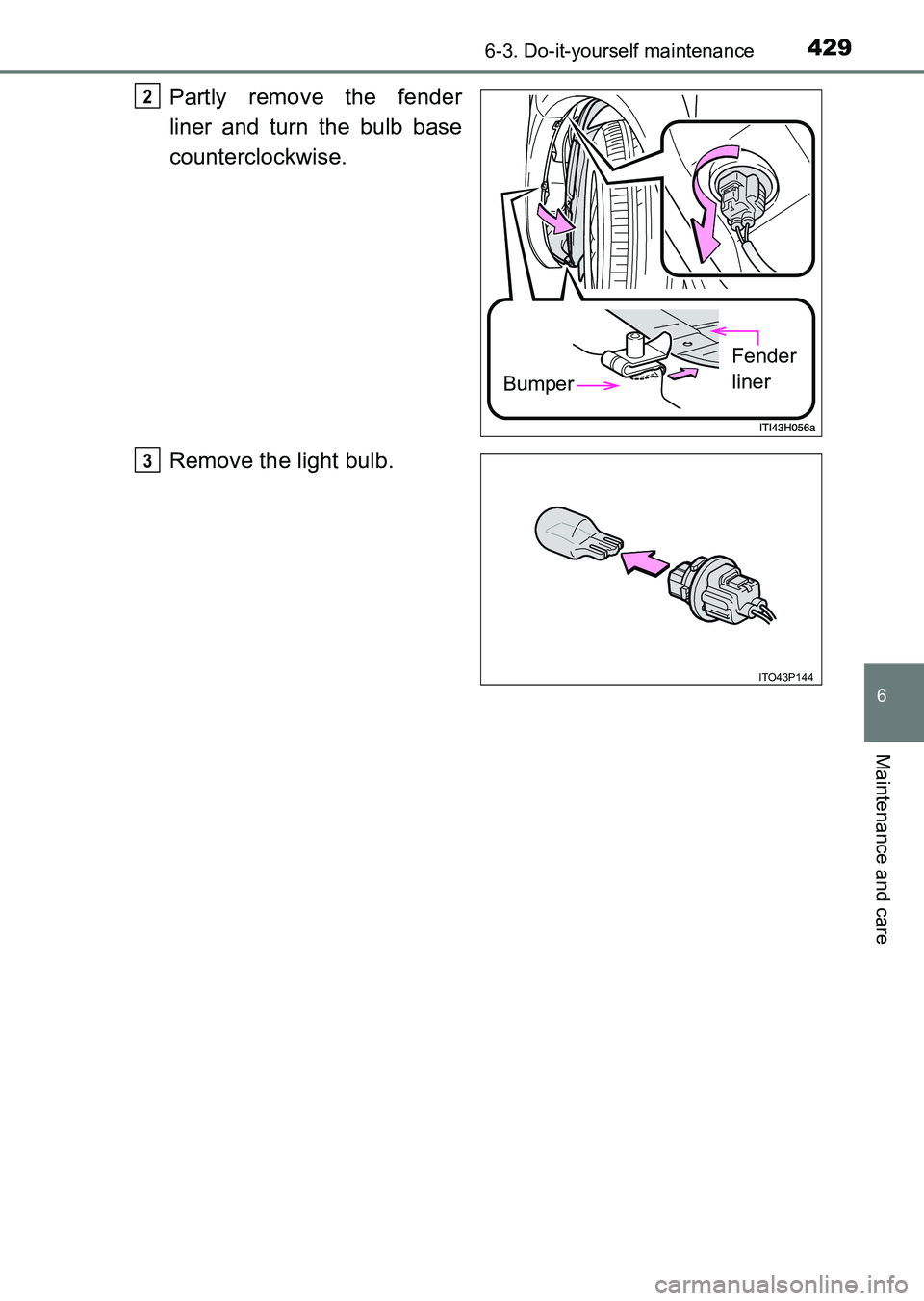

Partly remove the fender
liner and turn the bulb base
counterclockwise.
Remove the light bulb.
Bumper
Fender
liner
2
ITO43P144
3
HILUX_OM_OM0K219E_(EE).book Page 429 Wednesday, May 14, 2014 3:06 PM

4306-3. Do-it-yourself maintenance
HILUX_OM_OM0K219E_(EE)■

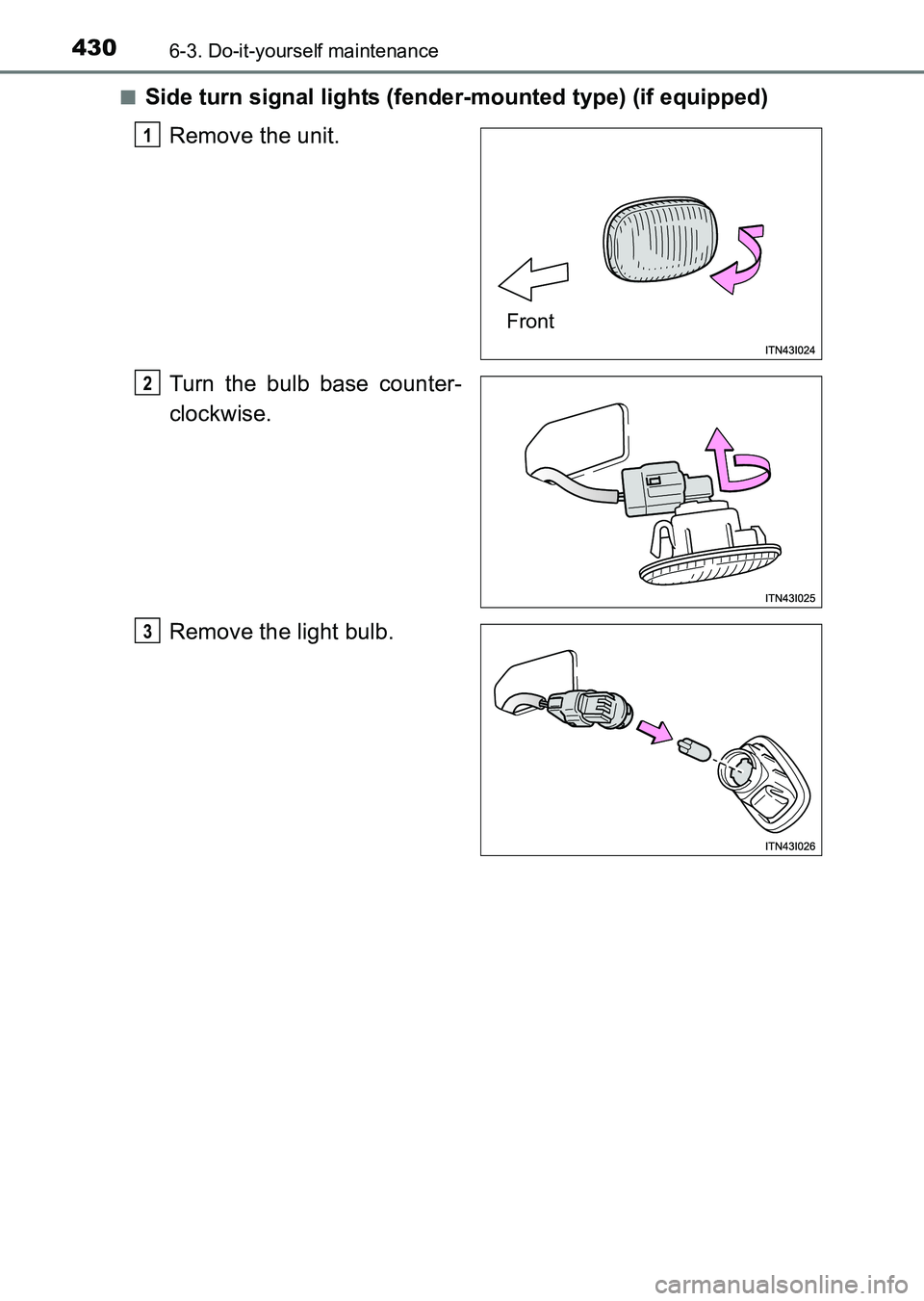

Side turn signal lights (fender-mounted type) (if equipped)
Remove the unit.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
Front
1
2
3
HILUX_OM_OM0K219E_(EE).book Page 430 Wednesday, May 14, 2014 3:06 PM

4316-3. Do-it-yourself maintenance
6
Maintenance and care
HILUX_OM_OM0K219E_(EE)■

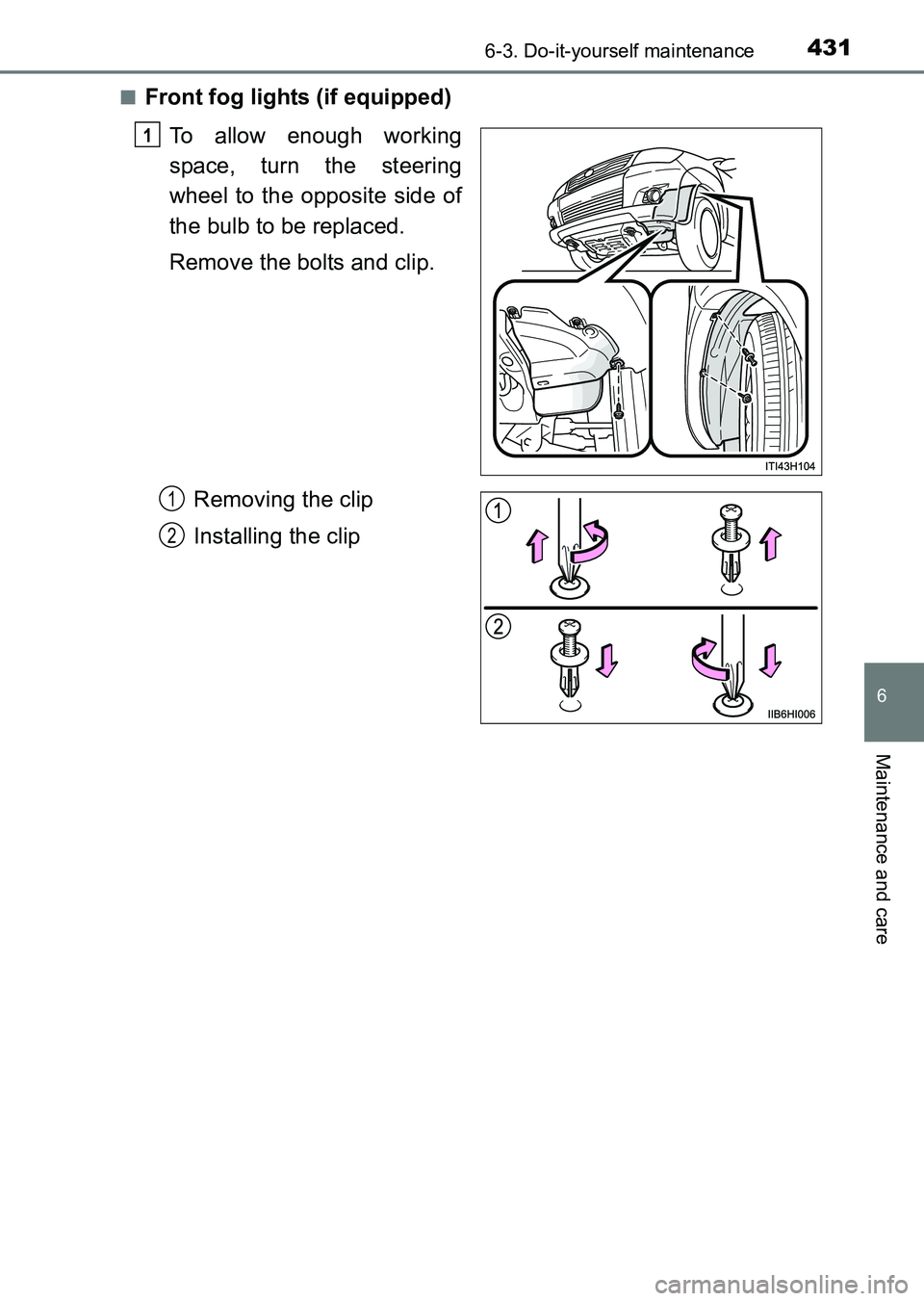

Front fog lights (if equipped)
To allow enough working
space, turn the steering
wheel to the opposite side of
the bulb to be replaced.
Remove the bolts and clip.
Removing the clip
Installing the clip
1
1
2
HILUX_OM_OM0K219E_(EE).book Page 431 Wednesday, May 14, 2014 3:06 PM

4326-3. Do-it-yourself maintenance
HILUX_OM_OM0K219E_(EE)
Partly remove the fender
liner and unplug the connec-
tor while pressing the lock
release.
Turn the bulb base counter-
clockwise.
Bumper
Fender
liner
2
3
