2015 TOYOTA HILUX Owners Manual (in English)

3295-2. Using the audio system
5
Interior features
HILUX_OM_OM0K219E_(EE)

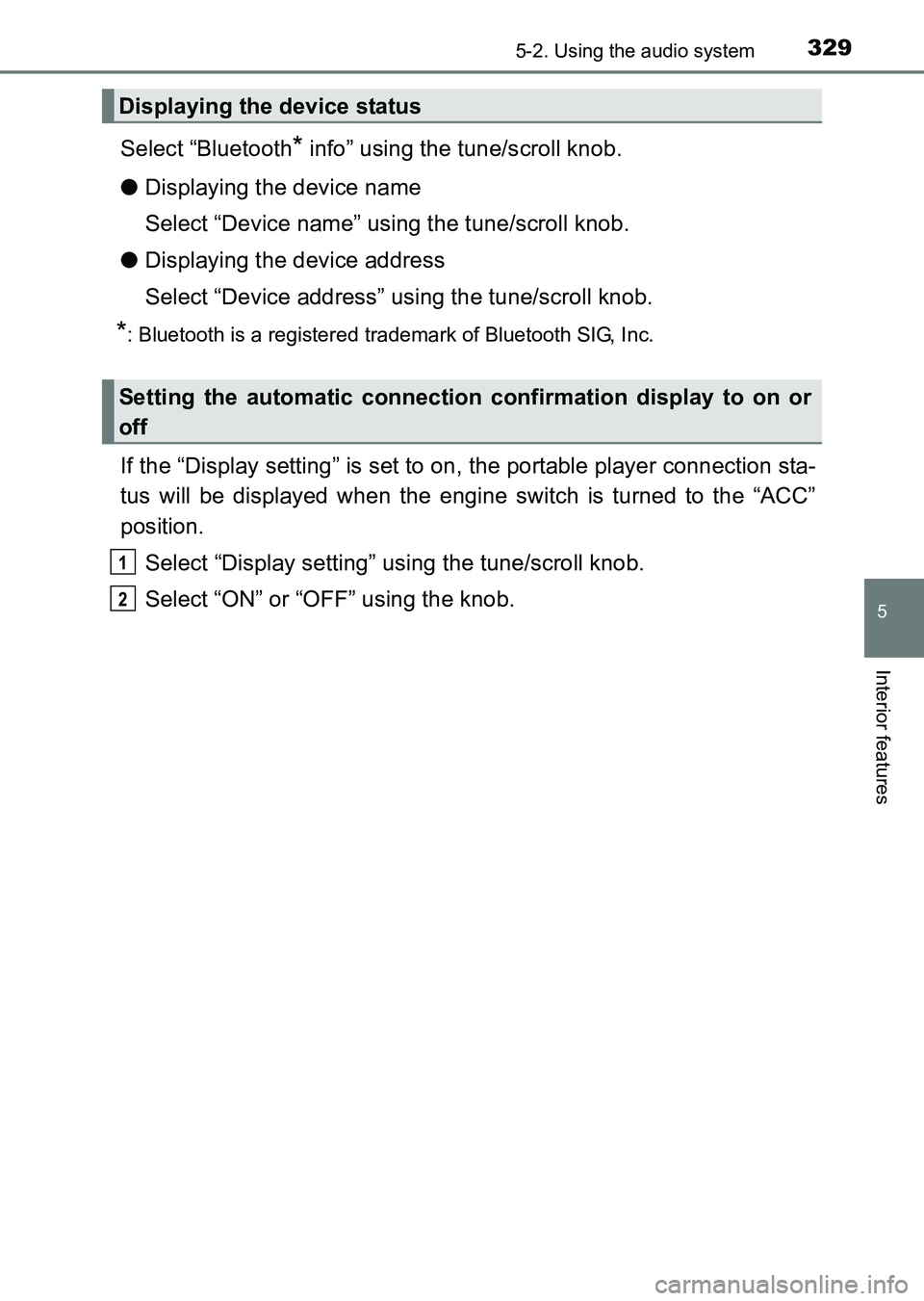

Select “Bluetooth* info” using the tune/scroll knob.
● Displaying the device name
Select “Device name” using the tune/scroll knob.
● Displaying the device address
Select “Device address” using the tune/scroll knob.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
If the “Display setting” is set to on, the portable player connection sta-
tus will be displayed when the engine switch is turned to the “ACC”
position.
Select “Display setting” using the tune/scroll knob.
Select “ON” or “OFF” using the knob.
Displaying the device status
Setting the automatic connection confirmation display to on or
off
1
2
HILUX_OM_OM0K219E_(EE).book Page 329 Wednesday, May 14, 2014 3:06 PM

3305-2. Using the audio system
HILUX_OM_OM0K219E_(EE)

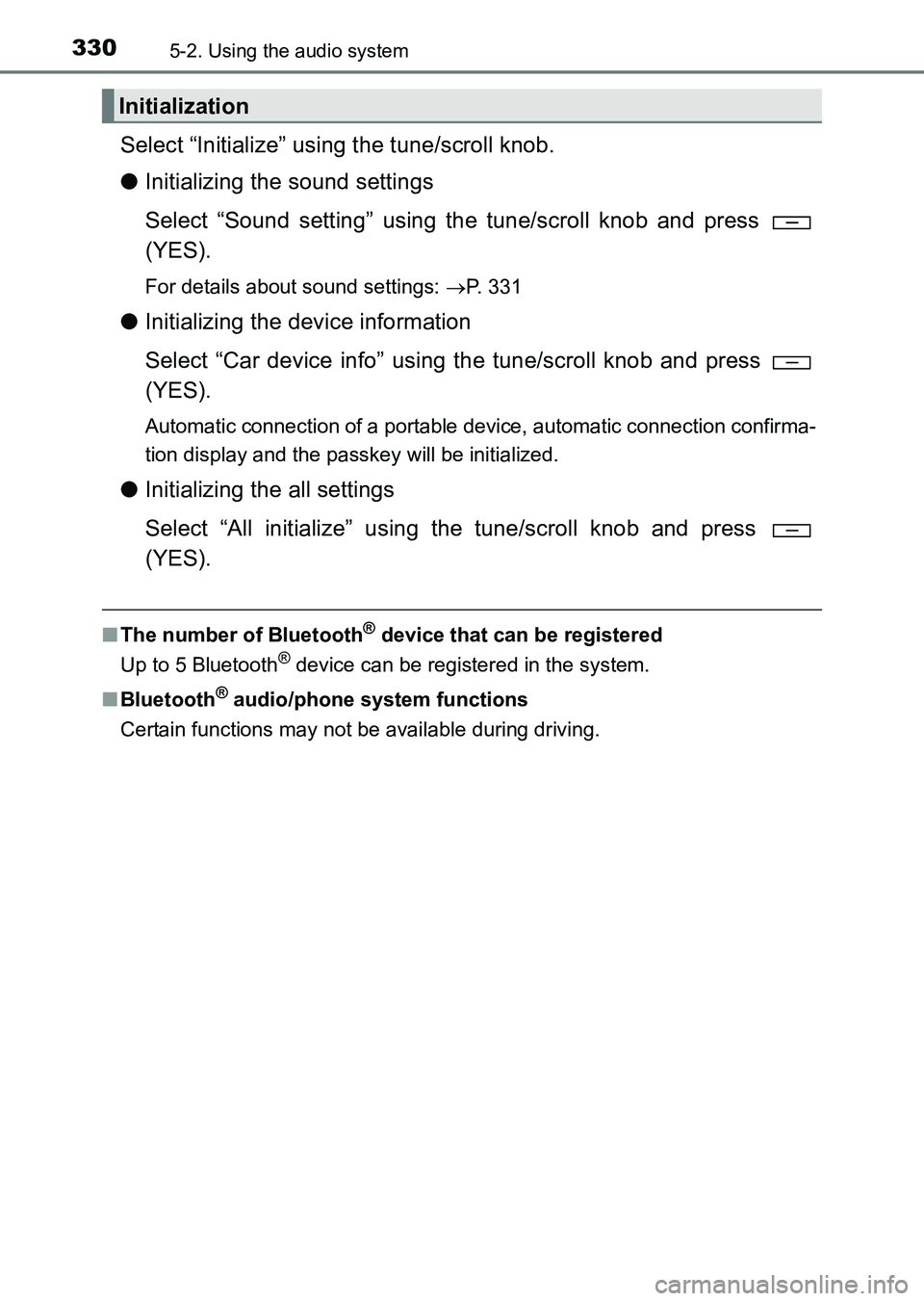

Select “Initialize” using the tune/scroll knob.
●Initializing the sound settings
Select “Sound setting” using the tune/scroll knob and press
(YES).
For details about sound settings: →P. 331
● Initializing the device information
Select “Car device info” using the tune/scroll knob and press
(YES).
Automatic connection of a portable device, automatic connection confirma-
tion display and the passkey will be initialized.
●Initializing the all settings
Select “All initialize” using the tune/scroll knob and press
(YES).
■The number of Bluetooth® device that can be registered
Up to 5 Bluetooth
® device can be registered in the system.
■ Bluetooth
® audio/phone system functions
Certain functions may not be available during driving.
Initialization
HILUX_OM_OM0K219E_(EE).book Page 330 Wednesday, May 14, 2014 3:06 PM

331
5
5-2. Using the audio system
Interior features
HILUX_OM_OM0K219E_(EE)

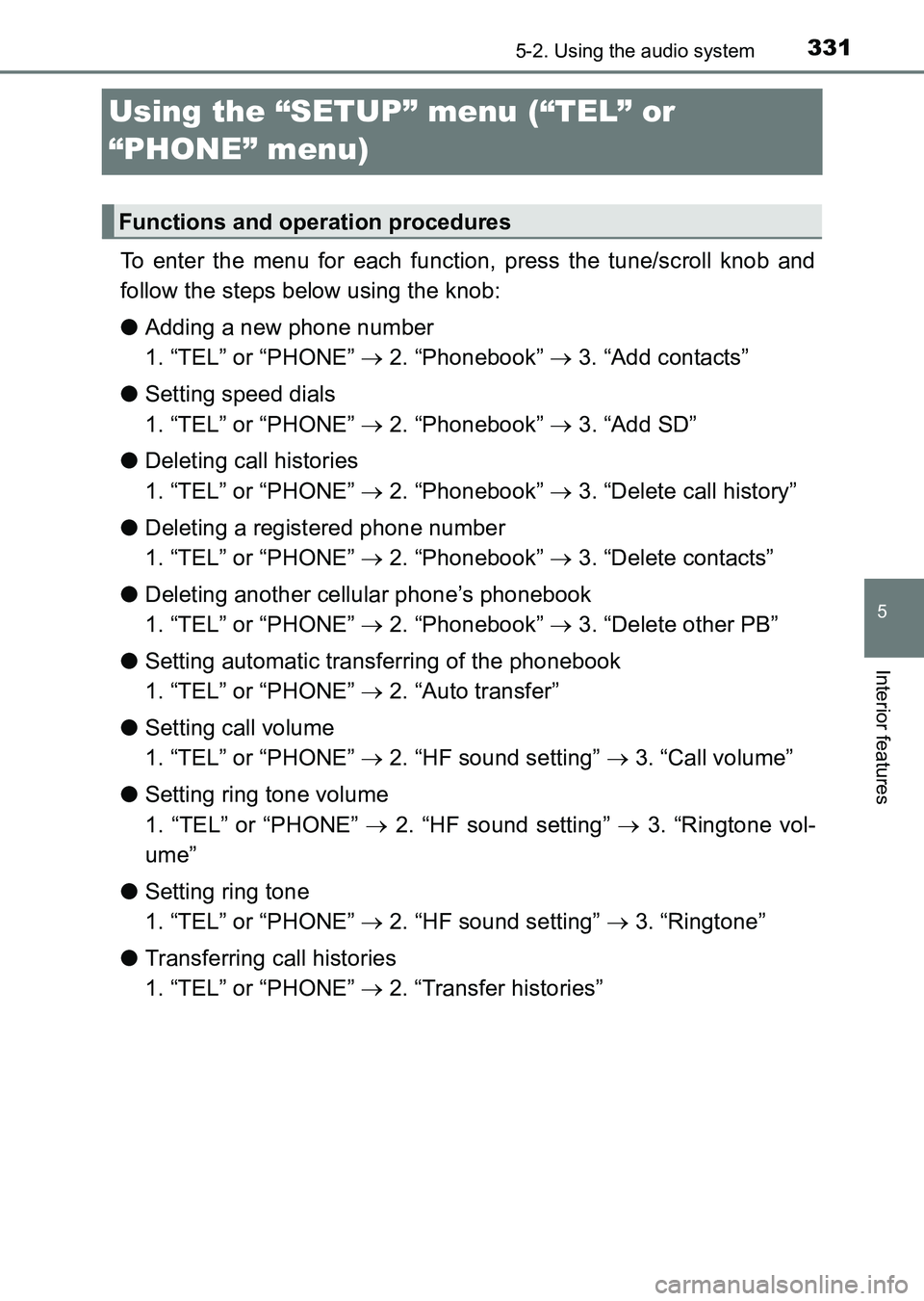

Using the “SETUP” menu (“TEL” or
“PHONE” menu)
To enter the menu for each function, press the tune/scroll knob and
follow the steps below using the knob:
●Adding a new phone number
1. “TEL” or “PHONE” → 2. “Phonebook” → 3. “Add contacts”
● Setting speed dials
1. “TEL” or “PHONE” → 2. “Phonebook” → 3. “Add SD”
● Deleting call histories
1. “TEL” or “PHONE” → 2. “Phonebook” → 3. “Delete call history”
● Deleting a registered phone number
1. “TEL” or “PHONE” → 2. “Phonebook” → 3. “Delete contacts”
● Deleting another cellular phone’s phonebook
1. “TEL” or “PHONE” → 2. “Phonebook” → 3. “Delete other PB”
● Setting automatic transferring of the phonebook
1. “TEL” or “PHONE” → 2. “Auto transfer”
● Setting call volume
1. “TEL” or “PHONE” → 2. “HF sound setting” → 3. “Call volume”
● Setting ring tone volume
1. “TEL” or “PHONE” → 2. “HF sound setting” → 3. “Ringtone vol-
ume”
● Setting ring tone
1. “TEL” or “PHONE” → 2. “HF sound setting” → 3. “Ringtone”
● Transferring call histories
1. “TEL” or “PHONE” → 2. “Transfer histories”
Functions and operation procedures
HILUX_OM_OM0K219E_(EE).book Page 331 Wednesday, May 14, 2014 3:06 PM

3325-2. Using the audio system
HILUX_OM_OM0K219E_(EE)

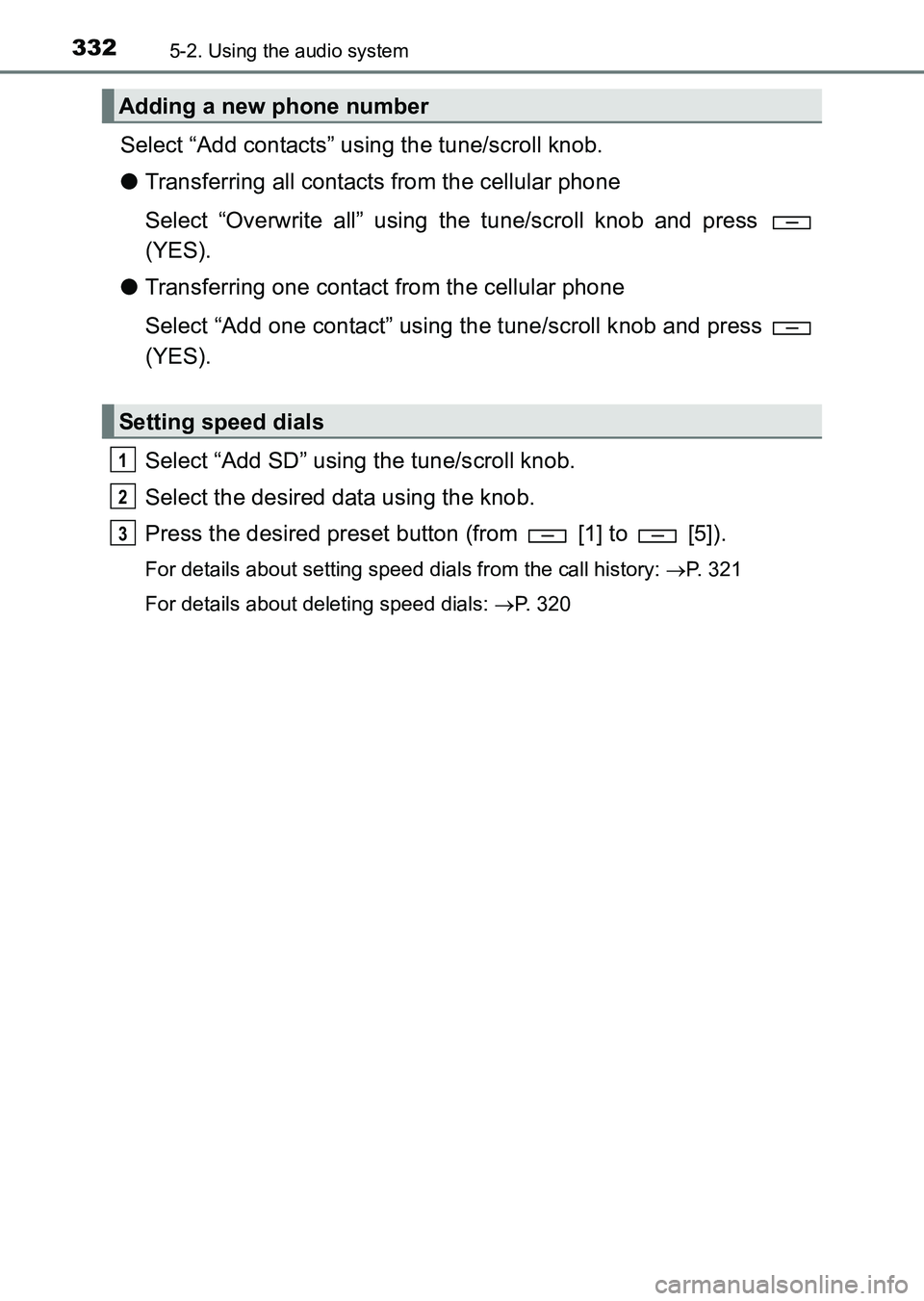

Select “Add contacts” using the tune/scroll knob.
●Transferring all contacts from the cellular phone
Select “Overwrite all” using the tune/scroll knob and press
(YES).
● Transferring one contact from the cellular phone
Select “Add one contact” using the tune/scroll knob and press
(YES).
Select “Add SD” using the tune/scroll knob.
Select the desired data using the knob.
Press the desired preset button (from [1] to [5]).
For details about setting speed dials from the call history: →P. 321
For details about deleting speed dials: →P. 320
Adding a new phone number
Setting speed dials
1
2
3
HILUX_OM_OM0K219E_(EE).book Page 332 Wednesday, May 14, 2014 3:06 PM

3335-2. Using the audio system
5
Interior features
HILUX_OM_OM0K219E_(EE)

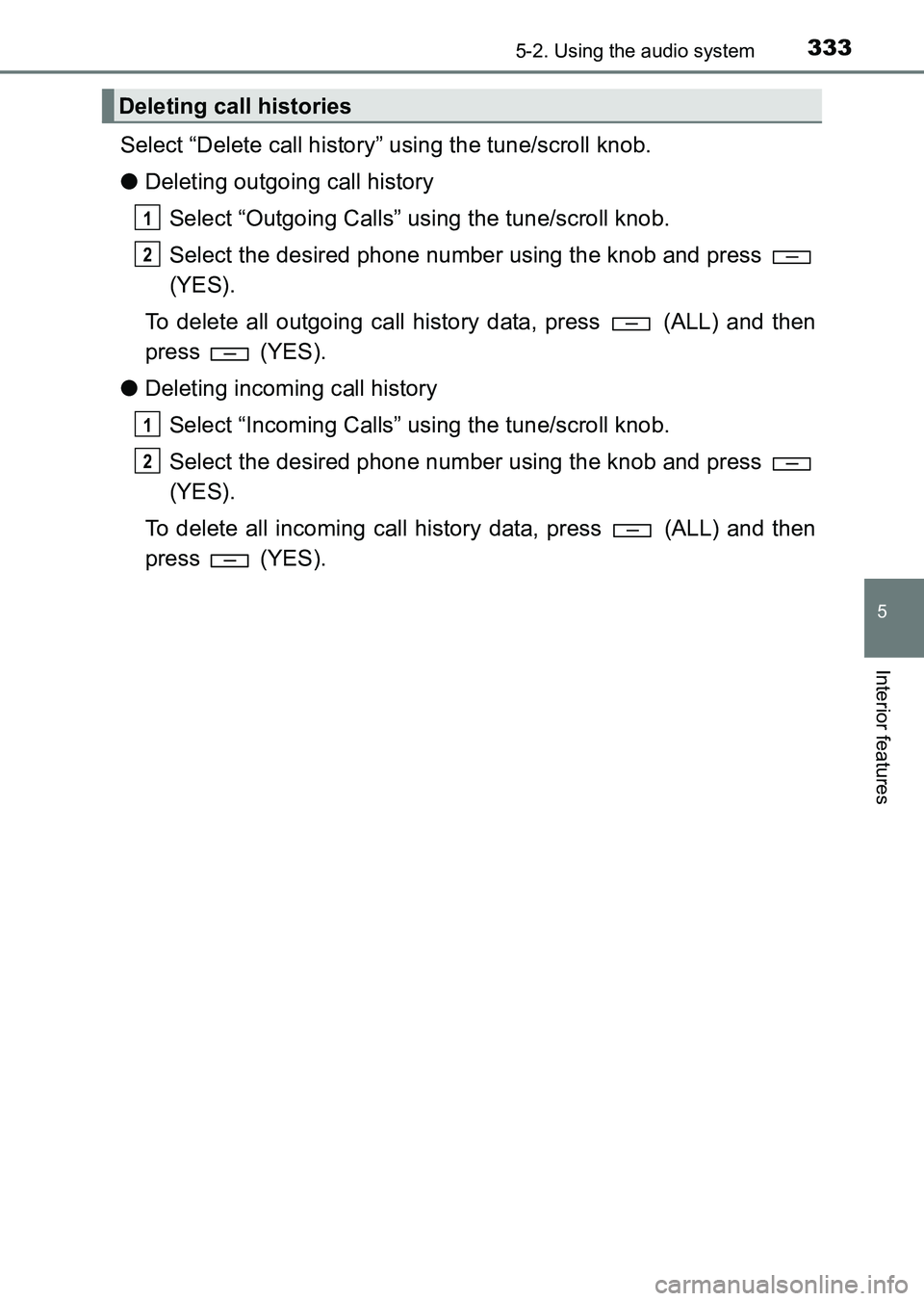

Select “Delete call history” using the tune/scroll knob.
●Deleting outgoing call history
Select “Outgoing Calls” using the tune/scroll knob.
Select the desired phone number using the knob and press
(YES).
To delete all outgoing call history data, press (ALL) and then
press (YES).
● Deleting incoming call history
Select “Incoming Calls” using the tune/scroll knob.
Select the desired phone number using the knob and press
(YES).
To delete all incoming call history data, press (ALL) and then
press (YES).
Deleting call histories
1
2
1
2
HILUX_OM_OM0K219E_(EE).book Page 333 Wednesday, May 14, 2014 3:06 PM

3345-2. Using the audio system
HILUX_OM_OM0K219E_(EE)

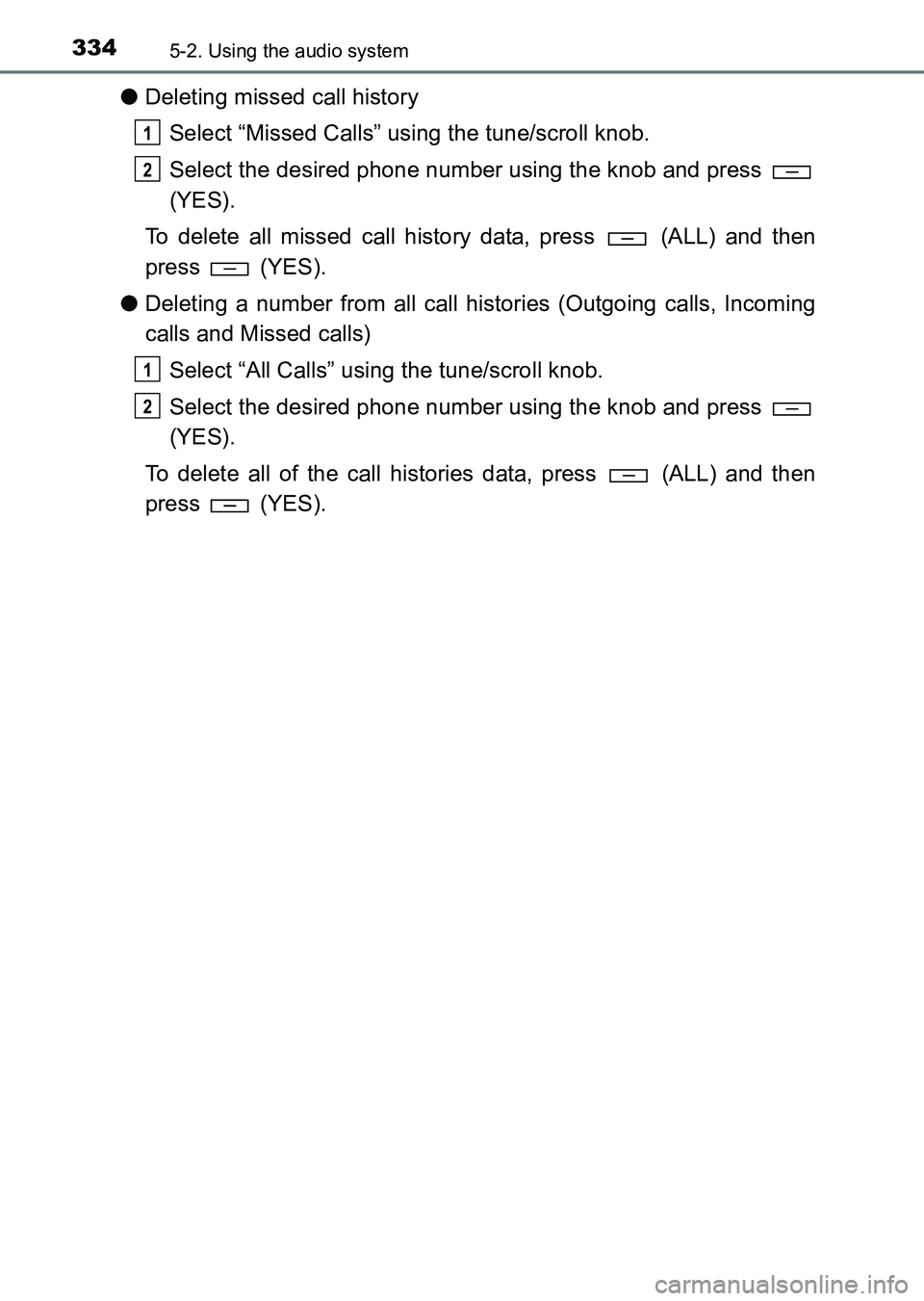

●Deleting missed call history
Select “Missed Calls” using the tune/scroll knob.
Select the desired phone number using the knob and press
(YES).
To delete all missed call history data, press (ALL) and then
press (YES).
● Deleting a number from all call histories (Outgoing calls, Incoming
calls and Missed calls)
Select “All Calls” using the tune/scroll knob.
Select the desired phone number using the knob and press
(YES).
To delete all of the call histories data, press (ALL) and then
press (YES).
1
2
1
2
HILUX_OM_OM0K219E_(EE).book Page 334 Wednesday, May 14, 2014 3:06 PM

3355-2. Using the audio system
5
Interior features
HILUX_OM_OM0K219E_(EE)

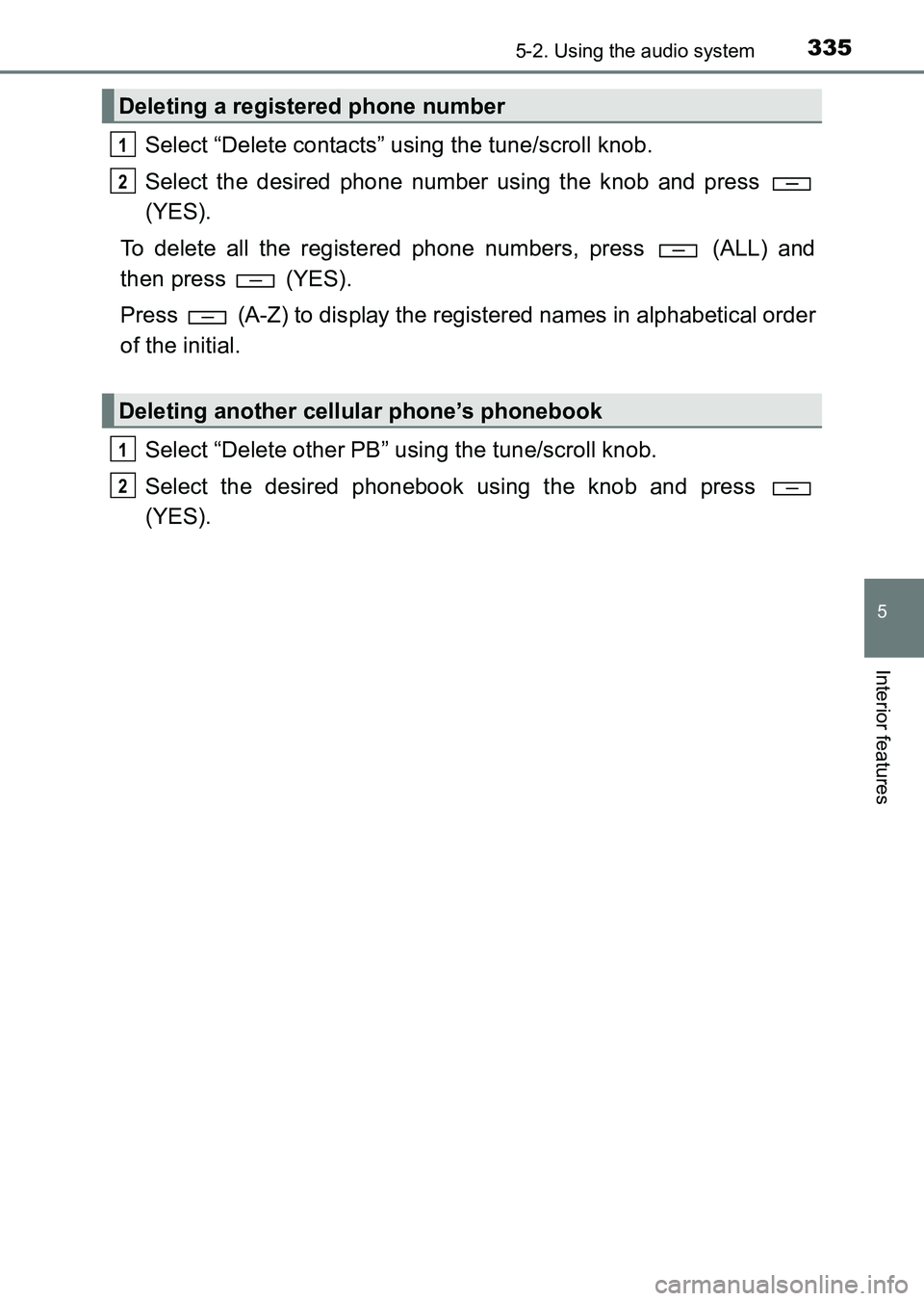

Select “Delete contacts” using the tune/scroll knob.
Select the desired phone number using the knob and press
(YES).
To delete all the registered phone numbers, press (ALL) and
then press (YES).
Press (A-Z) to display the registered names in alphabetical order
of the initial.
Select “Delete other PB” using the tune/scroll knob.
Select the desired phonebook using the knob and press
(YES).
Deleting a registered phone number
Deleting another cellular phone’s phonebook
1
2
1
2
HILUX_OM_OM0K219E_(EE).book Page 335 Wednesday, May 14, 2014 3:06 PM

3365-2. Using the audio system
HILUX_OM_OM0K219E_(EE)
Select “Call volume” using the tune/scroll knob.
Change the call volume.
To decrease the volume: Turn the knob counterclockwise.
To increase the volume: Turn the knob clockwise.
To set the volume, press (BACK).
Select “Ringtone volume” using the tune/scroll knob.
Change the ring tone volume.
To decrease the volume: Turn the knob counterclockwise.
To increase the volume: Turn the knob clockwise.
To set the volume, press (BACK).
Setting call volume
Setting ring tone volume
1
2
1
2
HILUX_OM_OM0K219E_(EE).book Page 336 Wednesday, May 14, 2014 3:06 PM
