2015 TOYOTA HILUX Owners Manual (in English)

209
4
4-4. Refueling
Driving
HILUX_OM_OM0K219E_(EE)

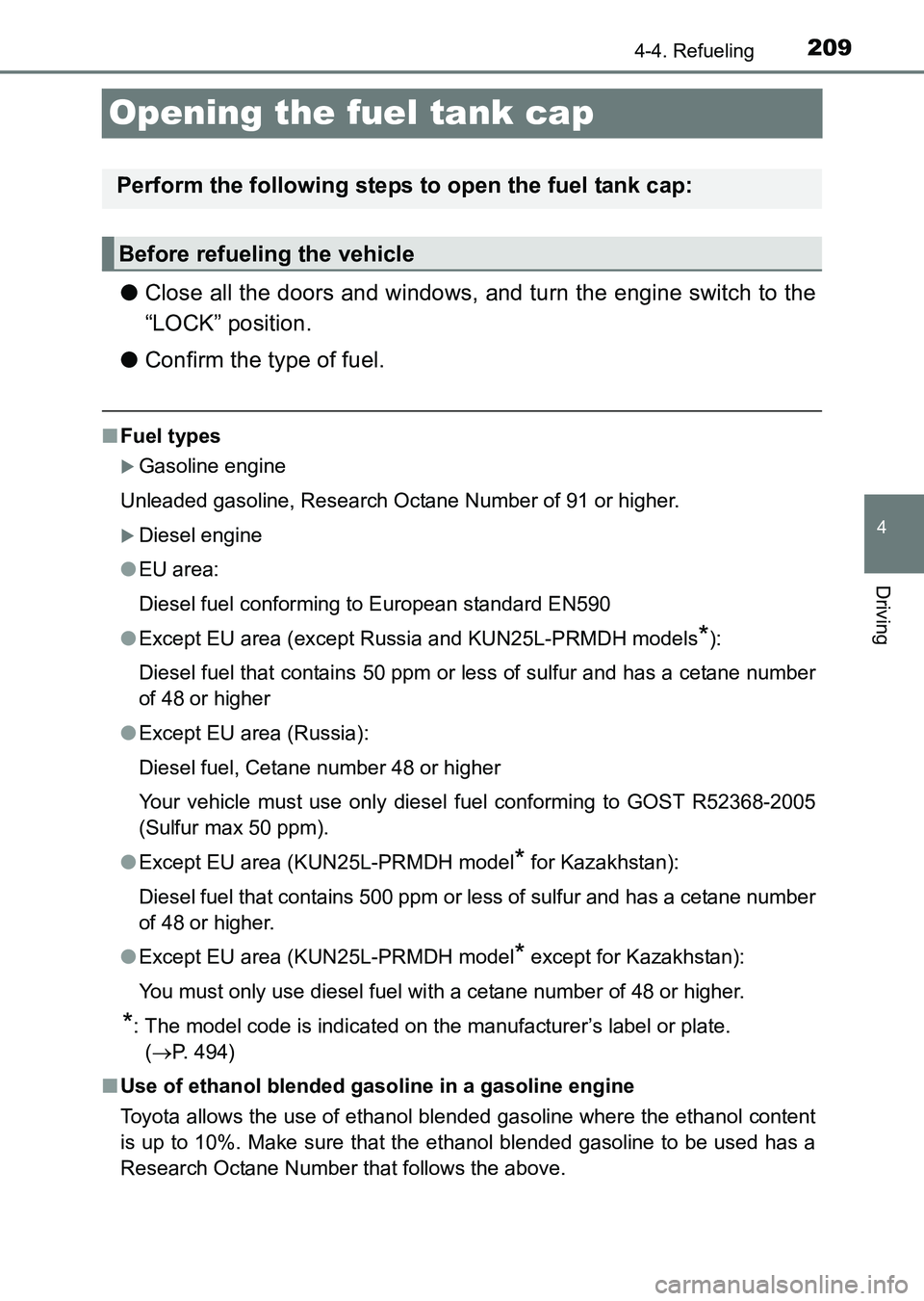

Opening the fuel tank cap
●Close all the doors and windows, and turn the engine switch to the
“LOCK” position.
● Confirm the type of fuel.
■Fuel types
XGasoline engine
Unleaded gasoline, Research Octane Number of 91 or higher.
XDiesel engine
● EU area:
Diesel fuel conforming to European standard EN590
● Except EU area (except Russia and KUN25L-PRMDH models
*):
Diesel fuel that contains 50 ppm or less of sulfur and has a cetane number
of 48 or higher
● Except EU area (Russia):
Diesel fuel, Cetane number 48 or higher
Your vehicle must use only diesel fuel conforming to GOST R52368-2005
(Sulfur max 50 ppm).
● Except EU area (KUN25L-PRMDH model
* for Kazakhstan):
Diesel fuel that contains 500 ppm or less of sulfur and has a cetane number
of 48 or higher.
● Except EU area (KUN25L-PRMDH model
* except for Kazakhstan):
You must only use diesel fuel wi th a cetane number of 48 or higher.
*: The model code is indicated on the manufacturer’s label or plate.
(→ P. 494)
■ Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
Perform the following steps to open the fuel tank cap:
Before refueling the vehicle
HILUX_OM_OM0K219E_(EE).book Page 209 Wednesday, May 14, 2014 3:06 PM

2104-4. Refueling
HILUX_OM_OM0K219E_(EE)

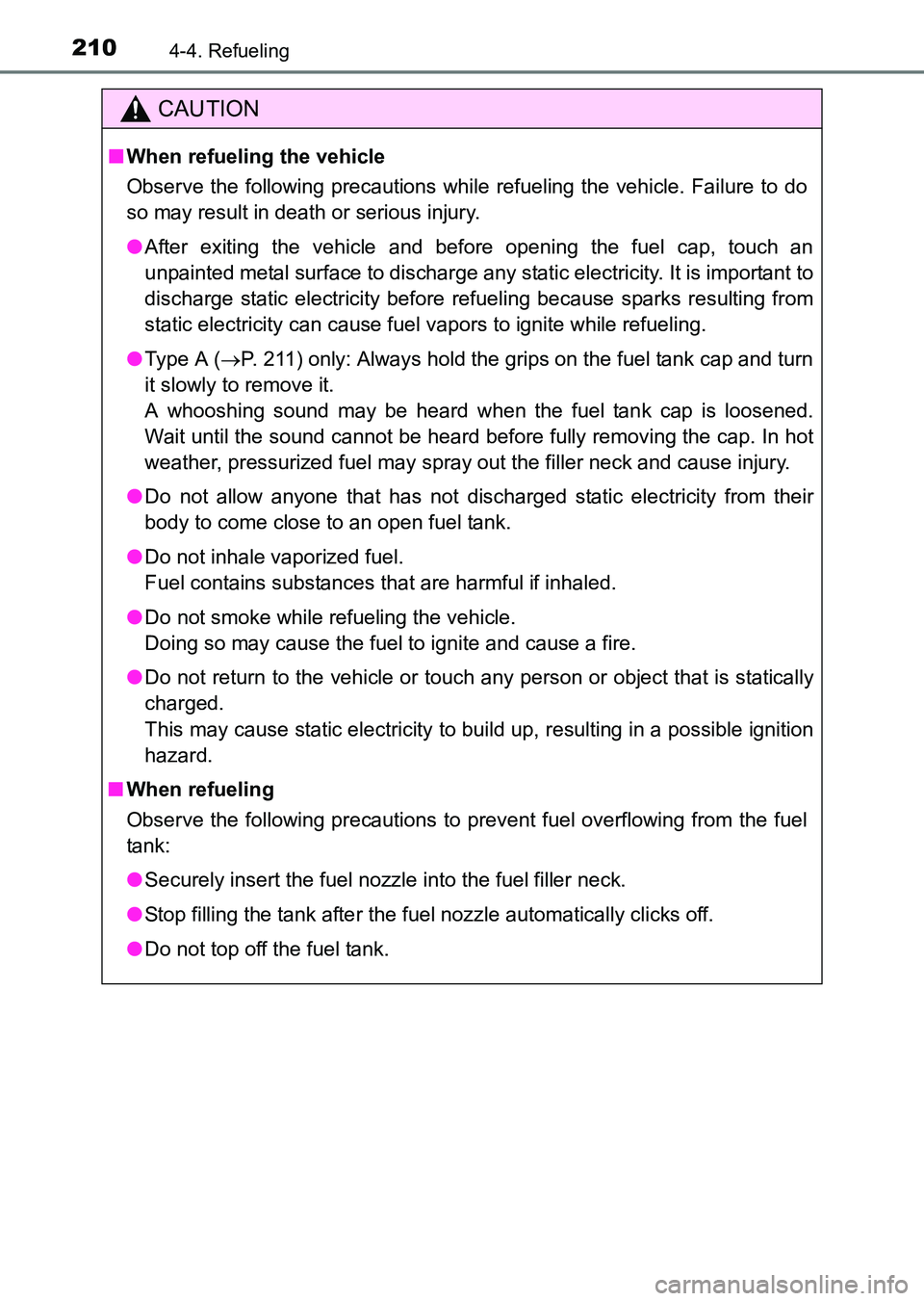

CAUTION
■When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do
so may result in death or serious injury.
● After exiting the vehicle and before opening the fuel cap, touch an
unpainted metal surface to discharge any static electricity. It is important to
discharge static electricity before refueling because sparks resulting from
static electricity can cause fuel vapors to ignite while refueling.
● Type A ( →P. 211) only: Always hold the grips on the fuel tank cap and turn
it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap. In hot
weather, pressurized fuel may spray out the filler neck and cause injury.
● Do not allow anyone that has not discharged static electricity from their
body to come close to an open fuel tank.
● Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
● Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
● Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.
■ When refueling
Observe the following precautions to pr event fuel overflowing from the fuel
tank:
● Securely insert the fuel nozzle into the fuel filler neck.
● Stop filling the tank after the fuel nozzle automatically clicks off.
● Do not top off the fuel tank.
HILUX_OM_OM0K219E_(EE).book Page 210 Wednesday, May 14, 2014 3:06 PM

2114-4. Refueling
4
Driving
HILUX_OM_OM0K219E_(EE)

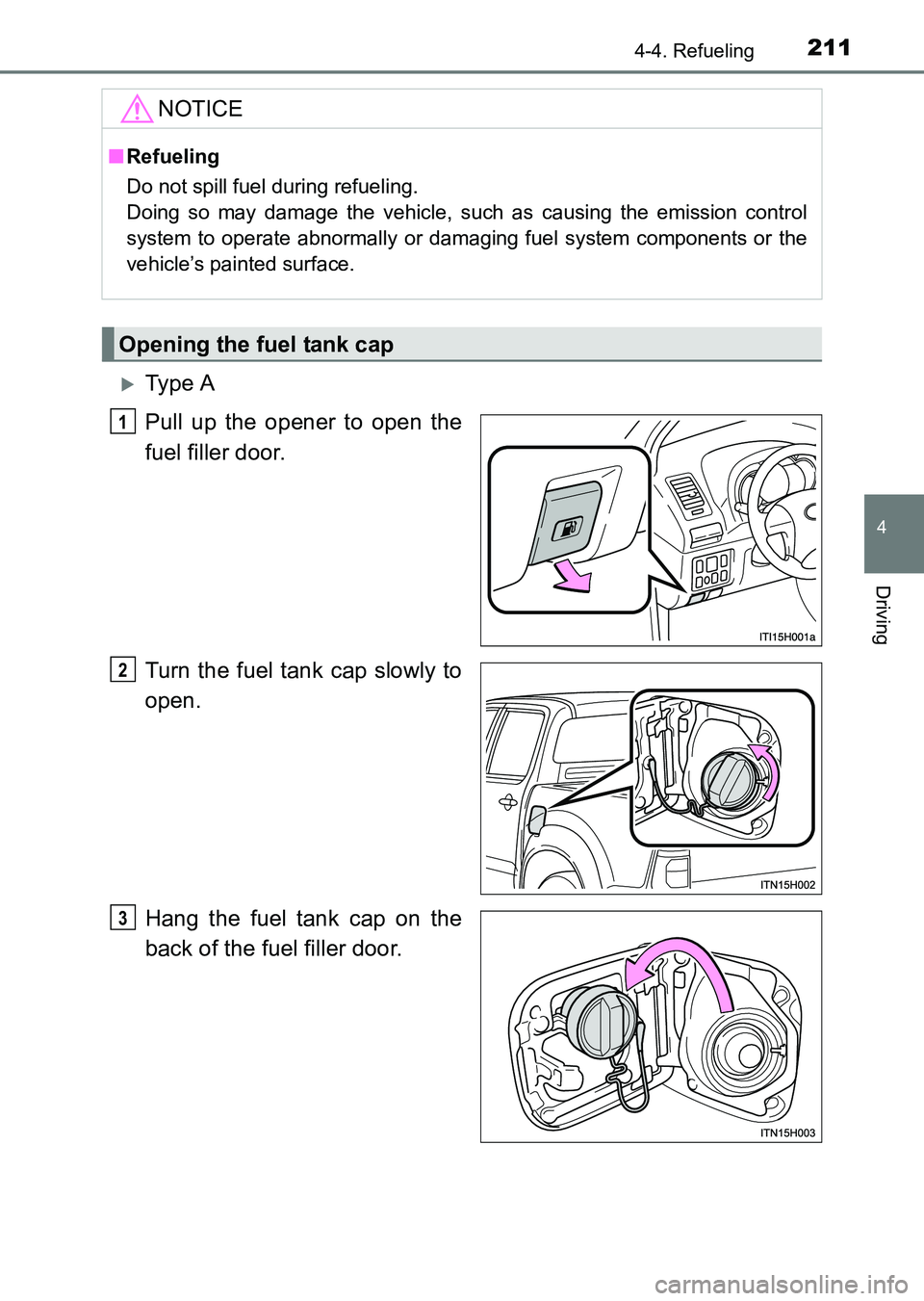

XTy pe A
Pull up the opener to open the
fuel filler door.
Turn the fuel tank cap slowly to
open.
Hang the fuel tank cap on the
back of the fuel filler door.NOTICE
■
Refueling
Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control
system to operate abnormally or damaging fuel system components or the
vehicle’s painted surface.
Opening the fuel tank cap
1
2
3
HILUX_OM_OM0K219E_(EE).book Page 211 Wednesday, May 14, 2014 3:06 PM

2124-4. Refueling
HILUX_OM_OM0K219E_(EE)

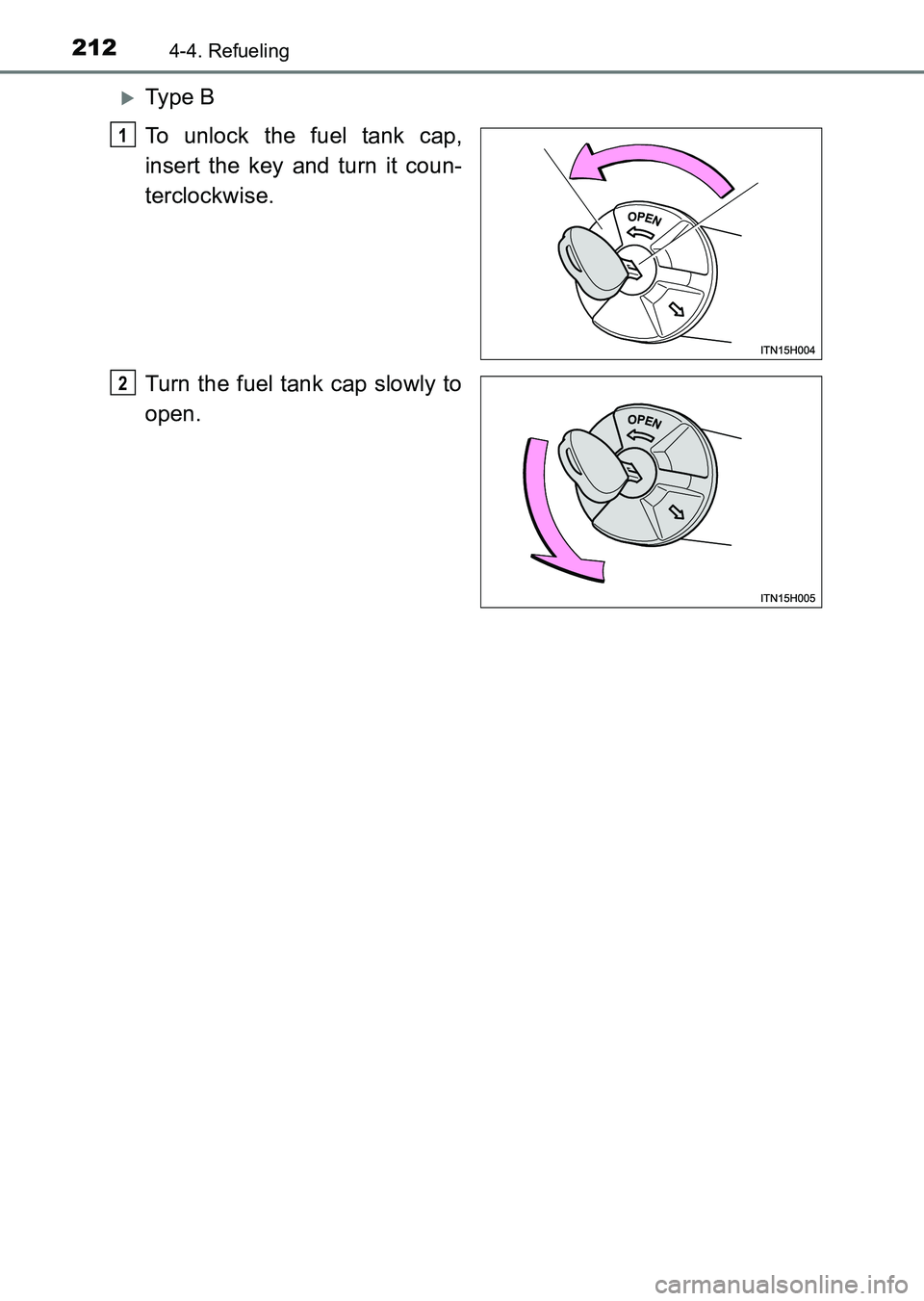

XTy pe B
To unlock the fuel tank cap,
insert the key and turn it coun-
terclockwise.
Turn the fuel tank cap slowly to
open.
1
2
HILUX_OM_OM0K219E_(EE).book Page 212 Wednesday, May 14, 2014 3:06 PM

2134-4. Refueling
4
Driving
HILUX_OM_OM0K219E_(EE)

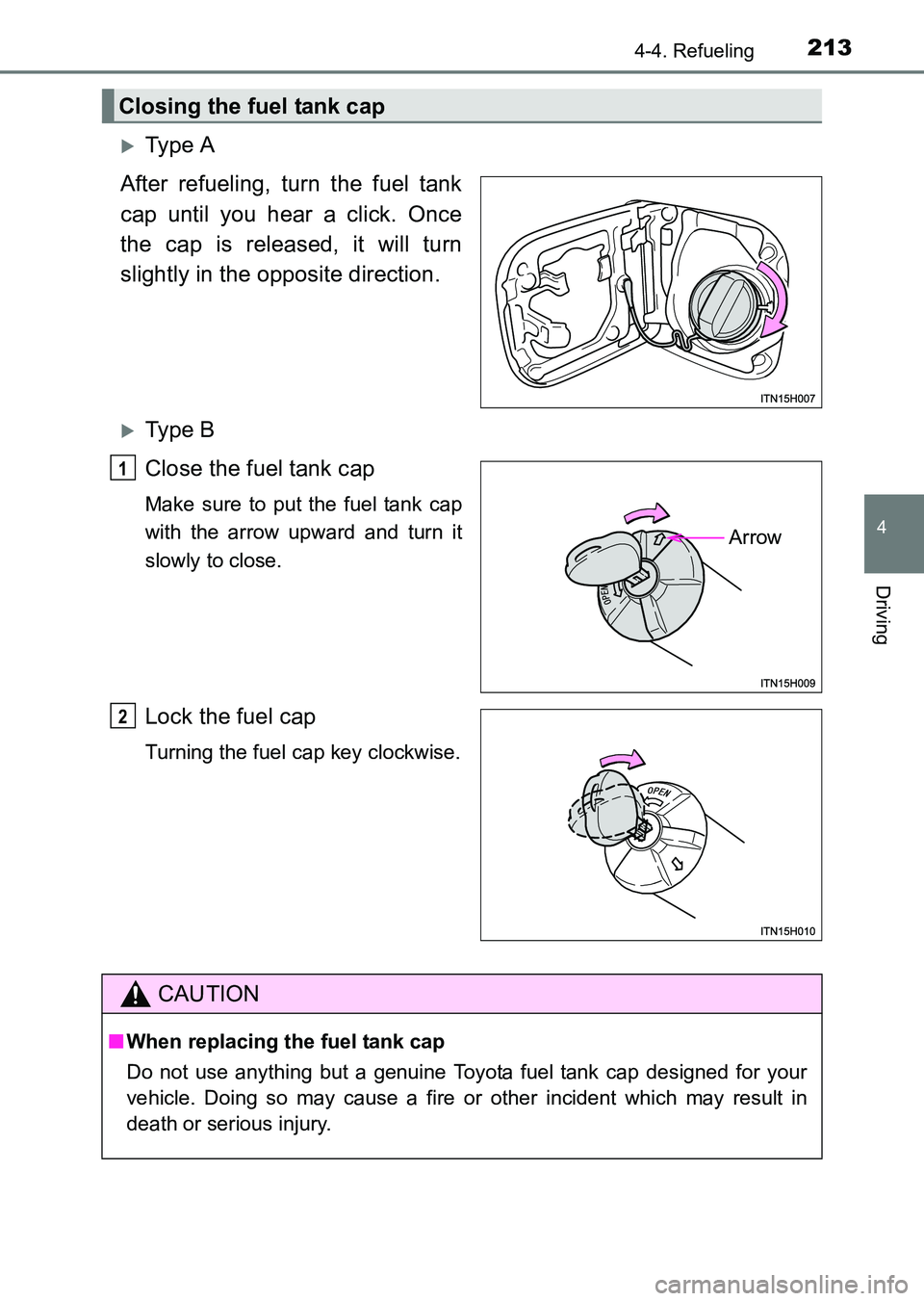

XTy pe A
After refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.
XTy pe B
Close the fuel tank cap
Make sure to put the fuel tank cap
with the arrow upward and turn it
slowly to close.
Lock the fuel cap
Turning the fuel cap key clockwise.
Closing the fuel tank cap
Arrow
1
2
CAUTION
■ When replacing the fuel tank cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.
HILUX_OM_OM0K219E_(EE).book Page 213 Wednesday, May 14, 2014 3:06 PM

2144-5. Using the driving support systems
HILUX_OM_OM0K219E_(EE)

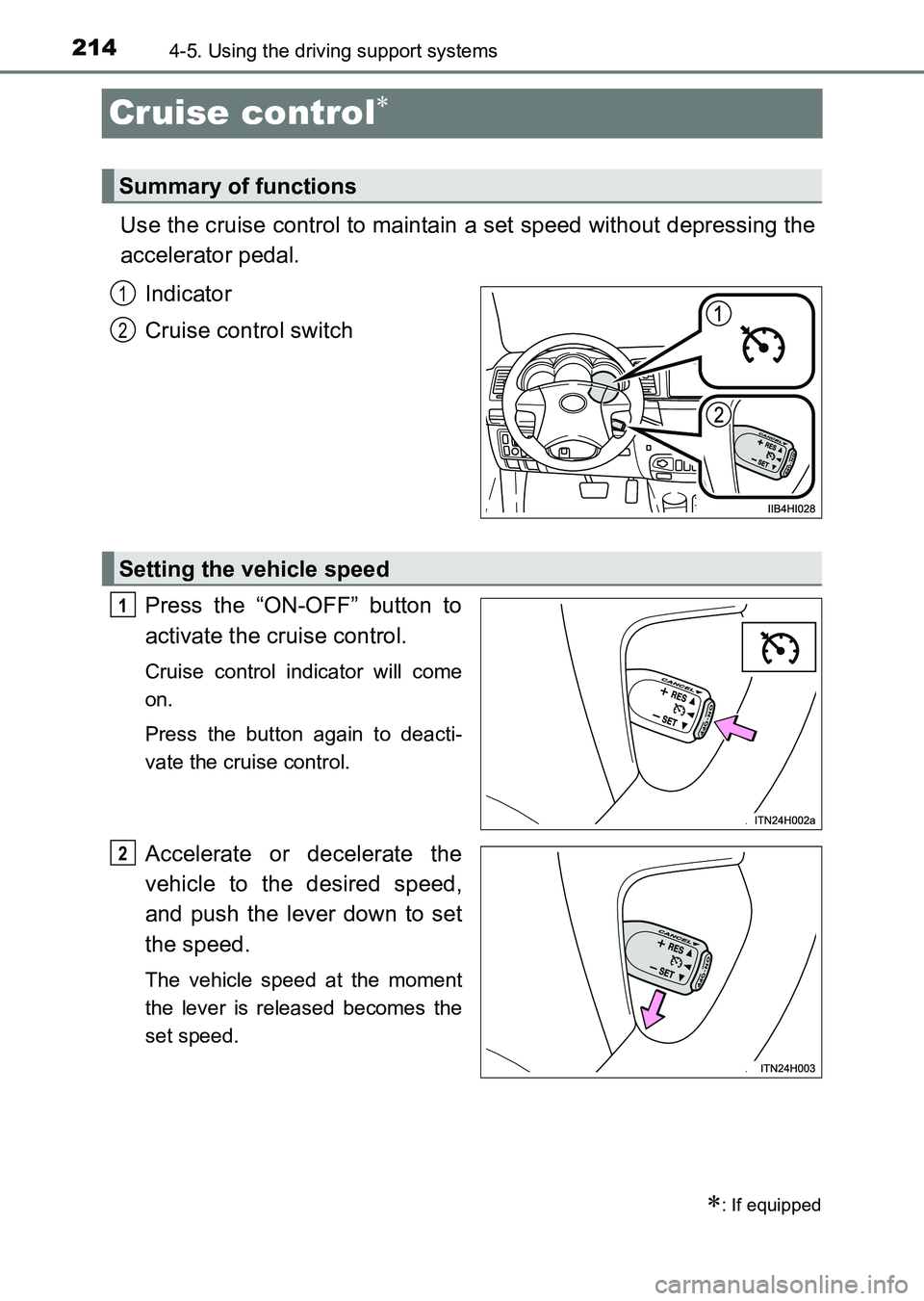

Cruise control∗
Use the cruise control to maintain a set speed without depressing the
accelerator pedal.Indicator
Cruise control switch
Press the “ON-OFF” button to
activate the cruise control.
Cruise control indicator will come
on.
Press the button again to deacti-
vate the cruise control.
Accelerate or decelerate the
vehicle to the desired speed,
and push the lever down to set
the speed.
The vehicle speed at the moment
the lever is released becomes the
set speed.
∗: If equipped
Summary of functions
1
2
Setting the vehicle speed
1
2
HILUX_OM_OM0K219E_(EE).book Page 214 Wednesday, May 14, 2014 3:06 PM

2154-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K219E_(EE)

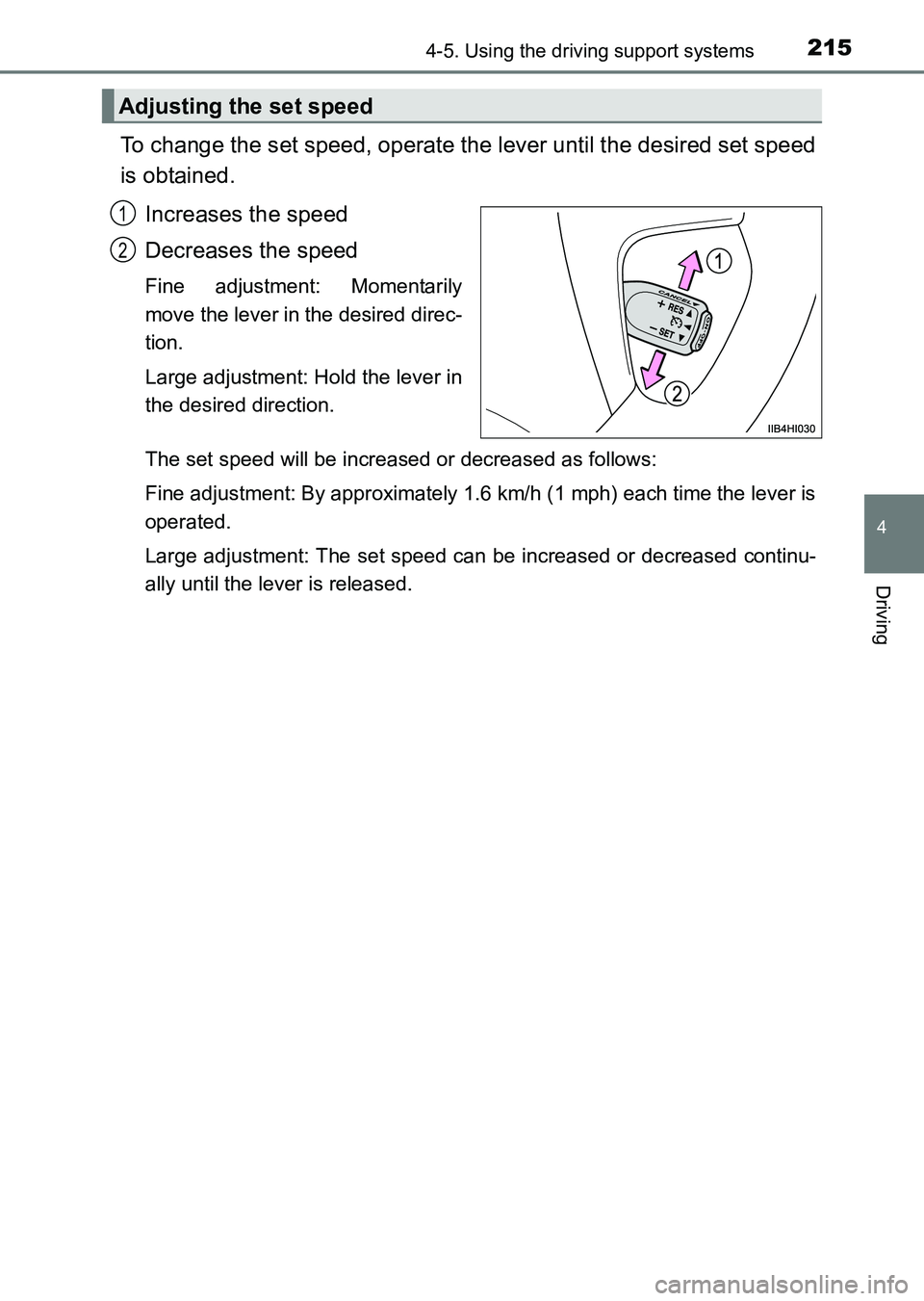

To change the set speed, operate the lever until the desired set speed
is obtained.Increases the speed
Decreases the speed
Fine adjustment: Momentarily
move the lever in the desired direc-
tion.
Large adjustment: Hold the lever in
the desired direction.
The set speed will be increased or decreased as follows:
Fine adjustment: By approximately 1.6 km/h (1 mph) each time the lever is
operated.
Large adjustment: The set speed can be increased or decreased continu-
ally until the lever is released.
Adjusting the set speed
1
2
HILUX_OM_OM0K219E_(EE).book Page 215 Wednesday, May 14, 2014 3:06 PM

2164-5. Using the driving support systems
HILUX_OM_OM0K219E_(EE)

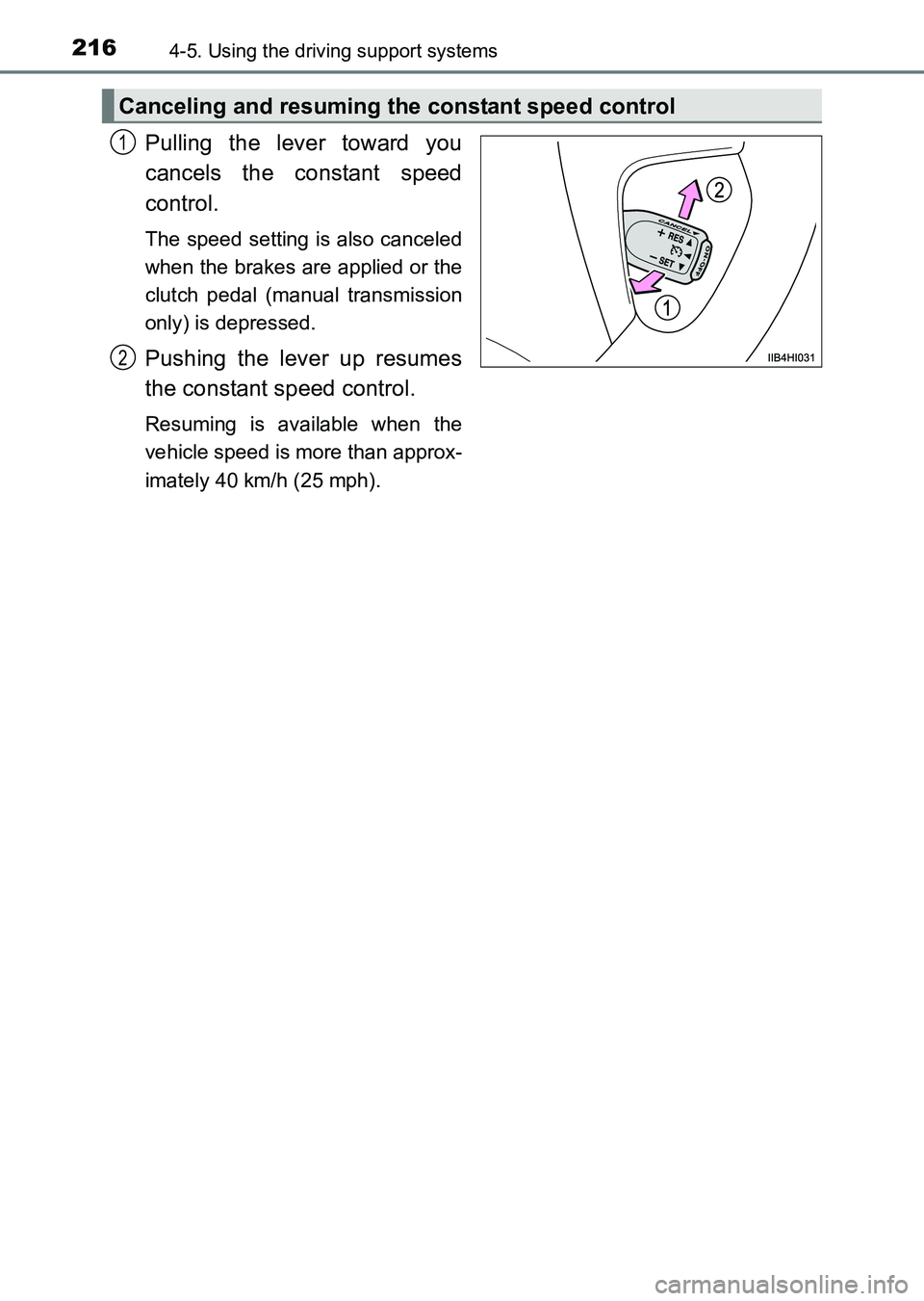

Pulling the lever toward you
cancels the constant speed
control.
The speed setting is also canceled
when the brakes are applied or the
clutch pedal (manual transmission
only) is depressed.
Pushing the lever up resumes
the constant speed control.
Resuming is available when the
vehicle speed is more than approx-
imately 40 km/h (25 mph).
Canceling and resuming the constant speed control
1
2
HILUX_OM_OM0K219E_(EE).book Page 216 Wednesday, May 14, 2014 3:06 PM
