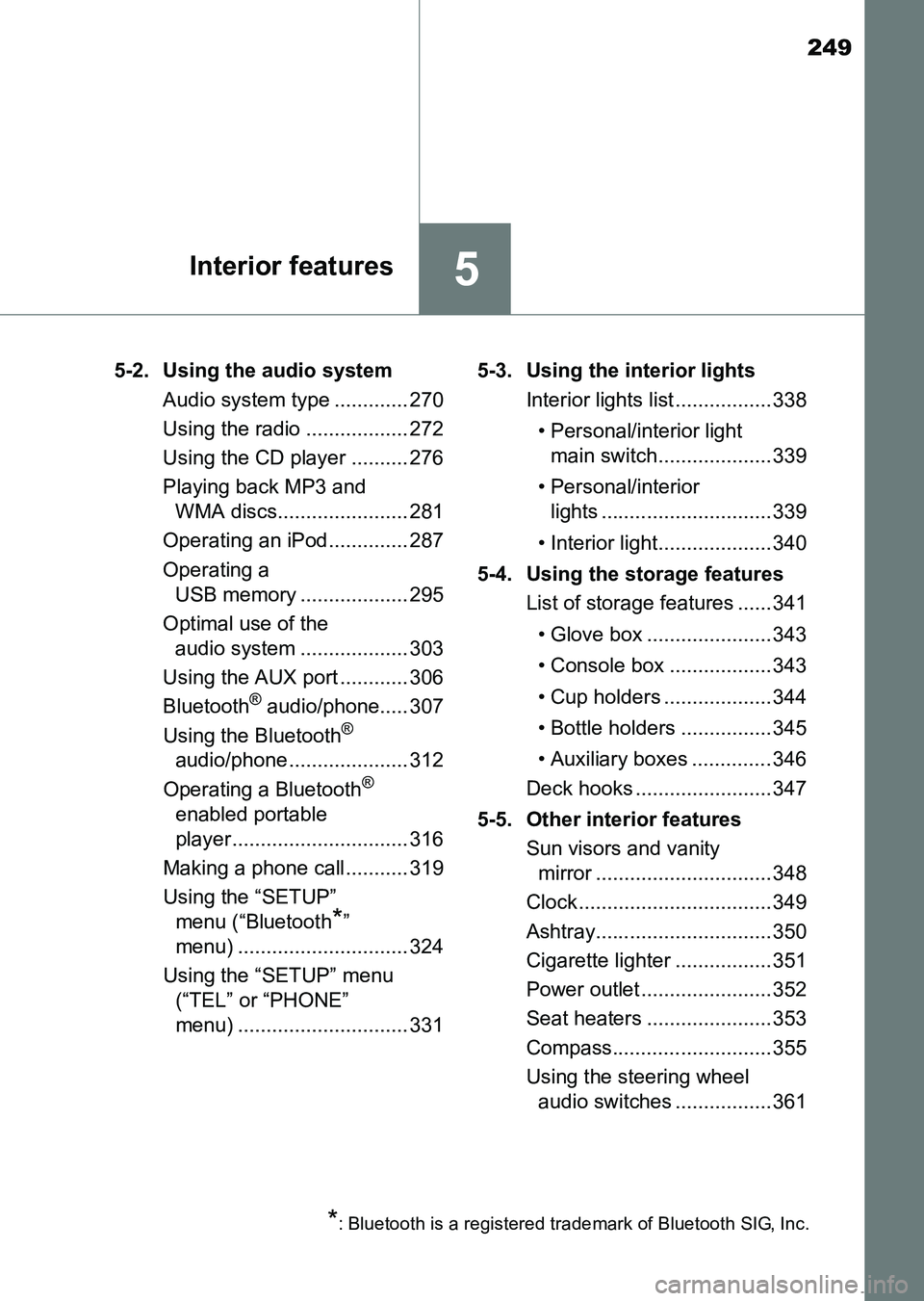

2015 TOYOTA HILUX Owners Manual (in English)

249
5Interior features
HILUX_OM_OM0K219E_(EE)5-2. Using the audio system
Audio system type ............. 270
Using the radio .................. 272
Using the CD player .......... 276
Playing back MP3 and WMA discs....................... 281
Operating an iPod.............. 287
Operating a USB memory ................... 295
Optimal use of the audio system ................... 303
Using the AUX port ............ 306
Bluetooth
® audio/phone..... 307
Using the Bluetooth®
audio/phone ..................... 312
Operating a Bluetooth
®
enabled portable
player............................... 316
Making a phone call........... 319
Using the “SETUP” menu (“Bluetooth
*”
menu) .............................. 324
Using the “SETUP” menu (“TEL” or “PHONE”
menu) .............................. 331 5-3. Using the interior lights
Interior lights list ................. 338
• Personal/interior light main switch.................... 339
• Personal/interior lights .............................. 339
• Interior light.................... 340
5-4. Using the storage features List of storage features ...... 341
• Glove box ...................... 343
• Console box .................. 343
• Cup holders ................... 344
• Bottle holders ................ 345
• Auxiliary boxes .............. 346
Deck hooks ........................ 347
5-5. Other interior features Sun visors and vanity mirror ............................... 348
Clock .................................. 349
Ashtray............................... 350
Cigarette lighter ................. 351
Power outlet ....................... 352
Seat heaters ......................353
Compass............................ 355
Using the steering wheel audio switches .................361
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
HILUX_OM_OM0K219E_(EE).book Page 249 Wednesday, May 14, 2014 3:06 PM

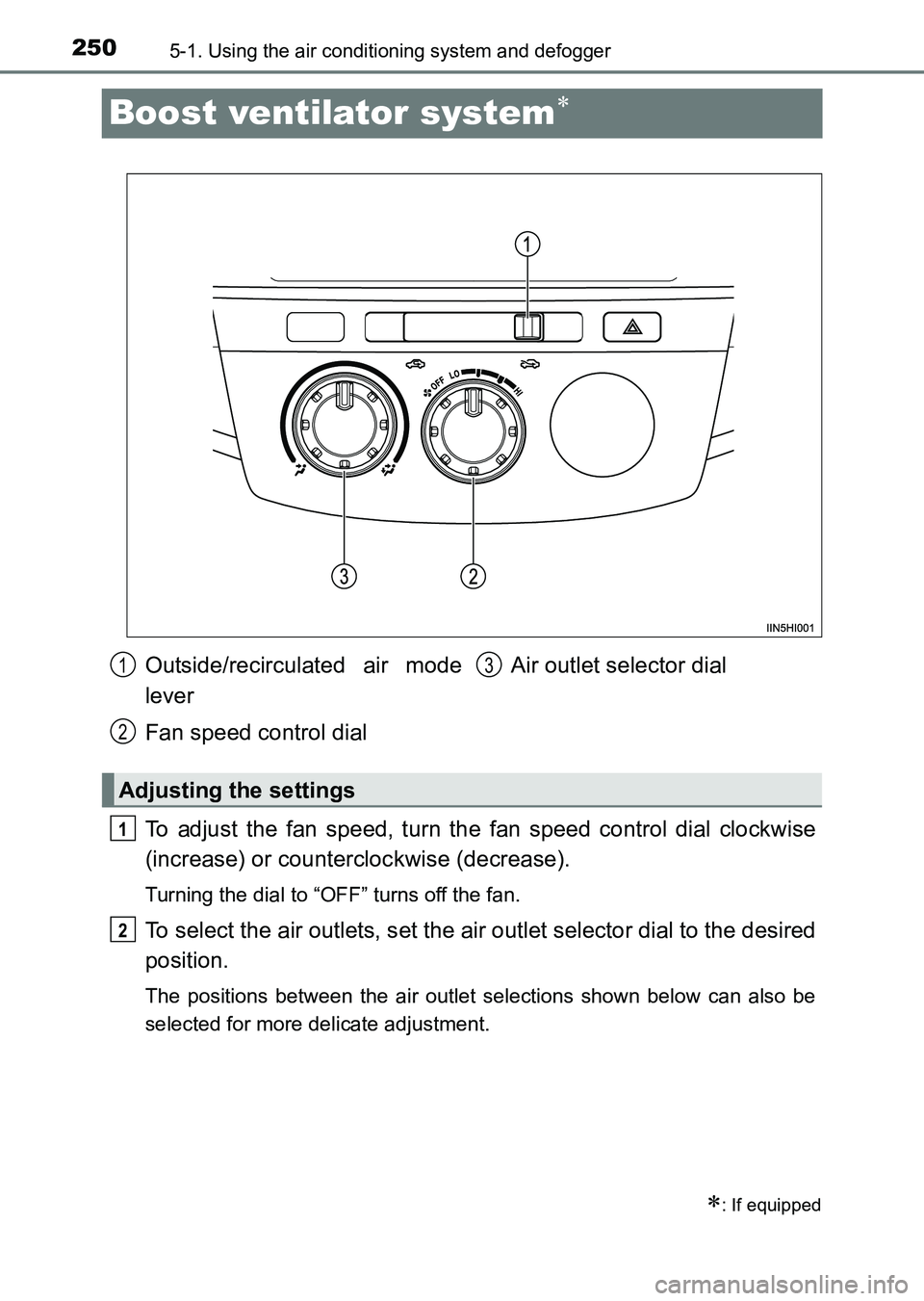

2505-1. Using the air conditioning system and defogger
HILUX_OM_OM0K219E_(EE)
Boost ventilator system∗
To adjust the fan speed, turn the fan speed control dial clockwise
(increase) or counterclockwise (decrease).
Turning the dial to “OFF” turns off the fan.
To select the air outlets, set the air outlet selector dial to the desired
position.
The positions between the air outlet selections shown below can also be
selected for more delicate adjustment.
∗: If equipped
Outside/recirculated air mode
lever
Fan speed control dialAir outlet selector dial
Adjusting the settings
1
2
3
1
2
HILUX_OM_OM0K219E_(EE).book Page 250 Wednesday, May 14, 2014
3:06 PM

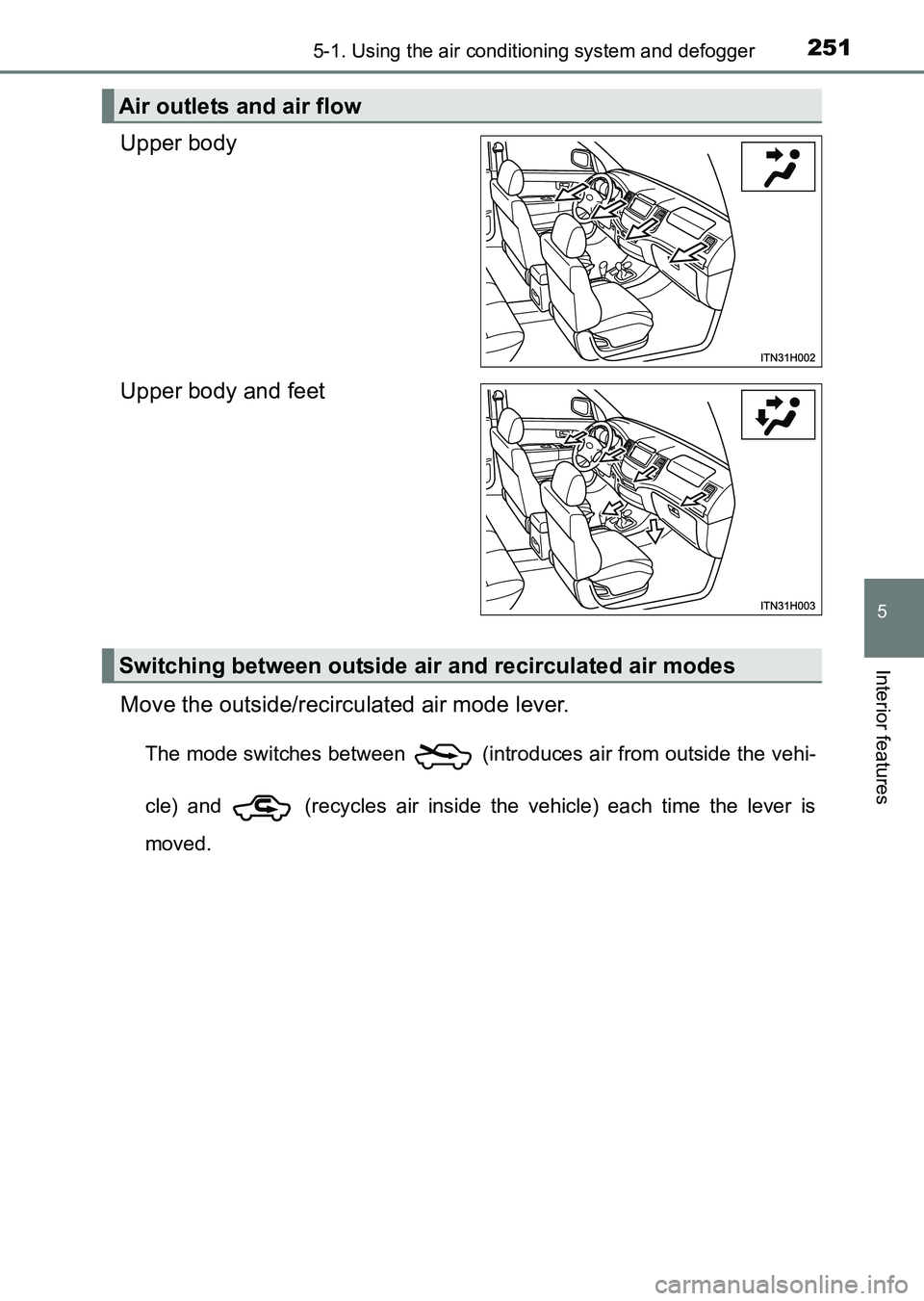

2515-1. Using the air conditioning system and defogger
5
Interior features
HILUX_OM_OM0K219E_(EE)
Upper body
Upper body and feet
Move the outside/recirculated air mode lever.
The mode switches between (introduces air from outside the vehi-
cle) and (recycles air inside the vehicle) each time the lever is
moved.
Air outlets and air flow
Switching between outside air and recirculated air modes
HILUX_OM_OM0K219E_(EE).book Page 251 Wednesday, May 14, 2014 3:06 PM

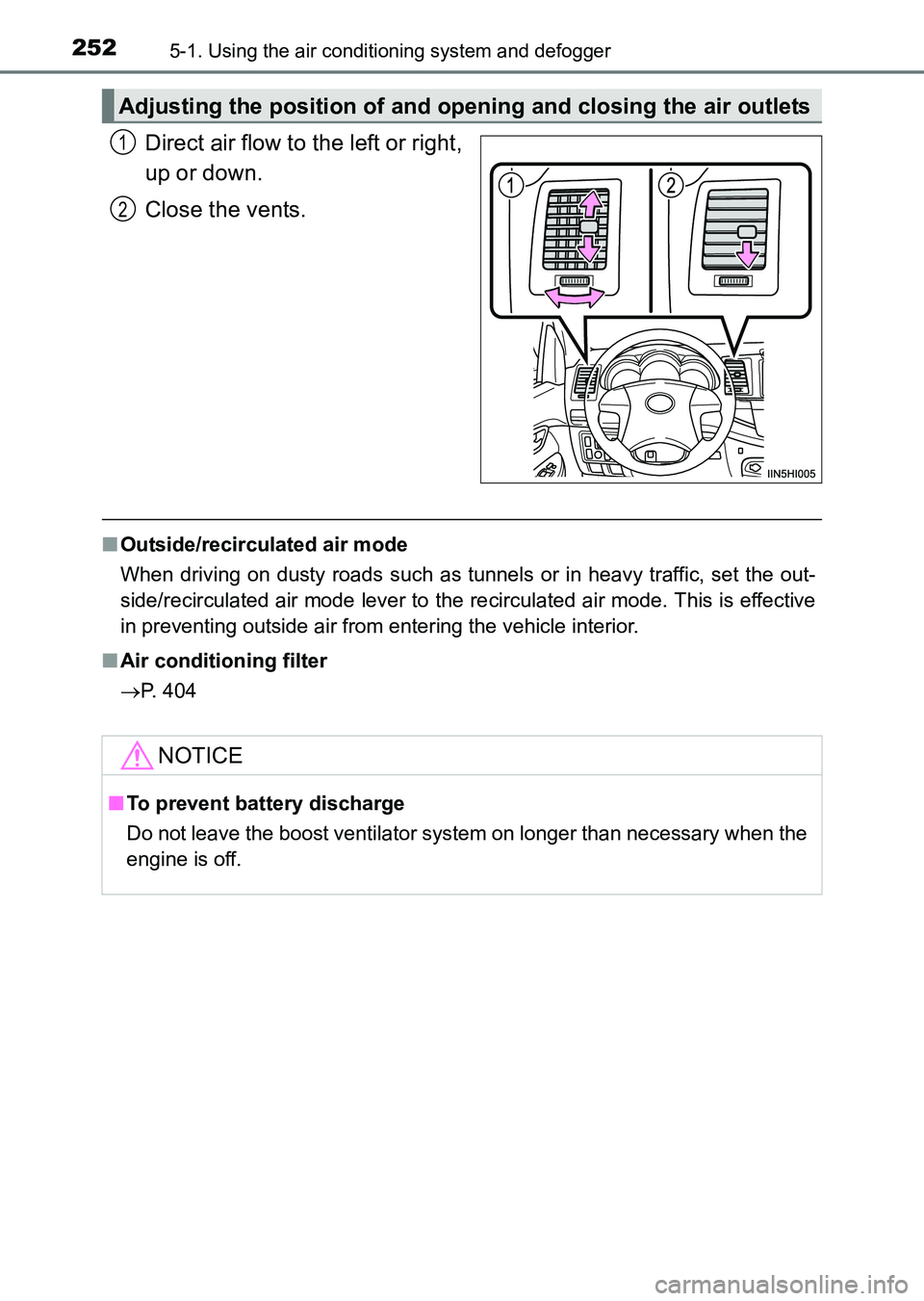

2525-1. Using the air conditioning system and defogger
HILUX_OM_OM0K219E_(EE)
Direct air flow to the left or right,
up or down.
Close the vents.
■Outside/recirculated air mode
When driving on dusty roads such as tunnels or in heavy traffic, set the out-
side/recirculated air mode lever to the re circulated air mode. This is effective
in preventing outside air from entering the vehicle interior.
■ Air conditioning filter
→ P. 404
Adjusting the position of and opening and closing the air outlets
1
2
NOTICE
■To prevent battery discharge
Do not leave the boost ventilator system on longer than necessary when the
engine is off.
HILUX_OM_OM0K219E_(EE).book Page 252 Wednesday, May 14, 2014 3:06 PM

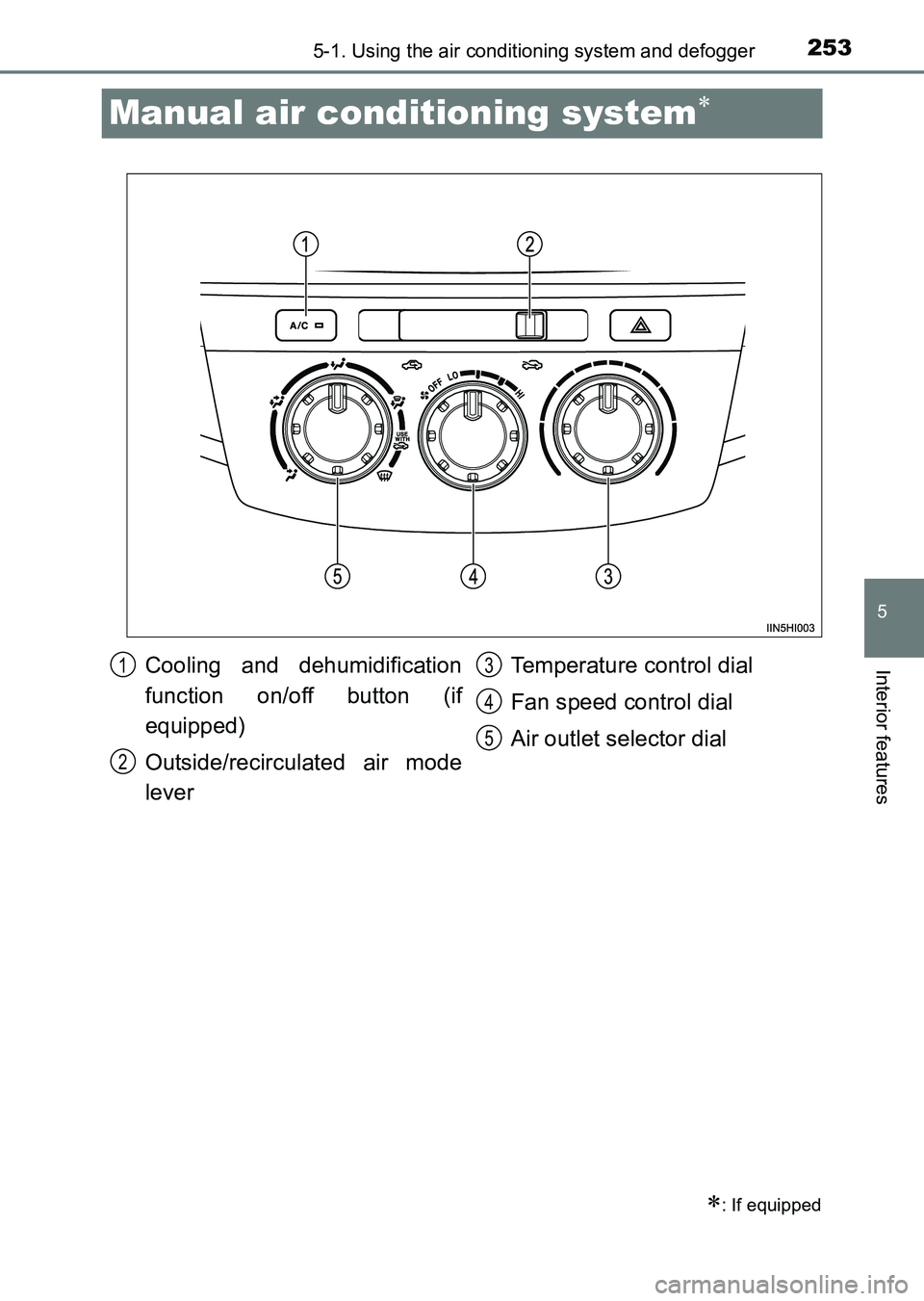

253
5
5-1. Using the air conditioning system and defogger
Interior features
HILUX_OM_OM0K219E_(EE)
Manual air conditioning system∗
∗: If equipped
Cooling and dehumidification
function on/off button (if
equipped)
Outside/recirculated air mode
lever Temperature control dial
Fan speed control dial
Air outlet selector dial1
2
3
4
5
HILUX_OM_OM0K219E_(EE).book Page 253 Wednesday, May 14, 2014
3:06 PM

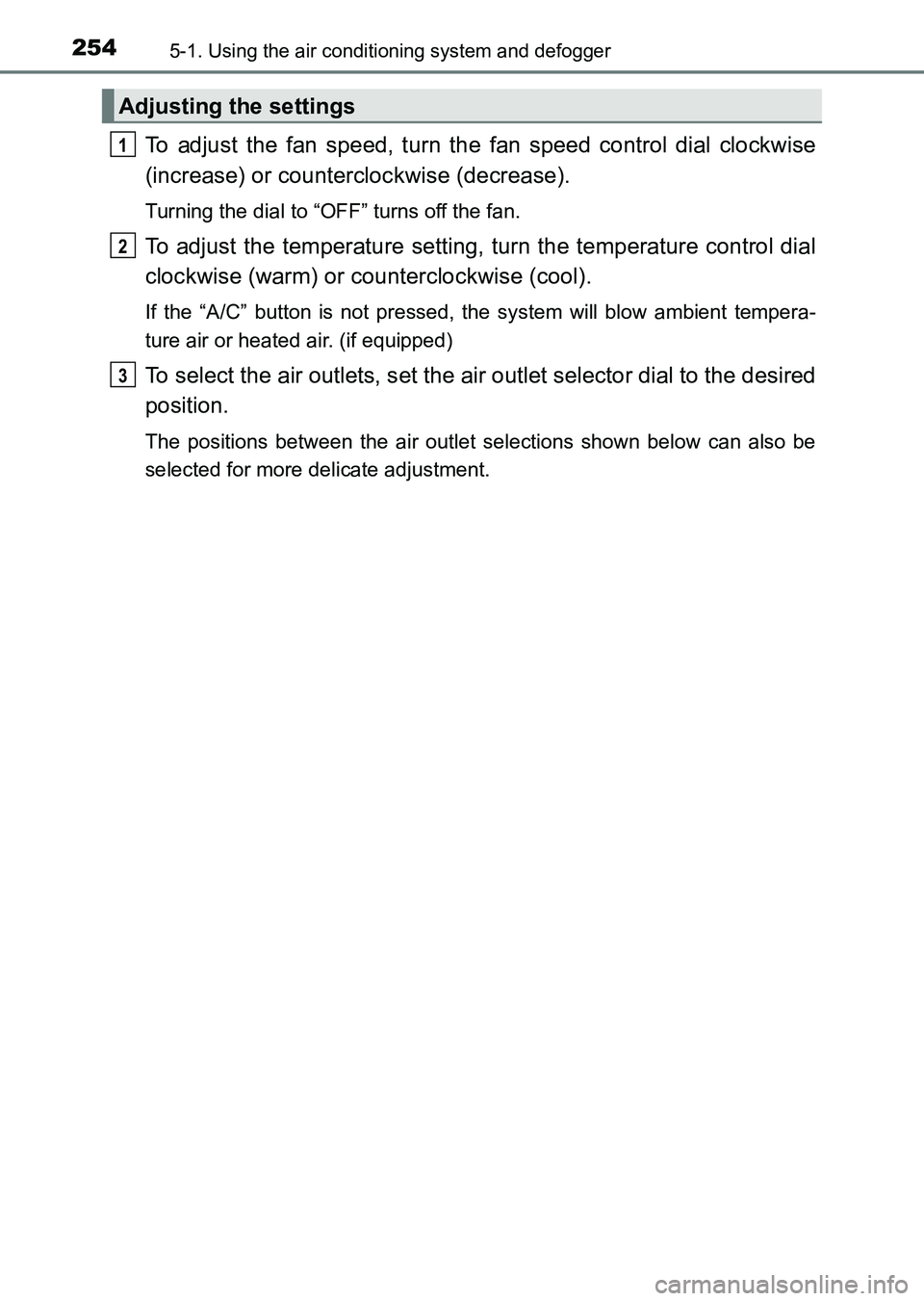

2545-1. Using the air conditioning system and defogger
HILUX_OM_OM0K219E_(EE)
To adjust the fan speed, turn the fan speed control dial clockwise
(increase) or counterclockwise (decrease).
Turning the dial to “OFF” turns off the fan.
To adjust the temperature setting, turn the temperature control dial
clockwise (warm) or counterclockwise (cool).
If the “A/C” button is not pressed, the system will blow ambient tempera-
ture air or heated air. (if equipped)
To select the air outlets, set the air outlet selector dial to the desired
position.
The positions between the air outlet selections shown below can also be
selected for more delicate adjustment.
Adjusting the settings
1
2
3
HILUX_OM_OM0K219E_(EE).book Page 254 Wednesday, May 14, 2014 3:06 PM

2555-1. Using the air conditioning system and defogger
5
Interior features
HILUX_OM_OM0K219E_(EE)
Set the air outlet selector dial to position.
Set the outside/recirculated air
mode lever to outside air mode if
recirculated air mode is used.
Perform the following operations accordingly:
●To adjust the fan speed, turn the fan speed control dial.
● To adjust the temperature setting, turn the temperature control
dial.
● If the dehumidification function is not operating, press the “A/C”
button to operate the dehumidification function. (if equipped)
To defog the windshield and the side windows early, turn the air
flow and temperature up.
Defogging the windshield
1
2
HILUX_OM_OM0K219E_(EE).book Page 255 Wednesday, May 14, 2014 3:06 PM

2565-1. Using the air conditioning system and defogger
HILUX_OM_OM0K219E_(EE)
Upper body
Upper body and feet: Some models
Feet
: Some models
Air outlets and air flow
HILUX_OM_OM0K219E_(EE).book Page 256 Wednesday, May 14, 2014 3:06 PM
