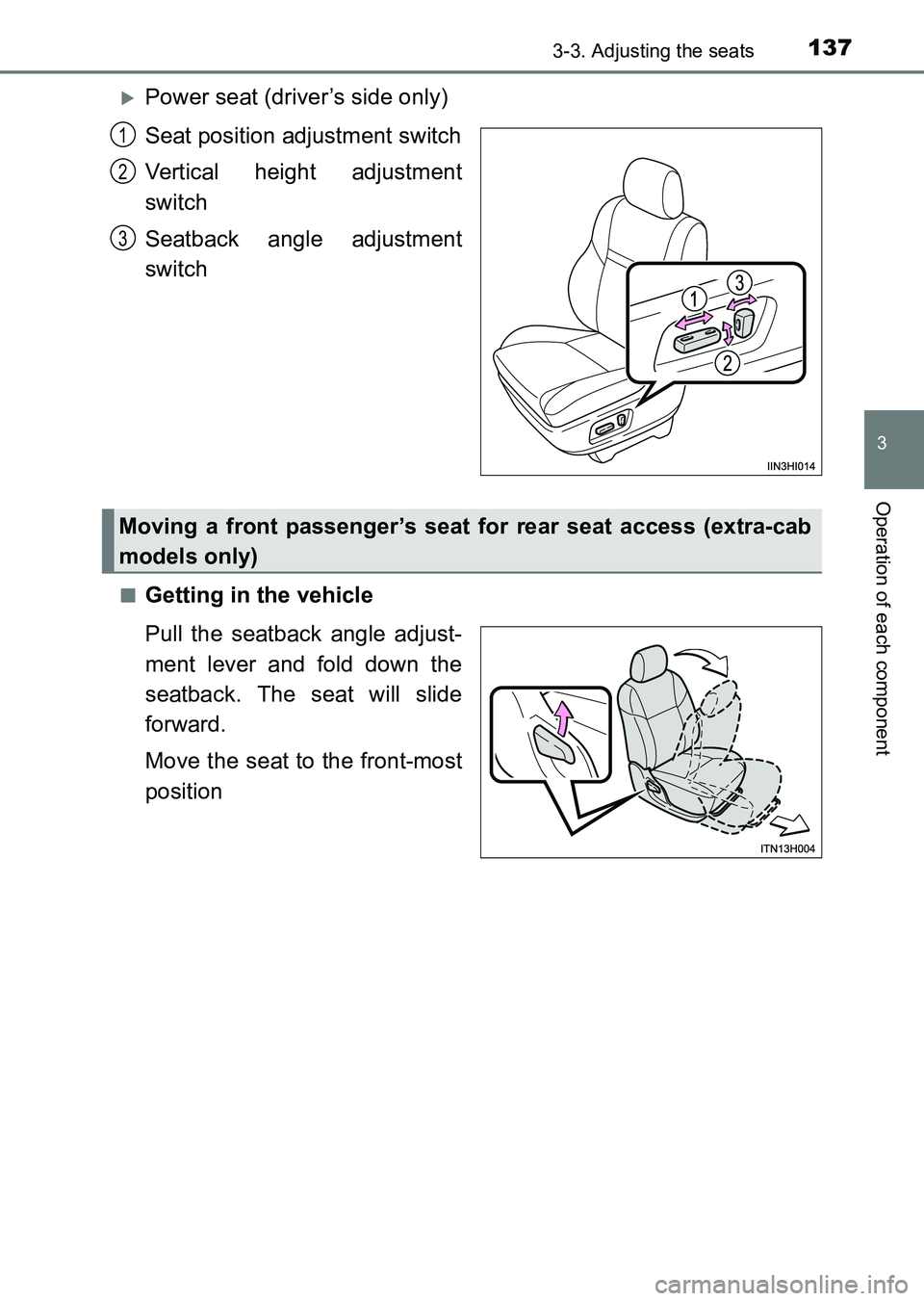

2015 TOYOTA HILUX Owners Manual (in English)

1373-3. Adjusting the seats
3
Operation of each component
HILUX_OM_OM0K219E_(EE)
XPower seat (driver’s side only)
Seat position adjustment switch
Vertical height adjustment
switch
Seatback angle adjustment
switch
■Getting in the vehicle
Pull the seatback angle adjust-
ment lever and fold down the
seatback. The seat will slide
forward.
Move the seat to the front-most
position
1
2
3
Moving a front passenger’s seat for rear seat access (extra-cab
models only)
HILUX_OM_OM0K219E_(EE).book Page 137 Wednesday, May 14, 2014 3:06 PM

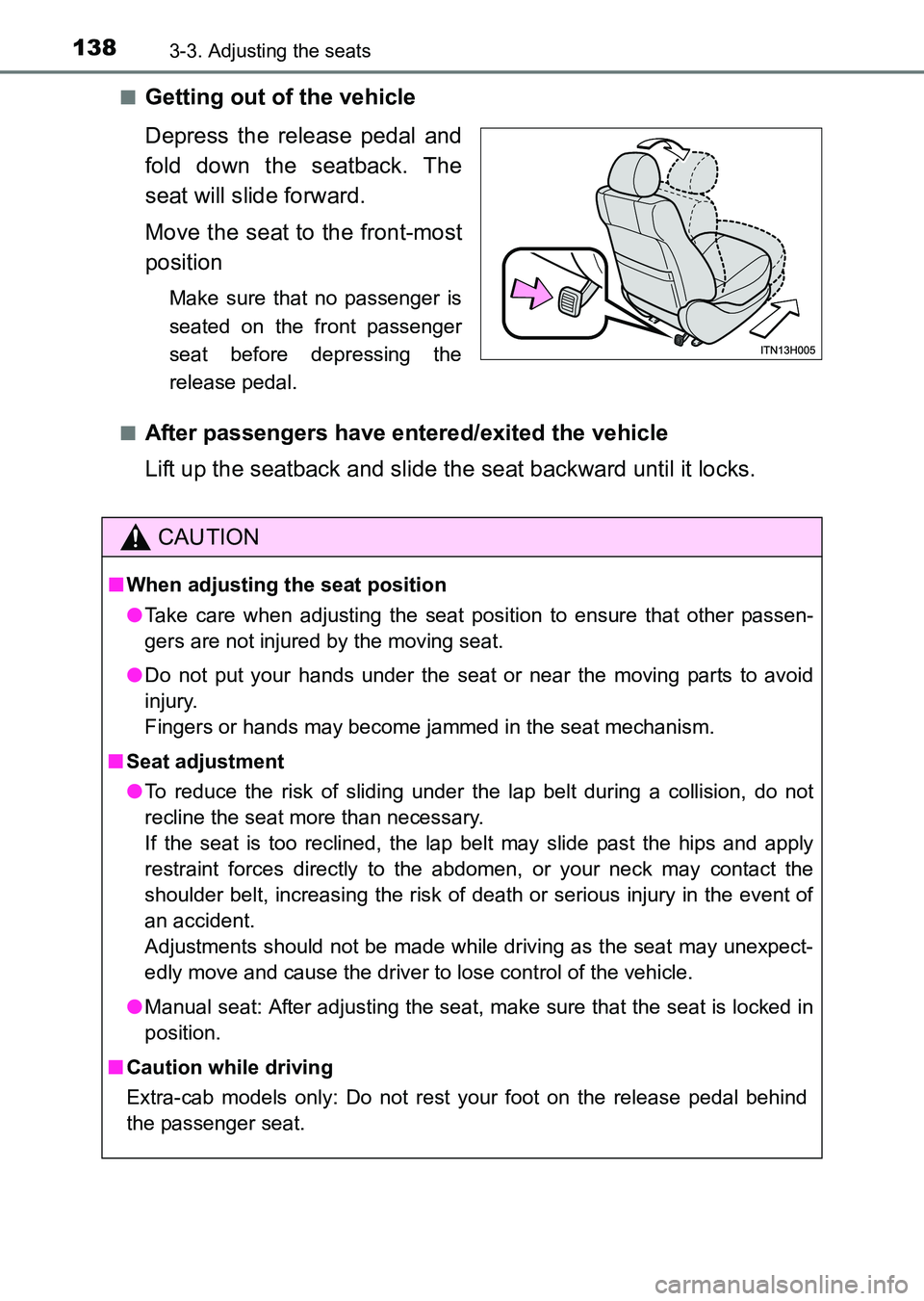

1383-3. Adjusting the seats
HILUX_OM_OM0K219E_(EE)■
Getting out of the vehicle
Depress the release pedal and
fold down the seatback. The
seat will slide forward.
Move the seat to the front-most
position
Make sure that no passenger is
seated on the front passenger
seat before depressing the
release pedal.
■
After passengers have entered/exited the vehicle
Lift up the seatback and slide the seat backward until it locks.
CAUTION
■ When adjusting the seat position
● Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
● Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.
■ Seat adjustment
● To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
● Manual seat: After adjusting the seat, make sure that the seat is locked in
position.
■ Caution while driving
Extra-cab models only: Do not rest your foot on the release pedal behind
the passenger seat.
HILUX_OM_OM0K219E_(EE).book Page 138 Wednesday, May 14, 2014 3:06 PM

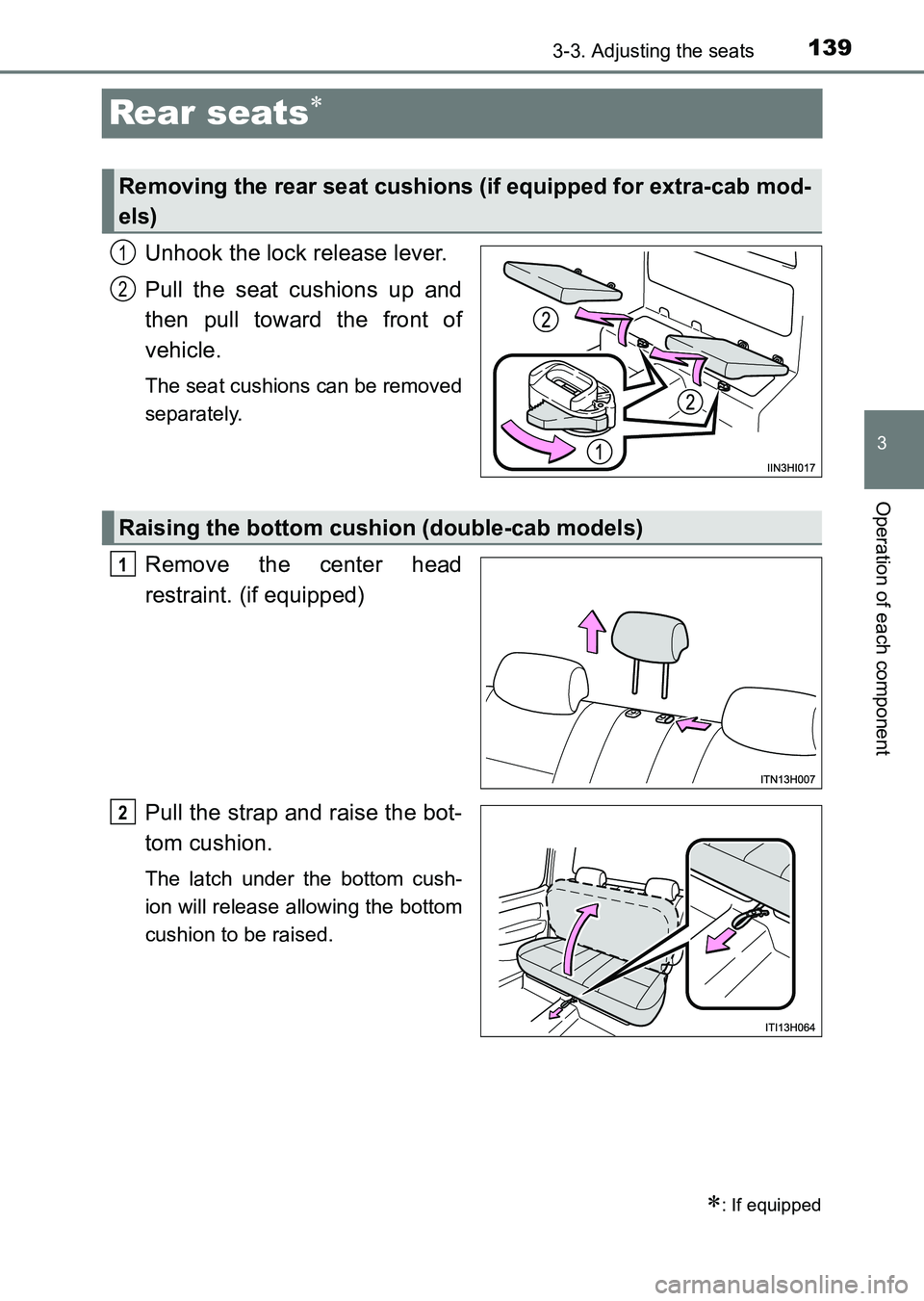

139
3
3-3. Adjusting the seats
Operation of each component
HILUX_OM_OM0K219E_(EE)
Rear seats∗
Unhook the lock release lever.
Pull the seat cushions up and
then pull toward the front of
vehicle.
The seat cushions can be removed
separately.
Remove the center head
restraint. (if equipped)
Pull the strap and raise the bot-
tom cushion.
The latch under the bottom cush-
ion will release allowing the bottom
cushion to be raised.
∗: If equipped
Removing the rear seat cushions (if equipped for extra-cab mod-
els)
1
2
Raising the bottom cushion (double-cab models)
1
2
HILUX_OM_OM0K219E_(EE).book Page 139 Wednesday, May 14, 2014 3:06 PM

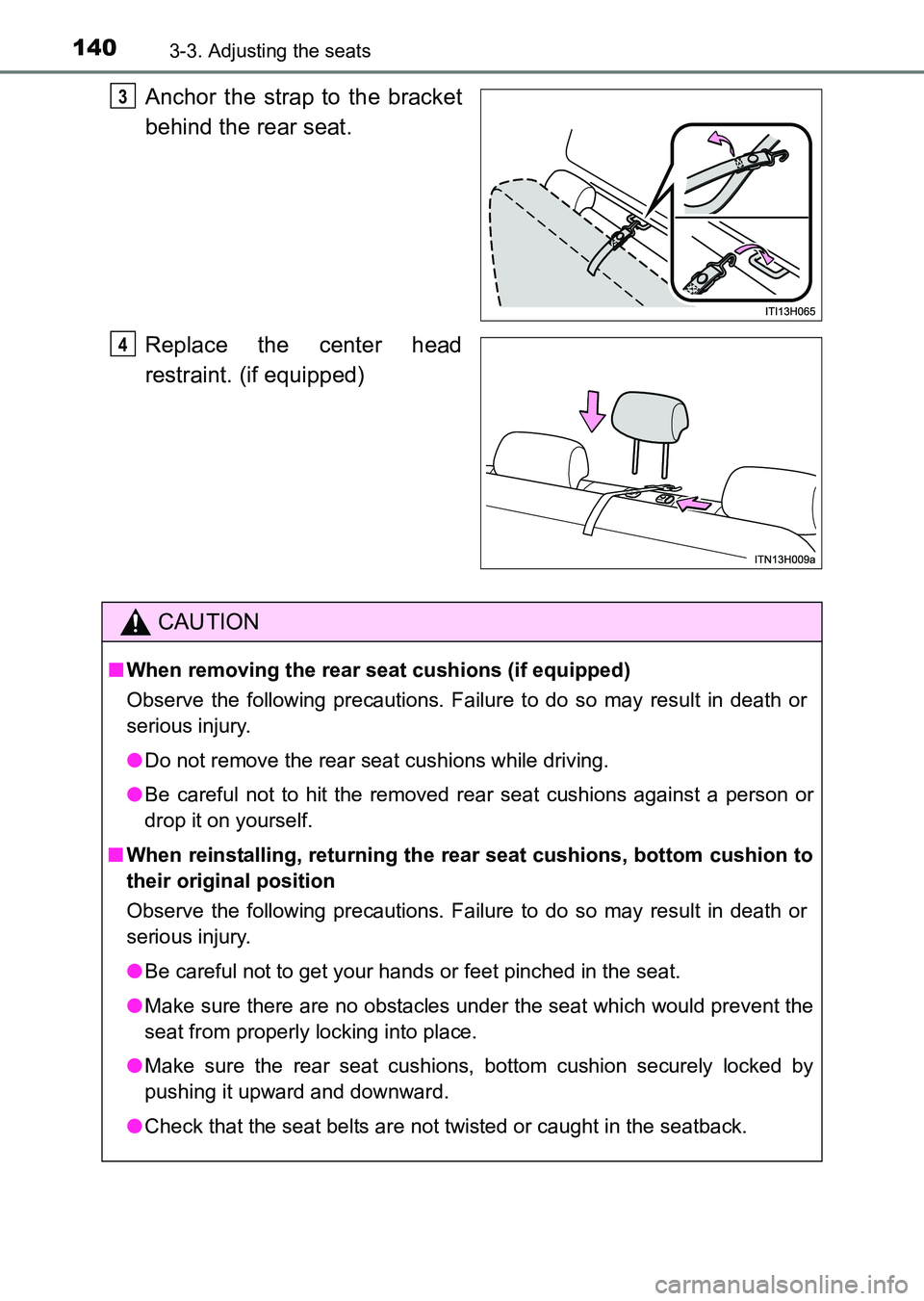

1403-3. Adjusting the seats
HILUX_OM_OM0K219E_(EE)
Anchor the strap to the bracket
behind the rear seat.
Replace the center head
restraint. (if equipped)3
4
CAUTION
■When removing the rear seat cushions (if equipped)
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Do not remove the rear seat cushions while driving.
● Be careful not to hit the removed rear seat cushions against a person or
drop it on yourself.
■ When reinstalling, returning the rear seat cushions, bottom cushion to
their original position
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Be careful not to get your hands or feet pinched in the seat.
● Make sure there are no obstacles under the seat which would prevent the
seat from properly locking into place.
● Make sure the rear seat cushions, bottom cushion securely locked by
pushing it upward and downward.
● Check that the seat belts are not twisted or caught in the seatback.
HILUX_OM_OM0K219E_(EE).book Page 140 Wednesday, May 14, 2014 3:06 PM

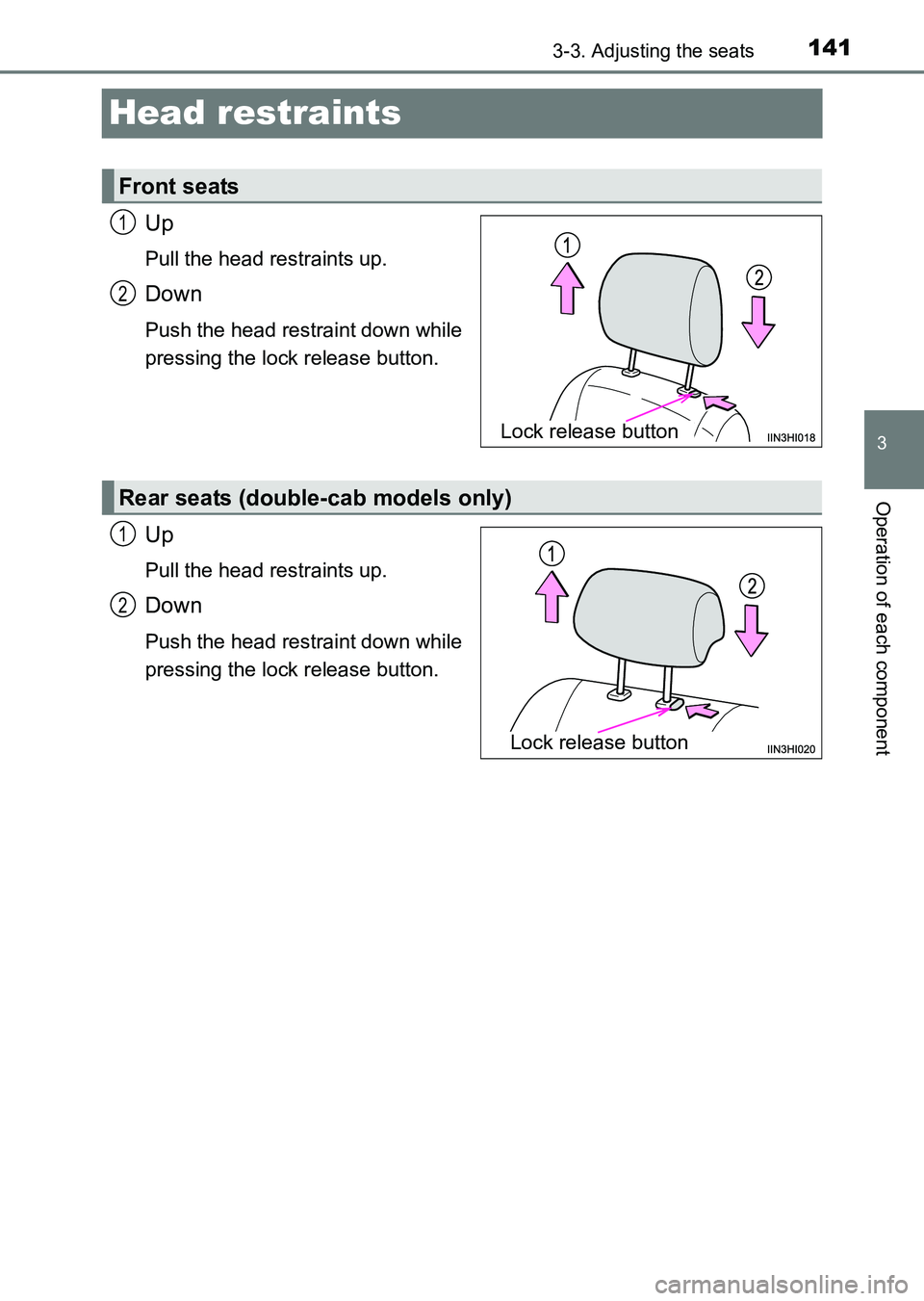

141
3
3-3. Adjusting the seats
Operation of each component
HILUX_OM_OM0K219E_(EE)
Head restraints
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
Front seats
Lock release button
1
2
Rear seats (double-cab models only)
Lock release button
1
2
HILUX_OM_OM0K219E_(EE).book Page 141 Wednesday, May 14, 2014 3:06 PM

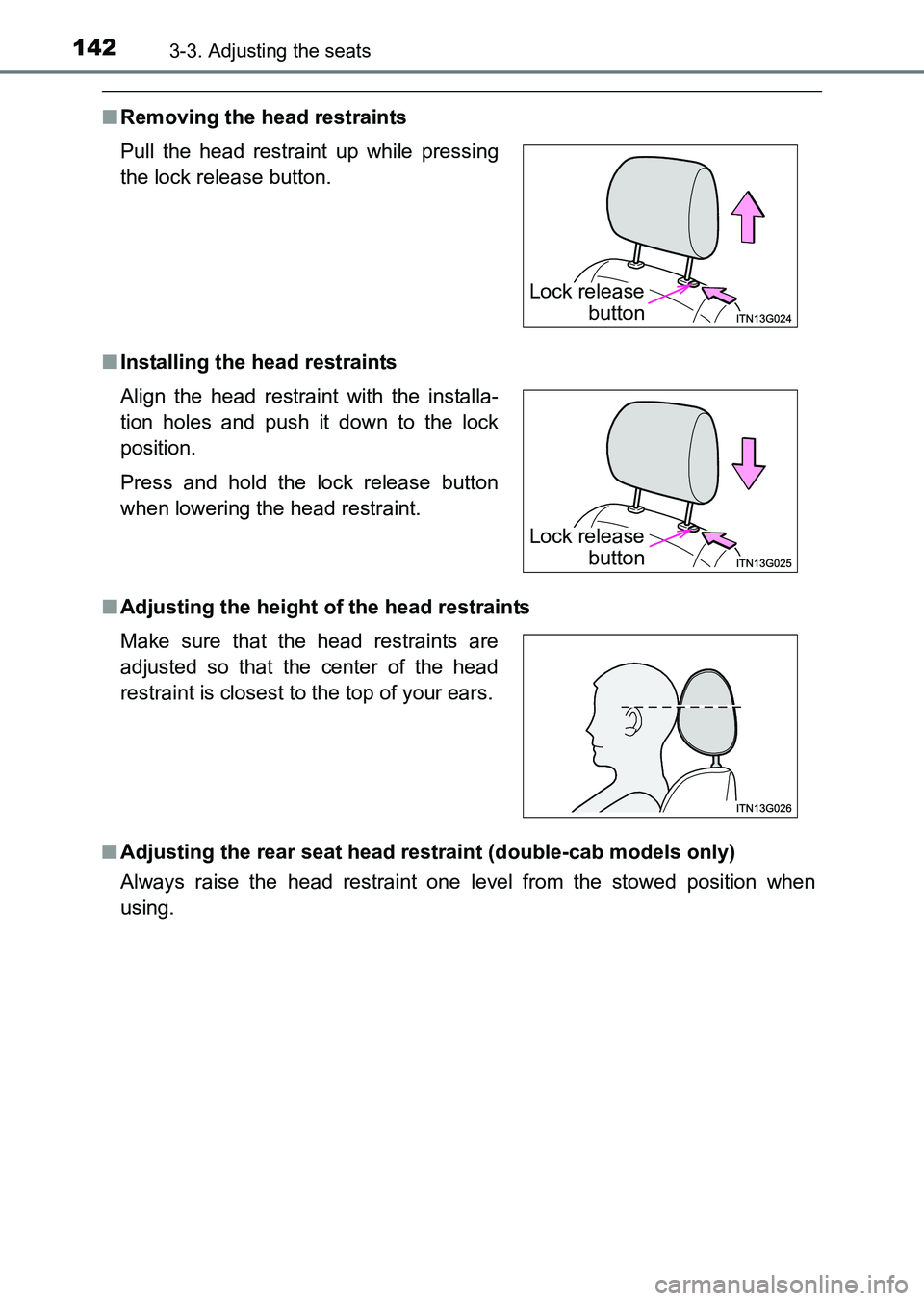

1423-3. Adjusting the seats
HILUX_OM_OM0K219E_(EE)
■Removing the head restraints
■ Installing the head restraints
■ Adjusting the height of the head restraints
■ Adjusting the rear seat head rest raint (double-cab models only)
Always raise the head restraint one level from the stowed position when
using. Pull the head restraint up while pressing
the lock release button.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
Lock release button
Lock releasebutton
HILUX_OM_OM0K219E_(EE).book Page 142 Wednesday, May 14, 2014 3:06 PM

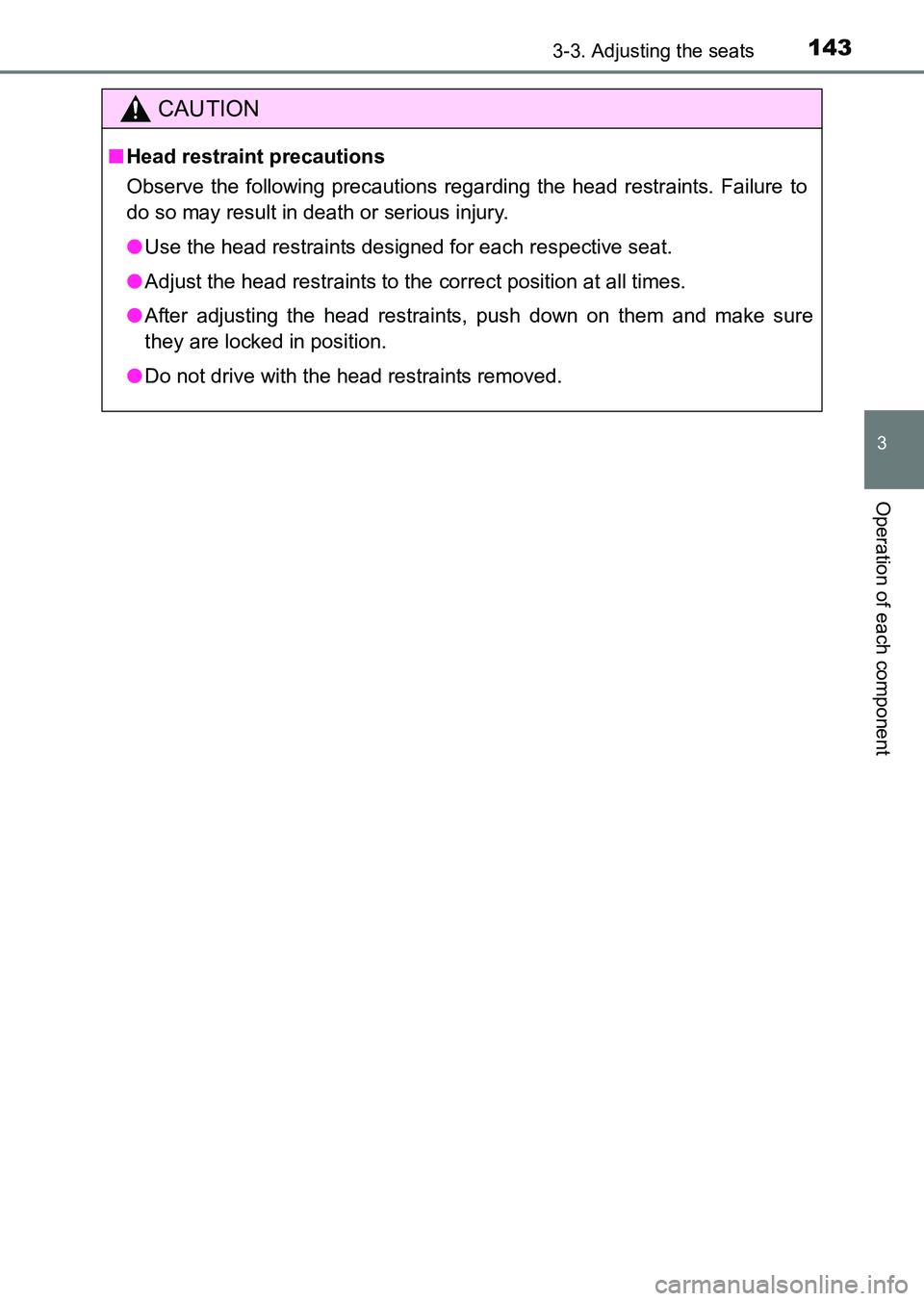

1433-3. Adjusting the seats
3
Operation of each component
HILUX_OM_OM0K219E_(EE)
CAUTION
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
● Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.
HILUX_OM_OM0K219E_(EE).book Page 143 Wednesday, May 14, 2014 3:06 PM

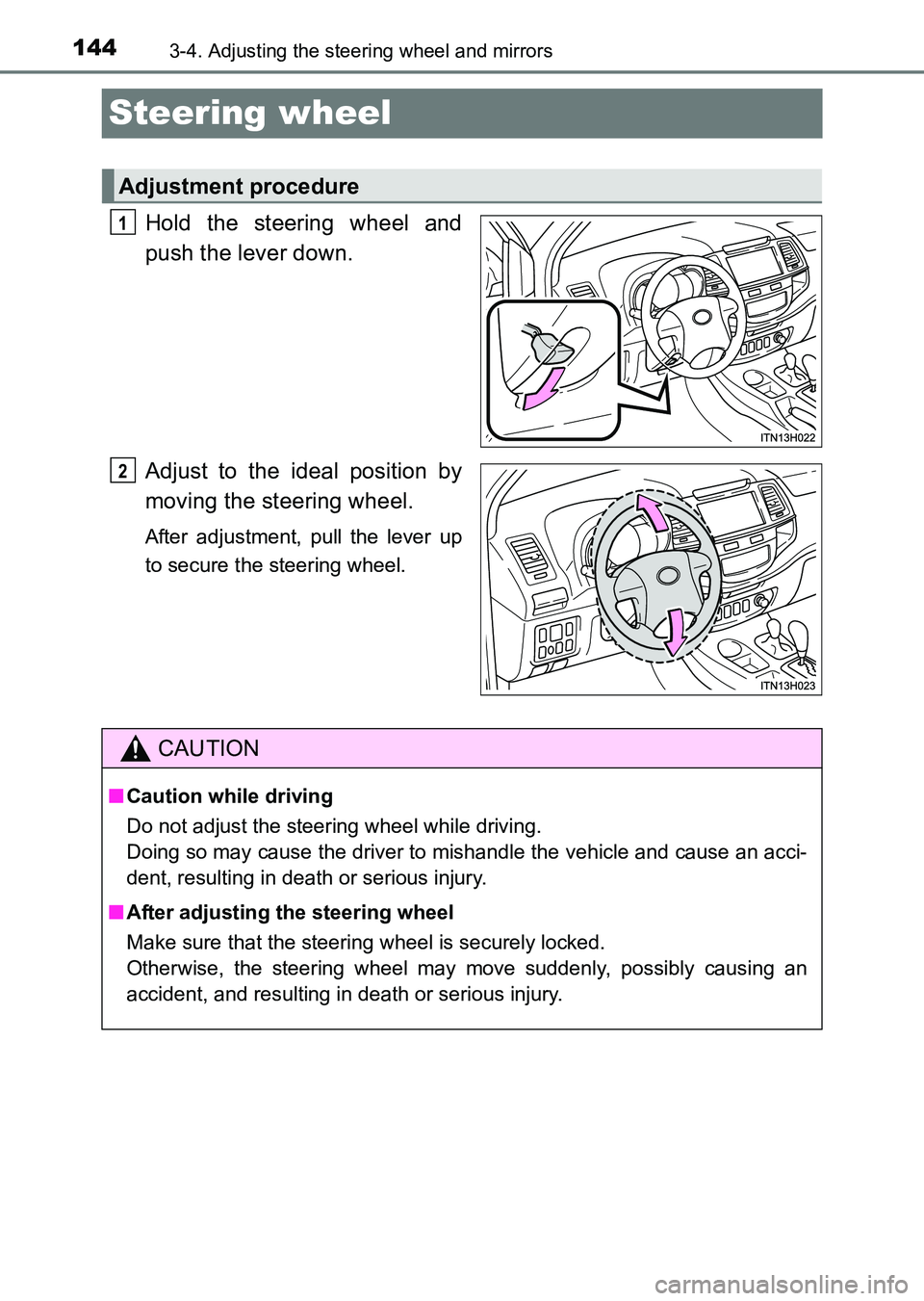

1443-4. Adjusting the steering wheel and mirrors
HILUX_OM_OM0K219E_(EE)
Steering wheel
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel.
After adjustment, pull the lever up
to secure the steering wheel.
Adjustment procedure
1
2
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.
■
After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident, and resulting in death or serious injury.
HILUX_OM_OM0K219E_(EE).book Page 144 Wednesday, May 14, 2014 3:06 PM
