2015 TOYOTA HILUX Owners Manual (in English)

153
3
3-5. Opening and closing the windows
Operation of each component
HILUX_OM_OM0K219E_(EE)

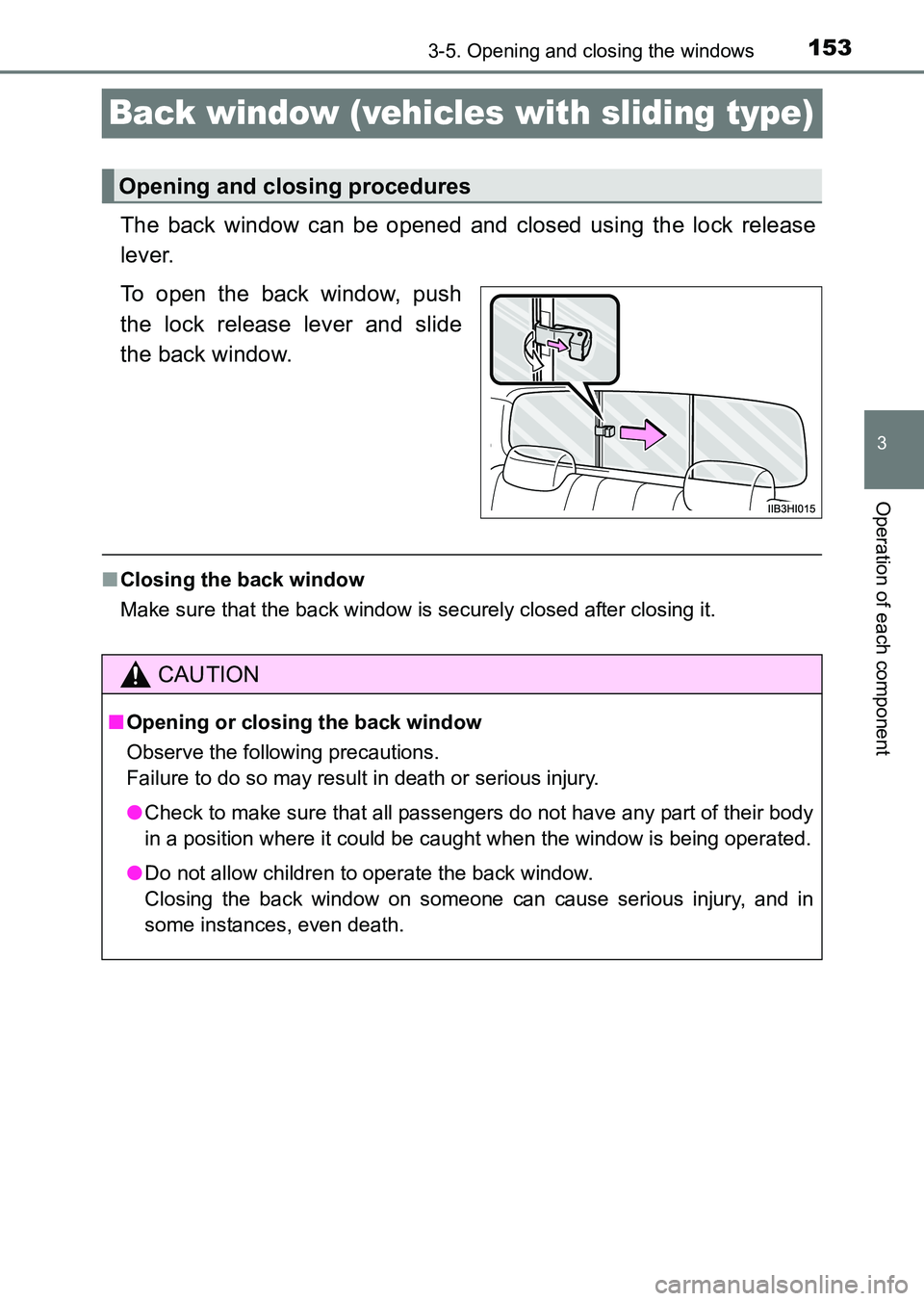

Back window (vehicles with sliding type)
The back window can be opened and closed using the lock release
lever.
To open the back window, push
the lock release lever and slide
the back window.
■Closing the back window
Make sure that the back window is securely closed after closing it.
Opening and closing procedures
CAUTION
■Opening or closing the back window
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when the window is being operated.
● Do not allow children to operate the back window.
Closing the back window on someone can cause serious injury, and in
some instances, even death.
HILUX_OM_OM0K219E_(EE).book Page 153 Wednesday, May 14, 2014 3:06 PM

1543-5. Opening and closing the windows
HILUX_OM_OM0K219E_(EE)
HILUX_OM_OM0K219E_(EE).book Page 154 Wednesday, May 14, 2014 3:06 PM

155
4Driving
HILUX_OM_OM0K219E_(EE)4-1. Before driving
Driving the vehicle ............. 156
Cargo and luggage ............ 170
Trailer towing ..................... 172
4-2. Driving procedures Engine (ignition) switch...... 183
Automatic transmission ..... 187
Manual transmission.......... 191
Turn signal lever ................ 194
Parking brake .................... 195
Horn ................................... 196 4-3. Operating the lights
and wipers
Headlight switch.................197
Fog light switch .................. 201
Windshield wipers and washer ............................. 204
Headlight cleaner switch .... 208
4-4. Refueling Opening the fuel tank cap ................................... 209
4-5. Using the driving support systems
Cruise control..................... 214
Rear view monitor system ............................. 219
Four-wheel drive system.... 226
Rear differential lock system ...................... 230
Driving assist systems ....... 233
DPF (Diesel Particulate Filter) system ................... 238
4-6. Driving tips Winter driving tips .............. 243
HILUX_OM_OM0K219E_(EE).book Page 155 Wednesday, May 14, 2014 3:06 PM

1564-1. Before driving
HILUX_OM_OM0K219E_(EE)

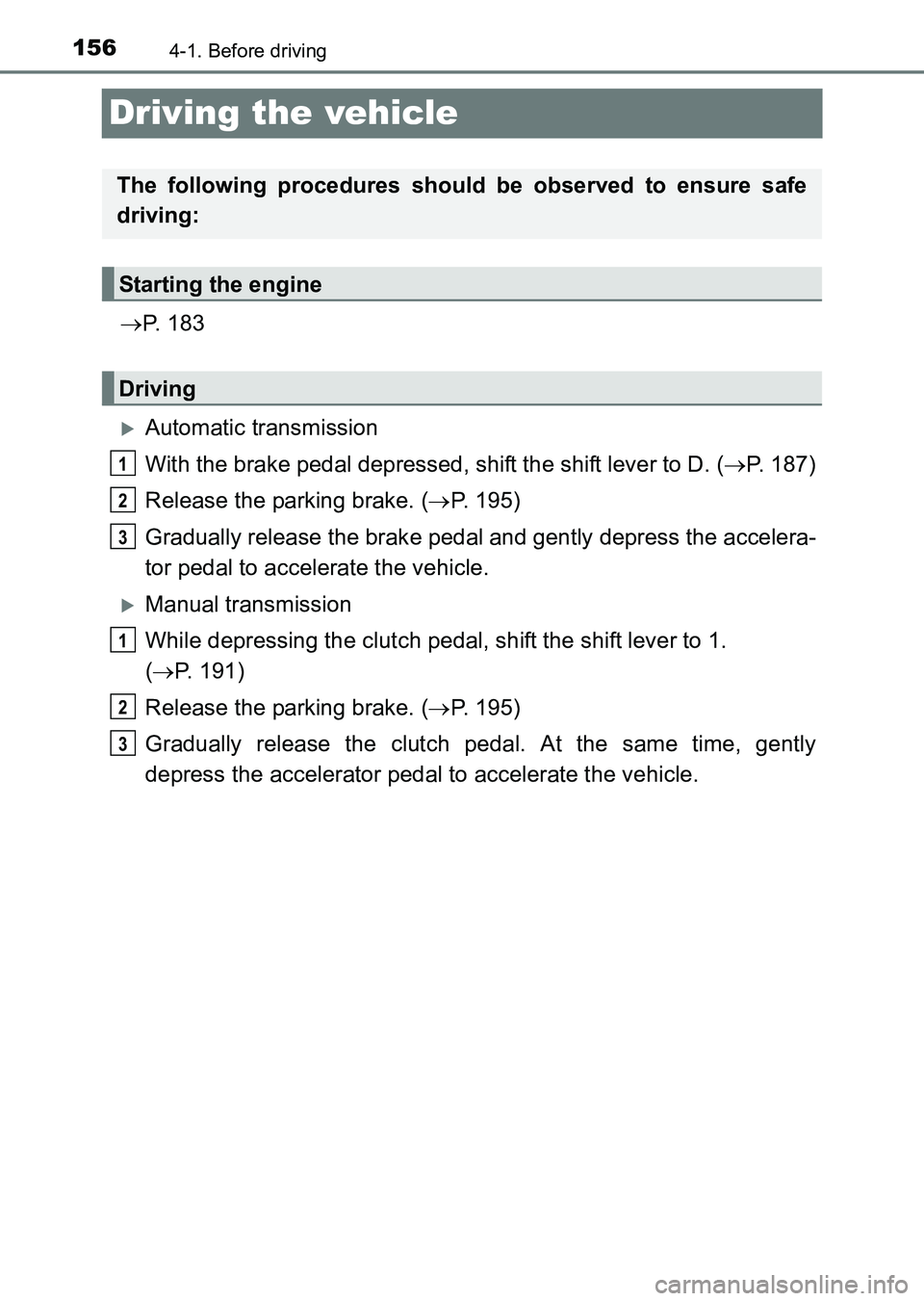

Driving the vehicle
→P. 1 8 3
XAutomatic transmission
With the brake pedal depressed, shift the shift lever to D. ( →P. 187)
Release the parking brake. ( →P. 195)
Gradually release the brake pedal and gently depress the accelera-
tor pedal to accelerate the vehicle.
XManual transmission
While depressing the clutch pedal, shift the shift lever to 1.
( → P. 191)
Release the parking brake. ( →P. 195)
Gradually release the clutch pedal. At the same time, gently
depress the accelerator pedal to accelerate the vehicle.
The following procedures should be observed to ensure safe
driving:
Starting the engine
Driving
1
2
3
1
2
3
HILUX_OM_OM0K219E_(EE).book Page 156 Wednesday, May 14, 2014 3:06 PM

1574-1. Before driving
4
Driving
HILUX_OM_OM0K219E_(EE)
XAutomatic transmission
With the shift lever in D, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift
lever to P or N. (→P. 187)
XManual transmission
While depressing the clutch pedal, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift
lever to N. ( →P. 191)
XAutomatic transmission
With the shift lever in D, depress the brake pedal.
Set the parking brake. ( →P. 195)
Shift the shift lever to P. ( →P. 187)
Turn the engine switch to the “LOCK” position to stop the engine.
Lock the door, making sure that you have the key on your person.
If parking on a hill, block the wheels as needed.
Stopping
Parking the vehicle
1
2
1
2
1
2
3
4
5
HILUX_OM_OM0K219E_(EE).book Page 157 Wednesday, May 14, 2014 3:06 PM

1584-1. Before driving
HILUX_OM_OM0K219E_(EE)
XManual transmission
While depressing the clutch pedal, depress the brake pedal.
Set the parking brake. (→P. 195)
Shift the shift lever to N. ( →P. 191)
If parking on a hill, shift the shift lever to 1 or R as needed.
Turn the engine switch to the “LOCK” position to stop the engine.
Lock the door, making sure that you have the key on your person.
If parking on a hill, block the wheels as needed.
XAutomatic transmission
Make sure that the parking brake is set and shift the shift lever to D.
Gently depress the accelerator pedal.
Release the parking brake.
XManual transmission
With the parking brake firmly set and the clutch pedal fully
depressed, shift the shift lever to 1.
Lightly depress the accelerator pedal at the same time as gradually
releasing the clutch pedal.
Release the parking brake.
Starting off on a steep uphill
1
2
3
4
5
1
2
3
1
2
3
HILUX_OM_OM0K219E_(EE).book Page 158 Wednesday, May 14, 2014 3:06 PM

1594-1. Before driving
4
Driving
HILUX_OM_OM0K219E_(EE)

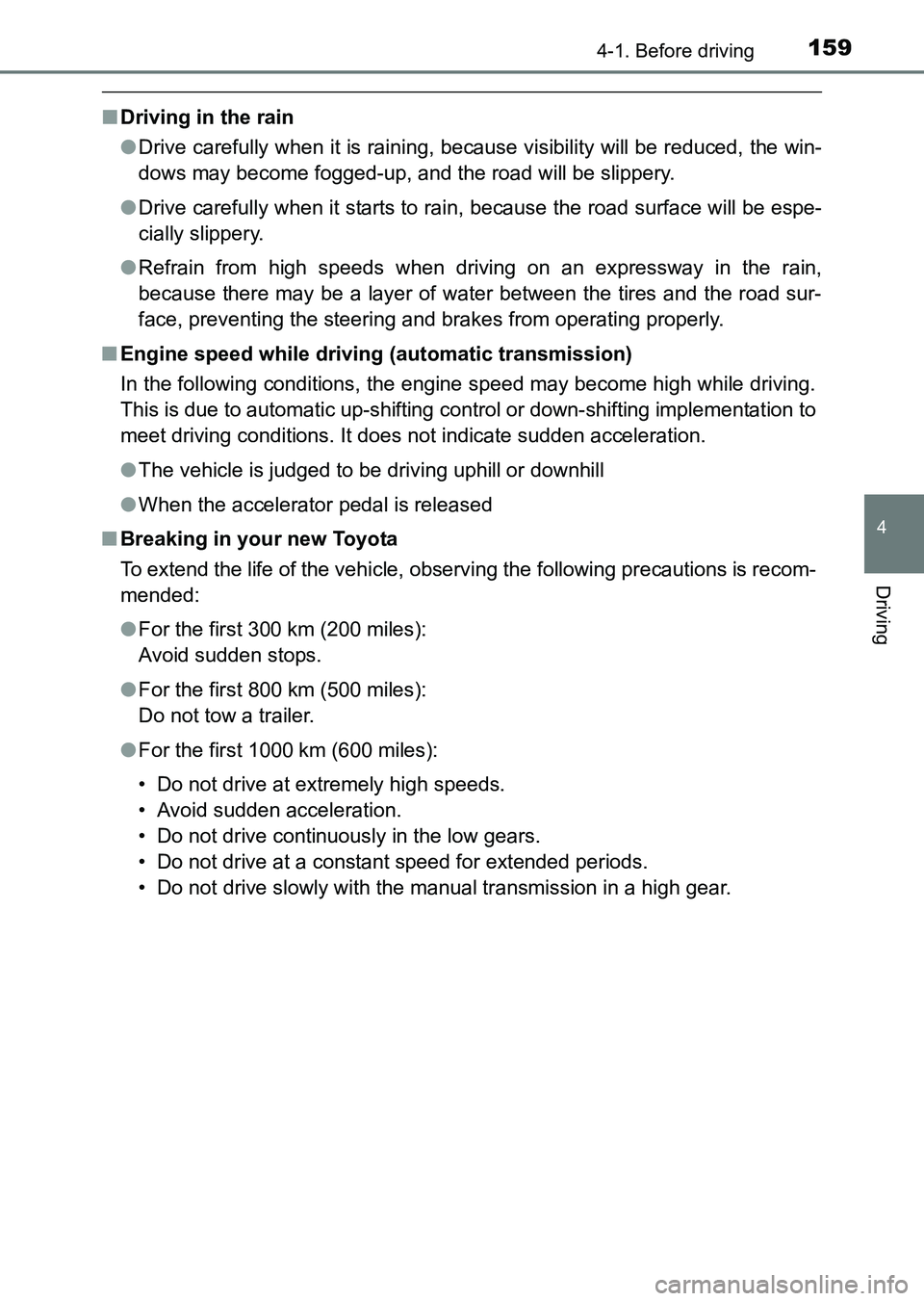

■Driving in the rain
●Drive carefully when it is raining, because visibility will be reduced, the win-
dows may become fogged-up, and the road will be slippery.
● Drive carefully when it starts to rain, because the road surface will be espe-
cially slippery.
● Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road sur-
face, preventing the steering and brakes from operating properly.
■ Engine speed while driving (automatic transmission)
In the following conditions, the engine speed may become high while driving.
This is due to automatic up-shifting control or down-shifting implementation to
meet driving conditions. It does not indicate sudden acceleration.
●The vehicle is judged to be driving uphill or downhill
● When the accelerator pedal is released
■ Breaking in your new Toyota
To extend the life of the vehicle, observing the following precautions is recom-
mended:
●For the first 300 km (200 miles):
Avoid sudden stops.
● For the first 800 km (500 miles):
Do not tow a trailer.
● For the first 1000 km (600 miles):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in the low gears.
• Do not drive at a constant speed for extended periods.
• Do not drive slowly with the manual transmission in a high gear.
HILUX_OM_OM0K219E_(EE).book Page 159 Wednesday, May 14, 2014 3:06 PM

1604-1. Before driving
HILUX_OM_OM0K219E_(EE)■

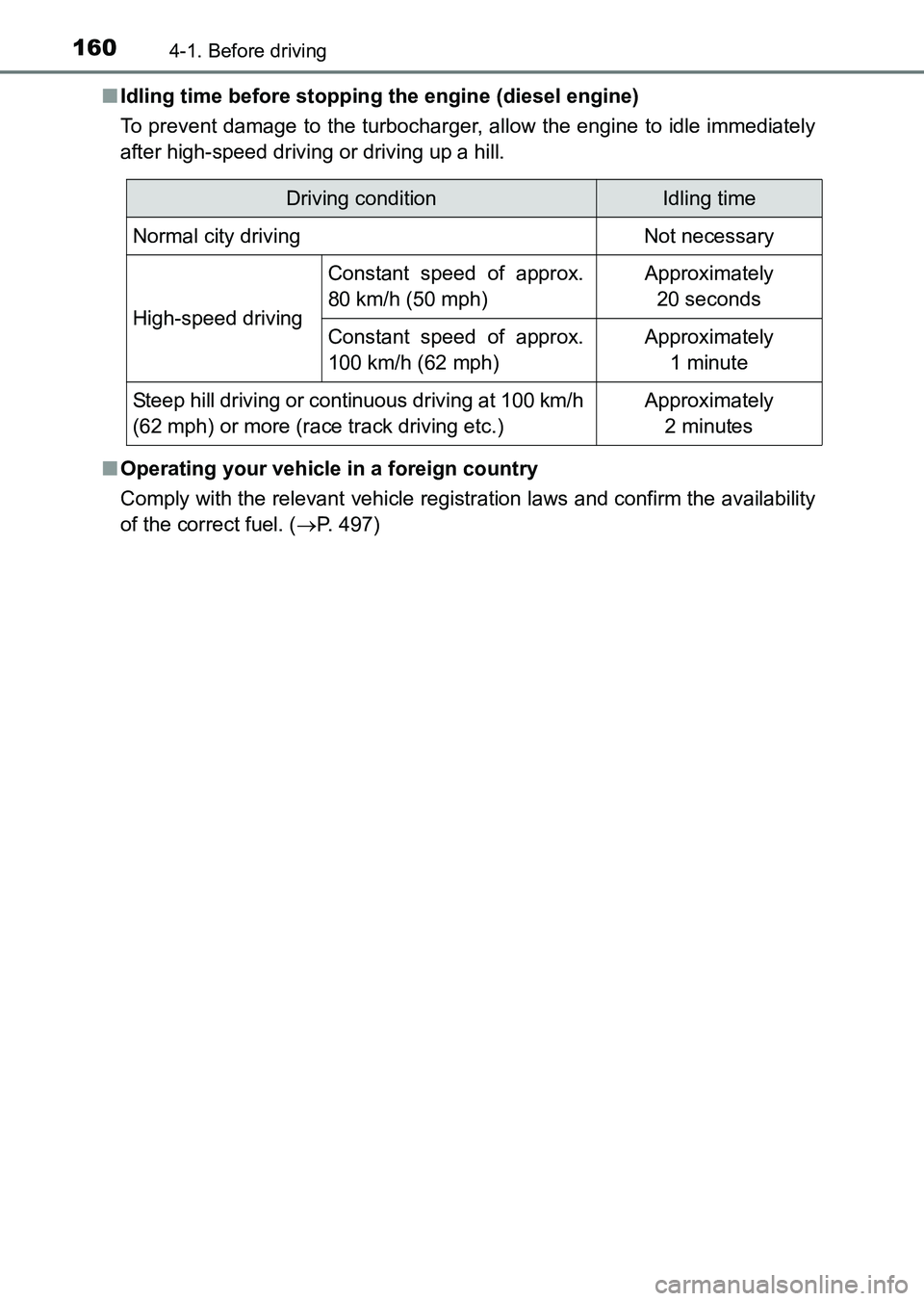

Idling time before stopping the engine (diesel engine)
To prevent damage to the turbocharger, allow the engine to idle immediately
after high-speed driving or driving up a hill.
■ Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability
of the correct fuel. ( →P. 497)
Driving conditionIdling time
Normal city drivingNot necessary
High-speed driving
Constant speed of approx.
80 km/h (50 mph)Approximately
20 seconds
Constant speed of approx.
100 km/h (62 mph)Approximately 1 minute
Steep hill driving or continuous driving at 100 km/h
(62 mph) or more (race track driving etc.)Approximately 2 minutes
HILUX_OM_OM0K219E_(EE).book Page 160 Wednesday, May 14, 2014 3:06 PM
