4176-3. Do-it-yourself maintenance
6
Maintenance and care
HILUX_OM_OM0K219E_(EE)

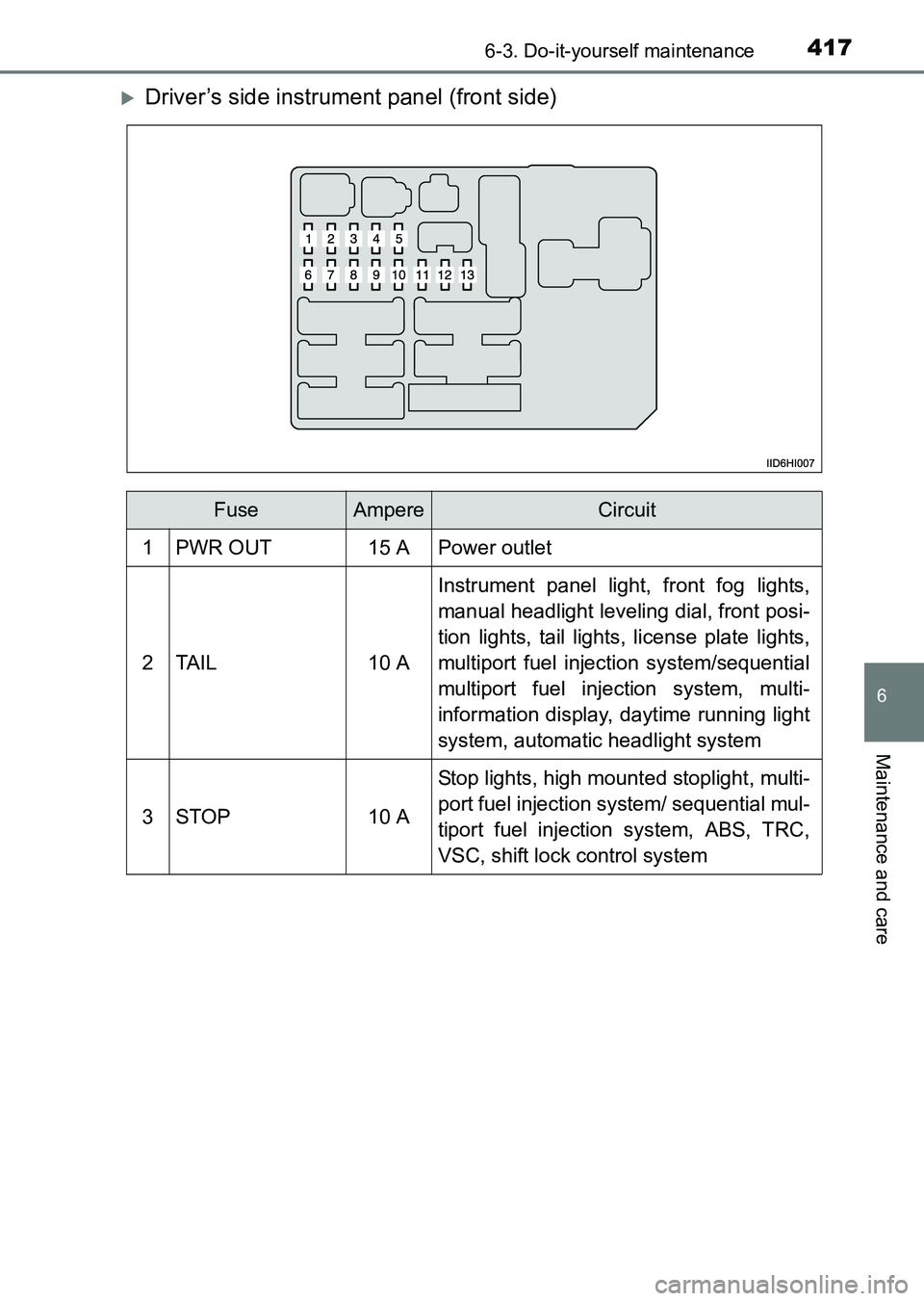

XDriver’s side instrument panel (front side)
FuseAmpereCircuit
1PWR OUT15 APower outlet
2TA I L10 A
Instrument panel light, front fog lights,
manual headlight leveling dial, front posi-
tion lights, tail lights, license plate lights,
multiport fuel injection system/sequential
multiport fuel injection system, multi-
information display, daytime running light
system, automatic headlight system
3STOP10 A
Stop lights, high mounted stoplight, multi-
port fuel injection system/ sequential mul-
tiport fuel injection system, ABS, TRC,
VSC, shift lock control system
HILUX_OM_OM0K219E_(EE).book Page 417 Wednesday, May 14, 2014 3:06 PM

4186-3. Do-it-yourself maintenance
HILUX_OM_OM0K219E_(EE)
4OBD7.5 AOn-board diagnosis system
5INJ15 AMultiport fuel injection system/sequential
multiport fuel injection system
6ECU-IG &
GAUGE10 A
Air conditioning system, charging sys-
tem, rear differential lock system, ABS,
TRC, VSC, emergency flashers, turn sig-
nal lights, back-up lights, multiport fuel
injection system/sequential multiport fuel
injection system, shift lock control sys-
tem, rear window defogger, headlights,
door courtesy switches, power door lock
system, wireless remote control system,
steering sensor, daytime running light
system, cruise control, headlight clean-
ers, seat heaters, outside rear view mir-
ror defoggers, multi-information display,
passenger’s seat belt reminder light
7WIP20 AWindshield wiper and washer
8IGN7.5 A
Multiport fuel injection system/sequential
multiport fuel injection system, SRS air-
bags, fuel pump
9ACC7.5 A
Audio system, power outlet, clock, power
rear view mirror control system, shift lock
control system, multi-information display
FuseAmpereCircuit
HILUX_OM_OM0K219E_(EE).book Page 418 Wednesday, May 14, 2014 3:06 PM

4196-3. Do-it-yourself maintenance
6
Maintenance and care
HILUX_OM_OM0K219E_(EE)

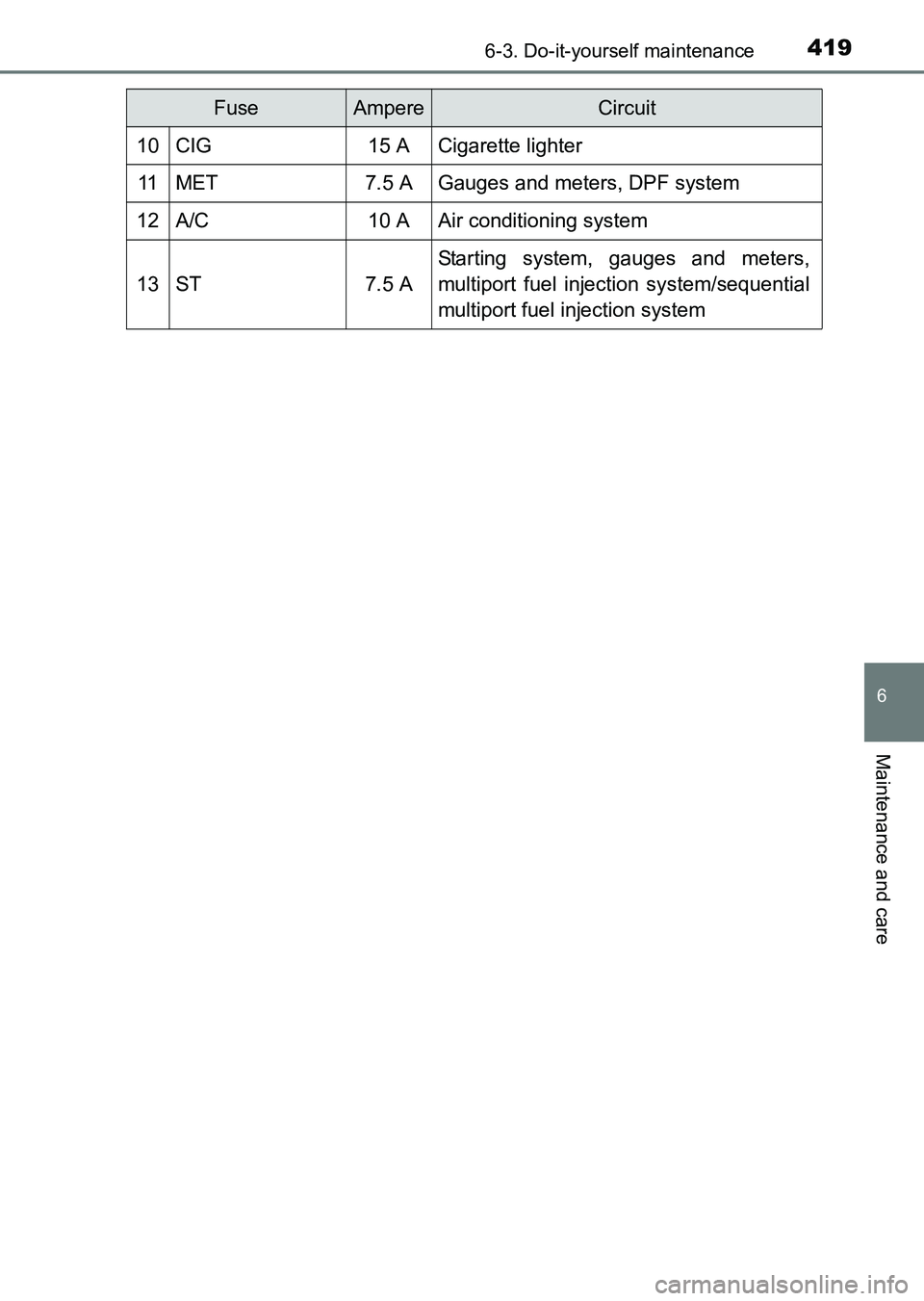

10CIG15 ACigarette lighter
11MET7.5 AGauges and meters, DPF system
12A/C10 AAir conditioning system
13ST7.5 A
Starting system, gauges and meters,
multiport fuel injection system/sequential
multiport fuel injection system
FuseAmpereCircuit
HILUX_OM_OM0K219E_(EE).book Page 419 Wednesday, May 14, 2014 3:06 PM

4206-3. Do-it-yourself maintenance
HILUX_OM_OM0K219E_(EE)

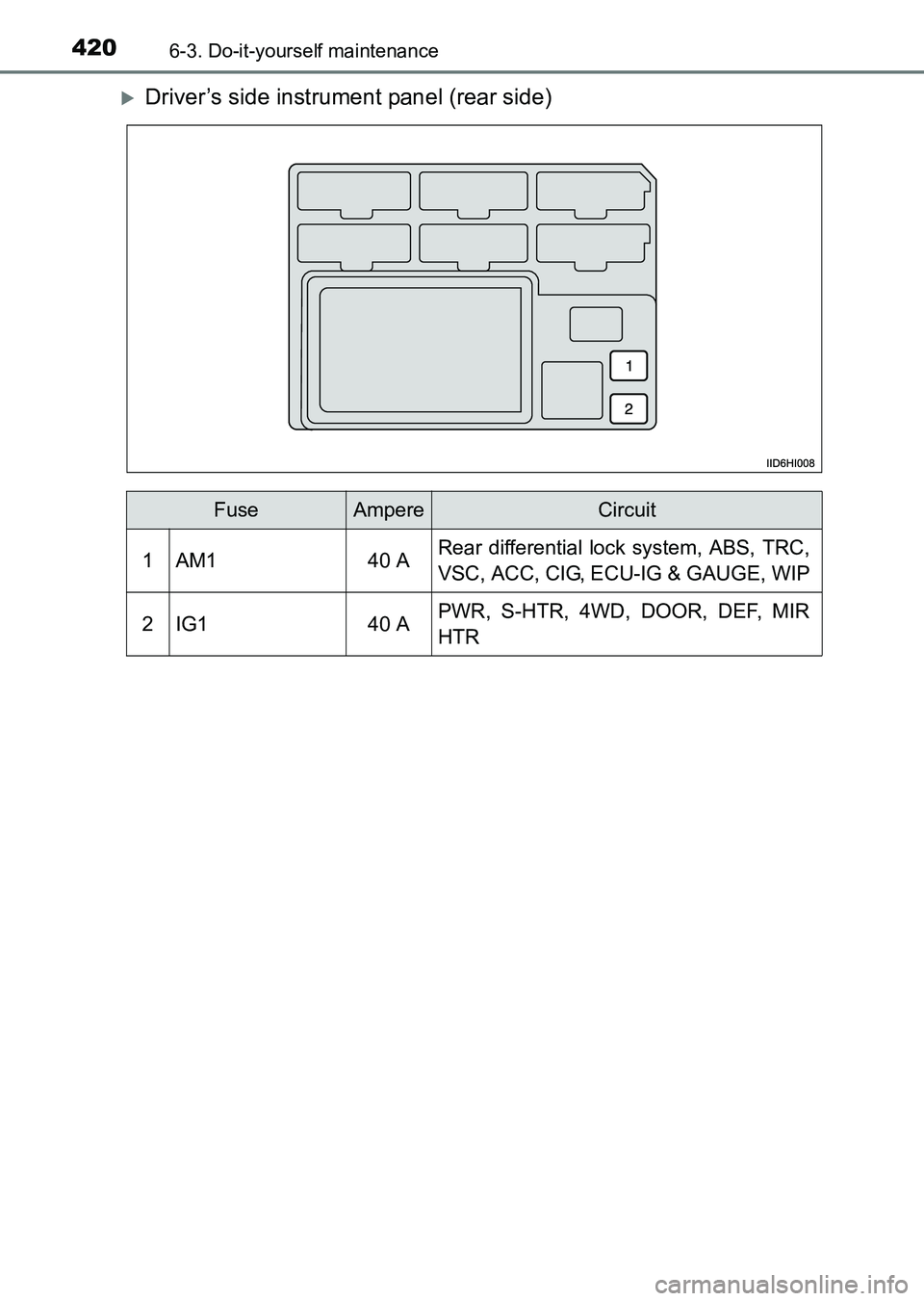

XDriver’s side instrument panel (rear side)
FuseAmpereCircuit
1AM140 ARear differential lock system, ABS, TRC,
VSC, ACC, CIG, ECU-IG & GAUGE, WIP
2IG140 APWR, S-HTR, 4WD, DOOR, DEF, MIR
HTR
HILUX_OM_OM0K219E_(EE).book Page 420 Wednesday, May 14, 2014 3:06 PM

4216-3. Do-it-yourself maintenance
6
Maintenance and care
HILUX_OM_OM0K219E_(EE)

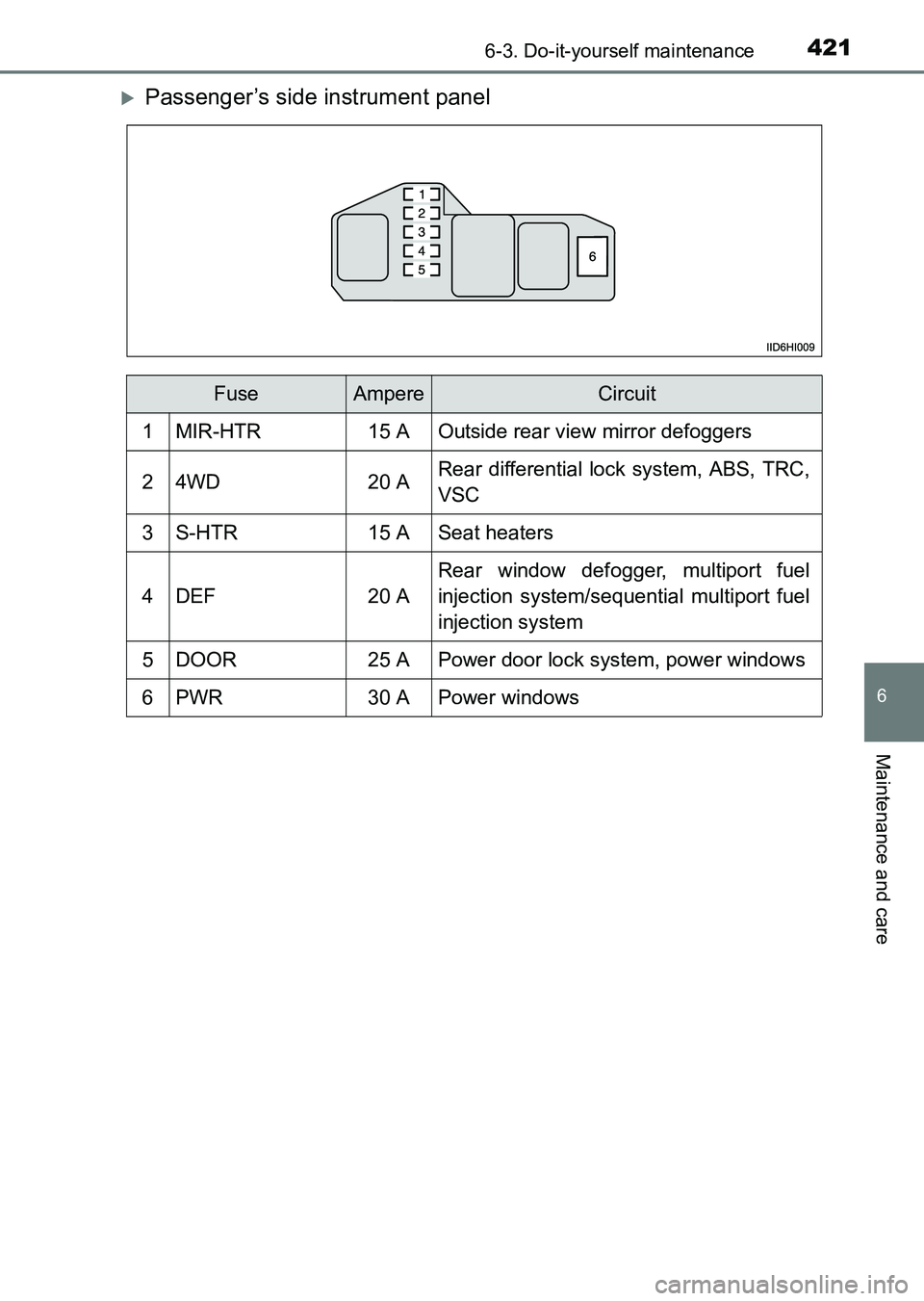

XPassenger’s side instrument panel
FuseAmpereCircuit
1MIR-HTR15 AOutside rear view mirror defoggers
24WD20 ARear differential lock system, ABS, TRC,
VSC
3S-HTR15 ASeat heaters
4DEF20 A
Rear window defogger, multiport fuel
injection system/sequential multiport fuel
injection system
5DOOR25 APower door lock system, power windows
6PWR30 APower windows
HILUX_OM_OM0K219E_(EE).book Page 421 Wednesday, May 14, 2014 3:06 PM

4226-3. Do-it-yourself maintenance
HILUX_OM_OM0K219E_(EE)

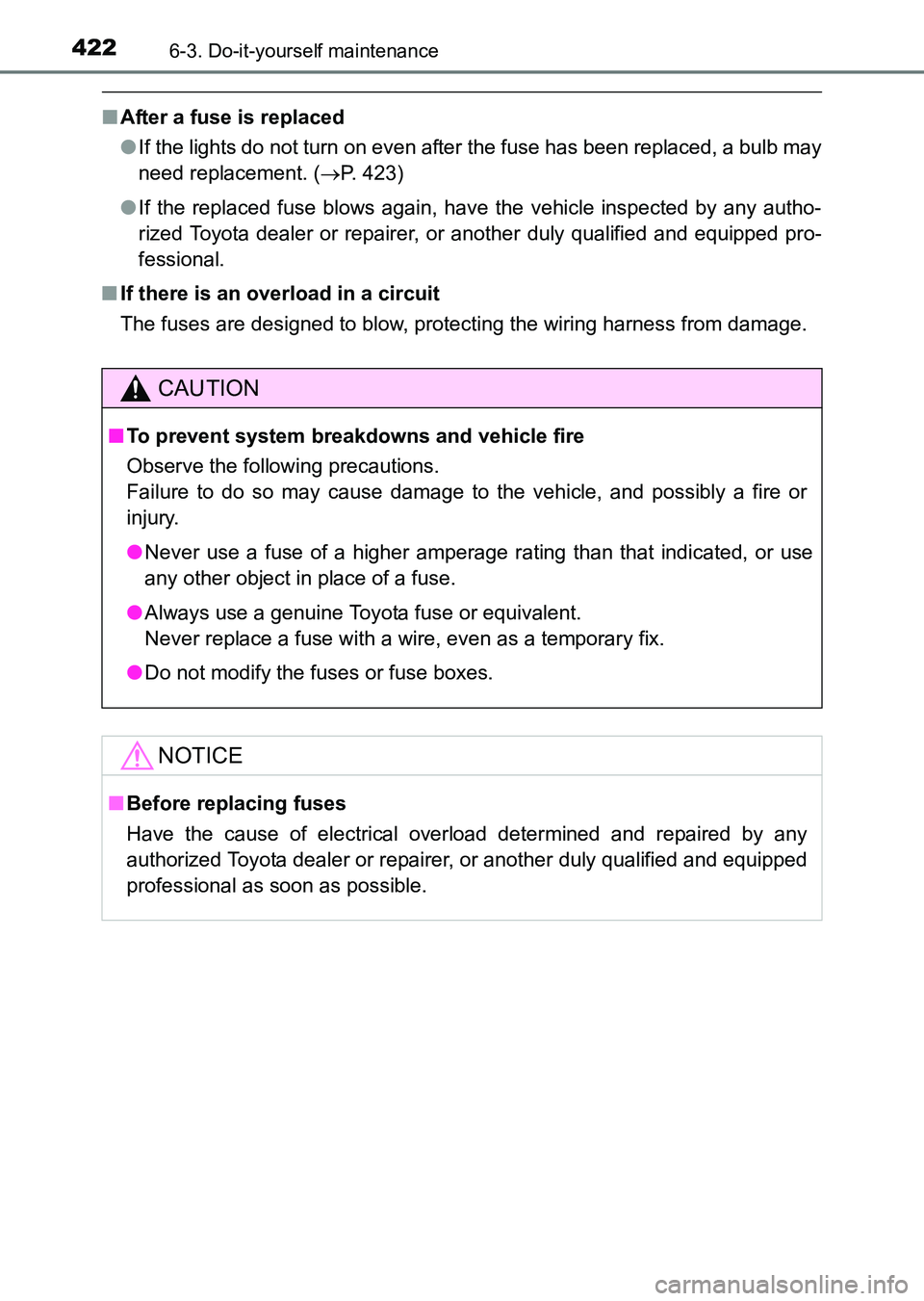

■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( →P. 423)
● If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional as soon as possible.
HILUX_OM_OM0K219E_(EE).book Page 422 Wednesday, May 14, 2014 3:06 PM

423
6
6-3. Do-it-yourself maintenance
Maintenance and care
HILUX_OM_OM0K219E_(EE)

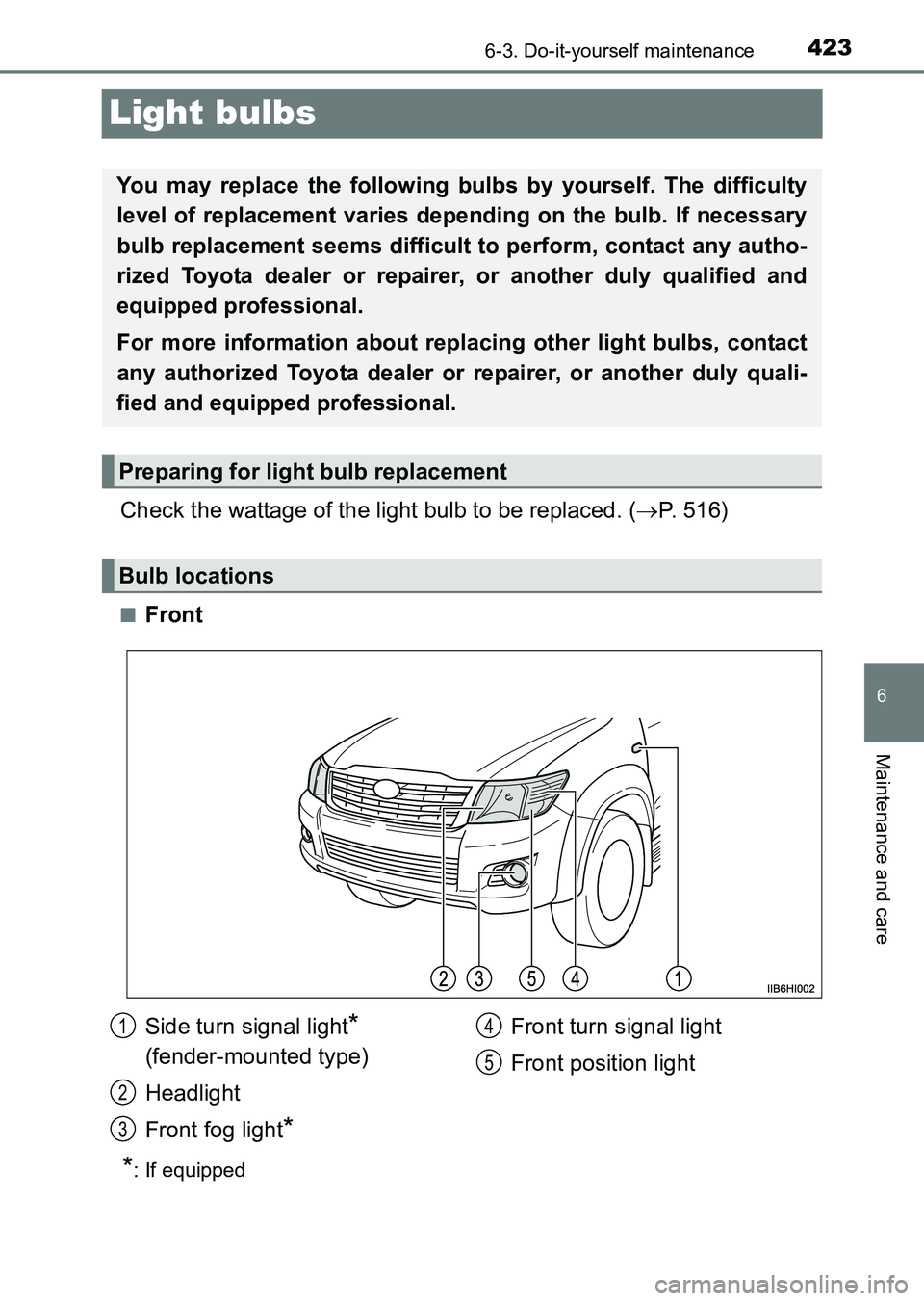

Light bulbs
Check the wattage of the light bulb to be replaced. (→P. 516)
■Front
*: If equipped
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. If necessary
bulb replacement seems difficult to perform, contact any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
For more information about replacing other light bulbs, contact
any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
Preparing for light bulb replacement
Bulb locations
Side turn signal light*
(fender-mounted type)
Headlight
Front fog light
*
Front turn signal light
Front position light1
2
3
4
5
HILUX_OM_OM0K219E_(EE).book Page 423 Wednesday, May 14, 2014 3:06 PM

4246-3. Do-it-yourself maintenance
HILUX_OM_OM0K219E_(EE)■

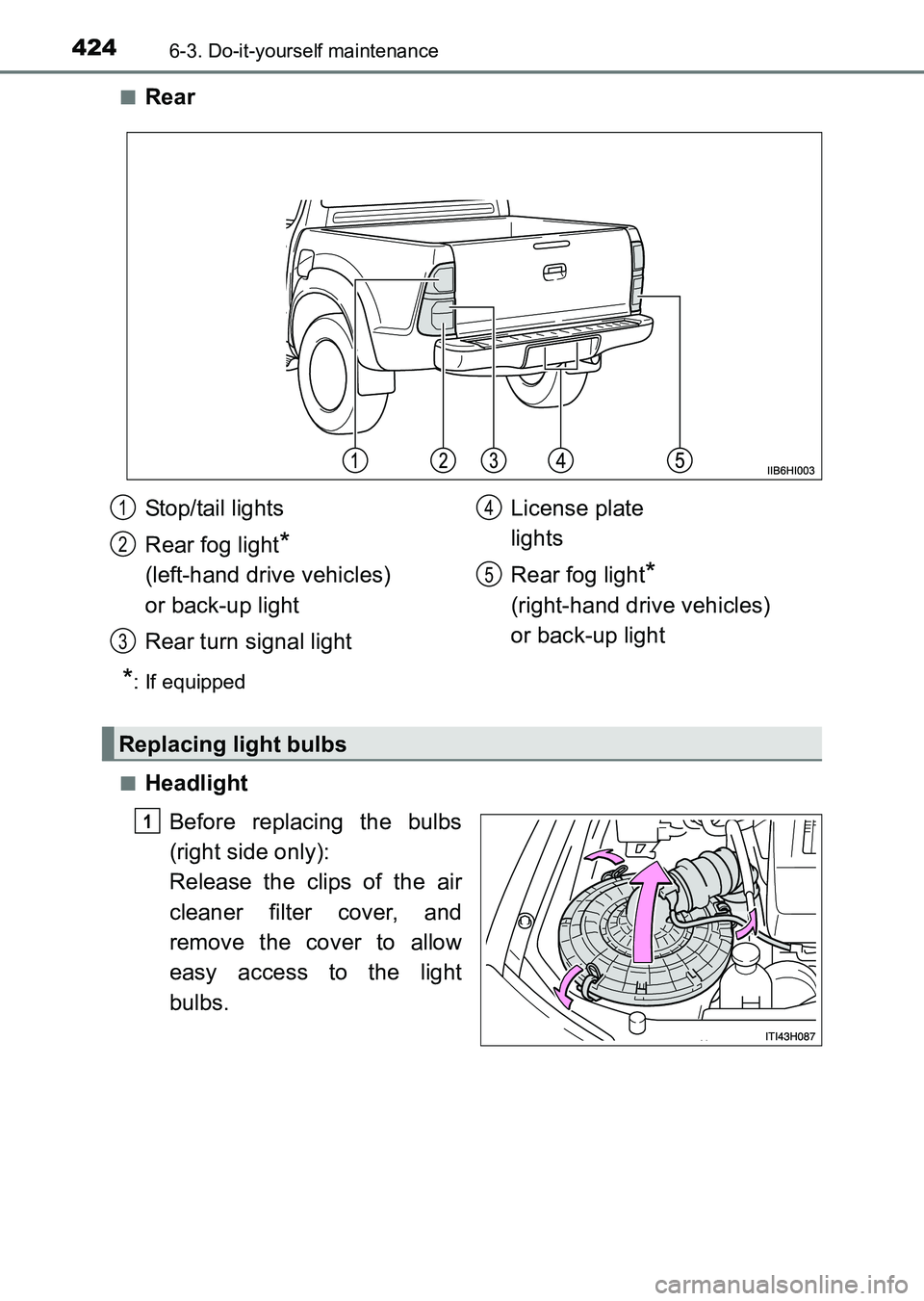

Rear
*: If equipped
■
Headlight Before replacing the bulbs
(right side only):
Release the clips of the air
cleaner filter cover, and
remove the cover to allow
easy access to the light
bulbs.
Stop/tail lights
Rear fog light
*
(left-hand drive vehicles)
or back-up light
Rear turn signal light License plate
lights
Rear fog light
*
(right-hand drive vehicles)
or back-up light
1
2
3
4
5
Replacing light bulbs
1
