2015 TOYOTA HILUX Owners Manual (in English)

489

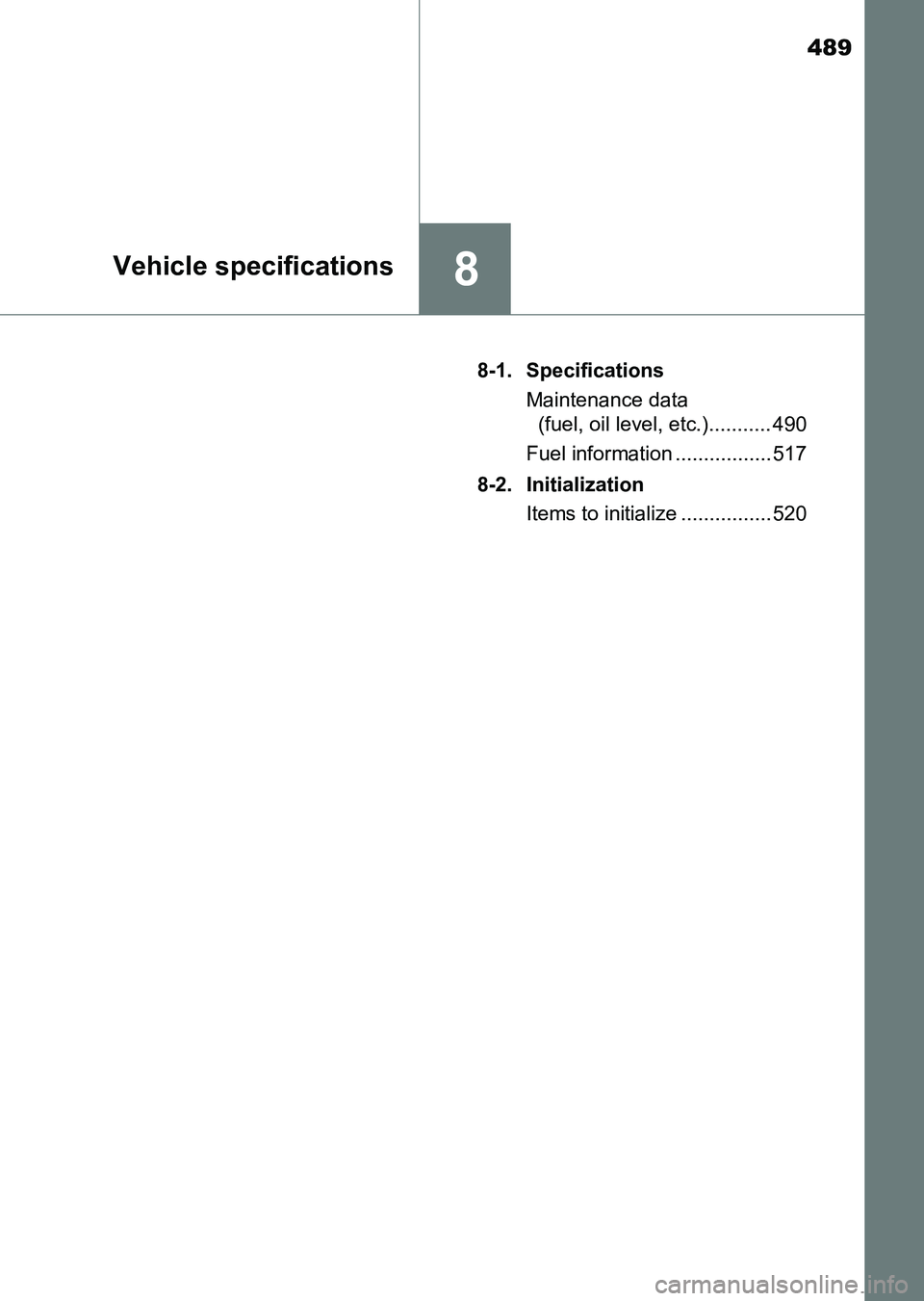

8Vehicle specifications
HILUX_OM_OM0K219E_(EE)8-1. Specifications
Maintenance data (fuel, oil level, etc.)........... 490
Fuel information ................. 517
8-2. Initialization Items to initialize ................520
HILUX_OM_OM0K219E_(EE).book Page 489 Wednesday, May 14, 2014 3:06 PM

4908-1. Specifications
HILUX_OM_OM0K219E_(EE)
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: Without rear bumper
*3: With rear bumper
*4: Without over fender
*5: With over fender
*6: With 205R16C tires
*7: With 265/65R17 tires
*8: With 225/70R17C tires
*9: With 255/70R15C tires
Dimensions
Overall length5135 mm (202.2 in.)*2
5260 mm (207.1 in.)*3
Overall width1760 mm (69.3 in.)*4
1835 mm (72.2 in.)*5
Overall height*1
Single-cab models1795 mm (70.7 in.)*6
1805 mm (71.1 in.)*7, 8
Extra-cab models1835 mm (72.2 in.)*6, 9
1845 mm (72.6 in.)*7, 8
Double-cab models1850 mm (72.8 in.)*6, 9
1860 mm (73.2 in.)*7, 8
Wheelbase 3085 mm (121.5 in.)
Front and rear tread 1510 mm (59.4 in.)
*6
1540 mm (60.6 in.)*7, 9
1500 mm (59.1 in.)*8
HILUX_OM_OM0K219E_(EE).book Page 490 Wednesday, May 14, 2014
3:06 PM

491
8
8-1. Specifications
Vehicle specifications
HILUX_OM_OM0K219E_(EE)

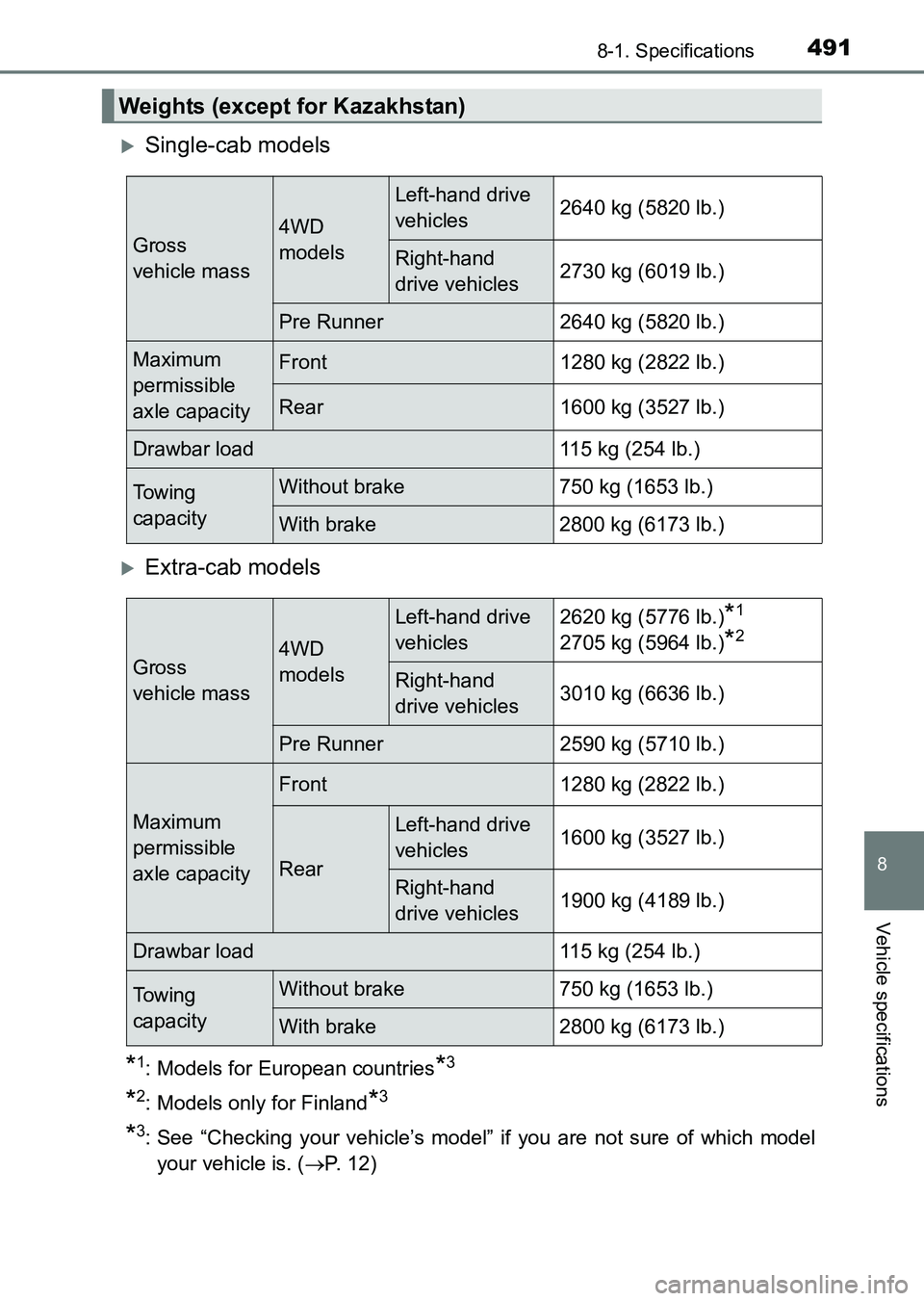

XSingle-cab models
XExtra-cab models
*1: Models for European countries*3
*2: Models only for Finland*3
*3: See “Checking your vehicle’s model” if you are not sure of which modelyour vehicle is. ( →P. 12)
Weights (except for Kazakhstan)
Gross
vehicle mass4WD
models
Left-hand drive
vehicles 2640 kg (5820 lb.)
Right-hand
drive vehicles2730 kg (6019 lb.)
Pre Runner 2640 kg (5820 lb.)
Maximum
permissible
axle capacityFront 1280 kg (2822 lb.)
Rear 1600 kg (3527 lb.)
Drawbar load 115 kg (254 lb.)
To w i n g
capacityWithout brake 750 kg (1653 lb.)
With brake 2800 kg (6173 lb.)
Gross
vehicle mass4WD
models
Left-hand drive
vehicles2620 kg (5776 lb.)*1
2705 kg (5964 lb.)*2
Right-hand
drive vehicles
3010 kg (6636 lb.)
Pre Runner 2590 kg (5710 lb.)
Maximum
permissible
axle capacity
Front 1280 kg (2822 lb.)
Rear
Left-hand drive
vehicles1600 kg (3527 lb.)
Right-hand
drive vehicles1900 kg (4189 lb.)
Drawbar load 115 kg (254 lb.)
To w i n g
capacityWithout brake 750 kg (1653 lb.)
With brake 2800 kg (6173 lb.)
HILUX_OM_OM0K219E_(EE).book Page 491 Wednesday, May 14, 2014
3:06 PM

4928-1. Specifications
HILUX_OM_OM0K219E_(EE)

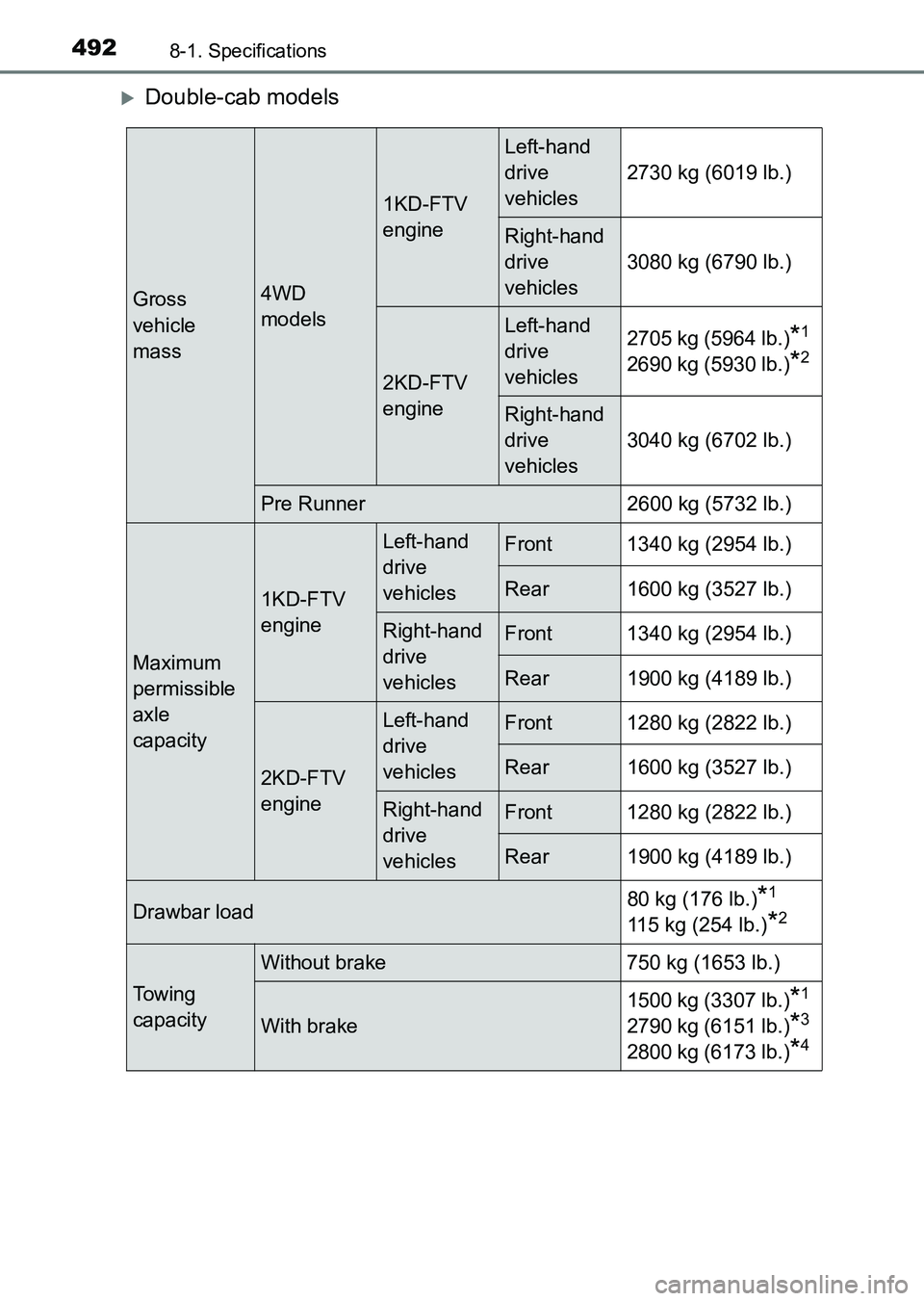

XDouble-cab models
Gross
vehicle
mass4WD
models
1KD-FTV
engine
Left-hand
drive
vehicles2730 kg (6019 lb.)
Right-hand
drive
vehicles3080 kg (6790 lb.)
2KD-FTV
engine
Left-hand
drive
vehicles2705 kg (5964 lb.)*1
2690 kg (5930 lb.)*2
Right-hand
drive
vehicles
3040 kg (6702 lb.)
Pre Runner 2600 kg (5732 lb.)
Maximum
permissible
axle
capacity
1KD-FTV
engine
Left-hand
drive
vehiclesFront 1340 kg (2954 lb.)
Rear 1600 kg (3527 lb.)
Right-hand
drive
vehiclesFront 1340 kg (2954 lb.)
Rear 1900 kg (4189 lb.)
2KD-FTV
engine
Left-hand
drive
vehiclesFront 1280 kg (2822 lb.)
Rear 1600 kg (3527 lb.)
Right-hand
drive
vehiclesFront 1280 kg (2822 lb.)
Rear 1900 kg (4189 lb.)
Drawbar load
80 kg (176 lb.)*1
115 kg (254 lb.)*2
To w i n g
capacity
Without brake 750 kg (1653 lb.)
With brake1500 kg (3307 lb.)
*1
2790 kg (6151 lb.)*3
2800 kg (6173 lb.)*4
HILUX_OM_OM0K219E_(EE).book Page 492 Wednesday, May 14, 2014
3:06 PM

493
8
8-1. Specifications
Vehicle specifications
HILUX_OM_OM0K219E_(EE)

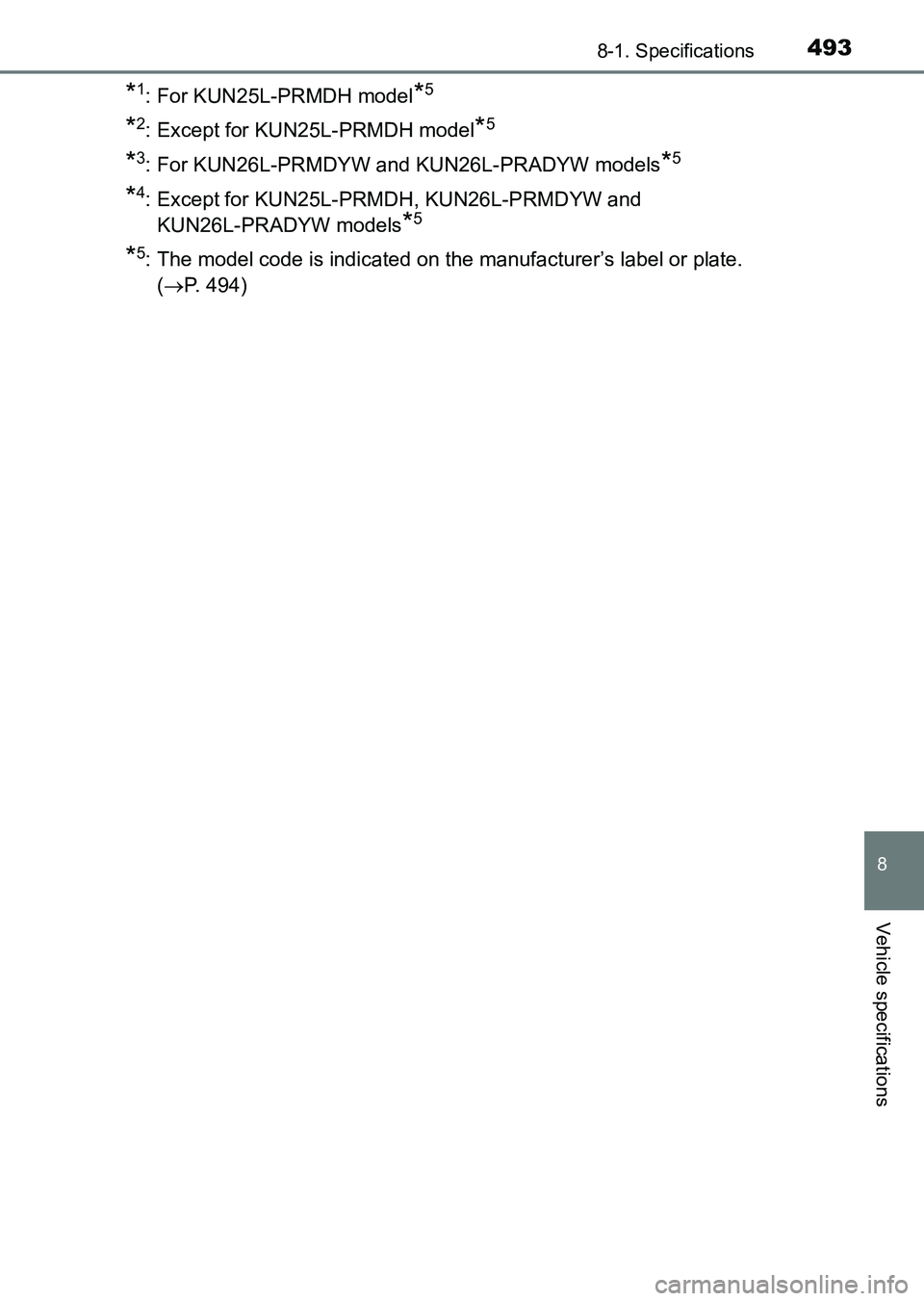

*1: For KUN25L-PRMDH model*5
*2: Except for KUN25L-PRMDH model*5
*3: For KUN26L-PRMDYW and KUN26L-PRADYW models*5
*4: Except for KUN25L-PRMDH, KUN26L-PRMDYW and
KUN26L-PRADYW models
*5
*5: The model code is indicated on the manufacturer’s label or plate. (→ P. 494)
HILUX_OM_OM0K219E_(EE).book Page 493 Wednesday, May 14, 2014 3:06 PM

4948-1. Specifications
HILUX_OM_OM0K219E_(EE)■

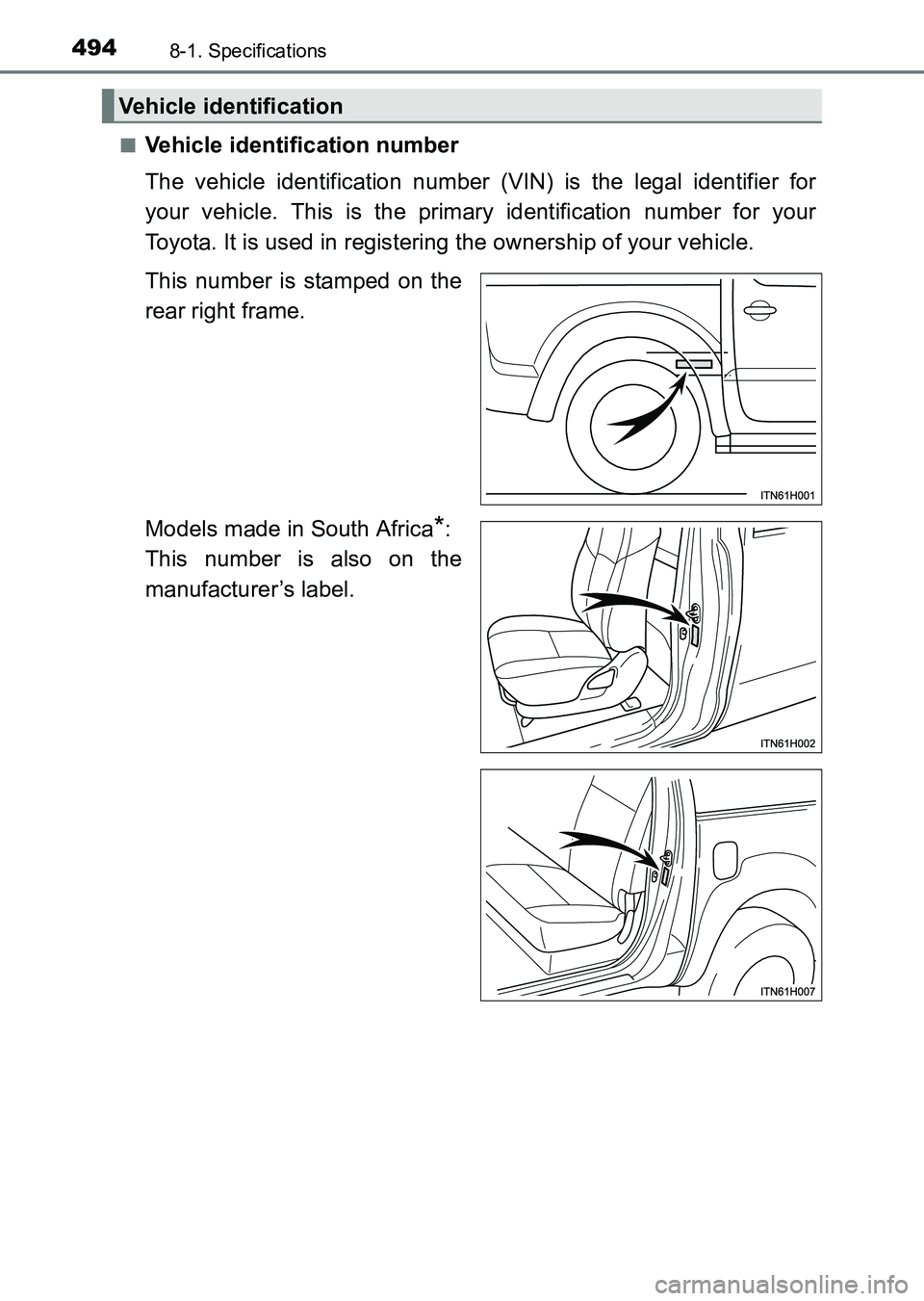

Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
rear right frame.
Models made in South Africa
*:
This number is also on the
manufacturer’s label.
Vehicle identification
HILUX_OM_OM0K219E_(EE).book Page 494 Wednesday, May 14, 2014 3:06 PM

495
8
8-1. Specifications
Vehicle specifications
HILUX_OM_OM0K219E_(EE)

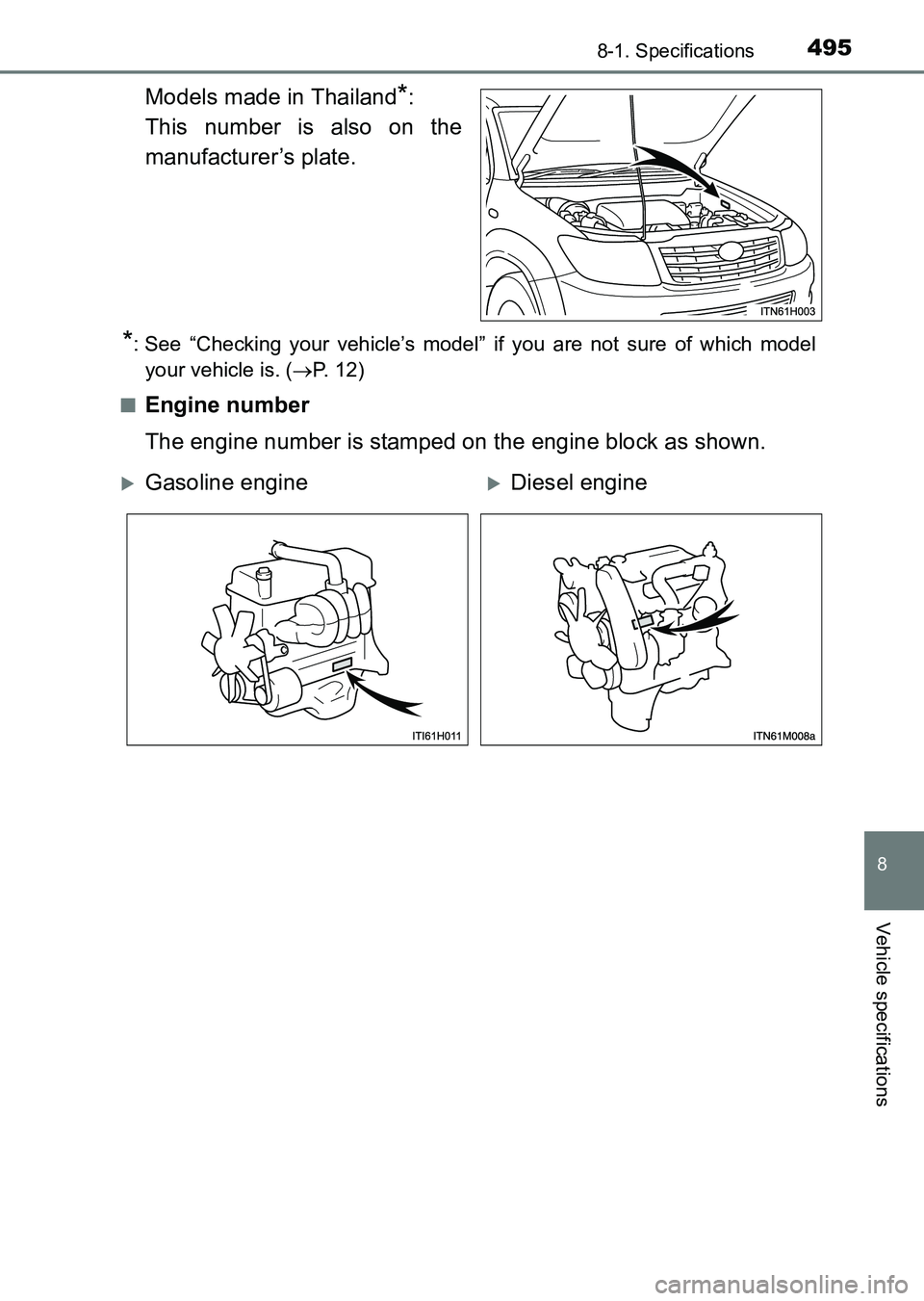

Models made in Thailand*:
This number is also on the
manufacturer’s plate.
*: See “Checking your vehicle’s model” if you are not sure of which model your vehicle is. ( →P. 12)
■
Engine number
The engine number is stamped on the engine block as shown.
XGasoline engineXDiesel engine
HILUX_OM_OM0K219E_(EE).book Page 495 Wednesday, May 14, 2014 3:06 PM

4968-1. Specifications
HILUX_OM_OM0K219E_(EE)

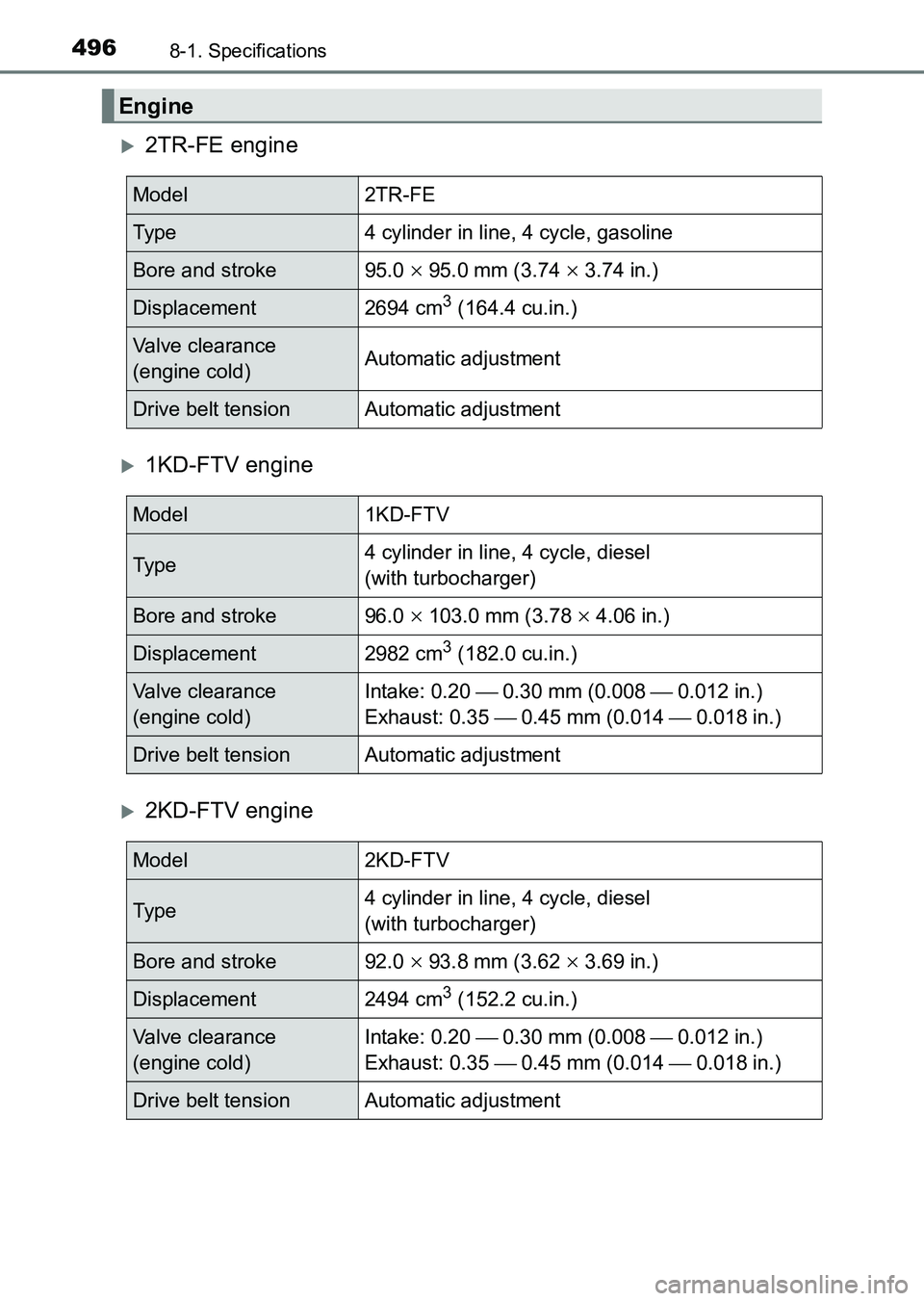

X2TR-FE engine
X1KD-FTV engine
X2KD-FTV engine
Engine
Model2TR-FE
Ty p e4 cylinder in line, 4 cycle, gasoline
Bore and stroke95.0 × 95.0 mm (3.74 × 3.74 in.)
Displacement2694 cm3 (164.4 cu.in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Model1KD-FTV
Ty p e4 cylinder in line, 4 cycle, diesel
(with turbocharger)
Bore and stroke96.0 × 103.0 mm (3.78 × 4.06 in.)
Displacement2982 cm3 (182.0 cu.in.)
Valve clearance
(engine cold)Intake: 0.20  0.30 mm (0.008  0.012 in.)
Exhaust: 0.35  0.45 mm (0.014  0.018 in.)
Drive belt tensionAutomatic adjustment
Model2KD-FTV
Ty p e4 cylinder in line, 4 cycle, diesel
(with turbocharger)
Bore and stroke92.0 × 93.8 mm (3.62 × 3.69 in.)
Displacement2494 cm3 (152.2 cu.in.)
Valve clearance
(engine cold)Intake: 0.20  0.30 mm (0.008  0.012 in.)
Exhaust: 0.35  0.45 mm (0.014  0.018 in.)
Drive belt tensionAutomatic adjustment
