2015 TOYOTA HILUX Owners Manual (in English)

89
1
1-2. Theft deterrent system
HILUX_OM_OM0K219E_(EE)
For safety and security
Alarm∗
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
set:
●A locked door is opened in any way other than using the wireless
remote control.
● The hood is opened.
● Abnormal impact is detected when the impact sensor function is on.
Close the doors and hood, and
lock all the doors using the wire-
less remote control. The system
will be set automatically after 30
seconds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
∗: If equipped
The alarm
Setting the alarm system
HILUX_OM_OM0K219E_(EE).book Page 89 Wednesday, May 14, 2014 3:06 PM

901-2. Theft deterrent system
HILUX_OM_OM0K219E_(EE)
Do one of the following to deactivate or stop the alarms:
●Unlock the doors using the wireless remote control.
● Turn the engine switch to the “ON” position, or start the engine.
(The alarm will be deactivated or stopped after a few seconds.)
■System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:
● Nobody is in the vehicle.
● The windows are closed before the alarm is set.
● No valuables or other personal items are left in the vehicle.
■ Impact sensor
The impact sensor can be canceled to pr event false alarms from being trig-
gered in case of the following conditions.
● When parking in the noisy area
● The vehicle body or glass is subjected to a strong impact from the outside
(such as in highly pressurized car wash)
● When transporting by a car carrier or ferry
Canceling the impact sensor, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
The impact sensor is deactivated as long as the system remains armed.
Deactivating or stopping the alarm
HILUX_OM_OM0K219E_(EE).book Page 90 Wednesday, May 14, 2014 3:06 PM

911-2. Theft deterrent system
1
HILUX_OM_OM0K219E_(EE)
For safety and security

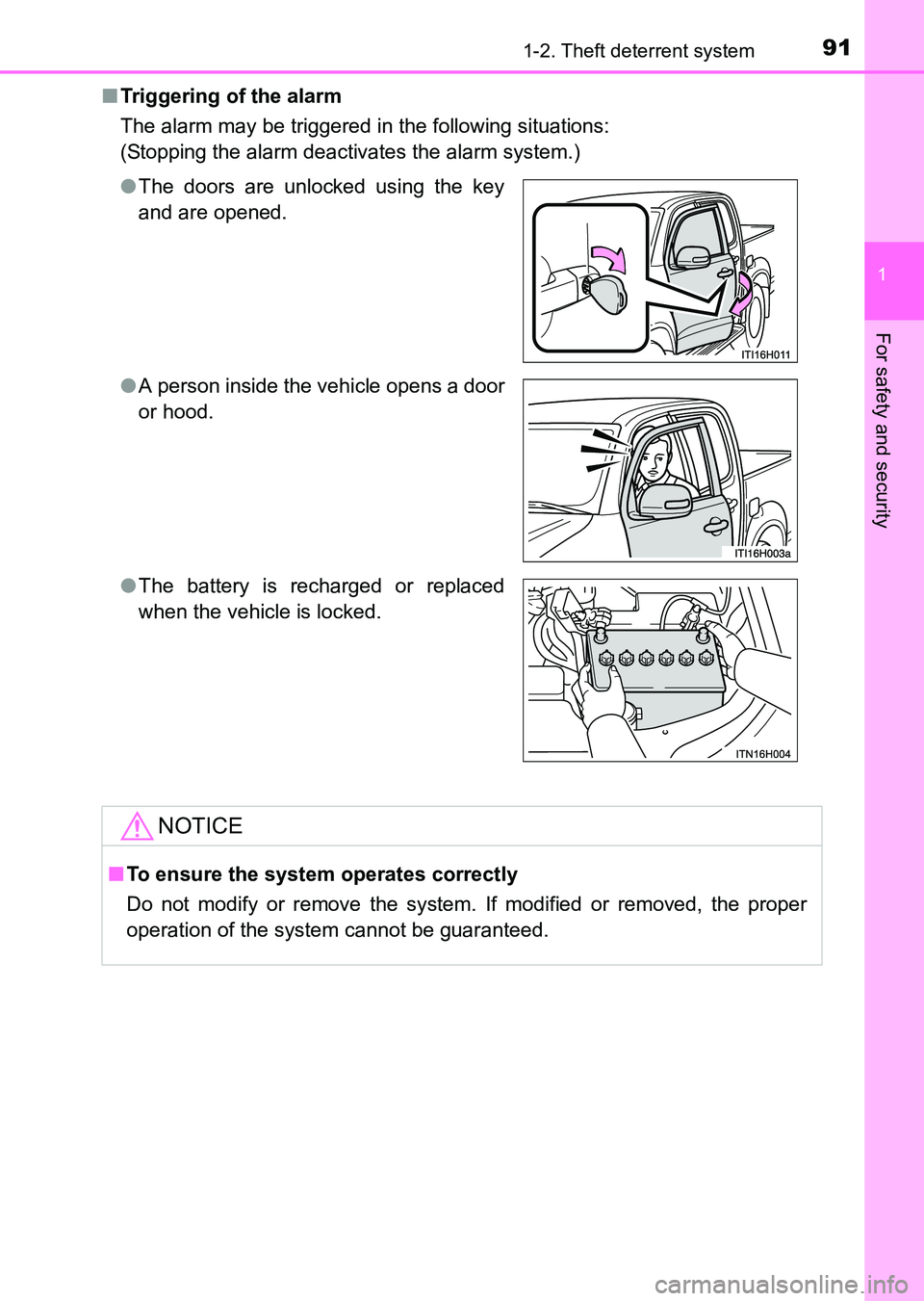

■Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
●The doors are unlocked using the key
and are opened.
● A person inside the vehicle opens a door
or hood.
● The battery is recharged or replaced
when the vehicle is locked.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
HILUX_OM_OM0K219E_(EE).book Page 91 Wednesday, May 14, 2014 3:06 PM

921-2. Theft deterrent system
HILUX_OM_OM0K219E_(EE)
HILUX_OM_OM0K219E_(EE).book Page 92 Wednesday, May 14, 2014 3:06 PM

93

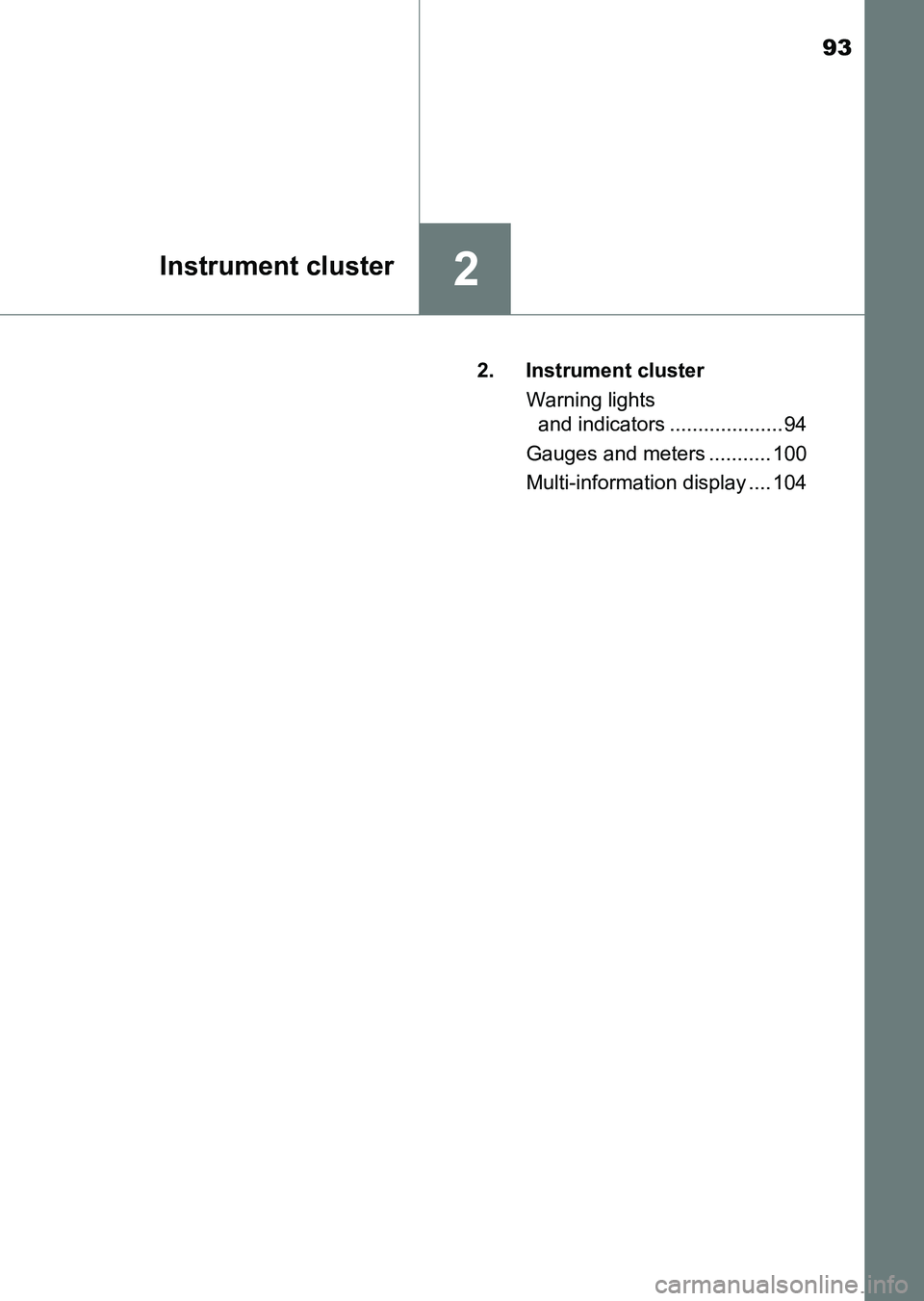

2Instrument cluster
HILUX_OM_OM0K219E_(EE)2. Instrument cluster
Warning lights and indicators .................... 94
Gauges and meters ........... 100
Multi-information display .... 104
HILUX_OM_OM0K219E_(EE).book Page 93 Wednesday, May 14, 2014 3:06 PM

942. Instrument cluster
HILUX_OM_OM0K219E_(EE)

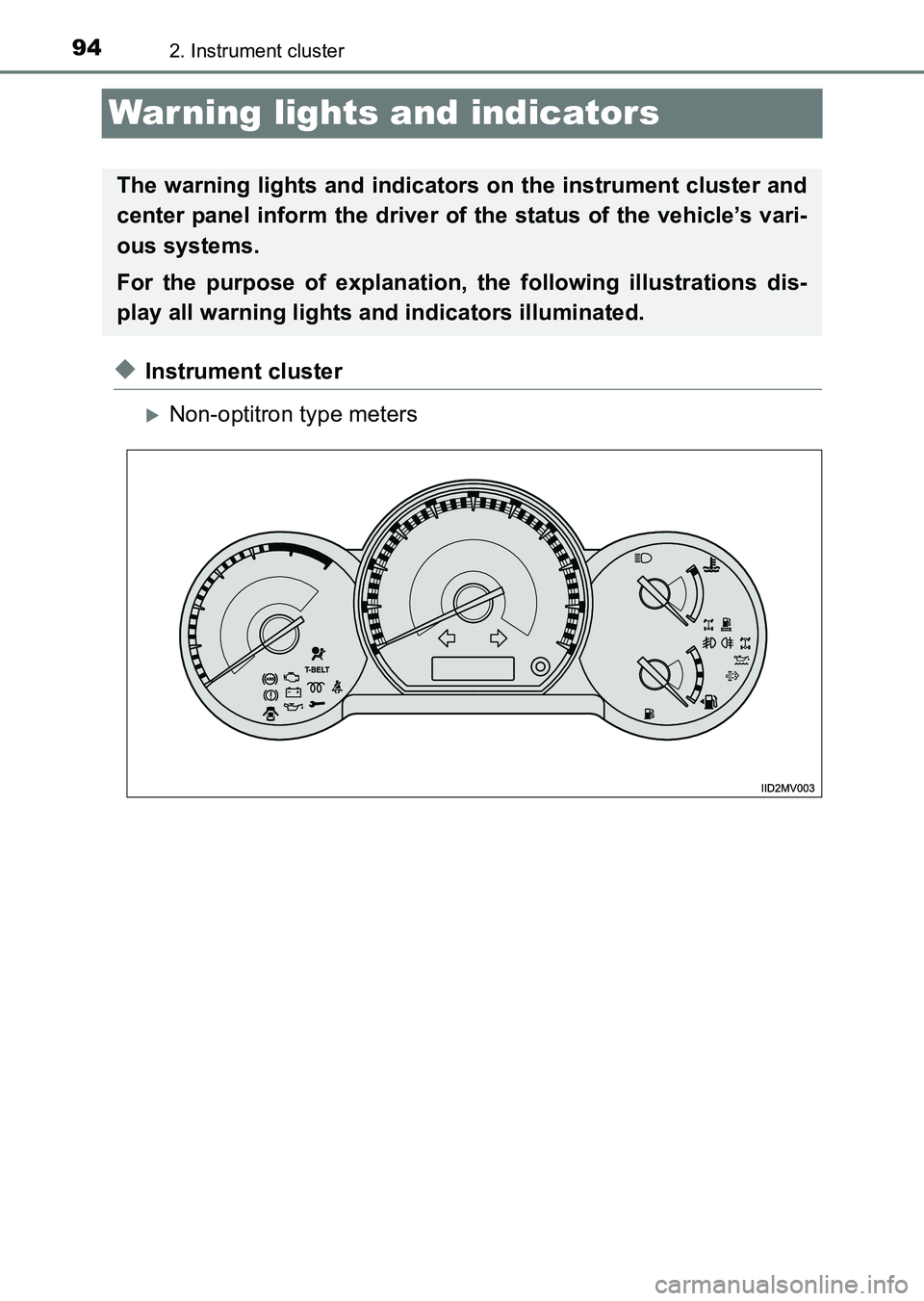

Warning lights and indicators
◆Instrument cluster
XNon-optitron type meters
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustrations dis-
play all warning lights and indicators illuminated.
HILUX_OM_OM0K219E_(EE).book Page 94 Wednesday, May 14, 2014 3:06 PM

952. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K219E_(EE)

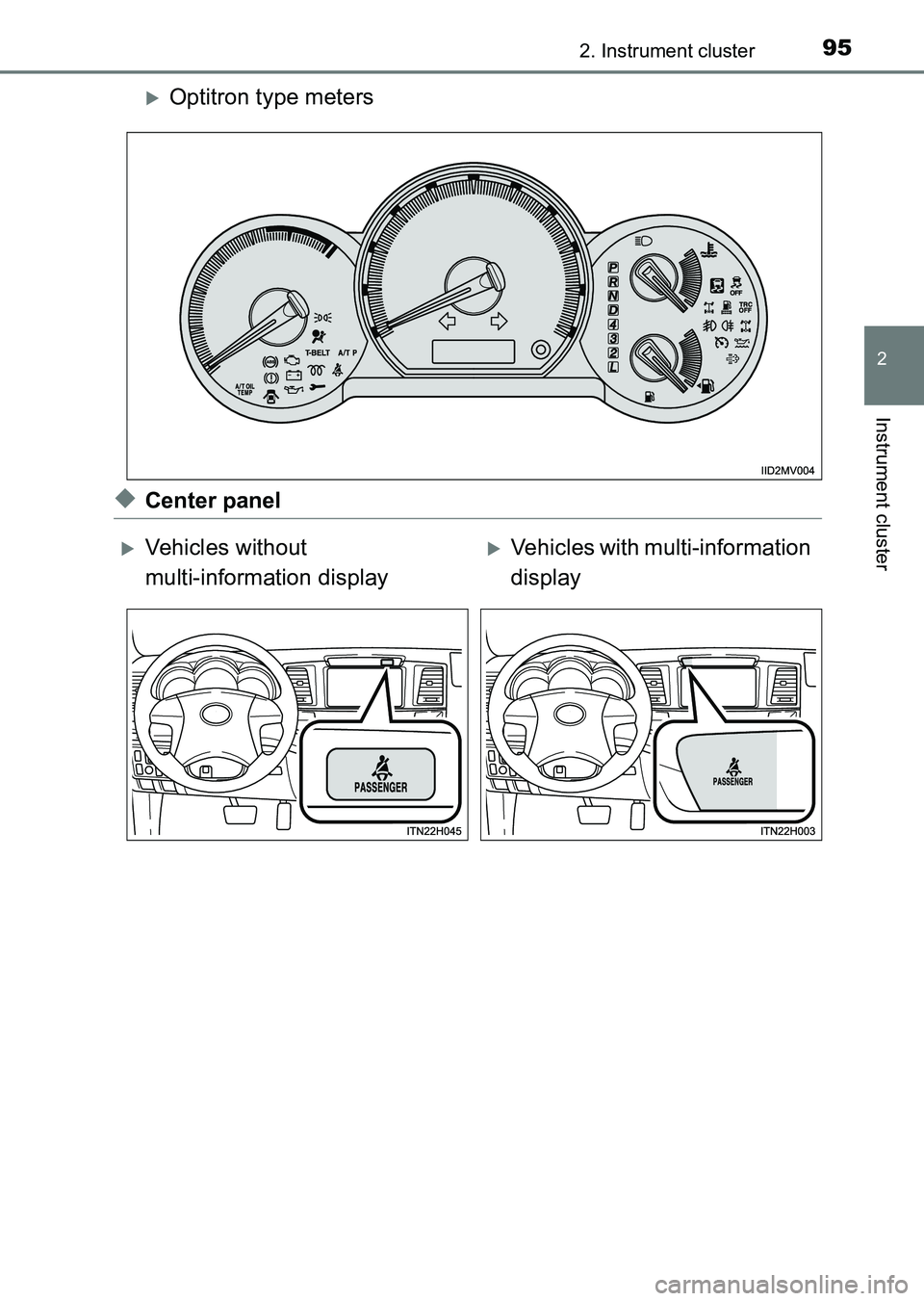

XOptitron type meters
◆Center panel
XVehicles without
multi-information displayXVehicles with multi-information
display
HILUX_OM_OM0K219E_(EE).book Page 95 Wednesday, May 14, 2014 3:06 PM

962. Instrument cluster
HILUX_OM_OM0K219E_(EE)

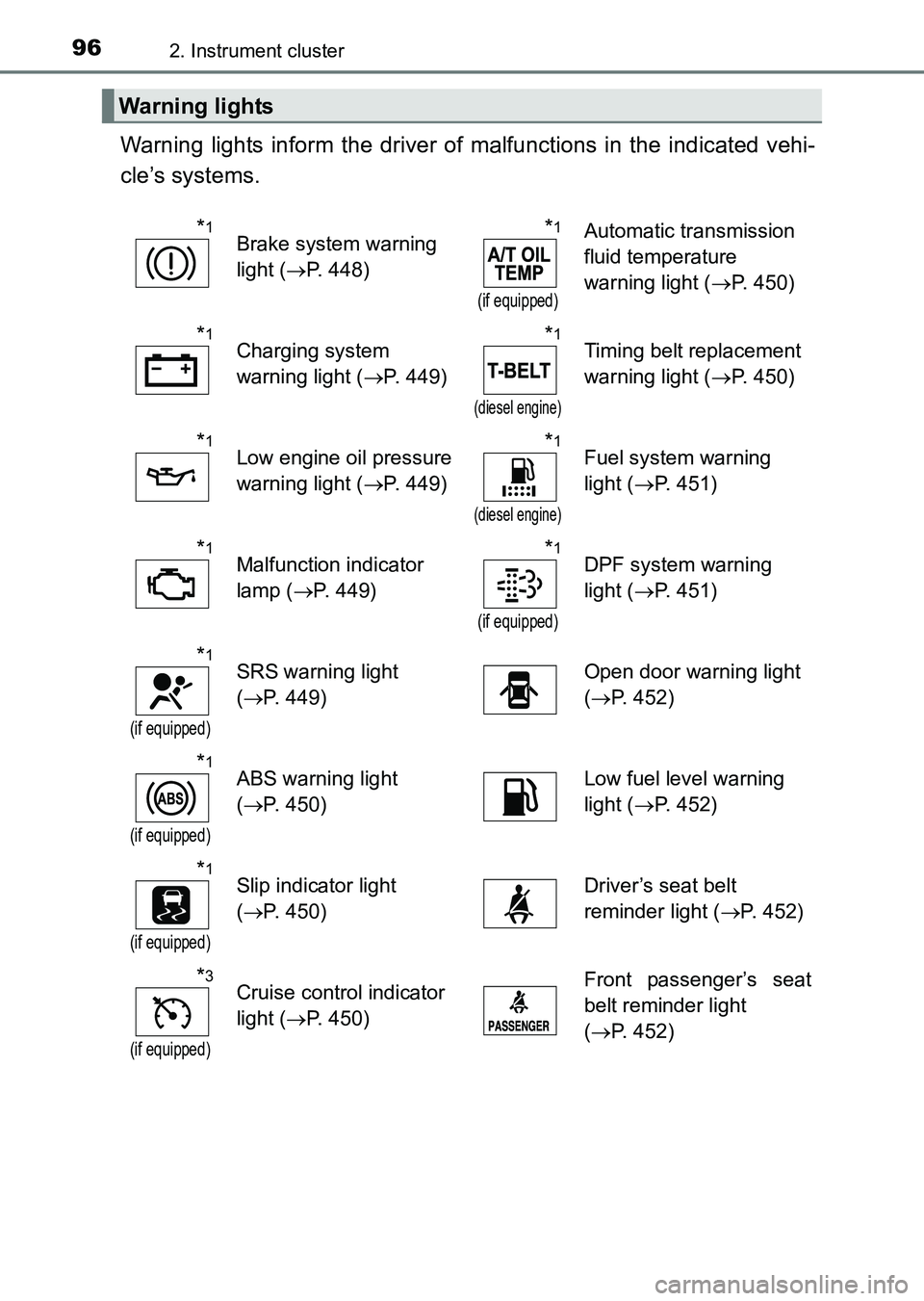

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1Brake system warning
light (→P. 448)*1
(if equipped)
Automatic transmission
fluid temperature
warning light ( →P. 450)
*1Charging system
warning light ( →P. 449)*1
(diesel engine)
Timing belt replacement
warning light ( →P. 450)
*1Low engine oil pressure
warning light ( →P. 449)*1
(diesel engine)
Fuel system warning
light ( →P. 451)
*1Malfunction indicator
lamp ( →P. 449)*1
(if equipped)
DPF system warning
light ( →P. 451)
*1
(if equipped)
SRS warning light
(→ P. 449)Open door warning light
(→ P. 452)
*1
(if equipped)
ABS warning light
(→ P. 450)Low fuel level warning
light ( →P. 452)
*1
(if equipped)
Slip indicator light
(→ P. 450)Driver’s seat belt
reminder light ( →P. 452)
*3
(if equipped)
Cruise control indicator
light ( →P. 450)Front passenger’s seat
belt reminder light
(→ P. 452)
HILUX_OM_OM0K219E_(EE).book Page 96 Wednesday, May 14, 2014 3:06 PM
