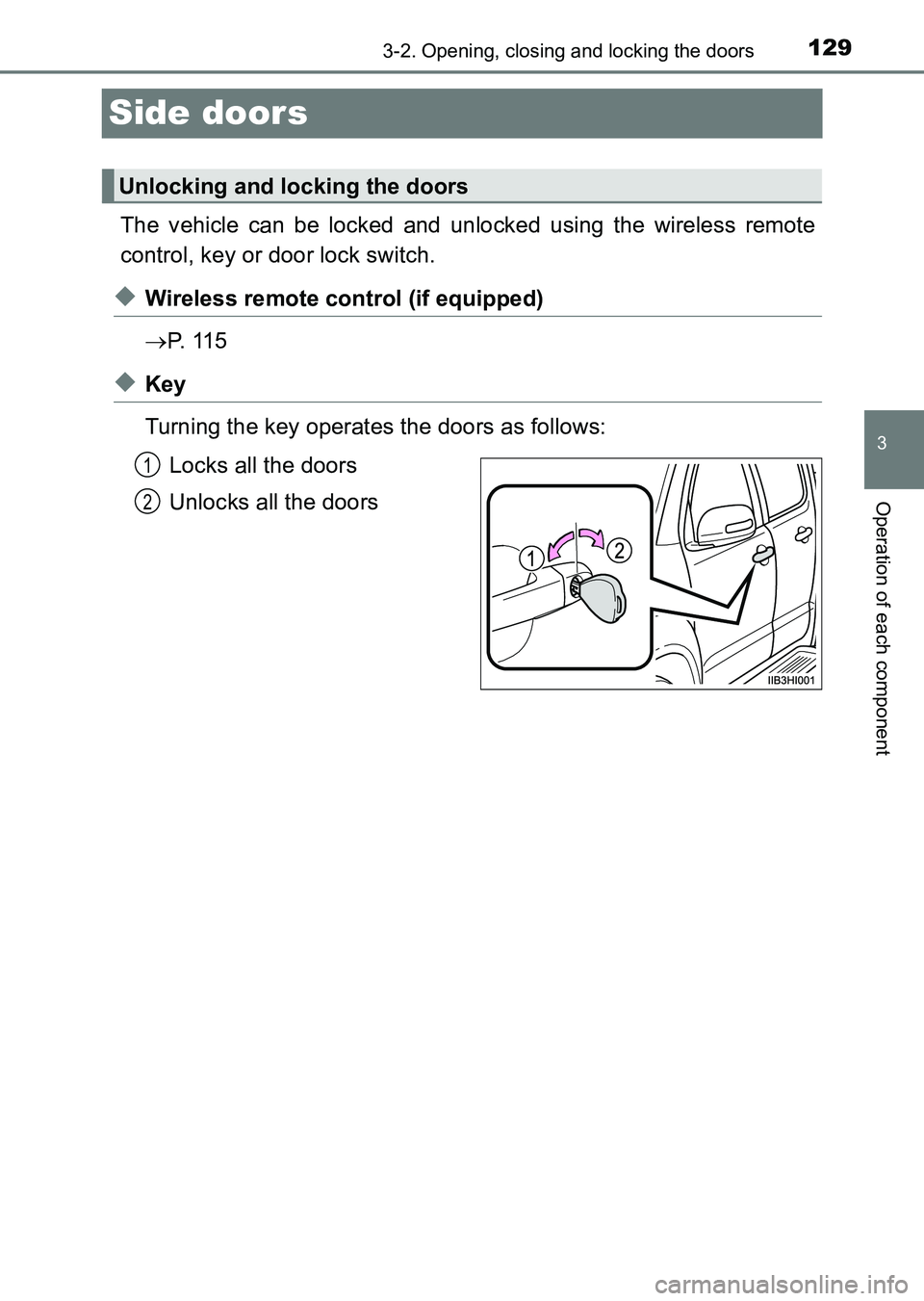

2015 TOYOTA HILUX Owners Manual (in English)

129
3
3-2. Opening, closing and locking the doors
Operation of each component
HILUX_OM_OM0K219E_(EE)
Side doors
The vehicle can be locked and unlocked using the wireless remote
control, key or door lock switch.
◆Wireless remote control (if equipped)
→P. 1 1 5
◆Key
Turning the key operates the doors as follows:
Locks all the doors
Unlocks all the doors
Unlocking and locking the doors
1
2
HILUX_OM_OM0K219E_(EE).book Page 129 Wednesday, May 14, 2014 3:06 PM

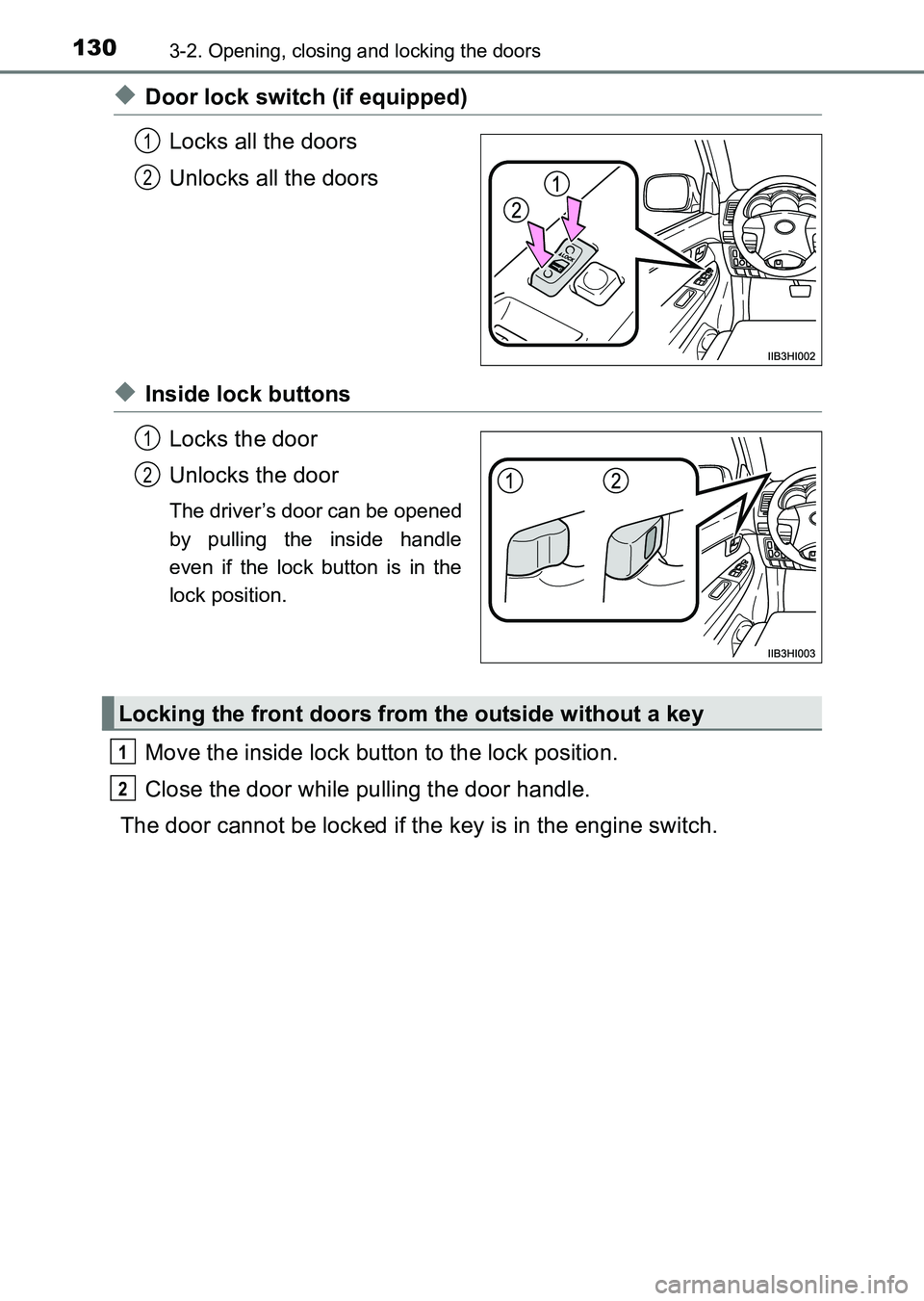

1303-2. Opening, closing and locking the doors
HILUX_OM_OM0K219E_(EE)
◆Door lock switch (if equipped)Locks all the doors
Unlocks all the doors
◆Inside lock buttons
Locks the door
Unlocks the door
The driver’s door can be opened
by pulling the inside handle
even if the lock button is in the
lock position.
Move the inside lock button to the lock position.
Close the door while pulling the door handle.
The door cannot be locked if the key is in the engine switch.
1
2
1
2
Locking the front doors from the outside without a key
1
2
HILUX_OM_OM0K219E_(EE).book Page 130 Wednesday, May 14, 2014 3:06 PM

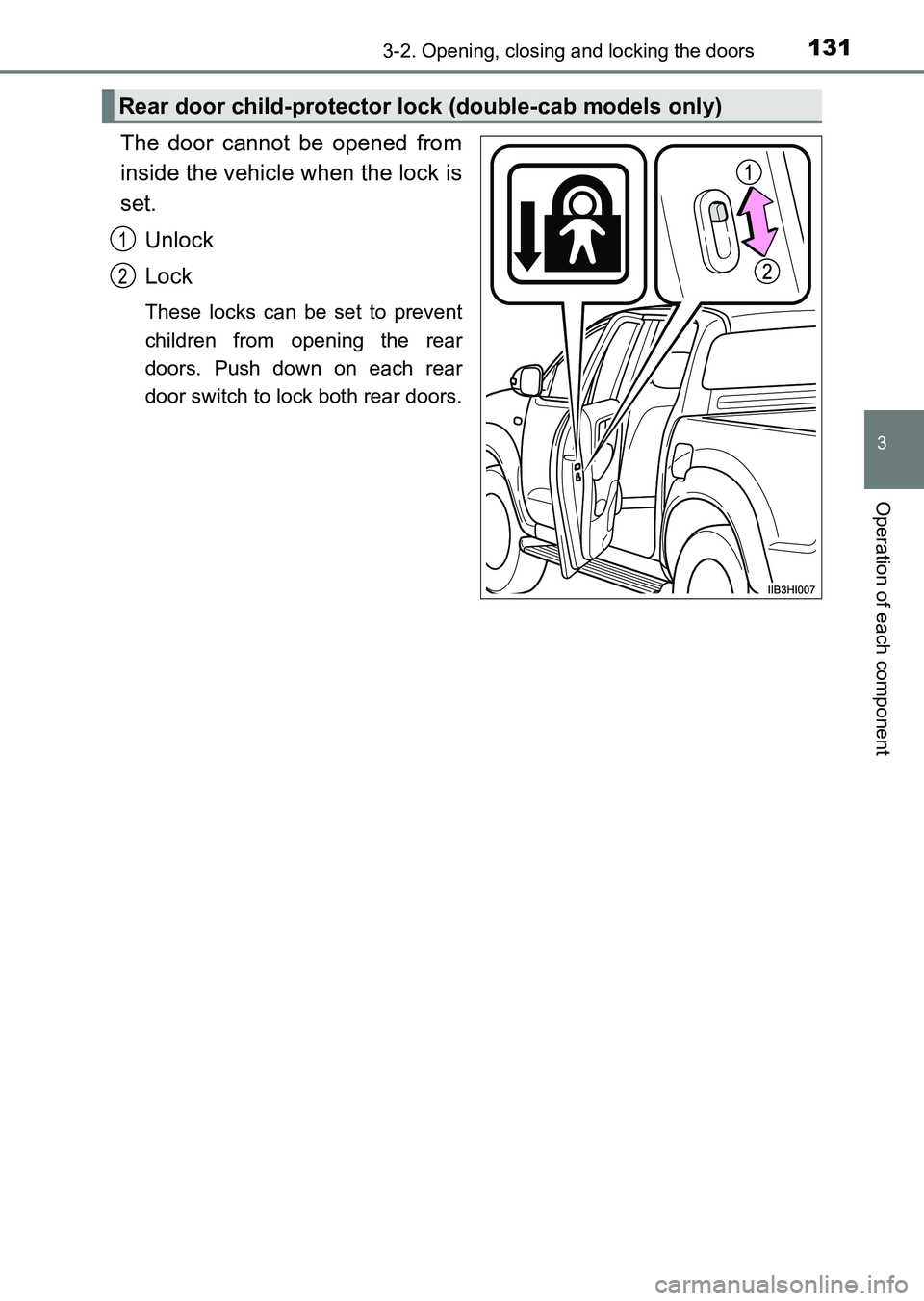

1313-2. Opening, closing and locking the doors
3
Operation of each component
HILUX_OM_OM0K219E_(EE)
The door cannot be opened from
inside the vehicle when the lock is
set.Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.
Rear door child-protector lock (double-cab models only)
1
2
HILUX_OM_OM0K219E_(EE).book Page 131 Wednesday, May 14, 2014 3:06 PM

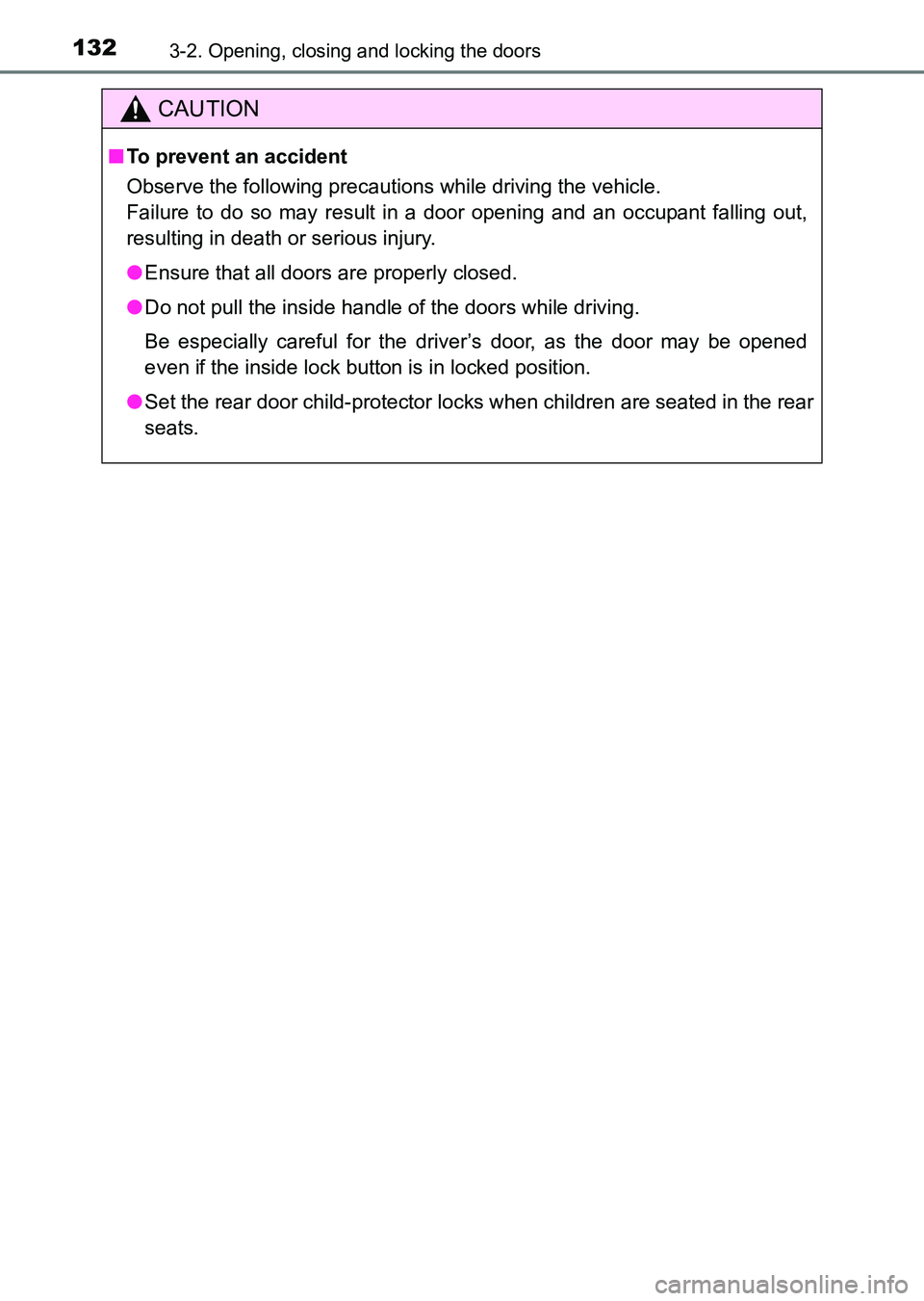

1323-2. Opening, closing and locking the doors
HILUX_OM_OM0K219E_(EE)
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
● Ensure that all doors are properly closed.
● Do not pull the inside handle of the doors while driving.
Be especially careful for the driver’s door, as the door may be opened
even if the inside lock button is in locked position.
● Set the rear door child-protector loc ks when children are seated in the rear
seats.
HILUX_OM_OM0K219E_(EE).book Page 132 Wednesday, May 14, 2014 3:06 PM

133
3
3-2. Opening, closing and locking the doors
Operation of each component
HILUX_OM_OM0K219E_(EE)
Ta i l g at e∗
Locks the tailgate
Unlocks the tailgate
XTy pe A
Unlock the latches and open the
tailgate slowly.
The support cables will hold the
tailgate horizontal.
After closing the tailgate, try pulling
it toward you to make sure it is
securely locked.
∗: If equipped
The tailgate can be locked/unlocked and opened by the follow-
ing procedures.
Locking and unlocking the tailgate (vehicles with key hole)
1
2
Opening the tailgate
HILUX_OM_OM0K219E_(EE).book Page 133 Wednesday, May 14, 2014 3:06 PM

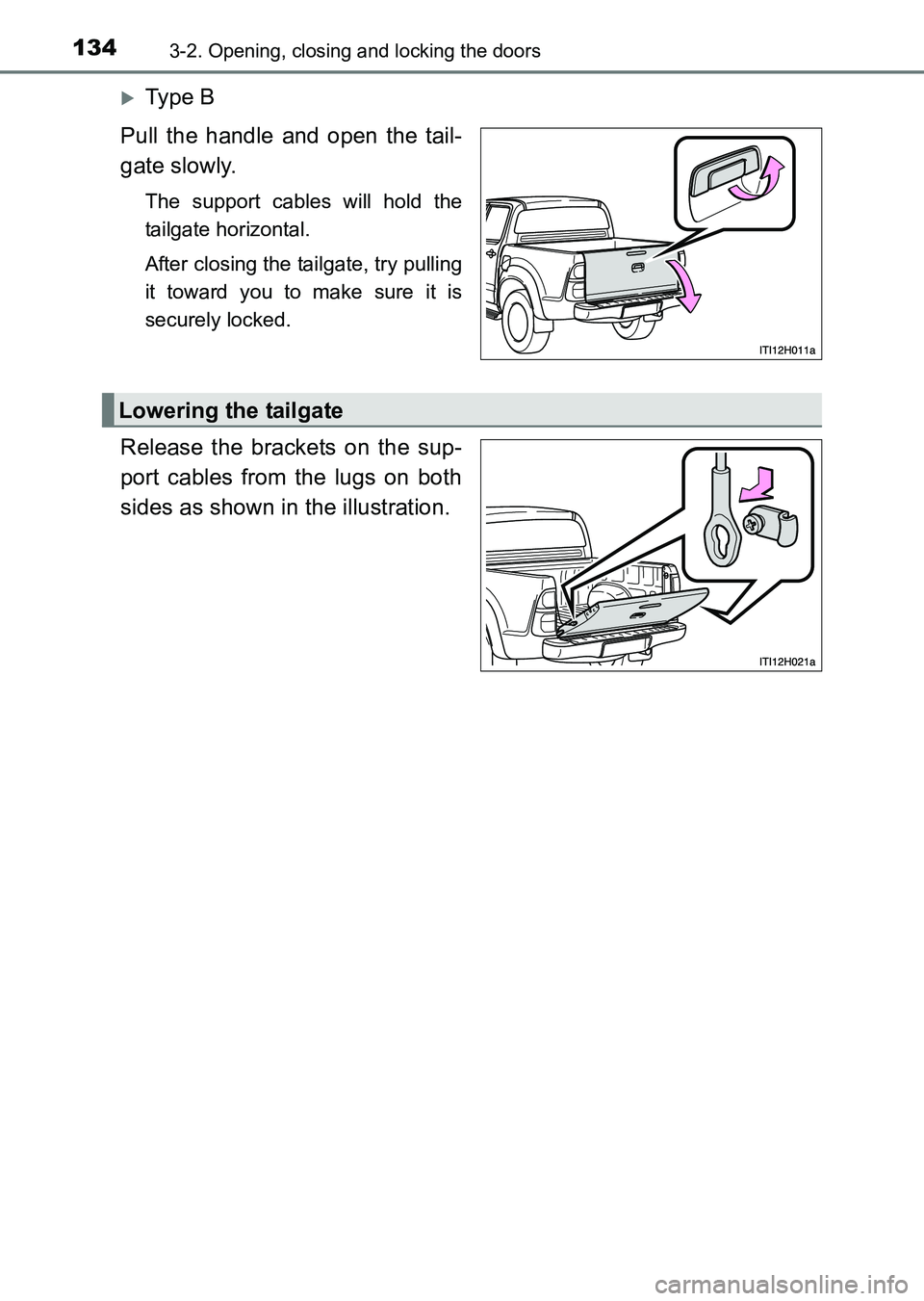

1343-2. Opening, closing and locking the doors
HILUX_OM_OM0K219E_(EE)
XTy pe B
Pull the handle and open the tail-
gate slowly.
The support cables will hold the
tailgate horizontal.
After closing the tailgate, try pulling
it toward you to make sure it is
securely locked.
Release the brackets on the sup-
port cables from the lugs on both
sides as shown in the illustration.
Lowering the tailgate
HILUX_OM_OM0K219E_(EE).book Page 134 Wednesday, May 14, 2014 3:06 PM

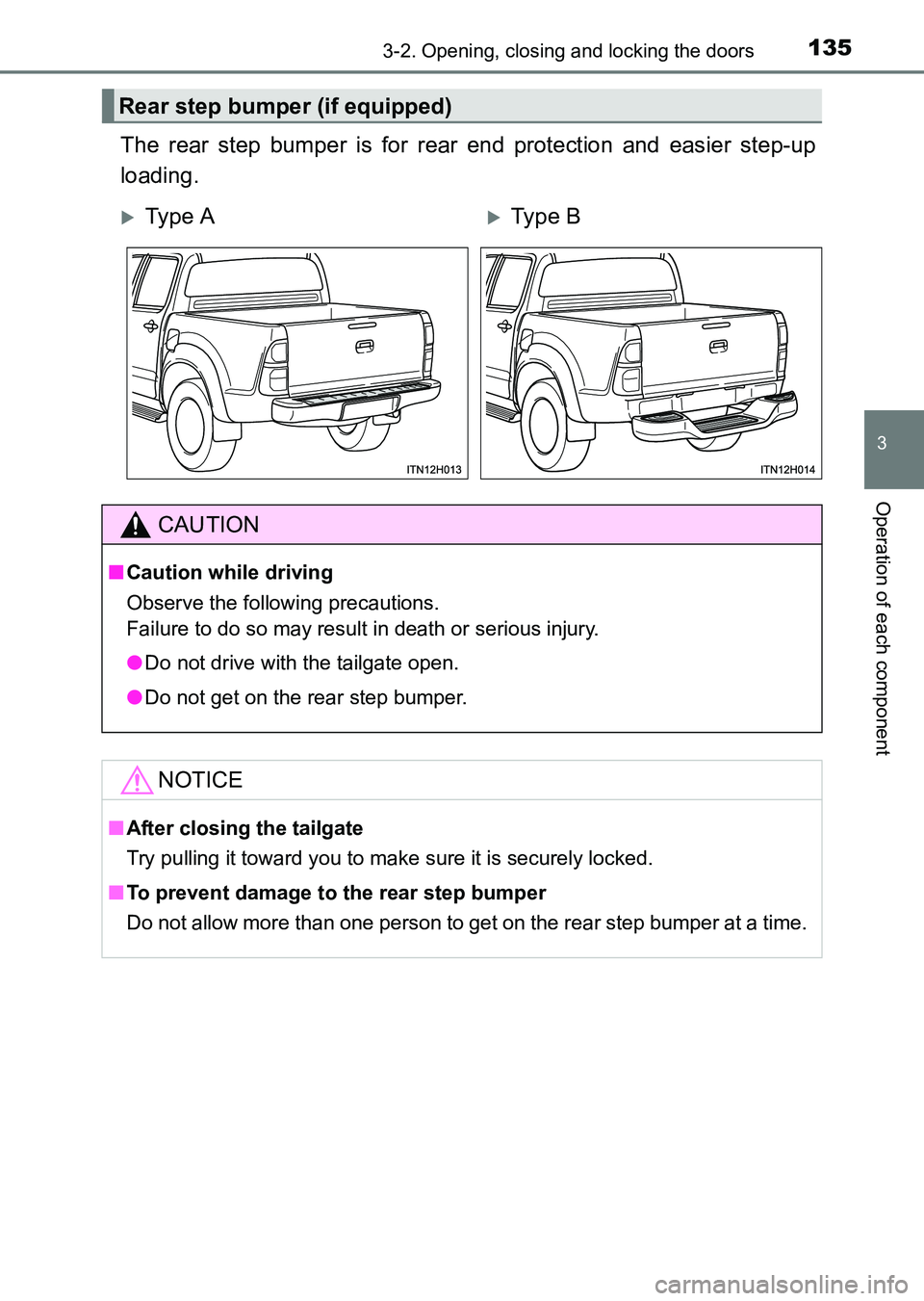

1353-2. Opening, closing and locking the doors
3
Operation of each component
HILUX_OM_OM0K219E_(EE)
The rear step bumper is for rear end protection and easier step-up
loading.
Rear step bumper (if equipped)
XTy pe AXType B
CAUTION
■Caution while driving
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not drive with the tailgate open.
● Do not get on the rear step bumper.
NOTICE
■After closing the tailgate
Try pulling it toward you to make sure it is securely locked.
■
To prevent damage to the rear step bumper
Do not allow more than one person to get on the rear step bumper at a time.
HILUX_OM_OM0K219E_(EE).book Page 135 Wednesday, May 14, 2014 3:06 PM

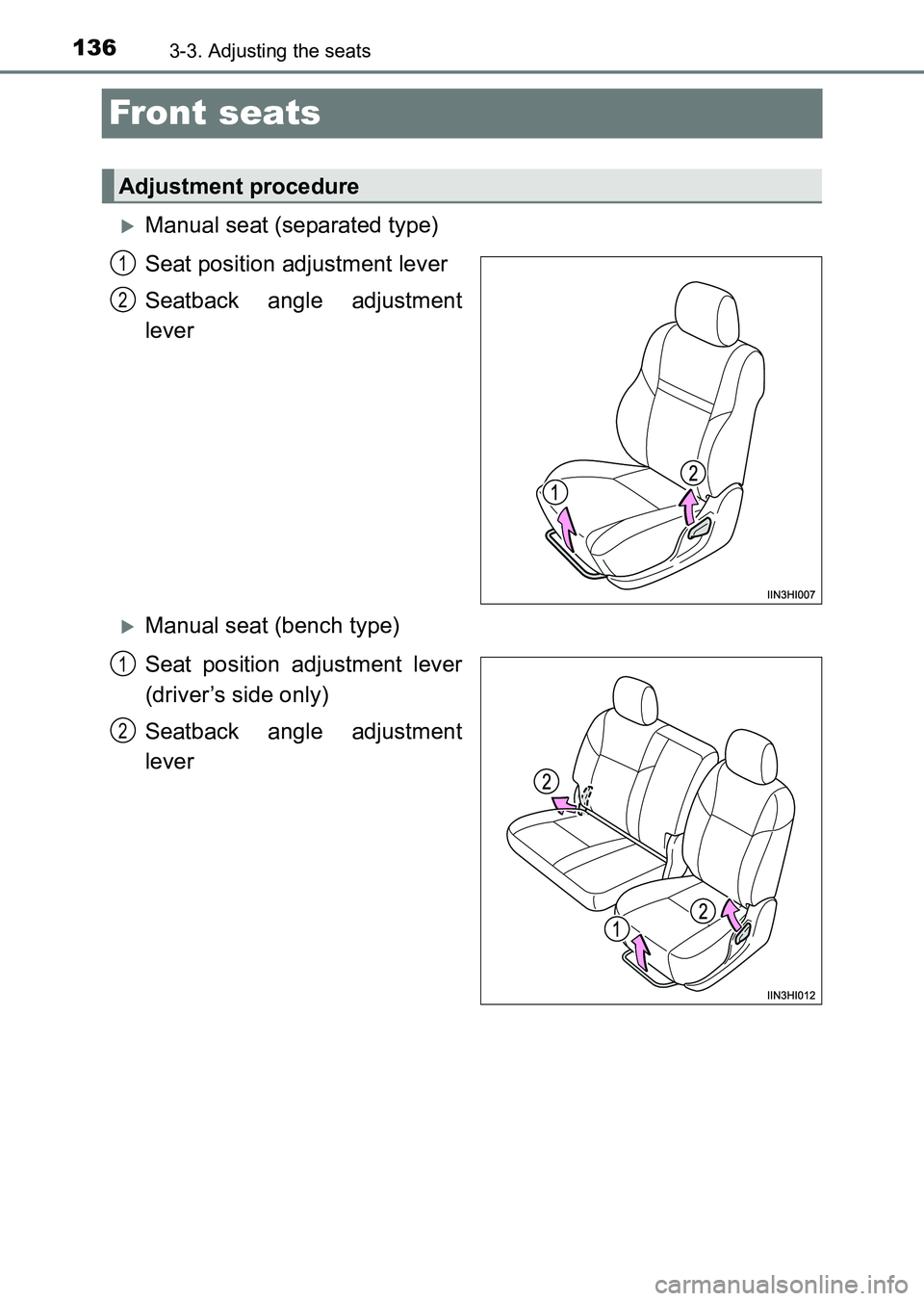

1363-3. Adjusting the seats
HILUX_OM_OM0K219E_(EE)
Front seats
XManual seat (separated type)
Seat position adjustment lever
Seatback angle adjustment
lever
XManual seat (bench type)
Seat position adjustment lever
(driver’s side only)
Seatback angle adjustment
lever
Adjustment procedure
1
2
1
2
HILUX_OM_OM0K219E_(EE).book Page 136 Wednesday, May 14, 2014 3:06 PM
