2015 TOYOTA HILUX Owners Manual (in English)

3856-3. Do-it-yourself maintenance
6
Maintenance and care
HILUX_OM_OM0K219E_(EE)

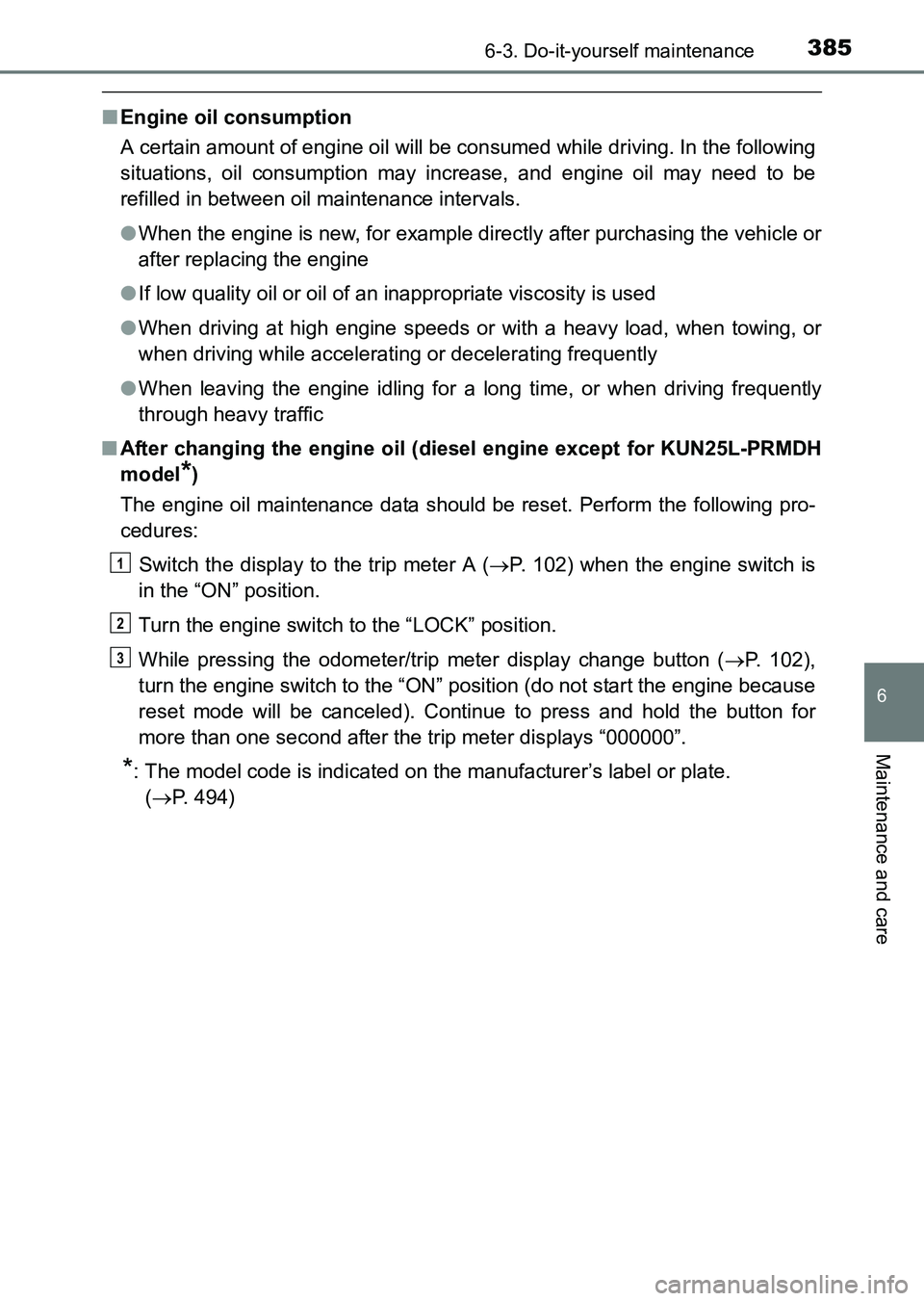

■Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following
situations, oil consumption may increase, and engine oil may need to be
refilled in between oil maintenance intervals.
●When the engine is new, for example directly after purchasing the vehicle or
after replacing the engine
● If low quality oil or oil of an inappropriate viscosity is used
● When driving at high engine speeds or with a heavy load, when towing, or
when driving while accelerating or decelerating frequently
● When leaving the engine idling for a long time, or when driving frequently
through heavy traffic
■ After changing the engine oil (diesel engine except for KUN25L-PRMDH
model
*)
The engine oil maintenance data should be reset. Perform the following pro-
cedures:
Switch the display to the trip meter A ( →P. 102) when the engine switch is
in the “ON” position.
Turn the engine switch to the “LOCK” position.
While pressing the odometer/trip meter display change button ( →P. 102),
turn the engine switch to the “ON” position (do not start the engine because
reset mode will be canceled). Continue to press and hold the button for
more than one second after the trip meter displays “000000”.
*: The model code is indicated on the manufacturer’s label or plate. (→ P. 494)
1
2
3
HILUX_OM_OM0K219E_(EE).book Page 385 Wednesday, May 14, 2014 3:06 PM

3866-3. Do-it-yourself maintenance
HILUX_OM_OM0K219E_(EE)

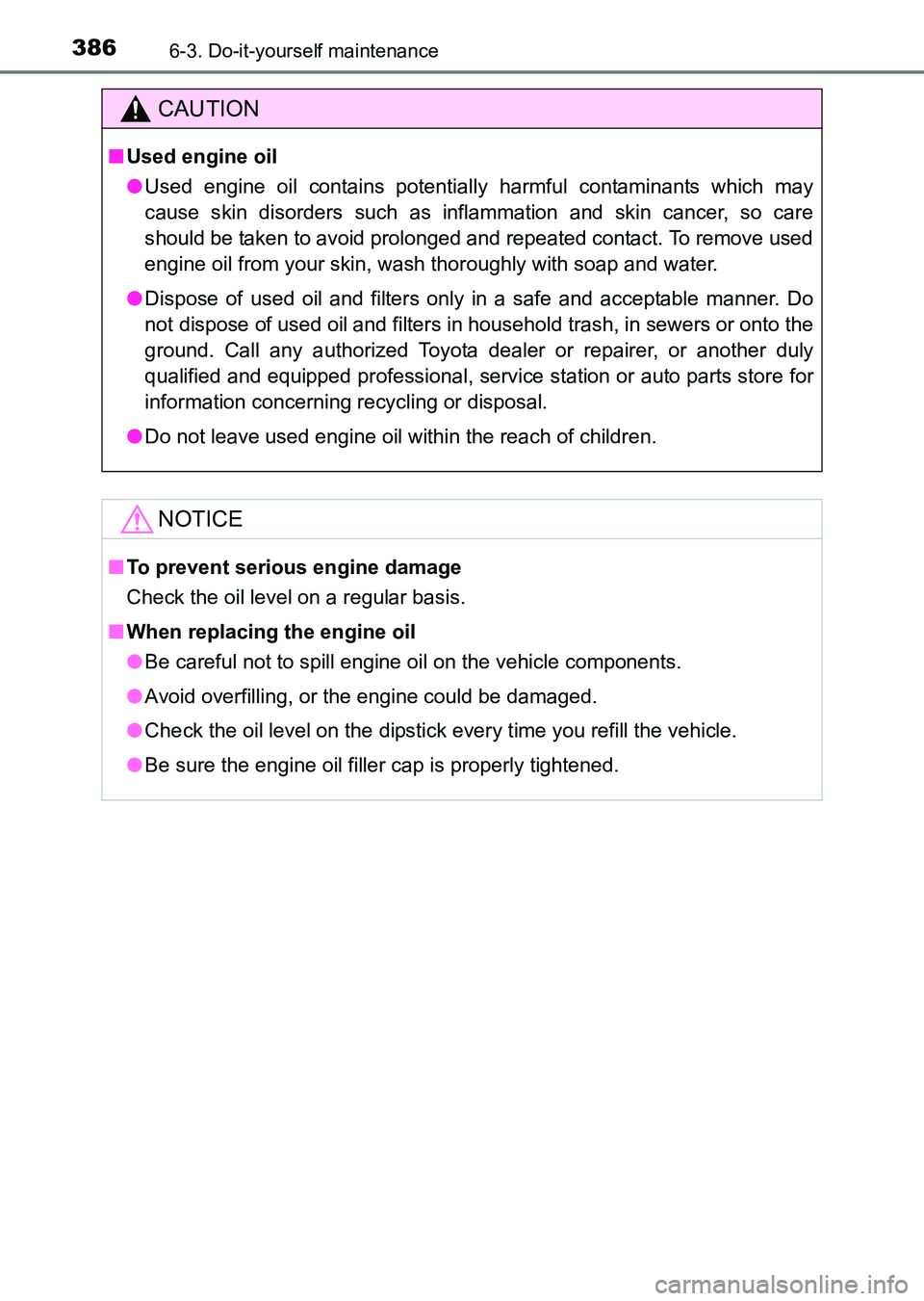

CAUTION
■Used engine oil
● Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation and skin cancer, so care
should be taken to avoid prolonged and repeated contact. To remove used
engine oil from your skin, wash thoroughly with soap and water.
● Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground. Call any authorized Toyota deal er or repairer, or another duly
qualified and equipped professional, service station or auto parts store for
information concerning recycling or disposal.
● Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■
When replacing the engine oil
● Be careful not to spill engine oil on the vehicle components.
● Avoid overfilling, or the engine could be damaged.
● Check the oil level on the dipstick every time you refill the vehicle.
● Be sure the engine oil filler cap is properly tightened.
HILUX_OM_OM0K219E_(EE).book Page 386 Wednesday, May 14, 2014 3:06 PM

3876-3. Do-it-yourself maintenance
6
Maintenance and care
HILUX_OM_OM0K219E_(EE)

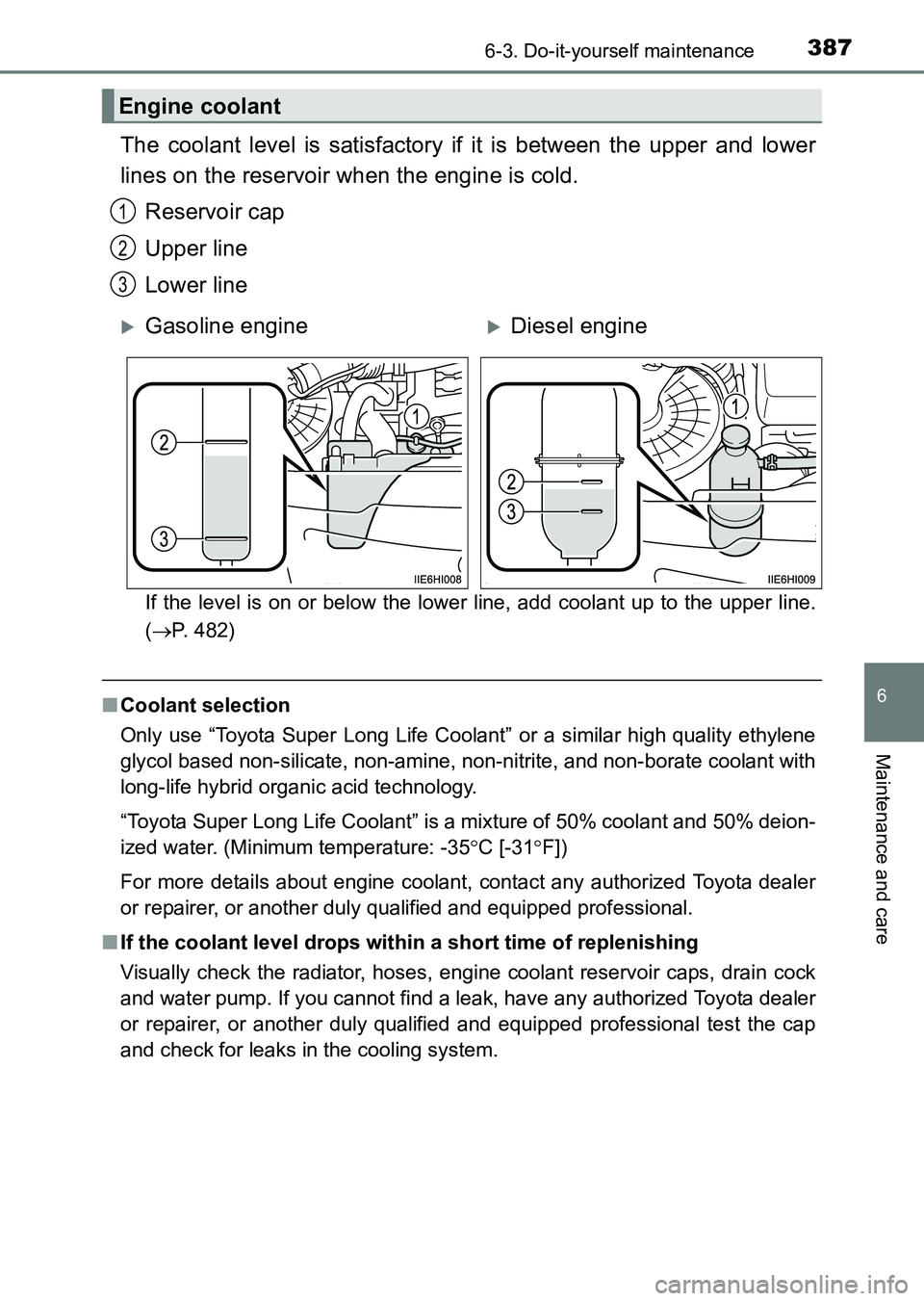

The coolant level is satisfactory if it is between the upper and lower
lines on the reservoir when the engine is cold.Reservoir cap
Upper line
Lower line
If the level is on or below the lower line, add coolant up to the upper line.
(→ P. 482)
■Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non- nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Minimum temperature: -35 °C [-31 °F])
For more details about engine coolant, contact any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
■ If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir caps, drain cock
and water pump. If you cannot find a leak, have any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional test the cap
and check for leaks in the cooling system.
Engine coolant
1
2
3
XGasoline engineXDiesel engine
HILUX_OM_OM0K219E_(EE).book Page 387 Wednesday, May 14, 2014 3:06 PM

3886-3. Do-it-yourself maintenance
HILUX_OM_OM0K219E_(EE)

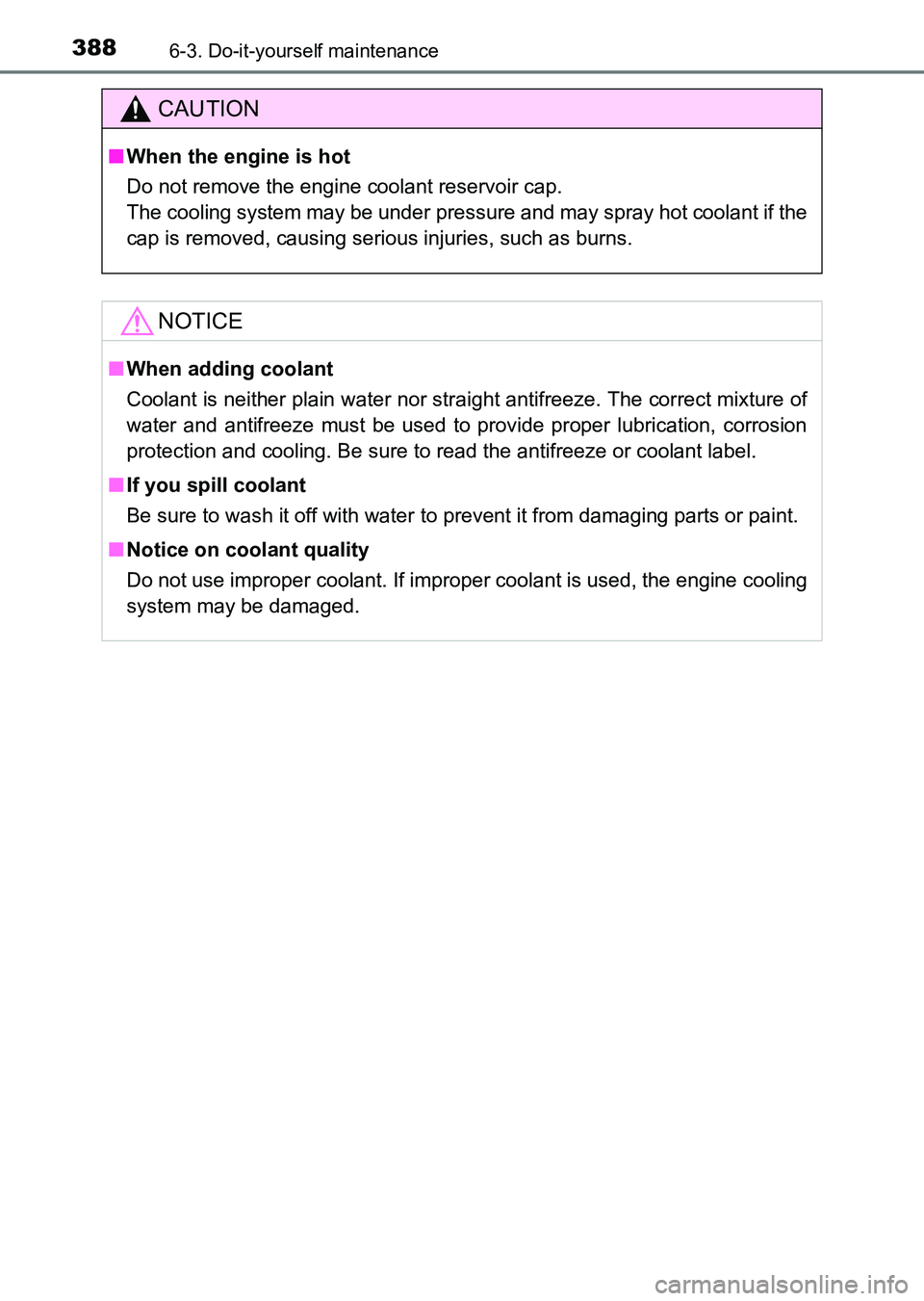

CAUTION
■When the engine is hot
Do not remove the engine coolant reservoir cap.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.
NOTICE
■When adding coolant
Coolant is neither plain water nor stra ight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.
■
If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.
■
Notice on coolant quality
Do not use improper coolant. If improper coolant is used, the engine cooling
system may be damaged.
HILUX_OM_OM0K219E_(EE).book Page 388 Wednesday, May 14, 2014 3:06 PM

3896-3. Do-it-yourself maintenance
6
Maintenance and care
HILUX_OM_OM0K219E_(EE)

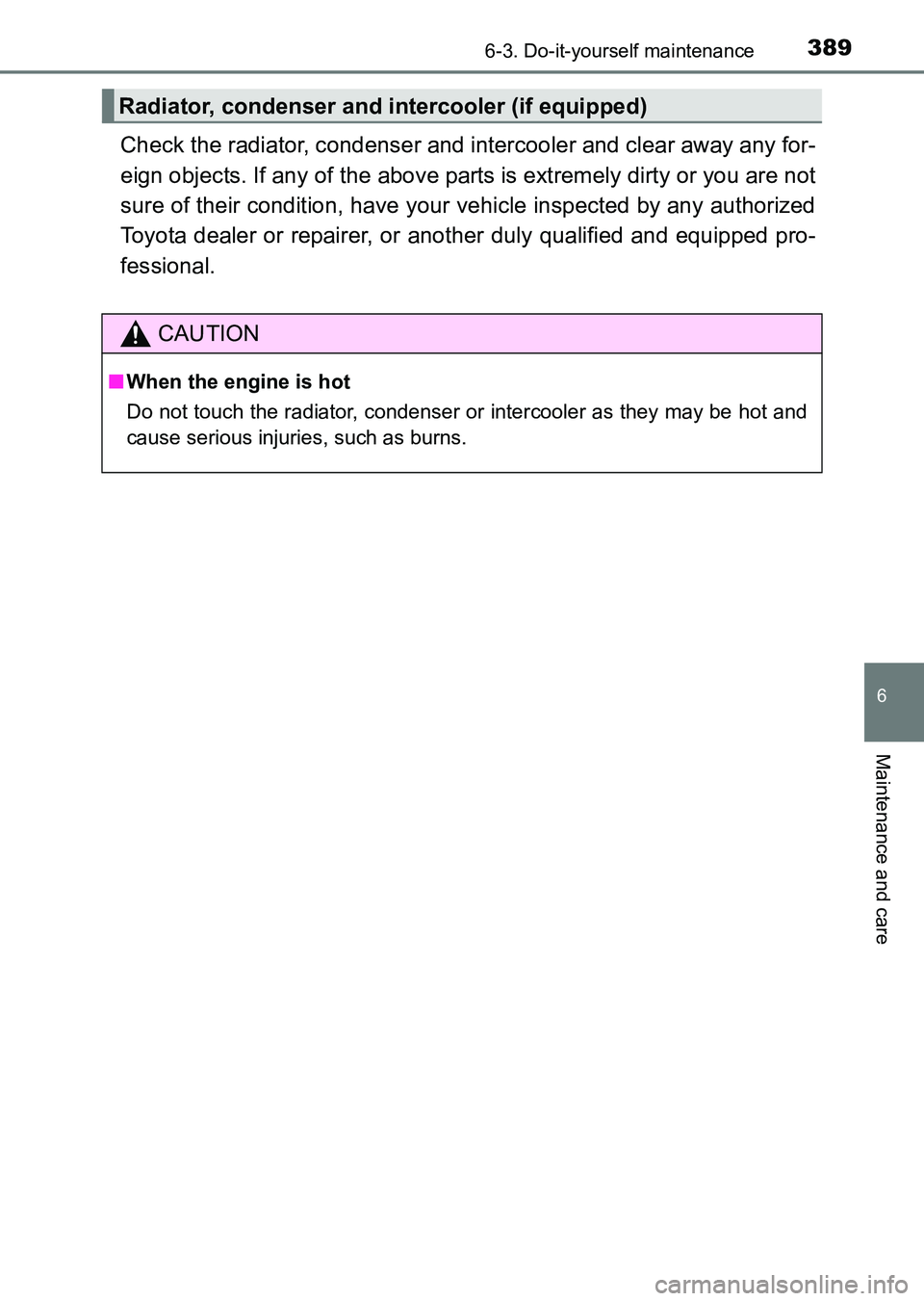

Check the radiator, condenser and intercooler and clear away any for-
eign objects. If any of the above parts is extremely dirty or you are not
sure of their condition, have your vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
Radiator, condenser and intercooler (if equipped)
CAUTION
■When the engine is hot
Do not touch the radiator, condenser or intercooler as they may be hot and
cause serious injuries, such as burns.
HILUX_OM_OM0K219E_(EE).book Page 389 Wednesday, May 14, 2014 3:06 PM

3906-3. Do-it-yourself maintenance
HILUX_OM_OM0K219E_(EE)

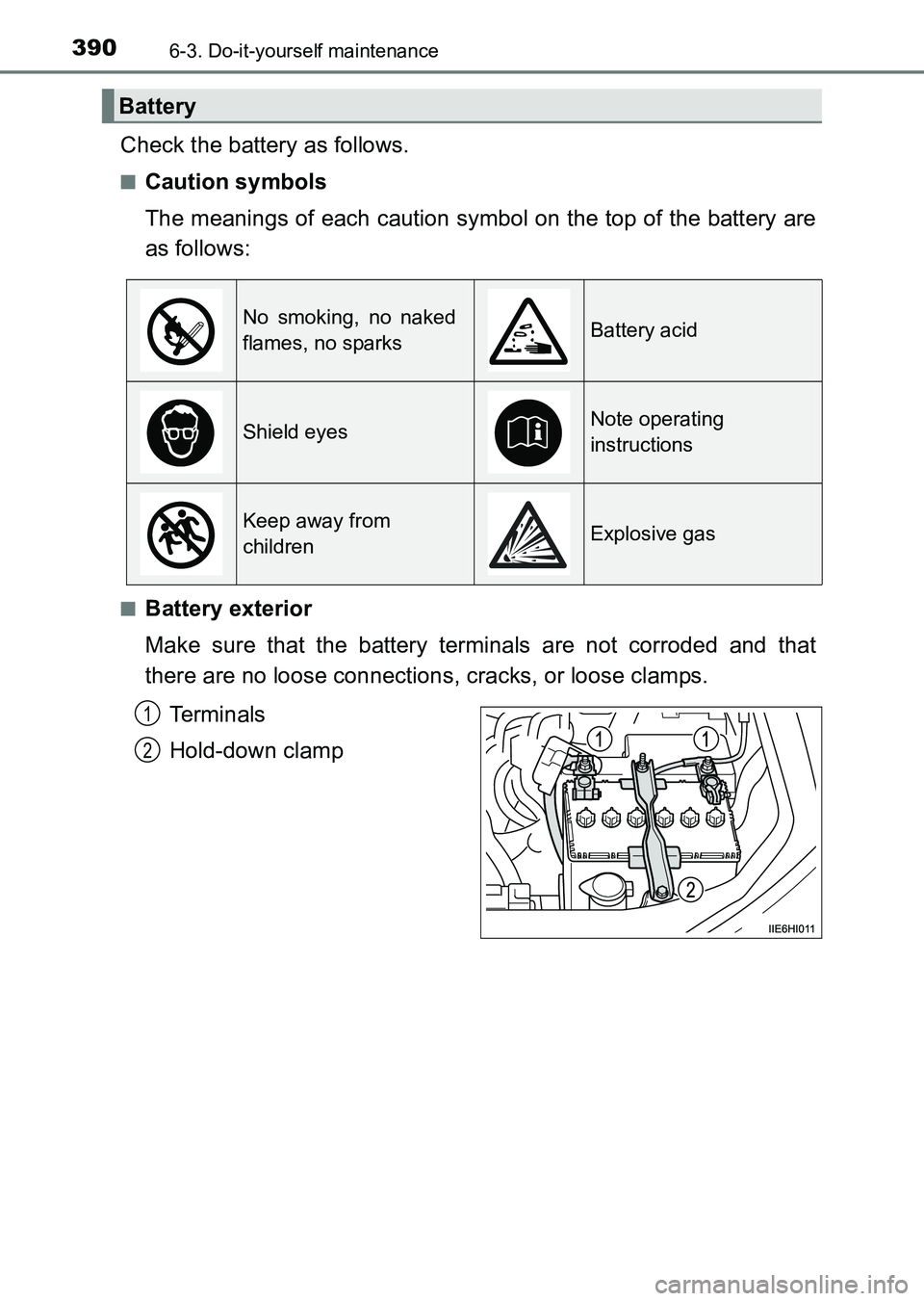

Check the battery as follows.
■Caution symbols
The meanings of each caution symbol on the top of the battery are
as follows:
■Battery exterior
Make sure that the battery terminals are not corroded and that
there are no loose connections, cracks, or loose clamps.Te r m i n a l s
Hold-down clamp
Battery
No smoking, no naked
flames, no sparksBattery acid
Shield eyesNote operating
instructions
Keep away from
childrenExplosive gas
1
2
HILUX_OM_OM0K219E_(EE).book Page 390 Wednesday, May 14, 2014 3:06 PM

3916-3. Do-it-yourself maintenance
6
Maintenance and care
HILUX_OM_OM0K219E_(EE)■

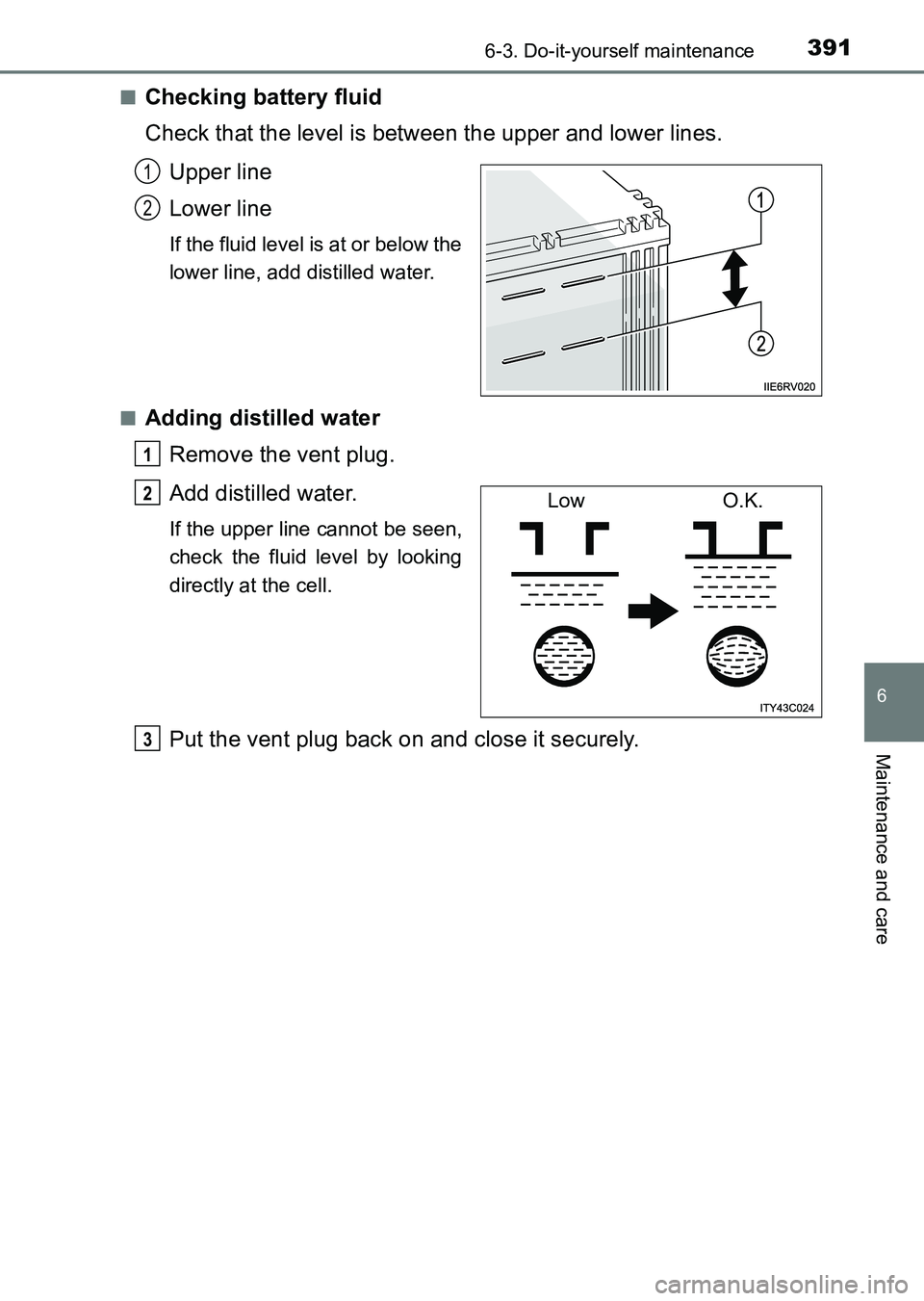

Checking battery fluid
Check that the level is between the upper and lower lines.
Upper line
Lower line
If the fluid level is at or below the
lower line, add distilled water.
■
Adding distilled water Remove the vent plug.
Add distilled water.
If the upper line cannot be seen,
check the fluid level by looking
directly at the cell.
Put the vent plug back on and close it securely.
1
2
1
Low O.K.2
3
HILUX_OM_OM0K219E_(EE).book Page 391 Wednesday, May 14, 2014 3:06 PM

3926-3. Do-it-yourself maintenance
HILUX_OM_OM0K219E_(EE)

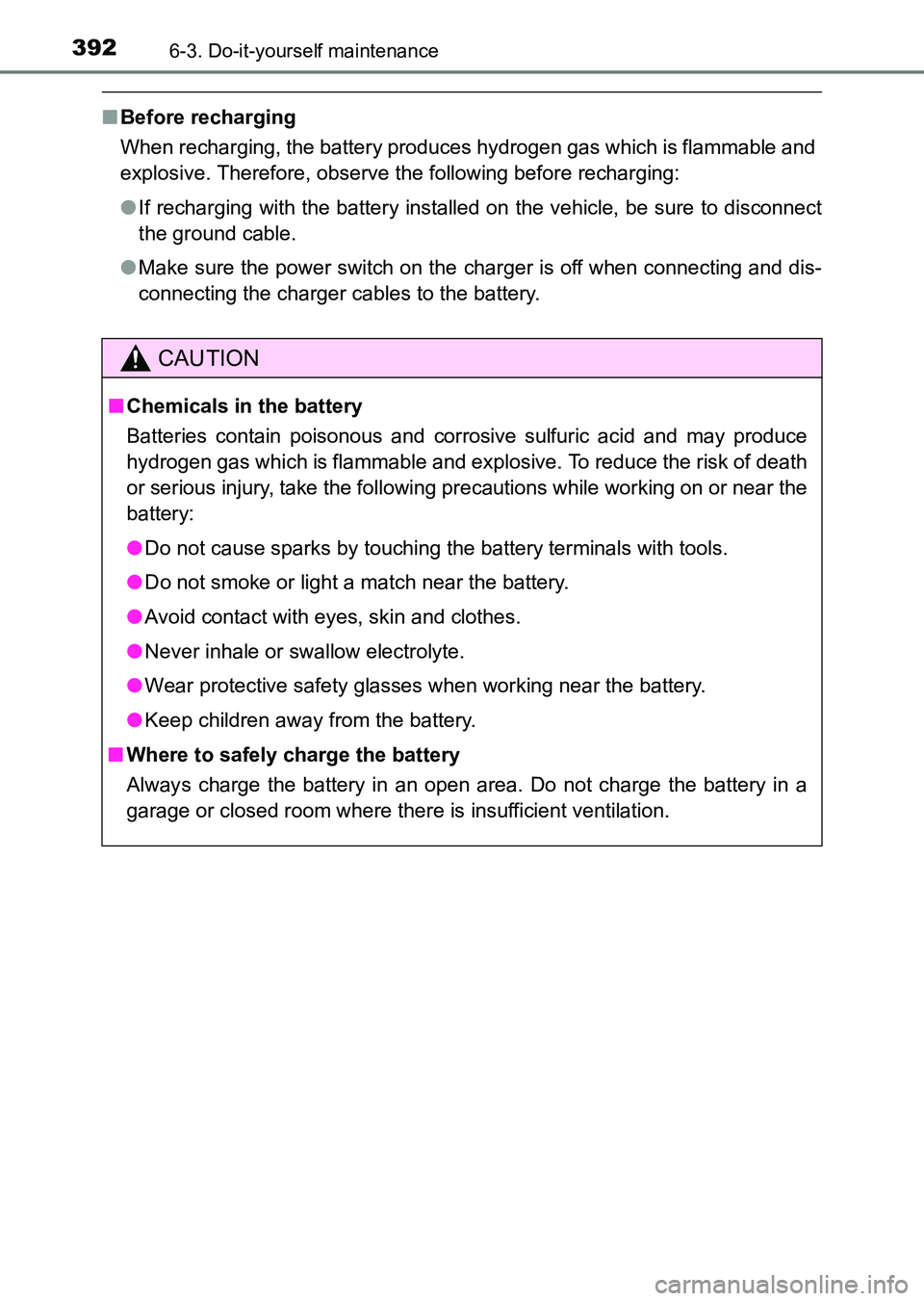

■Before recharging
When recharging, the battery produces hydrogen gas which is flammable and
explosive. Therefore, observe the following before recharging:
●If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.
● Make sure the power switch on the charger is off when connecting and dis-
connecting the charger cables to the battery.
CAUTION
■Chemicals in the battery
Batteries contain poisonous and corrosive sulfuric acid and may produce
hydrogen gas which is flammable and explosive. To reduce the risk of death
or serious injury, take the following precautions while working on or near the
battery:
● Do not cause sparks by touching the battery terminals with tools.
● Do not smoke or light a match near the battery.
● Avoid contact with eyes, skin and clothes.
● Never inhale or swallow electrolyte.
● Wear protective safety glasses when working near the battery.
● Keep children away from the battery.
■ Where to safely charge the battery
Always charge the battery in an open area. Do not charge the battery in a
garage or closed room w here there is insufficient ventilation.
HILUX_OM_OM0K219E_(EE).book Page 392 Wednesday, May 14, 2014 3:06 PM
