2015 TOYOTA HILUX Owners Manual (in English)

3135-2. Using the audio system
5
Interior features
HILUX_OM_OM0K219E_(EE)
You can use the microphone
when talking on the phone.
The person you are speaking to
can be heard from the speakers.
To use the hands-free system, you
must register your Bluetooth®
phone in the system. (→P. 313)
Before using the Bluetooth® audio/phone, it is necessary to register a
Bluetooth® device in the system. Follow the procedure below to regis-
ter (pair) a device:
Press the tune/scroll knob and select “Bluetooth
*” using the knob.
Press the knob and select “Pairing” using the knob.
A passkey will be displayed.
SSP (Secure Simple Pairing) incompatible Bluetooth
® devices:
Input the passkey into the device.
SSP (Secure Simple Pairing) compatible Bluetooth
® devices:
Select “YES” to register the device. Depending on the type of
device, it may register automatically.
If a Bluetooth
® device has both music player and cellular phone func-
tions, both functions will be registered at the same time. When delet-
ing the device, both functions will be deleted at the same time.
If the off-hook switch is pressed and the “TEL” or “PHONE” mode is
entered when no phones have been registered, the registration
screen will be automatically displayed.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Microphone
Using the Bluetooth® audio/phone for the first time
1
2
3
HILUX_OM_OM0K219E_(EE).book Page 313 Wednesday, May 14, 2014 3:06 PM

3145-2. Using the audio system
HILUX_OM_OM0K219E_(EE)
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Menu list of the Bluetooth® audio/phone
First menuSecond menuThird menuOperation details
“Bluetooth*”
“Pairing” -Registering a
Bluetooth® device
“List phone” -Listing the registered
cellular phones
“List audio” -Listing the registered
portable players
“Passkey” -
Changing the pass-
key
“BT Power” -Setting automatic
connection of the
device on or off
“Bluetooth
* info” “Device name”
“Device address” Displaying the
device status
“Display setting” - Setting the auto-
matic connection
confirmation display
to on or off
“Initialize” - Initializing the set-
tings
HILUX_OM_OM0K219E_(EE).book Page 314 Wednesday, May 14, 2014
3:06 PM

3155-2. Using the audio system
5
Interior features
HILUX_OM_OM0K219E_(EE)
■Bluetooth® audio/phone system functions
Depending on the Bluetooth
® device, certain functions may not be available.

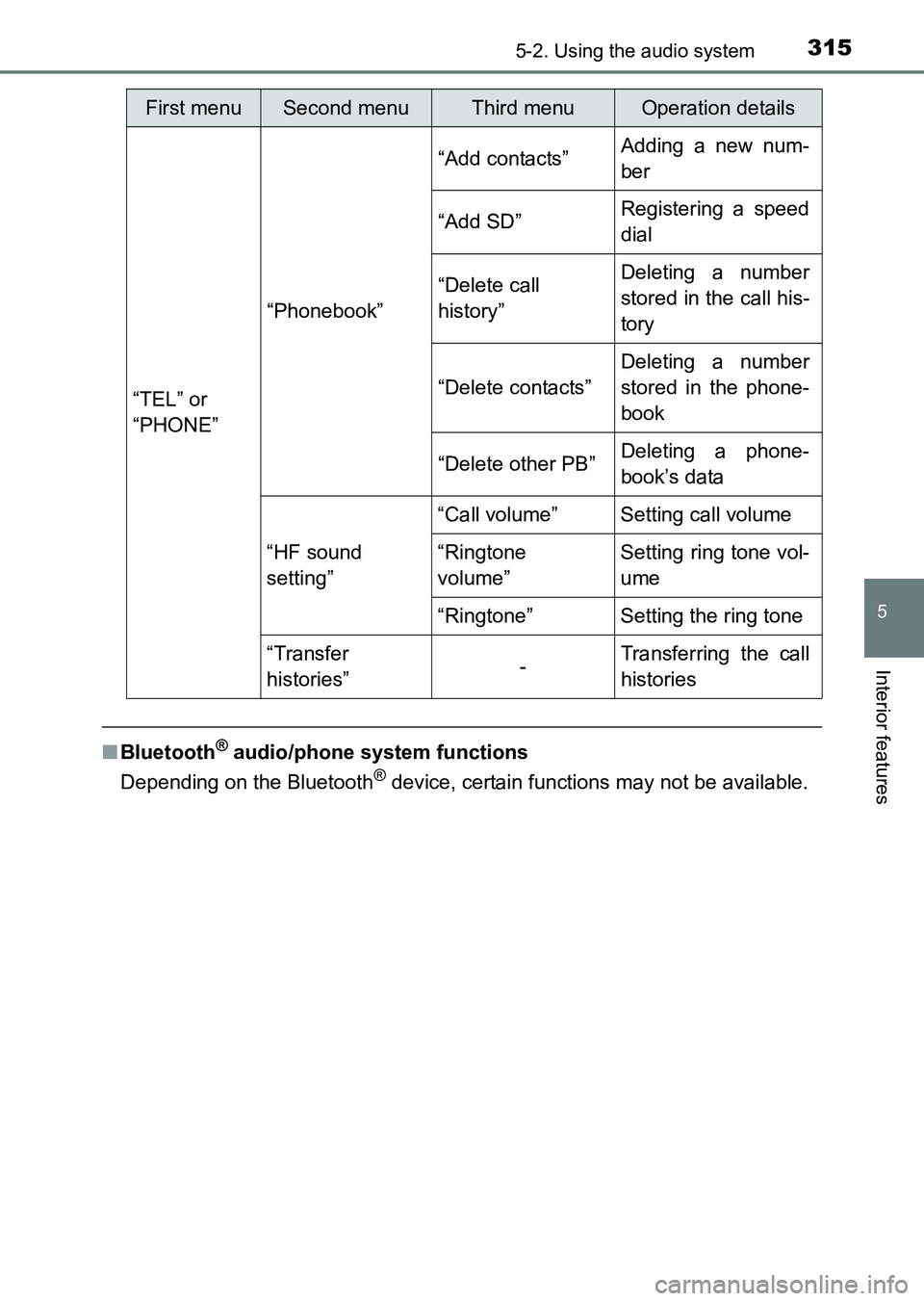

First menuSecond menuThird menuOperation details
“TEL” or
“PHONE” “Phonebook” “Add contacts”
Adding a new num-
ber
“Add SD” Registering a speed
dial
“Delete call
history” Deleting a number
stored in the call his-
tory
“Delete contacts” Deleting a number
stored in the phone-
book
“Delete other PB” Deleting a phone-
book’s data
“HF sound
setting” “Call volume” Setting call volume
“Ringtone
volume”
Setting ring tone vol-
ume
“Ringtone” Setting the ring tone
“Transfer
histories” -Transferring the call
histories
HILUX_OM_OM0K219E_(EE).book Page 315 Wednesday, May 14, 2014
3:06 PM

3165-2. Using the audio system
HILUX_OM_OM0K219E_(EE)

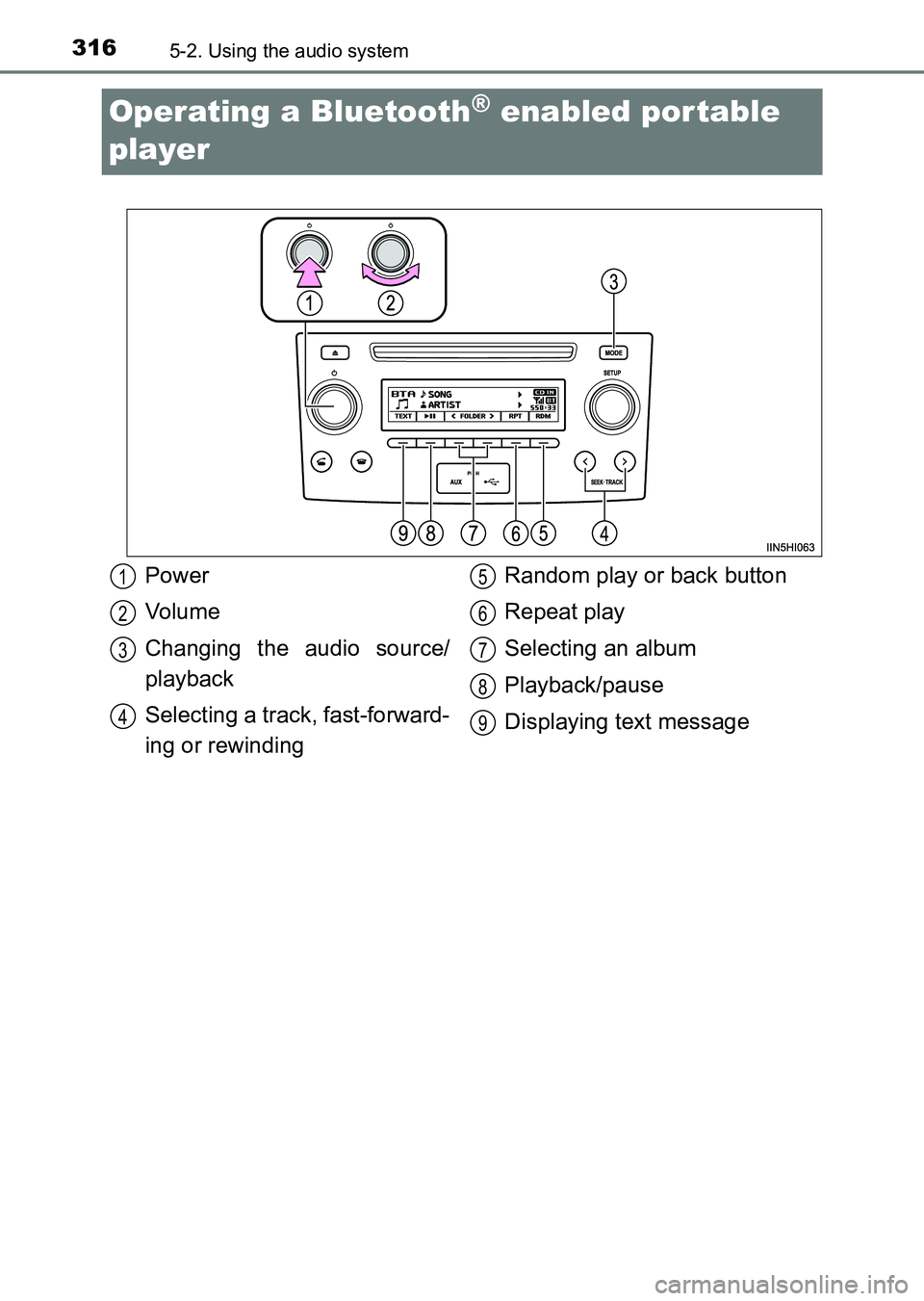

Operating a Bluetooth® enabled por table
player
Power
Vo lu m e
Changing the audio source/
playback
Selecting a track, fast-forward-
ing or rewinding Random play or back button
Repeat play
Selecting an album
Playback/pause
Displaying text message1
2
3
4
5
6
7
8
9
HILUX_OM_OM0K219E_(EE).book Page 316 Wednesday, May 14, 2014
3:06 PM

3175-2. Using the audio system
5
Interior features
HILUX_OM_OM0K219E_(EE)

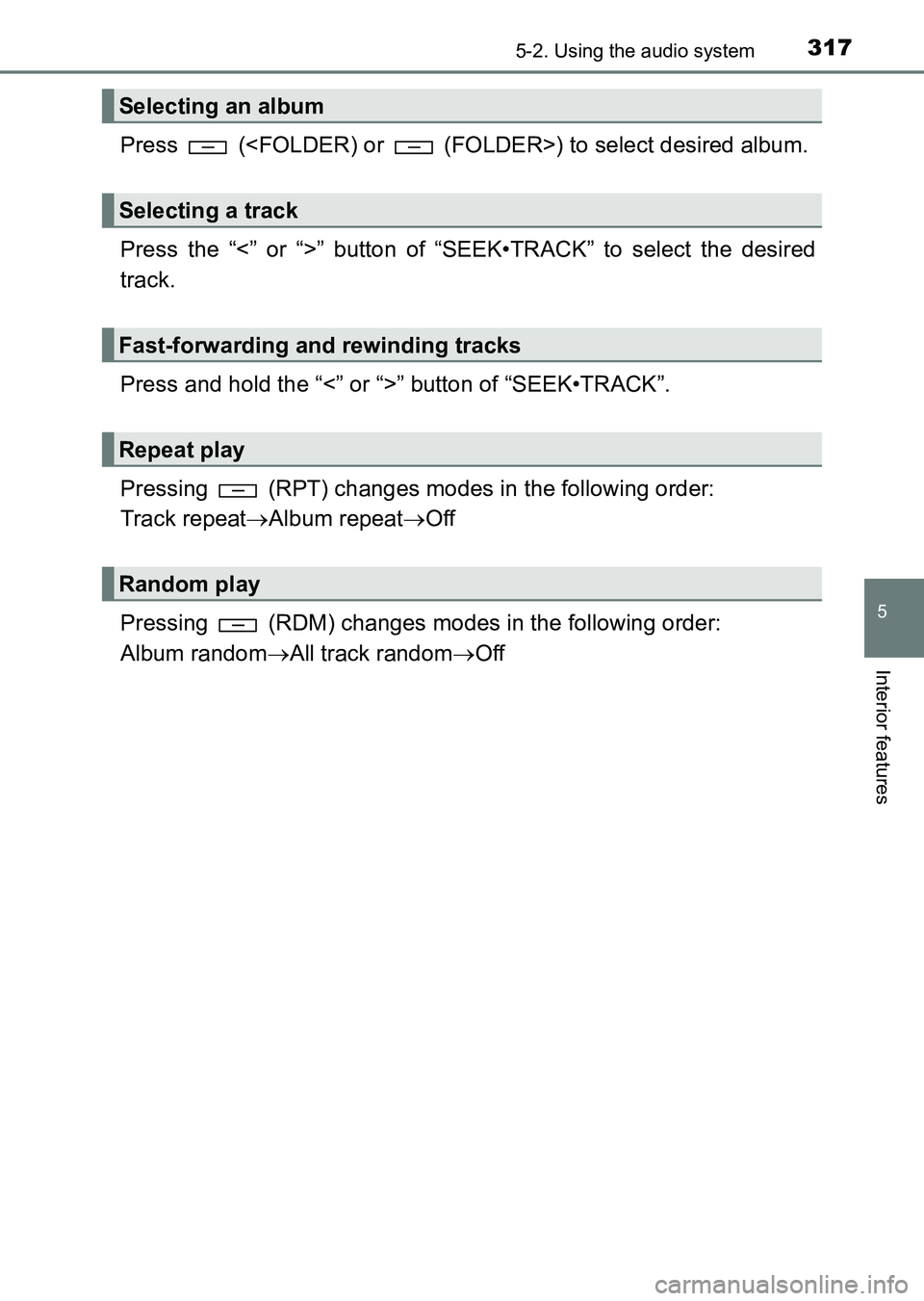

Press () to select desired album.
Press the “<” or “>” button of “SEEK•TRACK” to select the desired
track.
Press and hold the “<” or “>” button of “SEEK•TRACK”.
Pressing (RPT) changes modes in the following order:
Track repeat→Album repeat →Off
Pressing (RDM) changes modes in the following order:
Album random →All track random →Off
Selecting an album
Selecting a track
Fast-forwarding and rewinding tracks
Repeat play
Random play
HILUX_OM_OM0K219E_(EE).book Page 317 Wednesday, May 14, 2014 3:06 PM

3185-2. Using the audio system
HILUX_OM_OM0K219E_(EE)

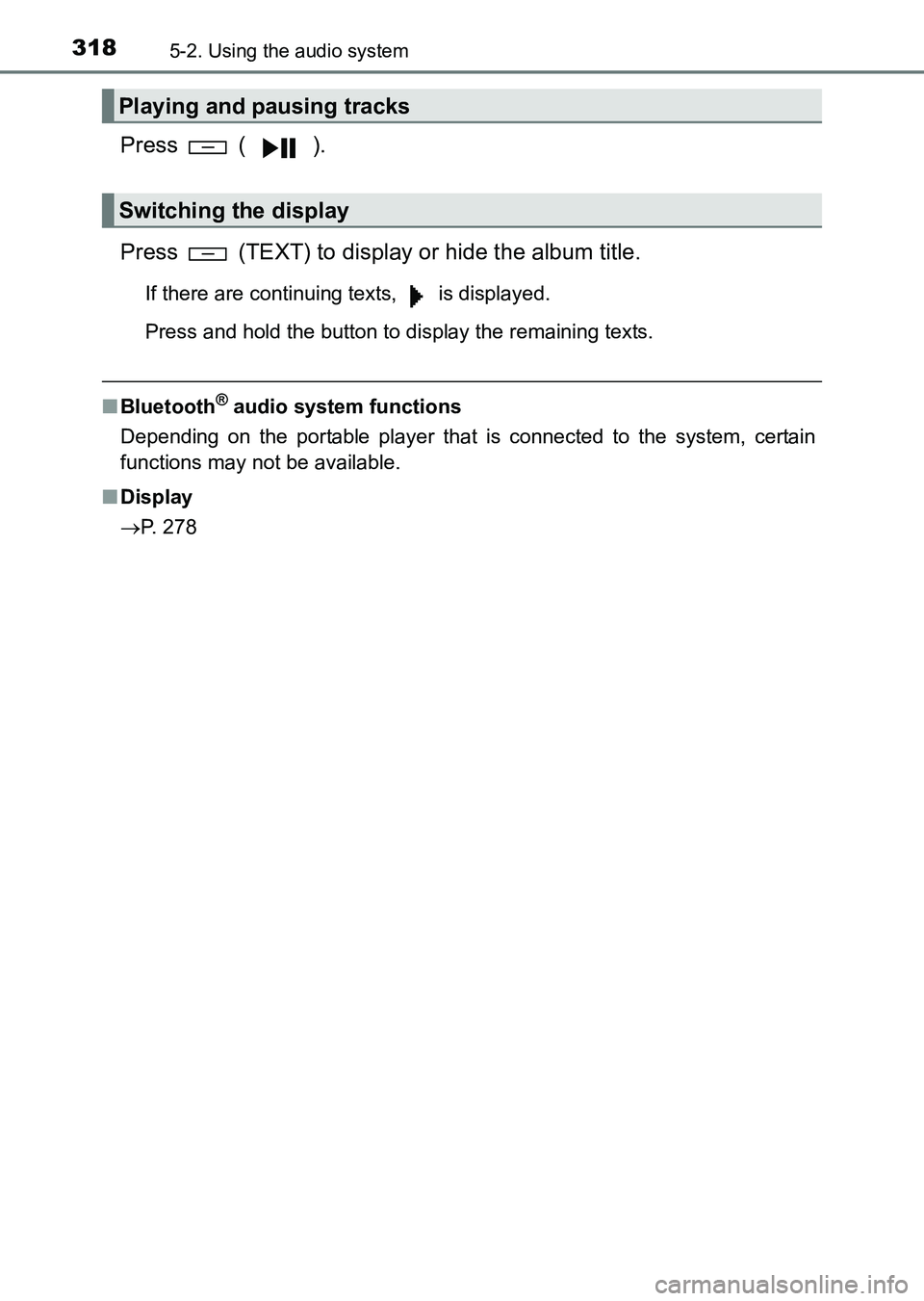

Press ( ).
Press (TEXT) to display or hide the album title.
If there are continuing texts, is displayed.
Press and hold the button to display the remaining texts.
■Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain
functions may not be available.
■ Display
→ P. 278
Playing and pausing tracks
Switching the display
HILUX_OM_OM0K219E_(EE).book Page 318 Wednesday, May 14, 2014 3:06 PM

319
5
5-2. Using the audio system
Interior features
HILUX_OM_OM0K219E_(EE)

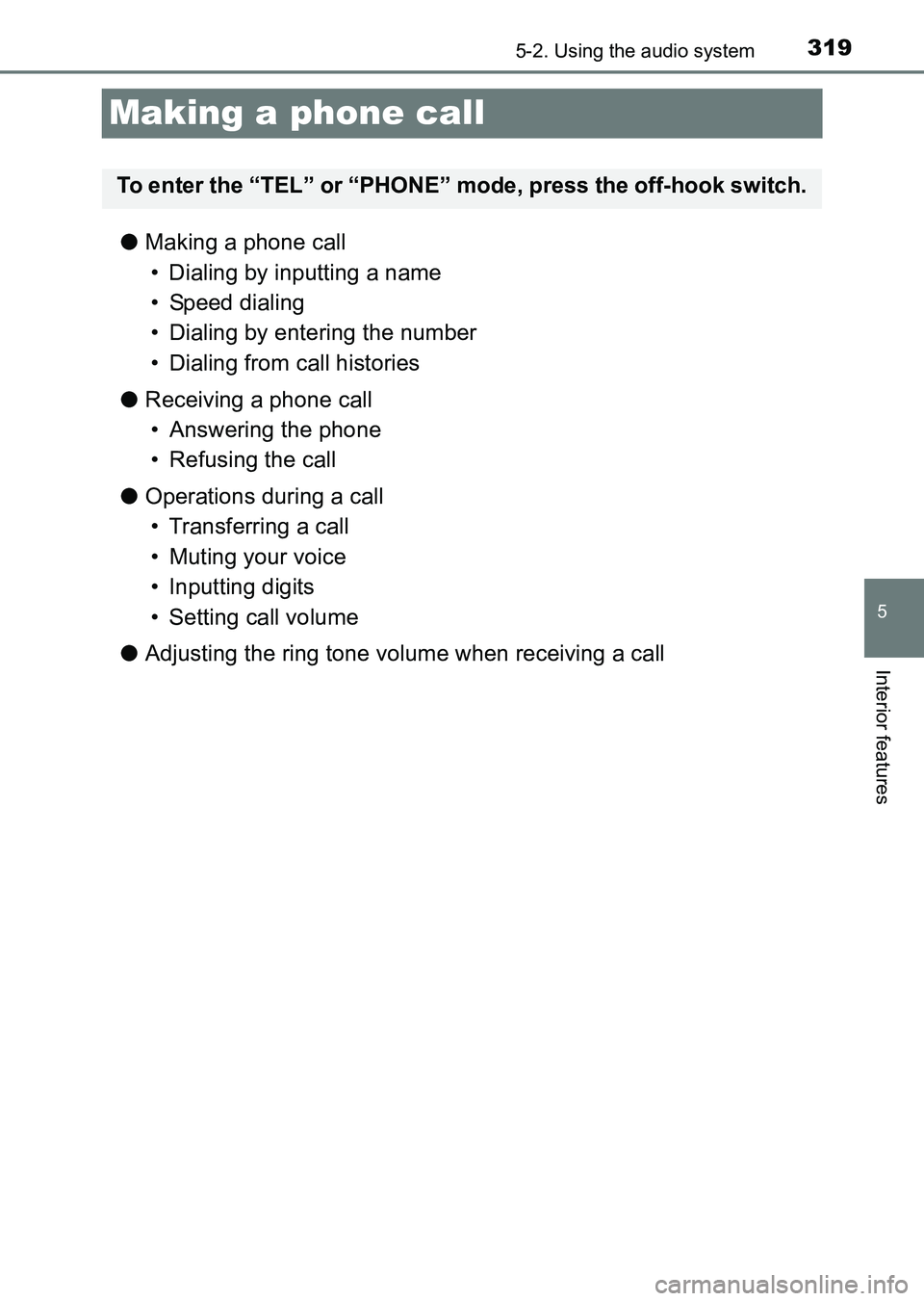

Making a phone call
●Making a phone call
• Dialing by inputting a name
• Speed dialing
• Dialing by entering the number
• Dialing from call histories
● Receiving a phone call
• Answering the phone
• Refusing the call
● Operations during a call
• Transferring a call
• Muting your voice
• Inputting digits
• Setting call volume
● Adjusting the ring tone volume when receiving a call
To enter the “TEL” or “PHONE” mode, press the off-hook switch.
HILUX_OM_OM0K219E_(EE).book Page 319 Wednesday, May 14, 2014 3:06 PM

3205-2. Using the audio system
HILUX_OM_OM0K219E_(EE)
Select “Phonebook” using the tune/scroll knob.
Select the desired name using the knob and press the off-hook
switch.
By pressing (Add S. Dial) and one of the speed dial buttons
(from [1] to [5]) while the desired name is selected, it can
be registered as a speed dial.
Press (A-Z) to display the registered names in alphabetical order
of the initial.
Select “Speed dials” using the tune/scroll knob.
Press the desired preset button (from [1] to [5]) and
press the off-hook switch.
To delete a registered speed dial, after selecting the desired preset
button (from [1] to [5]) press (DELETE) and then
press (YES).
Dialing by selecting a name
Speed dialing
1
2
1
2
HILUX_OM_OM0K219E_(EE).book Page 320 Wednesday, May 14, 2014 3:06 PM
