2015 TOYOTA HILUX Owners Manual (in English)

41

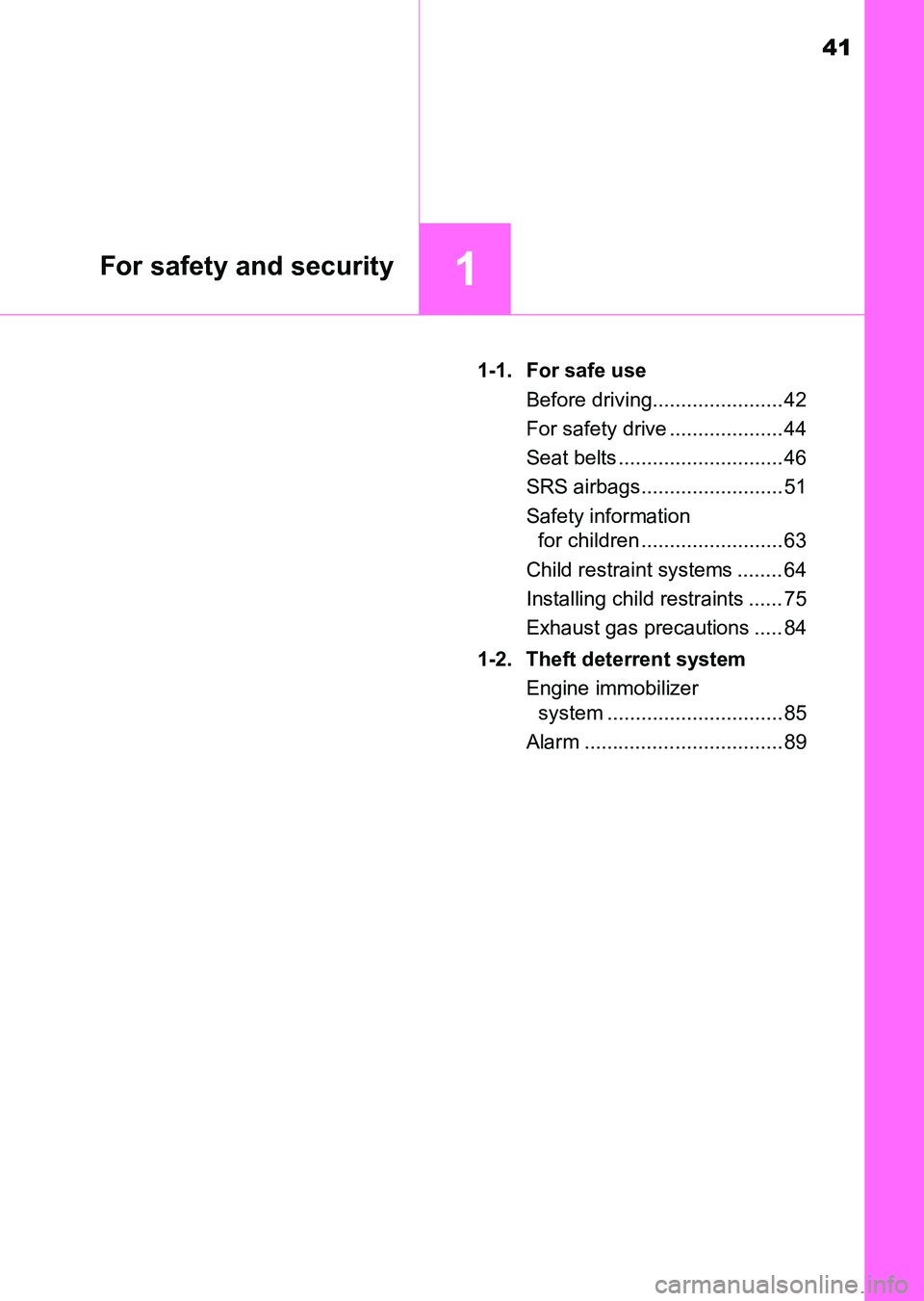

1For safety and security
HILUX_OM_OM0K219E_(EE)1-1. For safe use
Before driving....................... 42
For safety drive .................... 44
Seat belts ............................. 46
SRS airbags.........................51
Safety information for children ......................... 63
Child restraint systems ........ 64
Installing child restraints ...... 75
Exhaust gas precautions ..... 84
1-2. Theft deterrent system Engine immobilizer system ............................... 85
Alarm ................................... 89
HILUX_OM_OM0K219E_(EE).book Page 41 Wednesday, May 14, 2014 3:06 PM

421-1. For safe use
HILUX_OM_OM0K219E_(EE)

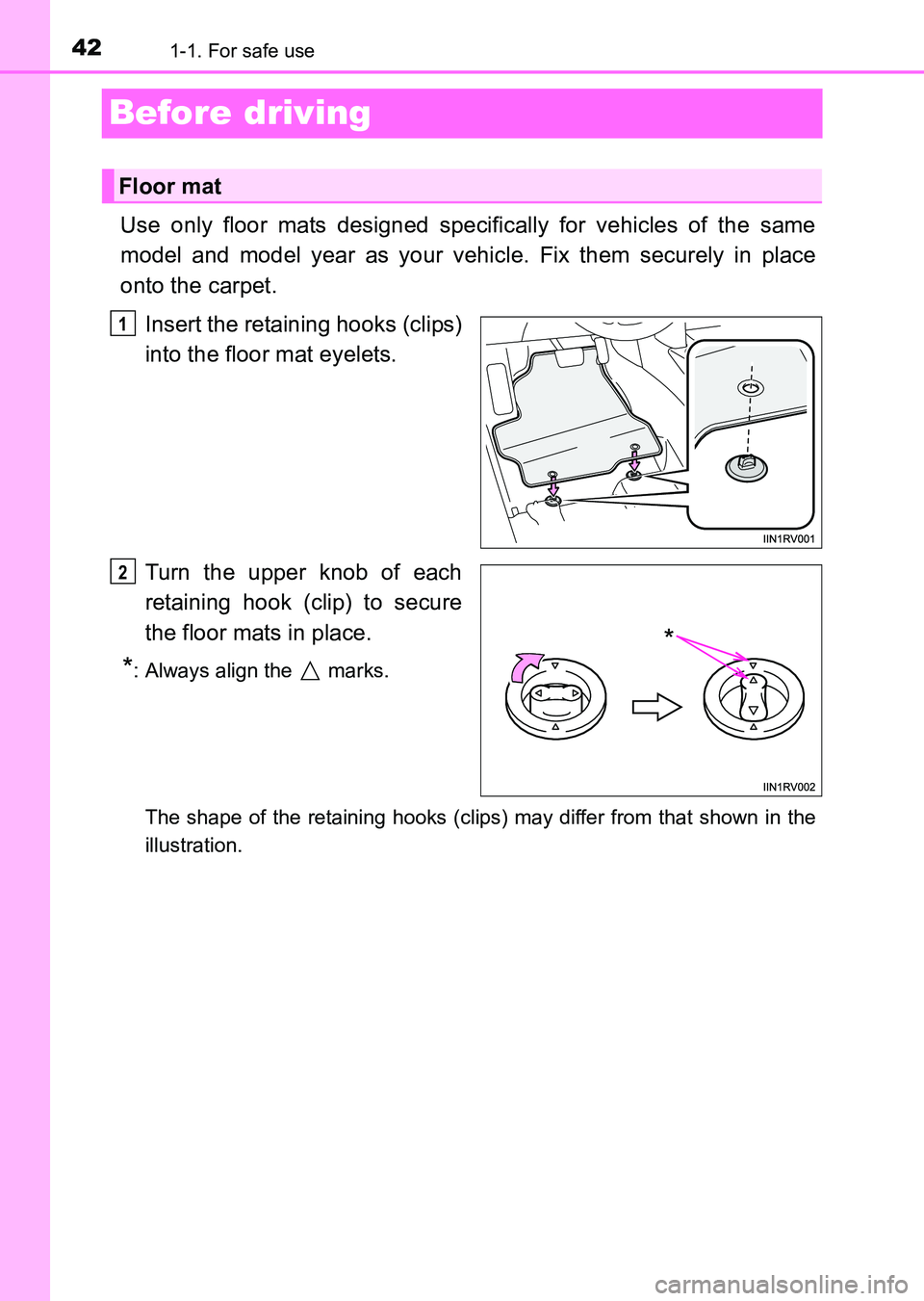

Before driving
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
Floor mat
1
*
2
HILUX_OM_OM0K219E_(EE).book Page 42 Wednesday, May 14, 2014 3:06 PM

431-1. For safe use
1
HILUX_OM_OM0K219E_(EE)
For safety and security

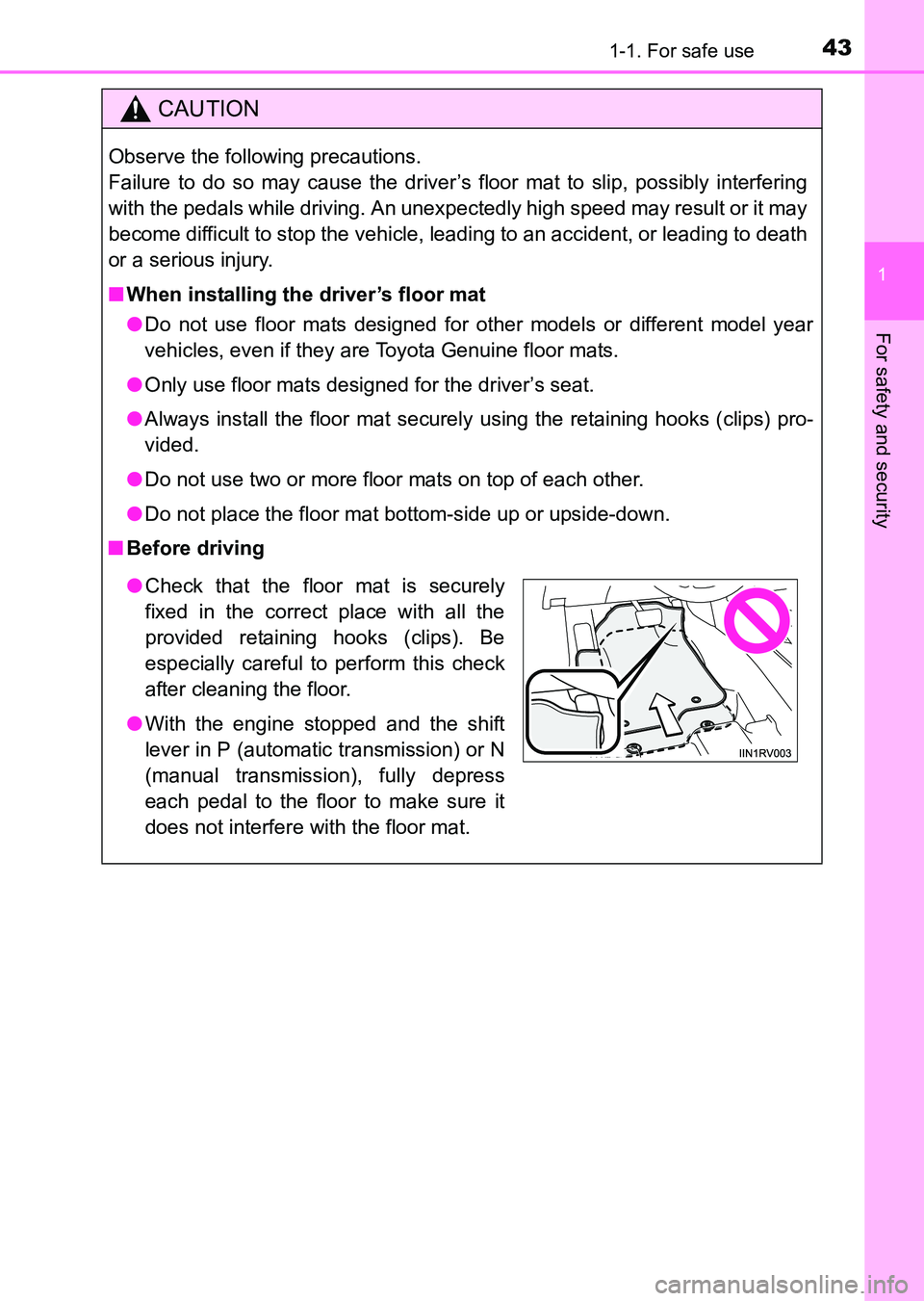

CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to an accident, or leading to death
or a serious injury.
■When installing the driver’s floor mat
● Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
● Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
●
With the engine stopped and the shift
lever in P (automatic transmission) or N
(manual transmission), fully depress
each pedal to the floor to make sure it
does not interfere with the floor mat.
HILUX_OM_OM0K219E_(EE).book Page 43 Wednesday, May 14, 2014 3:06 PM

441-1. For safe use
HILUX_OM_OM0K219E_(EE)

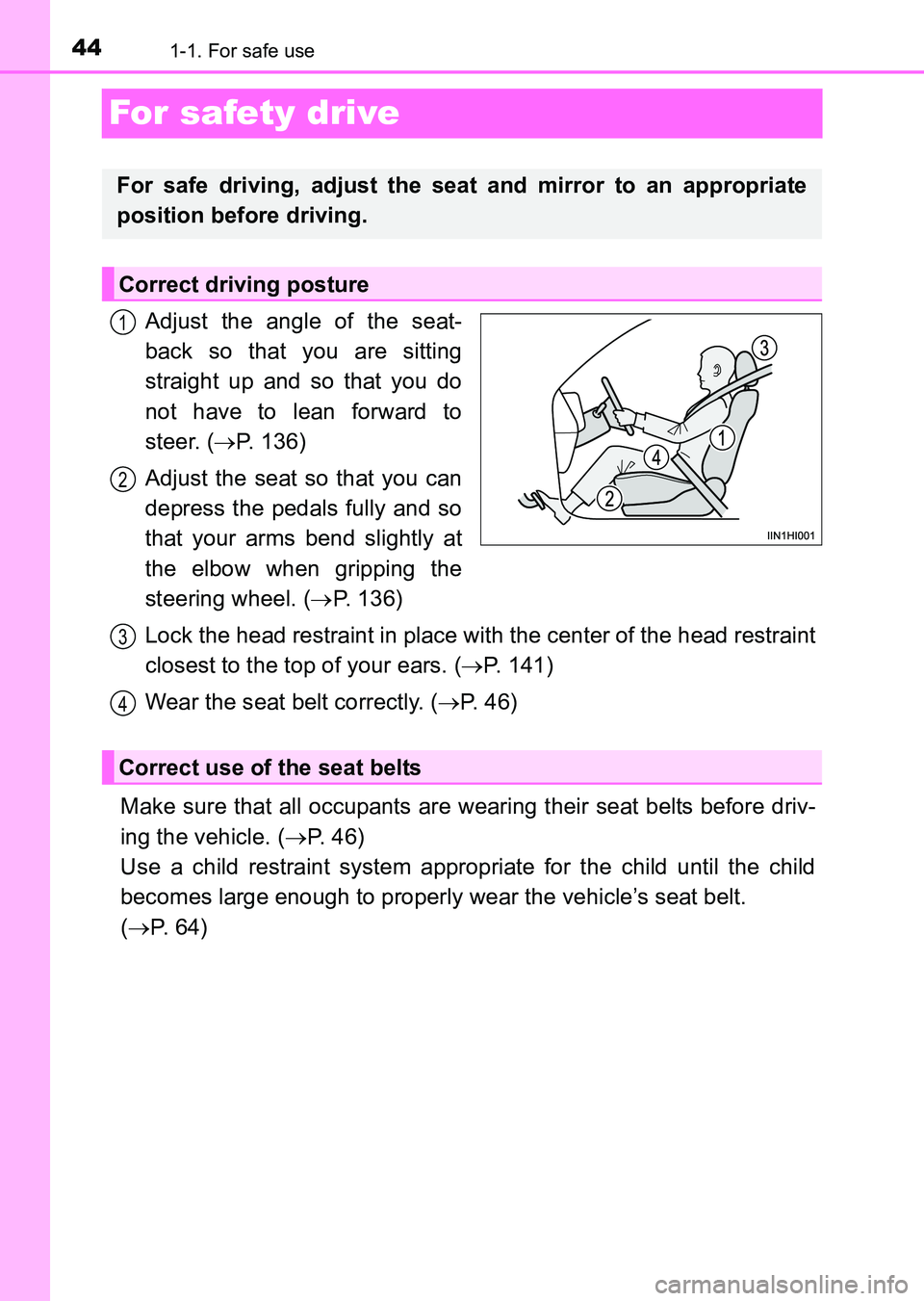

For safety drive
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (→P. 136)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( →P. 136)
Lock the head restraint in place with the center of the head restraint
closest to the top of your ears. ( →P. 141)
Wear the seat belt correctly. ( →P. 4 6 )
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. ( →P. 4 6 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
( → P. 6 4 )
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
3
4
HILUX_OM_OM0K219E_(EE).book Page 44 Wednesday, May 14, 2014 3:06 PM

451-1. For safe use
1
HILUX_OM_OM0K219E_(EE)
For safety and security

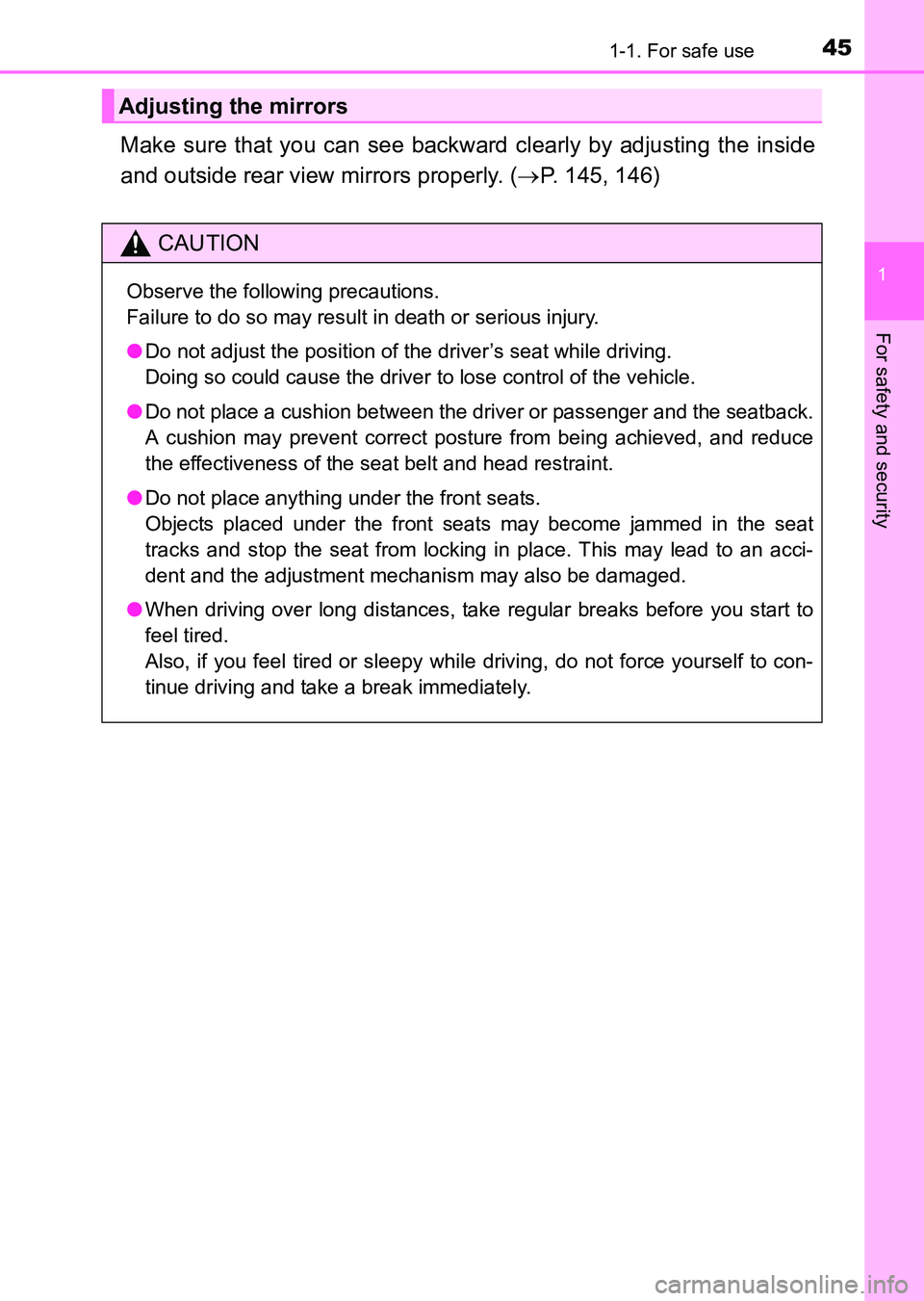

Make sure that you can see backward clearly by adjusting the inside
and outside rear view mirrors properly. (→P. 145, 146)
Adjusting the mirrors
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
●
Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
●
Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
●
Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent and the adjustment mechanism may also be damaged.
●
When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.
HILUX_OM_OM0K219E_(EE).book Page 45 Wednesday, May 14, 2014 3:06 PM

461-1. For safe use
HILUX_OM_OM0K219E_(EE)

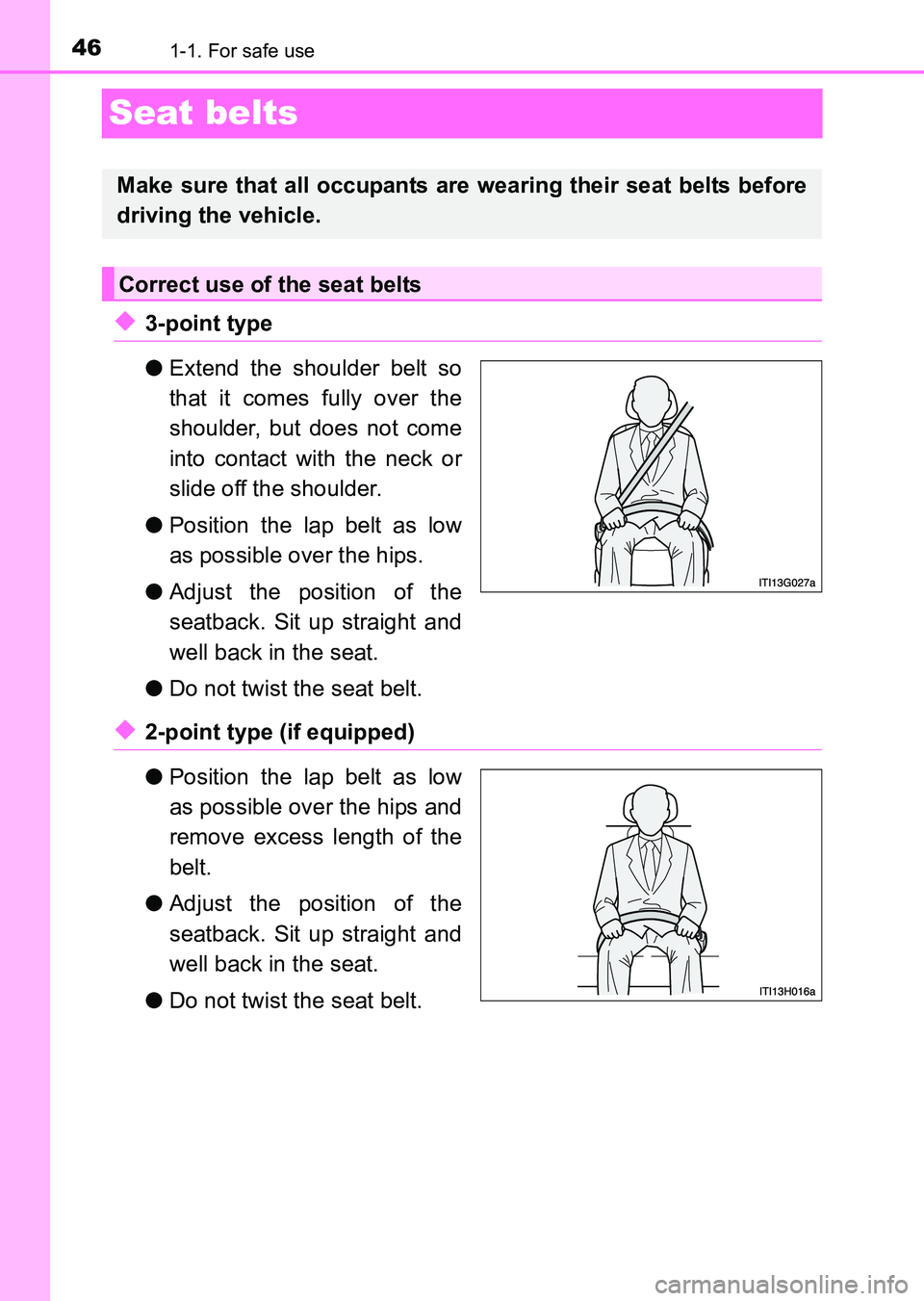

Seat belts
◆3-point type
●Extend the shoulder belt so
that it comes fully over the
shoulder, but does not come
into contact with the neck or
slide off the shoulder.
● Position the lap belt as low
as possible over the hips.
● Adjust the position of the
seatback. Sit up straight and
well back in the seat.
● Do not twist the seat belt.
◆2-point type (if equipped)
●Position the lap belt as low
as possible over the hips and
remove excess length of the
belt.
● Adjust the position of the
seatback. Sit up straight and
well back in the seat.
● Do not twist the seat belt.
Make sure that all occupants are wearing their seat belts before
driving the vehicle.
Correct use of the seat belts
HILUX_OM_OM0K219E_(EE).book Page 46 Wednesday, May 14, 2014 3:06 PM

471-1. For safe use
1
HILUX_OM_OM0K219E_(EE)
For safety and security

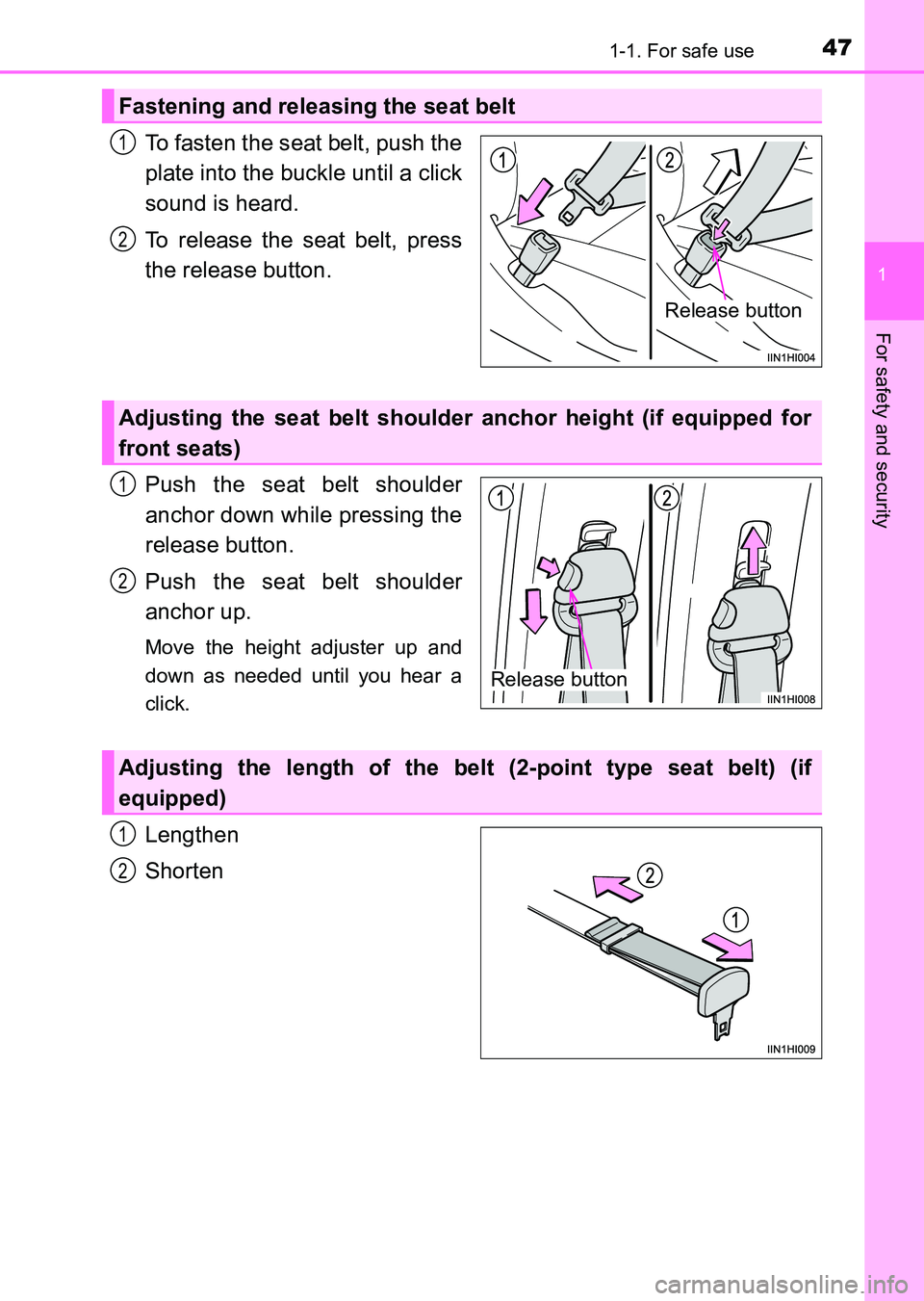

To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
To release the seat belt, press
the release button.
Push the seat belt shoulder
anchor down while pressing the
release button.
Push the seat belt shoulder
anchor up.
Move the height adjuster up and
down as needed until you hear a
click.
Lengthen
Shorten
Fastening and releasing the seat belt
Release button
1
2
Adjusting the seat belt shoulder anchor height (if equipped for
front seats)
Release button
1
2
Adjusting the length of the belt (2-point type seat belt) (if
equipped)
1
2
HILUX_OM_OM0K219E_(EE).book Page 47 Wednesday, May 14, 2014 3:06 PM

481-1. For safe use
HILUX_OM_OM0K219E_(EE)
The pretensioners help the seat
belts to quickly restrain the occu-
pants by retracting the seat belts
when the vehicle is subjected to
certain types of severe frontal col-
lision.
The pretensioners do not activate
in the event of a minor frontal
impact, a side impact, a rear
impact or a vehicle rollover.
■Emergency locking retractor (ELR) (3-point type seat belt)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
■ Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
●Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt. ( → P. 64)
● When the child becomes large enough to properly wear the vehicle’s seat
belt, follow the instructions regarding seat belt usage. ( →P. 46)
■ Replacing the belt after the pret ensioner has been activated (if
equipped)
If the vehicle is involved in multiple collisions, the pretensioner will activate for
the first collision, but will not activate for the second or subsequent collisions.
■ Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact
any authorized Toyota dealer or re pairer, or another duly qualified and
equipped professional for seat belt replacement or installation.
Seat belt pretensioners (if equipped for front seats)
