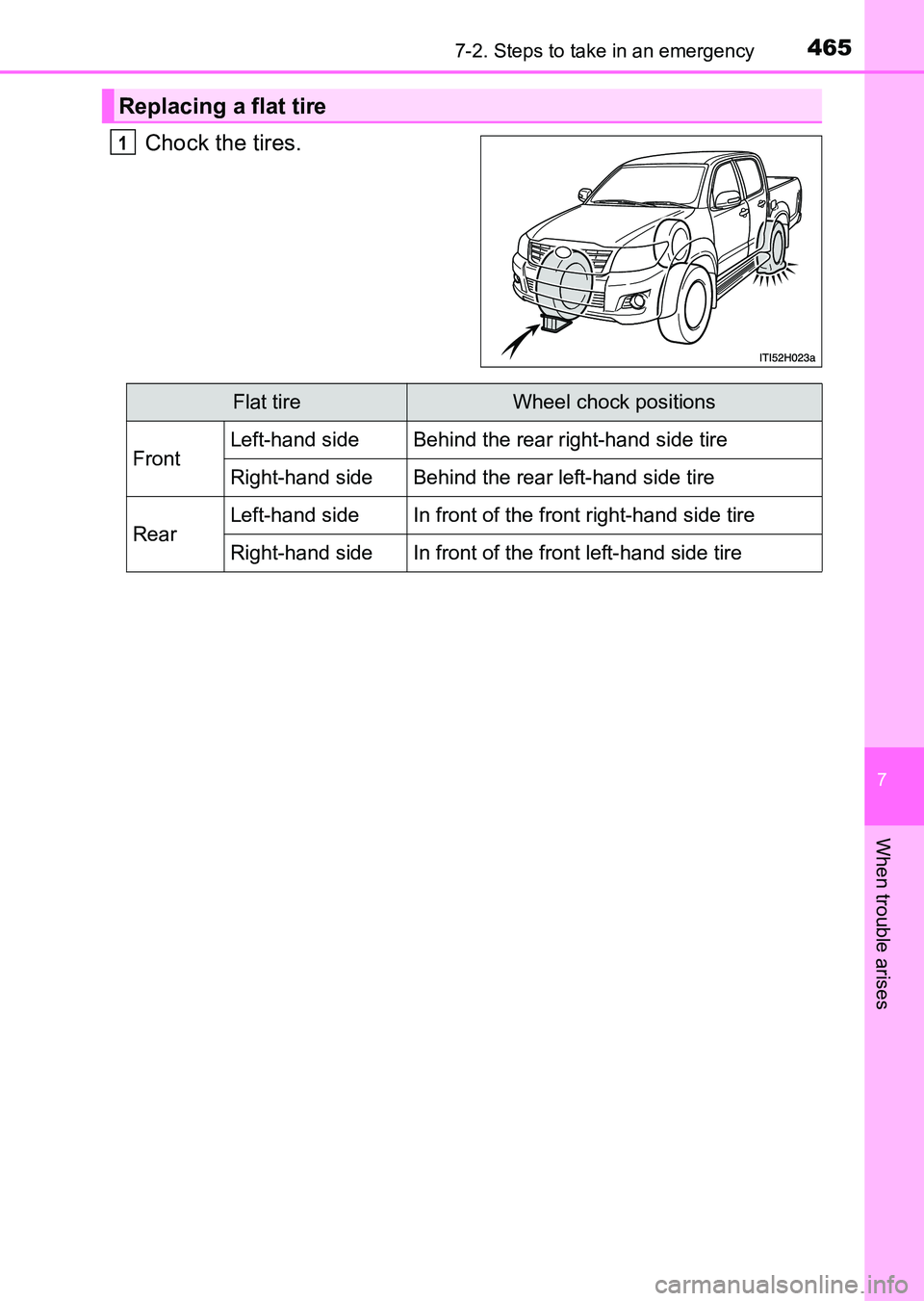

Chock the tires.
Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
HILUX_OM_OM0K219E_(EE).book Page 465 Wednesday, May 14, 2014 3:06 PM

4667-2. Steps to take in an emergency
HILUX_OM_OM0K219E_(EE)

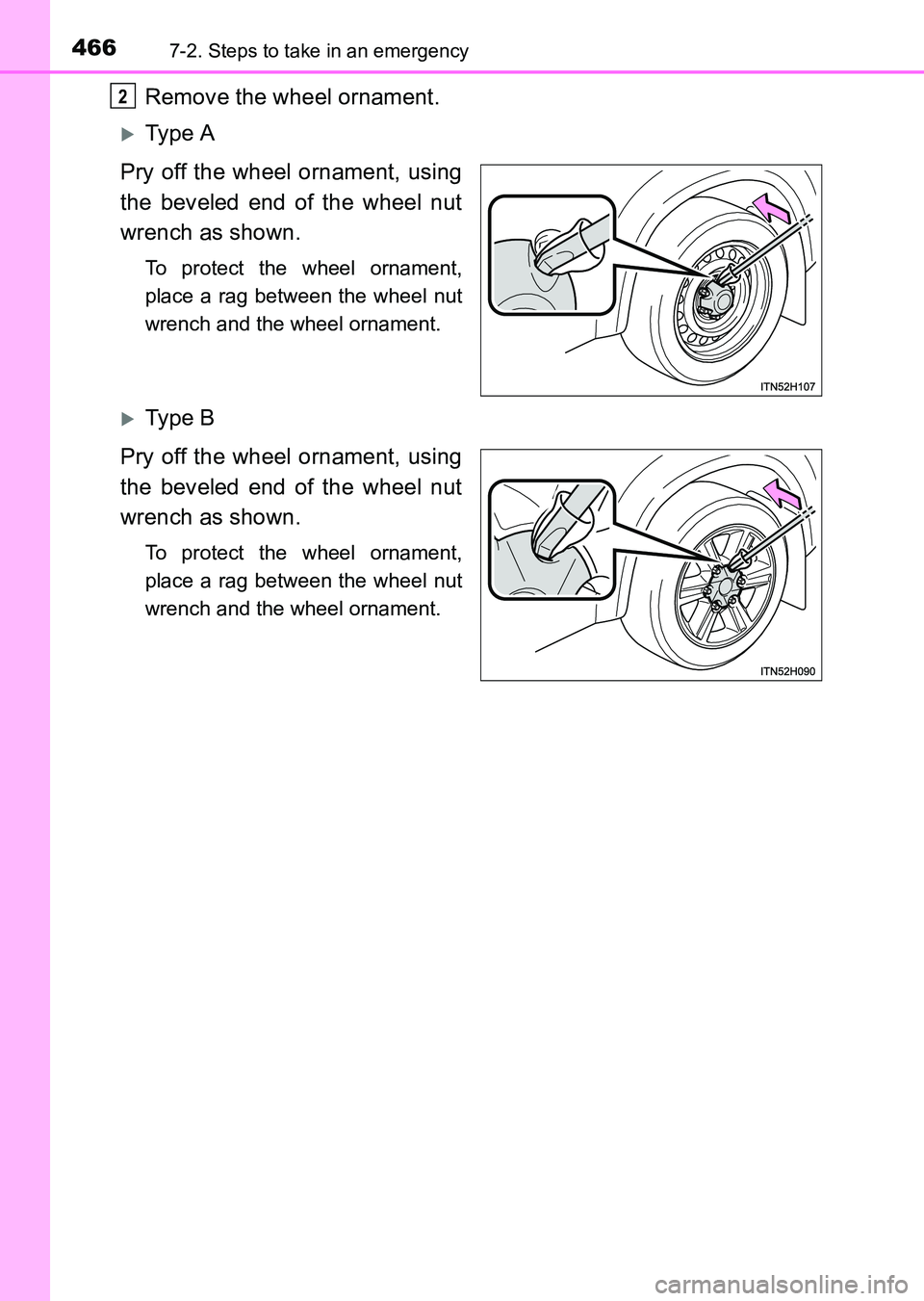

Remove the wheel ornament.
XTy pe A
Pry off the wheel ornament, using
the beveled end of the wheel nut
wrench as shown.
To protect the wheel ornament,
place a rag between the wheel nut
wrench and the wheel ornament.
XTy pe B
Pry off the wheel ornament, using
the beveled end of the wheel nut
wrench as shown.
To protect the wheel ornament,
place a rag between the wheel nut
wrench and the wheel ornament.
2
HILUX_OM_OM0K219E_(EE).book Page 466 Wednesday, May 14, 2014 3:06 PM

4677-2. Steps to take in an emergency
7
When trouble arises
HILUX_OM_OM0K219E_(EE)

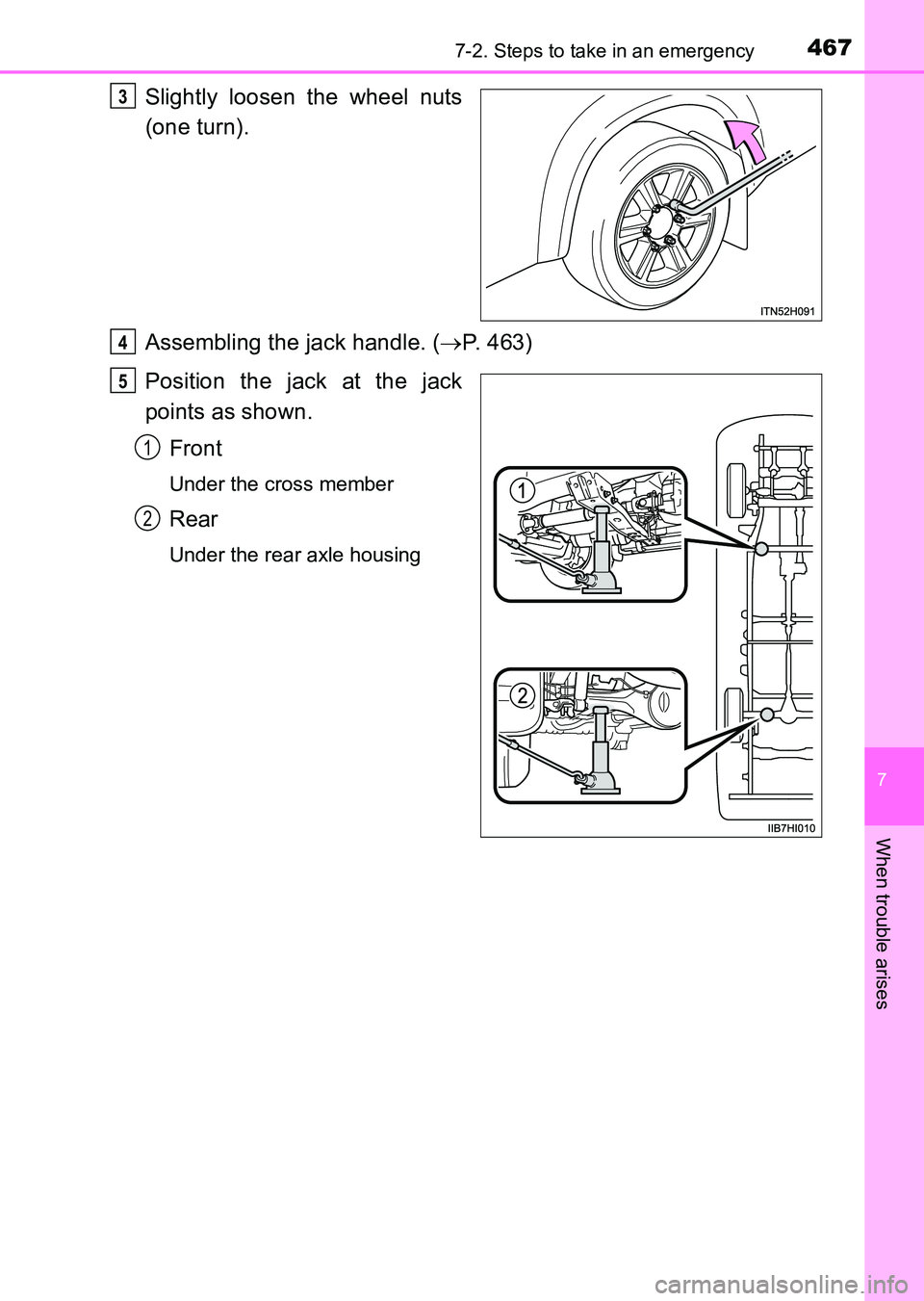

Slightly loosen the wheel nuts
(one turn).
Assembling the jack handle. (→P. 463)
Position the jack at the jack
points as shown. Front
Under the cross member
Rear
Under the rear axle housing
3
4
5
1
2
HILUX_OM_OM0K219E_(EE).book Page 467 Wednesday, May 14, 2014 3:06 PM

4687-2. Steps to take in an emergency
HILUX_OM_OM0K219E_(EE)

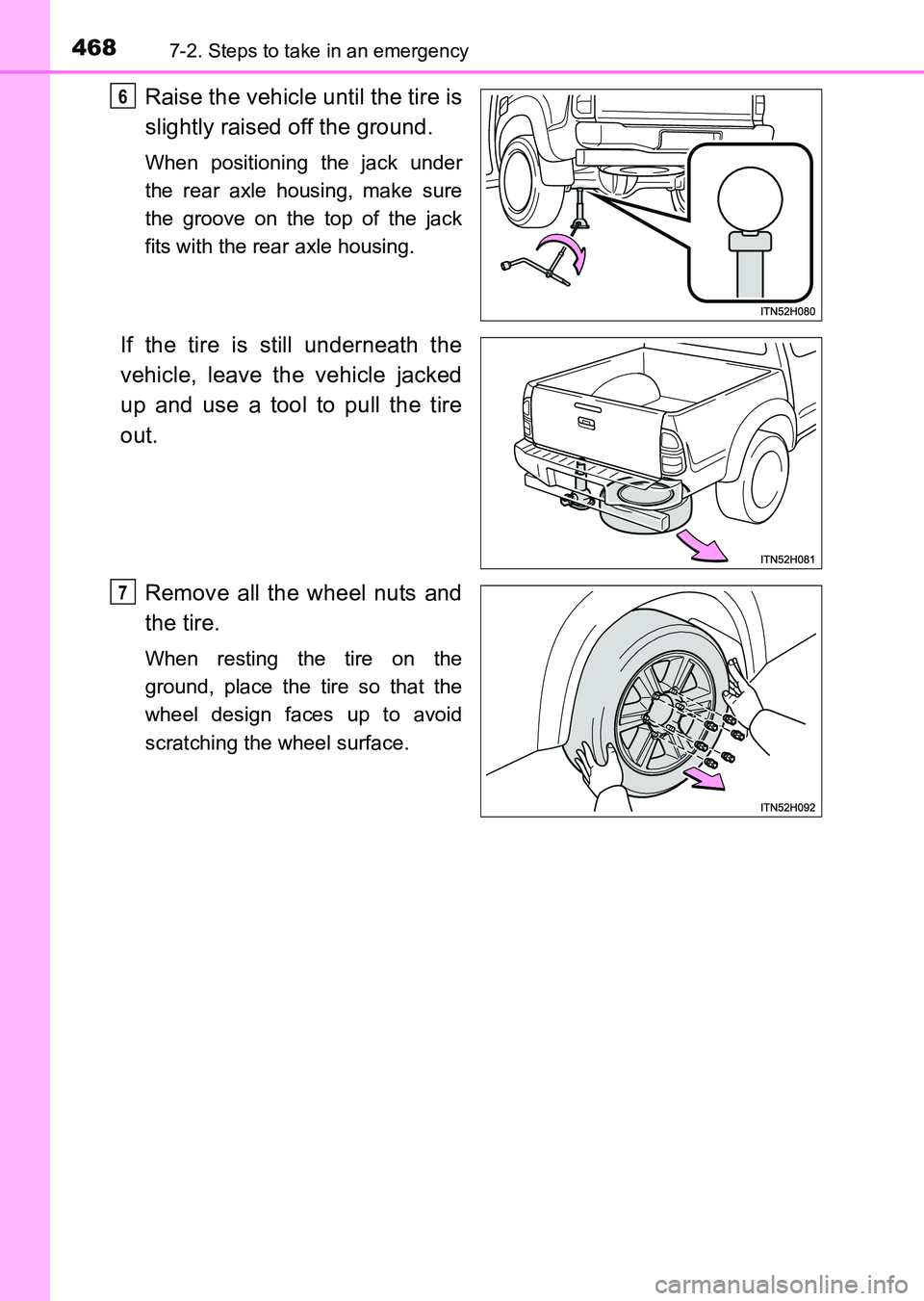

Raise the vehicle until the tire is
slightly raised off the ground.
When positioning the jack under
the rear axle housing, make sure
the groove on the top of the jack
fits with the rear axle housing.
If the tire is still underneath the
vehicle, leave the vehicle jacked
up and use a tool to pull the tire
out.Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
6
7
HILUX_OM_OM0K219E_(EE).book Page 468 Wednesday, May 14, 2014 3:06 PM

4697-2. Steps to take in an emergency
7
When trouble arises
HILUX_OM_OM0K219E_(EE)

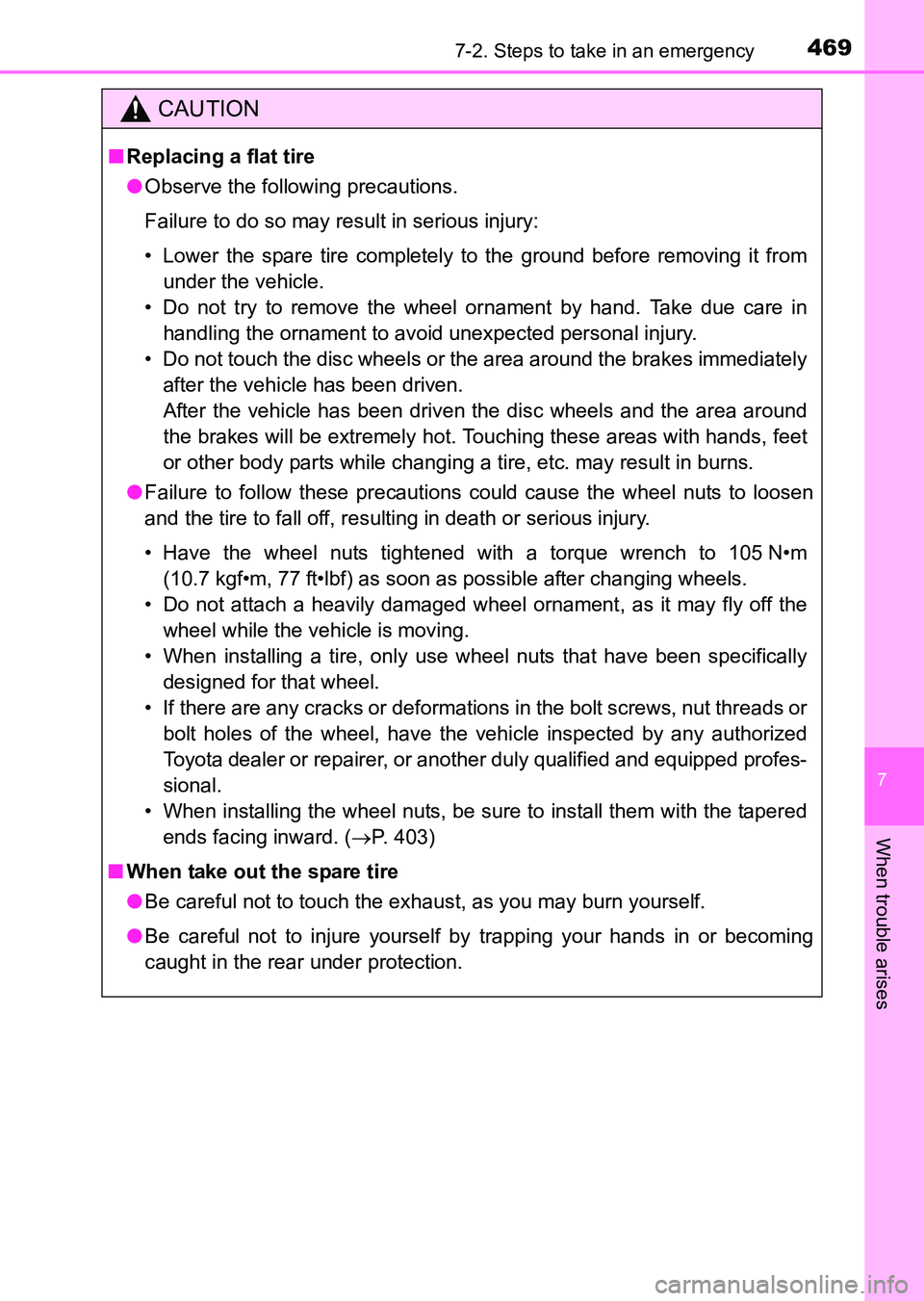

CAUTION
■Replacing a flat tire
● Observe the following precautions.
Failure to do so may result in serious injury:
• Lower the spare tire completely to the ground before removing it fromunder the vehicle.
• Do not try to remove the wheel ornament by hand. Take due care in handling the ornament to avoid unexpected personal injury.
• Do not touch the disc wheels or the area around the brakes immediately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot. Touching these areas with hands, feet
or other body parts while changing a tire, etc. may result in burns.
● Failure to follow these precautions could cause the wheel nuts to loosen
and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 105 N•m(10.7 kgf•m, 77 ft•lbf) as soon as possible after changing wheels.
• Do not attach a heavily damaged wheel ornament, as it may fly off the wheel while the vehicle is moving.
• When installing a tire, only use wheel nuts that have been specifically designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or bolt holes of the wheel, have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
• When installing the wheel nuts, be sure to install them with the tapered ends facing inward. ( →P. 403)
■ When take out the spare tire
● Be careful not to touch the exhaust, as you may burn yourself.
● Be careful not to injure yourself by trapping your hands in or becoming
caught in the rear under protection.
HILUX_OM_OM0K219E_(EE).book Page 469 Wednesday, May 14, 2014 3:06 PM

4707-2. Steps to take in an emergency
HILUX_OM_OM0K219E_(EE)

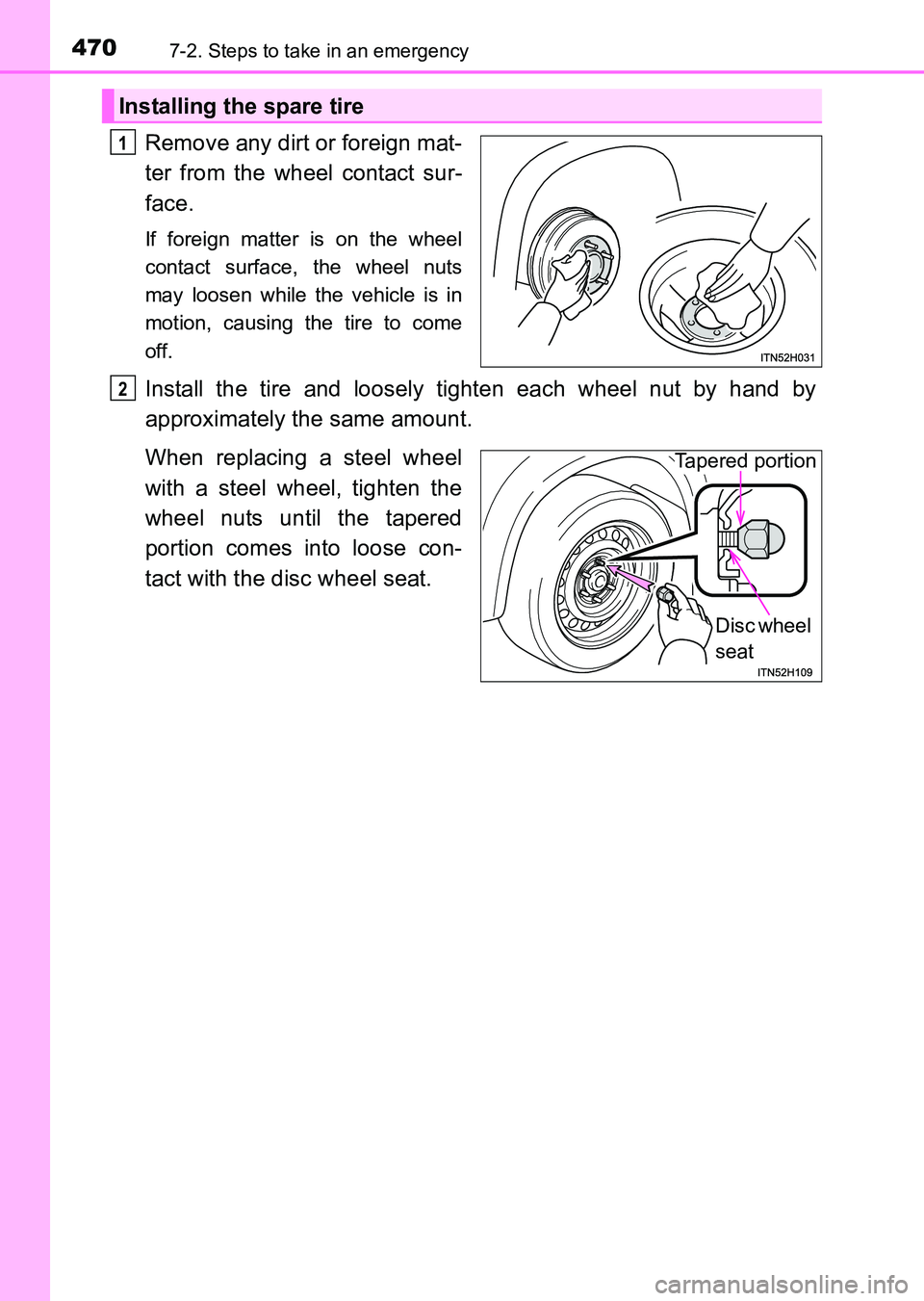

Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.
Install the tire and loosely tighten each wheel nut by hand by
approximately the same amount.
When replacing a steel wheel
with a steel wheel, tighten the
wheel nuts until the tapered
portion comes into loose con-
tact with the disc wheel seat.
Installing the spare tire
1
2
Disc wheel
seat
Tapered portion
HILUX_OM_OM0K219E_(EE).book Page 470 Wednesday, May 14, 2014 3:06 PM

4717-2. Steps to take in an emergency
7
When trouble arises
HILUX_OM_OM0K219E_(EE)

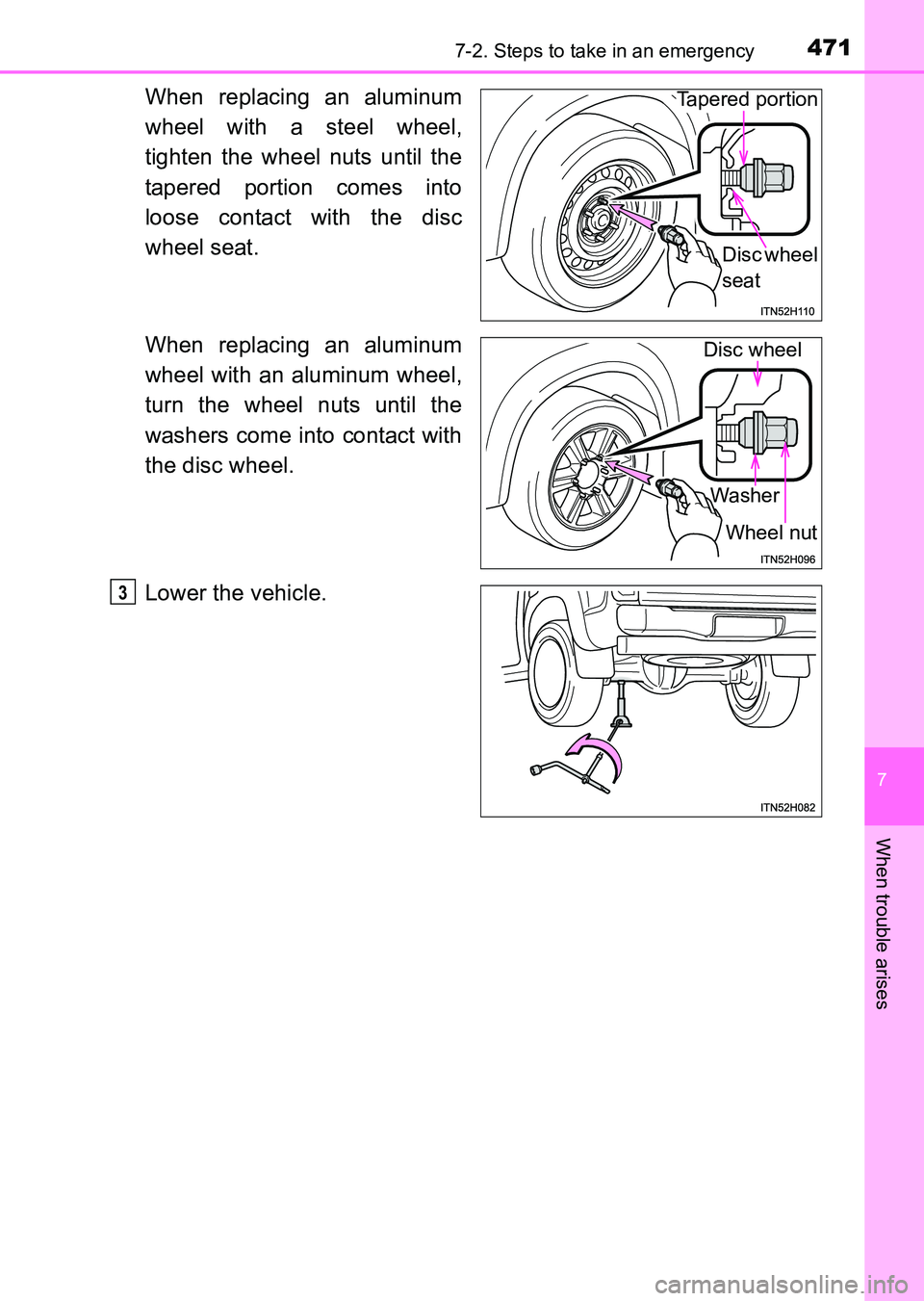

When replacing an aluminum
wheel with a steel wheel,
tighten the wheel nuts until the
tapered portion comes into
loose contact with the disc
wheel seat.
When replacing an aluminum
wheel with an aluminum wheel,
turn the wheel nuts until the
washers come into contact with
the disc wheel.
Lower the vehicle.Tapered portionDisc wheel
seat
Disc wheelWasher
Wheel nut
3
HILUX_OM_OM0K219E_(EE).book Page 471 Wednesday, May 14, 2014 3:06 PM

4727-2. Steps to take in an emergency
HILUX_OM_OM0K219E_(EE)

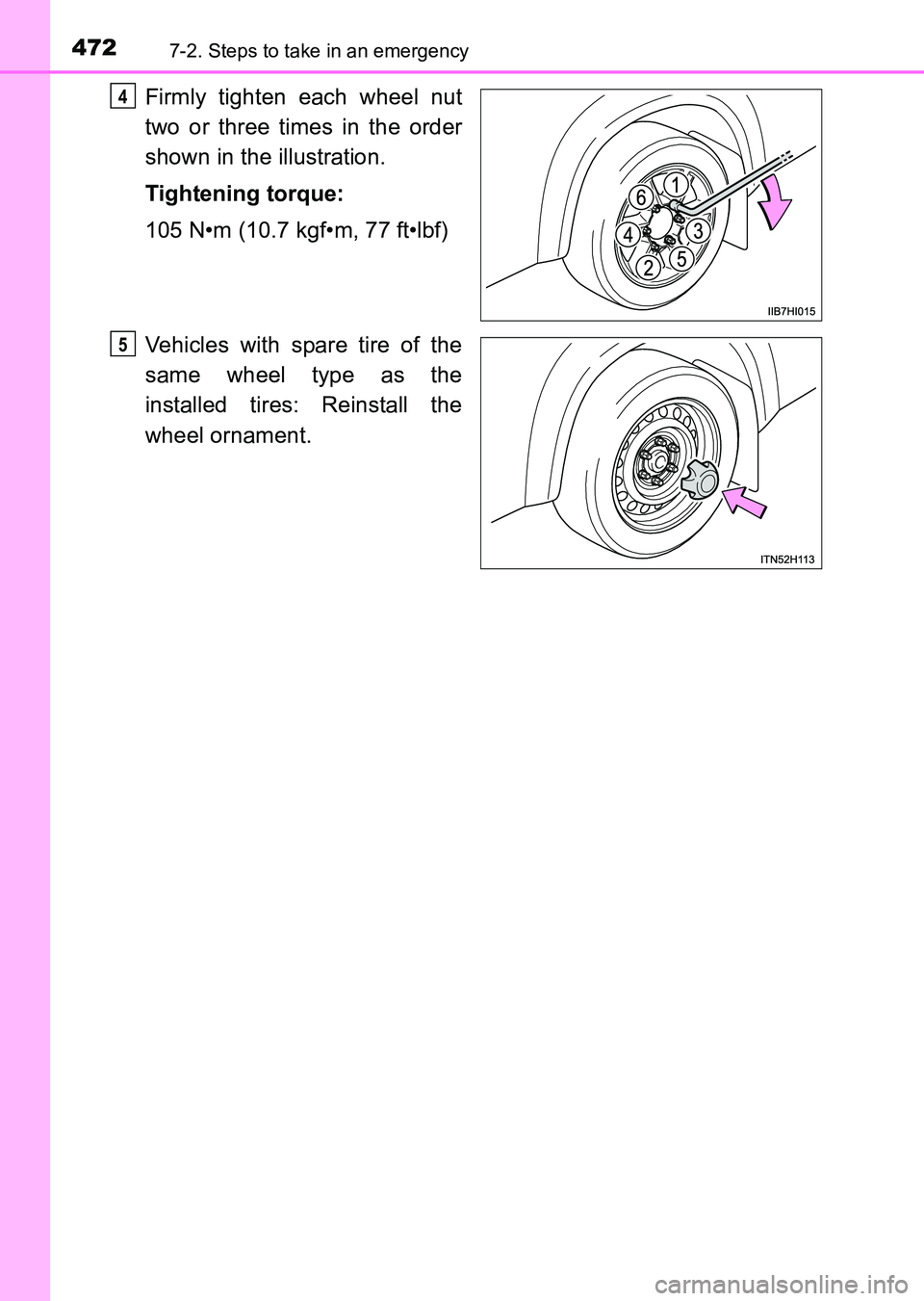

Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
105 N•m (10.7 kgf•m, 77 ft•lbf)
Vehicles with spare tire of the
same wheel type as the
installed tires: Reinstall the
wheel ornament. 4
