2015 TOYOTA HILUX Owners Manual (in English)

2174-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K219E_(EE)

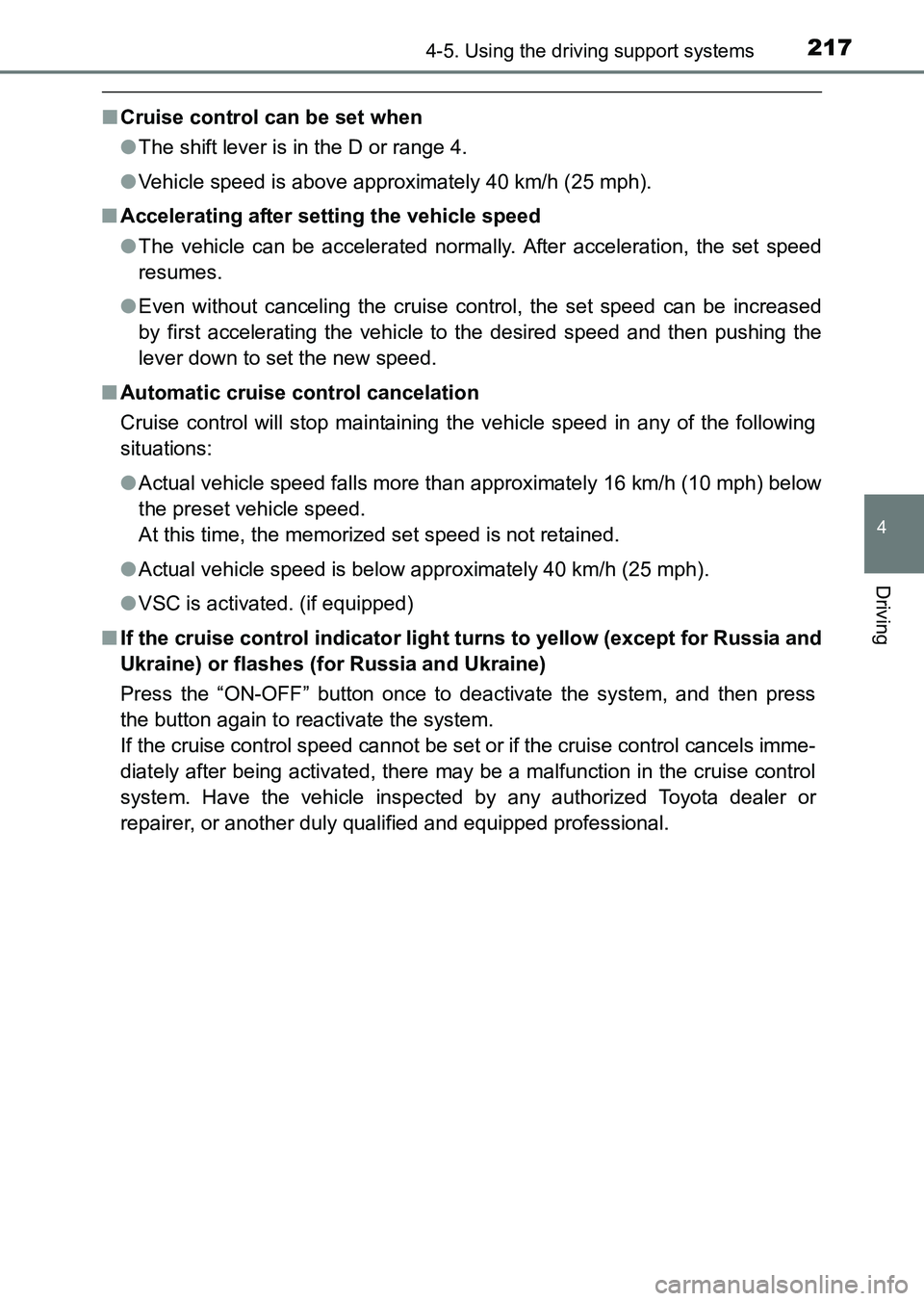

■Cruise control can be set when
●The shift lever is in the D or range 4.
● Vehicle speed is above approximately 40 km/h (25 mph).
■ Accelerating after setting the vehicle speed
●The vehicle can be accelerated normally. After acceleration, the set speed
resumes.
● Even without canceling the cruise control, the set speed can be increased
by first accelerating the vehicle to the desired speed and then pushing the
lever down to set the new speed.
■ Automatic cruise control cancelation
Cruise control will stop maintaining the vehicle speed in any of the following
situations:
●Actual vehicle speed falls more than approximately 16 km/h (10 mph) below
the preset vehicle speed.
At this time, the memorized set speed is not retained.
● Actual vehicle speed is below approximately 40 km/h (25 mph).
● VSC is activated. (if equipped)
■ If the cruise control indicator light turns to yellow (except for Russia and
Ukraine) or flashes (for Russia and Ukraine)
Press the “ON-OFF” button once to deactivate the system, and then press
the button again to reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels imme-
diately after being activated, there may be a malfunction in the cruise control
system. Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
HILUX_OM_OM0K219E_(EE).book Page 217 Wednesday, May 14, 2014 3:06 PM

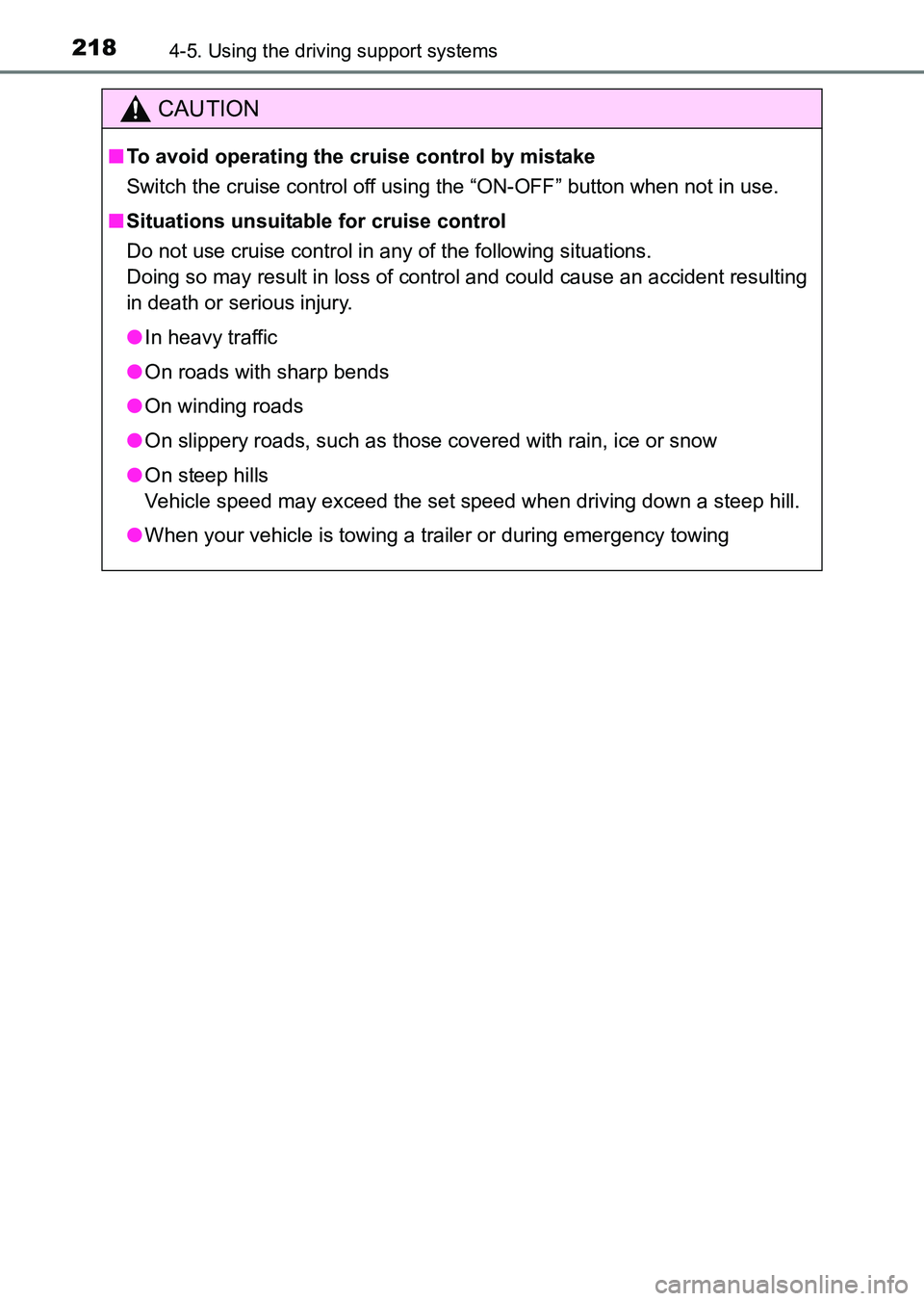

2184-5. Using the driving support systems
HILUX_OM_OM0K219E_(EE)
CAUTION
■To avoid operating the cruise control by mistake
Switch the cruise control off using the “ON-OFF” button when not in use.
■
Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in loss of control and could cause an accident resulting
in death or serious injury.
● In heavy traffic
● On roads with sharp bends
● On winding roads
● On slippery roads, such as those covered with rain, ice or snow
● On steep hills
Vehicle speed may exceed the set speed when driving down a steep hill.
● When your vehicle is towing a trailer or during emergency towing
HILUX_OM_OM0K219E_(EE).book Page 218 Wednesday, May 14, 2014 3:06 PM

219
4
4-5. Using the driving support systems
Driving
HILUX_OM_OM0K219E_(EE)

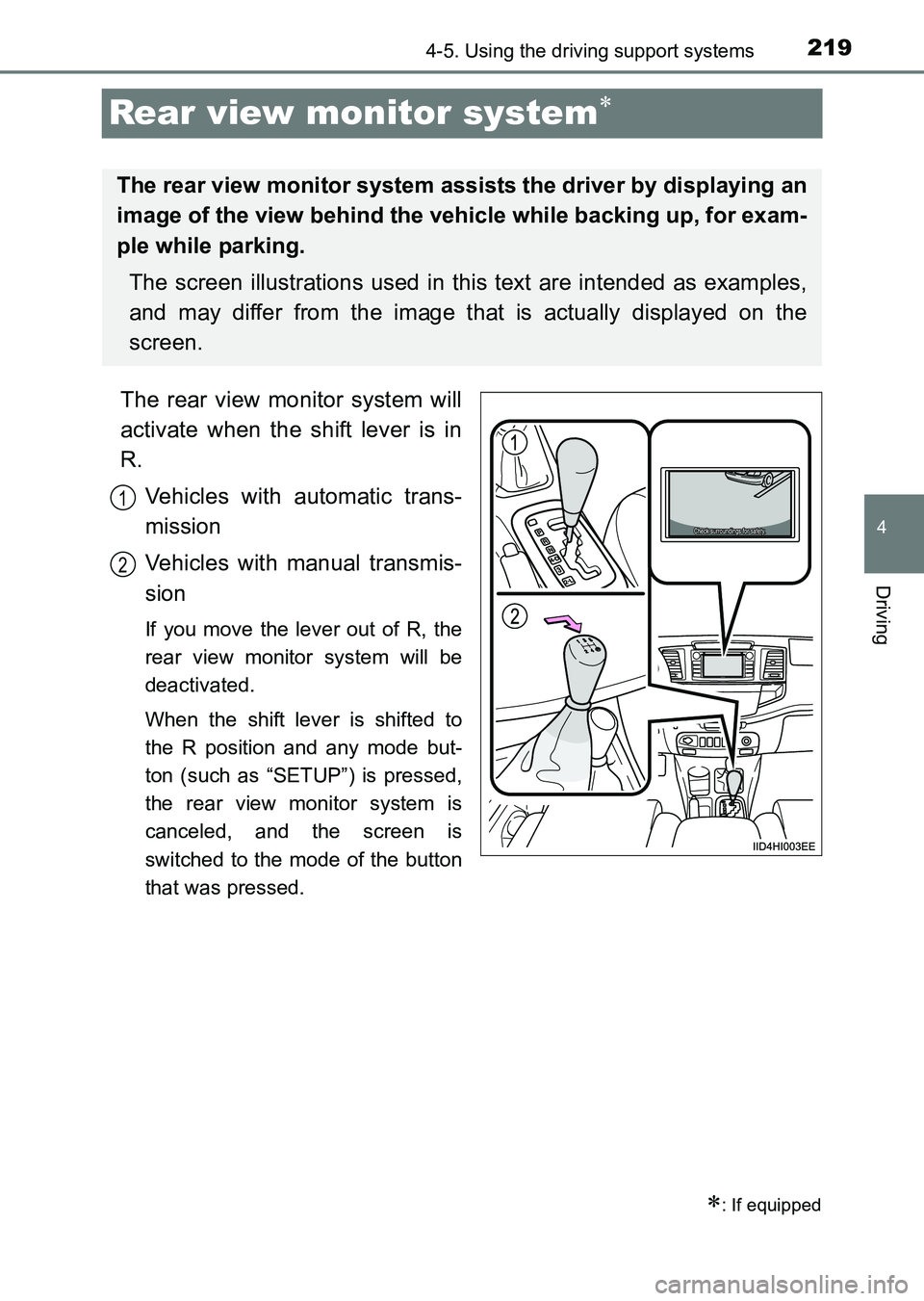

Rear view monitor system∗
The rear view monitor system will
activate when the shift lever is in
R.Vehicles with automatic trans-
mission
Vehicles with manual transmis-
sion
If you move the lever out of R, the
rear view monitor system will be
deactivated.
When the shift lever is shifted to
the R position and any mode but-
ton (such as “SETUP”) is pressed,
the rear view monitor system is
canceled, and the screen is
switched to the mode of the button
that was pressed.
∗: If equipped
The rear view monitor system assists the driver by displaying an
image of the view behind the vehicle while backing up, for exam-
ple while parking.The screen illustrations used in this text are intended as examples,
and may differ from the image that is actually displayed on the
screen.
1
2
HILUX_OM_OM0K219E_(EE).book Page 219 Wednesday, May 14, 2014 3:06 PM

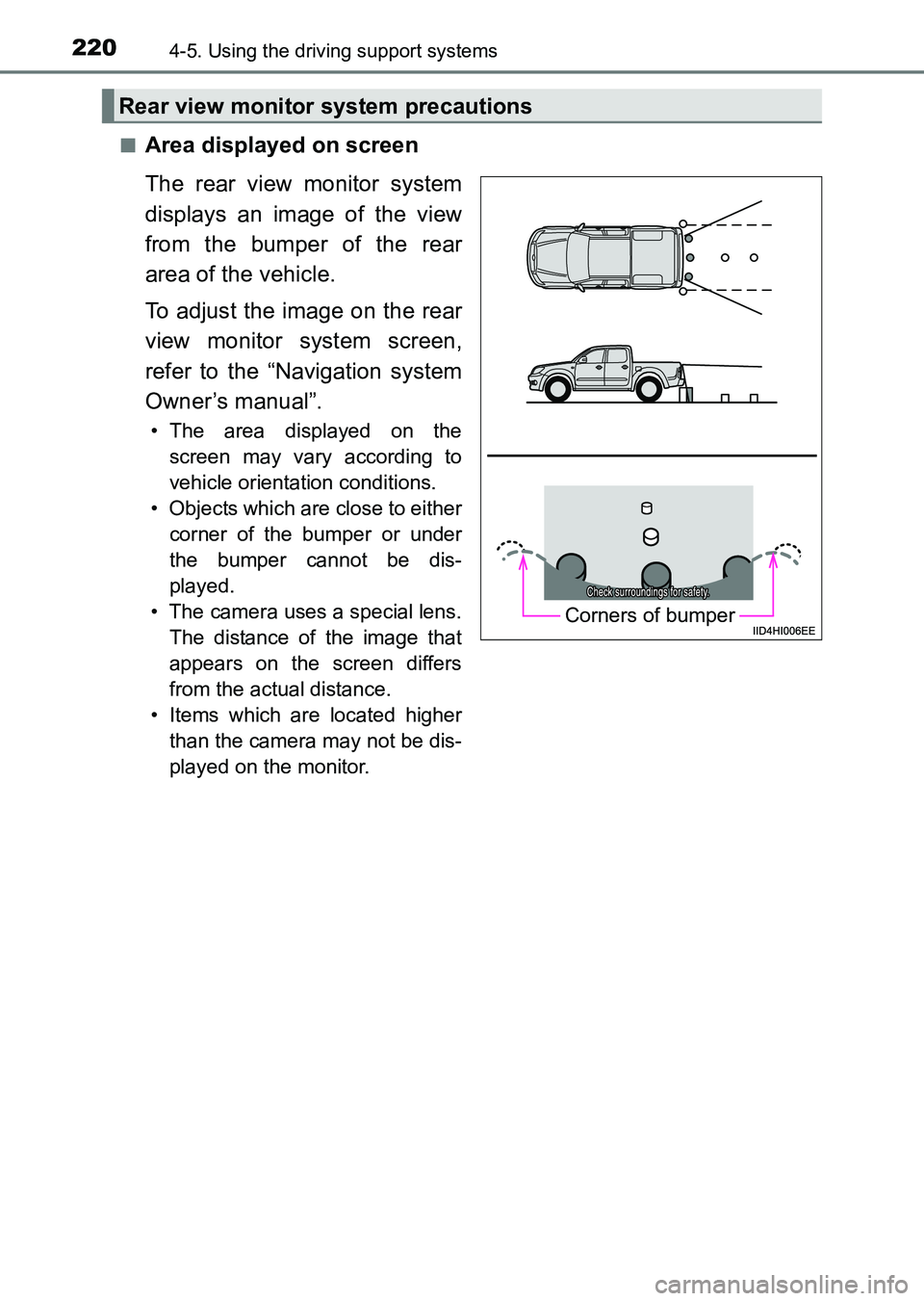

2204-5. Using the driving support systems
HILUX_OM_OM0K219E_(EE)■
Area displayed on screen
The rear view monitor system
displays an image of the view
from the bumper of the rear
area of the vehicle.
To adjust the image on the rear
view monitor system screen,
refer to the “Navigation system
Owner’s manual”.
• The area displayed on the
screen may vary according to
vehicle orientation conditions.
• Objects which are close to either corner of the bumper or under
the bumper cannot be dis-
played.
• The camera uses a special lens. The distance of the image that
appears on the screen differs
from the actual distance.
• Items which are located higher than the camera may not be dis-
played on the monitor.
Rear view monitor system precautions
Corners of bumper
HILUX_OM_OM0K219E_(EE).book Page 220 Wednesday, May 14, 2014 3:06 PM

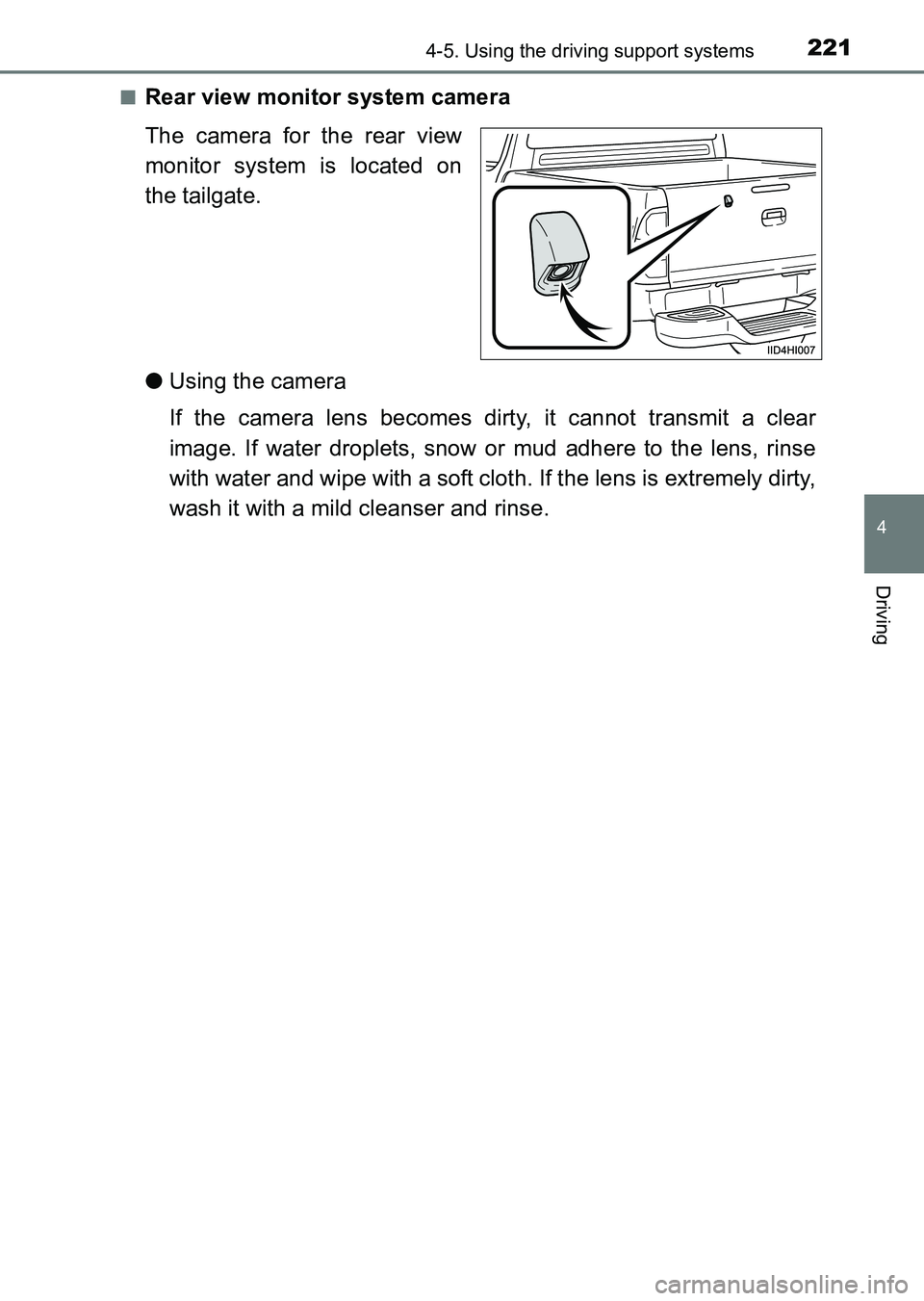

2214-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K219E_(EE)■
Rear view monitor system camera
The camera for the rear view
monitor system is located on
the tailgate.
●
Using the camera
If the camera lens becomes dirty, it cannot transmit a clear
image. If water droplets, snow or mud adhere to the lens, rinse
with water and wipe with a soft cloth. If the lens is extremely dirty,
wash it with a mild cleanser and rinse.
HILUX_OM_OM0K219E_(EE).book Page 221 Wednesday, May 14, 2014 3:06 PM

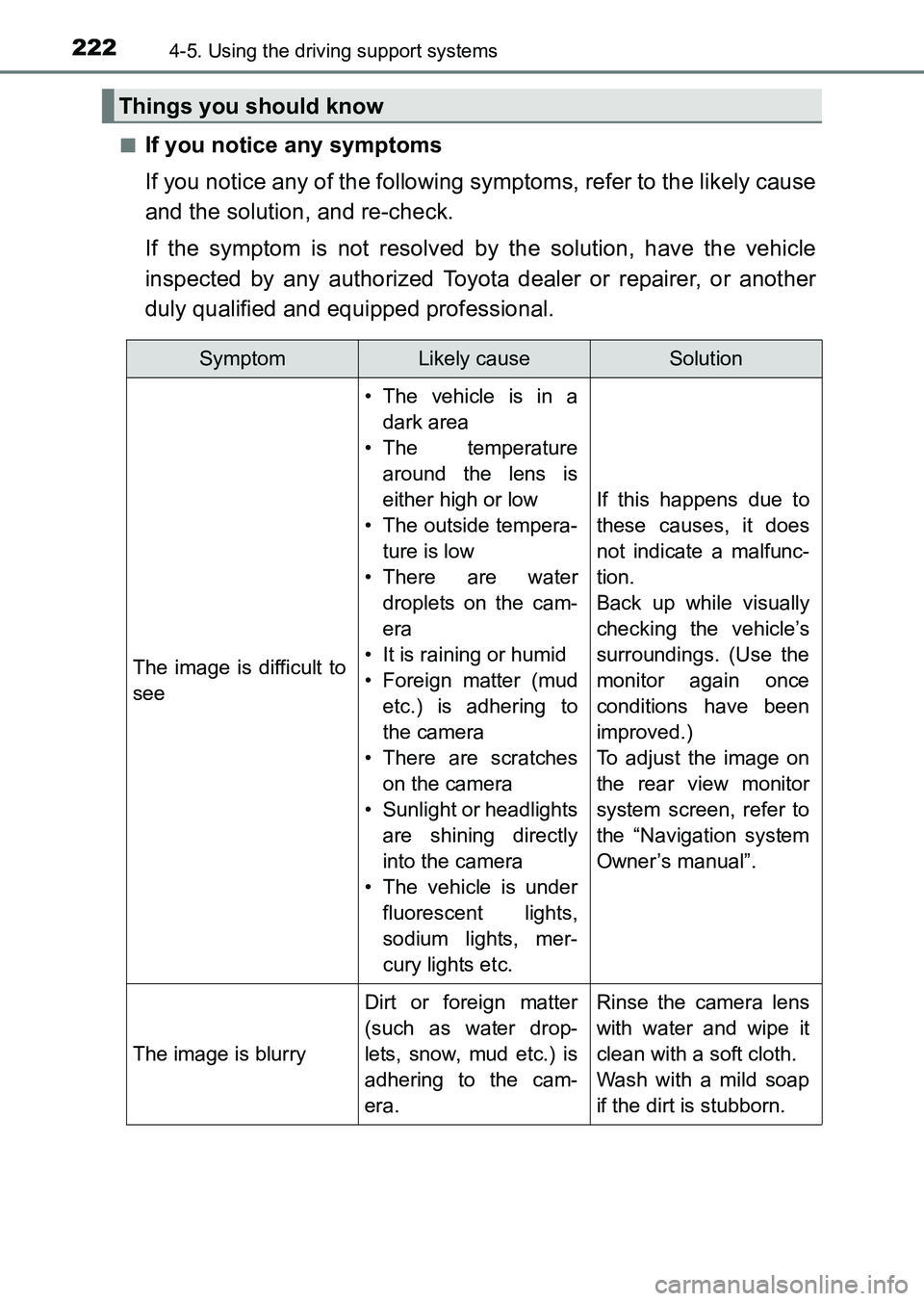

2224-5. Using the driving support systems
HILUX_OM_OM0K219E_(EE)■
If you notice any symptoms
If you notice any of the following symptoms, refer to the likely cause
and the solution, and re-check.
If the symptom is not resolved by the solution, have the vehicle
inspected by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Things you should know
SymptomLikely causeSolution
The image is difficult to
see
• The vehicle is in a
dark area
• The temperature around the lens is
either high or low
• The outside tempera- ture is low
• There are water droplets on the cam-
era
• It is raining or humid
• Foreign matter (mud etc.) is adhering to
the camera
• There are scratches on the camera
• Sunlight or headlights are shining directly
into the camera
• The vehicle is under fluorescent lights,
sodium lights, mer-
cury lights etc.
If this happens due to
these causes, it does
not indicate a malfunc-
tion.
Back up while visually
checking the vehicle’s
surroundings. (Use the
monitor again once
conditions have been
improved.)
To adjust the image on
the rear view monitor
system screen, refer to
the “Navigation system
Owner’s manual”.
The image is blurry
Dirt or foreign matter
(such as water drop-
lets, snow, mud etc.) is
adhering to the cam-
era.Rinse the camera lens
with water and wipe it
clean with a soft cloth.
Wash with a mild soap
if the dirt is stubborn.
HILUX_OM_OM0K219E_(EE).book Page 222 Wednesday, May 14, 2014 3:06 PM

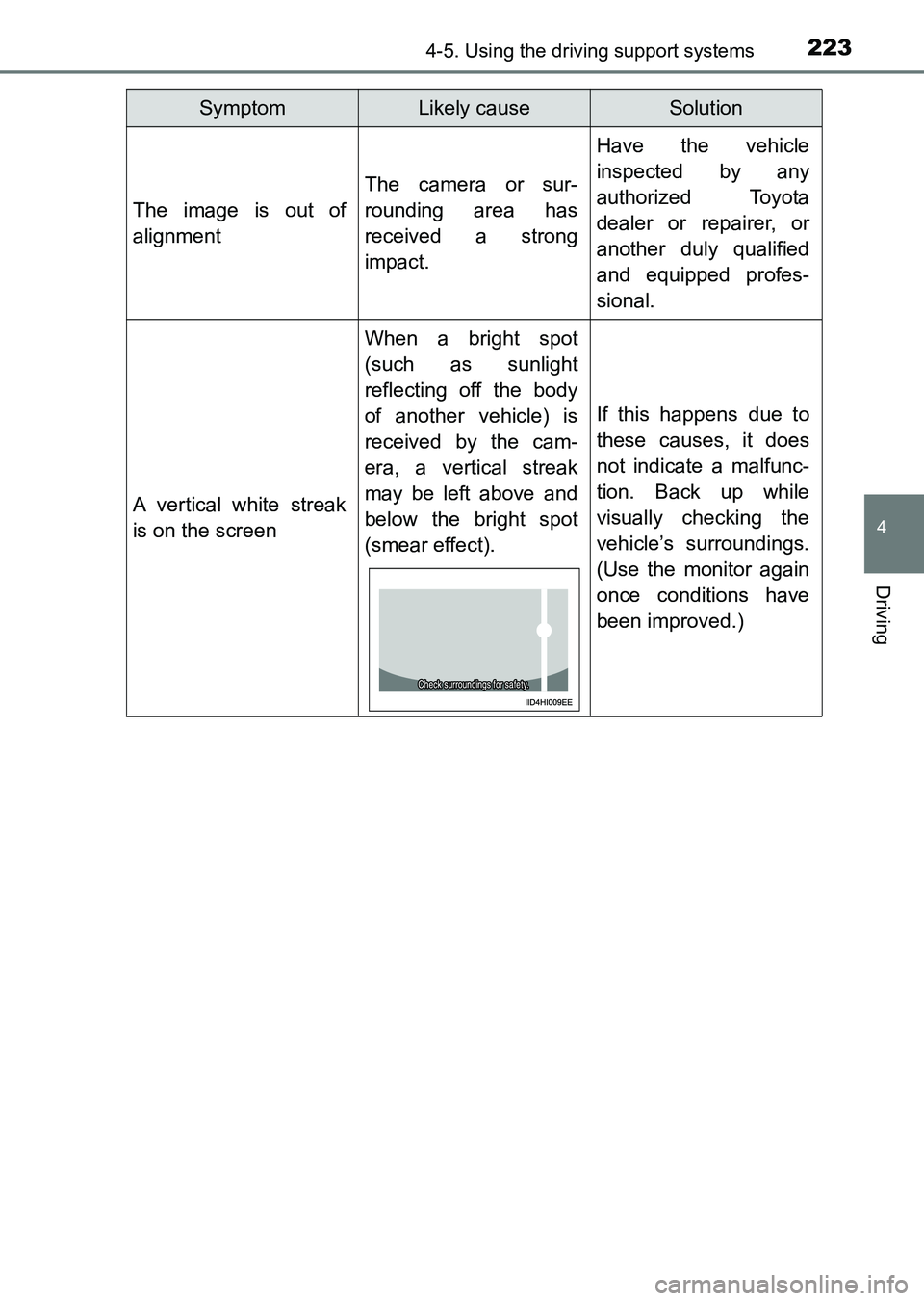

2234-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K219E_(EE)
The image is out of
alignment
The camera or sur-
rounding area has
received a strong
impact.
Have the vehicle
inspected by any
authorized Toyota
dealer or repairer, or
another duly qualified
and equipped profes-
sional.
A vertical white streak
is on the screen
When a bright spot
(such as sunlight
reflecting off the body
of another vehicle) is
received by the cam-
era, a vertical streak
may be left above and
below the bright spot
(smear effect).
If this happens due to
these causes, it does
not indicate a malfunc-
tion. Back up while
visually checking the
vehicle’s surroundings.
(Use the monitor again
once conditions have
been improved.)
SymptomLikely causeSolution
HILUX_OM_OM0K219E_(EE).book Page 223 Wednesday, May 14, 2014 3:06 PM

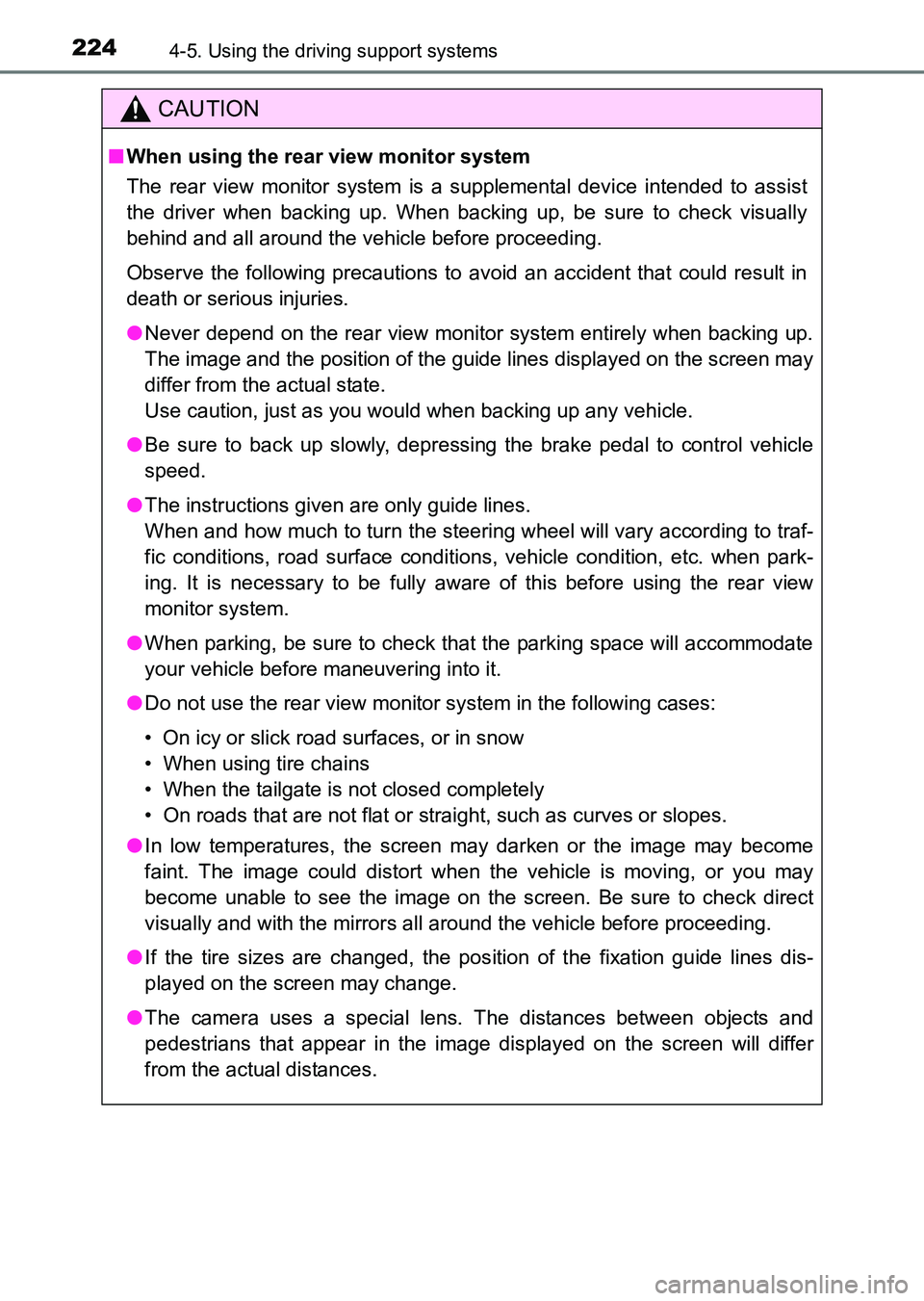

2244-5. Using the driving support systems
HILUX_OM_OM0K219E_(EE)
CAUTION
■When using the rear view monitor system
The rear view monitor system is a supplemental device intended to assist
the driver when backing up. When backing up, be sure to check visually
behind and all around the vehicle before proceeding.
Observe the following precautions to avoid an accident that could result in
death or serious injuries.
● Never depend on the rear view monitor system entirely when backing up.
The image and the position of the guide lines displayed on the screen may
differ from the actual state.
Use caution, just as you would when backing up any vehicle.
● Be sure to back up slowly, depressing the brake pedal to control vehicle
speed.
● The instructions given are only guide lines.
When and how much to turn the steering wheel will vary according to traf-
fic conditions, road surface conditions , vehicle condition, etc. when park-
ing. It is necessary to be fully aware of this before using the rear view
monitor system.
● When parking, be sure to check that the parking space will accommodate
your vehicle before maneuvering into it.
● Do not use the rear view monitor system in the following cases:
• On icy or slick road surfaces, or in snow
• When using tire chains
• When the tailgate is not closed completely
• On roads that are not flat or straight, such as curves or slopes.
● In low temperatures, the screen may darken or the image may become
faint. The image could distort when the vehicle is moving, or you may
become unable to see the image on the screen. Be sure to check direct
visually and with the mirrors all around the vehicle before proceeding.
● If the tire sizes are changed, the pos ition of the fixation guide lines dis-
played on the screen may change.
● The camera uses a special lens. The distances between objects and
pedestrians that appear in the image displayed on the screen will differ
from the actual distances.
HILUX_OM_OM0K219E_(EE).book Page 224 Wednesday, May 14, 2014 3:06 PM
