2015 TOYOTA HILUX Owners Manual (in English)

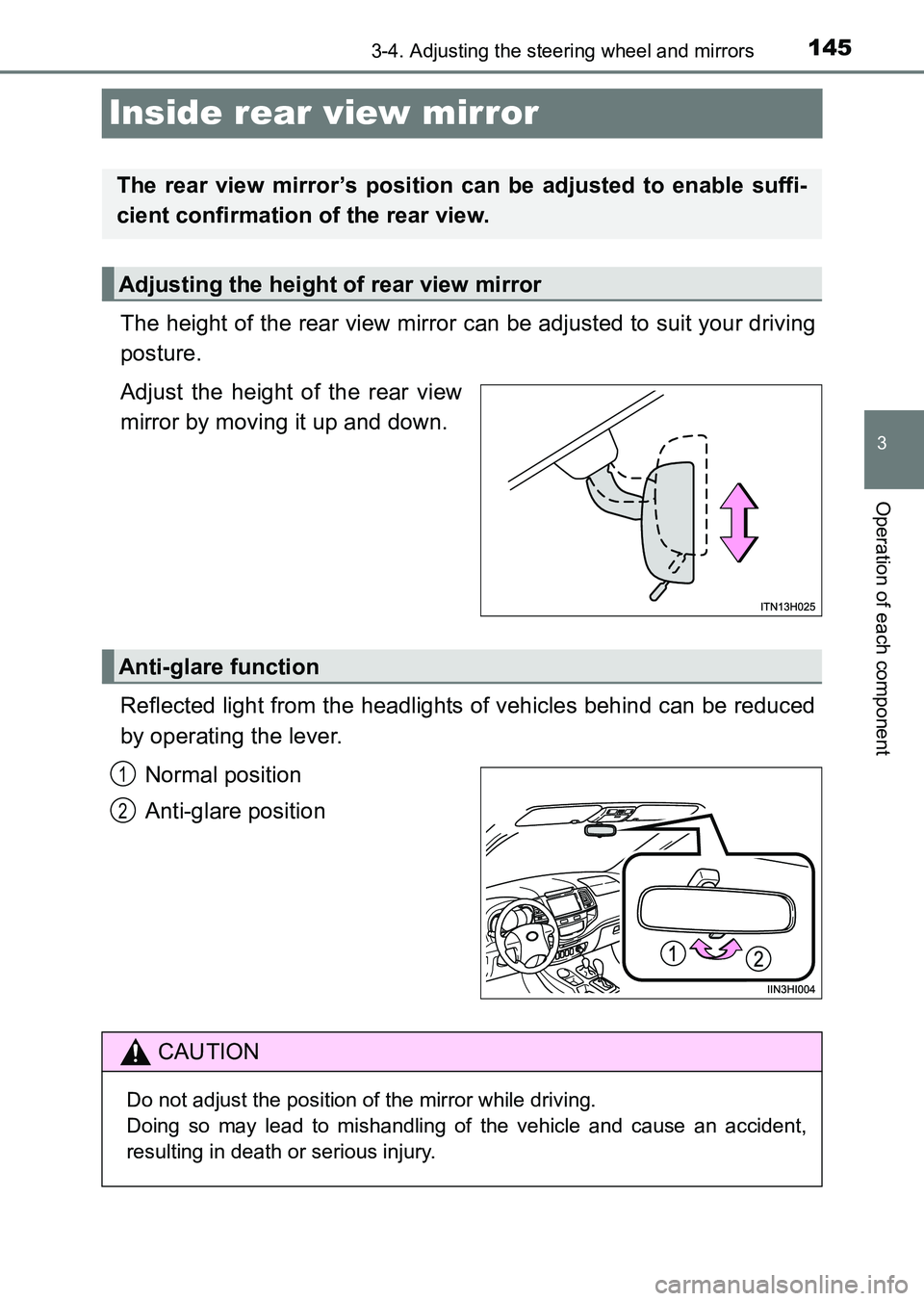

145
3
3-4. Adjusting the steering wheel and mirrors
Operation of each component
HILUX_OM_OM0K219E_(EE)
Inside rear view mirror
The height of the rear view mirror can be adjusted to suit your driving
posture.
Adjust the height of the rear view
mirror by moving it up and down.
Reflected light from the headlights of vehicles behind can be reduced
by operating the lever.Normal position
Anti-glare position
The rear view mirror’s position can be adjusted to enable suffi-
cient confirmation of the rear view.
Adjusting the height of rear view mirror
Anti-glare function
1
2
CAUTION
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.
HILUX_OM_OM0K219E_(EE).book Page 145 Wednesday, May 14, 2014 3:06 PM

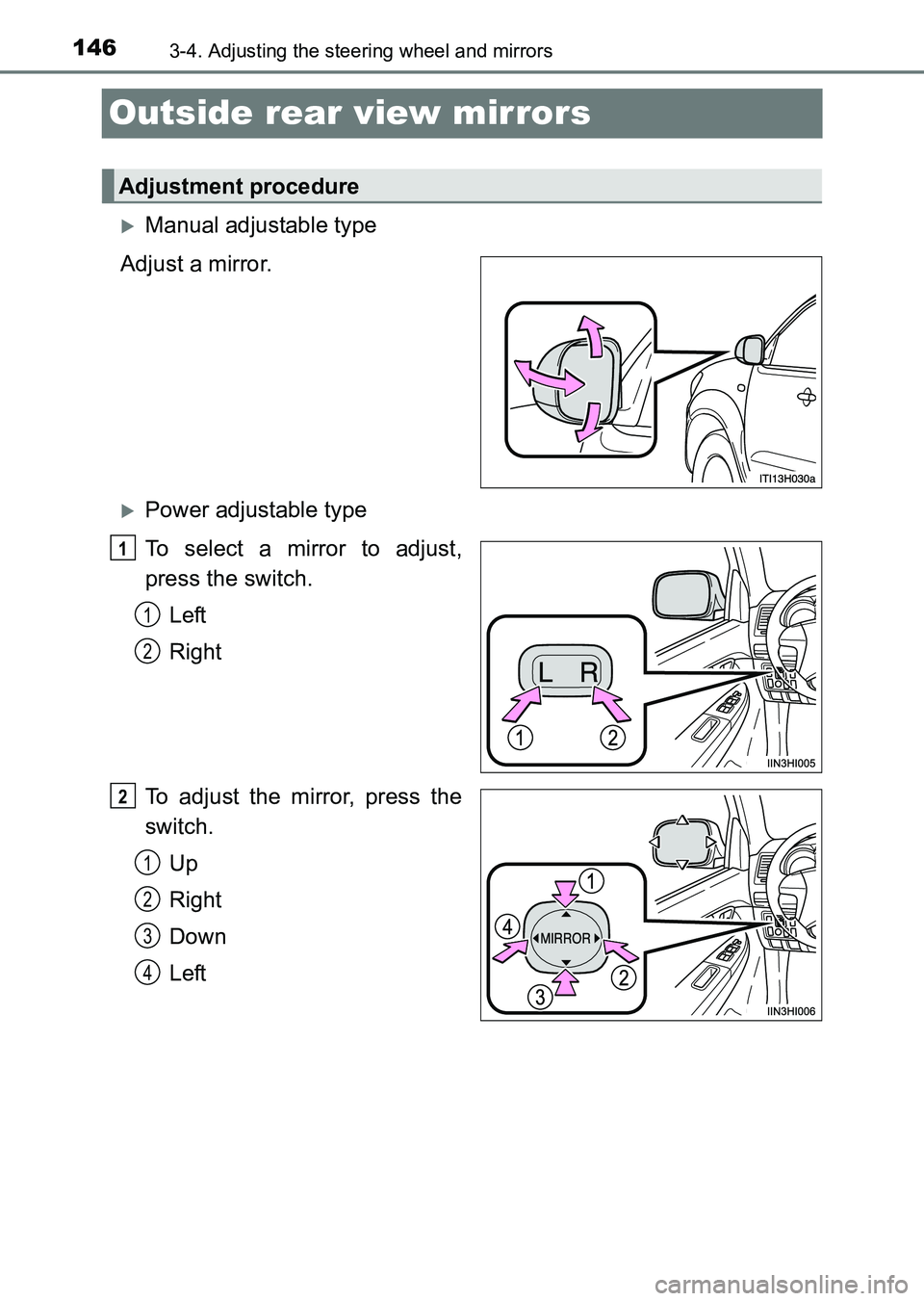

1463-4. Adjusting the steering wheel and mirrors
HILUX_OM_OM0K219E_(EE)
Outside rear view mirrors
XManual adjustable type
Adjust a mirror.
XPower adjustable type
To select a mirror to adjust,
press the switch. Left
Right
To adjust the mirror, press the
switch. Up
Right
Down
Left
Adjustment procedure
1
1
2
2
1
2
3
4
HILUX_OM_OM0K219E_(EE).book Page 146 Wednesday, May 14, 2014 3:06 PM

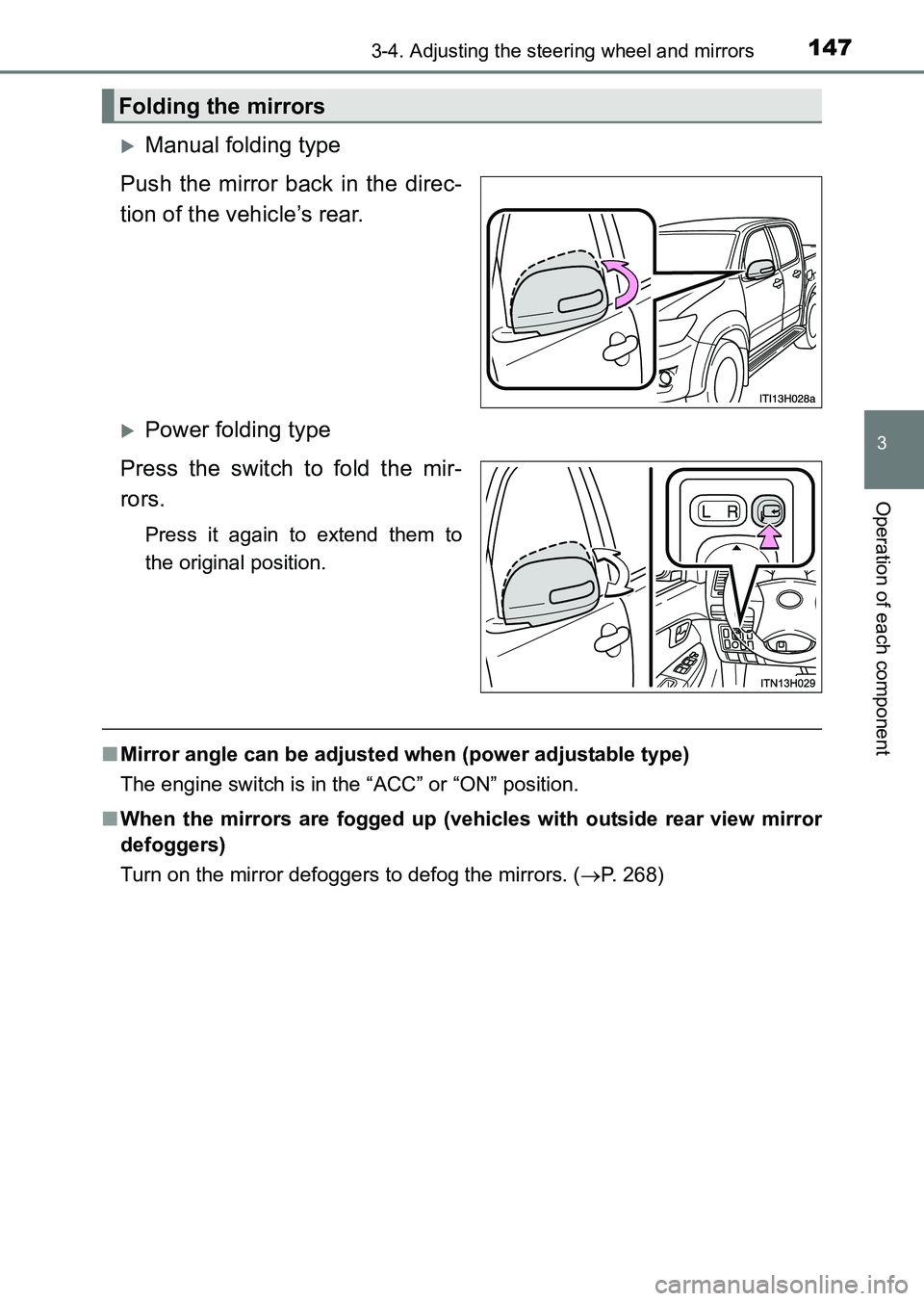

1473-4. Adjusting the steering wheel and mirrors
3
Operation of each component
HILUX_OM_OM0K219E_(EE)
XManual folding type
Push the mirror back in the direc-
tion of the vehicle’s rear.
XPower folding type
Press the switch to fold the mir-
rors.
Press it again to extend them to
the original position.
■ Mirror angle can be adjusted when (power adjustable type)
The engine switch is in the “ACC” or “ON” position.
■ When the mirrors are fogged up (veh icles with outside rear view mirror
defoggers)
Turn on the mirror defoggers to defog the mirrors. ( →P. 268)
Folding the mirrors
HILUX_OM_OM0K219E_(EE).book Page 147 Wednesday, May 14, 2014 3:06 PM

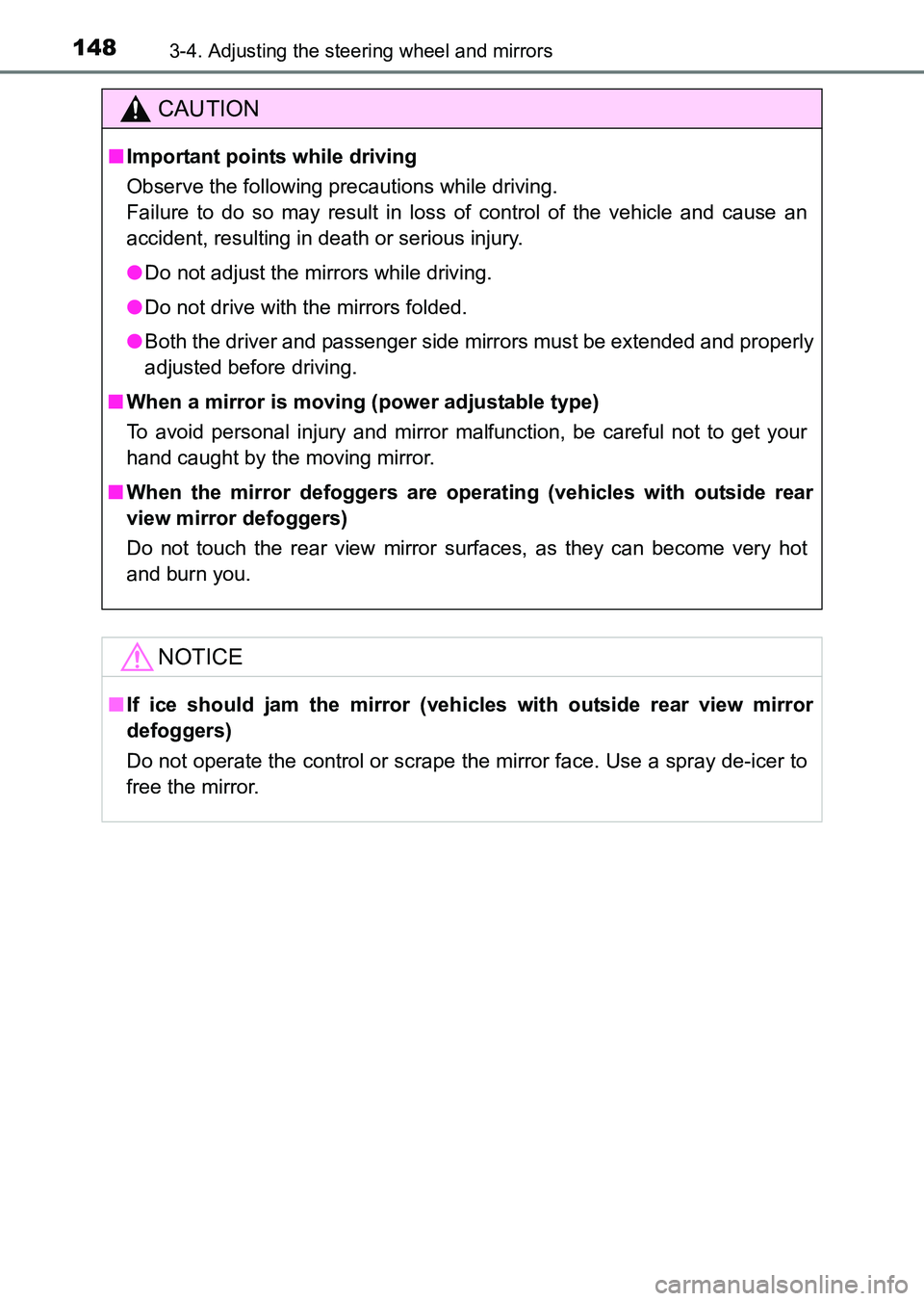

1483-4. Adjusting the steering wheel and mirrors
HILUX_OM_OM0K219E_(EE)
CAUTION
■Important points while driving
Observe the following precautions while driving.
Failure to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.
● Do not adjust the mirrors while driving.
● Do not drive with the mirrors folded.
● Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■ When a mirror is moving (power adjustable type)
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
■ When the mirror defoggers are operating (vehicles with outside rear
view mirror defoggers)
Do not touch the rear view mirror surfaces, as they can become very hot
and burn you.
NOTICE
■ If ice should jam the mirror (vehicles with outside rear view mirror
defoggers)
Do not operate the control or scrape the mirror face. Use a spray de-icer to
free the mirror.
HILUX_OM_OM0K219E_(EE).book Page 148 Wednesday, May 14, 2014 3:06 PM

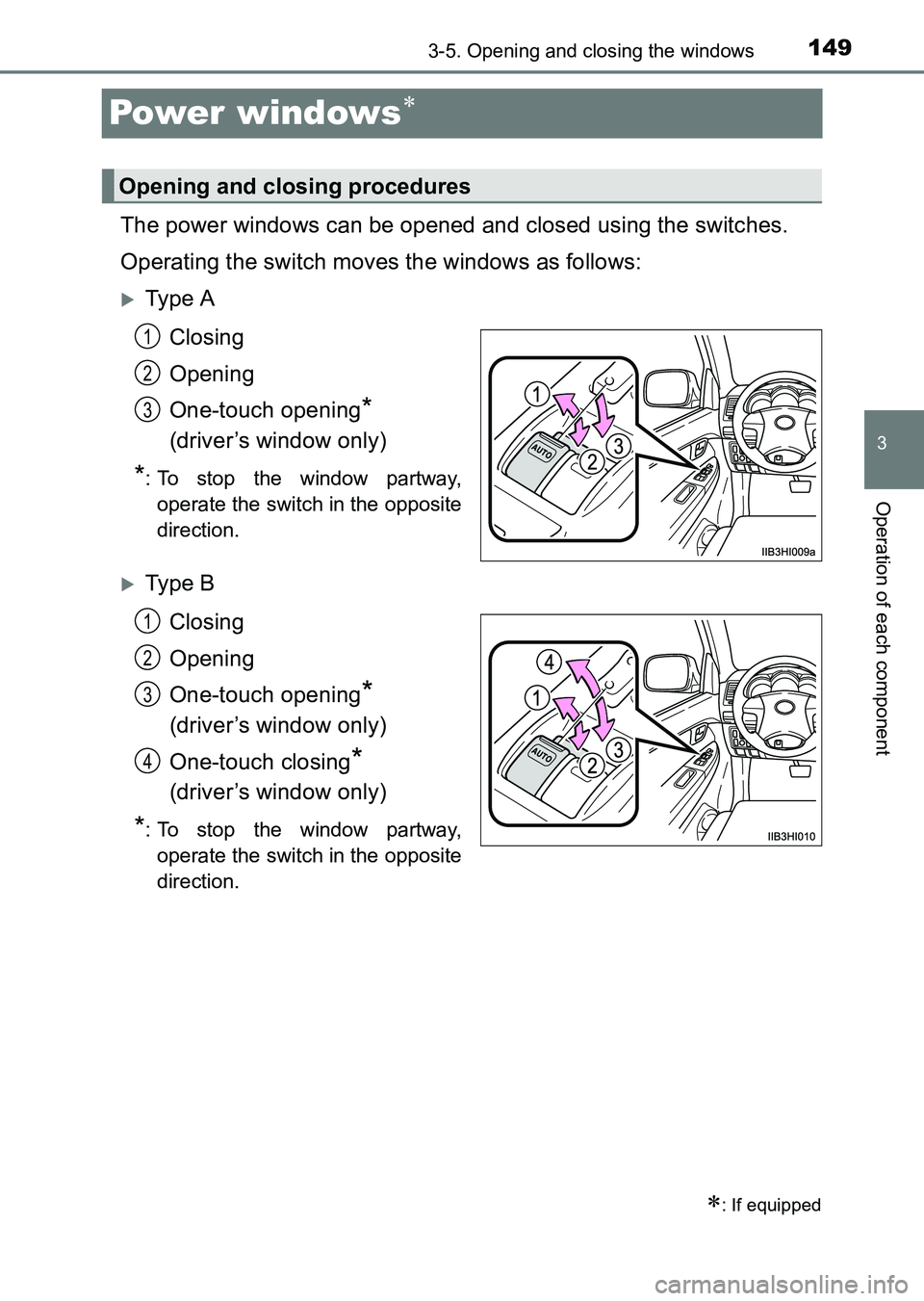

149
3
3-5. Opening and closing the windows
Operation of each component
HILUX_OM_OM0K219E_(EE)
Power windows∗
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
XTy pe AClosing
Opening
One-touch opening
*
(driver’s window only)
*: To stop the window partway,operate the switch in the opposite
direction.
XTy pe B
Closing
Opening
One-touch opening
*
(driver’s window only)
One-touch closing
*
(driver’s window only)
*: To stop the window partway,operate the switch in the opposite
direction.
∗: If equipped
Opening and closing procedures
1
2
3
1
2
3
4
HILUX_OM_OM0K219E_(EE).book Page 149 Wednesday, May 14, 2014 3:06 PM

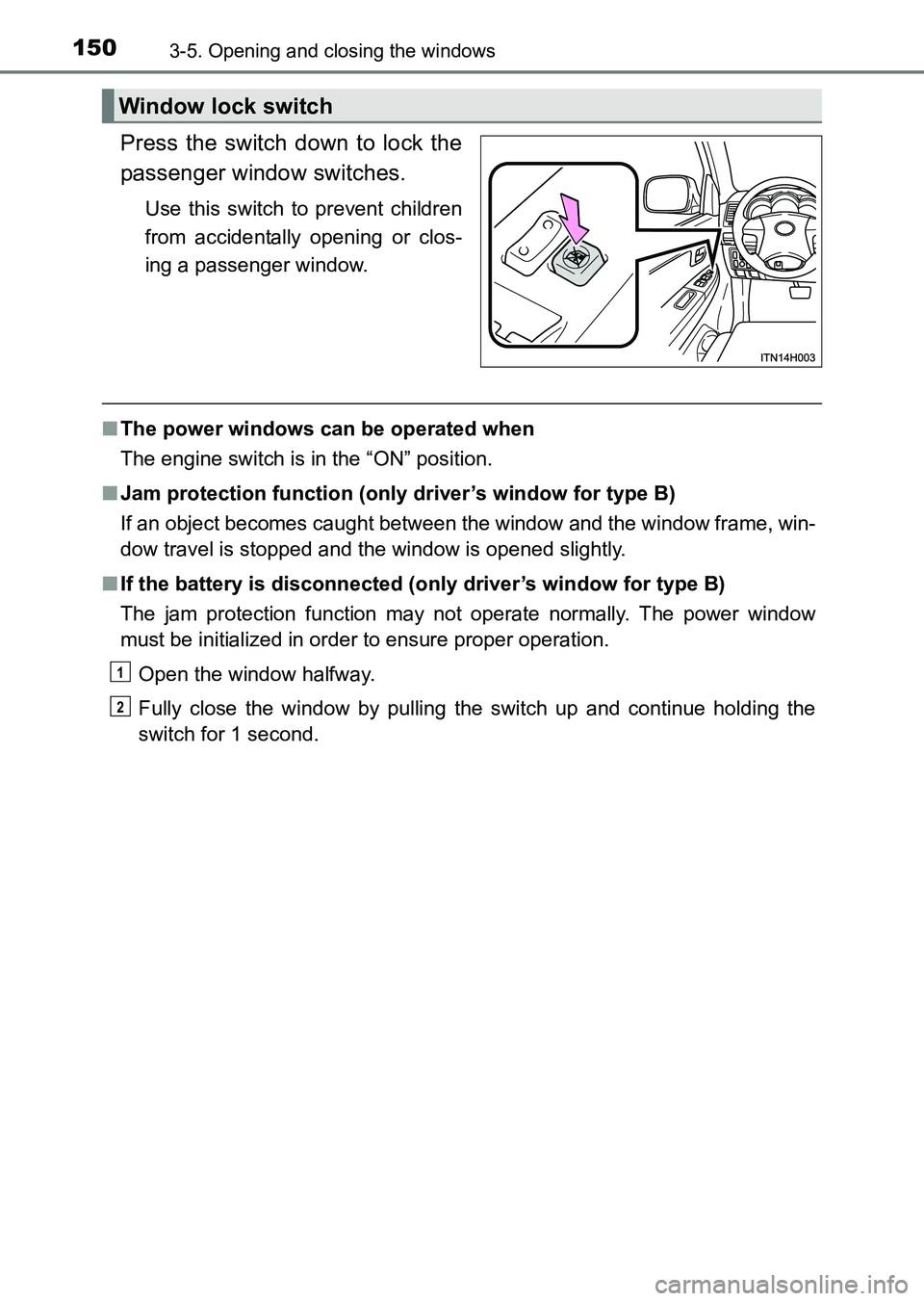

1503-5. Opening and closing the windows
HILUX_OM_OM0K219E_(EE)
Press the switch down to lock the
passenger window switches.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
■The power windows can be operated when
The engine switch is in the “ON” position.
■ Jam protection function (only driver’s window for type B)
If an object becomes caught between the window and the window frame, win-
dow travel is stopped and the window is opened slightly.
■ If the battery is disconnected (only driver’s window for type B)
The jam protection function may not operate normally. The power window
must be initialized in order to ensure proper operation.
Open the window halfway.
Fully close the window by pulling the switch up and continue holding the
switch for 1 second.
Window lock switch
1
2
HILUX_OM_OM0K219E_(EE).book Page 150 Wednesday, May 14, 2014 3:06 PM

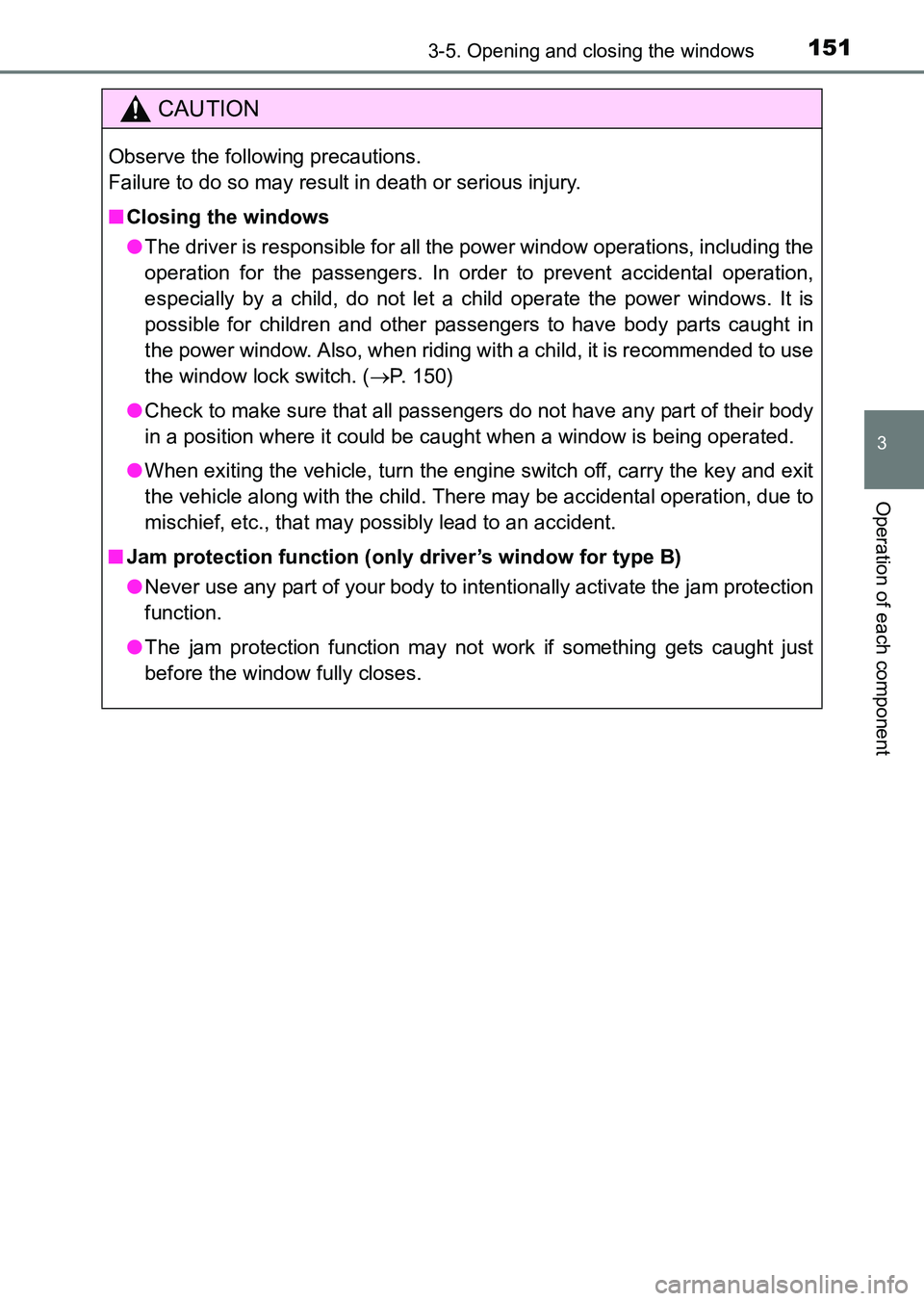

1513-5. Opening and closing the windows
3
Operation of each component
HILUX_OM_OM0K219E_(EE)
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Closing the windows
● The driver is responsible for all t he power window operations, including the
operation for the passengers. In order to prevent accidental operation,
especially by a child, do not let a child operate the power windows. It is
possible for children and other passengers to have body parts caught in
the power window. Also, when riding with a child, it is recommended to use
the window lock switch. ( →P. 150)
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● When exiting the vehicle, turn the engine switch off, carry the key and exit
the vehicle along with the child. T here may be accidental operation, due to
mischief, etc., that may possibly lead to an accident.
■ Jam protection function (only driver’s window for type B)
● Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets caught just
before the window fully closes.
HILUX_OM_OM0K219E_(EE).book Page 151 Wednesday, May 14, 2014 3:06 PM

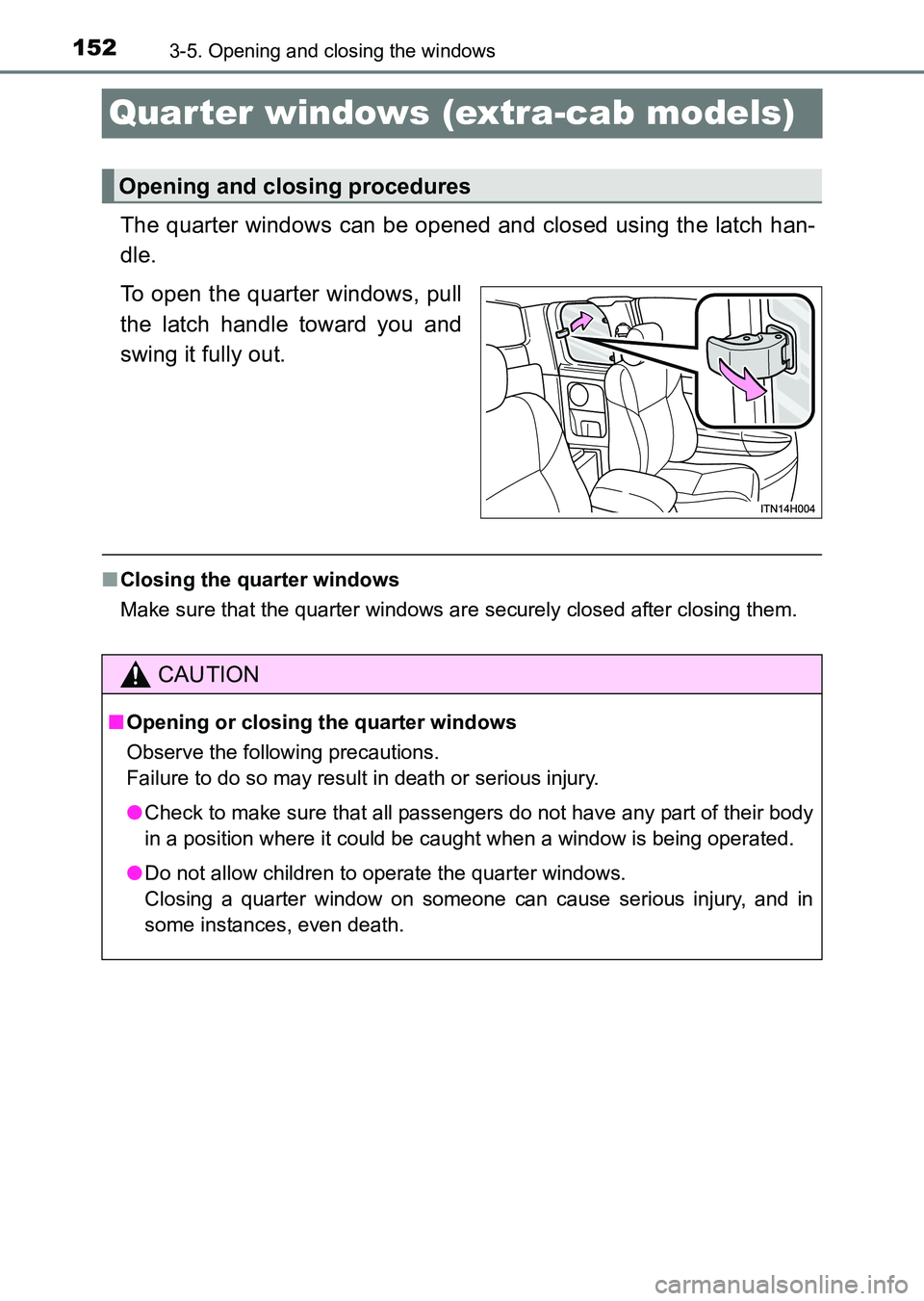

1523-5. Opening and closing the windows
HILUX_OM_OM0K219E_(EE)
Quarter windows (extra-cab models)
The quarter windows can be opened and closed using the latch han-
dle.
To open the quarter windows, pull
the latch handle toward you and
swing it fully out.
■Closing the quarter windows
Make sure that the quarter windows are securely closed after closing them.
Opening and closing procedures
CAUTION
■Opening or closing the quarter windows
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● Do not allow children to operate the quarter windows.
Closing a quarter window on someone can cause serious injury, and in
some instances, even death.
HILUX_OM_OM0K219E_(EE).book Page 152 Wednesday, May 14, 2014 3:06 PM
