2015 TOYOTA HILUX Owners Manual (in English)

3055-2. Using the audio system
5
Interior features
HILUX_OM_OM0K219E_(EE)■

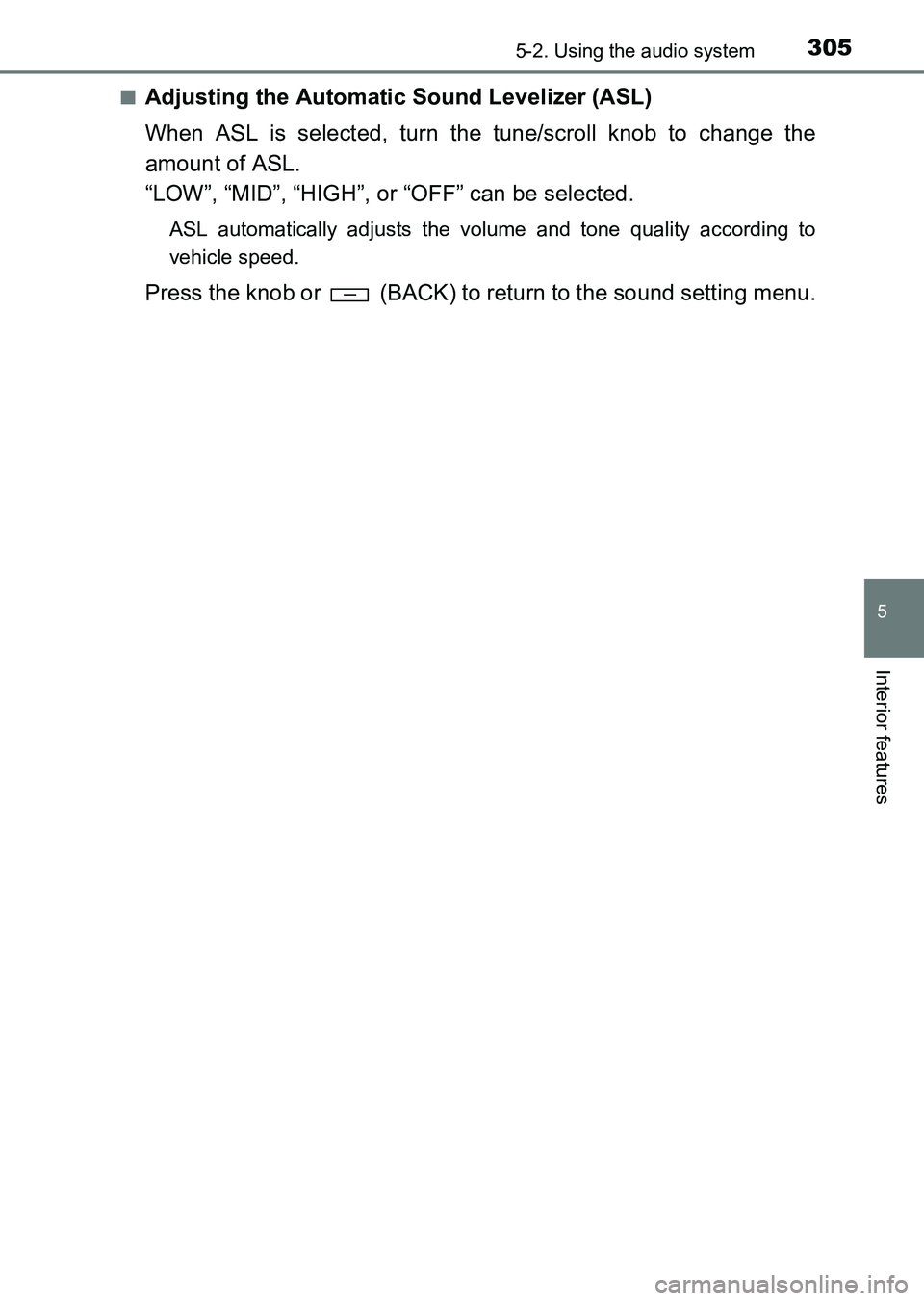

Adjusting the Automatic Sound Levelizer (ASL)
When ASL is selected, turn the tune/scroll knob to change the
amount of ASL.
“LOW”, “MID”, “HIGH”, or “OFF” can be selected.
ASL automatically adjusts the volume and tone quality according to
vehicle speed.
Press the knob or (BACK) to return to the sound setting menu.
HILUX_OM_OM0K219E_(EE).book Page 305 Wednesday, May 14, 2014
3:06 PM

3065-2. Using the audio system
HILUX_OM_OM0K219E_(EE)

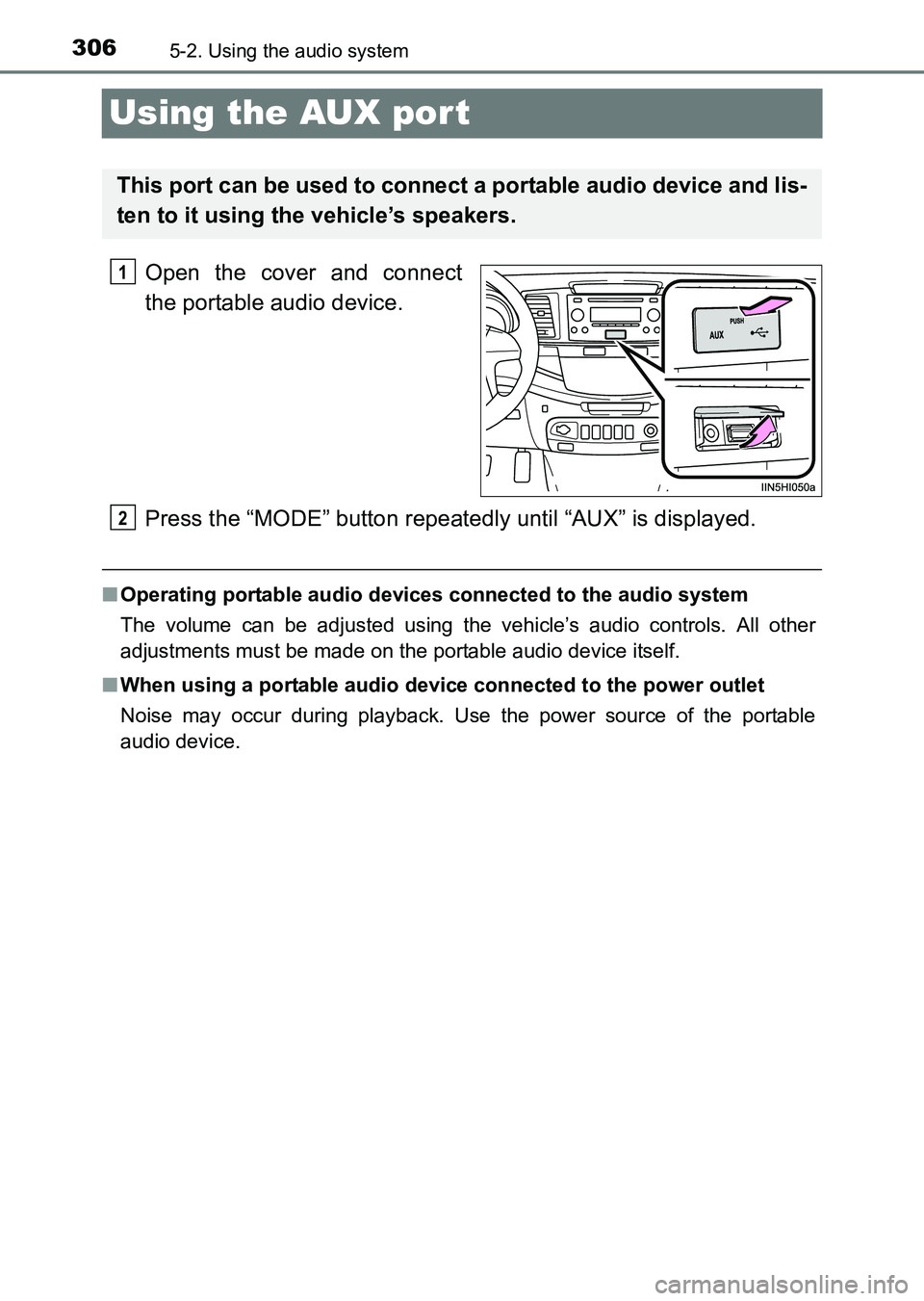

Using the AUX port
Open the cover and connect
the portable audio device.
Press the “MODE” button repeatedly until “AUX” is displayed.
■Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle’s audio controls. All other
adjustments must be made on the portable audio device itself.
■ When using a portable audio devi ce connected to the power outlet
Noise may occur during playback. Use the power source of the portable
audio device.
This port can be used to connect a portable audio device and lis-
ten to it using the vehicle’s speakers.
1
2
HILUX_OM_OM0K219E_(EE).book Page 306 Wednesday, May 14, 2014 3:06 PM

307
5
5-2. Using the audio system
Interior features
HILUX_OM_OM0K219E_(EE)

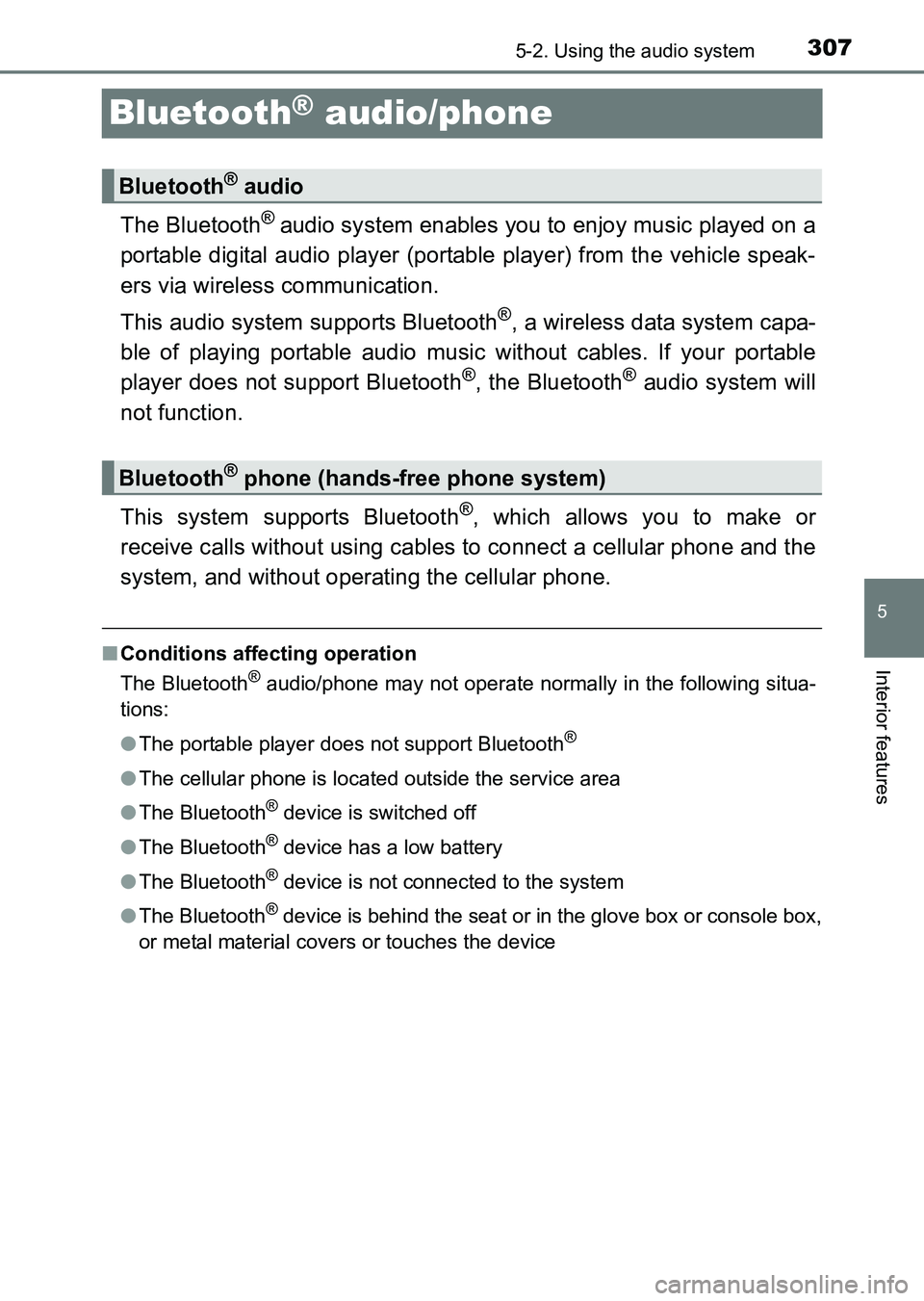

Bluetooth® audio/phone
The Bluetooth® audio system enables you to enjoy music played on a
portable digital audio player (portable player) from the vehicle speak-
ers via wireless communication.
This audio system supports Bluetooth
®, a wireless data system capa-
ble of playing portable audio music without cables. If your portable
player does not support Bluetooth
®, the Bluetooth® audio system will
not function.
This system supports Bluetooth
®, which allows you to make or
receive calls without using cables to connect a cellular phone and the
system, and without operating the cellular phone.
■ Conditions affecting operation
The Bluetooth
® audio/phone may not operate normally in the following situa-
tions:
● The portable player does not support Bluetooth
®
●The cellular phone is located outside the service area
● The Bluetooth
® device is switched off
● The Bluetooth
® device has a low battery
● The Bluetooth
® device is not connected to the system
● The Bluetooth
® device is behind the seat or in the glove box or console box,
or metal material covers or touches the device
Bluetooth® audio
Bluetooth® phone (hands-free phone system)
HILUX_OM_OM0K219E_(EE).book Page 307 Wednesday, May 14, 2014 3:06 PM

3085-2. Using the audio system
HILUX_OM_OM0K219E_(EE)■

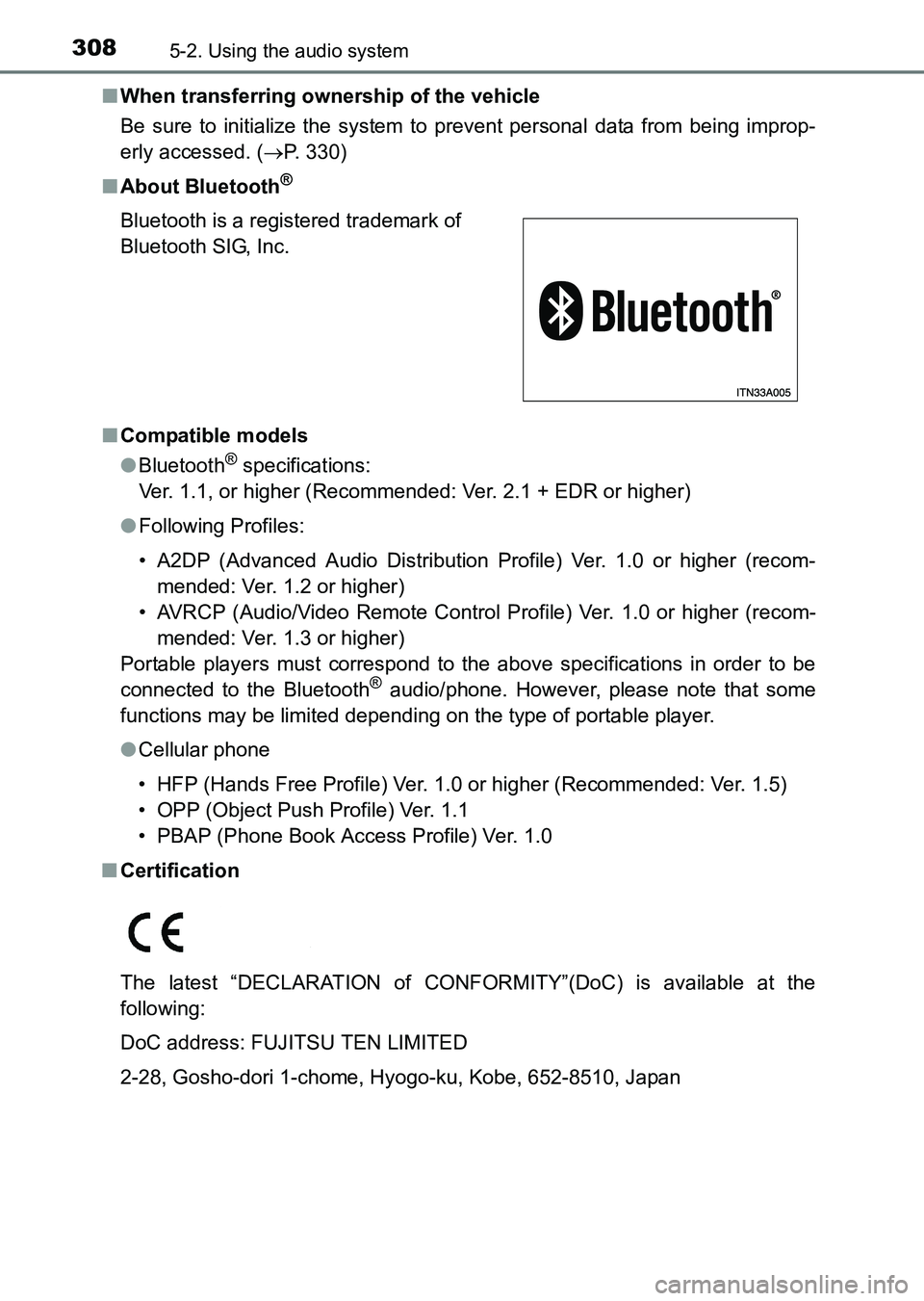

When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improp-
erly accessed. ( →P. 330)
■ About Bluetooth
®
■Compatible models
●Bluetooth
® specifications:
Ver. 1.1, or higher (Recommended: Ver. 2.1 + EDR or higher)
● Following Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0 or higher (recom-
mended: Ver. 1.2 or higher)
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher (recom- mended: Ver. 1.3 or higher)
Portable players must correspond to the above specifications in order to be
connected to the Bluetooth
® audio/phone. However, please note that some
functions may be limited depending on the type of portable player.
● Cellular phone
• HFP (Hands Free Profile) Ver. 1.0 or higher (Recommended: Ver. 1.5)
• OPP (Object Push Profile) Ver. 1.1
• PBAP (Phone Book Access Profile) Ver. 1.0
■ Certification
The latest “DECLARATION of CONFORMITY”(DoC) is available at the
following:
DoC address: FUJITSU TEN LIMITED
2-28, Gosho-dori 1-chome, Hyogo-ku, Kobe, 652-8510, Japan Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
HILUX_OM_OM0K219E_(EE).book Page 308 Wednesday, May 14, 2014 3:06 PM

3095-2. Using the audio system
5
Interior features
HILUX_OM_OM0K219E_(EE)
HILUX_OM_OM0K219E_(EE).book Page 309 Wednesday, May 14, 2014 3:06 PM

3105-2. Using the audio system
HILUX_OM_OM0K219E_(EE)
HILUX_OM_OM0K219E_(EE).book Page 310 Wednesday, May 14, 2014 3:06 PM

3115-2. Using the audio system
5
Interior features
HILUX_OM_OM0K219E_(EE)

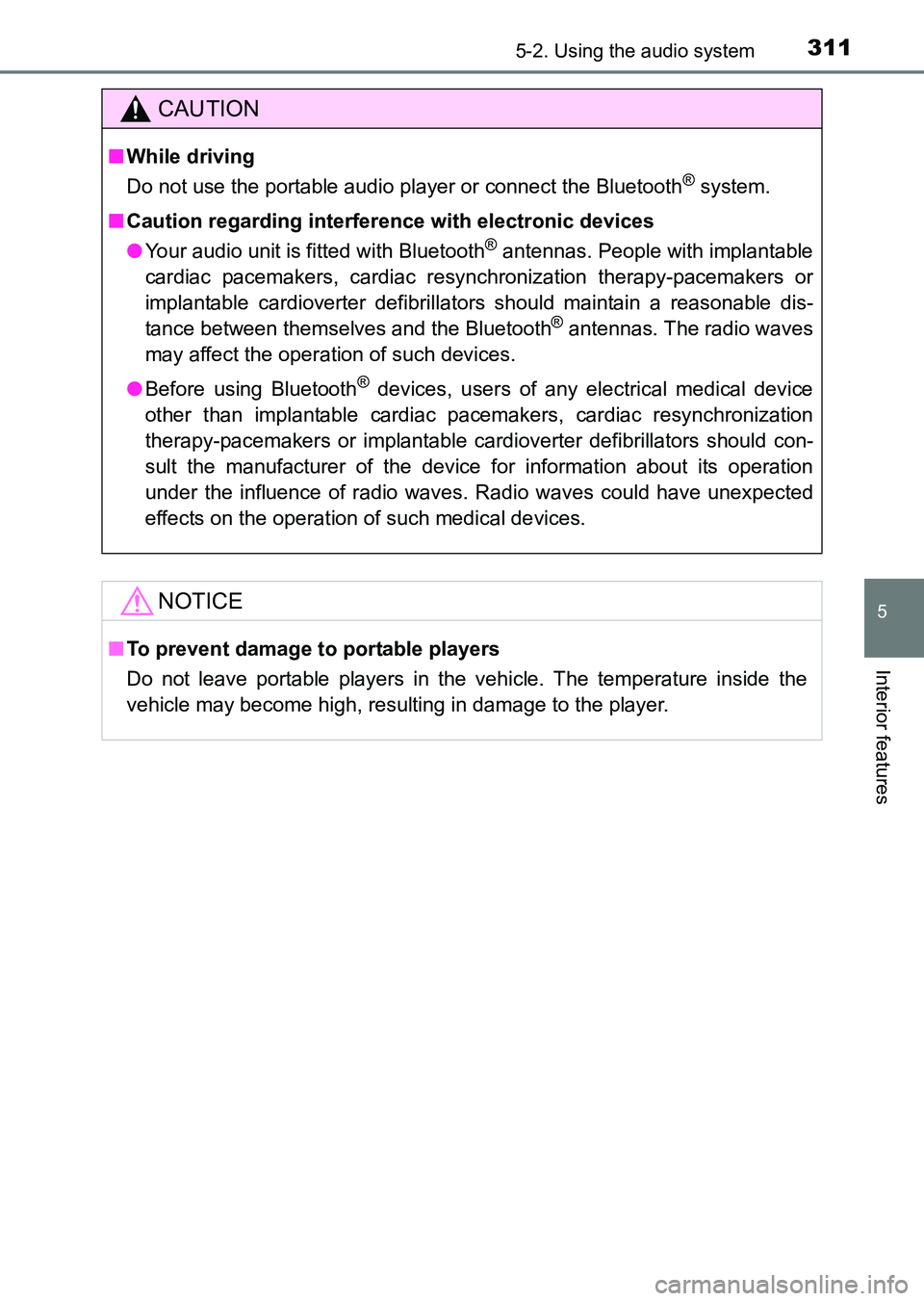

CAUTION
■While driving
Do not use the portable audio player or connect the Bluetooth
® system.
■
Caution regarding interference with electronic devices
●
Your audio unit is fitted with Bluetooth
® antennas. People with implantable
cardiac pacemakers, cardiac resynchronization therapy-pacemakers or
implantable cardioverter defibrillators should maintain a reasonable dis-
tance between themselves and the Bluetooth
® antennas. The radio waves
may affect the operation of such devices.
●
Before using Bluetooth
® devices, users of any electrical medical device
other than implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should con-
sult the manufacturer of the device for information about its operation
under the influence of radio waves. Radio waves could have unexpected
effects on the operation of such medical devices.
NOTICE
■ To prevent damage to portable players
Do not leave portable players in the vehicle. The temperature inside the
vehicle may become high, resulting in damage to the player.
HILUX_OM_OM0K219E_(EE).book Page 311 Wednesday, May 14, 2014 3:06 PM

3125-2. Using the audio system
HILUX_OM_OM0K219E_(EE)

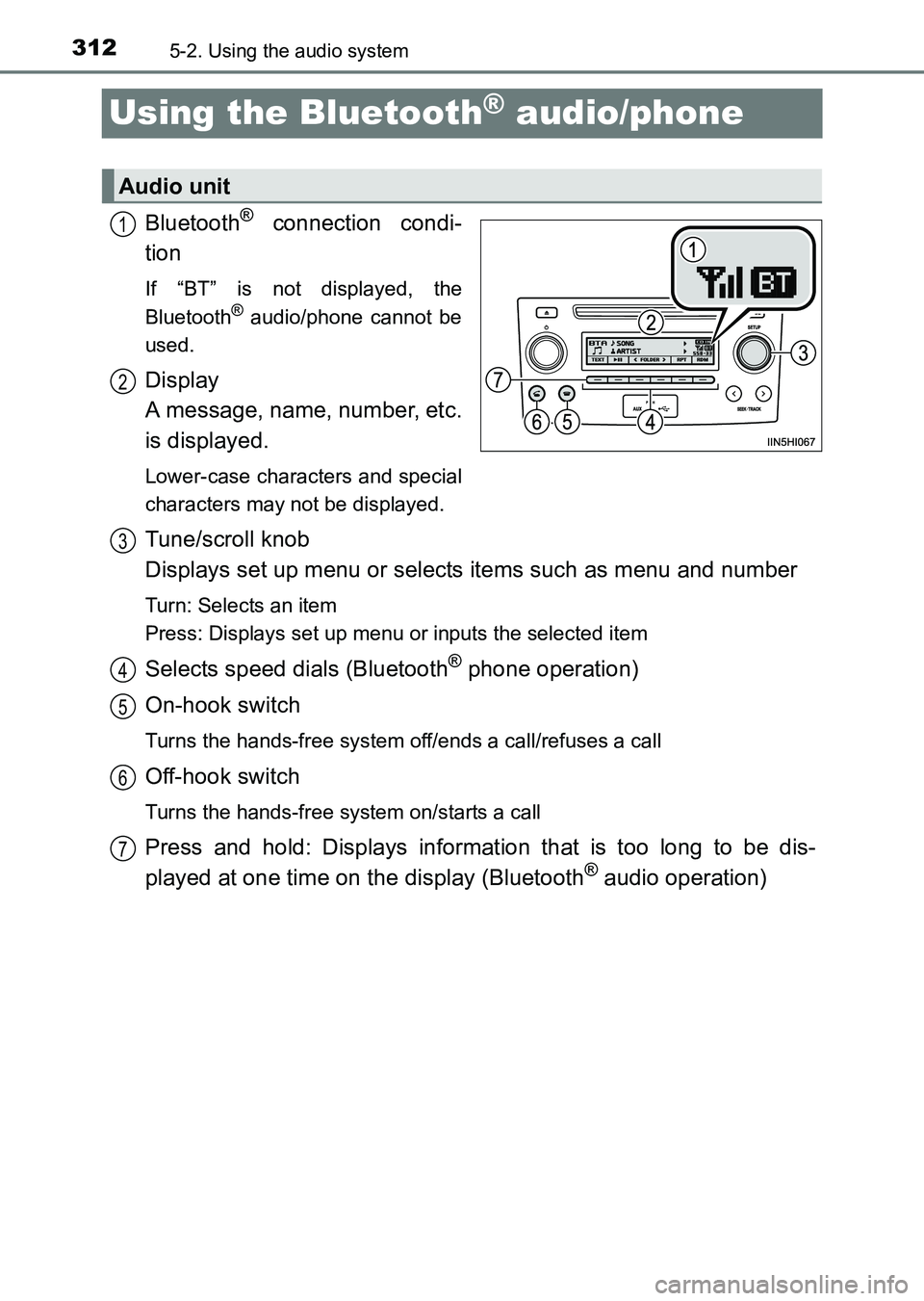

Using the Bluetooth® audio/phone
Bluetooth® connection condi-
tion
If “BT” is not displayed, the
Bluetooth® audio/phone cannot be
used.
Display
A message, name, number, etc.
is displayed.
Lower-case characters and special
characters may not be displayed.
Tune/scroll knob
Displays set up menu or selects items such as menu and number
Turn: Selects an item
Press: Displays set up menu or inputs the selected item
Selects speed dials (Bluetooth® phone operation)
On-hook switch
Turns the hands-free system off/ends a call/refuses a call
Off-hook switch
Turns the hands-free system on/starts a call
Press and hold: Displays information that is too long to be dis-
played at one time on the display (Bluetooth® audio operation)
Audio unit
1
2
3
4
5
6
7
HILUX_OM_OM0K219E_(EE).book Page 312 Wednesday, May 14, 2014 3:06 PM
