2015 TOYOTA HILUX Owners Manual (in English)

409
6
6-3. Do-it-yourself maintenance
Maintenance and care
HILUX_OM_OM0K219E_(EE)

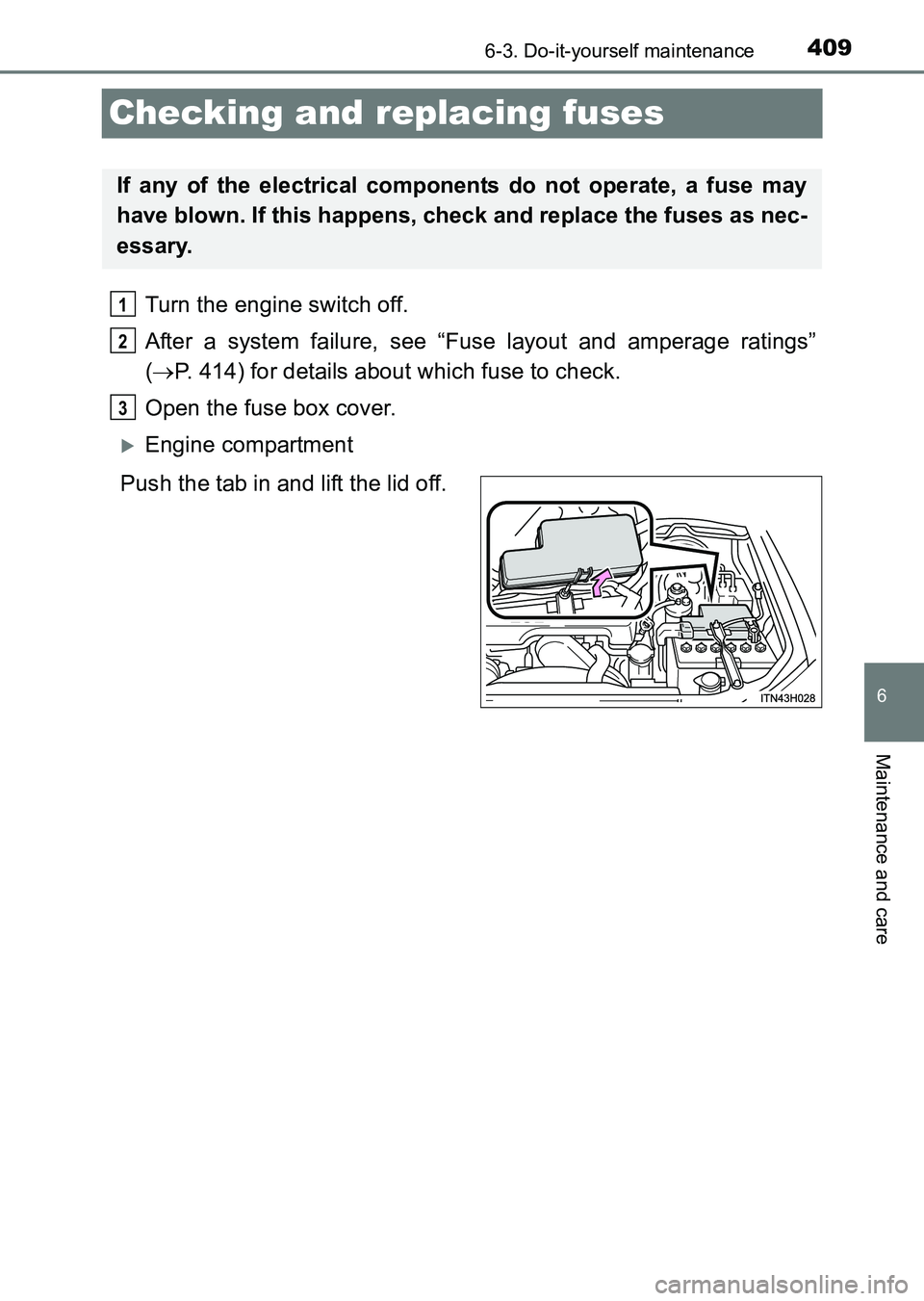

Checking and replacing fuses
Turn the engine switch off.
After a system failure, see “Fuse layout and amperage ratings”
(→ P. 414) for details about which fuse to check.
Open the fuse box cover.
XEngine compartment
Push the tab in and lift the lid off.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
3
HILUX_OM_OM0K219E_(EE).book Page 409 Wednesday, May 14, 2014 3:06 PM

4106-3. Do-it-yourself maintenance
HILUX_OM_OM0K219E_(EE)

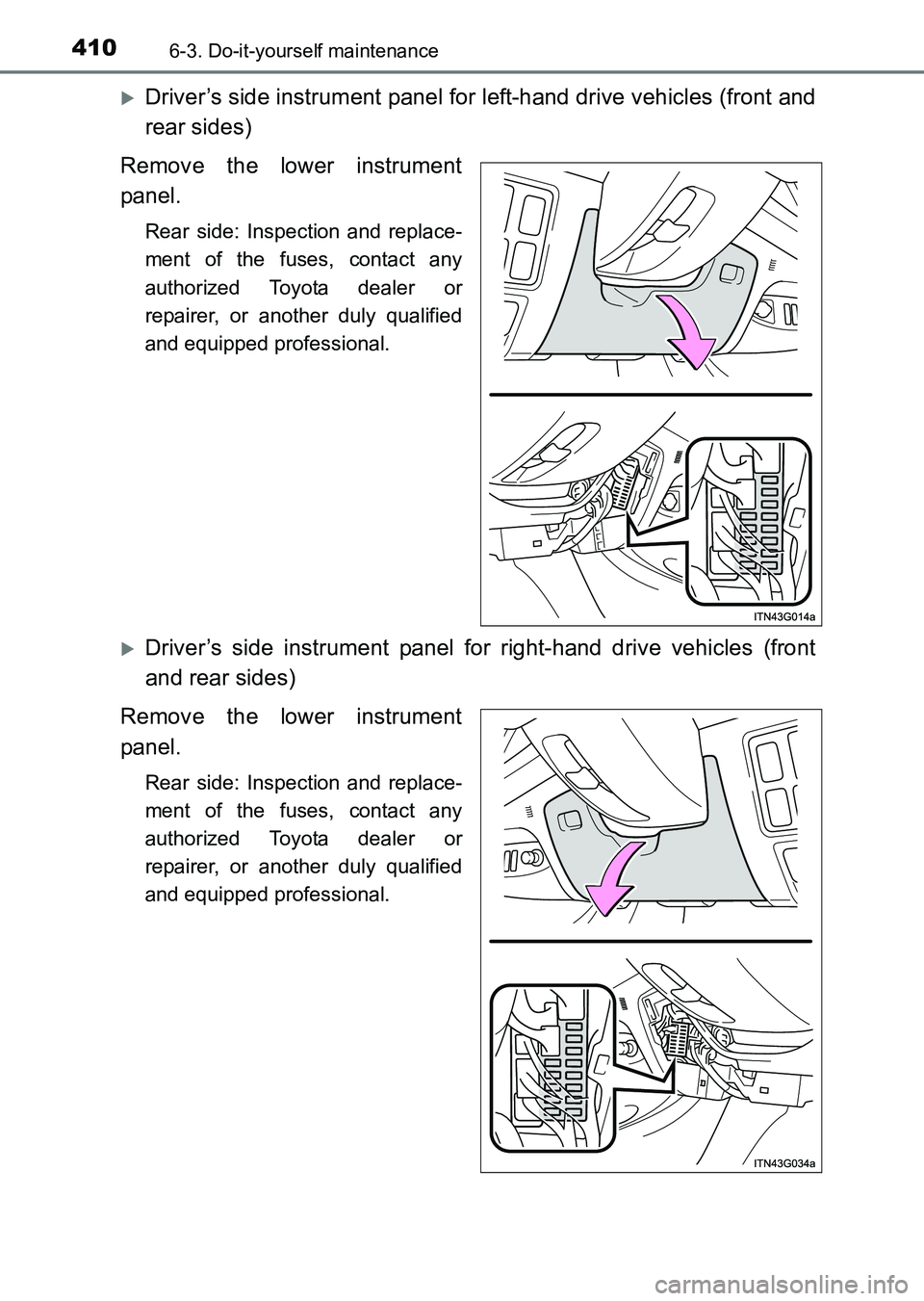

XDriver’s side instrument panel for left-hand drive vehicles (front and
rear sides)
Remove the lower instrument
panel.
Rear side: Inspection and replace-
ment of the fuses, contact any
authorized Toyota dealer or
repairer, or another duly qualified
and equipped professional.
XDriver’s side instrument panel for right-hand drive vehicles (front
and rear sides)
Remove the lower instrument
panel.
Rear side: Inspection and replace-
ment of the fuses, contact any
authorized Toyota dealer or
repairer, or another duly qualified
and equipped professional.
HILUX_OM_OM0K219E_(EE).book Page 410 Wednesday, May 14, 2014 3:06 PM

4116-3. Do-it-yourself maintenance
6
Maintenance and care
HILUX_OM_OM0K219E_(EE)

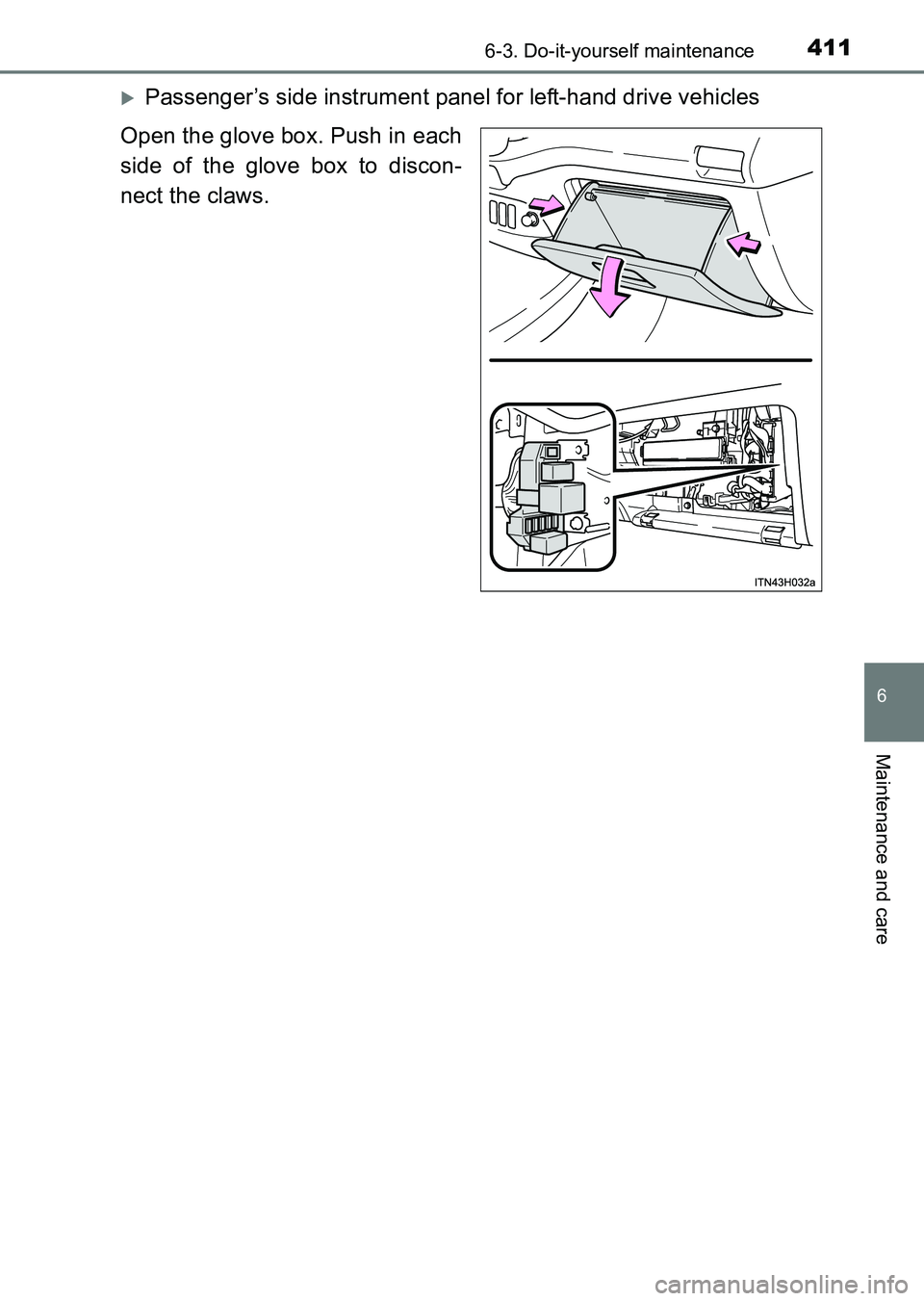

XPassenger’s side instrument panel for left-hand drive vehicles
Open the glove box. Push in each
side of the glove box to discon-
nect the claws.
HILUX_OM_OM0K219E_(EE).book Page 411 Wednesday, May 14, 2014 3:06 PM

4126-3. Do-it-yourself maintenance
HILUX_OM_OM0K219E_(EE)

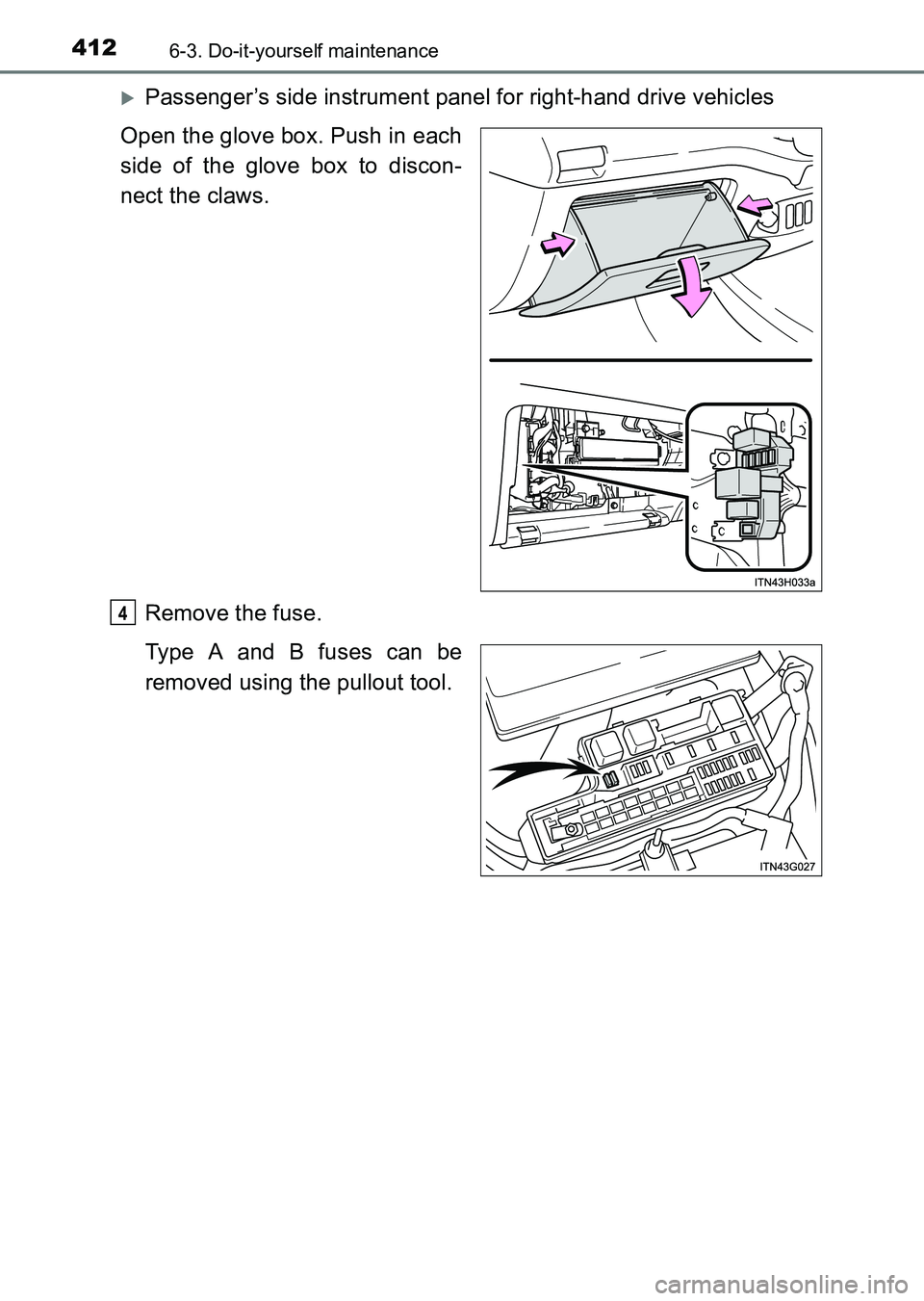

XPassenger’s side instrument panel for right-hand drive vehicles
Open the glove box. Push in each
side of the glove box to discon-
nect the claws.
Remove the fuse.
Type A and B fuses can be
removed using the pullout tool.
4
HILUX_OM_OM0K219E_(EE).book Page 412 Wednesday, May 14, 2014 3:06 PM

4136-3. Do-it-yourself maintenance
6
Maintenance and care
HILUX_OM_OM0K219E_(EE)

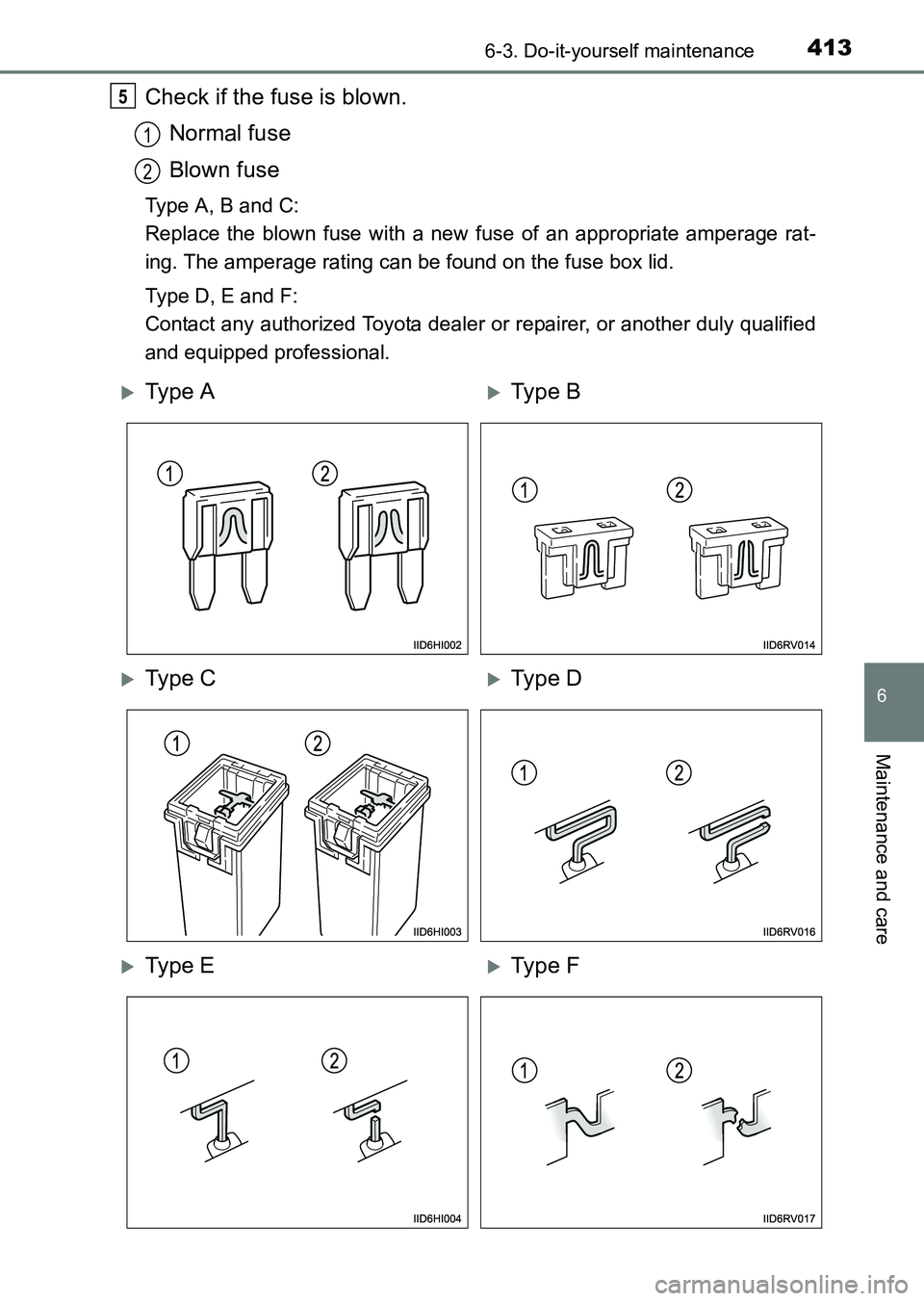

Check if the fuse is blown.Normal fuse
Blown fuse
Type A, B and C:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
Type D, E and F:
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
5
1
2
XTy pe AXType B
XTy pe CXType D
XTy pe EXType F
HILUX_OM_OM0K219E_(EE).book Page 413 Wednesday, May 14, 2014 3:06 PM

4146-3. Do-it-yourself maintenance
HILUX_OM_OM0K219E_(EE)

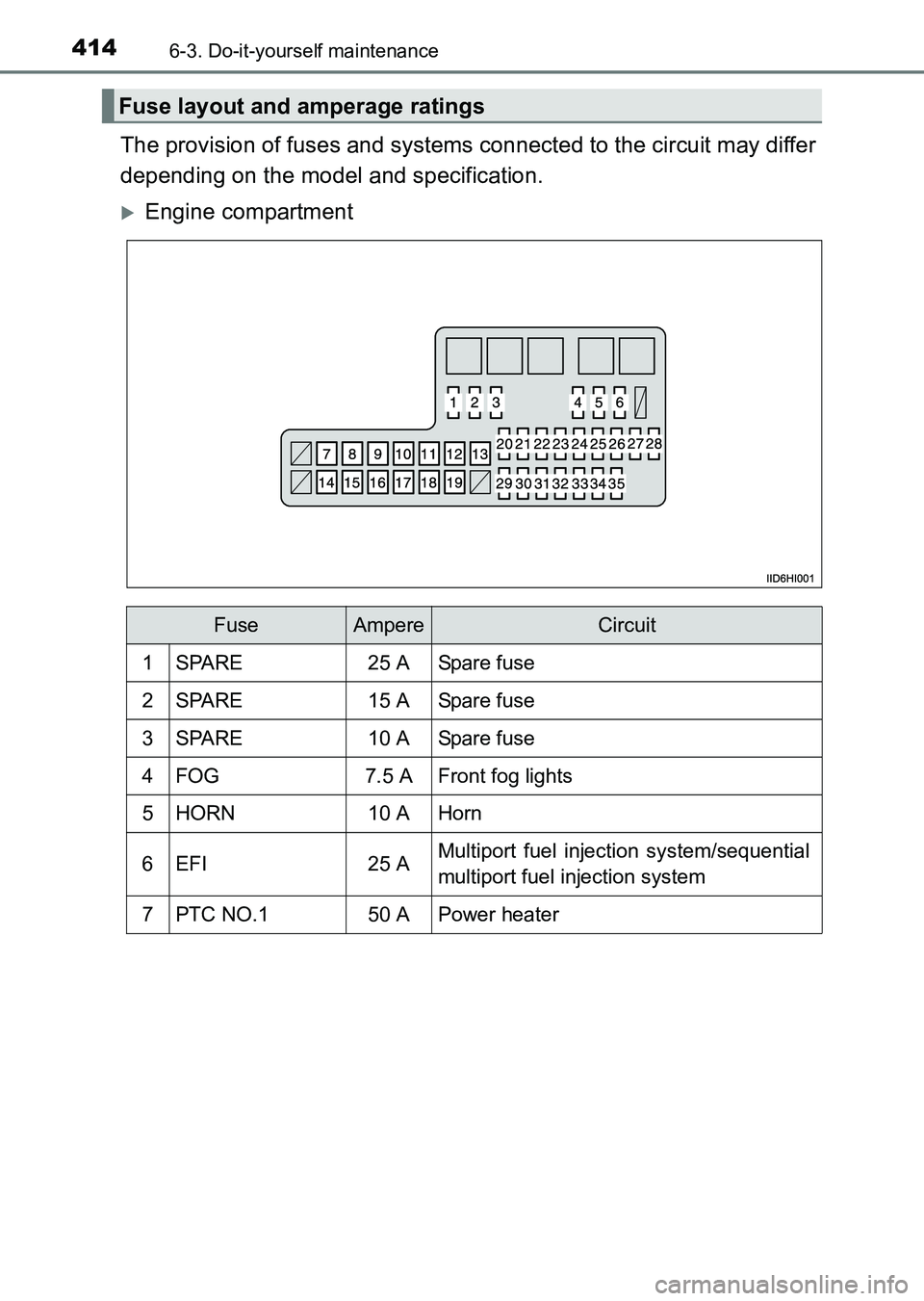

The provision of fuses and systems connected to the circuit may differ
depending on the model and specification.
XEngine compartment
Fuse layout and amperage ratings
FuseAmpereCircuit
1SPARE25 ASpar e fus e
2SPARE15 ASpar e fus e
3SPARE10 ASpar e fus e
4FOG7.5 AFront fog lights
5HORN10 AHorn
6EFI25 AMultiport fuel injection system/sequential
multiport fuel injection system
7PTC NO.150 APower heater
HILUX_OM_OM0K219E_(EE).book Page 414 Wednesday, May 14, 2014 3:06 PM

4156-3. Do-it-yourself maintenance
6
Maintenance and care
HILUX_OM_OM0K219E_(EE)

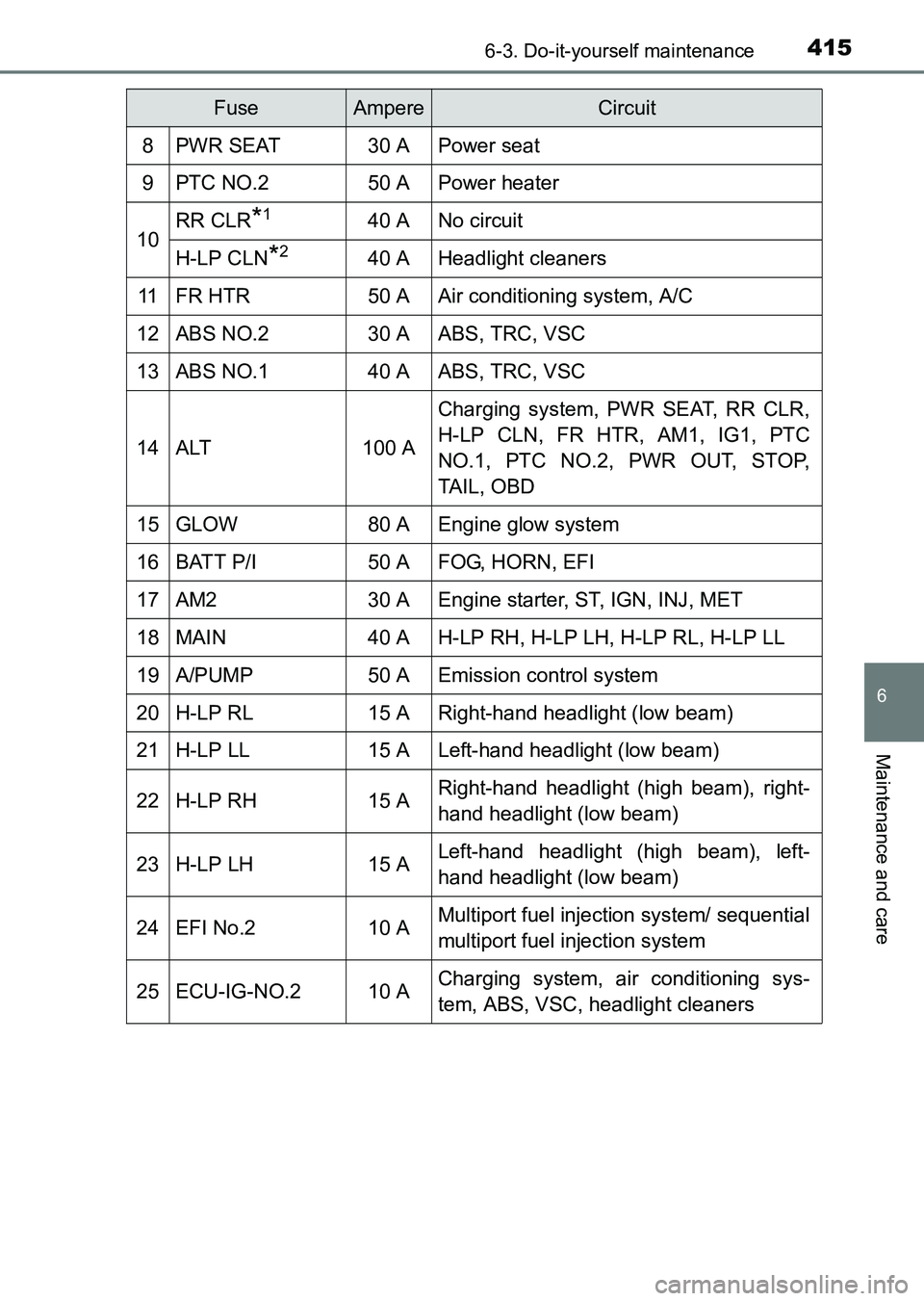

FuseAmpereCircuit
8PWR SEAT30 APower seat
9PTC NO.250 APower heater
10RR CLR*140 ANo circuit
H-LP CLN*240 AHeadlight cleaners
11FR HTR50 AAir conditioning system, A/C
12ABS NO.230 AABS, TRC, VSC
13ABS NO.140 AABS, TRC, VSC
14ALT100 A
Charging system, PWR SEAT, RR CLR,
H-LP CLN, FR HTR, AM1, IG1, PTC
NO.1, PTC NO.2, PWR OUT, STOP,
TA I L , O B D
15GLOW80 AEngine glow system
16BATT P/I50 AFOG, HORN, EFI
17AM230 AEngine starter, ST, IGN, INJ, MET
18MAIN40 AH-LP RH, H-LP LH, H-LP RL, H-LP LL
19A/PUMP50 AEmission control system
20H-LP RL15 ARight-hand headlight (low beam)
21H-LP LL15 ALeft-hand headlight (low beam)
22H-LP RH15 ARight-hand headlight (high beam), right-
hand headlight (low beam)
23H-LP LH15 ALeft-hand headlight (high beam), left-
hand headlight (low beam)
24EFI No.210 AMultiport fuel injection system/ sequential
multiport fuel injection system
25ECU-IG-NO.210 ACharging system, air conditioning sys-
tem, ABS, VSC, headlight cleaners
HILUX_OM_OM0K219E_(EE).book Page 415 Wednesday, May 14, 2014 3:06 PM

4166-3. Do-it-yourself maintenance
HILUX_OM_OM0K219E_(EE)
*1: For TGN26L-PRMDK and KUN25L-PRMDH models*3
*2: Except for TGN26L-PRMDK and KUN25L-PRMDH models*3
*3: The model code is indicated on the manufacturer’s label or plate. (
→P. 494)
26ECU-B10 A
Door courtesy switches, power door lock
system, wireless remote control system,
steering sensor, headlights
27RAD20 AAudio system
28DOME7.5 A
Interior lights, engine switch light, per-
sonal light, gauges and meters, clock,
multi-information display, wireless remote
control system, daytime running light sys-
tem, fog light
29A/F20 AEmission control system
30ETCS10 AMultiport fuel injection system/ sequential
multiport fuel injection system
31ALT-S7.5 ACharging system
32TURN-HAZ15 AEmergency flashers and turn signal lights
33SIREN7.5 ASIREN
34ECU-B No.27.5 AAir conditioning system
35DCC30 AECU-B, DOME, RAD
FuseAmpereCircuit
