NOTICE

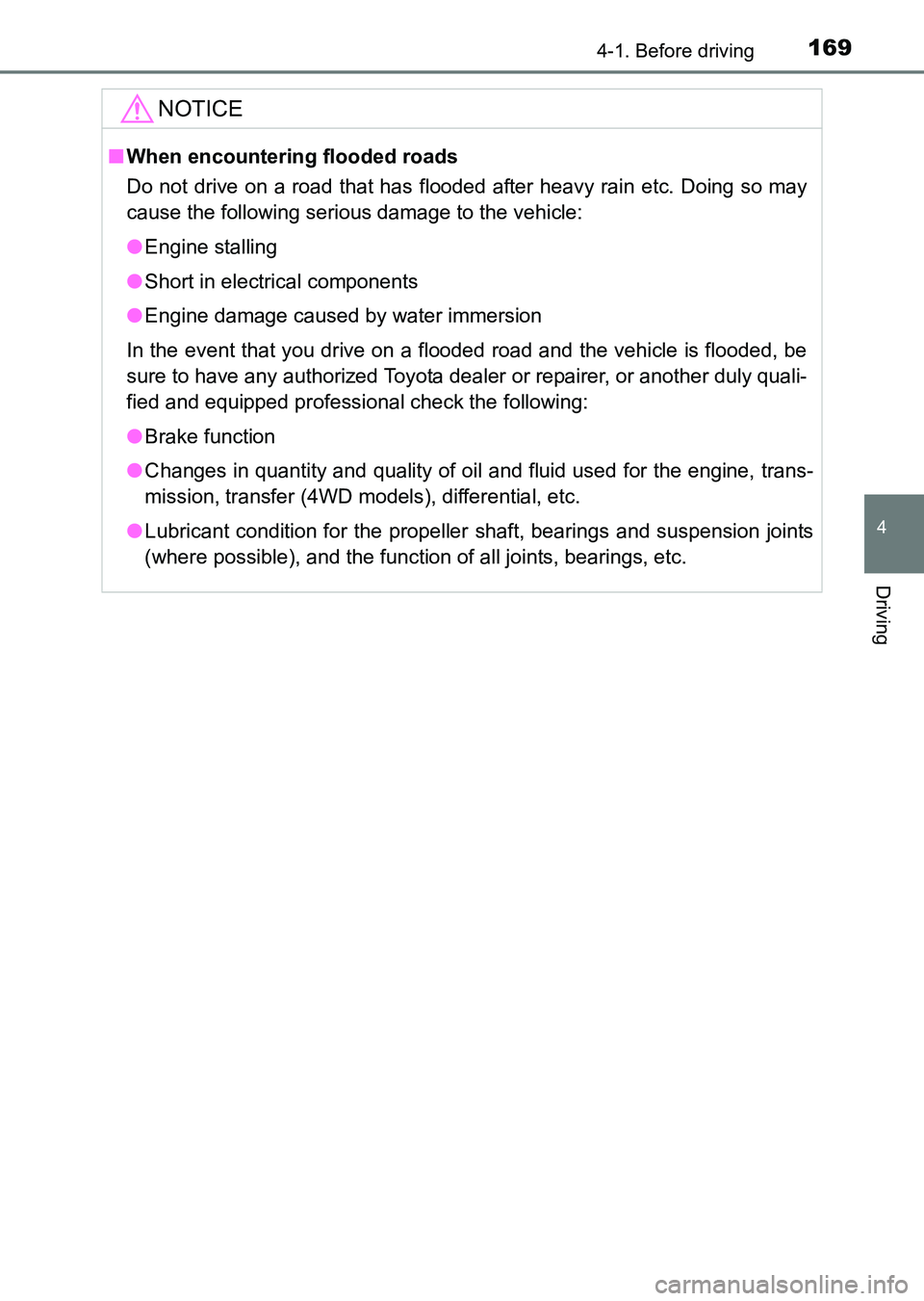

■When encountering flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may
cause the following serious damage to the vehicle:
● Engine stalling
● Short in electrical components
● Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be
sure to have any authorized Toyota deale r or repairer, or another duly quali-
fied and equipped professional check the following:
● Brake function
● Changes in quantity and quality of oil and fluid used for the engine, trans-
mission, transfer (4WD models), differential, etc.
● Lubricant condition for the propeller shaft, bearings and suspension joints
(where possible), and the function of all joints, bearings, etc.
HILUX_OM_OM0K219E_(EE).book Page 169 Wednesday, May 14, 2014 3:06 PM

1704-1. Before driving
HILUX_OM_OM0K219E_(EE)

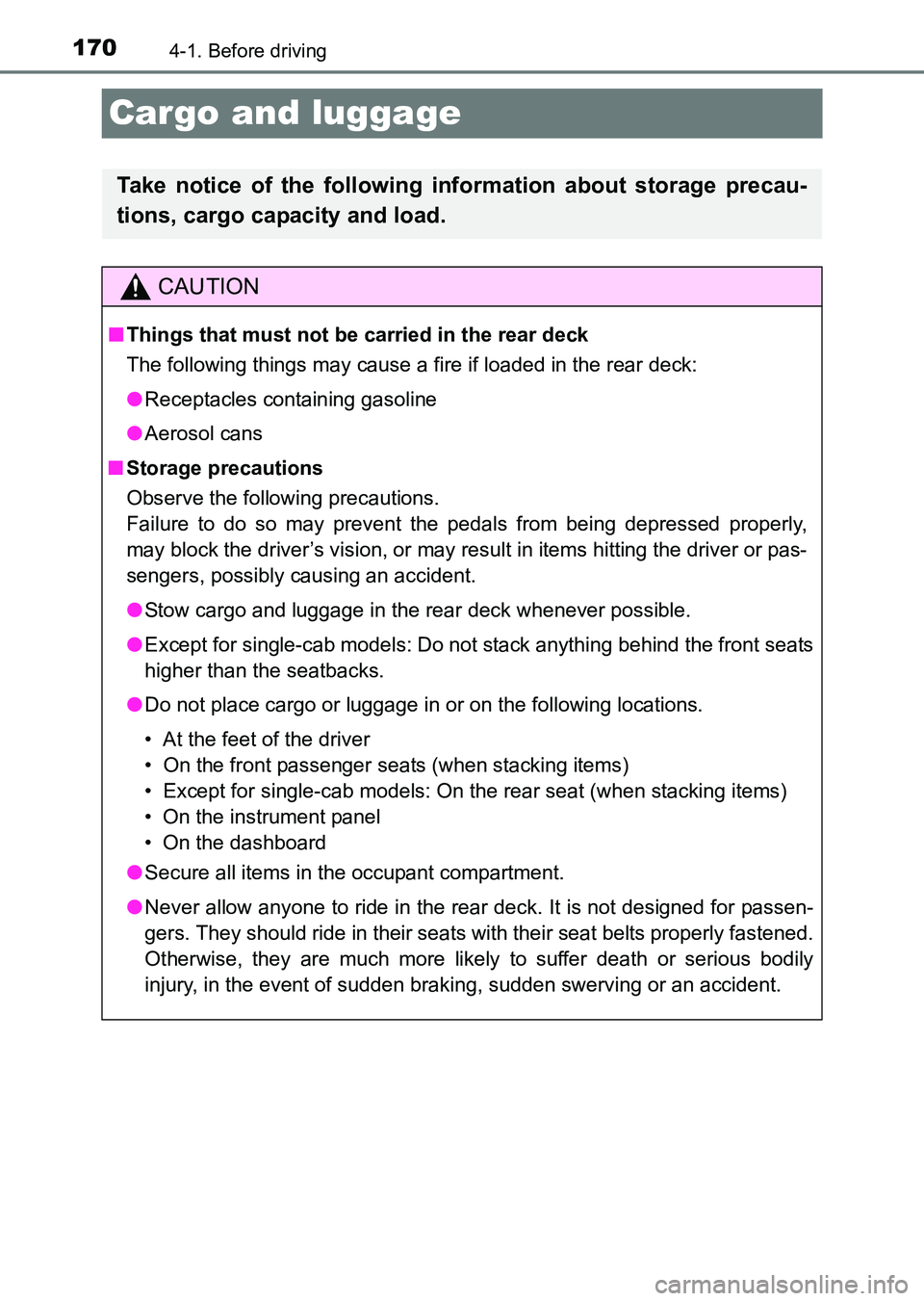

Cargo and luggage
Take notice of the following information about storage precau-
tions, cargo capacity and load.
CAUTION
■Things that must not be carried in the rear deck
The following things may cause a fire if loaded in the rear deck:
● Receptacles containing gasoline
● Aerosol cans
■ Storage precautions
Observe the following precautions.
Failure to do so may prevent t he pedals from being depressed properly,
may block the driver’s vision, or may re sult in items hitting the driver or pas-
sengers, possibly causing an accident.
● Stow cargo and luggage in the rear deck whenever possible.
● Except for single-cab models: Do not stack anything behind the front seats
higher than the seatbacks.
● Do not place cargo or luggage in or on the following locations.
• At the feet of the driver
• On the front passenger seats (when stacking items)
• Except for single-cab models: On the rear seat (when stacking items)
• On the instrument panel
• On the dashboard
● Secure all items in the occupant compartment.
● Never allow anyone to ride in the rear deck. It is not designed for passen-
gers. They should ride in their seats with their seat belts properly fastened.
Otherwise, they are much more likely to suffer death or serious bodily
injury, in the event of sudden braking, sudden swerving or an accident.
HILUX_OM_OM0K219E_(EE).book Page 170 Wednesday, May 14, 2014 3:06 PM

1714-1. Before driving
4
Driving
HILUX_OM_OM0K219E_(EE)
CAUTION

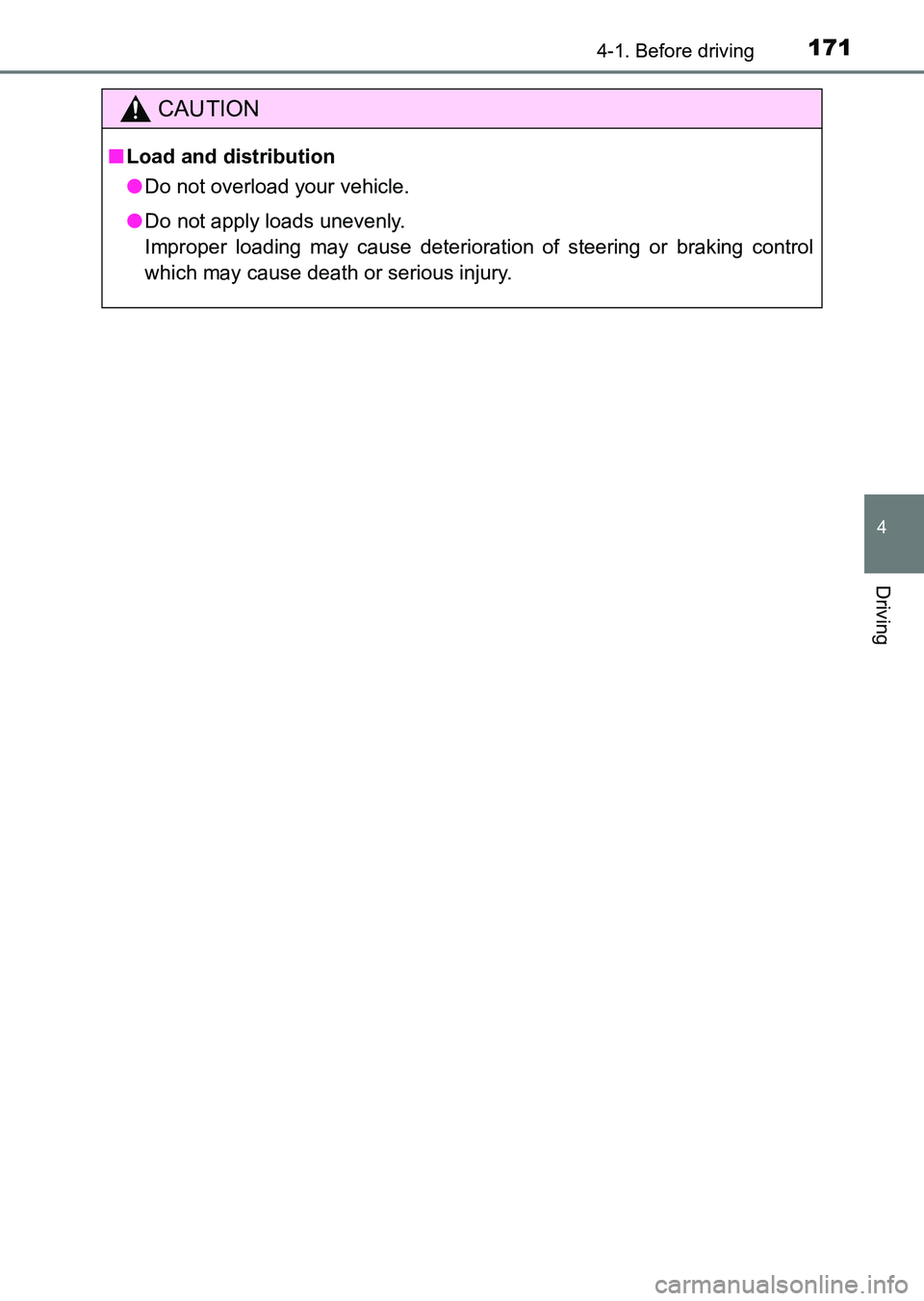

■Load and distribution
● Do not overload your vehicle.
● Do not apply loads unevenly.
Improper loading may cause deterioration of steering or braking control
which may cause death or serious injury.
HILUX_OM_OM0K219E_(EE).book Page 171 Wednesday, May 14, 2014 3:06 PM

1724-1. Before driving
HILUX_OM_OM0K219E_(EE)

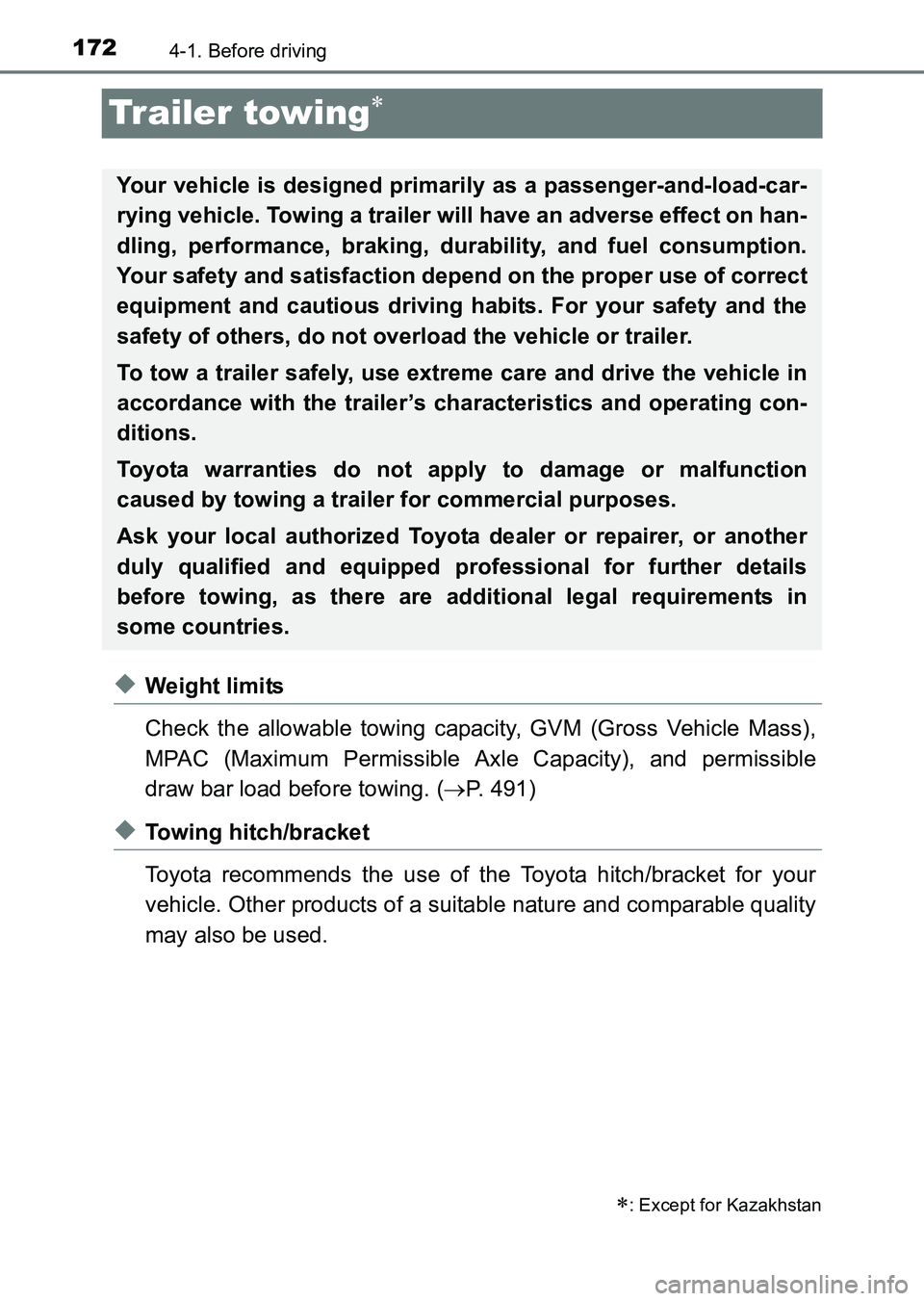

Trailer towing∗
◆Weight limits
Check the allowable towing capacity, GVM (Gross Vehicle Mass),
MPAC (Maximum Permissible Axle Capacity), and permissible
draw bar load before towing. (→P. 491)
◆Towing hitch/bracket
Toyota recommends the use of the Toyota hitch/bracket for your
vehicle. Other products of a suitable nature and comparable quality
may also be used.
∗: Except for Kazakhstan
Your vehicle is designed primarily as a passenger-and-load-car-
rying vehicle. Towing a trailer will have an adverse effect on han-
dling, performance, braking, durability, and fuel consumption.
Your safety and satisfaction depend on the proper use of correct
equipment and cautious driving habits. For your safety and the
safety of others, do not overload the vehicle or trailer.
To tow a trailer safely, use extreme care and drive the vehicle in
accordance with the trailer’s characteristics and operating con-
ditions.
Toyota warranties do not apply to damage or malfunction
caused by towing a trailer for commercial purposes.
Ask your local authorized Toyota dealer or repairer, or another
duly qualified and equipped professional for further details
before towing, as there are additional legal requirements in
some countries.
HILUX_OM_OM0K219E_(EE).book Page 172 Wednesday, May 14, 2014 3:06 PM

1734-1. Before driving
4
Driving
HILUX_OM_OM0K219E_(EE)■

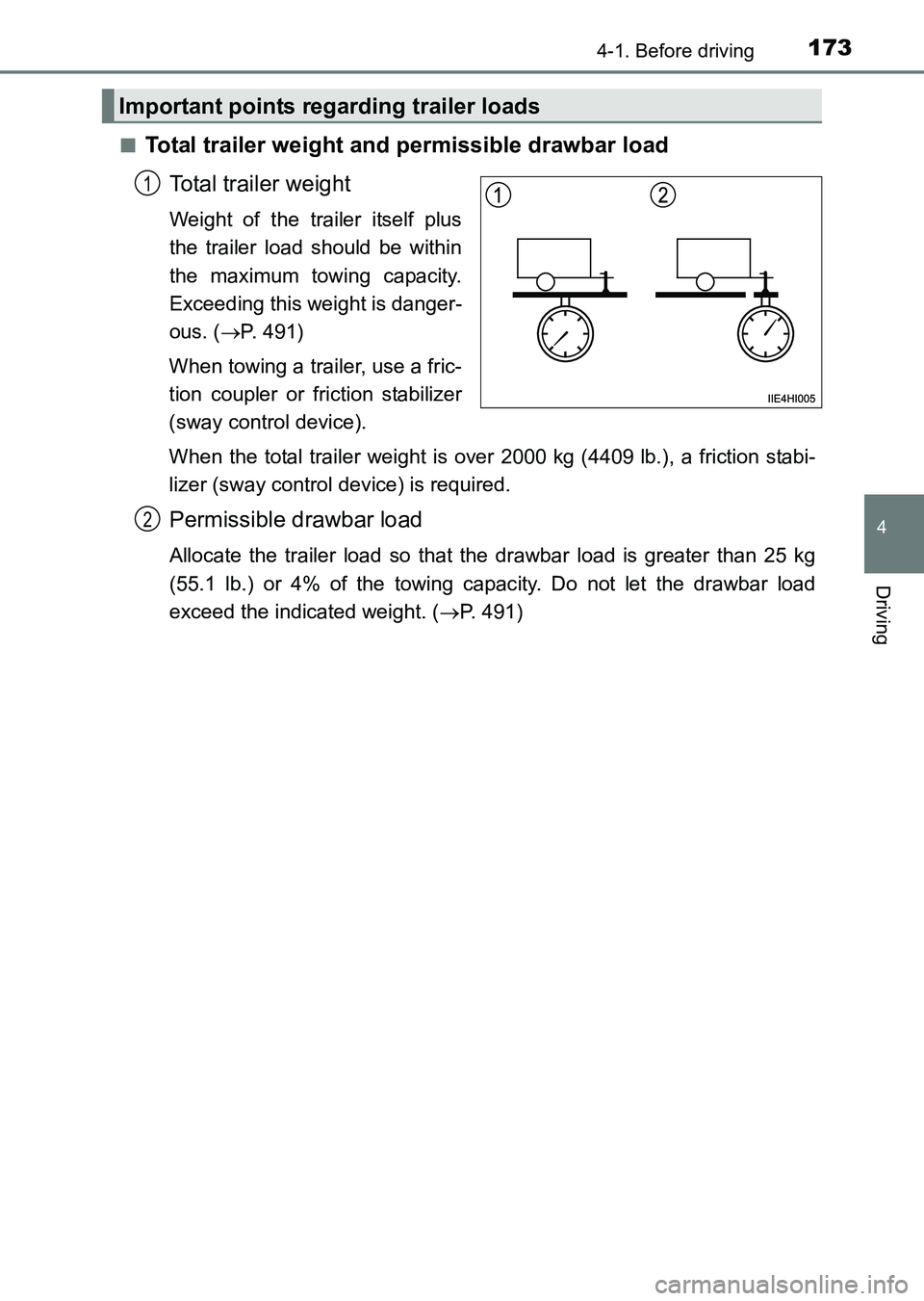

Total trailer weight and permissible drawbar load
Total trailer weight
Weight of the trailer itself plus
the trailer load should be within
the maximum towing capacity.
Exceeding this weight is danger-
ous. ( →P. 491)
When towing a trailer, use a fric-
tion coupler or friction stabilizer
(sway control device).
When the total trailer weight is over 2000 kg (4409 lb.), a friction stabi-
lizer (sway control device) is required.
Permissible drawbar load
Allocate the trailer load so that the drawbar load is greater than 25 kg
(55.1 lb.) or 4% of the towing ca pacity. Do not let the drawbar load
exceed the indicated weight. ( →P. 491)
Important points regarding trailer loads
1
2
HILUX_OM_OM0K219E_(EE).book Page 173 Wednesday, May 14, 2014 3:06 PM

1744-1. Before driving
HILUX_OM_OM0K219E_(EE)■

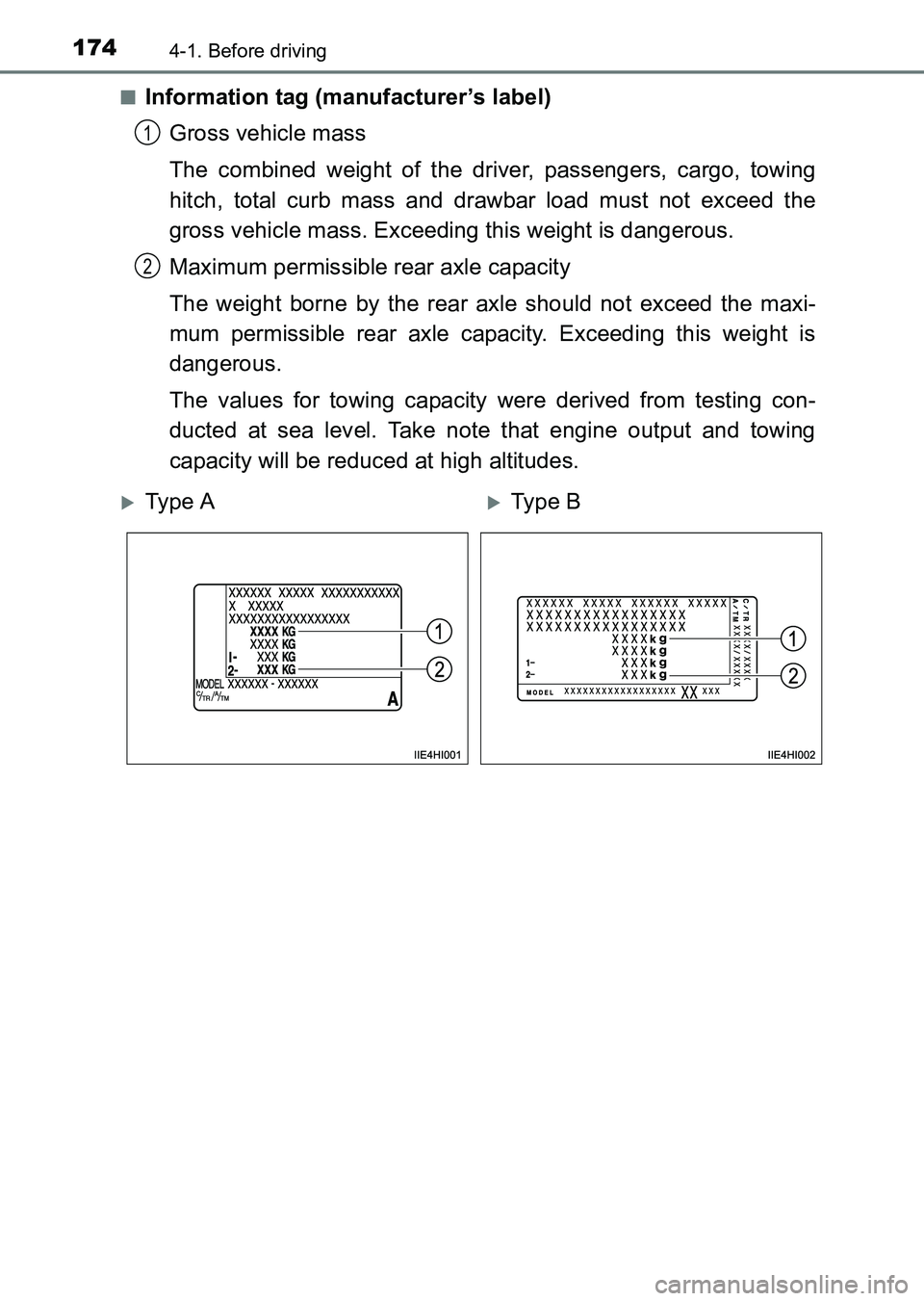

Information tag (manufacturer’s label)
Gross vehicle mass
The combined weight of the driver, passengers, cargo, towing
hitch, total curb mass and drawbar load must not exceed the
gross vehicle mass. Exceeding this weight is dangerous.
Maximum permissible rear axle capacity
The weight borne by the rear axle should not exceed the maxi-
mum permissible rear axle capacity. Exceeding this weight is
dangerous.
The values for towing capacity were derived from testing con-
ducted at sea level. Take note that engine output and towing
capacity will be reduced at high altitudes.
1
2
XTy pe AXType B
HILUX_OM_OM0K219E_(EE).book Page 174 Wednesday, May 14, 2014 3:06 PM

1754-1. Before driving
4
Driving
HILUX_OM_OM0K219E_(EE)
XVehicles with flat bumper or without bumper
70 mm (2.8 in.)
70 mm (2.8 in.)
75 mm (3.0 in.)
20 mm (0.8 in.)
Single-cab models:
355 mm (14.0 in.)
Extra-cab models:
320 mm (12.6 in.)
Double-cab models:
330 mm (13.0 in.)
195 mm (7.7 in.)
1355 mm (53.3 in.)
*: Except for KUN25L-PRMDH model (The model code is indicated on themanufacturer’s label or plate. [ →P. 494])

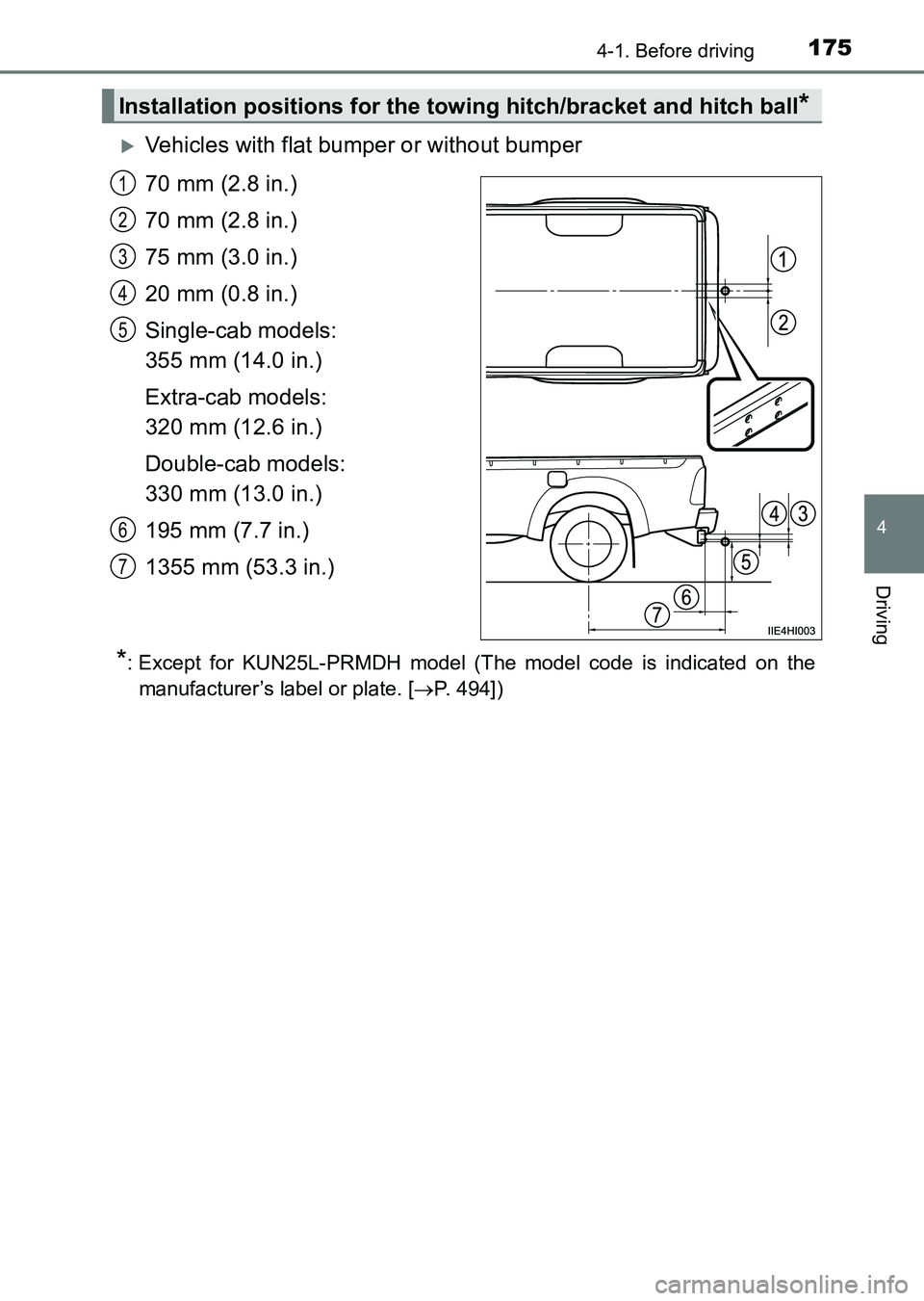

Installation positions for the towing hitch/bracket and hitch ball*
1
2
3
4
5
6
7
HILUX_OM_OM0K219E_(EE).book Page 175 Wednesday, May 14, 2014 3:06 PM

1764-1. Before driving
HILUX_OM_OM0K219E_(EE)

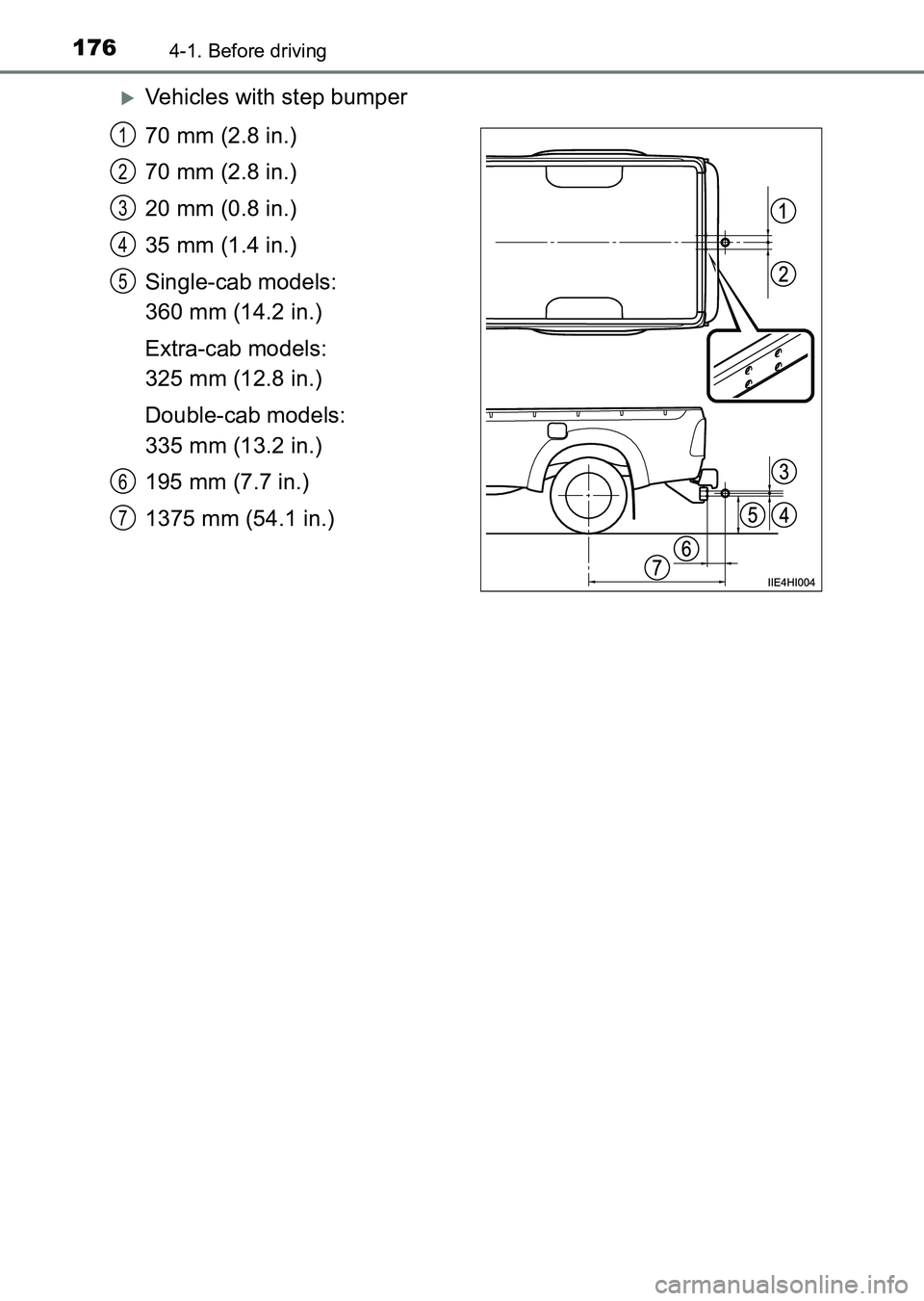

XVehicles with step bumper
70 mm (2.8 in.)
70 mm (2.8 in.)
20 mm (0.8 in.)
35 mm (1.4 in.)
Single-cab models:
360 mm (14.2 in.)
Extra-cab models:
325 mm (12.8 in.)
Double-cab models:
335 mm (13.2 in.)
195 mm (7.7 in.)
1375 mm (54.1 in.)
1
2
3
4
5
6
7
