2015 TOYOTA HILUX Owners Manual (in English)

651-1. For safe use
1
HILUX_OM_OM0K219E_(EE)
For safety and security

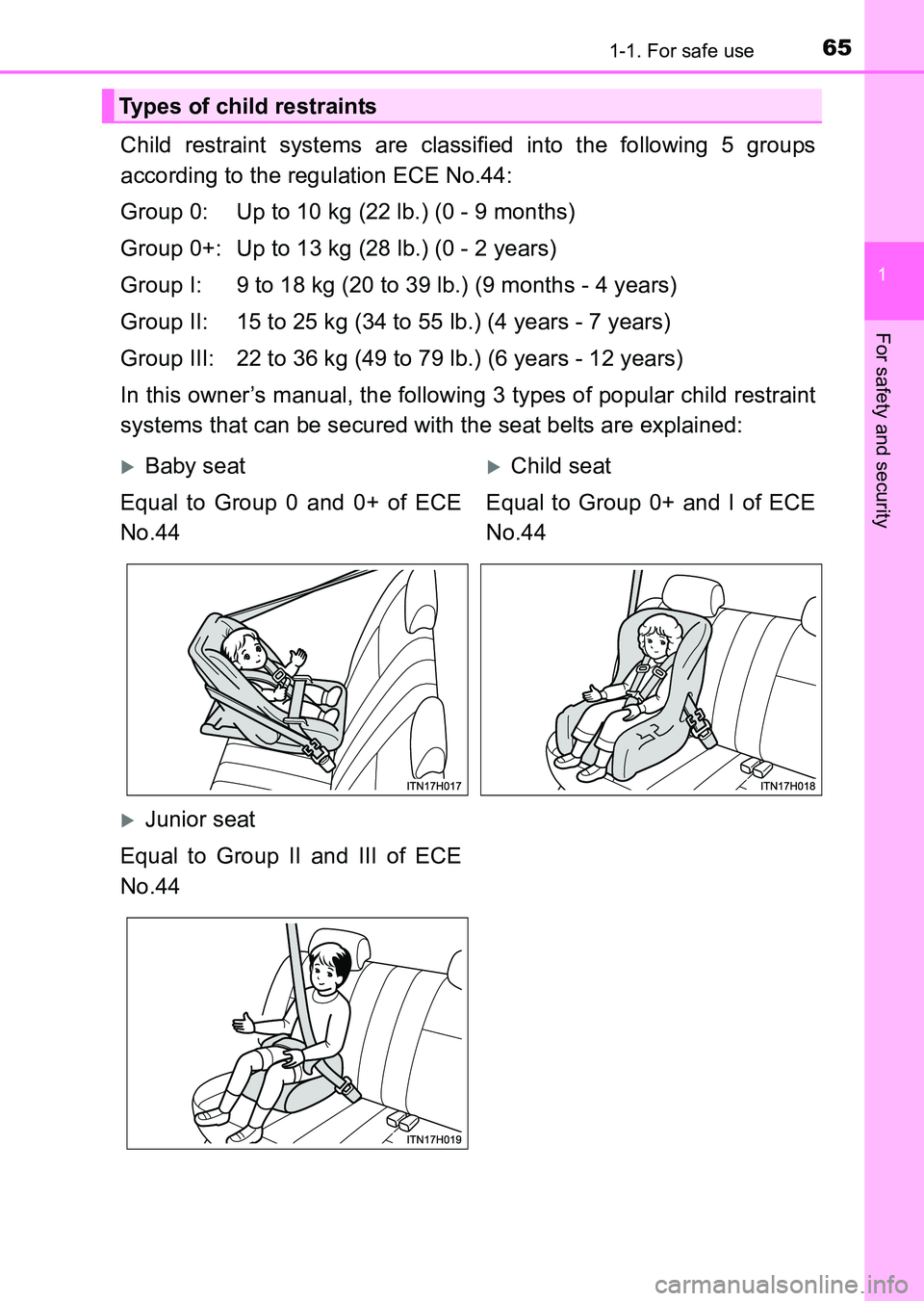

Child restraint systems are classified into the following 5 groups
according to the regulation ECE No.44:
Group 0: Up to 10 kg (22 lb.) (0 - 9 months)
Group 0+: Up to 13 kg (28 lb.) (0 - 2 years)
Group I: 9 to 18 kg (20 to 39 lb.) (9 months - 4 years)
Group II: 15 to 25 kg (34 to 55 lb.) (4 years - 7 years)
Group III: 22 to 36 kg (49 to 79 lb.) (6 years - 12 years)
In this owner’s manual, the following 3 types of popular child restraint
systems that can be secured with the seat belts are explained:
Types of child restraints
XBaby seat
Equal to Group 0 and 0+ of ECE
No.44XChild seat
Equal to Group 0+ and I of ECE
No.44
XJunior seat
Equal to Group II and III of ECE
No.44
HILUX_OM_OM0K219E_(EE).book Page 65 Wednesday, May 14, 2014 3:06 PM

661-1. For safe use
HILUX_OM_OM0K219E_(EE)

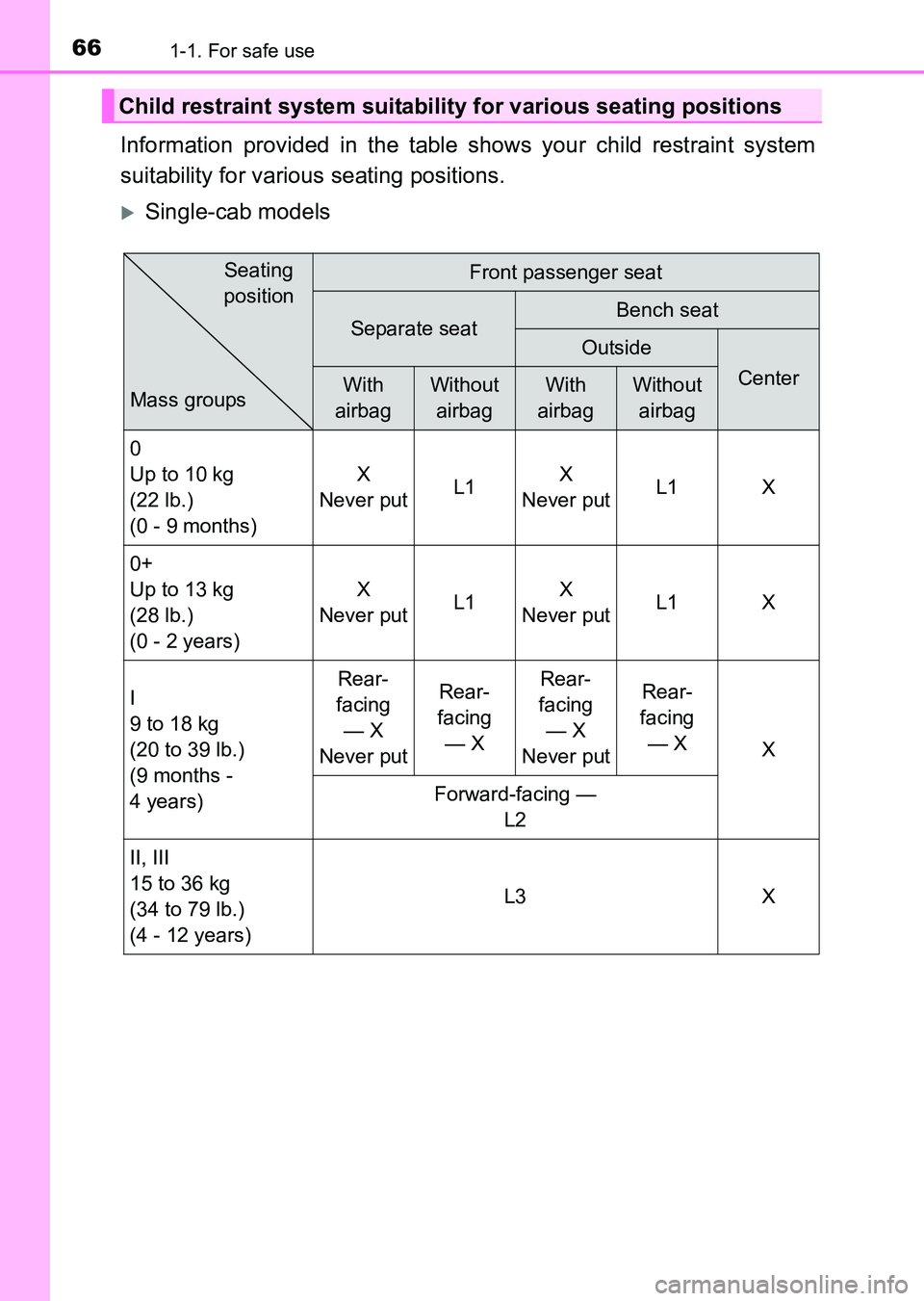

Information provided in the table shows your child restraint system
suitability for various seating positions.
XSingle-cab models
Child restraint system suitability for various seating positions
Front passenger seat
Separate seatBench seat
Outside
CenterWith
airbagWithout airbagWith
airbagWithout airbag
0
Up to 10 kg
(22 lb.)
(0 - 9 months)
X
Never putL1X
Never putL1X
0+
Up to 13 kg
(28 lb.)
(0 - 2 years)
X
Never putL1X
Never putL1X
I
9 to 18 kg
(20 to 39 lb.)
(9 months -
4 years)Rear-
facing — X
Never putRear-
facing — XRear-
facing — X
Never putRear-
facing — X
X
Forward-facing — L2
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years)
L3X
Mass groups Seating
position
HILUX_OM_OM0K219E_(EE).book Page 66 Wednesday, May 14, 2014 3:06 PM

671-1. For safe use
1
HILUX_OM_OM0K219E_(EE)
For safety and security
Key of letters inserted in the above table:
L1: Suitable for “TOYOTA BABY SAFE (up to 13 kg [28 lb.])”approved for the use in this mass group.
L2: Suitable for “TOYOTA DUO+ (9 to 18 kg [20 to 39 lb.])” approved for the use in this mass group.
L3: Suitable for “TOYOTA KID (15 to 36 kg [34 to 79 lb.])” approved for the use in this mass group.
X: Not suitable seat position for children in this mass group.
The child restraint system mentioned in the table may not be available
outside of the EU area.
Other child restraint system which is different from the system men-
tioned in the table can be used, but the suitability of the systems must
be carefully checked with the child restraint system manufacturer con-
cerned and the seller of those seats.
HILUX_OM_OM0K219E_(EE).book Page 67 Wednesday, May 14, 2014 3:06 PM

681-1. For safe use
HILUX_OM_OM0K219E_(EE)

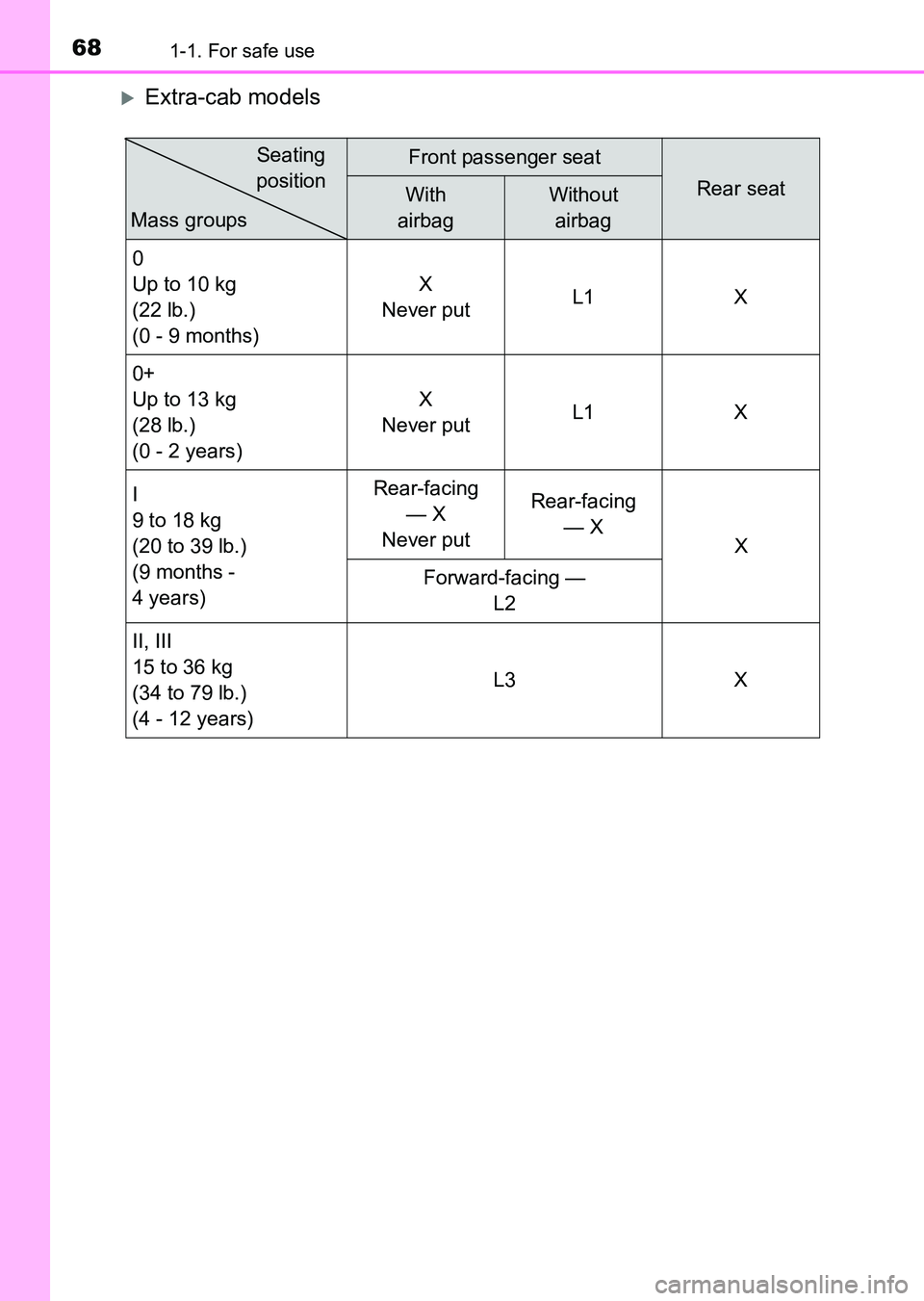

XExtra-cab models
Front passenger seat
Rear seatWith
airbagWithout airbag
0
Up to 10 kg
(22 lb.)
(0 - 9 months) X
Never put L1 X
0+
Up to 13 kg
(28 lb.)
(0 - 2 years) X
Never put L1 X
I
9 to 18 kg
(20 to 39 lb.)
(9 months -
4 years) Rear-facing
— X
Never put Rear-facing
— X X
Forward-facing — L2
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years) L3 X
Mass groupsSeating
position
HILUX_OM_OM0K219E_(EE).book Page 68 Wednesday, May 14, 2014 3:06 PM

691-1. For safe use
1
HILUX_OM_OM0K219E_(EE)
For safety and security

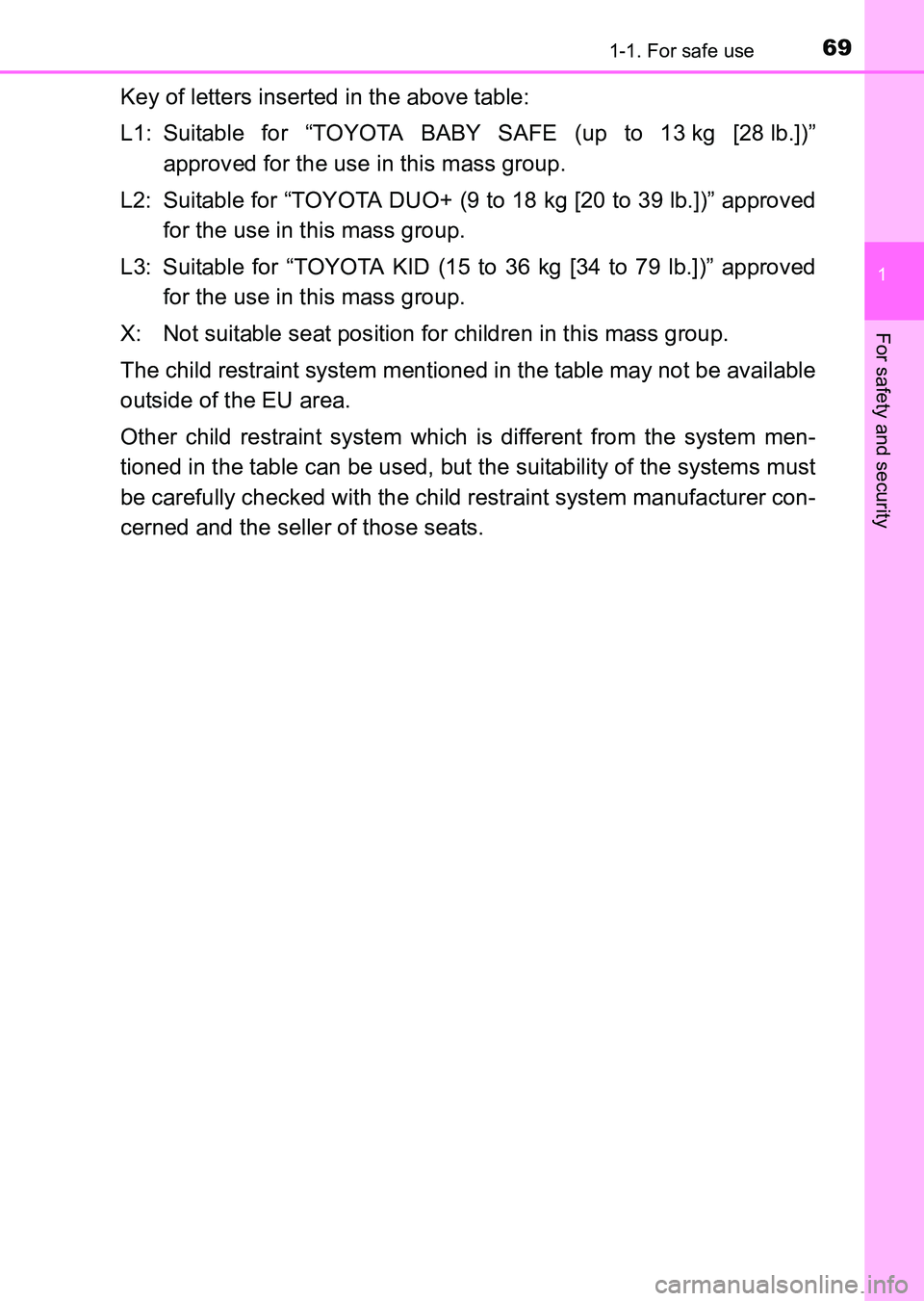

Key of letters inserted in the above table:
L1: Suitable for “TOYOTA BABY SAFE (up to 13 kg [28 lb.])”approved for the use in this mass group.
L2: Suitable for “TOYOTA DUO+ (9 to 18 kg [20 to 39 lb.])” approved for the use in this mass group.
L3: Suitable for “TOYOTA KID (15 to 36 kg [34 to 79 lb.])” approved for the use in this mass group.
X: Not suitable seat position for children in this mass group.
The child restraint system mentioned in the table may not be available
outside of the EU area.
Other child restraint system which is different from the system men-
tioned in the table can be used, but the suitability of the systems must
be carefully checked with the child restraint system manufacturer con-
cerned and the seller of those seats.
HILUX_OM_OM0K219E_(EE).book Page 69 Wednesday, May 14, 2014 3:06 PM

701-1. For safe use
HILUX_OM_OM0K219E_(EE)

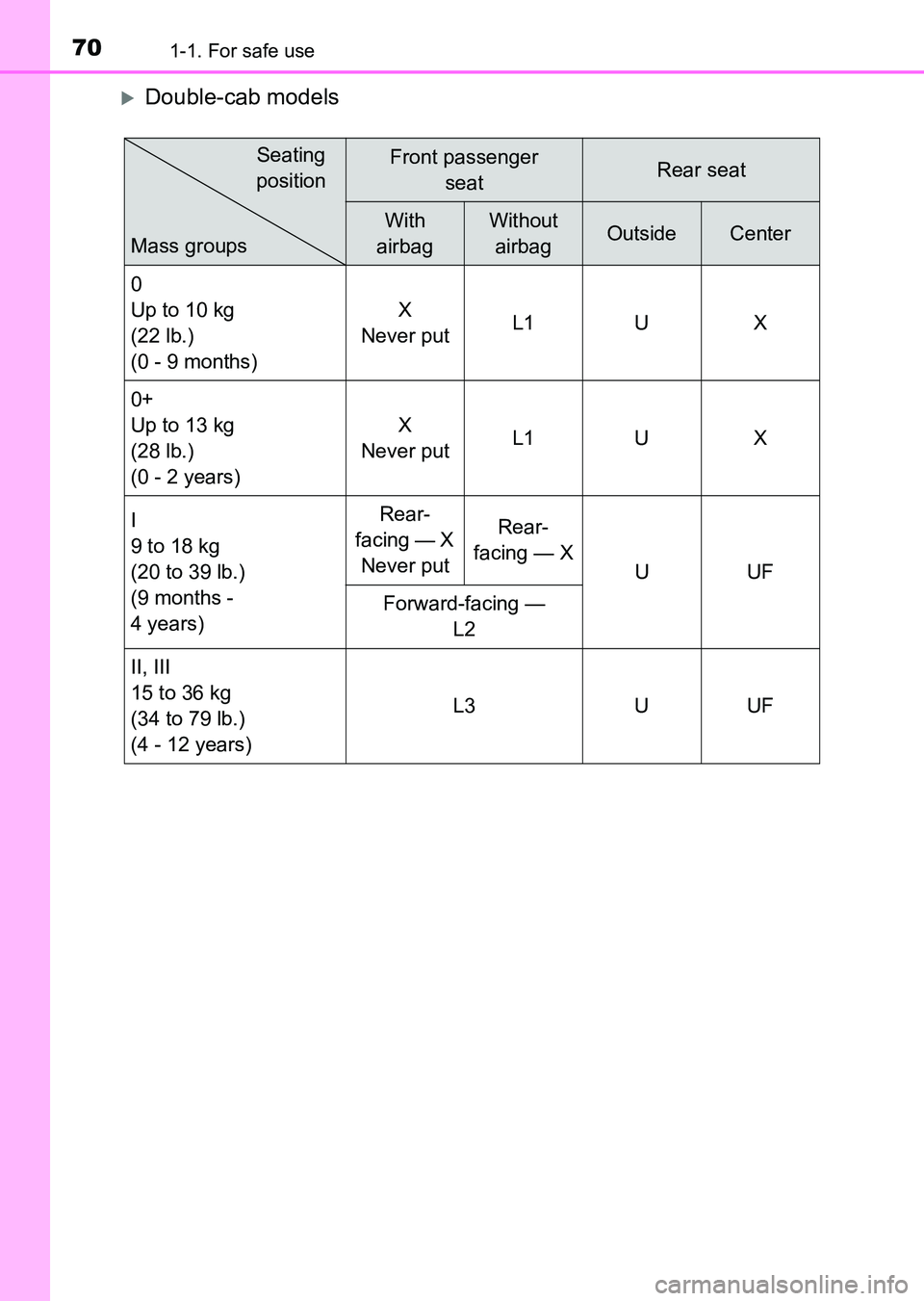

XDouble-cab models
Front passenger seatRear seat
With
airbagWithout airbagOutsideCenter
0
Up to 10 kg
(22 lb.)
(0 - 9 months) X
Never put L1 U X
0+
Up to 13 kg
(28 lb.)
(0 - 2 years) X
Never put L1 U X
I
9 to 18 kg
(20 to 39 lb.)
(9 months -
4 years) Rear-
facing — X Never put Rear-
facing — X UUF
Forward-facing — L2
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years) L3 U UFMass groupsSeating
position
HILUX_OM_OM0K219E_(EE).book Page 70 Wednesday, May 14, 2014 3:06 PM

711-1. For safe use
1
HILUX_OM_OM0K219E_(EE)
For safety and security

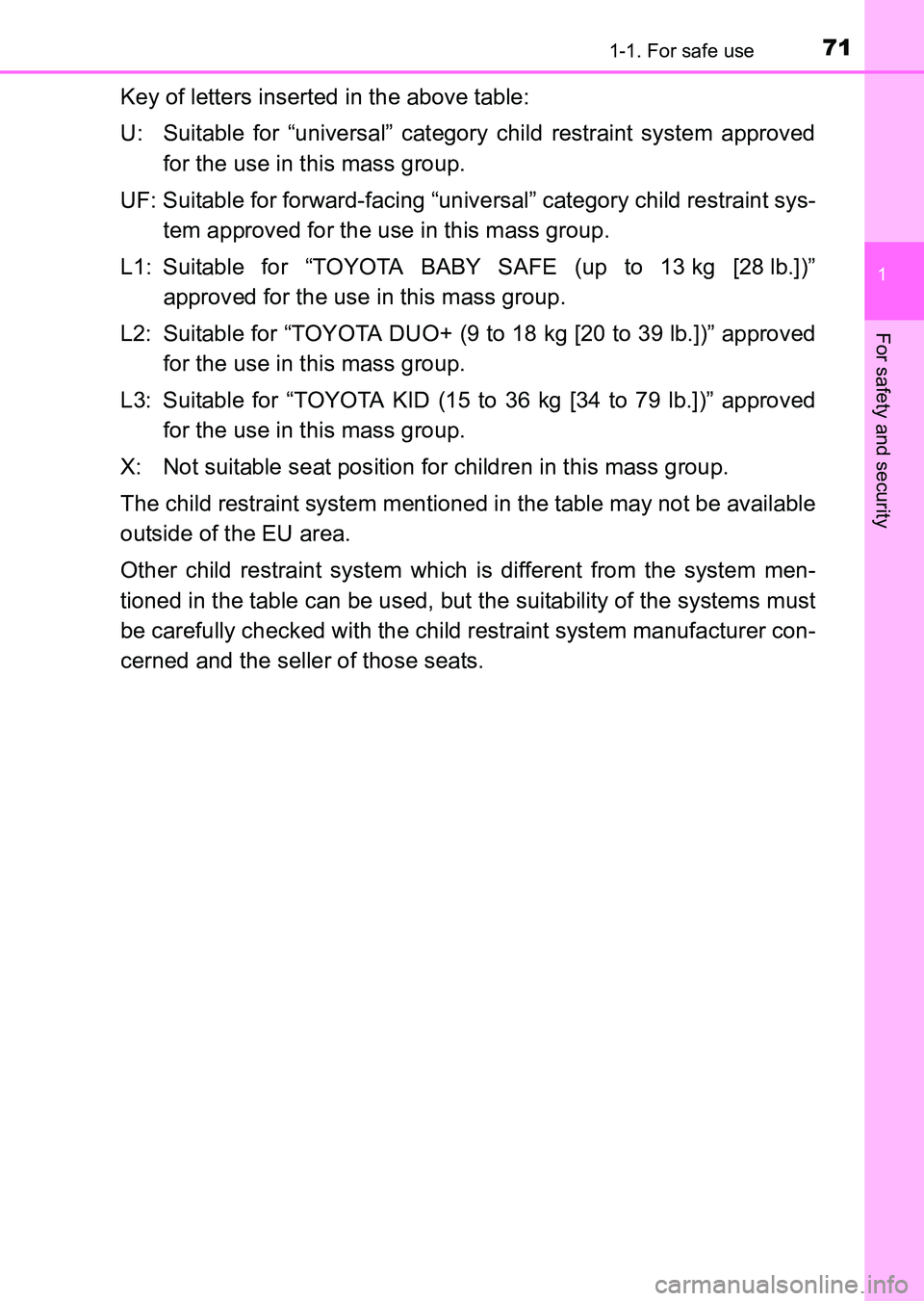

Key of letters inserted in the above table:
U: Suitable for “universal” category child restraint system approvedfor the use in this mass group.
UF: Suitable for forward-facing “universal” category child restraint sys- tem approved for the use in this mass group.
L1: Suitable for “TOYOTA BABY SAFE (up to 13 kg [28 lb.])” approved for the use in this mass group.
L2: Suitable for “TOYOTA DUO+ (9 to 18 kg [20 to 39 lb.])” approved for the use in this mass group.
L3: Suitable for “TOYOTA KID (15 to 36 kg [34 to 79 lb.])” approved for the use in this mass group.
X: Not suitable seat position for children in this mass group.
The child restraint system mentioned in the table may not be available
outside of the EU area.
Other child restraint system which is different from the system men-
tioned in the table can be used, but the suitability of the systems must
be carefully checked with the child restraint system manufacturer con-
cerned and the seller of those seats.
HILUX_OM_OM0K219E_(EE).book Page 71 Wednesday, May 14, 2014 3:06 PM

721-1. For safe use
HILUX_OM_OM0K219E_(EE)

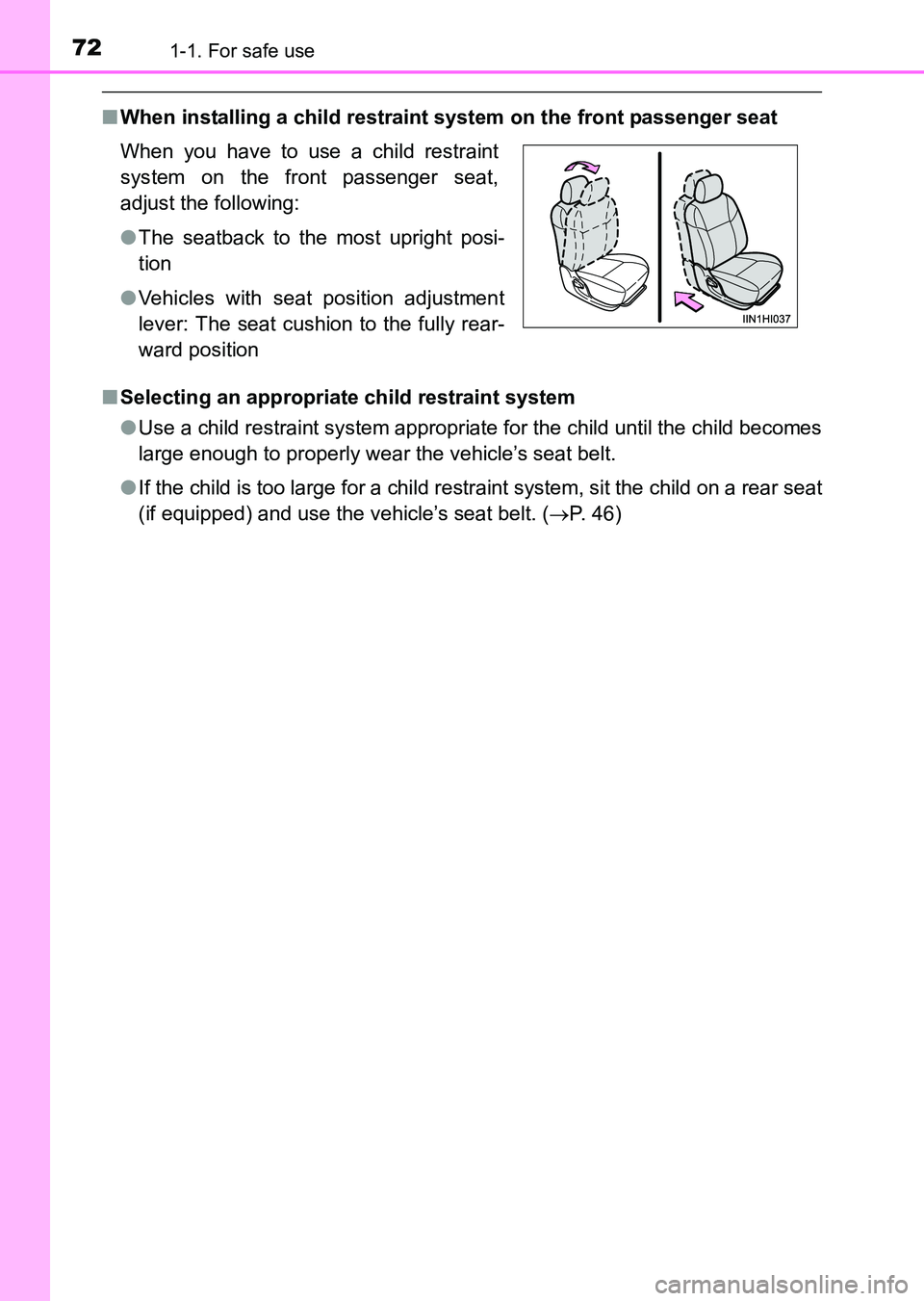

■When installing a child restraint system on the front passenger seat
■ Selecting an appropriat e child restraint system
● Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt.
● If the child is too large for a child restraint system, sit the child on a rear seat
(if equipped) and use the vehicle’s seat belt. ( →P. 46)
When you have to use a child restraint
system on the front passenger seat,
adjust the following:
●
The seatback to the most upright posi-
tion
● Vehicles with seat position adjustment
lever: The seat cushion to the fully rear-
ward position
