2015 TOYOTA HILUX Owners Manual (in English)

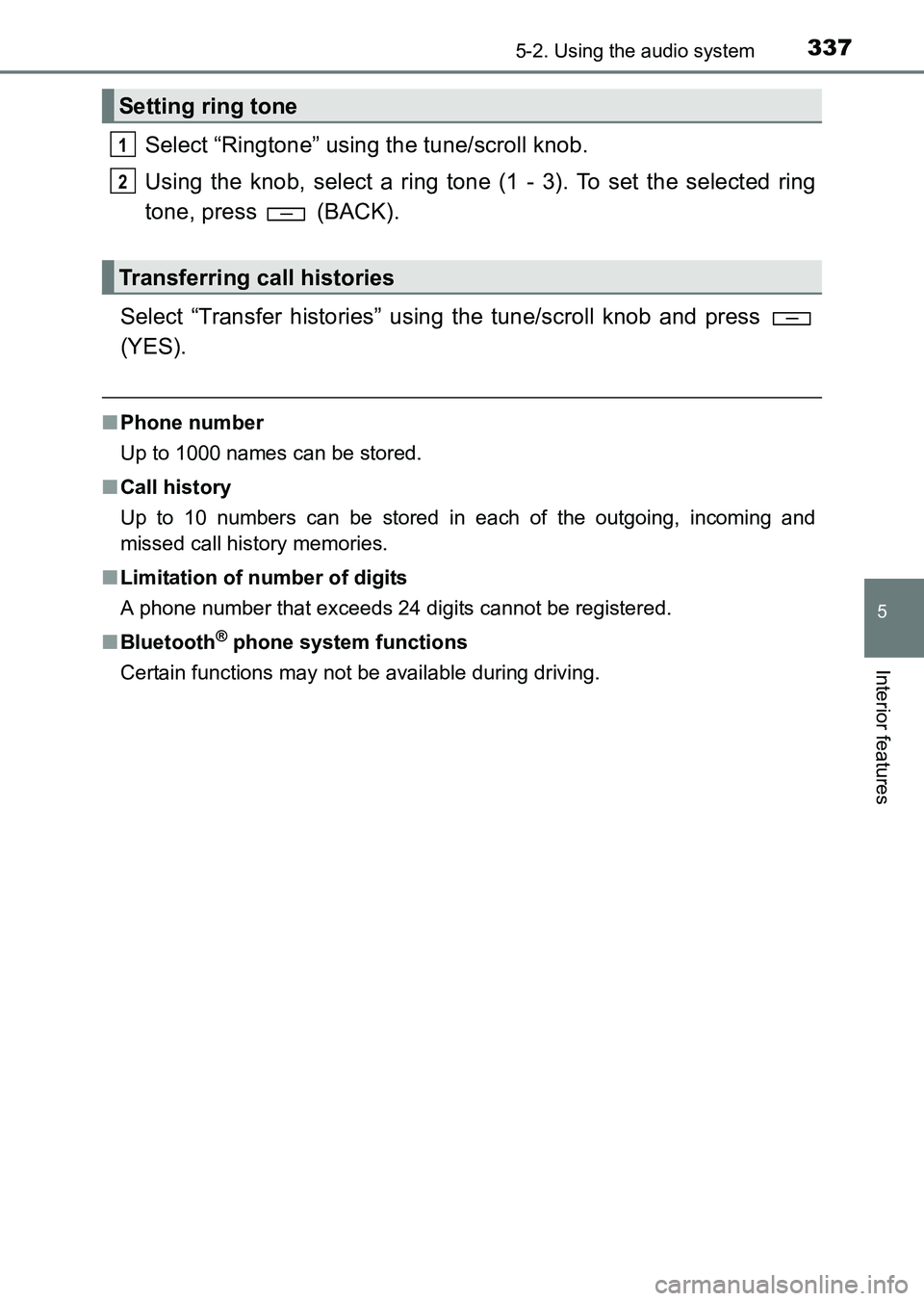

3375-2. Using the audio system
5
Interior features
HILUX_OM_OM0K219E_(EE)
Select “Ringtone” using the tune/scroll knob.
Using the knob, select a ring tone (1 - 3). To set the selected ring
tone, press (BACK).
Select “Transfer histories” using the tune/scroll knob and press
(YES).
■ Phone number
Up to 1000 names can be stored.
■ Call history
Up to 10 numbers can be stored in each of the outgoing, incoming and
missed call history memories.
■ Limitation of number of digits
A phone number that exceeds 24 digits cannot be registered.
■ Bluetooth
® phone system functions
Certain functions may not be available during driving.
Setting ring tone
Transferring call histories
1
2
HILUX_OM_OM0K219E_(EE).book Page 337 Wednesday, May 14, 2014 3:06 PM

3385-3. Using the interior lights
HILUX_OM_OM0K219E_(EE)

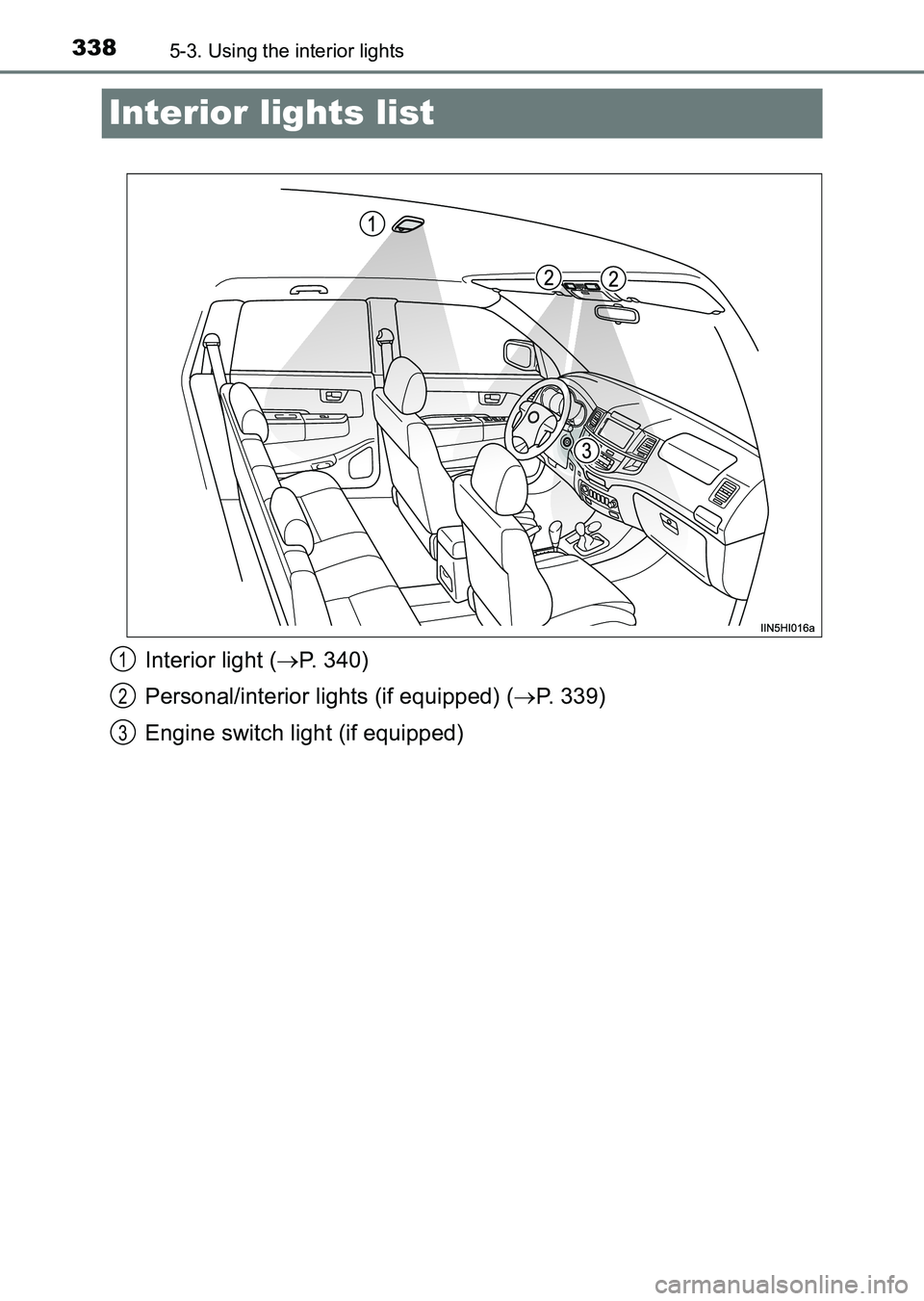

Interior lights list
Interior light (→P. 340)
Personal/interior lights (if equipped) ( →P. 339)
Engine switch light (if equipped)1
2
3
HILUX_OM_OM0K219E_(EE).book Page 338 Wednesday, May 14, 2014 3:06 PM

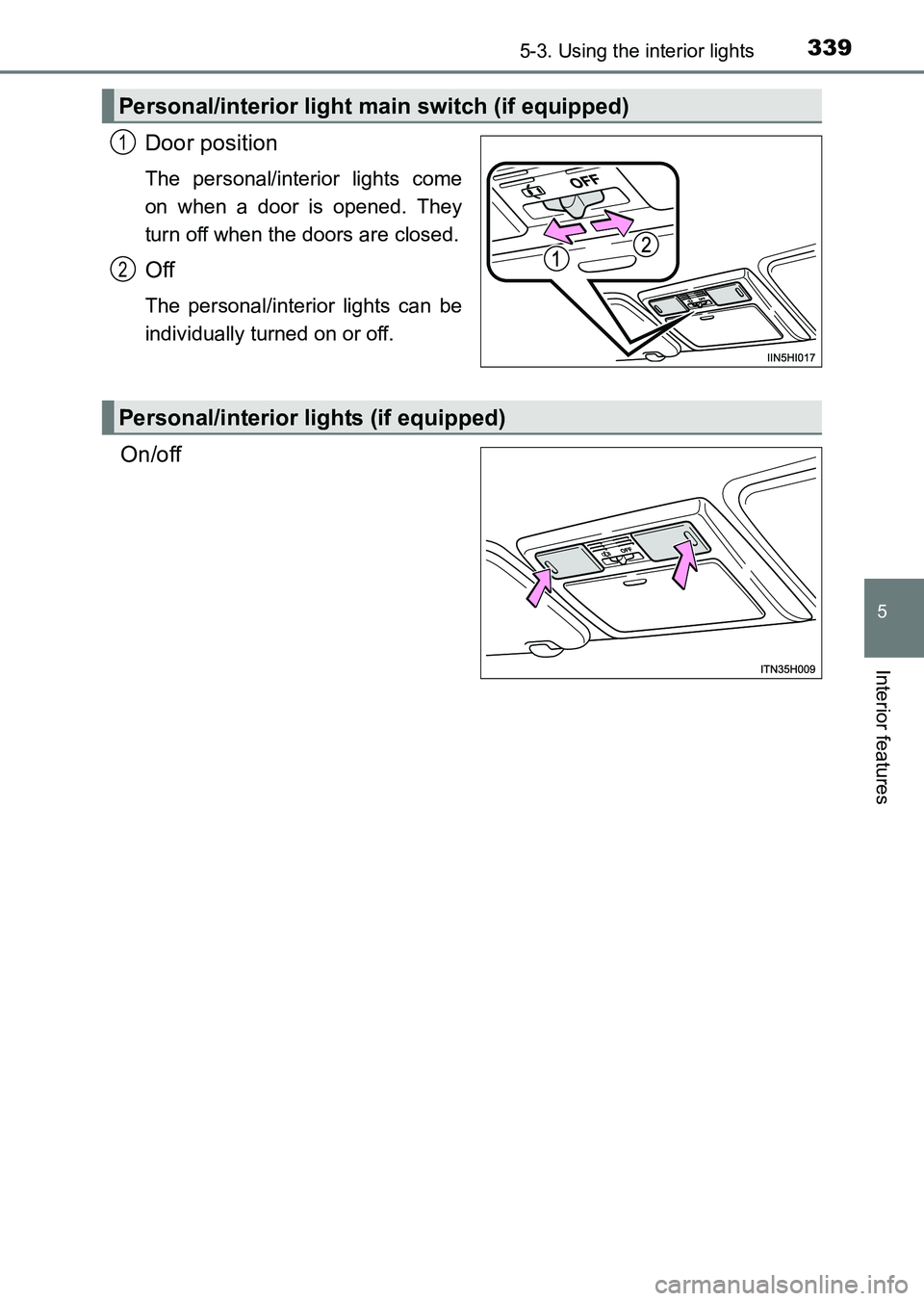

3395-3. Using the interior lights
5
Interior features
HILUX_OM_OM0K219E_(EE)
Door position
The personal/interior lights come
on when a door is opened. They
turn off when the doors are closed.
Off
The personal/interior lights can be
individually turned on or off.
On/off
Personal/interior light main switch (if equipped)
1
2
Personal/interior lights (if equipped)
HILUX_OM_OM0K219E_(EE).book Page 339 Wednesday, May 14, 2014 3:06 PM

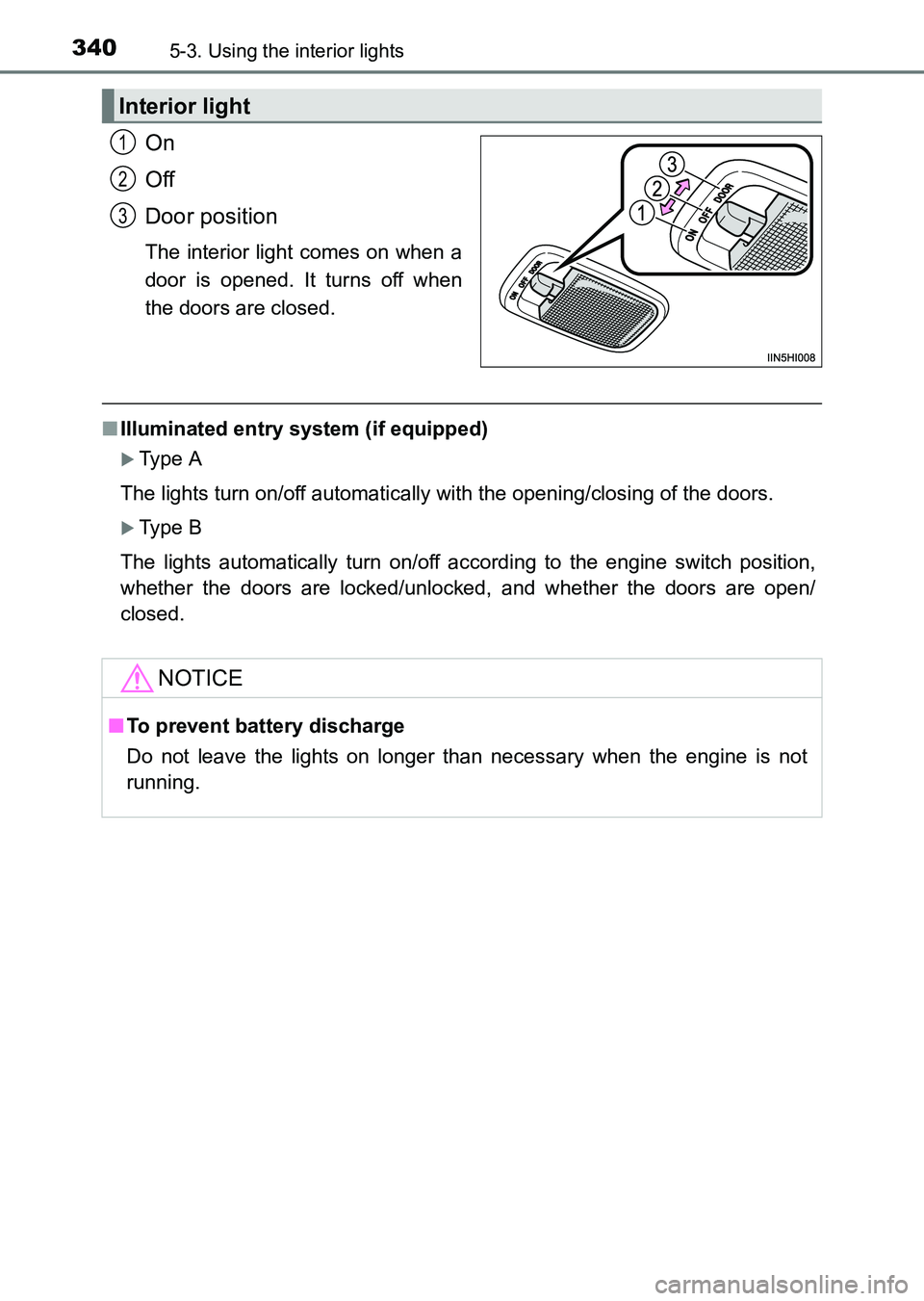

3405-3. Using the interior lights
HILUX_OM_OM0K219E_(EE)
On
Off
Door position
The interior light comes on when a
door is opened. It turns off when
the doors are closed.
■Illuminated entry system (if equipped)
XType A
The lights turn on/off automatically with the opening/closing of the doors.
XType B
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/unlocked, and whether the doors are open/
closed.
Interior light
1
2
3
NOTICE
■ To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not
running.
HILUX_OM_OM0K219E_(EE).book Page 340 Wednesday, May 14, 2014 3:06 PM

341
5
5-4. Using the storage features
Interior features
HILUX_OM_OM0K219E_(EE)

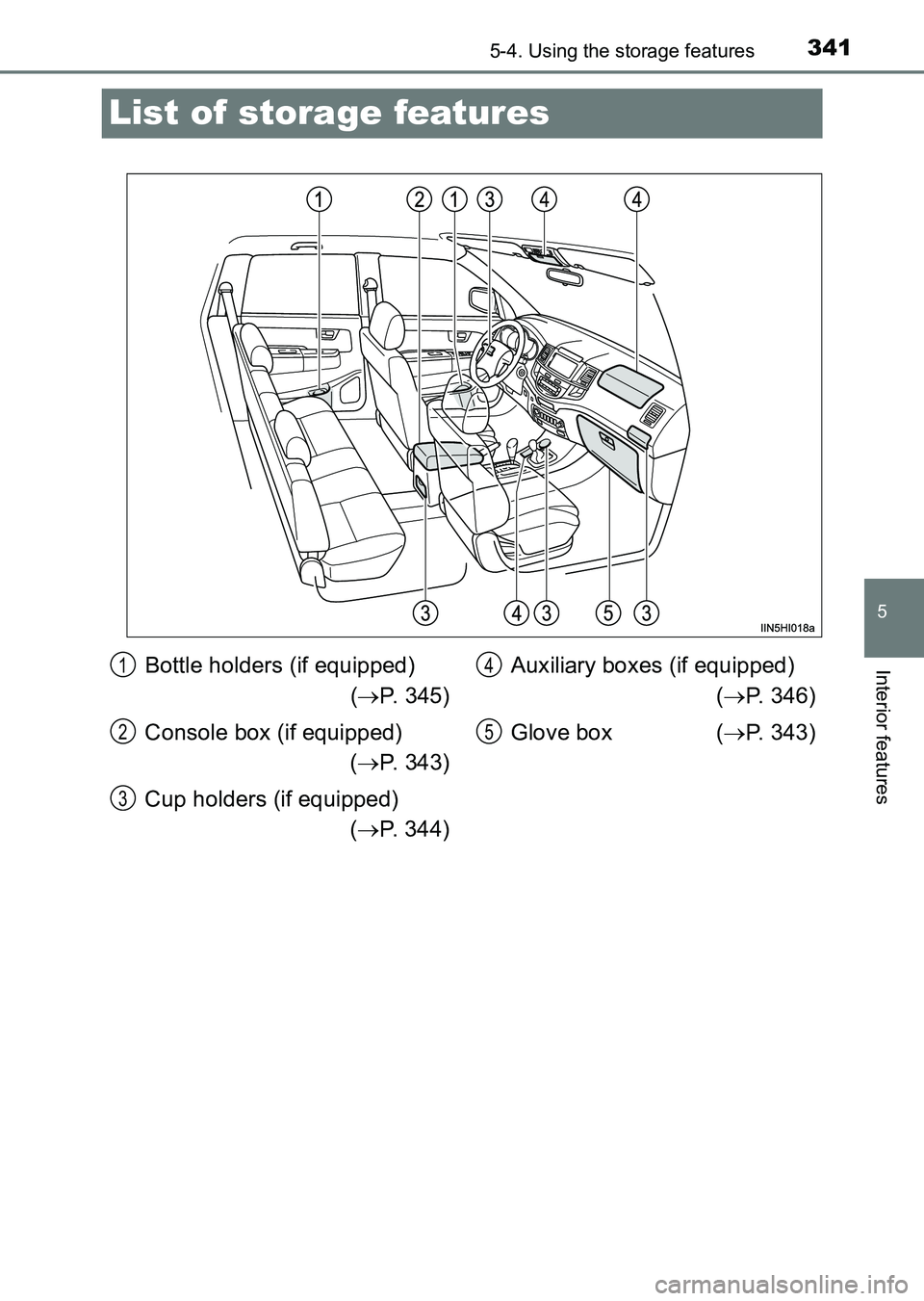

List of storage features
Bottle holders (if equipped)(→ P. 345)
Console box (if equipped) (→ P. 343)
Cup holders (if equipped) (→ P. 344) Auxiliary boxes (if equipped)
(→ P. 346)
Glove box ( →P. 343)1
2
3
4
5
HILUX_OM_OM0K219E_(EE).book Page 341 Wednesday, May 14, 2014 3:06 PM

342
HILUX_OM_OM0K219E_(EE)
5-4. Using the storage features

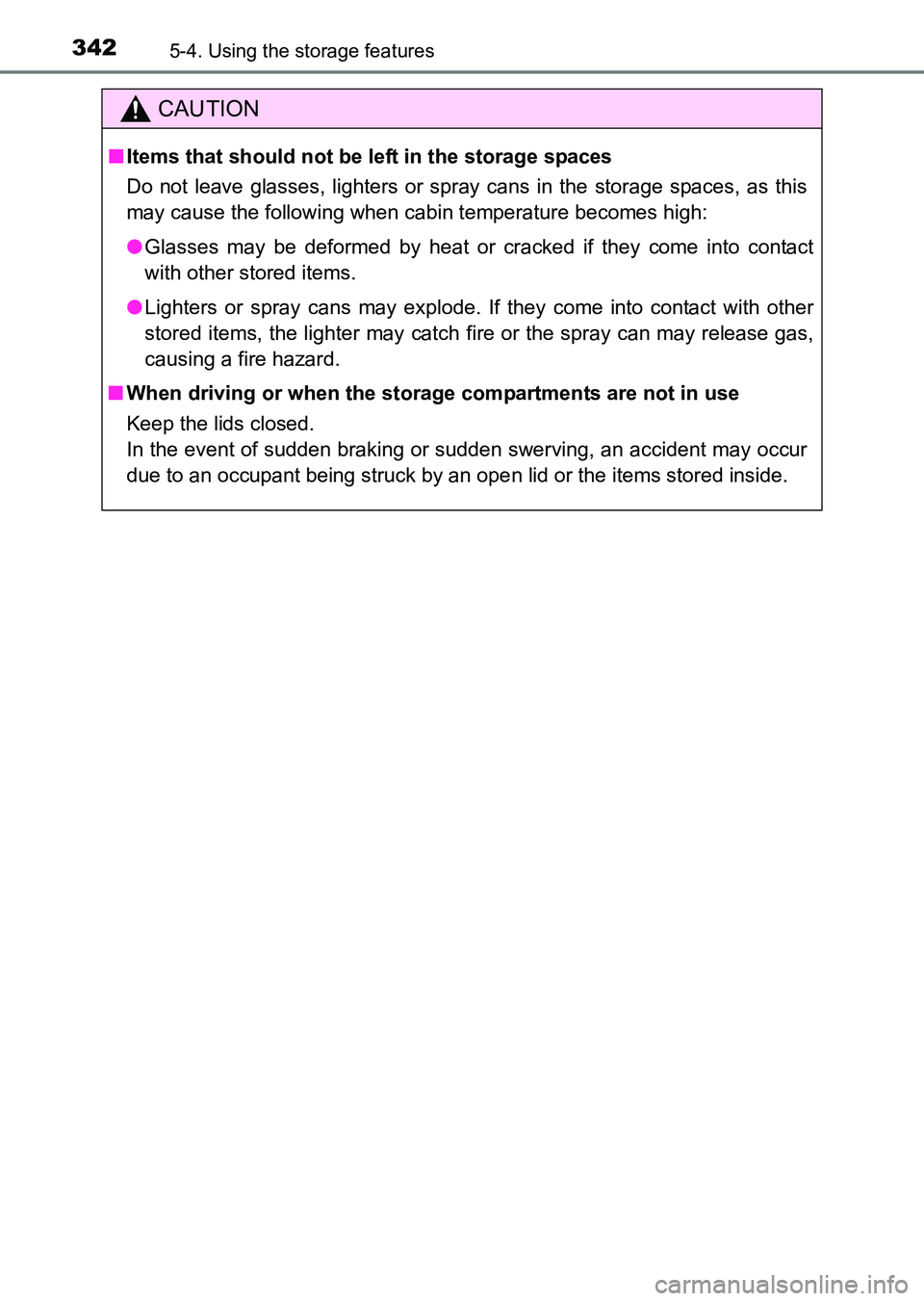

CAUTION
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
● Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
● Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
■ When driving or when the storage compartments are not in use
Keep the lids closed.
In the event of sudden braking or sudden swerving, an accident may occur
due to an occupant being struck by an open lid or the items stored inside.
HILUX_OM_OM0K219E_(EE).book Page 342 Wednesday, May 14, 2014 3:06 PM

3435-4. Using the storage features
5
Interior features
HILUX_OM_OM0K219E_(EE)

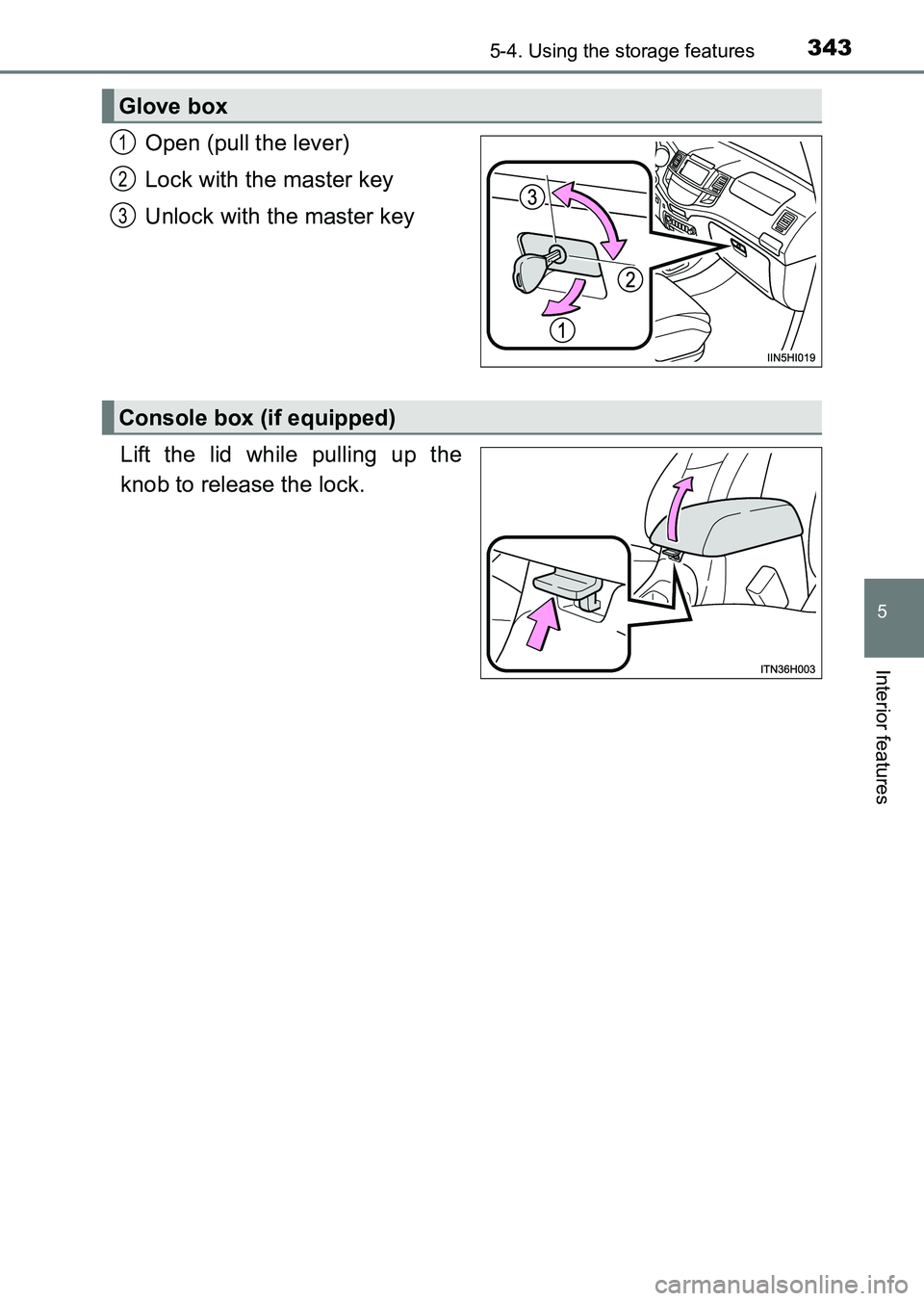

Open (pull the lever)
Lock with the master key
Unlock with the master key
Lift the lid while pulling up the
knob to release the lock.
Glove box
1
2
3
Console box (if equipped)
HILUX_OM_OM0K219E_(EE).book Page 343 Wednesday, May 14, 2014 3:06 PM

344
HILUX_OM_OM0K219E_(EE)
5-4. Using the storage features

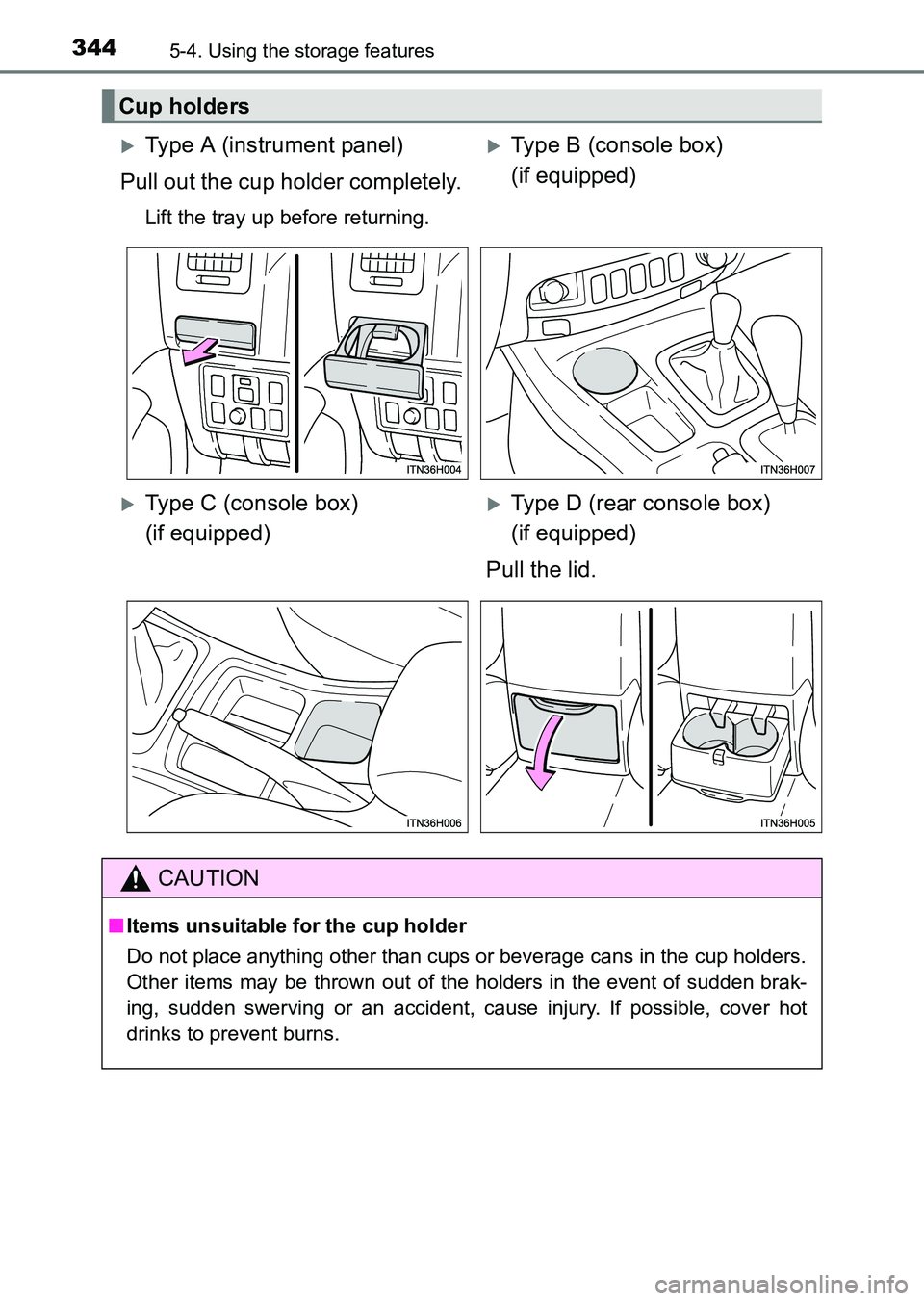

Cup holders
XType A (instrument panel)
Pull out the cup holder completely.
Lift the tray up before returning.
XType B (console box)
(if equipped)
XType C (console box)
(if equipped)XType D (rear console box)
(if equipped)
Pull the lid.
CAUTION
■ Items unsuitable for the cup holder
Do not place anything other than cups or beverage cans in the cup holders.
Other items may be thrown out of the holders in the event of sudden brak-
ing, sudden swerving or an accident, cause injury. If possible, cover hot
drinks to prevent burns.
HILUX_OM_OM0K219E_(EE).book Page 344 Wednesday, May 14, 2014 3:06 PM
