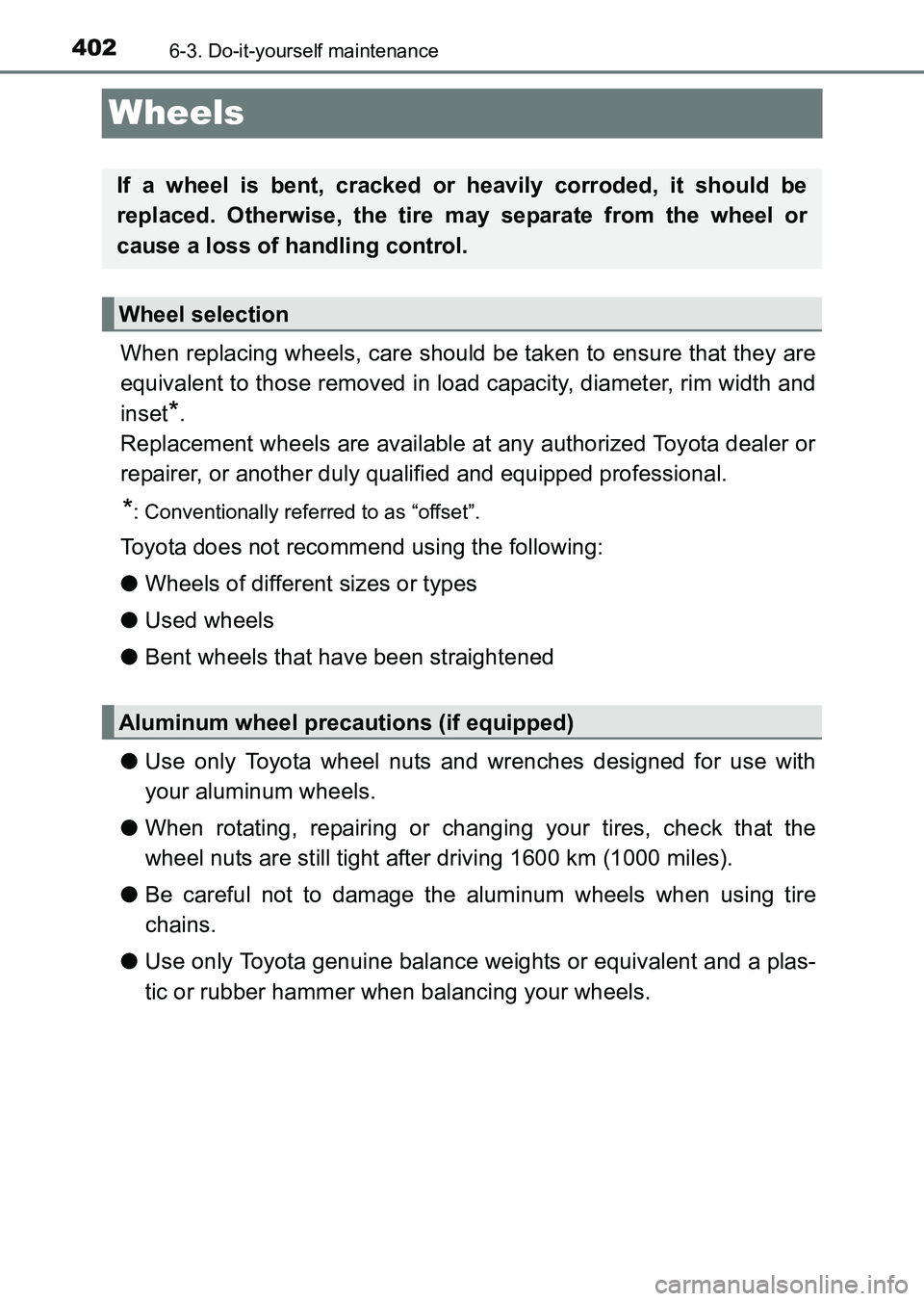

4026-3. Do-it-yourself maintenance
HILUX_OM_OM0K219E_(EE)
Wheels
When replacing wheels, care should be taken to ensure that they are
equivalent to those removed in load capacity, diameter, rim width and
inset
*.
Replacement wheels are available at any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
*: Conventionally referred to as “offset”.
Toyota does not recommend using the following:
● Wheels of different sizes or types
● Used wheels
● Bent wheels that have been straightened
● Use only Toyota wheel nuts and wrenches designed for use with
your aluminum wheels.
● When rotating, repairing or changing your tires, check that the
wheel nuts are still tight after driving 1600 km (1000 miles).
● Be careful not to damage the aluminum wheels when using tire
chains.
● Use only Toyota genuine balance weights or equivalent and a plas-
tic or rubber hammer when balancing your wheels.
If a wheel is bent, cracked or heavily corroded, it should be
replaced. Otherwise, the tire may separate from the wheel or
cause a loss of handling control.
Wheel selection
Aluminum wheel precautions (if equipped)
HILUX_OM_OM0K219E_(EE).book Page 402 Wednesday, May 14, 2014 3:06 PM

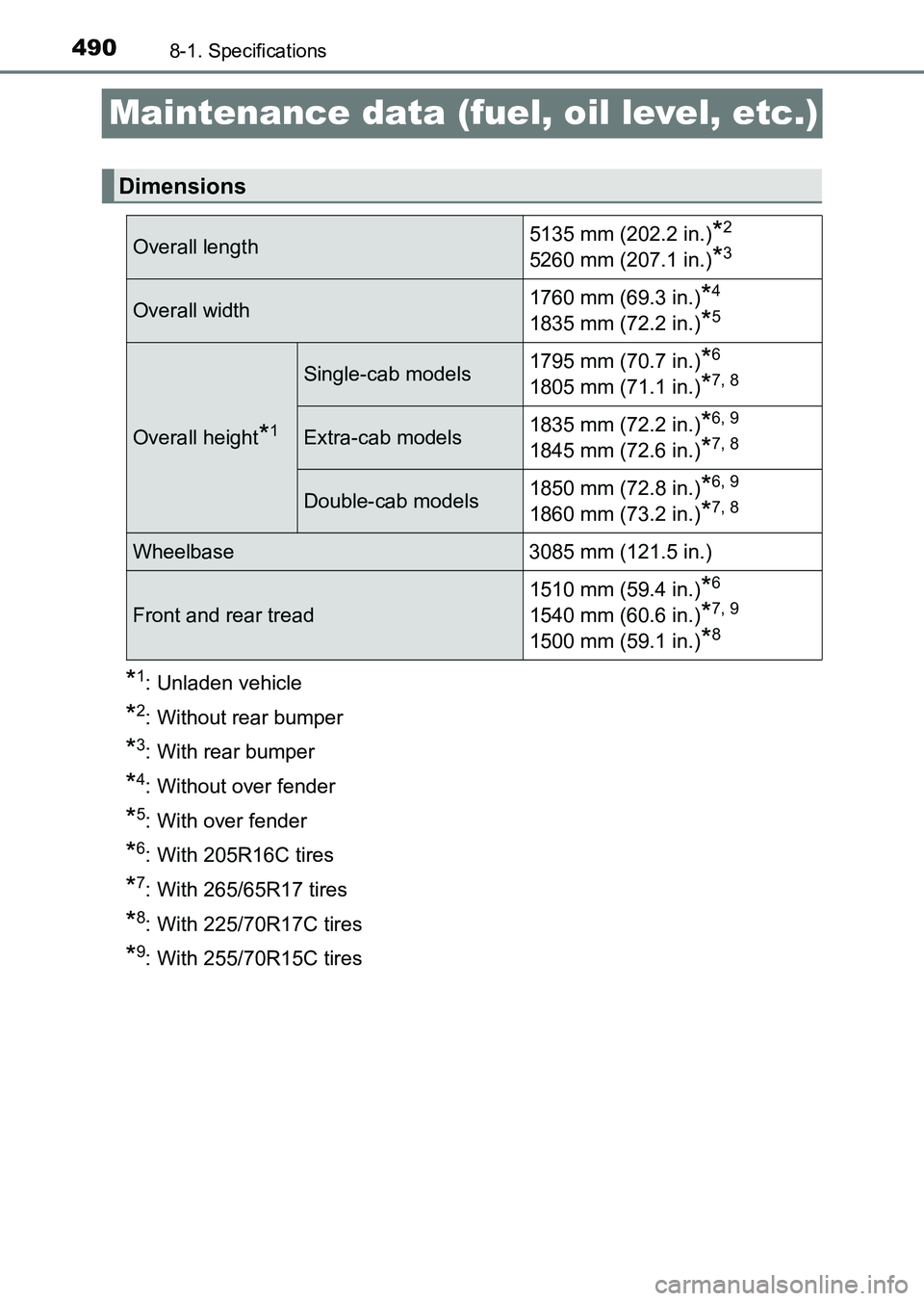

4908-1. Specifications
HILUX_OM_OM0K219E_(EE)
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: Without rear bumper
*3: With rear bumper
*4: Without over fender
*5: With over fender
*6: With 205R16C tires
*7: With 265/65R17 tires
*8: With 225/70R17C tires
*9: With 255/70R15C tires
Dimensions
Overall length5135 mm (202.2 in.)*2
5260 mm (207.1 in.)*3
Overall width1760 mm (69.3 in.)*4
1835 mm (72.2 in.)*5
Overall height*1
Single-cab models1795 mm (70.7 in.)*6
1805 mm (71.1 in.)*7, 8
Extra-cab models1835 mm (72.2 in.)*6, 9
1845 mm (72.6 in.)*7, 8
Double-cab models1850 mm (72.8 in.)*6, 9
1860 mm (73.2 in.)*7, 8
Wheelbase 3085 mm (121.5 in.)
Front and rear tread 1510 mm (59.4 in.)
*6
1540 mm (60.6 in.)*7, 9
1500 mm (59.1 in.)*8
HILUX_OM_OM0K219E_(EE).book Page 490 Wednesday, May 14, 2014
3:06 PM
