2015 TOYOTA HILUX Owners Manual (in English)

4737-2. Steps to take in an emergency
7
When trouble arises
HILUX_OM_OM0K219E_(EE)

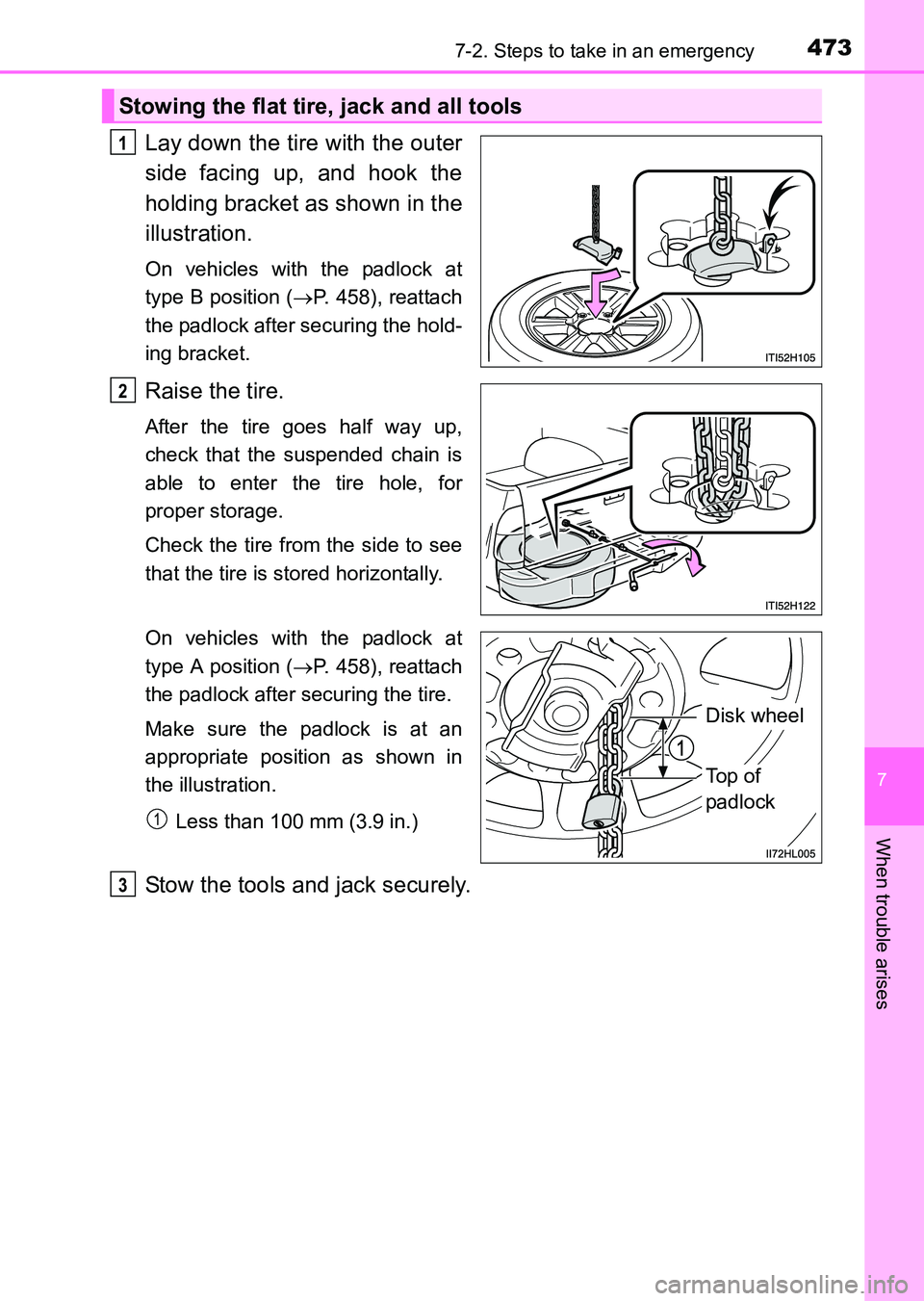

Lay down the tire with the outer
side facing up, and hook the
holding bracket as shown in the
illustration.
On vehicles with the padlock at
type B position (→P. 458), reattach
the padlock after securing the hold-
ing bracket.
Raise the tire.
After the tire goes half way up,
check that the suspended chain is
able to enter the tire hole, for
proper storage.
Check the tire from the side to see
that the tire is stored horizontally.
On vehicles with the padlock at
type A position ( →P. 458), reattach
the padlock after securing the tire.
Make sure the padlock is at an
appropriate position as shown in
the illustration.
Less than 100 mm (3.9 in.)
Stow the tools and jack securely.
Stowing the flat tire, jack and all tools
1
2
Disk wheel
Top of
padlock
1
3
HILUX_OM_OM0K219E_(EE).book Page 473 Wednesday, May 14, 2014 3:06 PM

4747-2. Steps to take in an emergency
HILUX_OM_OM0K219E_(EE)

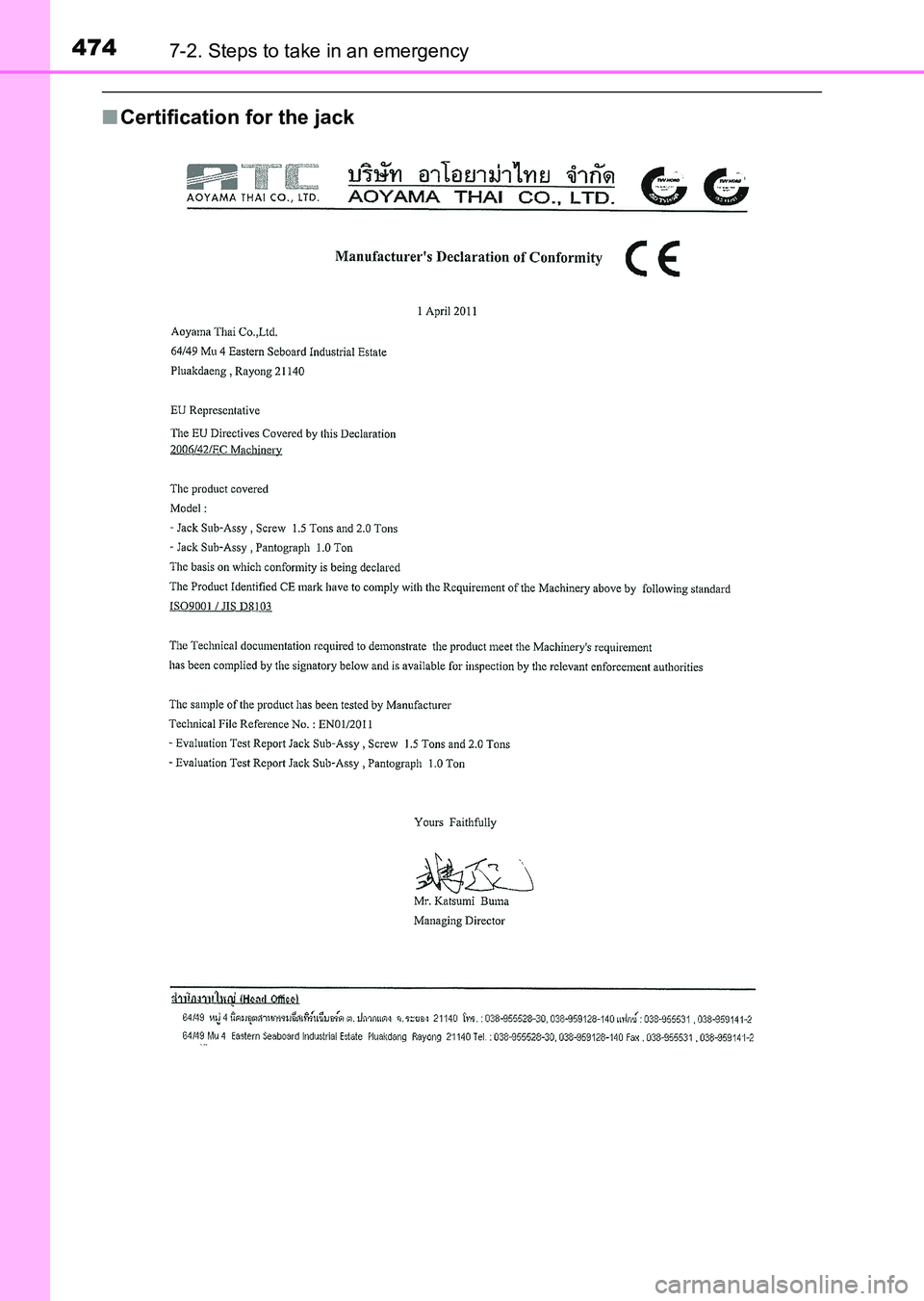

■Certification for the jack
HILUX_OM_OM0K219E_(EE).book Page 474 Wednesday, May 14, 2014 3:06 PM

4757-2. Steps to take in an emergency
7
When trouble arises
HILUX_OM_OM0K219E_(EE)

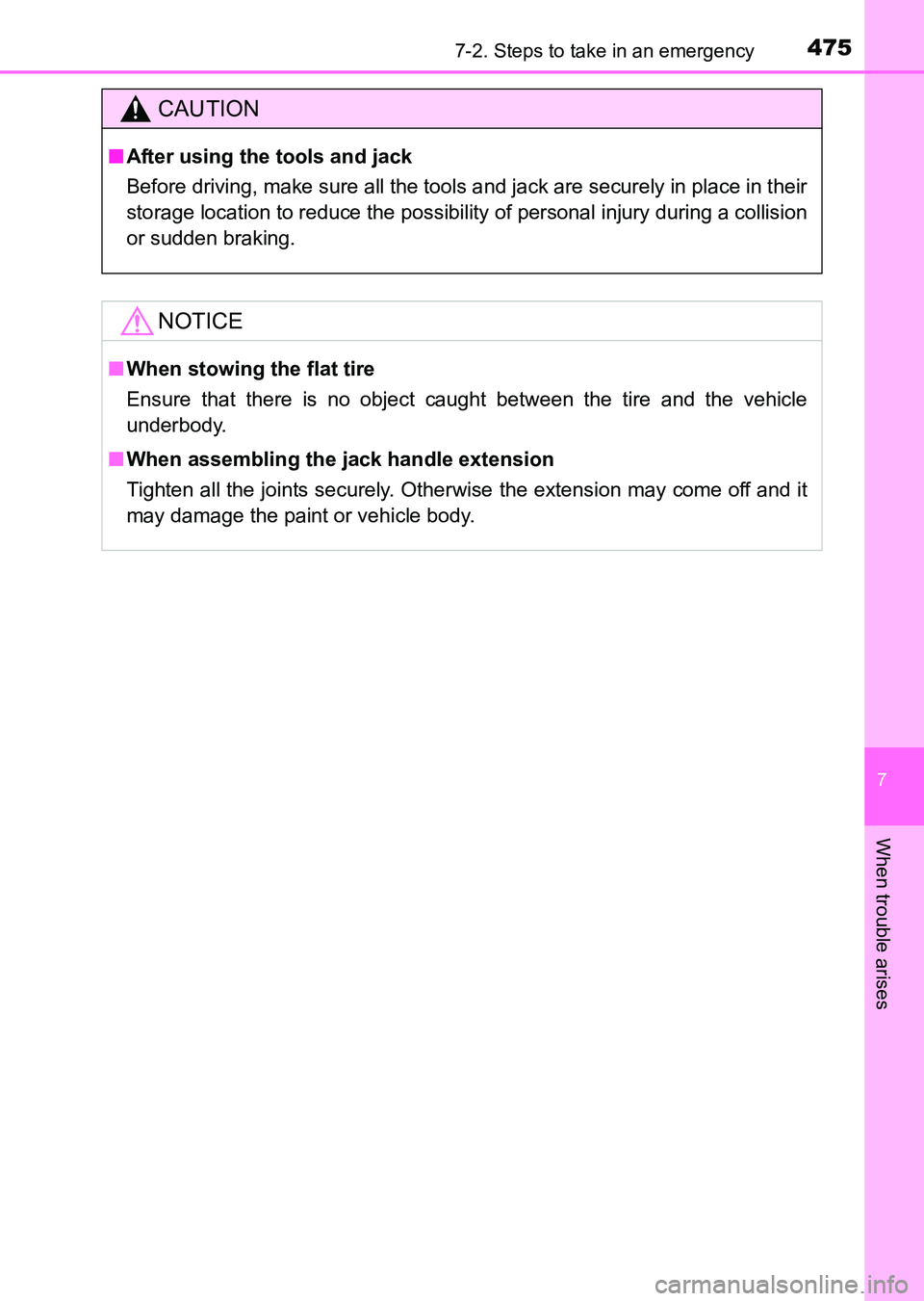

CAUTION
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their
storage location to reduce the possibility of personal injury during a collision
or sudden braking.
NOTICE
■When stowing the flat tire
Ensure that there is no object caught between the tire and the vehicle
underbody.
■
When assembling the jack handle extension
Tighten all the joints securely. Otherwise the extension may come off and it
may damage the paint or vehicle body.
HILUX_OM_OM0K219E_(EE).book Page 475 Wednesday, May 14, 2014 3:06 PM

4767-2. Steps to take in an emergency
HILUX_OM_OM0K219E_(EE)
If the engine will not star t

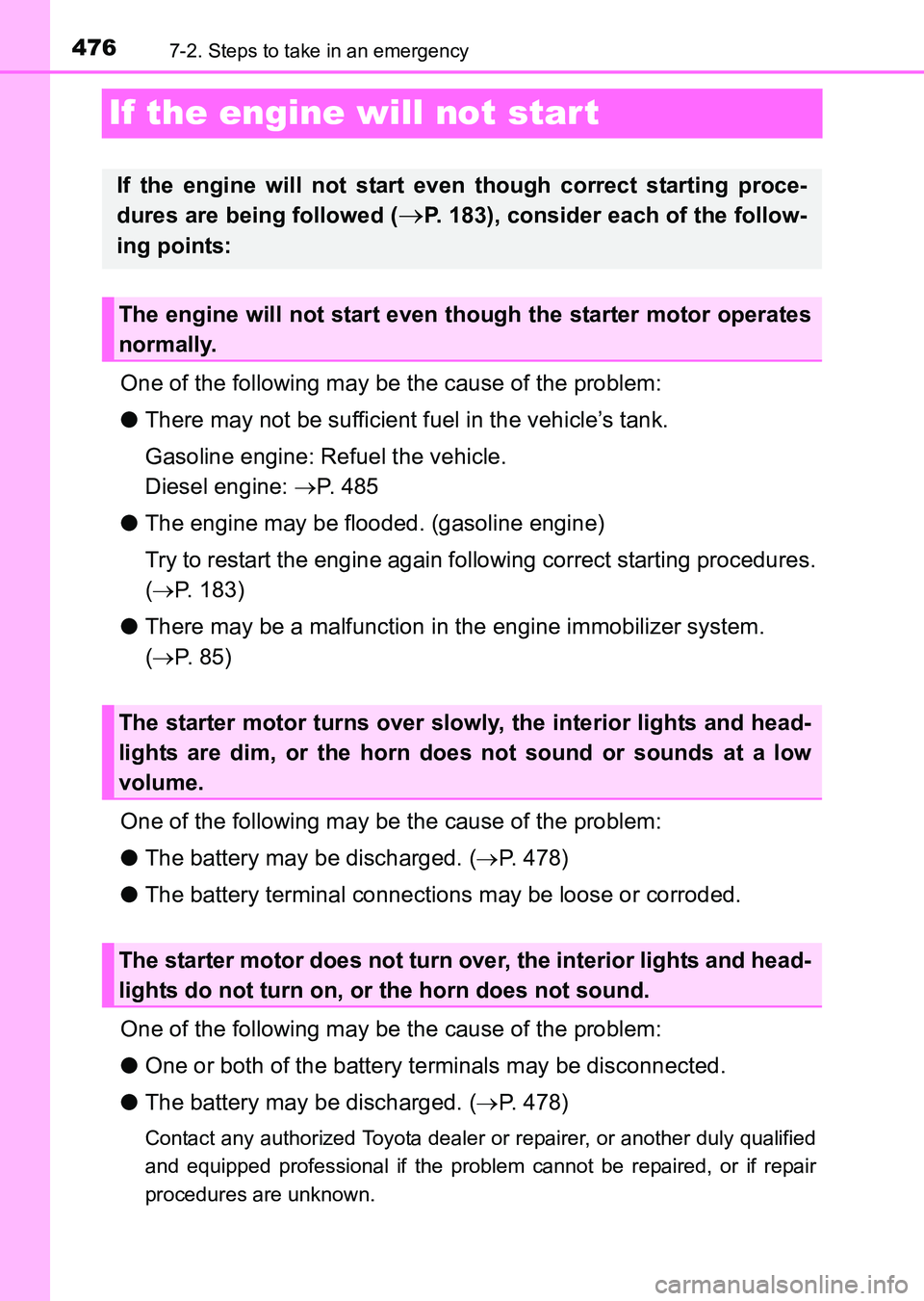

One of the following may be the cause of the problem:
●There may not be sufficient fuel in the vehicle’s tank.
Gasoline engine: Refuel the vehicle.
Diesel engine: →P. 4 8 5
● The engine may be flooded. (gasoline engine)
Try to restart the engine again following correct starting procedures.
(→ P. 183)
● There may be a malfunction in the engine immobilizer system.
(→ P. 8 5 )
One of the following may be the cause of the problem:
● The battery may be discharged. ( →P. 478)
● The battery terminal connections may be loose or corroded.
One of the following may be the cause of the problem:
● One or both of the battery terminals may be disconnected.
● The battery may be discharged. ( →P. 478)
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional if the problem cannot be repaired, or if repair
procedures are unknown.
If the engine will not start even though correct starting proce-
dures are being followed (
→P. 183), consider each of the follow-
ing points:
The engine will not start even though the starter motor operates
normally.
The starter motor turns over slowly, the interior lights and head-
lights are dim, or the horn does not sound or sounds at a low
volume.
The starter motor does not turn over, the interior lights and head-
lights do not turn on, or the horn does not sound.
HILUX_OM_OM0K219E_(EE).book Page 476 Wednesday, May 14, 2014 3:06 PM

477
7
7-2. Steps to take in an emergency
When trouble arises
HILUX_OM_OM0K219E_(EE)
If the shift lever cannot be shifted from P∗
Set the parking brake.
Turn the engine switch to the “ACC” position.
Depress the brake pedal.

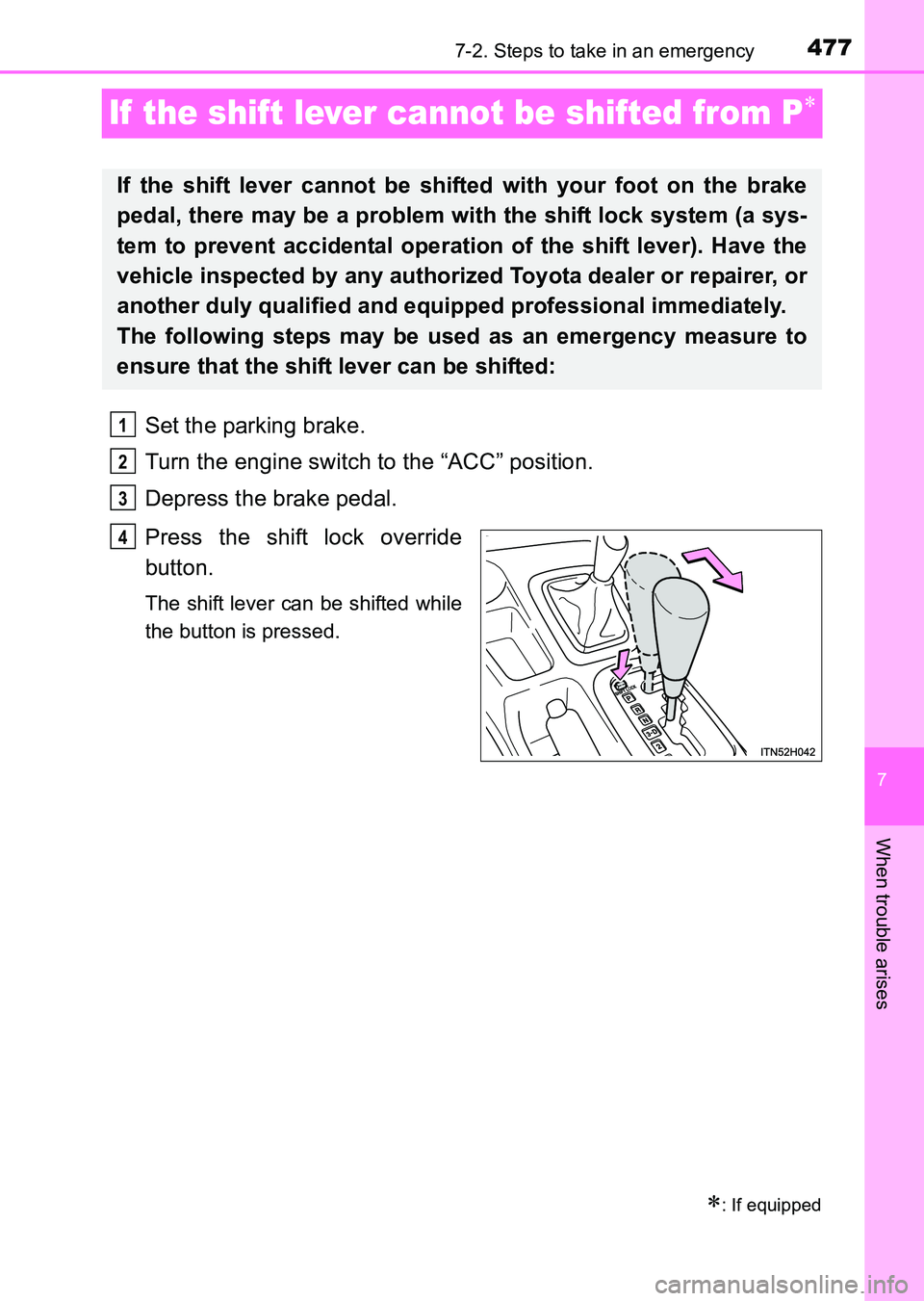

Press the shift lock override
button.
The shift lever can be shifted while
the button is pressed.
∗: If equipped
If the shift lever cannot be shifted with your foot on the brake
pedal, there may be a problem with the shift lock system (a sys-
tem to prevent accidental operation of the shift lever). Have the
vehicle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional immediately.
The following steps may be used as an emergency measure to
ensure that the shift lever can be shifted:
1
2
3
4
HILUX_OM_OM0K219E_(EE).book Page 477 Wednesday, May 14, 2014 3:06 PM

4787-2. Steps to take in an emergency
HILUX_OM_OM0K219E_(EE)
If the vehicle batter y is discharged
If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your vehicle by following the
steps below.Open the hood. ( →P. 378)

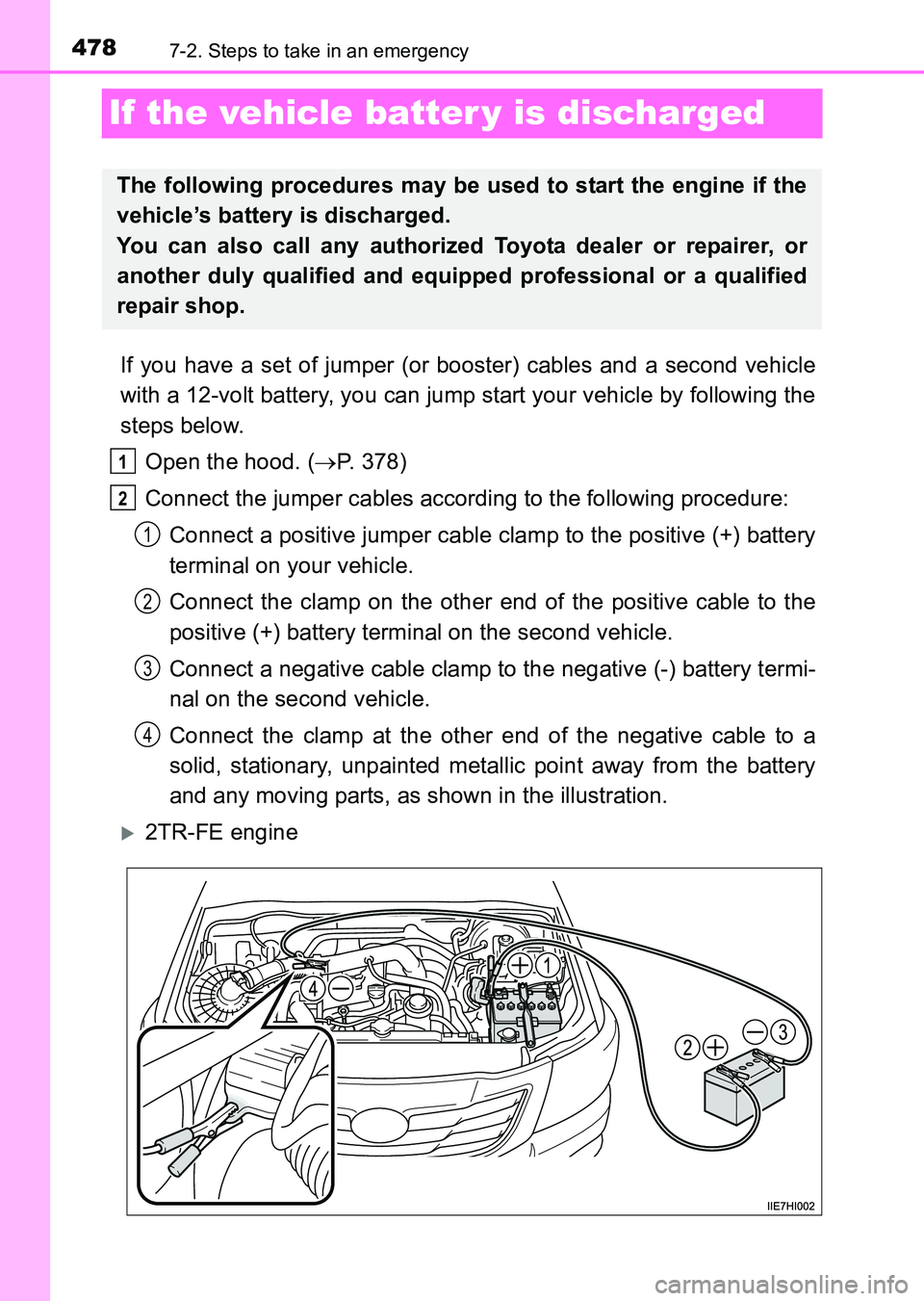

Connect the jumper cables according to the following procedure: Connect a positive jumper cable clamp to the positive (+) battery
terminal on your vehicle.
Connect the clamp on the other end of the positive cable to the
positive (+) battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery termi-
nal on the second vehicle.
Connect the clamp at the other end of the negative cable to a
solid, stationary, unpainted metallic point away from the battery
and any moving parts, as shown in the illustration.
X2TR-FE engine
The following procedures may be used to start the engine if the
vehicle’s battery is discharged.
You can also call any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional or a qualified
repair shop.
1
2
1
2
3
4
HILUX_OM_OM0K219E_(EE).book Page 478 Wednesday, May 14, 2014 3:06 PM

4797-2. Steps to take in an emergency
7
When trouble arises
HILUX_OM_OM0K219E_(EE)

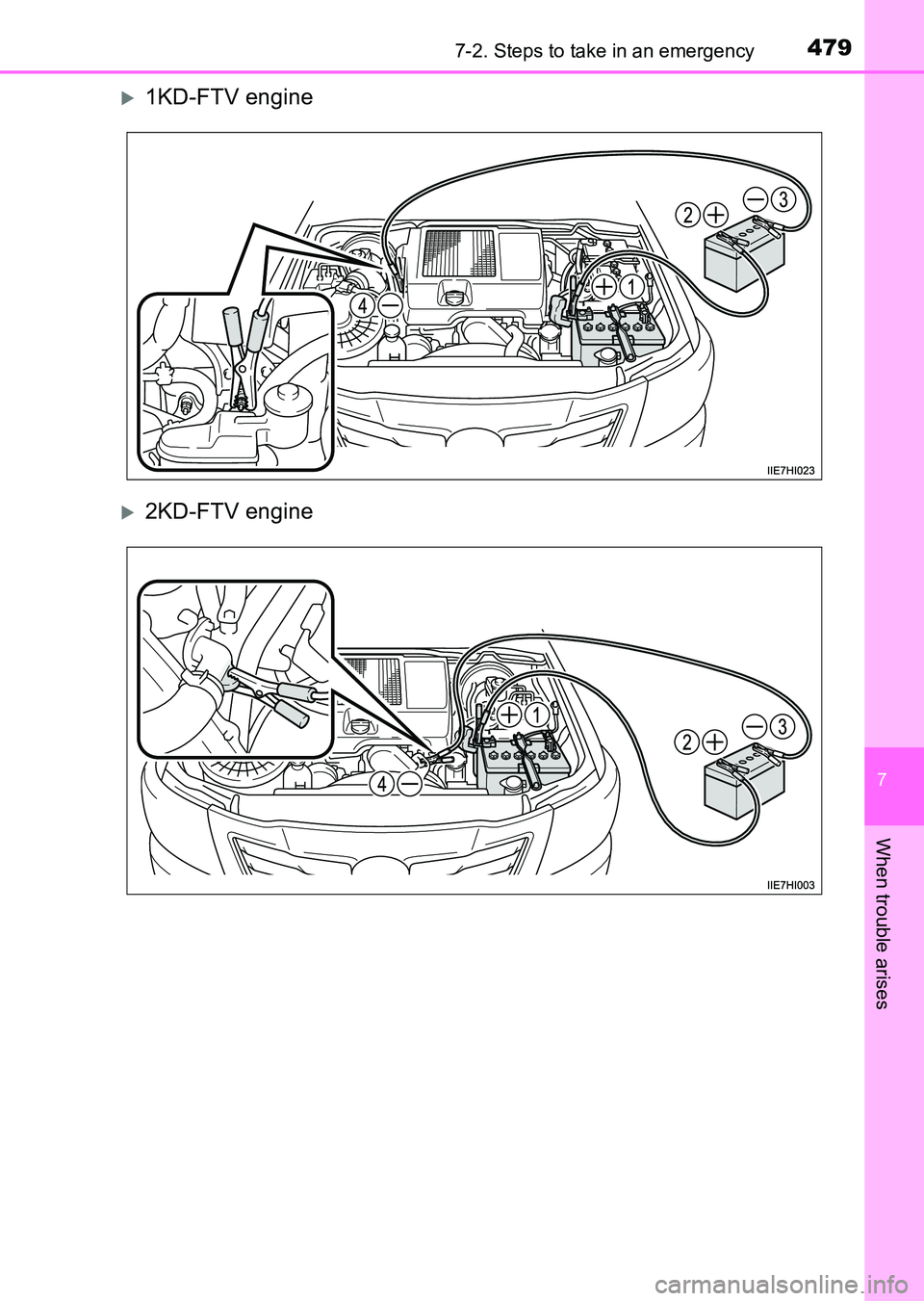

X1KD-FTV engine
X2KD-FTV engine
HILUX_OM_OM0K219E_(EE).book Page 479 Wednesday, May 14, 2014 3:06 PM

4807-2. Steps to take in an emergency
HILUX_OM_OM0K219E_(EE)

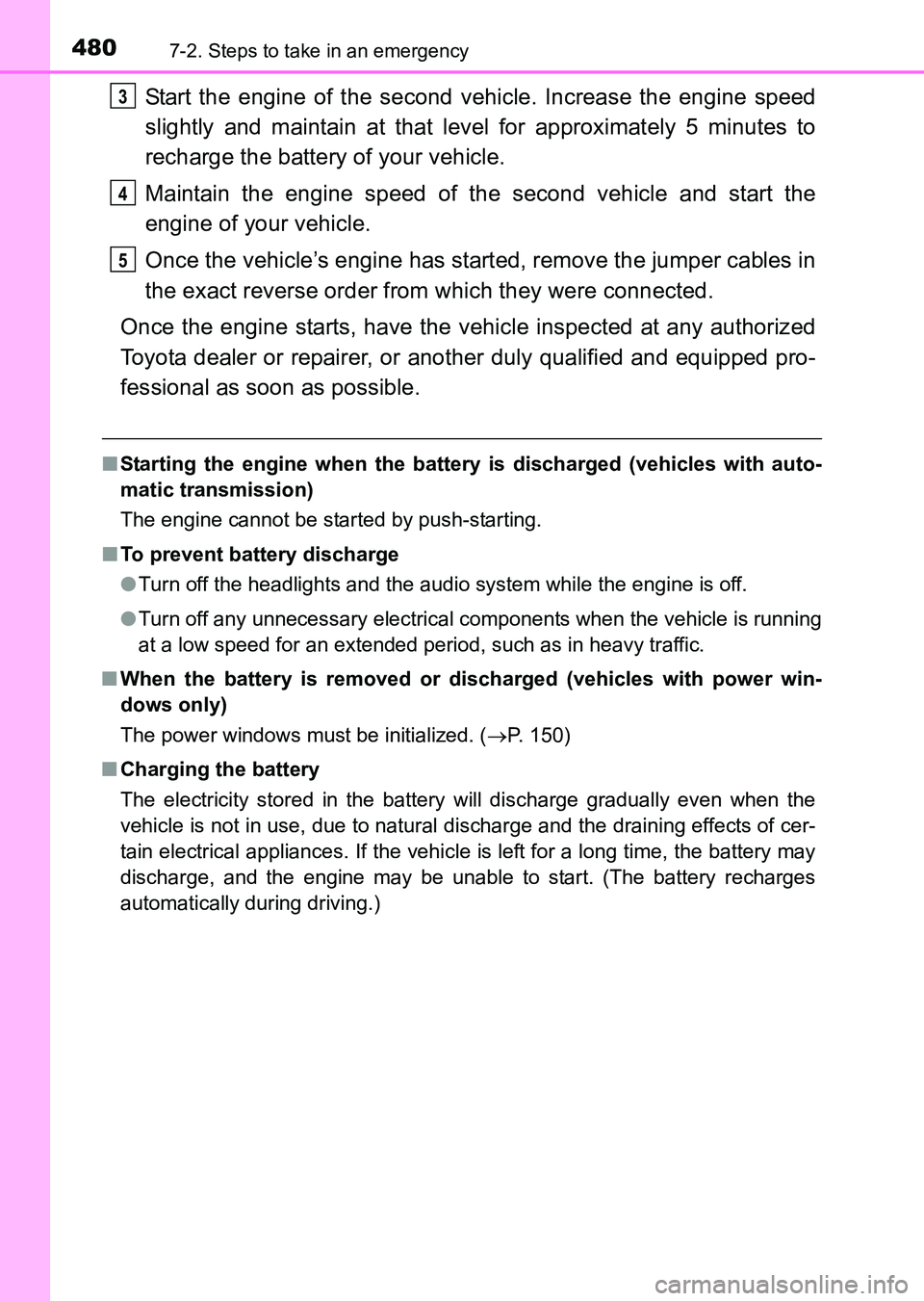

Start the engine of the second vehicle. Increase the engine speed
slightly and maintain at that level for approximately 5 minutes to
recharge the battery of your vehicle.
Maintain the engine speed of the second vehicle and start the
engine of your vehicle.
Once the vehicle’s engine has started, remove the jumper cables in
the exact reverse order from which they were connected.
Once the engine starts, have the vehicle inspected at any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional as soon as possible.
■ Starting the engine when the battery is discharged (vehicles with auto-
matic transmission)
The engine cannot be started by push-starting.
■ To prevent battery discharge
●Turn off the headlights and the audio system while the engine is off.
● Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.
■ When the battery is removed or discharged (vehicles with power win-
dows only)
The power windows must be initialized. ( →P. 150)
■ Charging the battery
The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)
