1998 NISSAN PICK-UP Repair Manual

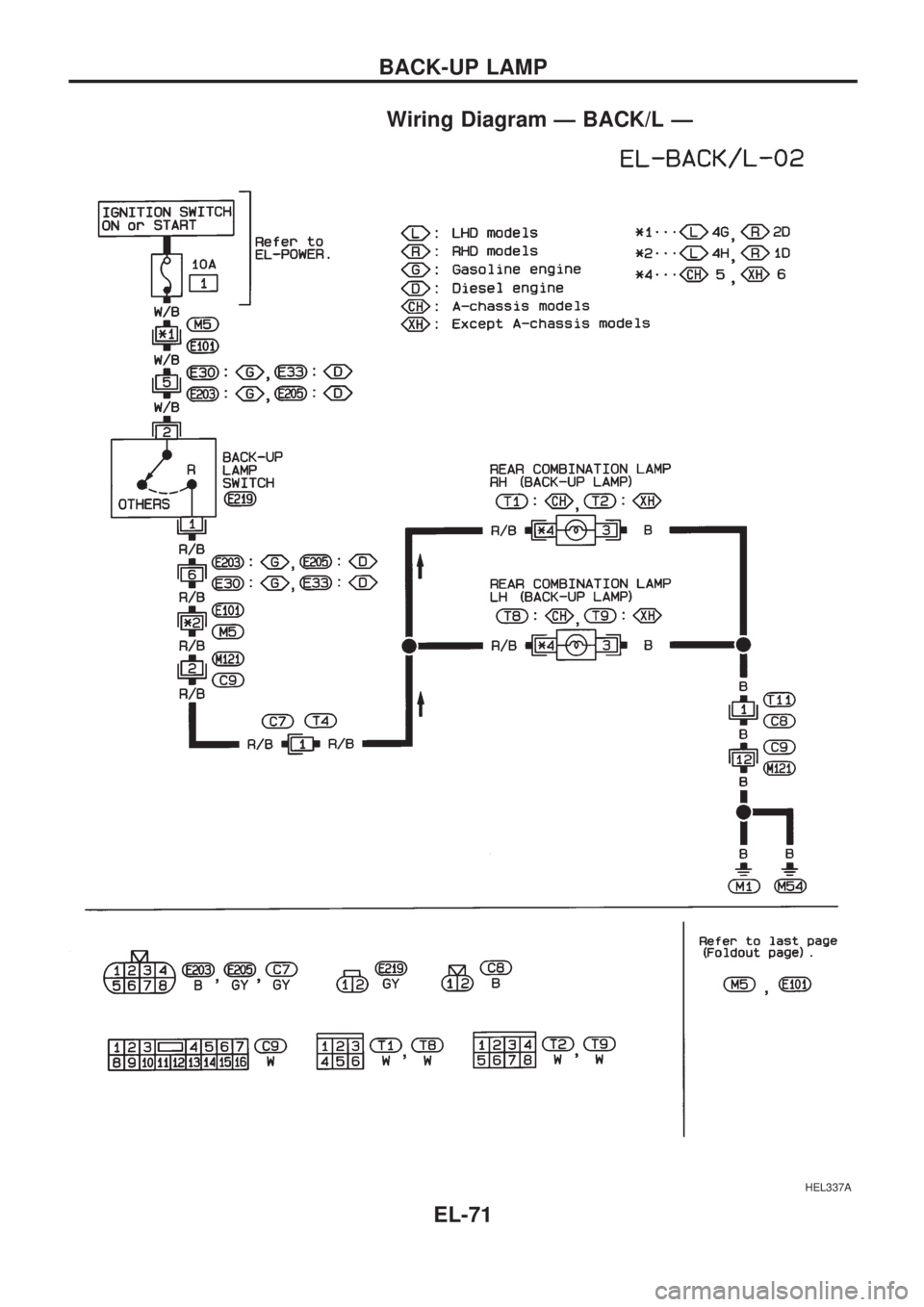

Wiring Diagram Ð BACK/L Ð
HEL337A
BACK-UP LAMP
EL-71

Wiring Diagram Ð R/FOG Ð/LHD Models
HEL338A
REAR FOG LAMP
EL-72

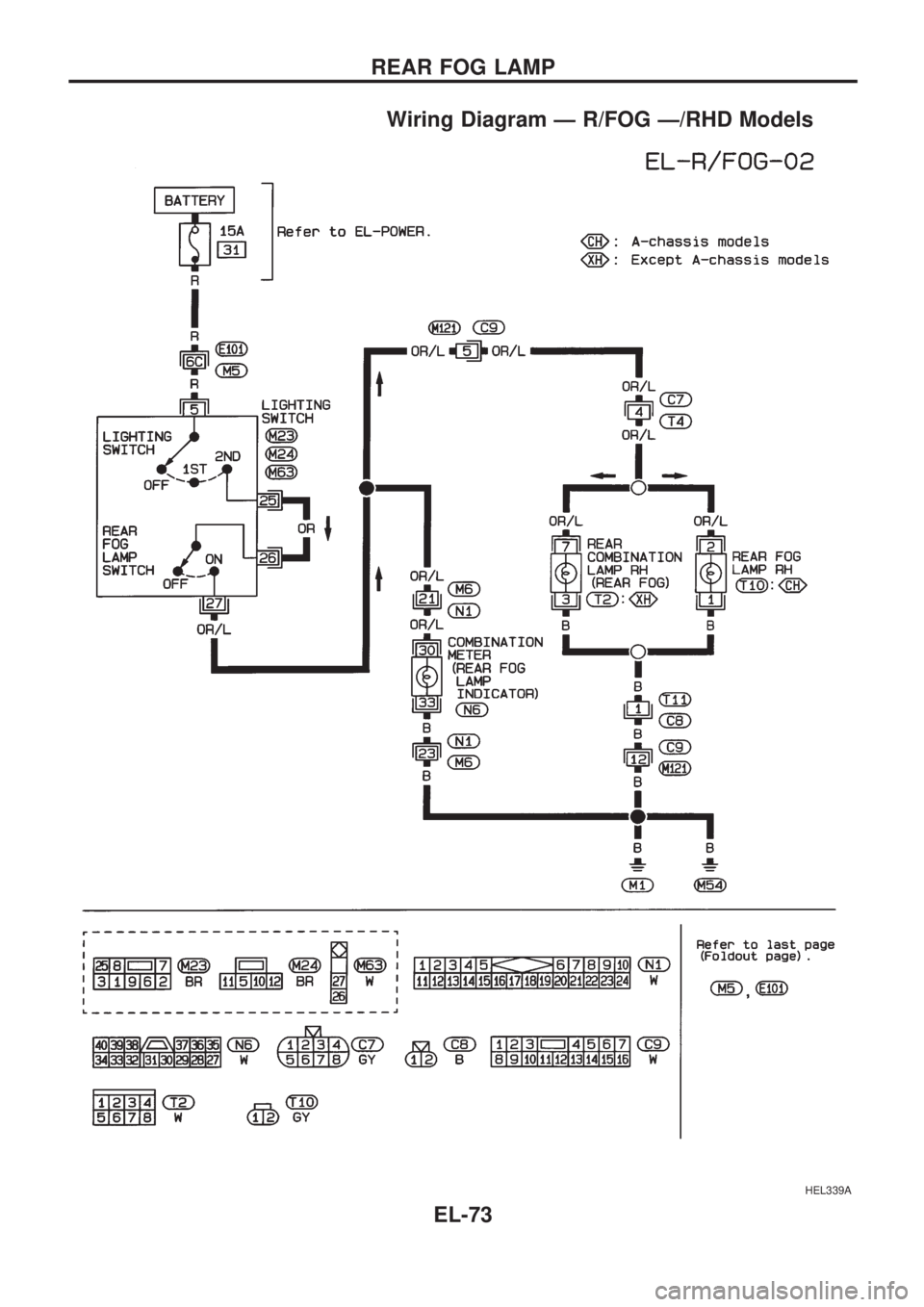

Wiring Diagram Ð R/FOG Ð/RHD Models
HEL339A
REAR FOG LAMP
EL-73

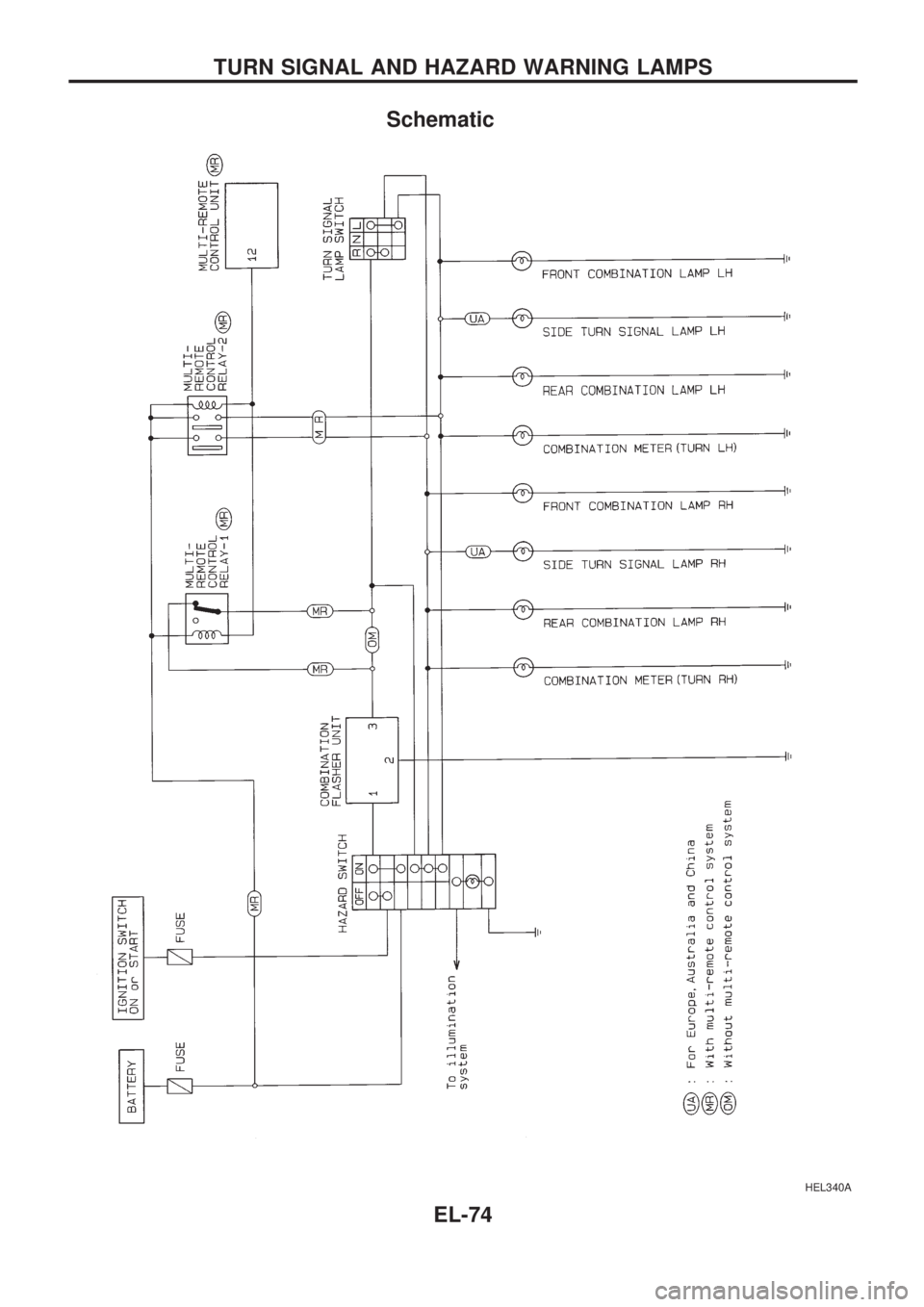

Schematic
HEL340A
TURN SIGNAL AND HAZARD WARNING LAMPS
EL-74

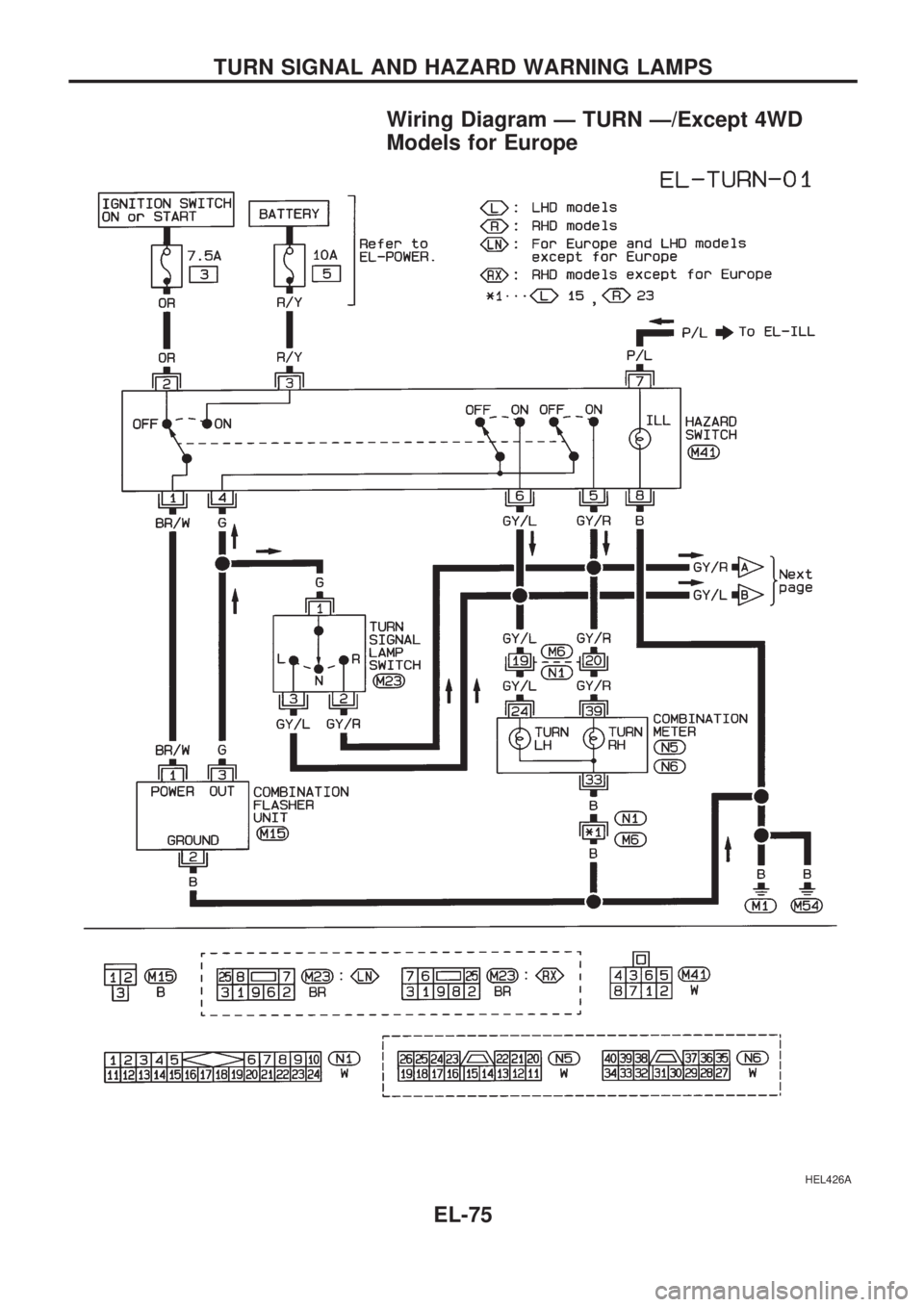

Wiring Diagram Ð TURN Ð/Except 4WD
Models for Europe
HEL426A
TURN SIGNAL AND HAZARD WARNING LAMPS
EL-75

HEL427A
TURN SIGNAL AND HAZARD WARNING LAMPS

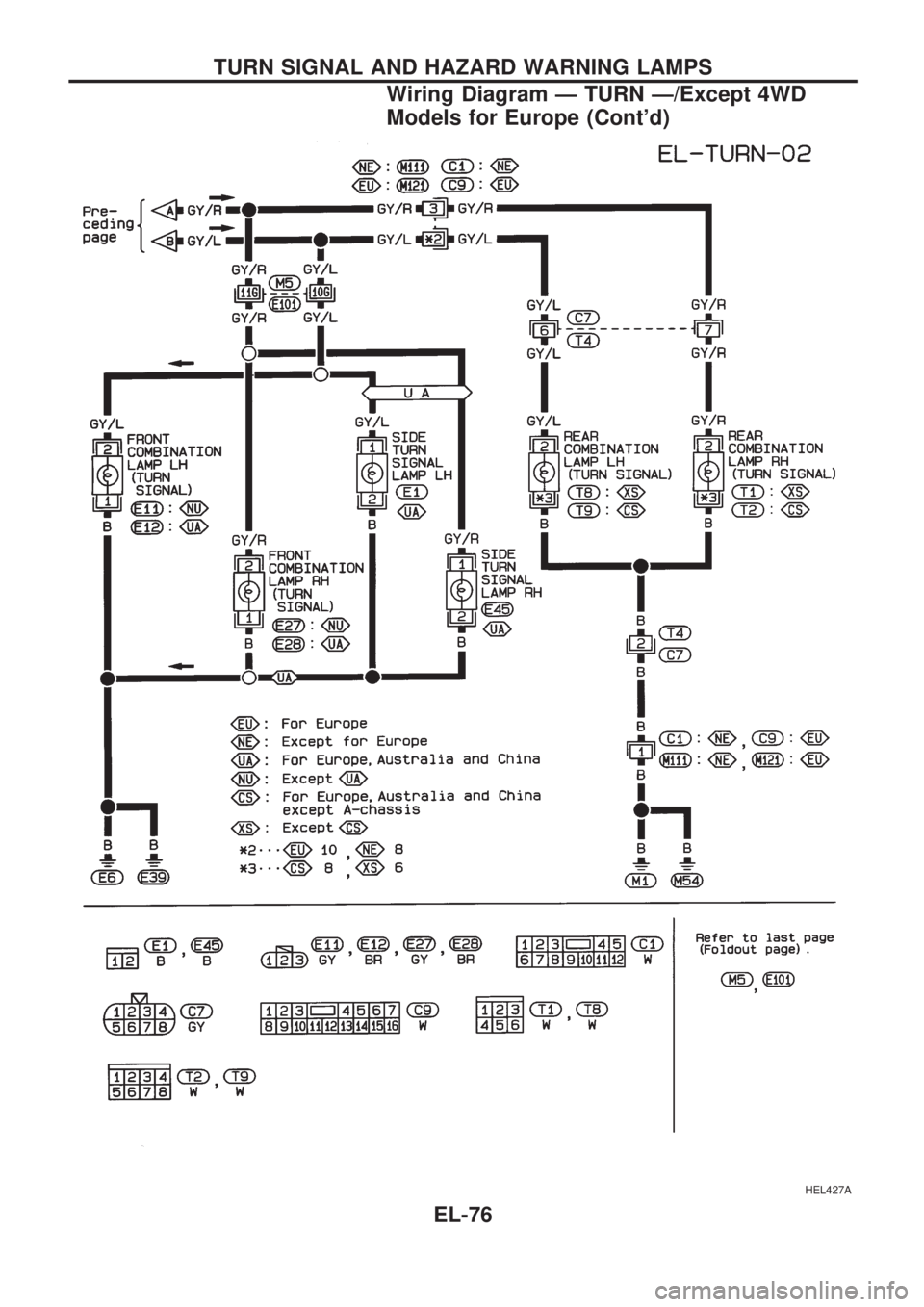

Wiring Diagram Ð TURN Ð/Except 4WD
Models for Europe (Cont'd)
EL-76

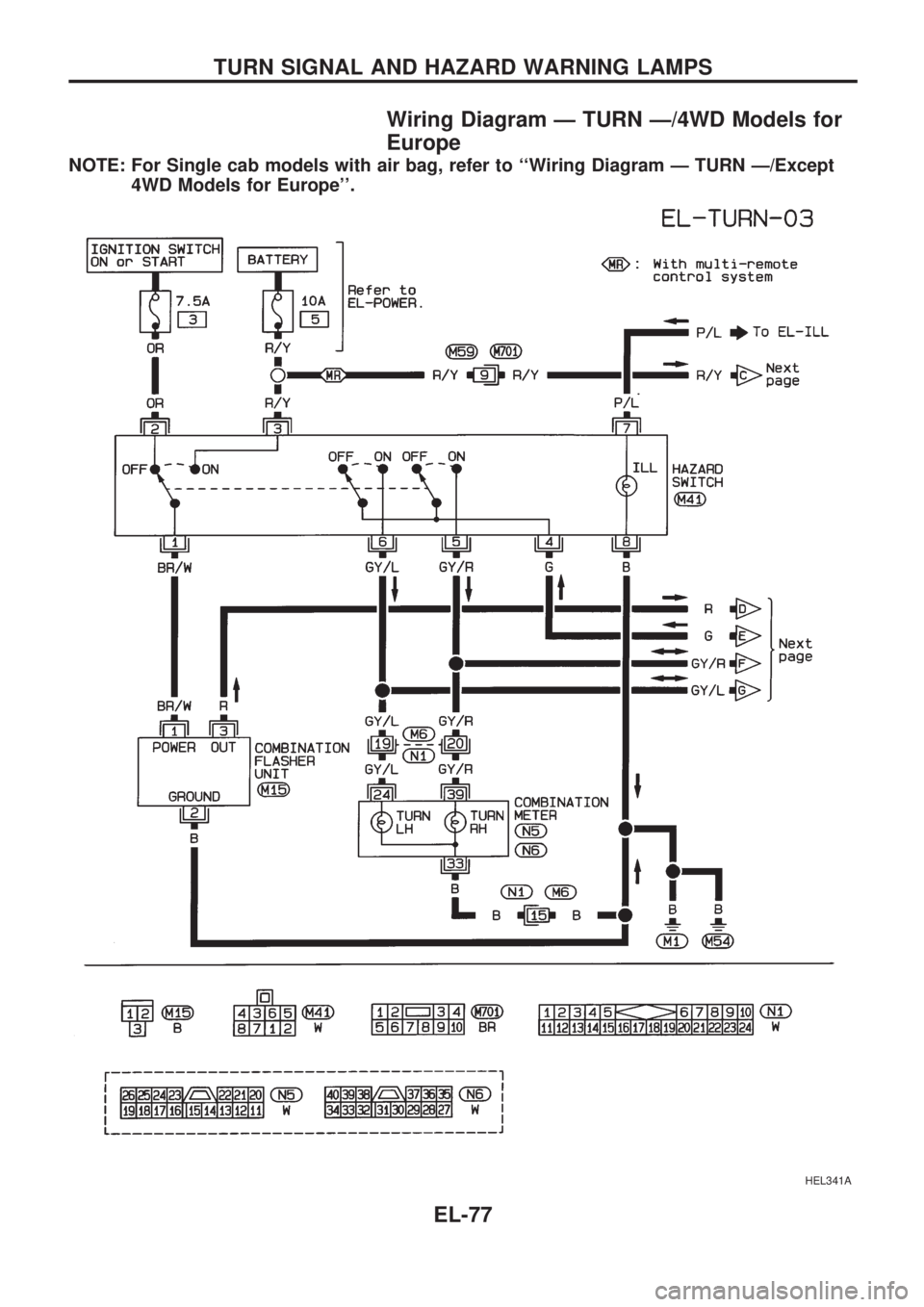

Wiring Diagram Ð TURN Ð/4WD Models for
Europe
NOTE: For Single cab models with air bag, refer to ``Wiring Diagram Ð TURN Ð/Except
4WD Models for Europe''.
HEL341A
TURN SIGNAL AND HAZARD WARNING LAMPS
EL-77

HEL342A
TURN SIGNAL AND HAZARD WARNING LAMPS

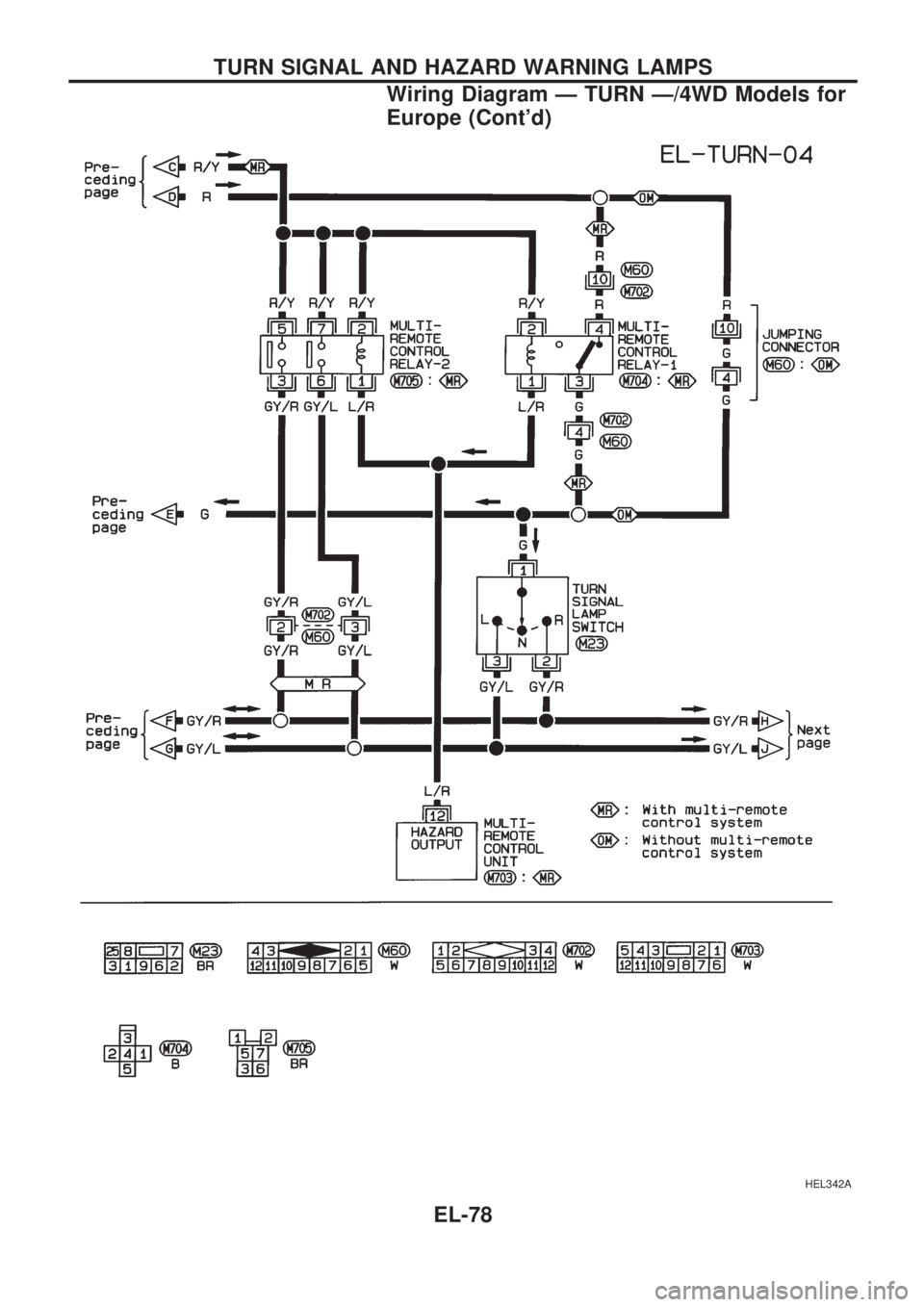

Wiring Diagram Ð TURN Ð/4WD Models for
Europe (Cont'd)
EL-78
