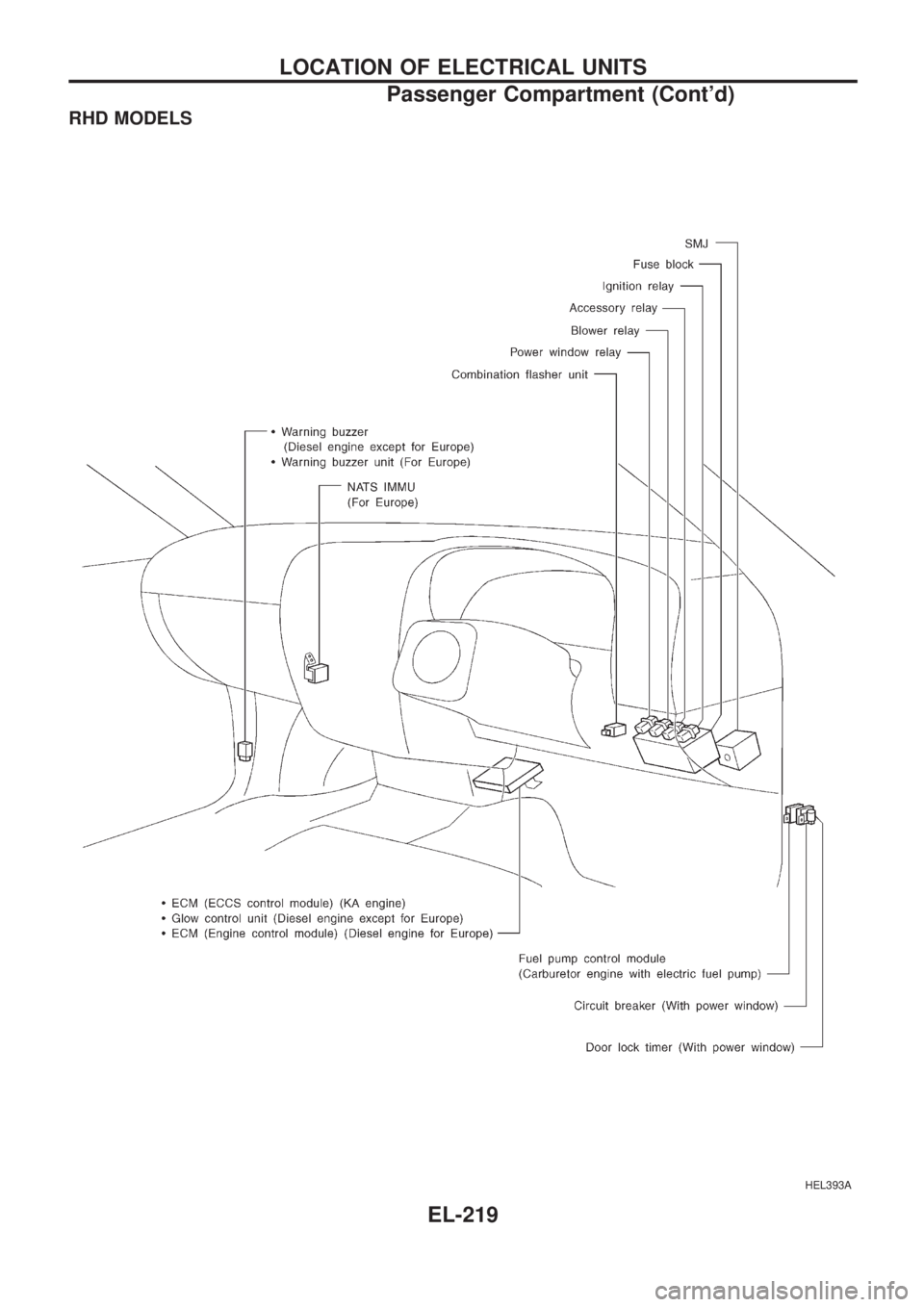

LOCATION OF ELECTRICAL UNITS
Passenger Compartment (Cont'd)
EL-219

OutlineLHD MODELS
RHD MODELS
HEL394A
HEL847

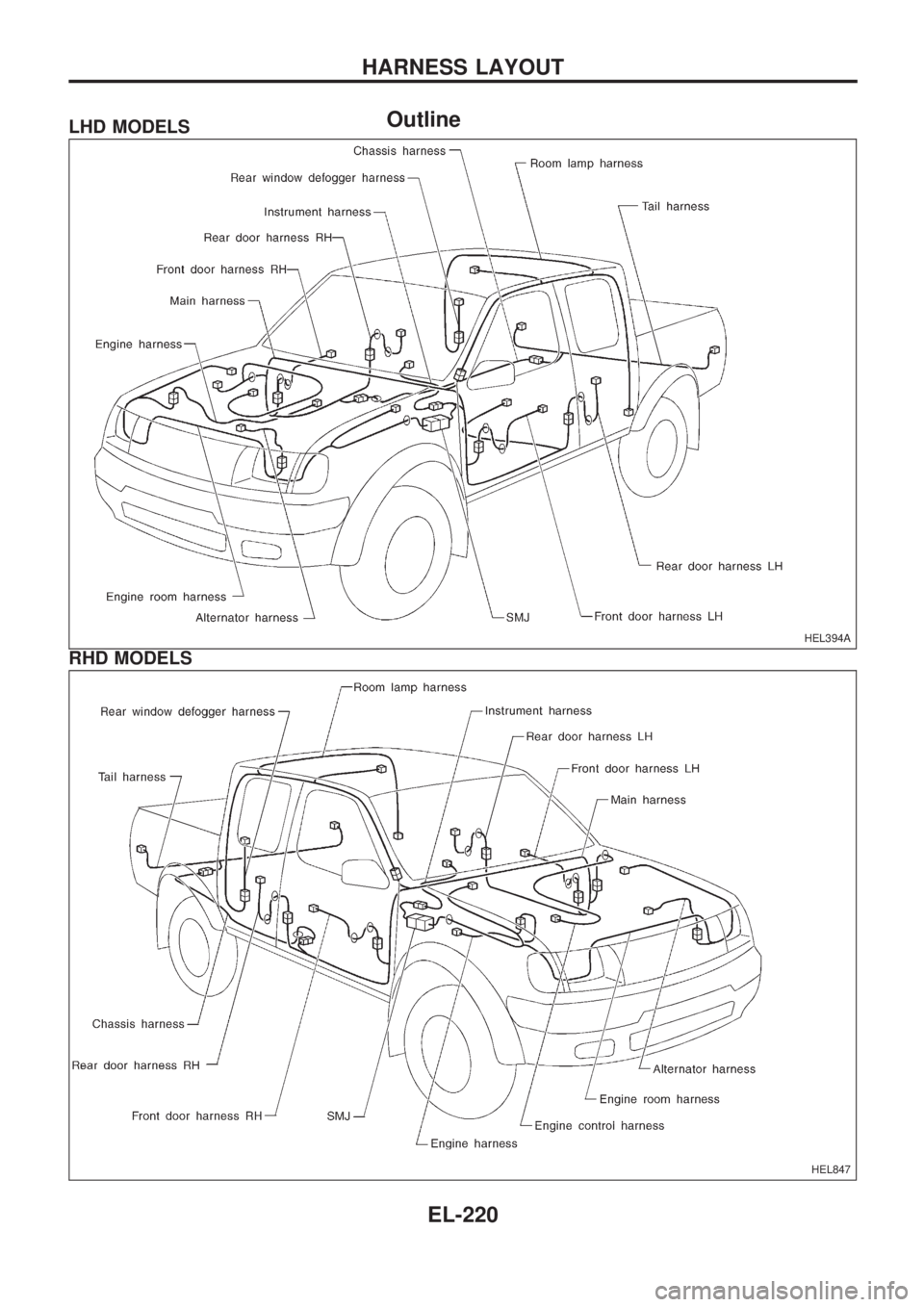

HARNESS LAYOUT
EL-220

How to Read Harness Layout
Example:
G2E1B/6: ASCD ACTUATOR
Connector color / Cavity
Connector number
Grid reference
The following Harness Layouts use a map style grid to help locate connectors on the drawings:
lMain Harness (Instrument Panel, Engine Compartment)
lEngine Room Harness
lEngine Control Harness
To use the grid reference
1) Find the desired connector number on the connector list.
2) Find the grid reference.
3) On the drawing, find the crossing of the grid reference letter column and number row.
4) Find the connector number in the crossing zone.
5) Follow the line (if used) to the connector.
CONNECTOR SYMBOL
Main symbols of connector (in Harness Layout) are indicated in the below.
Connector typeWater proof type Standard type
Male Female Male Female
lCavity: Less than 4
lRelay connector
lCavity: From 5 to 8
lCavity: More than 9
lGround terminal etc.
Ð
HARNESS LAYOUT
EL-221

Main Harness

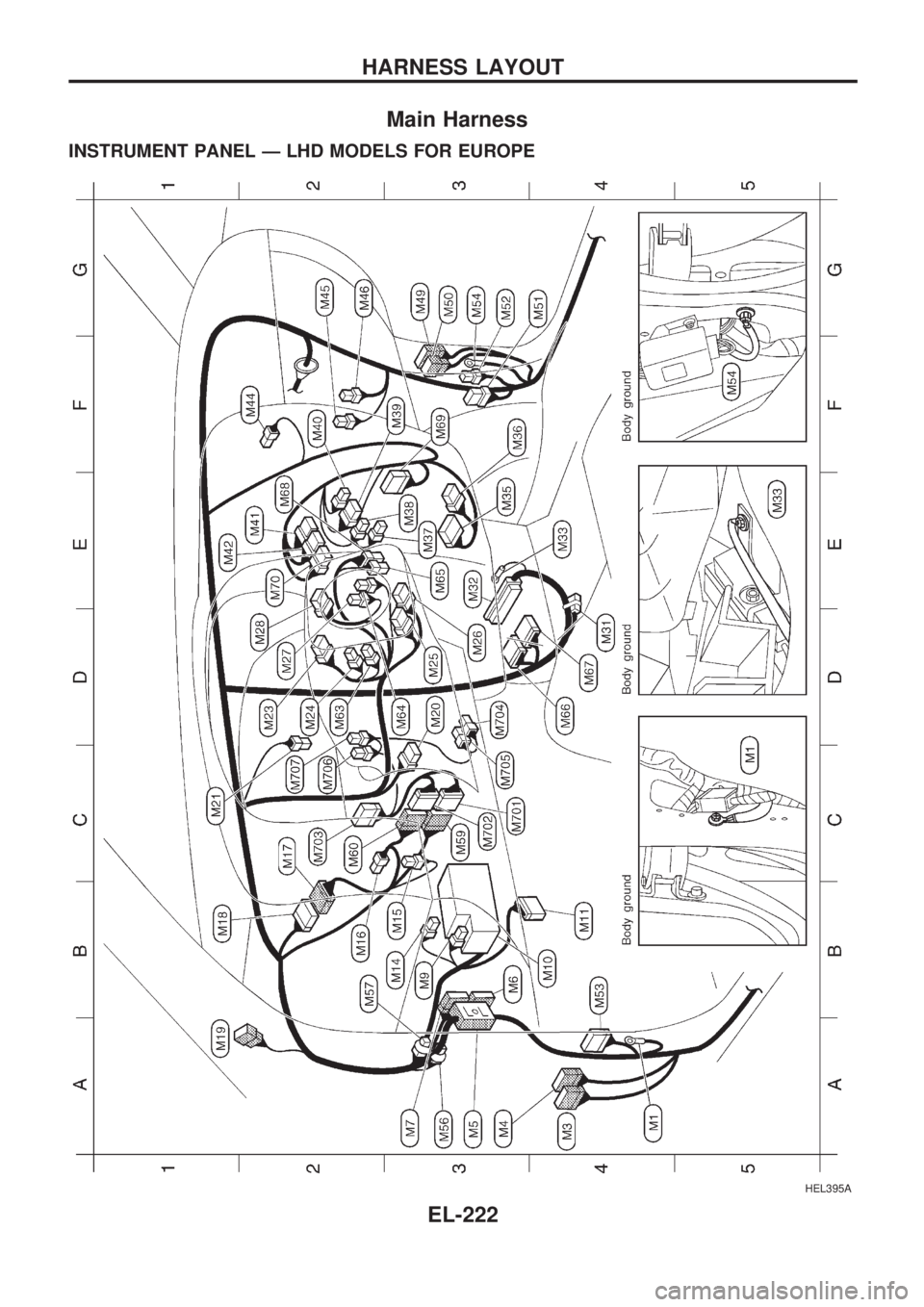

INSTRUMENT PANEL Ð LHD MODELS FOR EUROPE
HEL395A
HARNESS LAYOUT
EL-222

HEL396A
HARNESS LAYOUT

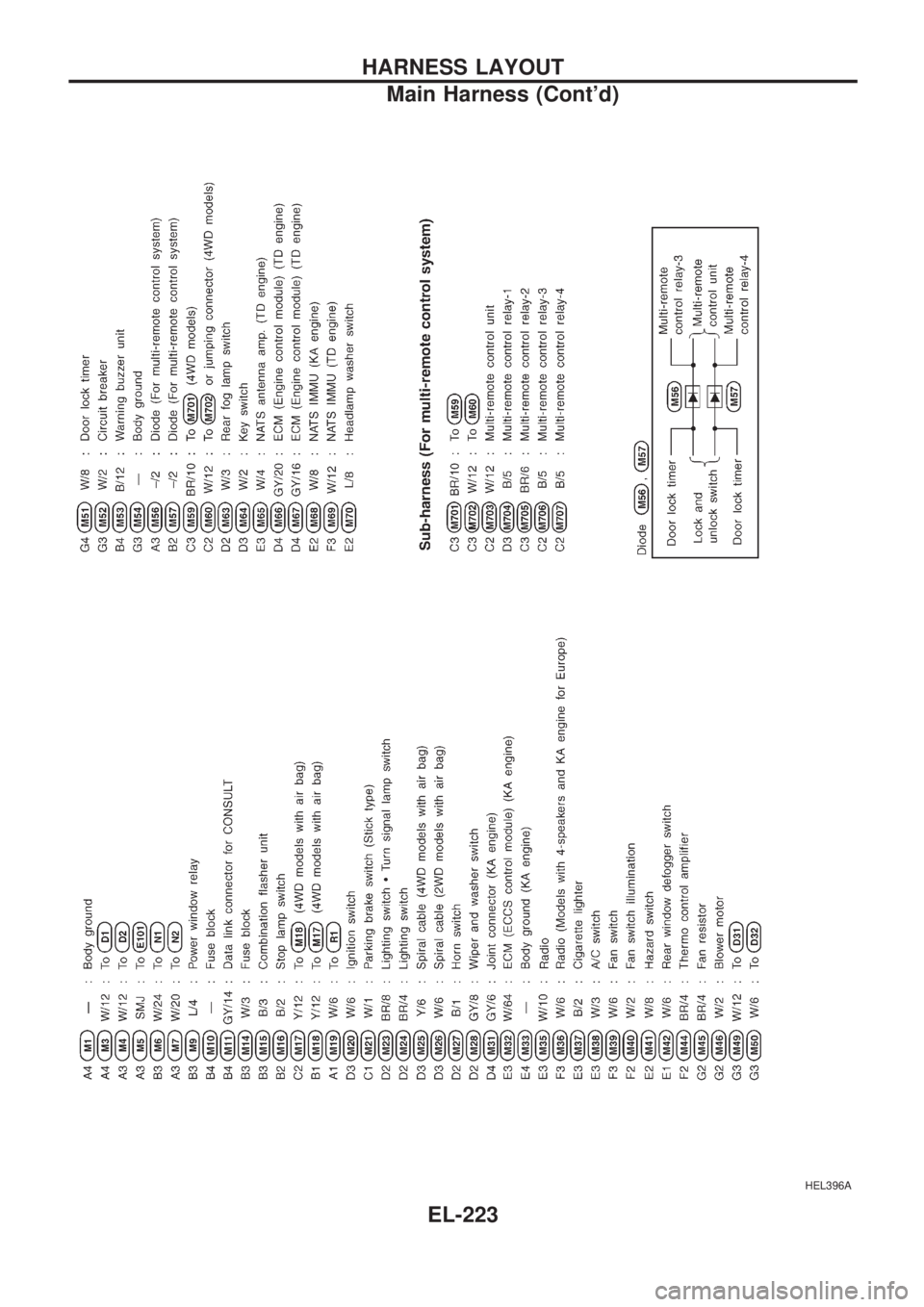

Main Harness (Cont'd)
EL-223

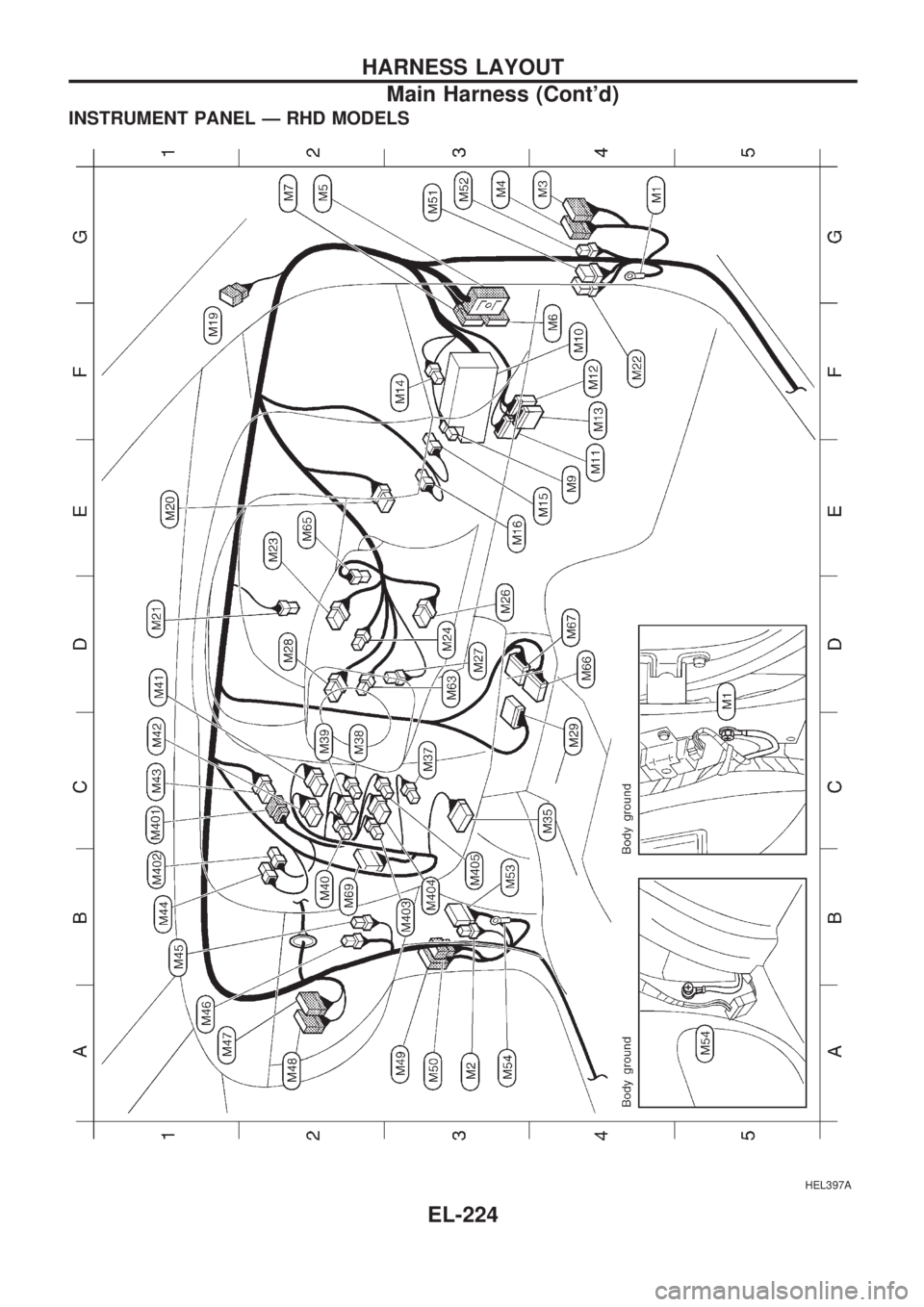

INSTRUMENT PANEL Ð RHD MODELS
HEL397A
HARNESS LAYOUT
Main Harness (Cont'd)
EL-224

HEL398A
HARNESS LAYOUT
Main Harness (Cont'd)
EL-225

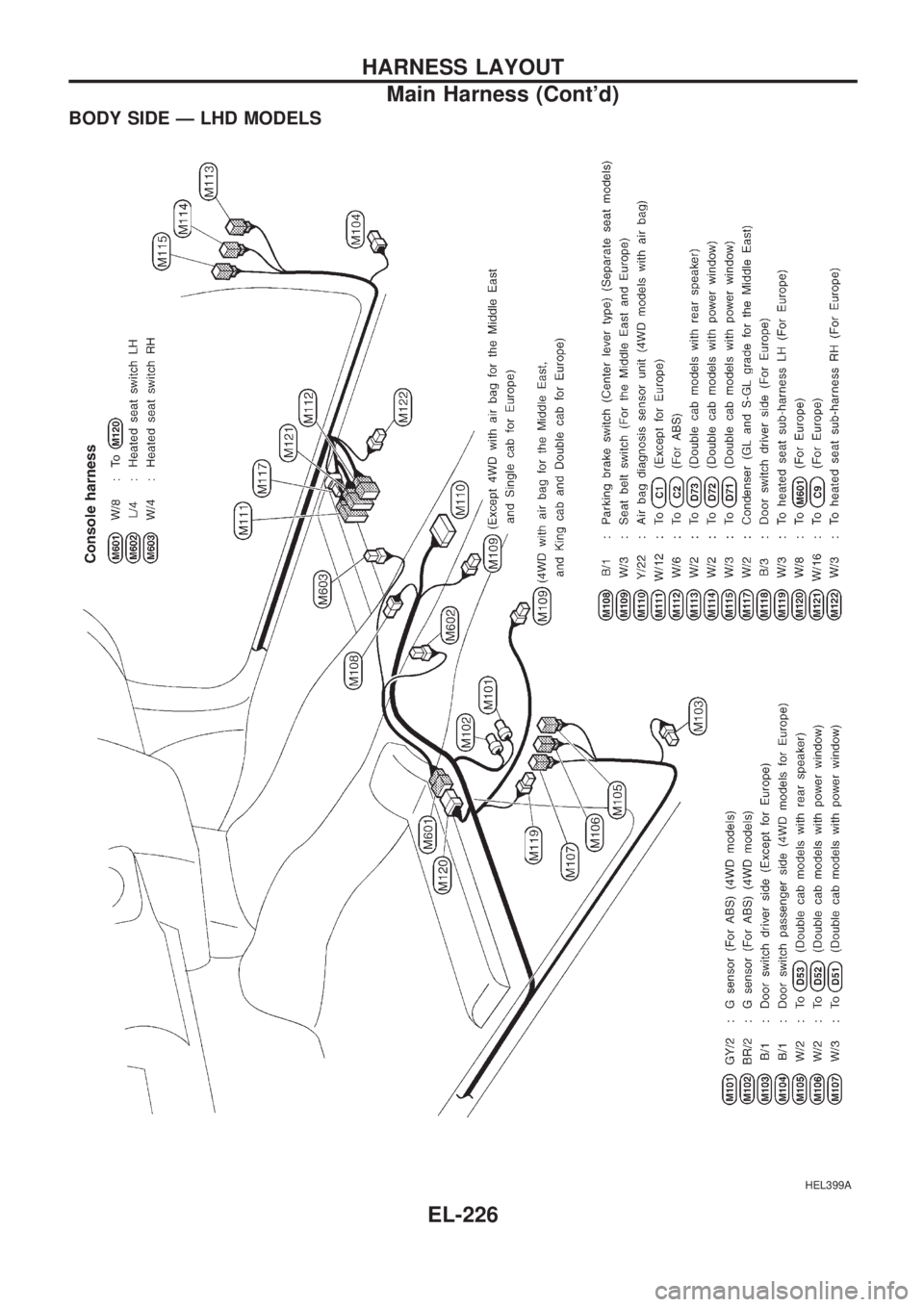

BODY SIDE Ð LHD MODELS
HEL399A
HARNESS LAYOUT
Main Harness (Cont'd)
EL-226
