1998 NISSAN PICK-UP Repair Manual

VALVE SPRING SQUARENESS
Align the valve spring with a square. Rotate the spring to mea-
sure any gap between the top of the spring and the square.
Out-of-square ``S'':
Less than 2.3 mm (0.091 in)
VALVE SPRING PRESSURE LOAD
Refer to SDS, EM-99.
VALVE LIFTER AND PUSH ROD
Valve lifter
1. Check valve lifters for excessive wear on the face.
2. Replace with new ones if worn beyond repair.
a. Valve lifter end should be smooth.
b. Valve lifter to lifter hole clearance: mm (in)
Standard
0.030 - 0.073 (0.0012 - 0.0029)
Limit
Less than 0.20 (0.0079)
Valve lifter outer diameter ``A'':
Standard
25.960 - 25.970 mm (1.0220 - 1.0224 in)
Cylinder block valve lifter hole diameter ``B'':
Standard
26.000 - 26.033 mm (1.0236 - 1.0249 in)
Push rod
1. Inspect push rod for excessive wear on the face.
2. Replace if worn or damaged beyond repair.
3. Check push rod for bend using a dial gauge.
Maximum allowable bend
(Total indicator reading):
Less than 0.5 mm (0.020 in)
SEM635B
EM113
SEM636B
DEM033
CYLINDER HEADTD
Inspection (Cont'd)
EM-60

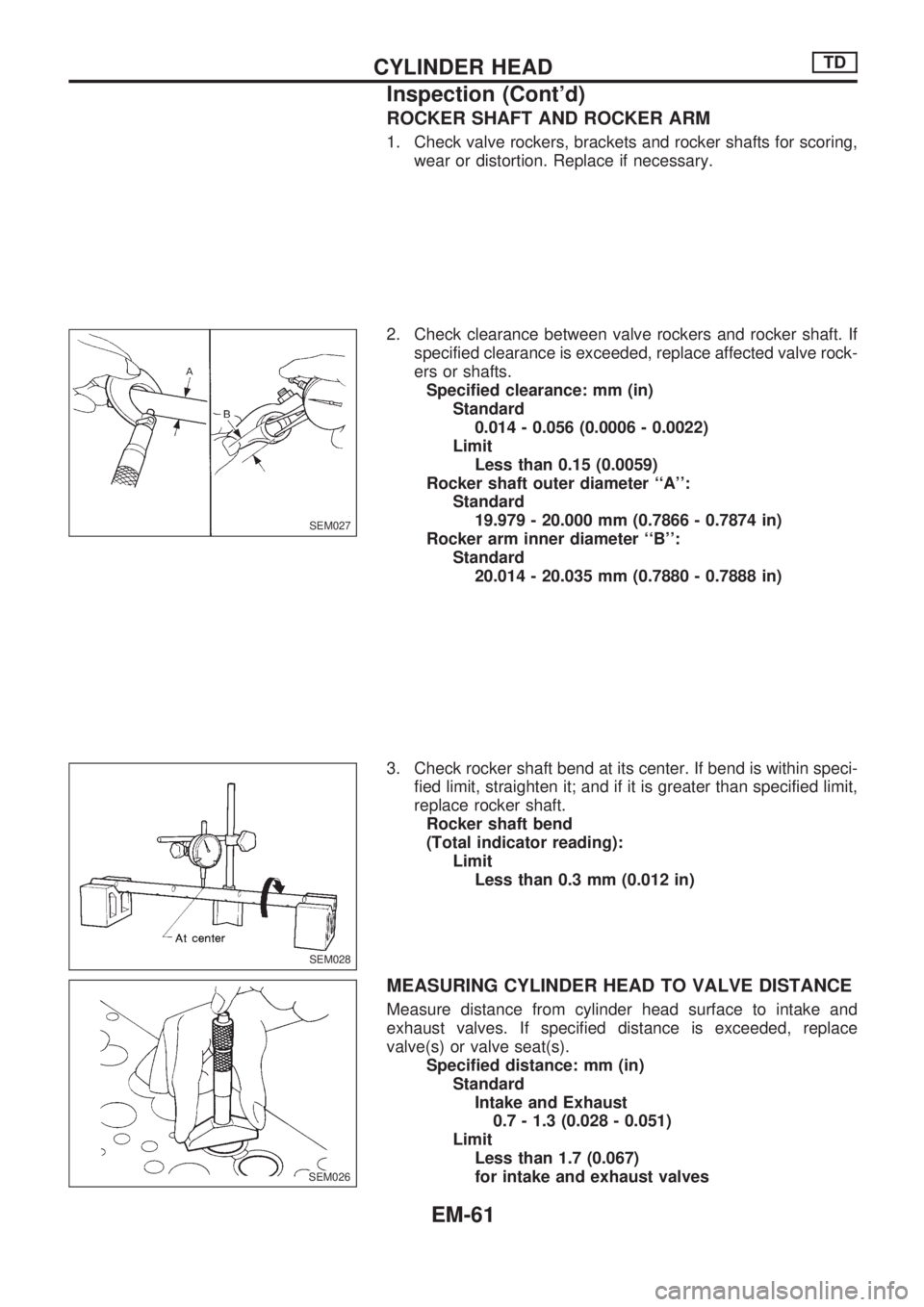

ROCKER SHAFT AND ROCKER ARM
1. Check valve rockers, brackets and rocker shafts for scoring,
wear or distortion. Replace if necessary.
2. Check clearance between valve rockers and rocker shaft. If
specified clearance is exceeded, replace affected valve rock-
ers or shafts.
Specified clearance: mm (in)
Standard
0.014 - 0.056 (0.0006 - 0.0022)
Limit
Less than 0.15 (0.0059)
Rocker shaft outer diameter ``A'':
Standard
19.979 - 20.000 mm (0.7866 - 0.7874 in)
Rocker arm inner diameter ``B'':
Standard
20.014 - 20.035 mm (0.7880 - 0.7888 in)
3. Check rocker shaft bend at its center. If bend is within speci-
fied limit, straighten it; and if it is greater than specified limit,
replace rocker shaft.
Rocker shaft bend
(Total indicator reading):
Limit
Less than 0.3 mm (0.012 in)
MEASURING CYLINDER HEAD TO VALVE DISTANCE
Measure distance from cylinder head surface to intake and
exhaust valves. If specified distance is exceeded, replace
valve(s) or valve seat(s).
Specified distance: mm (in)
Standard
Intake and Exhaust
0.7 - 1.3 (0.028 - 0.051)
Limit
Less than 1.7 (0.067)
for intake and exhaust valves
SEM027
SEM028
SEM026.SEM026
CYLINDER HEADTD
Inspection (Cont'd)
EM-61

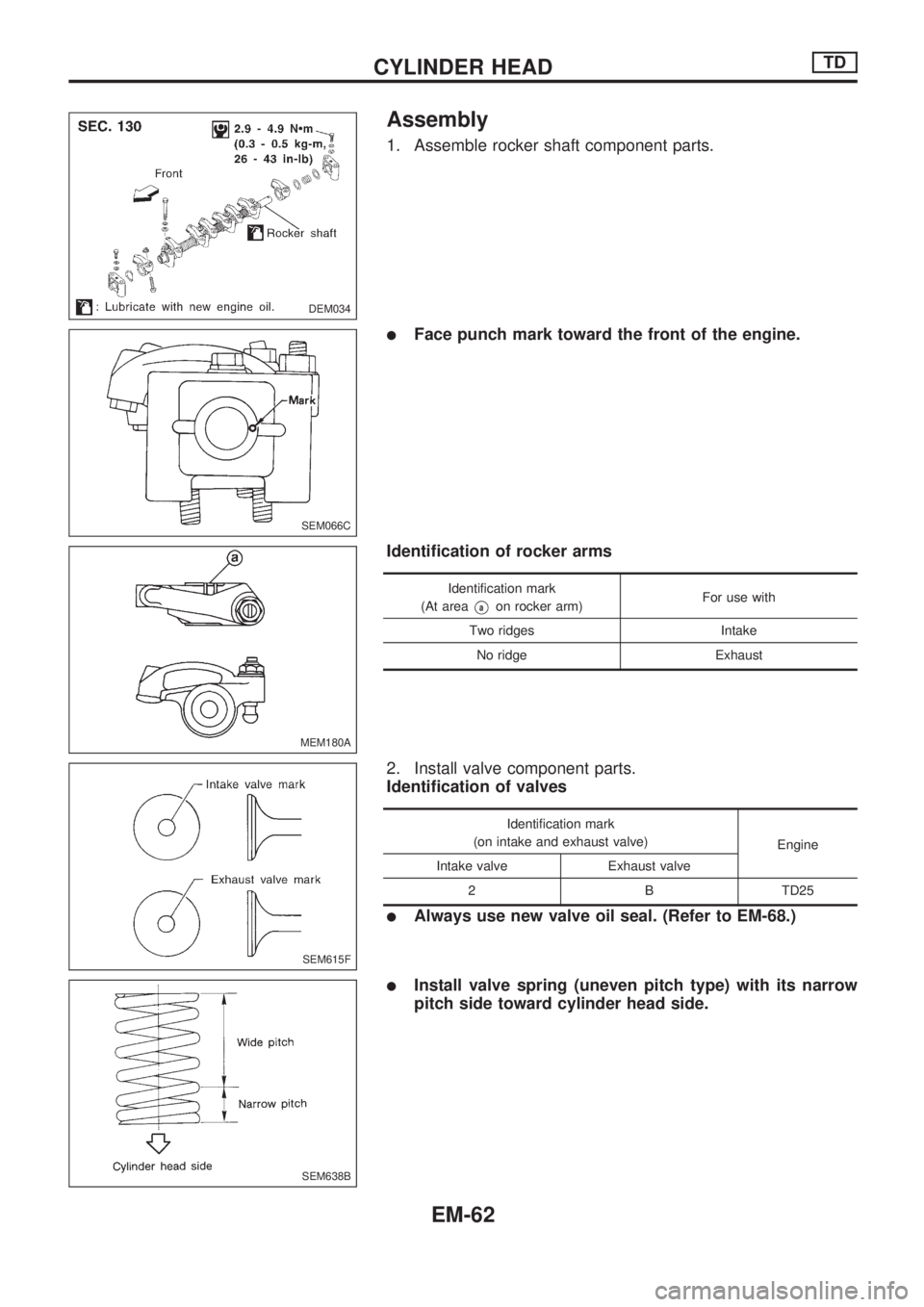

Assembly
1. Assemble rocker shaft component parts.
lFace punch mark toward the front of the engine.
Identification of rocker arms
Identification mark
(At area
Vaon rocker arm)For use with
Two ridges Intake
No ridge Exhaust
2. Install valve component parts.
Identification of valves
Identification mark
(on intake and exhaust valve)
Engine
Intake valve Exhaust valve
2 B TD25
lAlways use new valve oil seal. (Refer to EM-68.)
lInstall valve spring (uneven pitch type) with its narrow
pitch side toward cylinder head side.
DEM034
SEM066C
MEM180A
SEM615F
SEM638B
CYLINDER HEADTD
EM-62

Installation

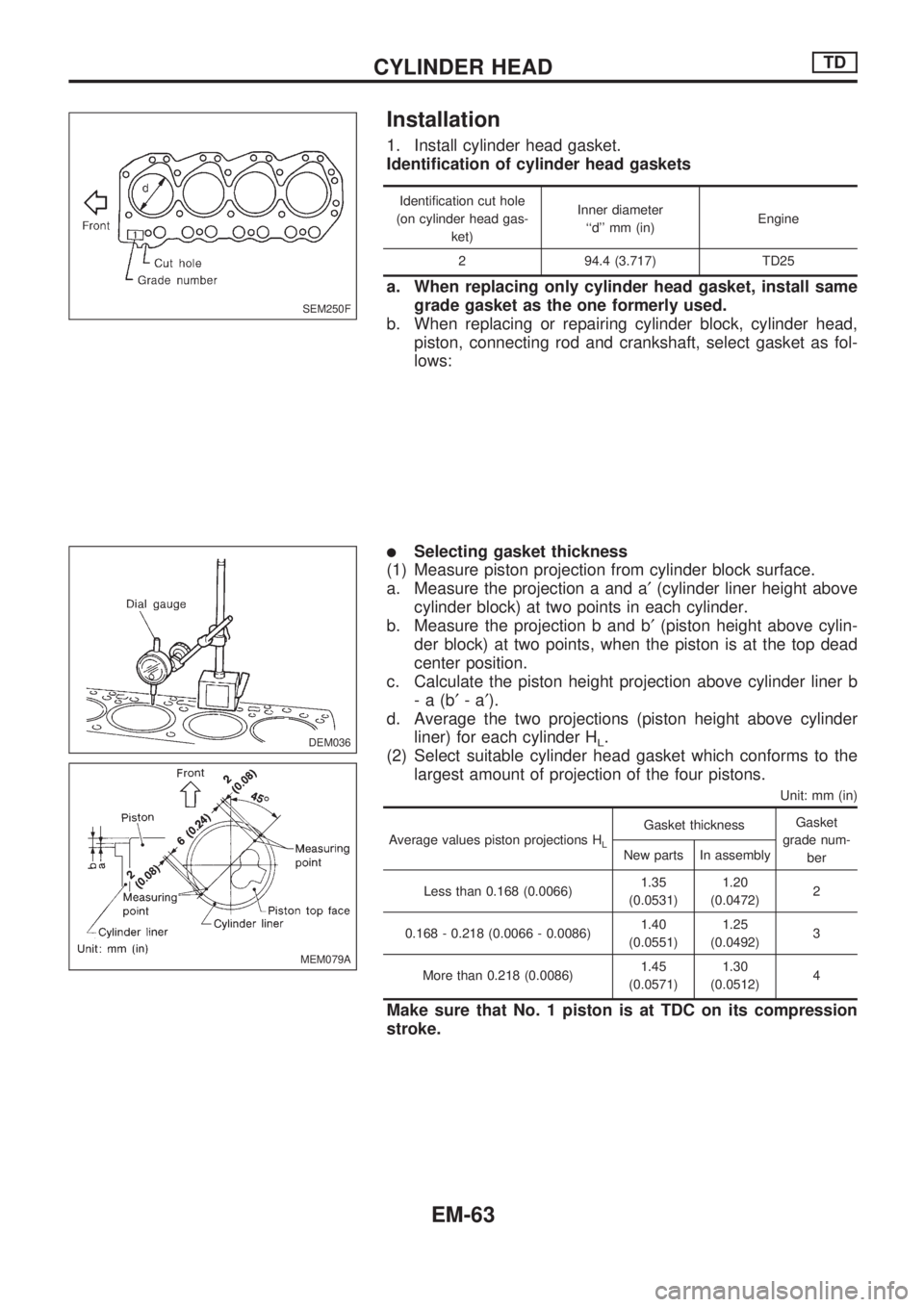

1. Install cylinder head gasket.
Identification of cylinder head gaskets
Identification cut hole
(on cylinder head gas-
ket)Inner diameter
``d'' mm (in)Engine
2 94.4 (3.717) TD25
a. When replacing only cylinder head gasket, install same
grade gasket as the one formerly used.
b. When replacing or repairing cylinder block, cylinder head,
piston, connecting rod and crankshaft, select gasket as fol-
lows:
lSelecting gasket thickness
(1) Measure piston projection from cylinder block surface.
a. Measure the projection a and a¢(cylinder liner height above
cylinder block) at two points in each cylinder.
b. Measure the projection b and b¢(piston height above cylin-
der block) at two points, when the piston is at the top dead
center position.
c. Calculate the piston height projection above cylinder liner b
-a(b¢-a¢).
d. Average the two projections (piston height above cylinder
liner) for each cylinder H
L.
(2) Select suitable cylinder head gasket which conforms to the
largest amount of projection of the four pistons.
Unit: mm (in)
Average values piston projections HL
Gasket thicknessGasket
grade num-
ber New parts In assembly
Less than 0.168 (0.0066)1.35
(0.0531)1.20
(0.0472)2
0.168 - 0.218 (0.0066 - 0.0086)1.40
(0.0551)1.25
(0.0492)3
More than 0.218 (0.0086)1.45
(0.0571)1.30
(0.0512)4
Make sure that No. 1 piston is at TDC on its compression
stroke.
SEM250F
.
DEM036
MEM079A
CYLINDER HEADTD
EM-63

2. Install cylinder head.
Cylinder head identification mark
Identification number
(on cylinder head)
Engine
Float mark Punch mark
2 L TD25
3. Apply oil to the thread portion and seat surface of bolts and
tighten cylinder head bolts using Tool.
CAUTION:
lTightening procedure
1st: Tighten bolts to 39 - 44 Nzm
(4.0 - 4.5 kg-m, 29 - 33 ft-lb).
2nd: Tighten bolts to 59 - 64 Nzm
(6.0 - 6.5 kg-m, 43 - 47 ft-lb).
3rd:
(1) Mark exhaust side of cylinder head and cylin-
der head bolts with paint as shown.
(2) Turn all bolts 90 10 degrees clockwise.
(3) Check that the paint mark of each bolt is fac-
ing the front of the vehicle.
lAlways check the bolt tightening angle with an
angle wrench or protractor. Do not check visu-
ally.
4. Apply engine oil and install push rods.
5. Install rocker shaft assembly.
Adjust intake and exhaust valve clearance tentatively.
Refer to ``Adjusting Intake and Exhaust Valve Clearance'',
``ENGINE MAINTENANCE'' in MA section.
6. Install rocker cover.
lBe sure the ``F'' mark on rocker cover plate faces upward and
is at the front end.
lWhen replacing rocker cover gasket, bend slit of rocker cover
baffle plate a little to hold the gasket. Do not twist gasket.
lTighten all bolts in numeral sequence (as shown in the
figure at left) to the specified torque.
DEM066
SEM641B
DEM038
SEM642B
DEM039
CYLINDER HEADTD
Installation (Cont'd)
EM-64

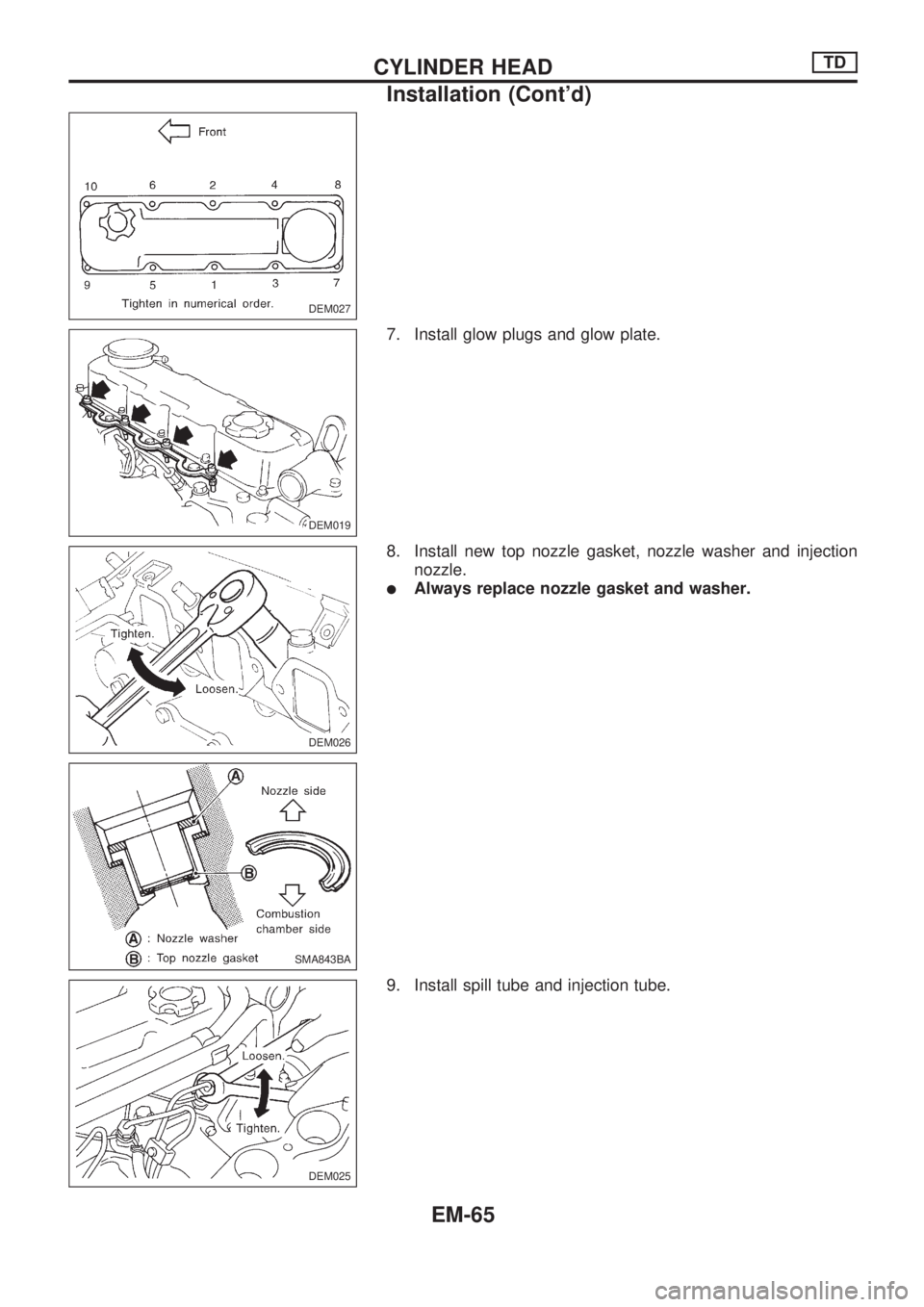

7. Install glow plugs and glow plate.
8. Install new top nozzle gasket, nozzle washer and injection
nozzle.
lAlways replace nozzle gasket and washer.
9. Install spill tube and injection tube.
DEM027
DEM019.DEM019
DEM026
SMA843BA
DEM025
CYLINDER HEADTD
Installation (Cont'd)
EM-65

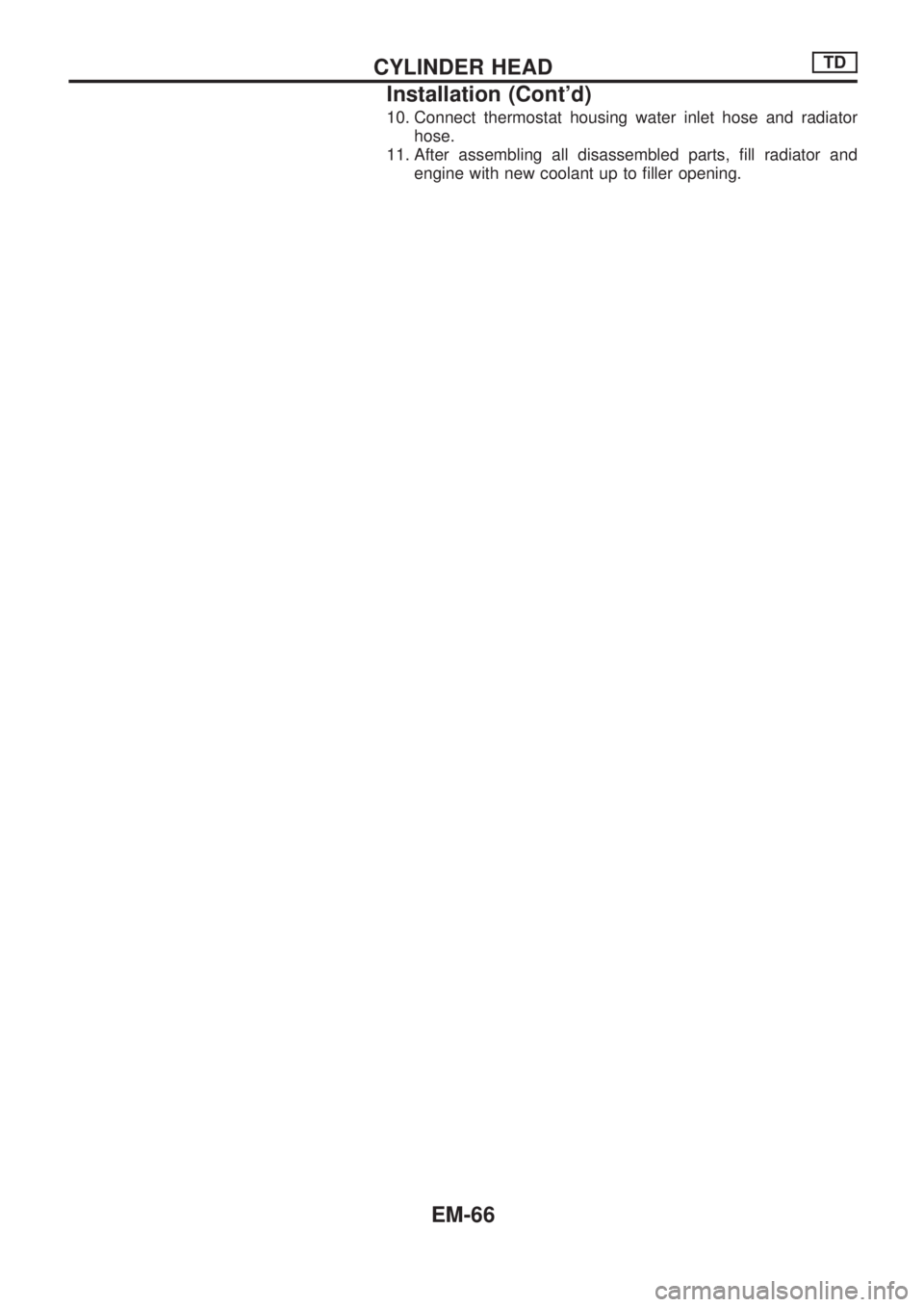

10. Connect thermostat housing water inlet hose and radiator
hose.
11. After assembling all disassembled parts, fill radiator and
engine with new coolant up to filler opening.
CYLINDER HEADTD
Installation (Cont'd)
EM-66

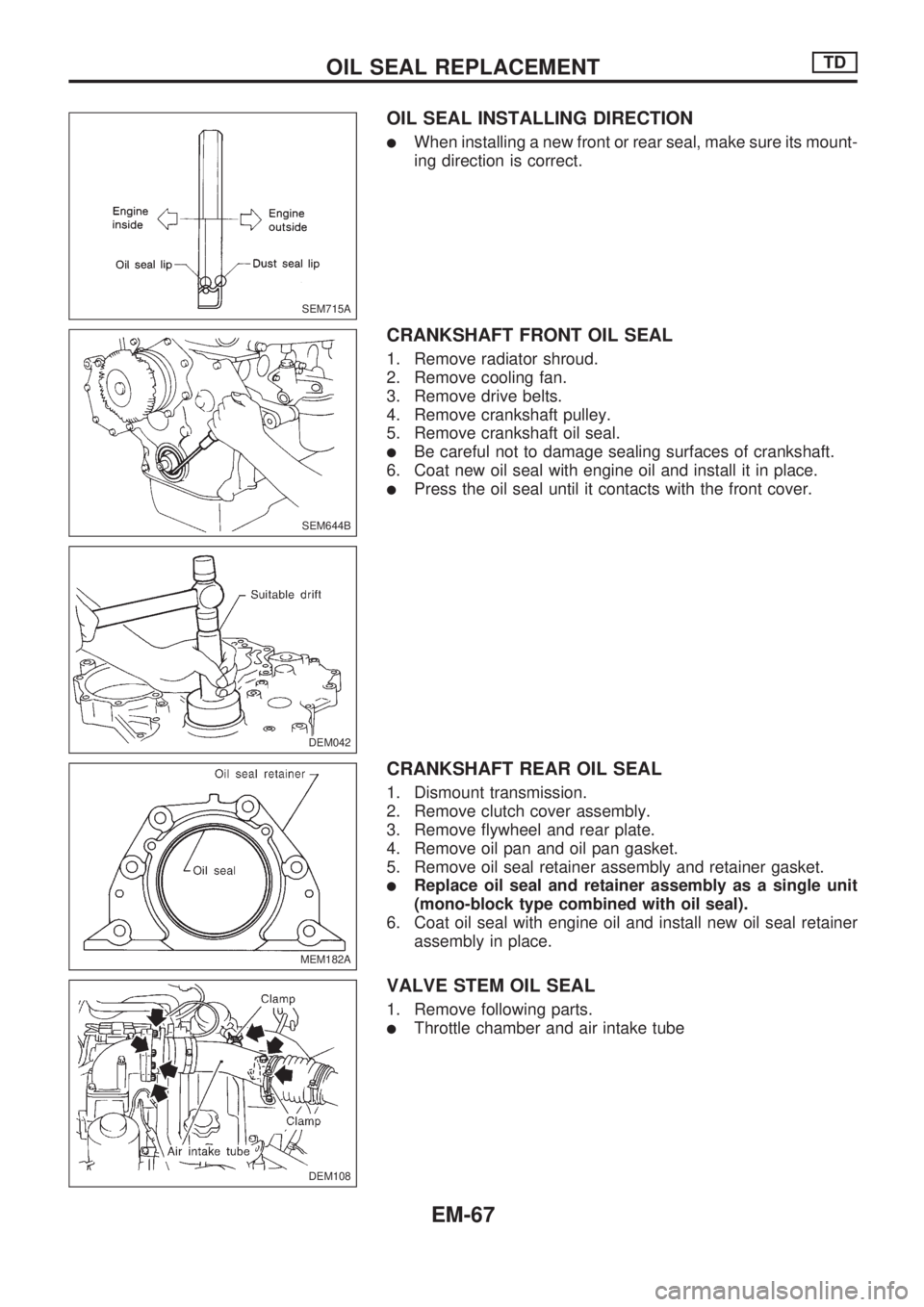

OIL SEAL INSTALLING DIRECTION
lWhen installing a new front or rear seal, make sure its mount-
ing direction is correct.
CRANKSHAFT FRONT OIL SEAL
1. Remove radiator shroud.
2. Remove cooling fan.
3. Remove drive belts.
4. Remove crankshaft pulley.
5. Remove crankshaft oil seal.
lBe careful not to damage sealing surfaces of crankshaft.
6. Coat new oil seal with engine oil and install it in place.
lPress the oil seal until it contacts with the front cover.
CRANKSHAFT REAR OIL SEAL
1. Dismount transmission.
2. Remove clutch cover assembly.
3. Remove flywheel and rear plate.
4. Remove oil pan and oil pan gasket.
5. Remove oil seal retainer assembly and retainer gasket.
lReplace oil seal and retainer assembly as a single unit
(mono-block type combined with oil seal).
6. Coat oil seal with engine oil and install new oil seal retainer
assembly in place.
VALVE STEM OIL SEAL
1. Remove following parts.
lThrottle chamber and air intake tube
SEM715A
SEM644B
DEM042
MEM182A
DEM108
.
