1998 NISSAN PICK-UP Repair Manual

Alphabetical & Numerical Index for DTC
(KA engine)
ALPHABETICAL INDEX FOR DTC
X: Applicable
Ð: Not applicable
Items
(CONSULT screen terms)DTCMIL
illuminationReference
page
CAMSHAFT POSI SEN 11 Ð EC-82
COOLANT TEMP SEN 13 X EC-95
IGN SIGNAL-PRIMARY 21 Ð EC-99
INT AIR TEMP SEN 41 Ð EC-109
MASS AIR FLOW SEN 12 Ð EC-89
NATS MALFUNCTION 141 - 148 X EL section*
NO SELF DIAGNOSTIC
FAILURE INDICATED55 Ð Ð
OVER HEAT 28 X EC-106
THROTTLE POSI SEN 43 Ð EC-113
NUMERICAL INDEX FOR DTC
X: Applicable
Ð: Not applicable
DTCMIL
illuminationItems
(CONSULT screen terms)Reference
page
11 Ð CAMSHAFT POSI SEN EC-82
12 Ð MASS AIR FLOW SEN EC-89
13 X COOLANT TEMP SEN EC-95
21 Ð IGN SIGNAL-PRIMARY EC-99
28 X OVER HEAT EC-106
41 Ð INT AIR TEMP SEN EC-109
43 Ð THROTTLE POSI SEN EC-113
55 ÐNO SELF DIAGNOSTIC
FAILURE INDICATEDÐ
141 - 148 X NATS MALFUNCTION EL section*
*Refer to ``NATS (Nissan Anti-Theft System)'' in EL section.
DIAGNOSTIC TROUBLE CODE INDEX
EC-1

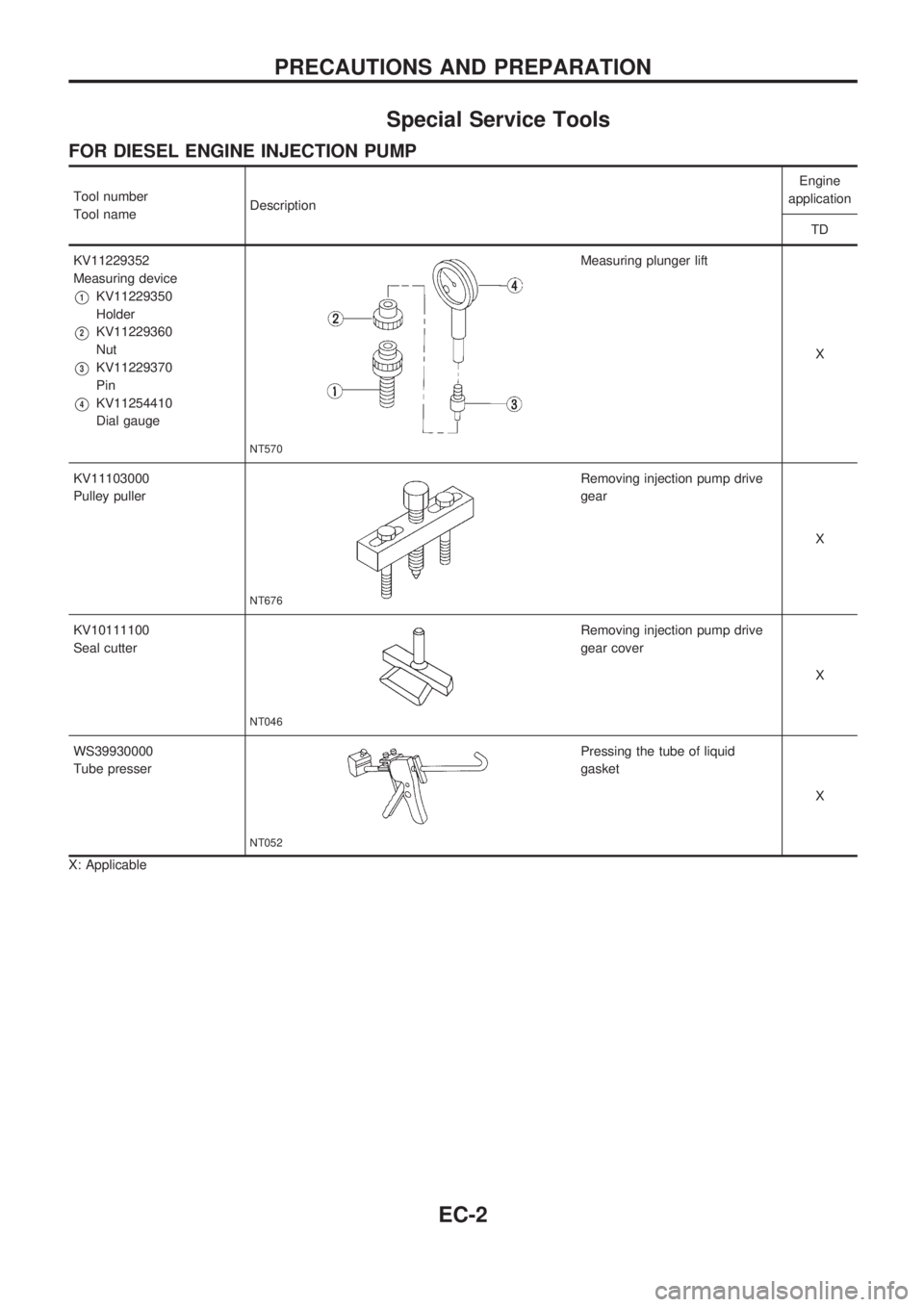

Special Service Tools
FOR DIESEL ENGINE INJECTION PUMP
Tool number
Tool nameDescriptionEngine
application
TD
KV11229352
Measuring device
V1KV11229350
Holder
V2KV11229360
Nut
V3KV11229370
Pin
V4KV11254410
Dial gauge
NT570
Measuring plunger lift
X
KV11103000
Pulley puller
NT676
Removing injection pump drive
gear
X
KV10111100
Seal cutter
NT046
Removing injection pump drive
gear cover
X
WS39930000
Tube presser
NT052
Pressing the tube of liquid
gasket
X
X: Applicable
PRECAUTIONS AND PREPARATION
EC-2

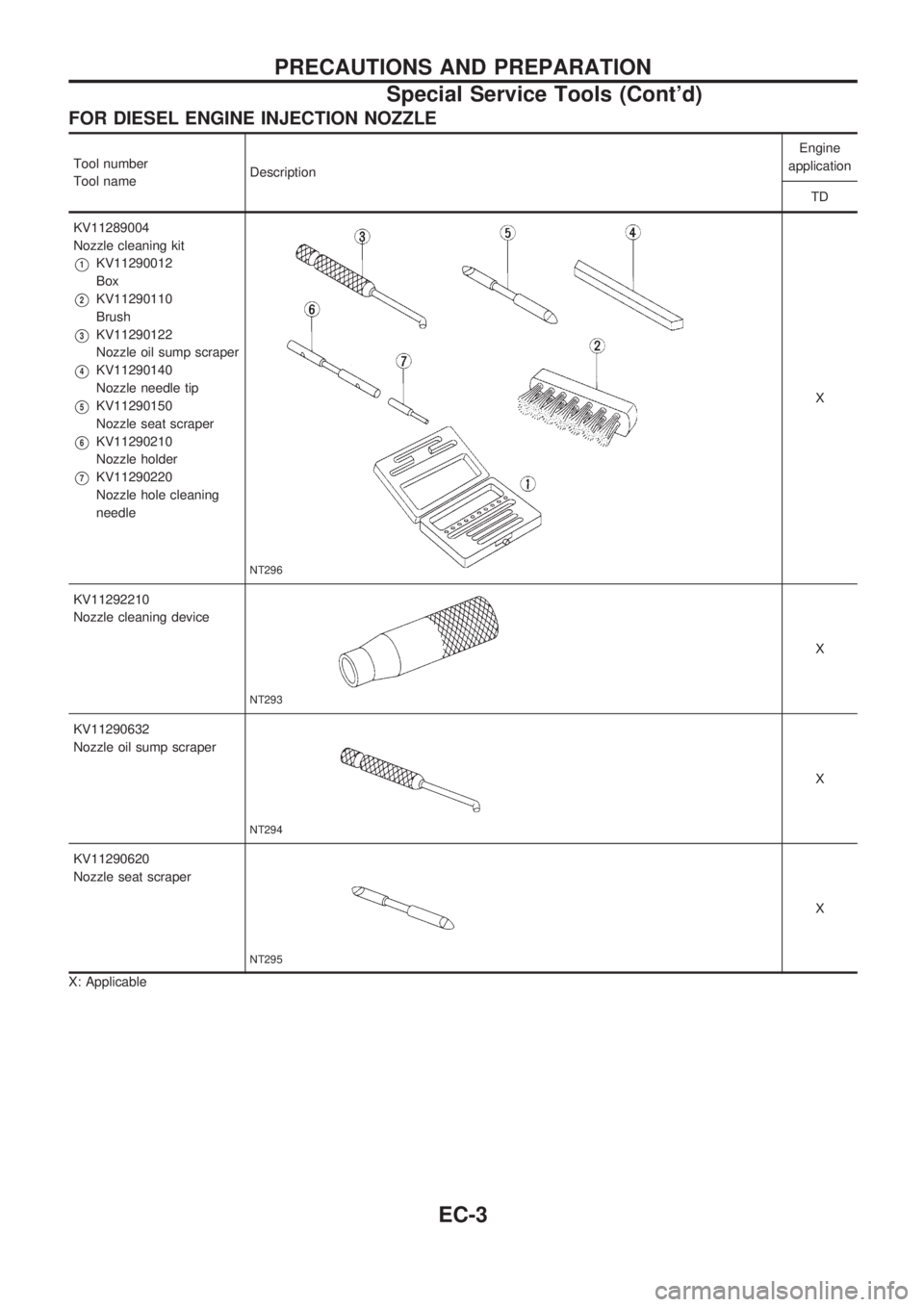

FOR DIESEL ENGINE INJECTION NOZZLE
Tool number
Tool nameDescriptionEngine
application
TD
KV11289004
Nozzle cleaning kit
V1KV11290012
Box
V2KV11290110
Brush
V3KV11290122
Nozzle oil sump scraper
V4KV11290140
Nozzle needle tip
V5KV11290150
Nozzle seat scraper
V6KV11290210
Nozzle holder
V7KV11290220
Nozzle hole cleaning
needle
NT296
X
KV11292210
Nozzle cleaning device
NT293
X
KV11290632
Nozzle oil sump scraper
NT294
X
KV11290620
Nozzle seat scraper
NT295
X
X: Applicable
PRECAUTIONS AND PREPARATION
Special Service Tools (Cont'd)
EC-3

Commercial Service Tool
FOR KA ENGINE MODELS
Tool name Description
Fuel filler cap adapter
NT653
Checking fuel tank vacuum relief valve opening
pressure
Supplemental Restraint System (SRS) ``AIR
BAG'' (4WD models)
The Supplemental Restraint System ``AIR BAG'', used along with a seat belt, helps to reduce the risk or
severity of injury to the driver in a frontal collision. The Supplemental Restraint System consists of an air
bag module (located in the center of the steering wheel), a diagnosis sensor unit, warning lamp, wiring har-
ness and spiral cable. Information necessary to service the system safely is included in theRS sectionof
this Service Manual.
WARNING:
lTo avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN dealer.
lImproper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system.
lDo not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses are covered with yellow insulation either just before the
harness connectors or for the complete harness, for easy identification.
Supplemental Restraint System (SRS) ``AIR
BAG'' (2WD models)
The Supplemental Restraint System ``AIR BAG'', used along with a seat belt, helps to reduce the risk or
severity of injury to the driver in a frontal collision. The Supplemental Restraint System consists of an air
bag module (located in the center of the steering wheel), a diagnosis sensor unit, warning lamp, wiring har-
ness and spiral cable. Information necessary to service the system safely is included in theRS sectionof
this Service Manual.
WARNING:
lTo avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN dealer.
lImproper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system.
lDo not use electrical test equipment on any circuit related to the SRS.
PRECAUTIONS AND PREPARATION
EC-4

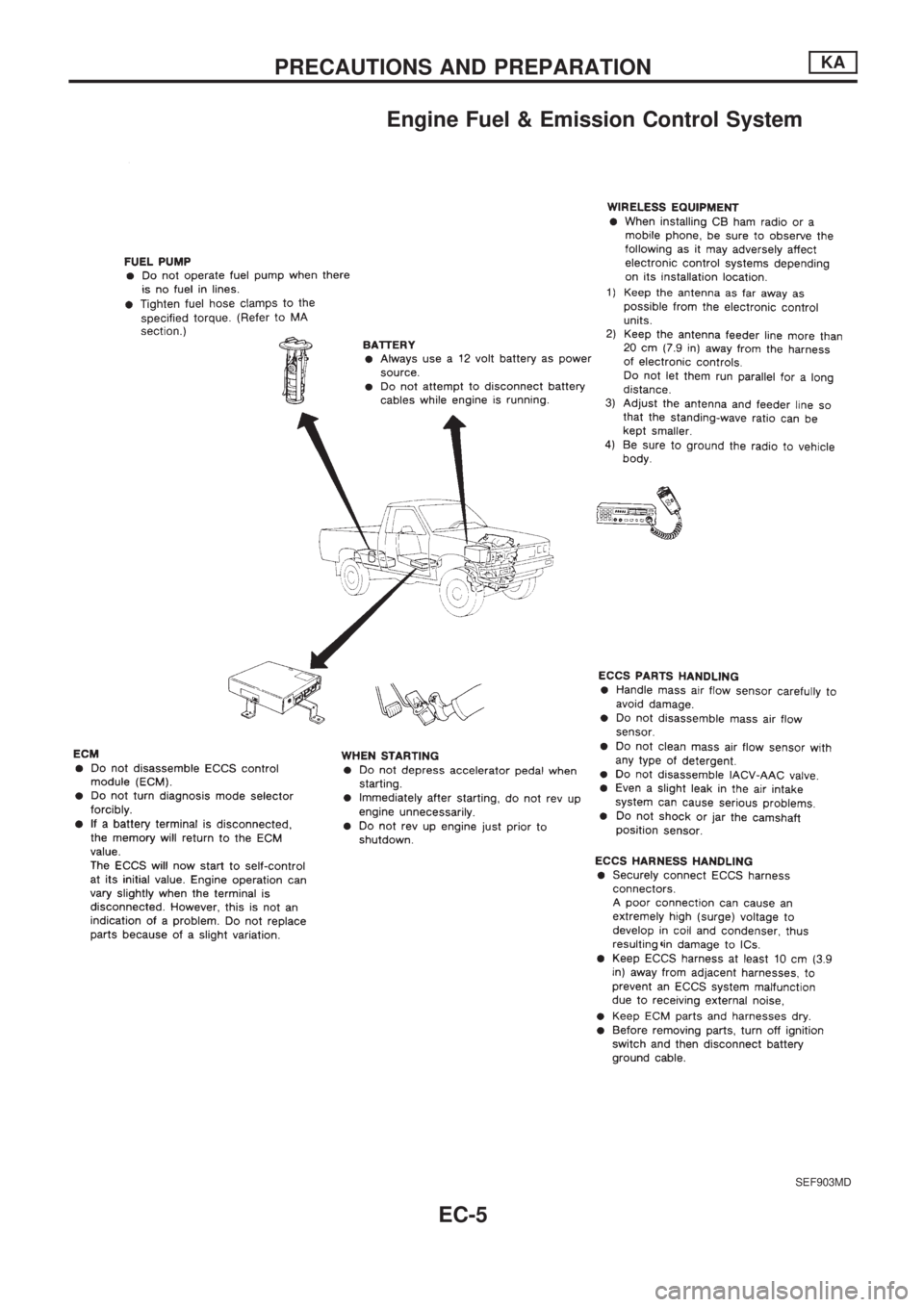

Engine Fuel & Emission Control System
SEF903MD
PRECAUTIONS AND PREPARATIONKA
EC-5

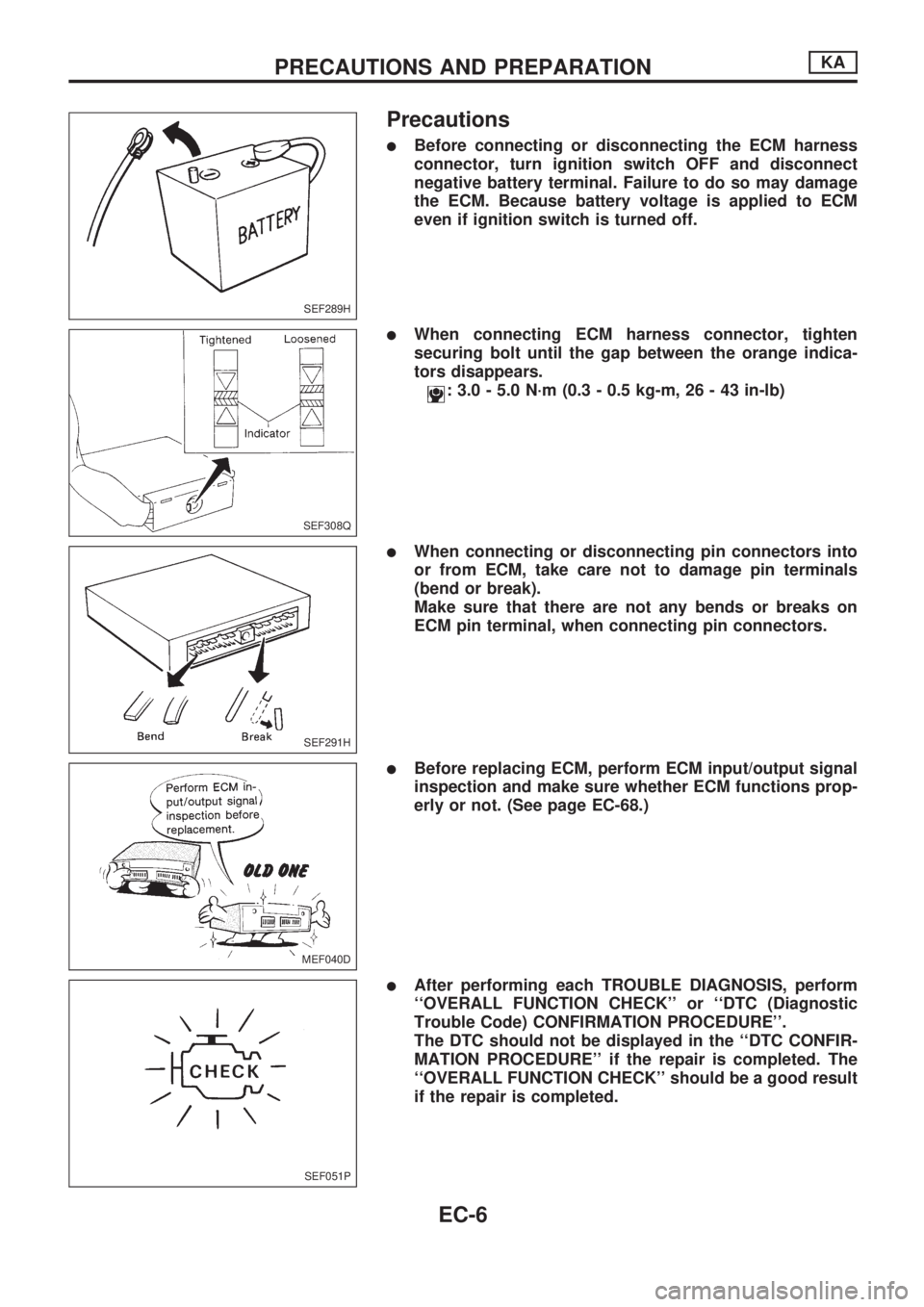

Precautions
lBefore connecting or disconnecting the ECM harness
connector, turn ignition switch OFF and disconnect
negative battery terminal. Failure to do so may damage
the ECM. Because battery voltage is applied to ECM
even if ignition switch is turned off.
lWhen connecting ECM harness connector, tighten
securing bolt until the gap between the orange indica-
tors disappears.
: 3.0 - 5.0 N´m (0.3 - 0.5 kg-m, 26 - 43 in-lb)
lWhen connecting or disconnecting pin connectors into
or from ECM, take care not to damage pin terminals
(bend or break).
Make sure that there are not any bends or breaks on
ECM pin terminal, when connecting pin connectors.
lBefore replacing ECM, perform ECM input/output signal
inspection and make sure whether ECM functions prop-
erly or not. (See page EC-68.)
lAfter performing each TROUBLE DIAGNOSIS, perform
``OVERALL FUNCTION CHECK'' or ``DTC (Diagnostic
Trouble Code) CONFIRMATION PROCEDURE''.
The DTC should not be displayed in the ``DTC CONFIR-
MATION PROCEDURE'' if the repair is completed. The
``OVERALL FUNCTION CHECK'' should be a good result
if the repair is completed.
SEF289H
SEF308Q
SEF291H
MEF040D
SEF051P
PRECAUTIONS AND PREPARATIONKA
EC-6

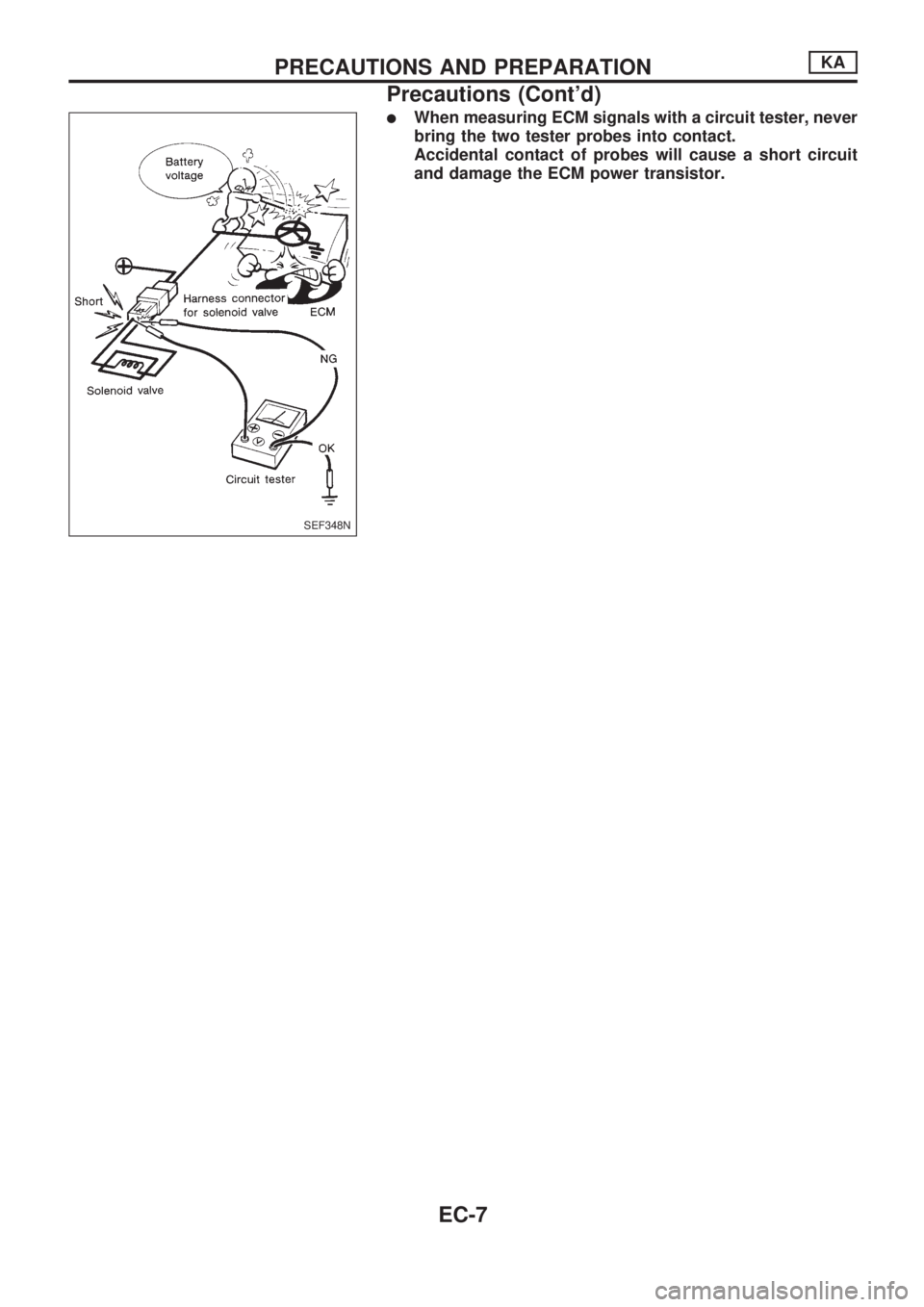

lWhen measuring ECM signals with a circuit tester, never
bring the two tester probes into contact.
Accidental contact of probes will cause a short circuit
and damage the ECM power transistor.
SEF348N
PRECAUTIONS AND PREPARATIONKA
Precautions (Cont'd)
EC-7

Circuit Diagram
HEC557
ENGINE AND EMISSION CONTROL OVERALL SYSTEMKA
EC-8
