Side and Floor Trim
CAUTION:
Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.
REMOVAL Ð Body side trim
Double cab model
V1Remove front and rear seats. Refer to ``SEAT'' for details, BT-30, 33.
V2Remove front and rear kicking plates.
V3Remove dash side lower finishers.
V4Remove front and rear body side welts.
V5Remove front pillar garnishes.
V6Remove center pillar garnishes.
V7Remove lock pillar garnishes.
Single cab model
V1Remove front seats. Refer to ``SEAT'' for details, BT-30.
V2Remove kicking plates.
V3Remove dash side lower finishers.
V4Remove body side welts.
V5Remove front pillar garnishes.
King cab model
V1Remove body side rear finishers.
V2Remove front seats and jump seats. Refer to ``SEAT'' for details, BT-30, 34.
V3Remove kicking plates.
V4Remove dash side lower finishers.
V5Remove front pillar garnishes.
V6Remove body side finishers.
V7Remove back panel garnish.
V8Remove rear pillar finishers.
V9Remove back panel finisher.
V10Remove body side welts.
V11Remove instrument stay cover lower center and center console. Refer to ``INSTRUMENT PANEL'' for
details, BT-12.
V12Remove accel stopper.
V13Remove rear floor trim.
V14Remove clips and accel stopper, then remove front floor trim.
INTERIOR TRIM
BT-15

SBT628
INTERIOR TRIM
Side and Floor Trim (Cont'd)
BT-16

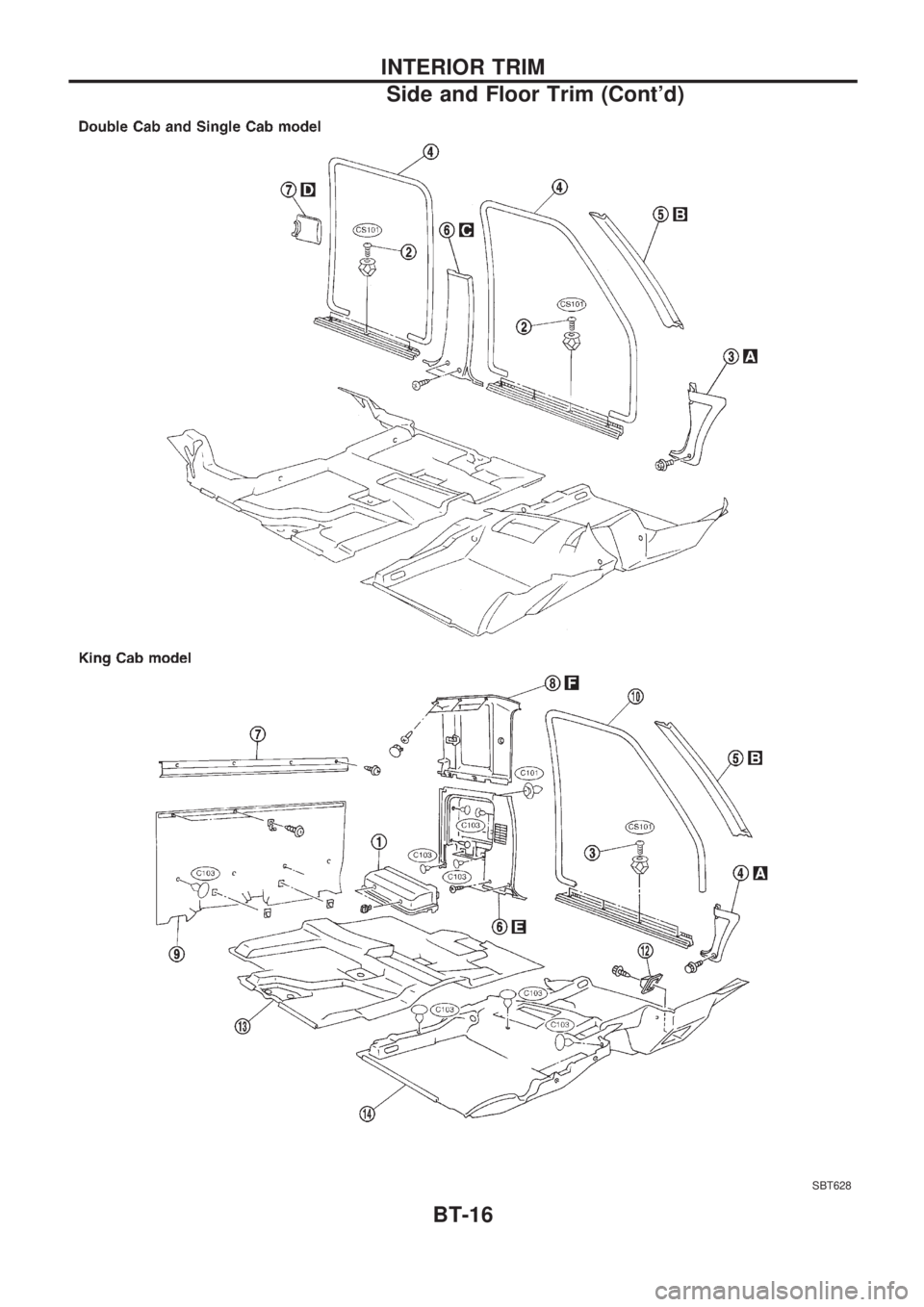

SBT629

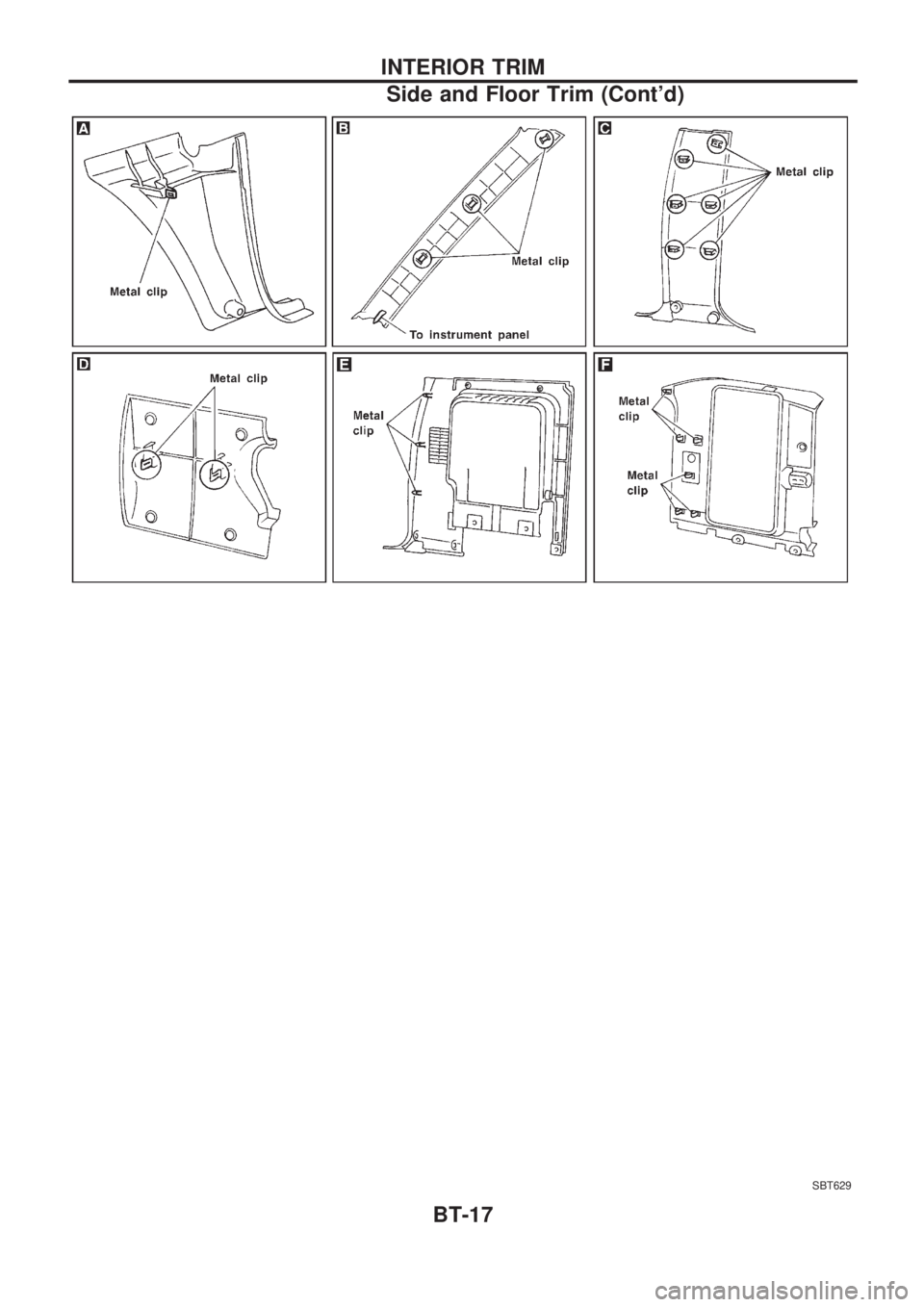

INTERIOR TRIM
Side and Floor Trim (Cont'd)
BT-17

Door Trim

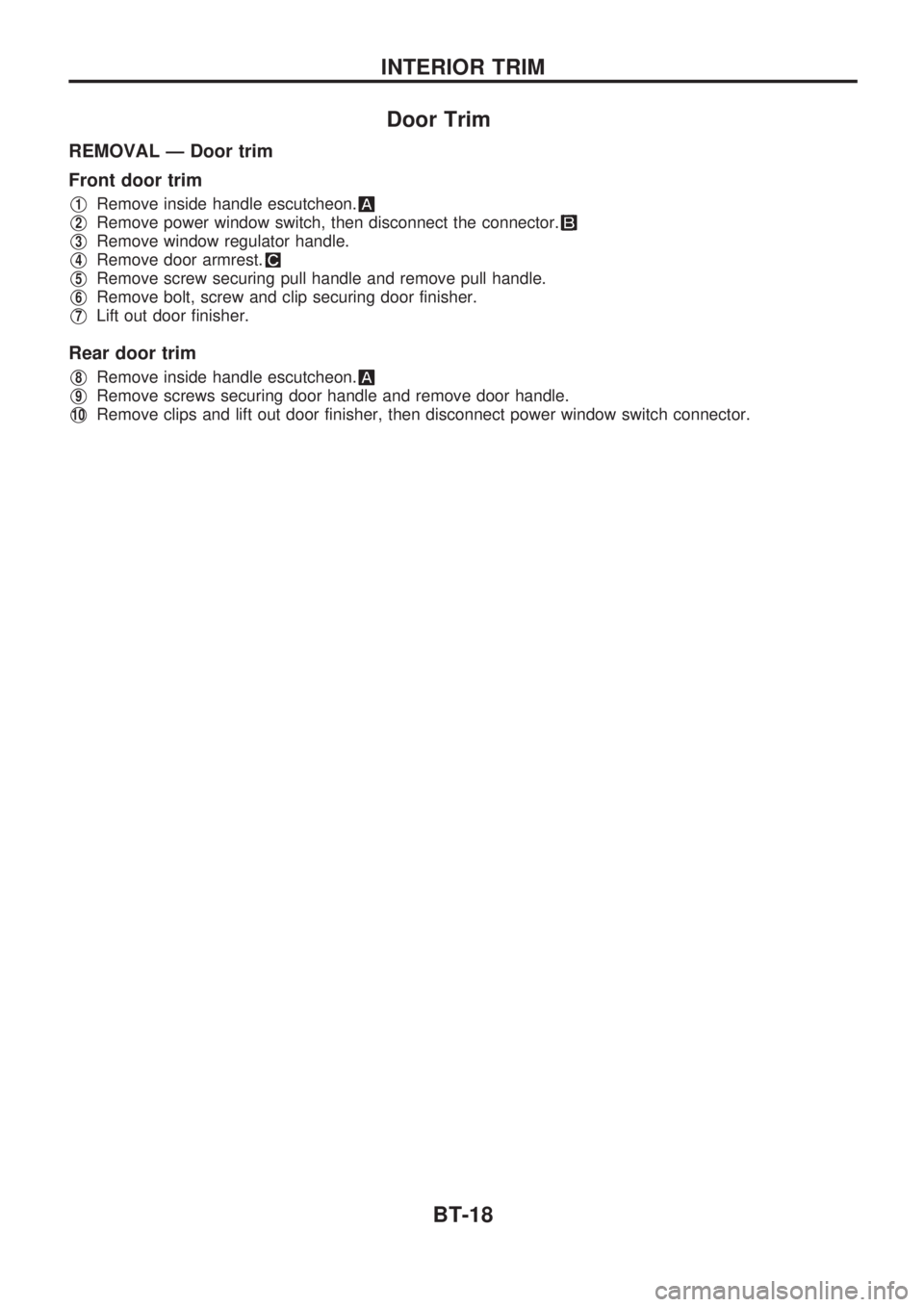

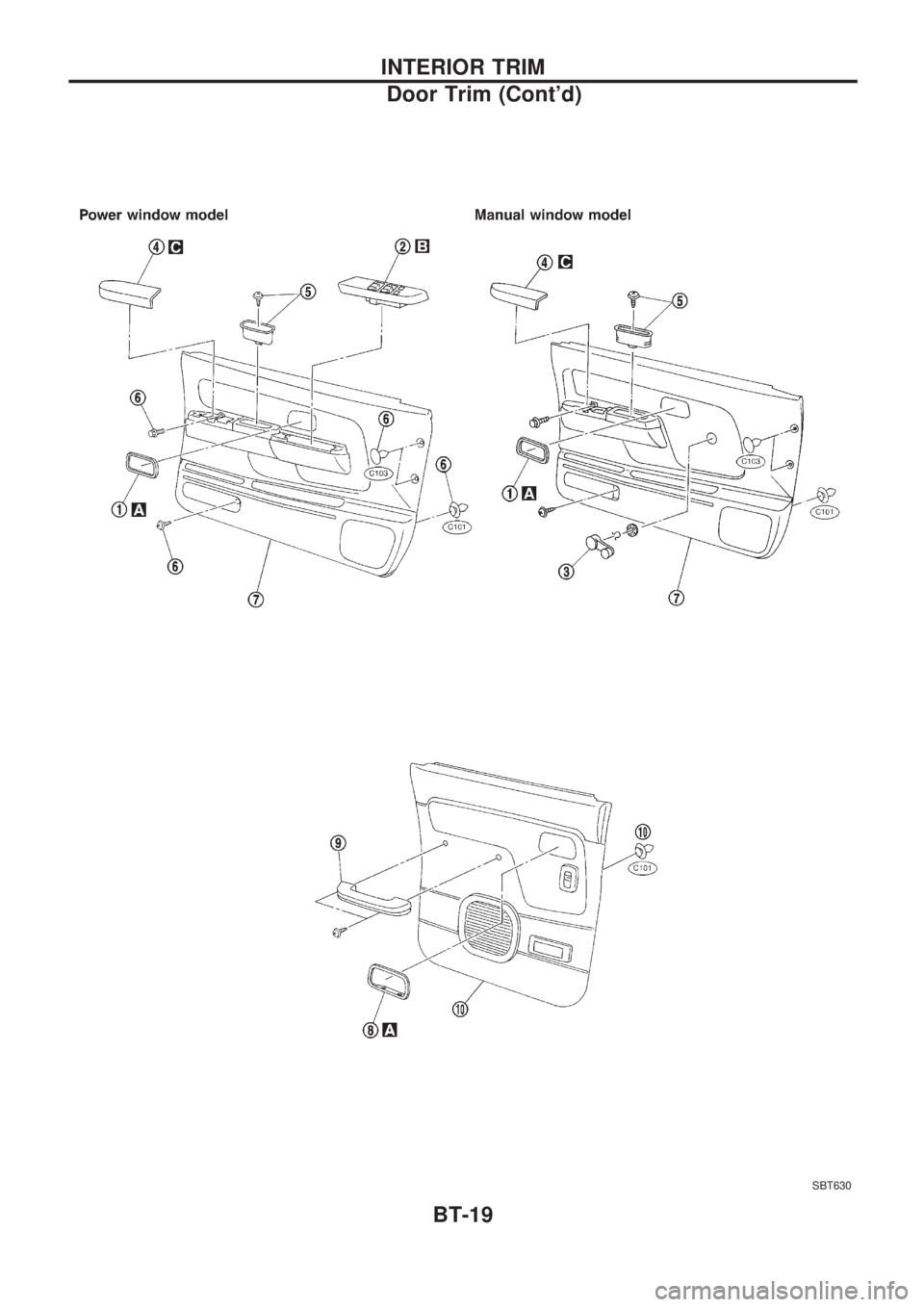

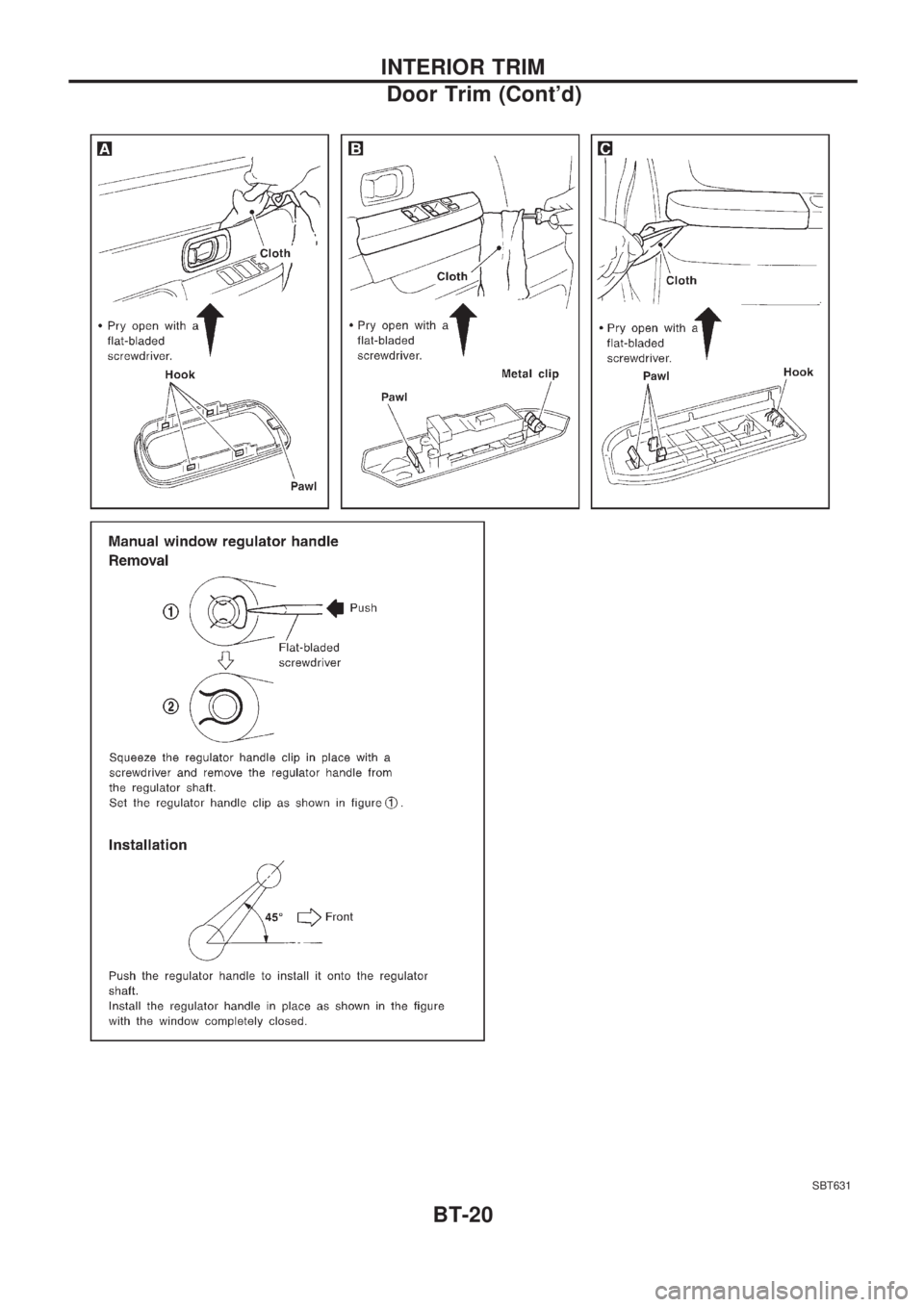

REMOVAL Ð Door trim
