1998 NISSAN PICK-UP Repair Manual

Description
NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS
Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.
TYPE OF STANDARDIZED RELAYS
1M ................ 1 Make 2M ................ 2 Make
1T ................ 1 Transfer 1Mz1B ................ 1 Make 1 Break
SEL881H
SEL882H
STANDARDIZED RELAY
EL-3

SEL661TA
STANDARDIZED RELAY
Description (Cont'd)
EL-4

Schematic
HEL309A
POWER SUPPLY ROUTING
EL-5

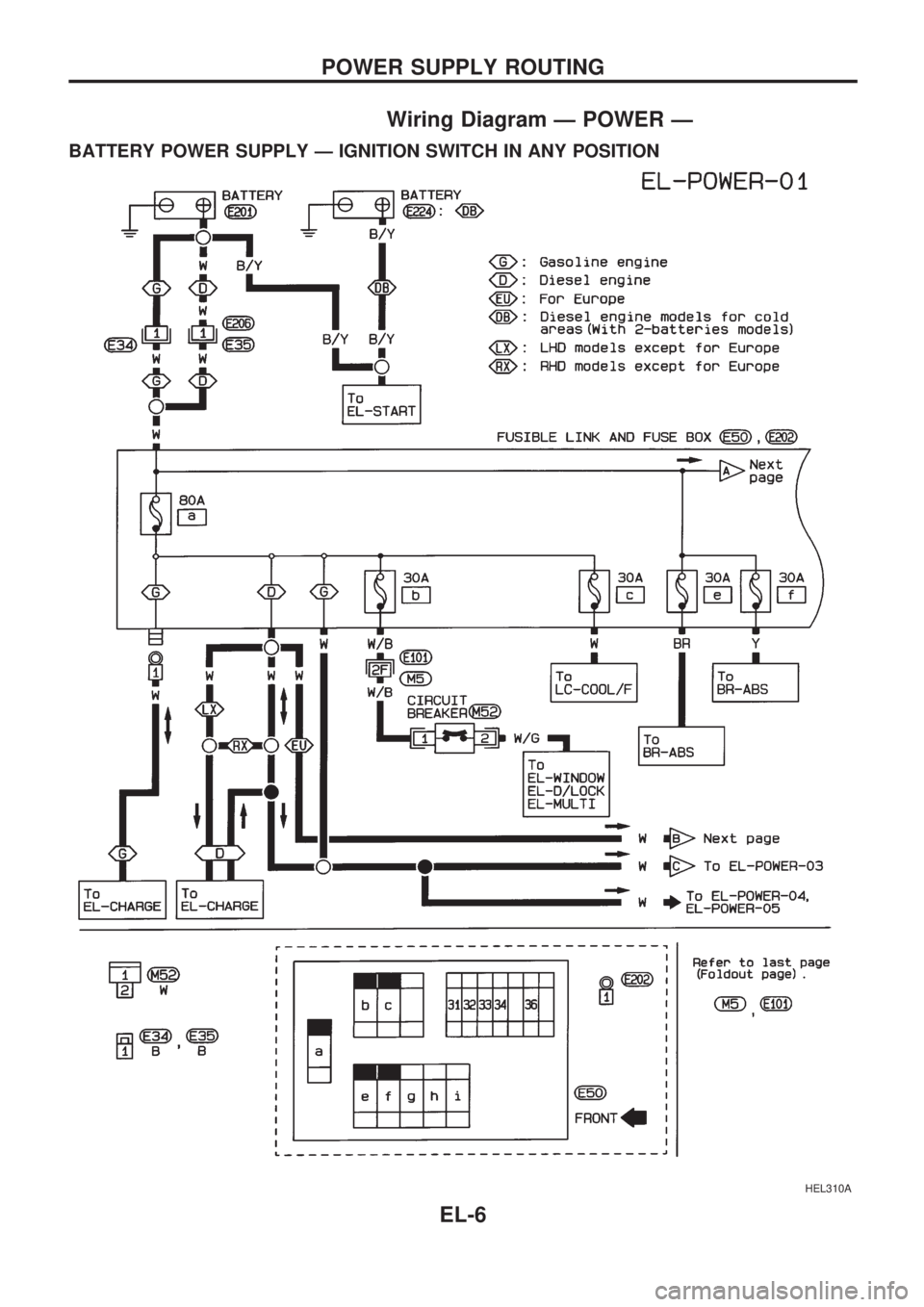

Wiring Diagram Ð POWER Ð
BATTERY POWER SUPPLY Ð IGNITION SWITCH IN ANY POSITION
HEL310A
POWER SUPPLY ROUTING
EL-6

HEL311A
POWER SUPPLY ROUTING

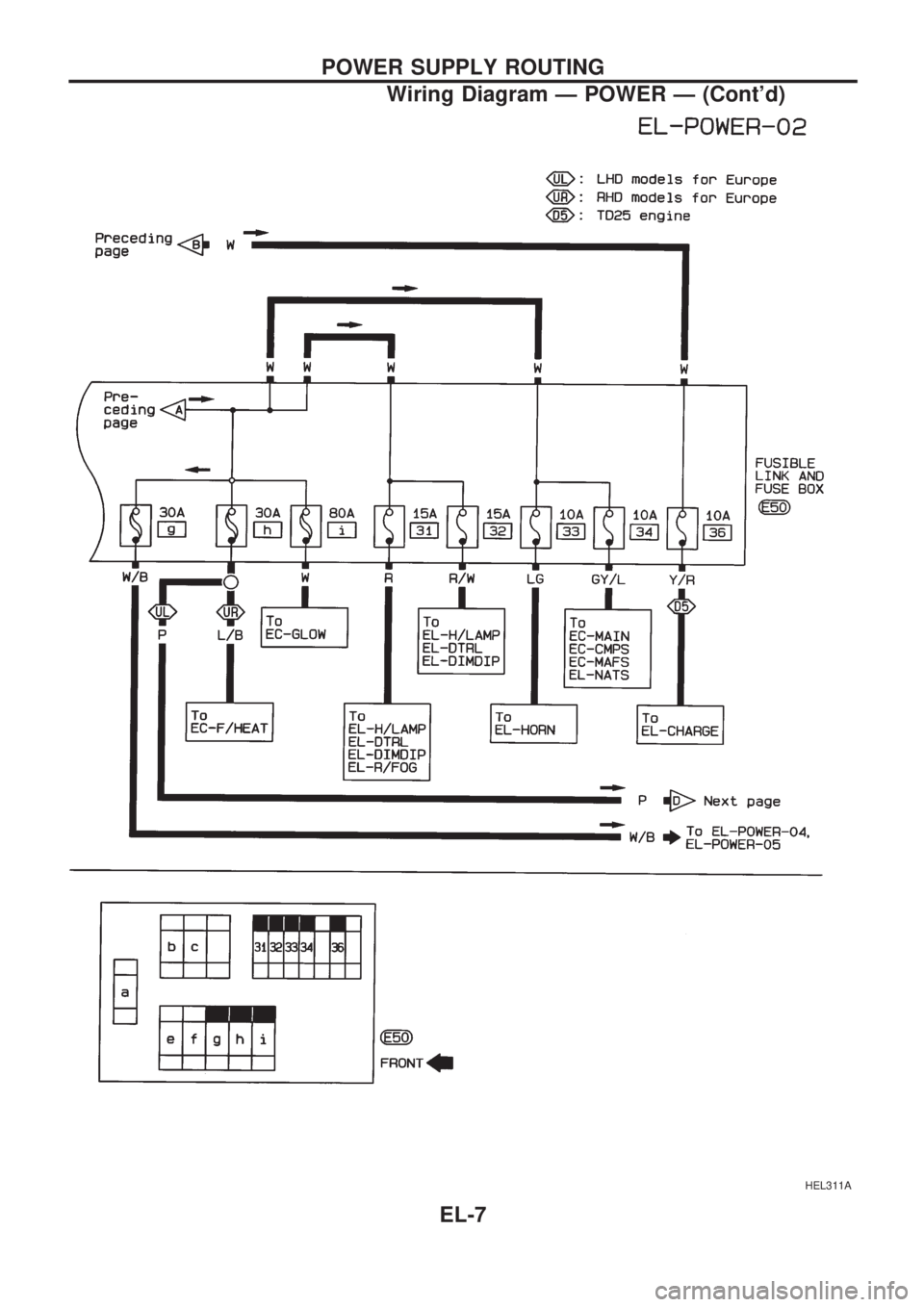

Wiring Diagram Ð POWER Ð (Cont'd)
EL-7

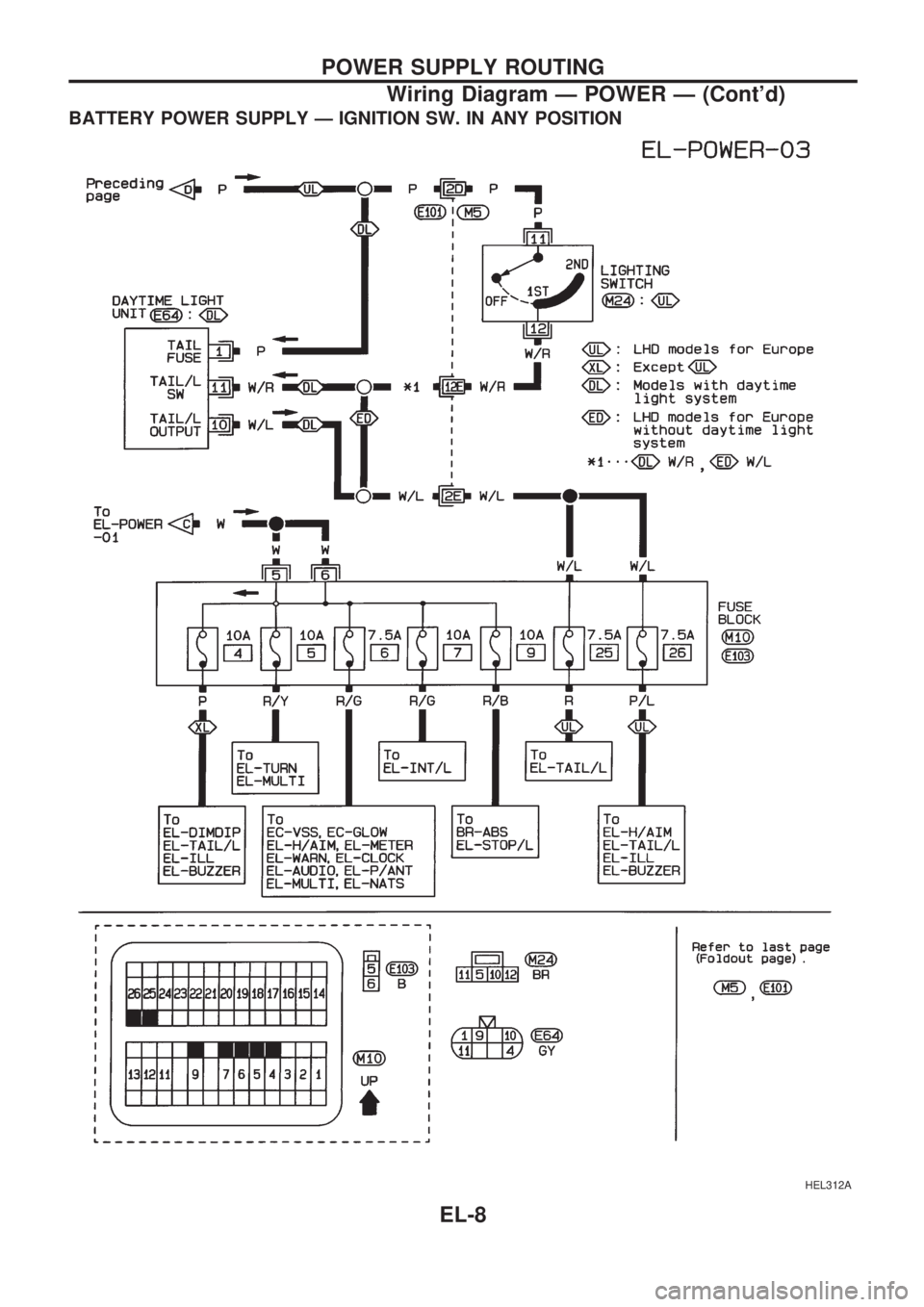

BATTERY POWER SUPPLY Ð IGNITION SW. IN ANY POSITION
HEL312A
POWER SUPPLY ROUTING
Wiring Diagram Ð POWER Ð (Cont'd)
EL-8

HEL313A
POWER SUPPLY ROUTING

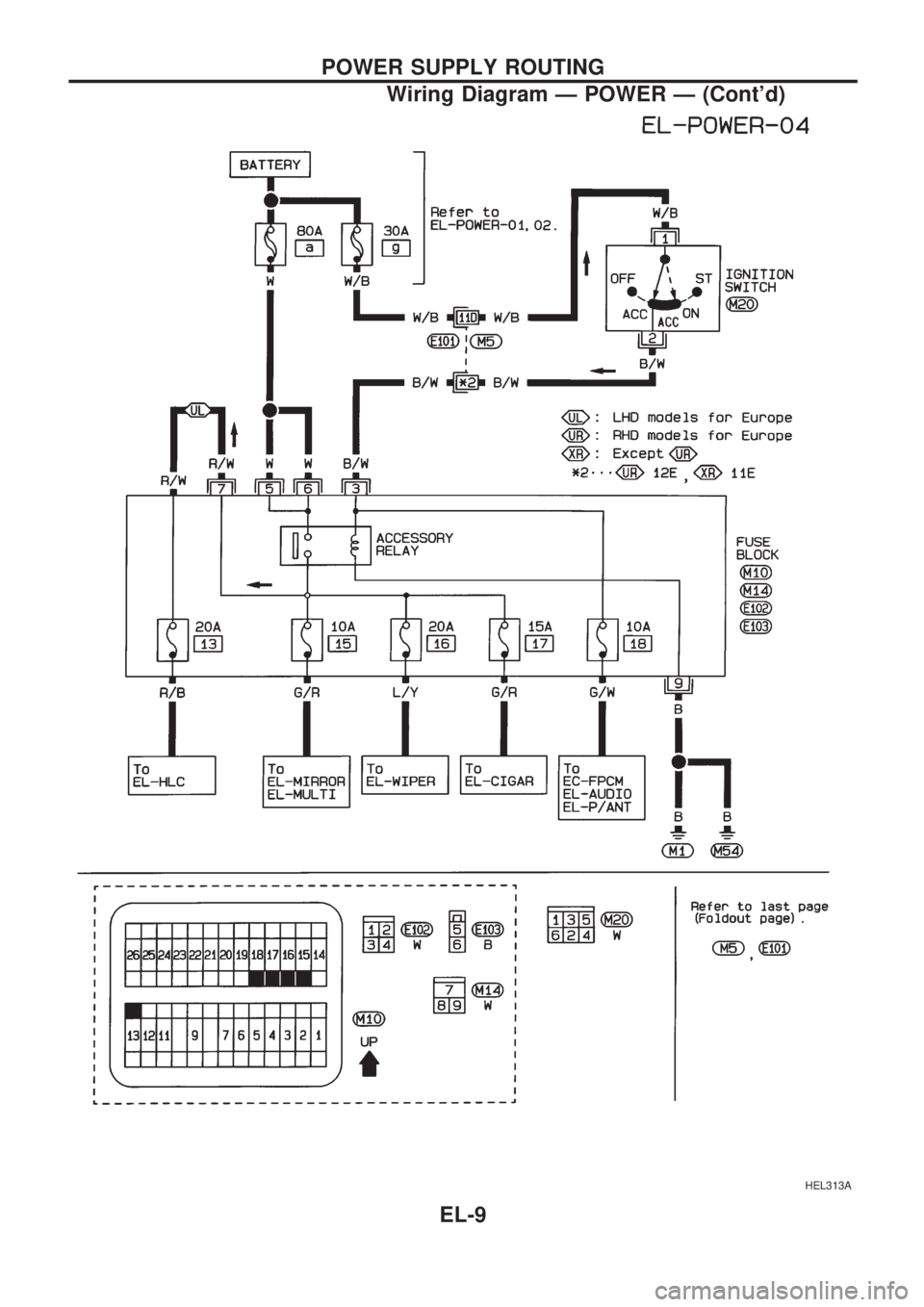

Wiring Diagram Ð POWER Ð (Cont'd)
EL-9

ACCESSORY POWER SUPPLY Ð IGNITION SW. IN ``ACC'' OR ``ON''
HEL314A
POWER SUPPLY ROUTING
Wiring Diagram Ð POWER Ð (Cont'd)
EL-10
