1998 NISSAN PICK-UP Repair Manual

Fluids and Lubricants
Capacity (Approximate)
Recommended Fluids/Lubricants
Liter Imp qt
Engine oil (Refill)
With oil filterKA24E2WD 3.9
4WD 4.13-3/8 qt
3-5/8 qt
Gasoline engine: API SG or SH*1
Diesel engine: API CD*1 TD25 7.2 6-3/8 qt
Without oil filterKA24E2WD 3.5
4WD 3.73-1/8 qt
3-1/4 qt
TD25 6.5 5-3/4 qt
Cooling system (With reservoir)
KA24E 6.7 5-7/8 qt
Anti-freeze coolant (Ethylene glycol base) or
soft water
TD25 9.5 8-3/8 qt
Manual transmission gear oil
FS5R30A 4WD 5.1 9 pt
API GL-4*1
FS5W71C2WD 2.0
4WD 4.93-1/2 pt
8-5/8 pt
Transfer fluid TX10A 2.2 2 qtNissan Matic ``D'' or Equivalent Automatic
Transmission Fluid*2 or API GL-4*1
Differential gear oil
Front: R180A 1.3 2-1/4Standard differential gear: API GL-5*1
Limited-slip differential (LSD) gear: Gear Oil
Hypoid LSD
(Part No.: KLD31-14002) or equivalent*3 Rear: H233B 2.8 2 - 1/2
C200 1.3 1 - 1/8
Power steering fluid ± þType DEXRON
TMIIE, DEXTRONTMIII or
equivalent
Brake and clutch fluid ± ±For Europe: DOT 3 or DOT 4 (US FMVSS
No. 116)*5 Except for Europe: DOT 3 (US
FMVSS No. 116)
Propeller shaft grease ± ±NLGI No. 2 (Molybdenum disulphide lithium
soap base)
Multi-purpose grease ± ± NLGI No. 2 ( Lithium soap base)
*1: For further details, see ``SAE Viscosity Number''.
*2: Contact a NISSAN dealership for more information regarding suitable fluid, including recommended brand(s) of DEXRONTMIII/
MERCONTMAutomatic Transmission Fluid.
*3: API GL-5, SAE 140 and 10% volume of LSD Friction Modifier (Part No.: 38469-C6000) is an equivalent.
*4: Never mix DOT 3 and DOT 4. (DOT 3 is filled at factory.)
RECOMMENDED FLUIDS AND LUBRICANTS
MA-12

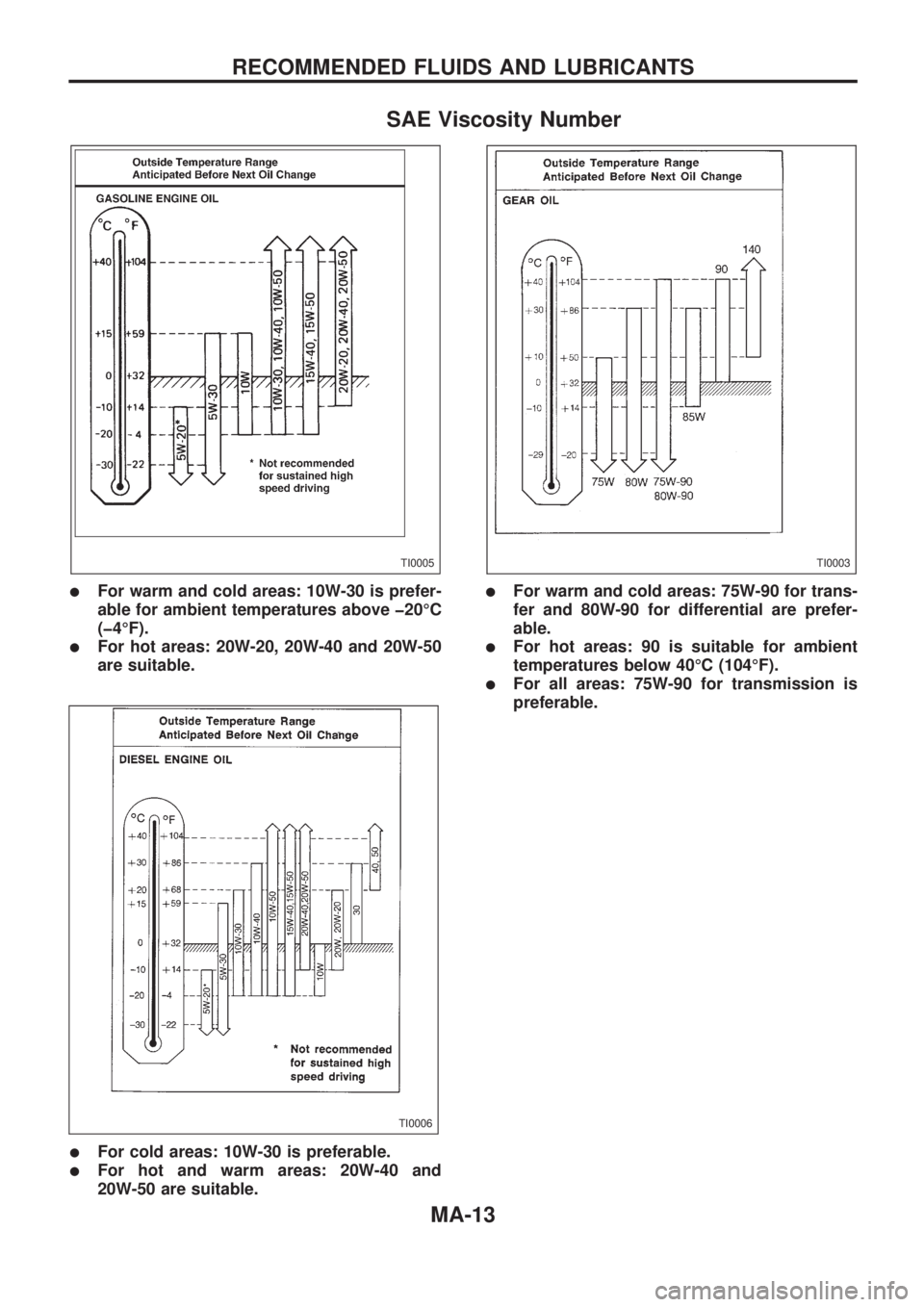

SAE Viscosity Number
lFor warm and cold areas: 10W-30 is prefer-
able for ambient temperatures above þ20ÉC
(þ4ÉF).
lFor hot areas: 20W-20, 20W-40 and 20W-50
are suitable.
lFor warm and cold areas: 75W-90 for trans-
fer and 80W-90 for differential are prefer-
able.
lFor hot areas: 90 is suitable for ambient
temperatures below 40ÉC (104ÉF).
lFor all areas: 75W-90 for transmission is
preferable.
lFor cold areas: 10W-30 is preferable.
lFor hot and warm areas: 20W-40 and
20W-50 are suitable.
TI0005TI0003
TI0006
RECOMMENDED FLUIDS AND LUBRICANTS
MA-13

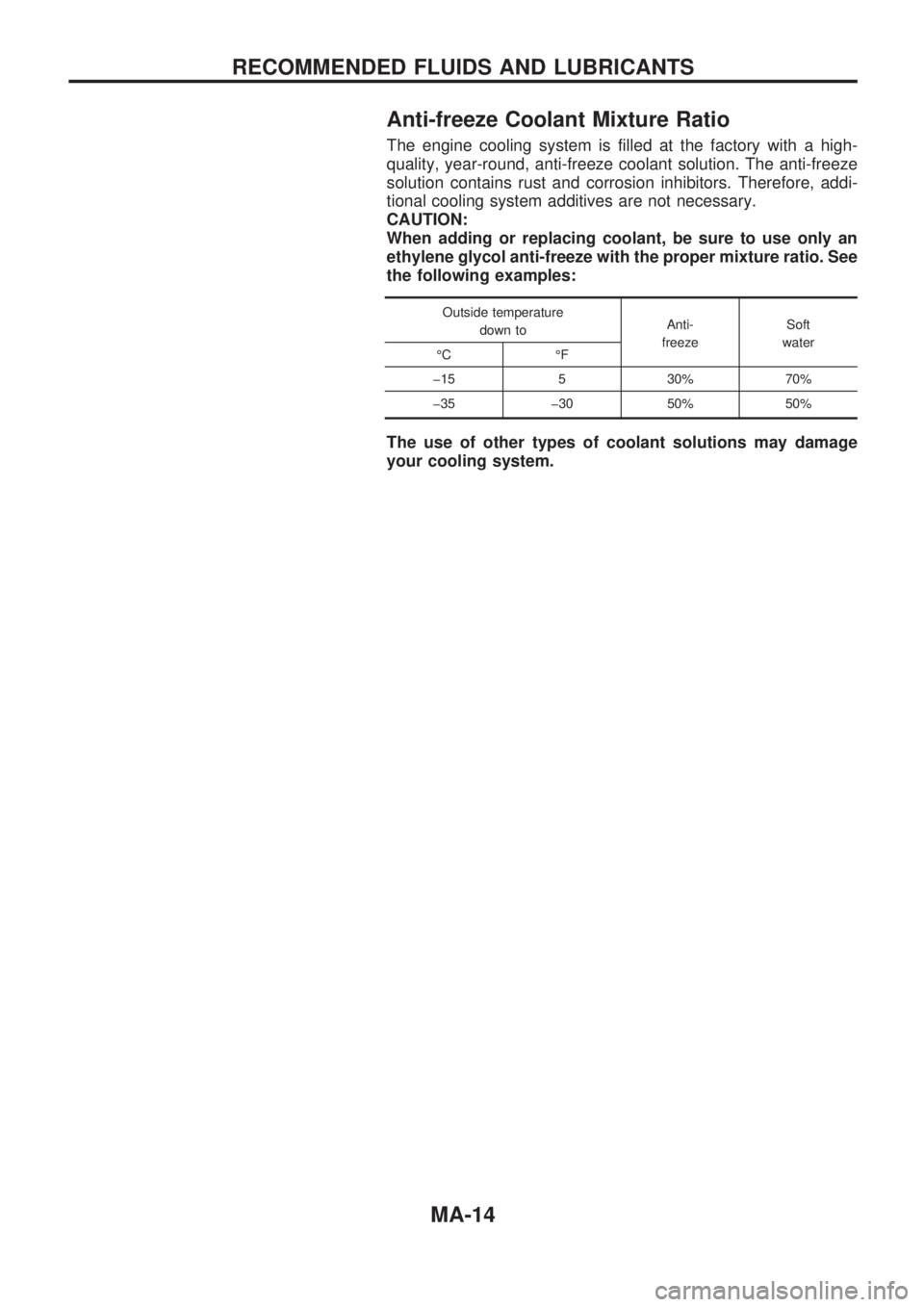

Anti-freeze Coolant Mixture Ratio
The engine cooling system is filled at the factory with a high-
quality, year-round, anti-freeze coolant solution. The anti-freeze
solution contains rust and corrosion inhibitors. Therefore, addi-
tional cooling system additives are not necessary.
CAUTION:
When adding or replacing coolant, be sure to use only an
ethylene glycol anti-freeze with the proper mixture ratio. See
the following examples:
Outside temperature
down toAnti-
freezeSoft
water
ÉC ÉF
þ15 5 30% 70%
þ35 þ30 50% 50%
The use of other types of coolant solutions may damage
your cooling system.
RECOMMENDED FLUIDS AND LUBRICANTS
MA-14

Checking Drive Belts
1. Inspect for cracks, fraying, wear or oil. If necessary, replace
with a new one.
2. Inspect drive belt deflections by pushing midway between
pulleys.
Adjust if belt deflections exceed the limit.
Belt deflection:
Unit: mm (in)
Used belt deflection
Deflection of new
belt
LimitDeflection after
adjustment
Alternator 17 (0.67)10-12
(0.39 - 0.47)8-10
(0.31 - 0.39)
Air conditioner
compressor16 (0.63)10-12
(0.39 - 0.47)8-10
(0.31 - 0.39)
Power steering oil
pump15 (0.59)9-11
(0.35 - 0.43)7-9
(0.28 - 0.35)
Applied pushing
force98 N (10 kg, 22 lb)
Inspect drive belt deflections when engine is cold.
SMA916C
ENGINE MAINTENANCEKA
MA-15

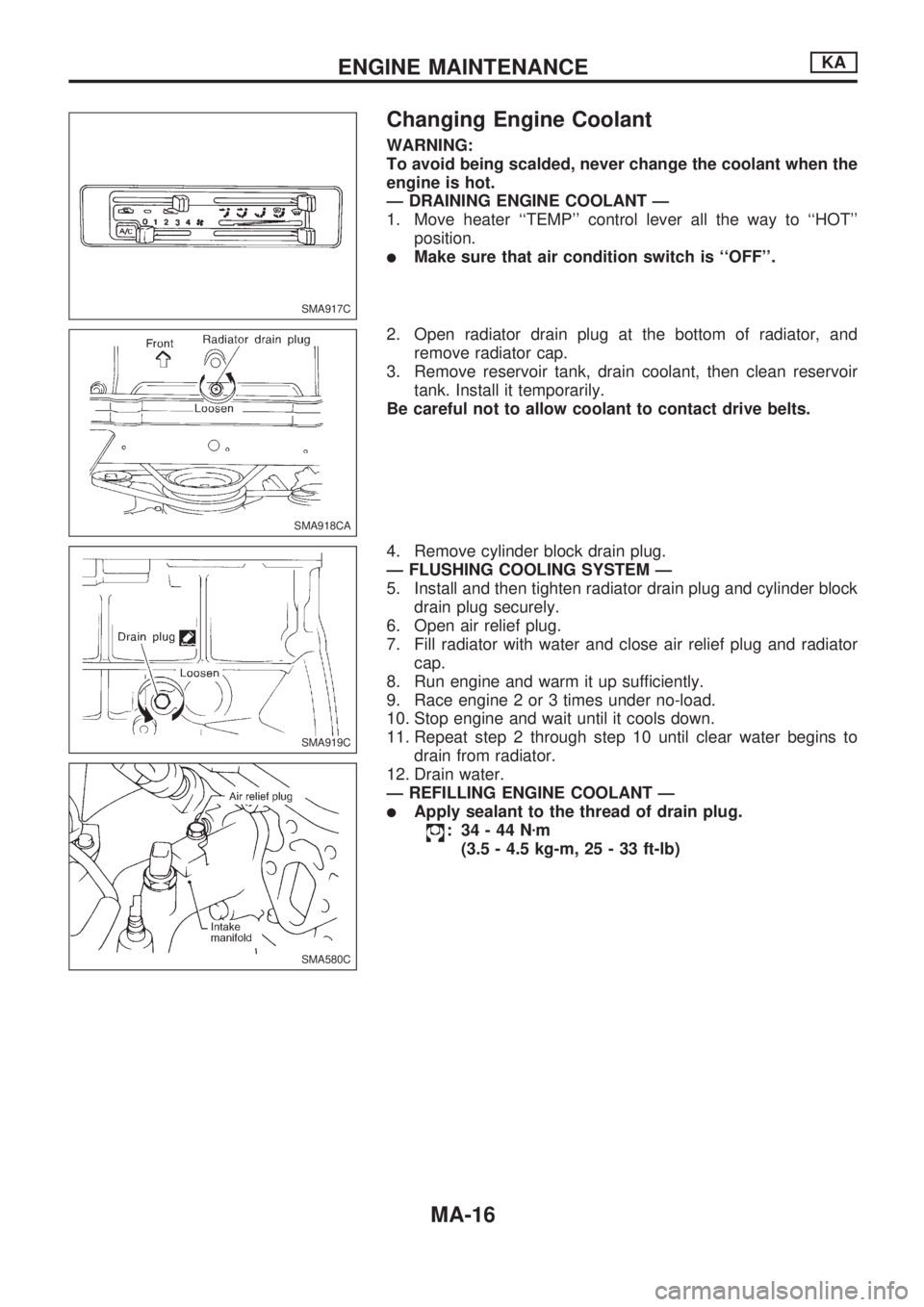

Changing Engine Coolant
WARNING:
To avoid being scalded, never change the coolant when the
engine is hot.
Ð DRAINING ENGINE COOLANT Ð
1. Move heater ``TEMP'' control lever all the way to ``HOT''
position.
lMake sure that air condition switch is ``OFF''.
2. Open radiator drain plug at the bottom of radiator, and
remove radiator cap.
3. Remove reservoir tank, drain coolant, then clean reservoir
tank. Install it temporarily.
Be careful not to allow coolant to contact drive belts.
4. Remove cylinder block drain plug.
Ð FLUSHING COOLING SYSTEM Ð
5. Install and then tighten radiator drain plug and cylinder block
drain plug securely.
6. Open air relief plug.
7. Fill radiator with water and close air relief plug and radiator
cap.
8. Run engine and warm it up sufficiently.
9. Race engine 2 or 3 times under no-load.
10. Stop engine and wait until it cools down.
11. Repeat step 2 through step 10 until clear water begins to
drain from radiator.
12. Drain water.
Ð REFILLING ENGINE COOLANT Ð
lApply sealant to the thread of drain plug.
: 34-44Nzm
(3.5 - 4.5 kg-m, 25 - 33 ft-lb)
SMA917C
SMA918CA
SMA919C
SMA580C
ENGINE MAINTENANCEKA
MA-16

13. Open radiator cap and air relief plug.
14. Fill radiator with coolant up to specified level.
Follow instructions attached to anti-freeze container for mix-
ing ratio of anti-freeze to water.
For coolant mixture ratio, refer to MA-14.
Unit:!(Imp qt)
Coolant capacity:
2WD 4WD
Without reservoir tank 6.1 (5-3/8)
Reservoir tank 0.6 (1/2)
Pour coolant through coolant filler neck slowly to allow air
in system to escape.
15. Close air relief plug.
16. Remove reservoir tank, drain coolant, then clean reservoir
tank.
17. Install reservoir tank and fill it with coolant up to ``MAX'' level
and then install radiator cap.
18. Run engine and warm it up sufficiently.
19. Race engine 2 or 3 times under no-load.
20. Stop engine and cool it down, then add coolant as neces-
sary.
Checking Cooling System
CHECKING HOSES
Check hoses for proper attachment, leaks, cracks, damage,
loose connections, chafing and deterioration.
CHECKING RADIATOR CAP
Apply pressure to radiator cap by means of a cap tester to see
if it is satisfactory.
Radiator cap relief pressure:
Standard
78-98kPa
(0.78 - 0.98 bar, 0.8 - 1.0 kg/cm
2, 11 - 14 psi)
Limit
59-98kPa
(0.59 - 0.98 bar, 0.6 - 1.0 kg/cm
2,9-14psi)
Pull the negative-pressure valve to open it. Check that it closes
completely when released.
SMA182B
SMA920C
SLC769A
SMA871B
ENGINE MAINTENANCEKA
Changing Engine Coolant (Cont'd)
MA-17

CHECKING COOLING SYSTEM FOR LEAKS
Apply pressure to the cooling system with cap tester to check for
leakage.
Testing pressure:
157 kPa (1.57 bar, 1.6 kg/cm
2, 23 psi)
CAUTION:
Higher pressure than the specified value may cause damage
to the radiator.
Checking Fuel Lines
Inspect fuel lines and tank for improper attachment and for leaks,
cracks, damage, loose connections, chafing and deterioration.
If necessary, repair or replace malfunctioning parts.
CAUTION:
Tighten high-pressure rubber hose clamp so that clamp end
is 3 mm (0.12 in) from hose end.
Tightening torque specifications are the same for all rubber
hose clamps.
Ensure that screw does not contact adjacent parts.
Changing Fuel Filter
WARNING:
Before removing fuel filter, release fuel pressure from fuel
line.
1. Remove fuse for fuel pump.
2. Start engine.
3. After engine stalls, crank engine two or three times to make
sure that fuel pressure is released.
4. Turn ignition switch OFF and install fuse for fuel pump.
5. Loosen fuel hose clamps.
6. Replace fuel filter.
lBe careful not to spill fuel or engine compartment. Place
a shop towel to absorb fuel.
lUse a high-pressure type fuel filter. Do not use a syn-
thetic resinous fuel filter.
lWhen tightening fuel hose clamps, refer to ``Checking
Fuel Lines'', MA-18.
SMA990A
SMA215C
MMA104A
SMA921C
SMA922C
ENGINE MAINTENANCEKA
Checking Cooling System (Cont'd)
MA-18

Changing Air Cleaner Filter (Viscous paper
type)
The viscous paper type filter does not need cleaning
between renewals.
Changing Engine Oil
WARNING:
lBe careful not to burn yourself, as the engine oil is hot.
lProlonged and repeated contact with used engine oil
may cause skin cancer; try to avoid direct skin contact
with used oil. If skin contact is made, wash thoroughly
with soap or hand cleaner as soon as possible.
1. Warm up engine, and check for oil leakage from engine com-
ponents.
2. Remove drain plug and oil filler cap.
3. Drain oil and refill with new engine oil.
Oil grade: API, SG or SH
Viscosity: See ``RECOMMENDED FLUIDS AND
LUBRICANTS'', MA-13.
Refill oil capacity (Approximately):
Unit:!(Imp qt)
2WD 4WD
With oil filter change 3.9 (3-3/8) 4.1 (3-5/8)
Without oil filter change 3.5 (3-1/8) 3.7 (3-1/4)
CAUTION:
lBe sure to clean drain plug and install with new washer.
Drain plug:
: 29 - 39 N´m (3.0 - 4.0 kg-m, 22 - 29 ft-lb)
lUse recommended engine oil.
lThe refill capacity changes depending on the oil tem-
perature and drain time, use these values as a reference
and be certain to check with the dipstick when changing
the oil.
4. Check oil level.
5. Start engine and check area around drain plug and oil filter
for oil leakage.
6. Run engine for a few minutes, then turn it off. After several
minutes, check oil level.
SMA925C
SMA923C
SMA885B
ENGINE MAINTENANCEKA
MA-19
