1998 NISSAN PICK-UP Repair Manual

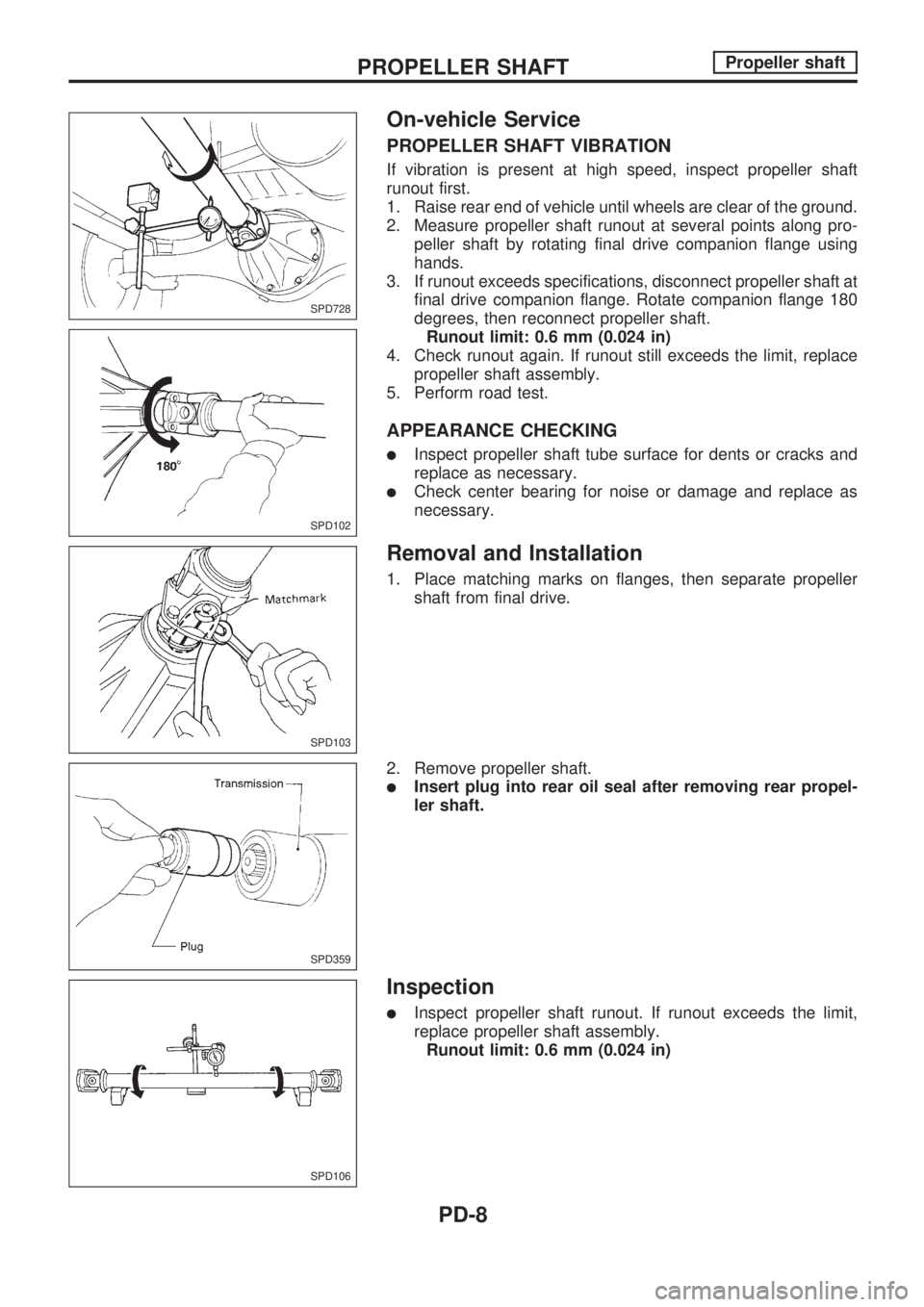

On-vehicle Service
PROPELLER SHAFT VIBRATION
If vibration is present at high speed, inspect propeller shaft
runout first.
1. Raise rear end of vehicle until wheels are clear of the ground.
2. Measure propeller shaft runout at several points along pro-
peller shaft by rotating final drive companion flange using
hands.
3. If runout exceeds specifications, disconnect propeller shaft at
final drive companion flange. Rotate companion flange 180
degrees, then reconnect propeller shaft.
Runout limit: 0.6 mm (0.024 in)
4. Check runout again. If runout still exceeds the limit, replace
propeller shaft assembly.
5. Perform road test.
APPEARANCE CHECKING
lInspect propeller shaft tube surface for dents or cracks and
replace as necessary.
lCheck center bearing for noise or damage and replace as
necessary.
Removal and Installation
1. Place matching marks on flanges, then separate propeller
shaft from final drive.
2. Remove propeller shaft.
lInsert plug into rear oil seal after removing rear propel-
ler shaft.
Inspection
lInspect propeller shaft runout. If runout exceeds the limit,
replace propeller shaft assembly.
Runout limit: 0.6 mm (0.024 in)
SPD728
SPD102
SPD103
SPD359
SPD106
PROPELLER SHAFTPropeller shaft
PD-8

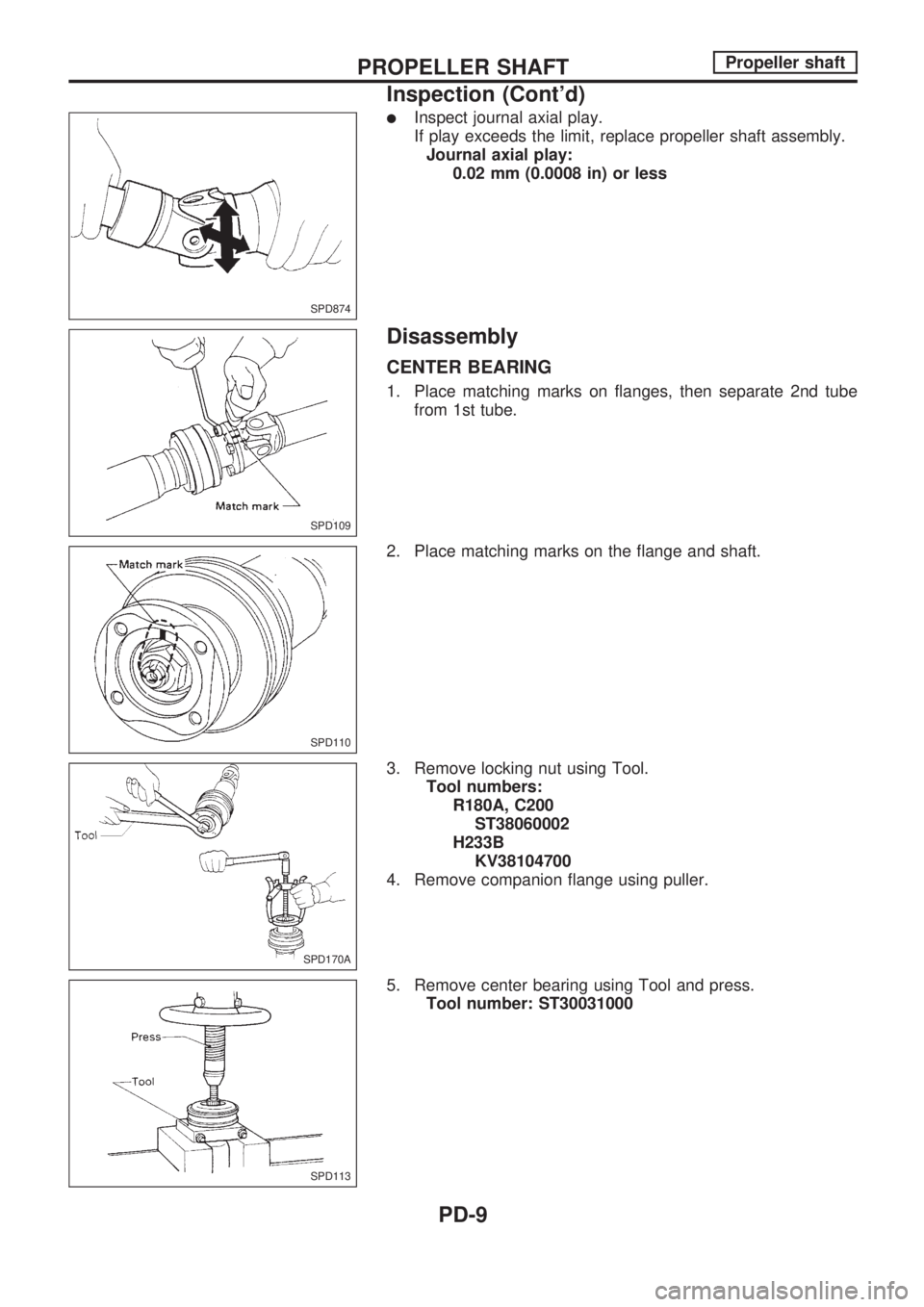

lInspect journal axial play.
If play exceeds the limit, replace propeller shaft assembly.
Journal axial play:
0.02 mm (0.0008 in) or less
Disassembly
CENTER BEARING
1. Place matching marks on flanges, then separate 2nd tube
from 1st tube.
2. Place matching marks on the flange and shaft.
3. Remove locking nut using Tool.
Tool numbers:
R180A, C200
ST38060002
H233B
KV38104700
4. Remove companion flange using puller.
5. Remove center bearing using Tool and press.
Tool number: ST30031000
SPD874
SPD109
SPD110
SPD170A
SPD113
PROPELLER SHAFTPropeller shaft
Inspection (Cont'd)
PD-9

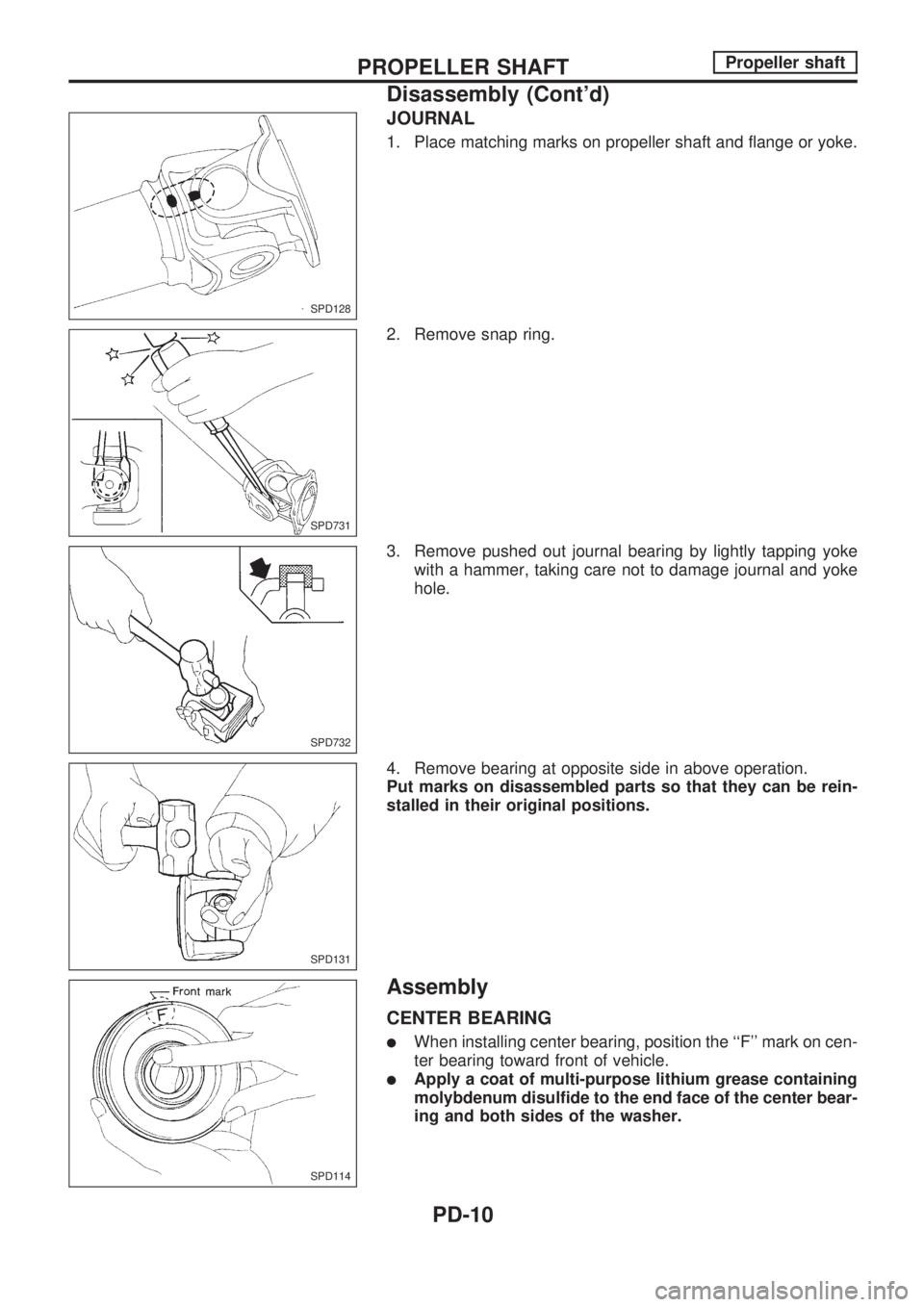

JOURNAL
1. Place matching marks on propeller shaft and flange or yoke.
2. Remove snap ring.
3. Remove pushed out journal bearing by lightly tapping yoke
with a hammer, taking care not to damage journal and yoke
hole.
4. Remove bearing at opposite side in above operation.
Put marks on disassembled parts so that they can be rein-
stalled in their original positions.
Assembly
CENTER BEARING
lWhen installing center bearing, position the ``F'' mark on cen-
ter bearing toward front of vehicle.
lApply a coat of multi-purpose lithium grease containing
molybdenum disulfide to the end face of the center bear-
ing and both sides of the washer.
SPD128
SPD731
SPD732
SPD131
SPD114
PROPELLER SHAFTPropeller shaft
Disassembly (Cont'd)
PD-10

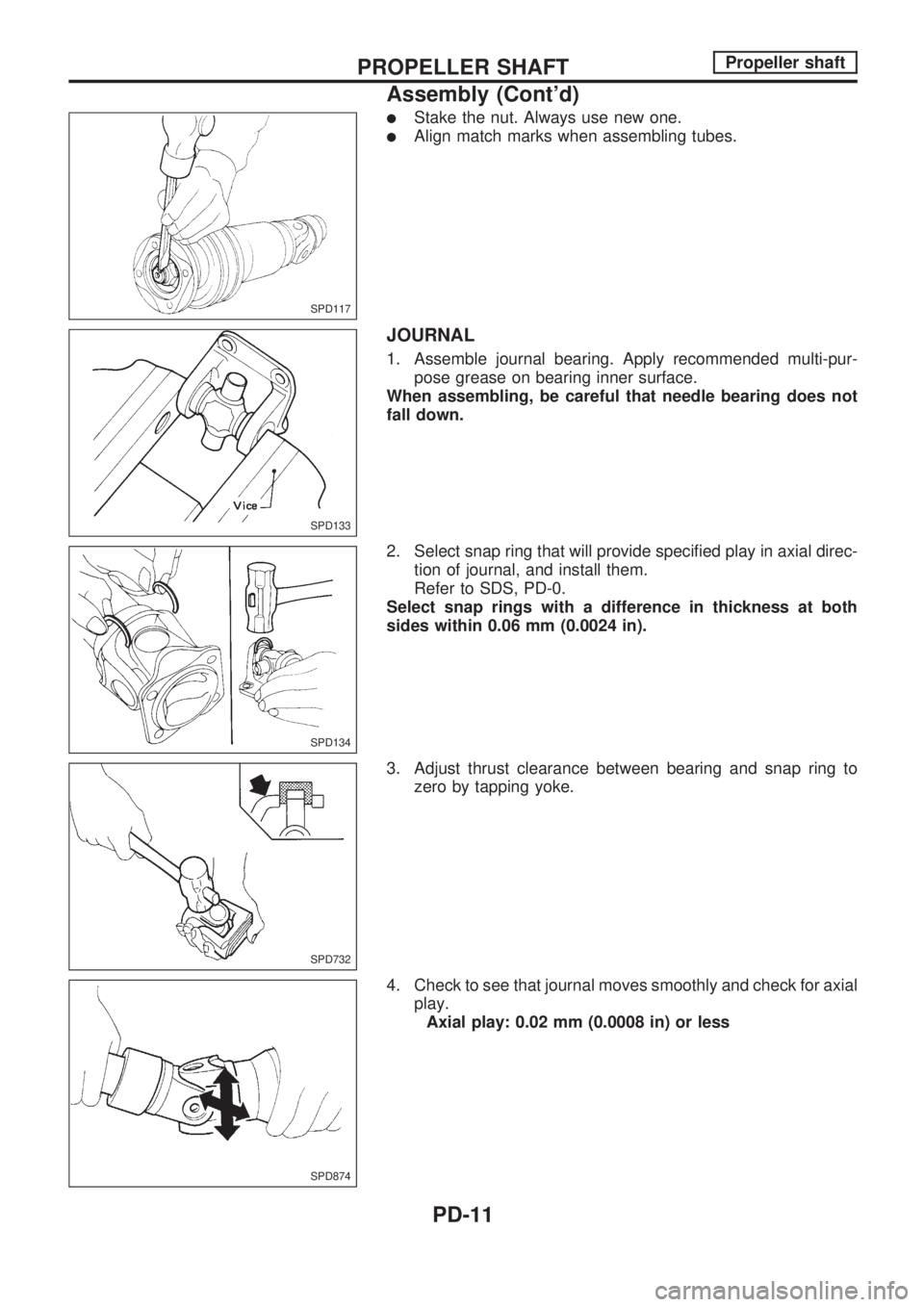

lStake the nut. Always use new one.
lAlign match marks when assembling tubes.
JOURNAL
1. Assemble journal bearing. Apply recommended multi-pur-
pose grease on bearing inner surface.
When assembling, be careful that needle bearing does not
fall down.
2. Select snap ring that will provide specified play in axial direc-
tion of journal, and install them.
Refer to SDS, PD-0.
Select snap rings with a difference in thickness at both
sides within 0.06 mm (0.0024 in).
3. Adjust thrust clearance between bearing and snap ring to
zero by tapping yoke.
4. Check to see that journal moves smoothly and check for axial
play.
Axial play: 0.02 mm (0.0008 in) or less
SPD117
SPD133
SPD134
SPD732
SPD874
PROPELLER SHAFTPropeller shaft
Assembly (Cont'd)
PD-11

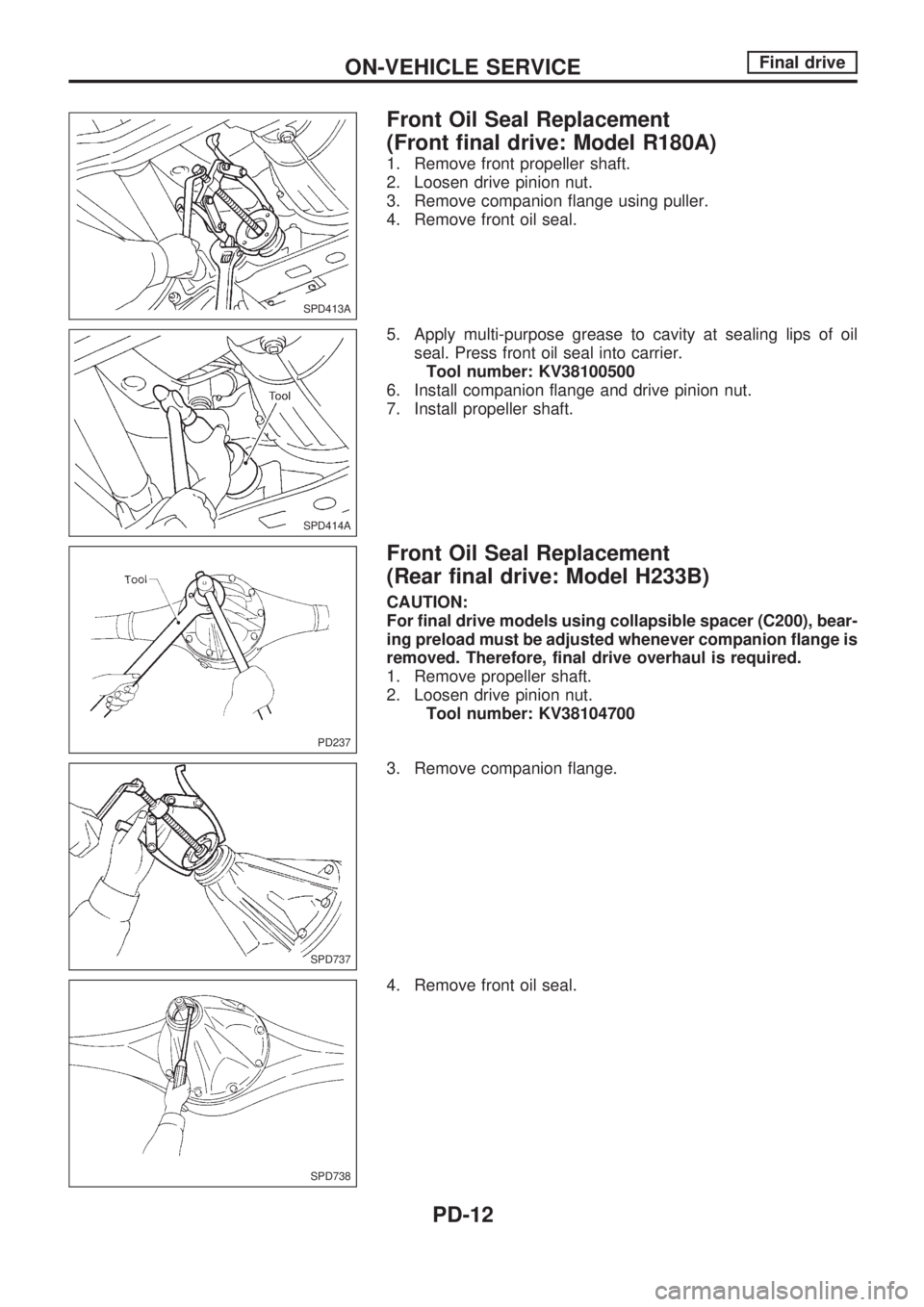

Front Oil Seal Replacement
(Front final drive: Model R180A)
1. Remove front propeller shaft.
2. Loosen drive pinion nut.
3. Remove companion flange using puller.
4. Remove front oil seal.
5. Apply multi-purpose grease to cavity at sealing lips of oil
seal. Press front oil seal into carrier.
Tool number: KV38100500
6. Install companion flange and drive pinion nut.
7. Install propeller shaft.
Front Oil Seal Replacement
(Rear final drive: Model H233B)
CAUTION:
For final drive models using collapsible spacer (C200), bear-
ing preload must be adjusted whenever companion flange is
removed. Therefore, final drive overhaul is required.
1. Remove propeller shaft.
2. Loosen drive pinion nut.
Tool number: KV38104700
3. Remove companion flange.
4. Remove front oil seal.
SPD413A
SPD414A
PD237
SPD737
SPD738
ON-VEHICLE SERVICEFinal drive
PD-12

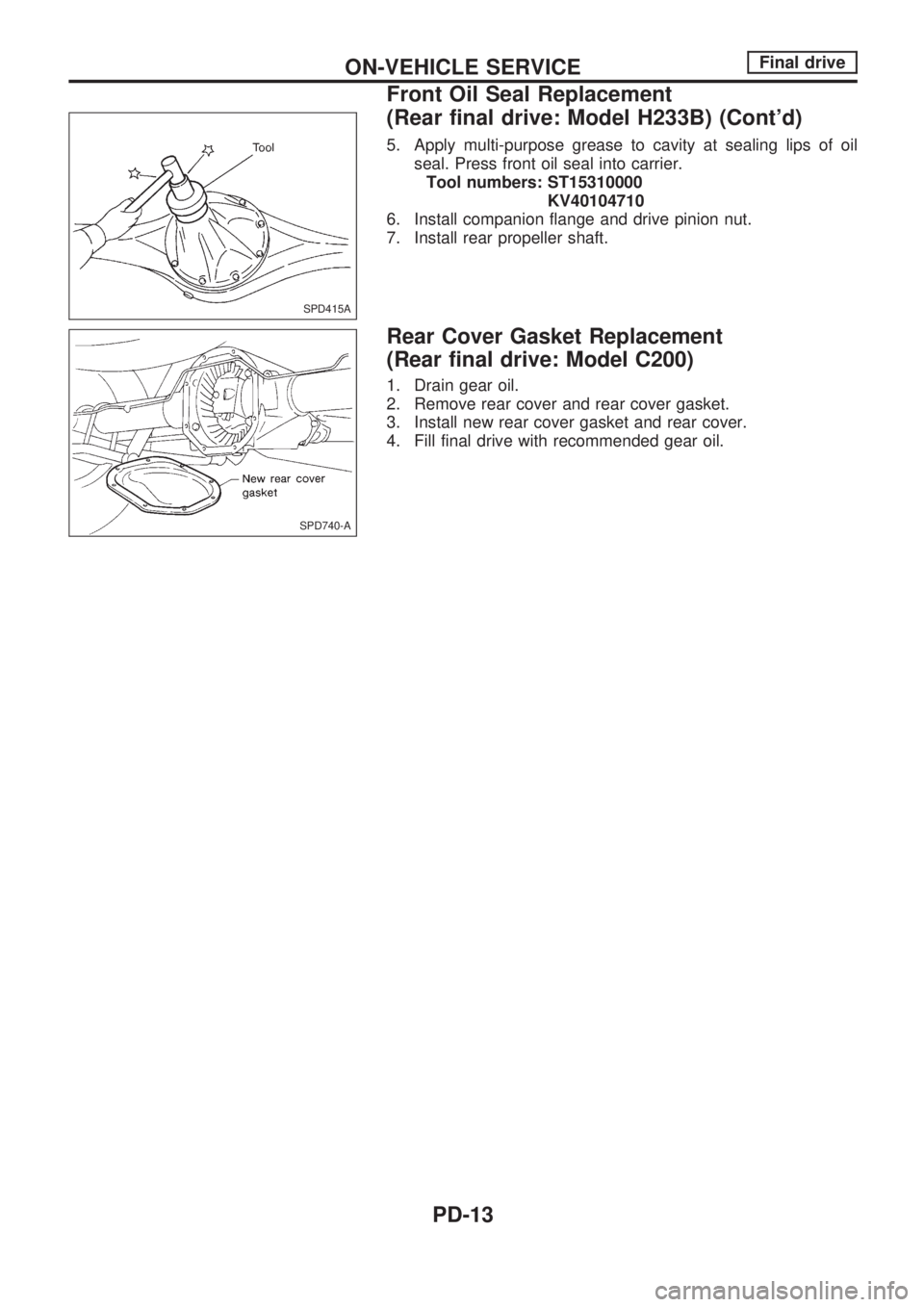

5. Apply multi-purpose grease to cavity at sealing lips of oil
seal. Press front oil seal into carrier.
Tool numbers: ST15310000
KV40104710
6. Install companion flange and drive pinion nut.
7. Install rear propeller shaft.
Rear Cover Gasket Replacement
(Rear final drive: Model C200)
1. Drain gear oil.
2. Remove rear cover and rear cover gasket.
3. Install new rear cover gasket and rear cover.
4. Fill final drive with recommended gear oil.
SPD415A
SPD740-A
ON-VEHICLE SERVICEFinal drive
Front Oil Seal Replacement
(Rear final drive: Model H233B) (Cont'd)
PD-13

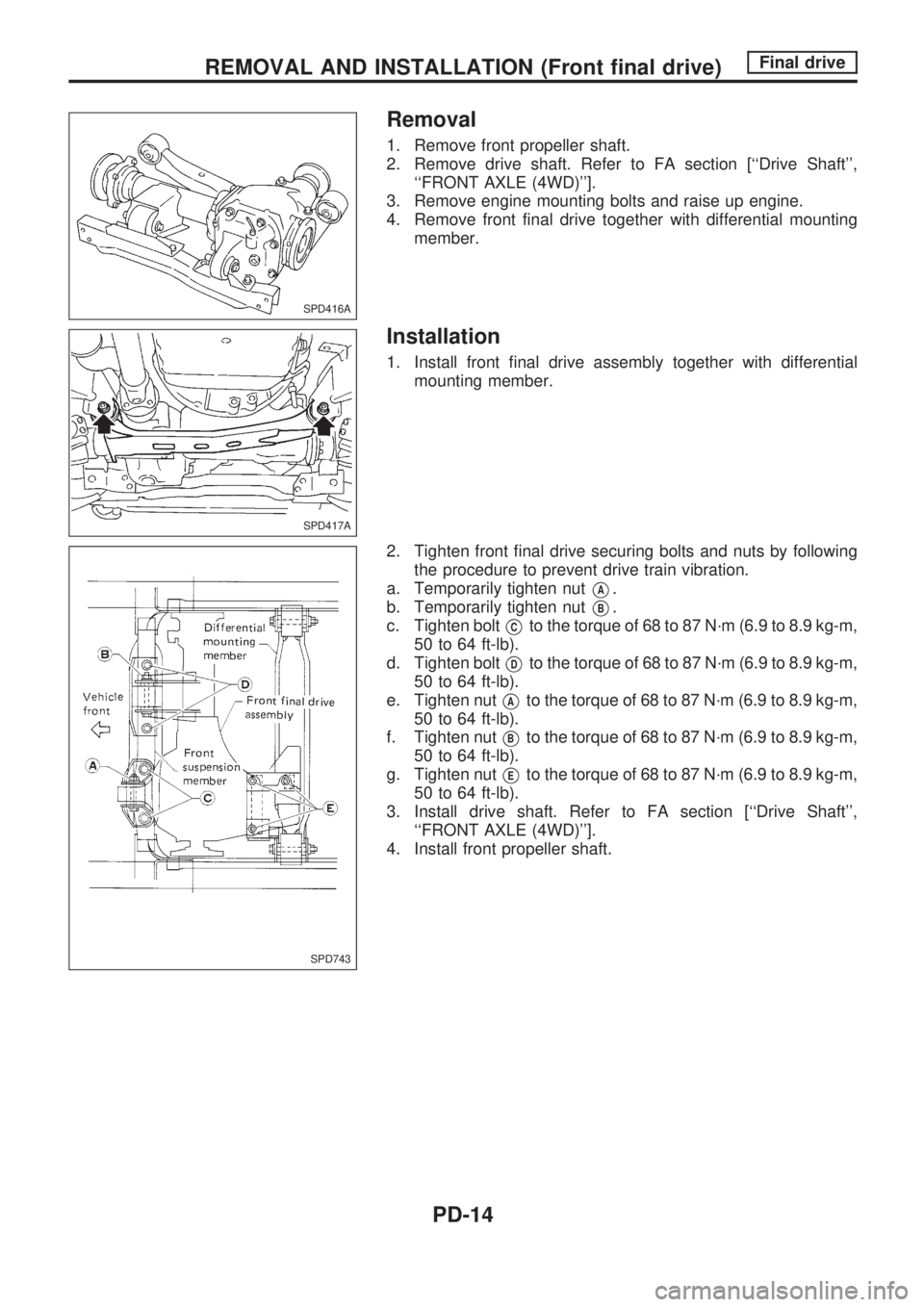

Removal
1. Remove front propeller shaft.
2. Remove drive shaft. Refer to FA section [``Drive Shaft'',
``FRONT AXLE (4WD)''].
3. Remove engine mounting bolts and raise up engine.
4. Remove front final drive together with differential mounting
member.
Installation
1. Install front final drive assembly together with differential
mounting member.
2. Tighten front final drive securing bolts and nuts by following
the procedure to prevent drive train vibration.
a. Temporarily tighten nut
VA.
b. Temporarily tighten nut
VB.
c. Tighten bolt
VCto the torque of 68 to 87 N´m (6.9 to 8.9 kg-m,
50 to 64 ft-lb).
d. Tighten bolt
VDto the torque of 68 to 87 N´m (6.9 to 8.9 kg-m,
50 to 64 ft-lb).
e. Tighten nut
VAto the torque of 68 to 87 N´m (6.9 to 8.9 kg-m,
50 to 64 ft-lb).
f. Tighten nut
VBto the torque of 68 to 87 N´m (6.9 to 8.9 kg-m,
50 to 64 ft-lb).
g. Tighten nut
VEto the torque of 68 to 87 N´m (6.9 to 8.9 kg-m,
50 to 64 ft-lb).
3. Install drive shaft. Refer to FA section [``Drive Shaft'',
``FRONT AXLE (4WD)''].
4. Install front propeller shaft.
SPD416A
SPD417A
SPD743
REMOVAL AND INSTALLATION (Front final drive)Final drive
PD-14

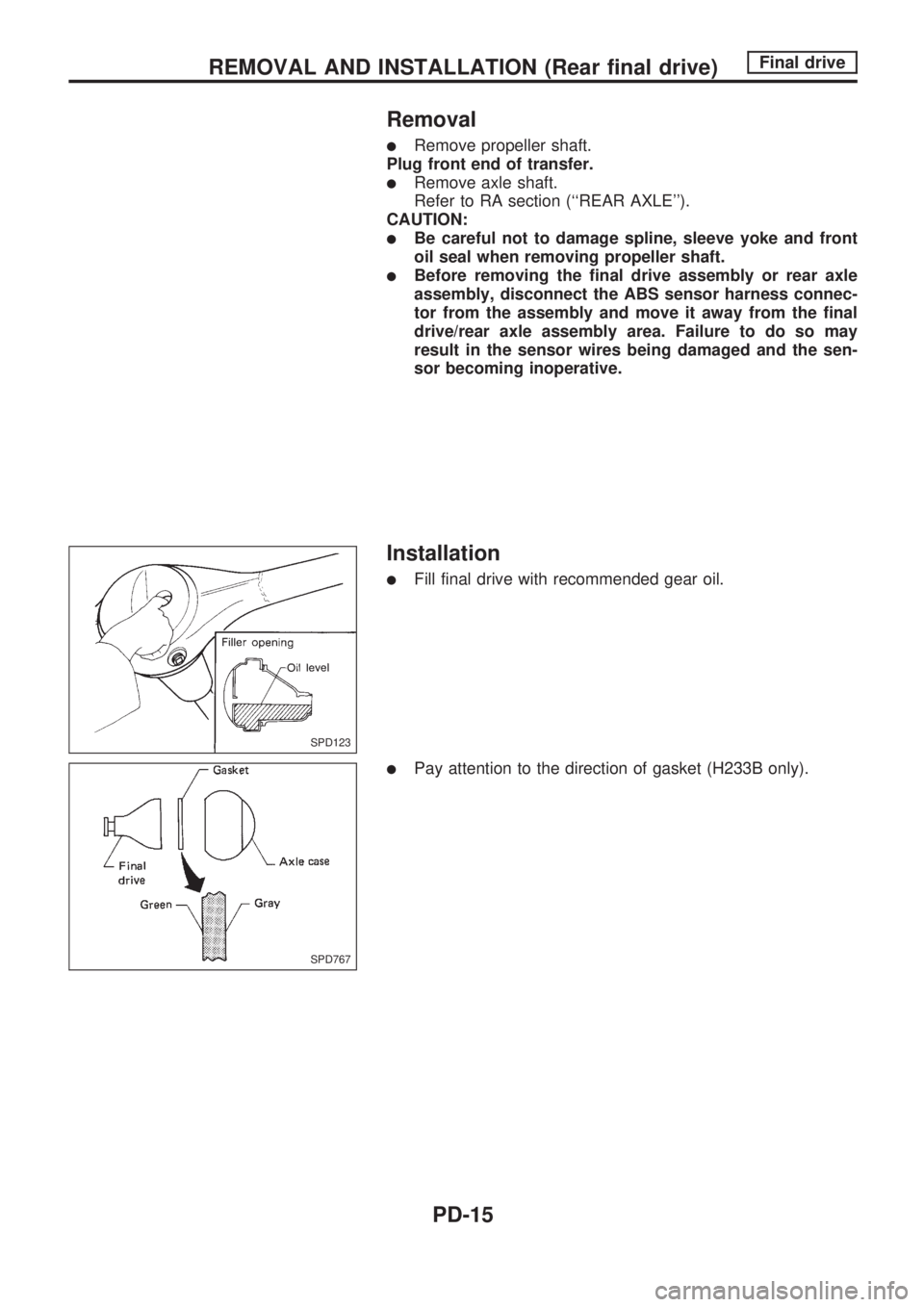

Removal
lRemove propeller shaft.
Plug front end of transfer.
lRemove axle shaft.
Refer to RA section (``REAR AXLE'').
CAUTION:
lBe careful not to damage spline, sleeve yoke and front
oil seal when removing propeller shaft.
lBefore removing the final drive assembly or rear axle
assembly, disconnect the ABS sensor harness connec-
tor from the assembly and move it away from the final
drive/rear axle assembly area. Failure to do so may
result in the sensor wires being damaged and the sen-
sor becoming inoperative.
Installation
lFill final drive with recommended gear oil.
lPay attention to the direction of gasket (H233B only).
SPD123
SPD767
REMOVAL AND INSTALLATION (Rear final drive)Final drive
