System Description
CIRCUIT OPERATION
[Example]
Aiming switch ``0''
lWhen the aiming switch is set to ``0'', the motor will not start.
This is because the power terminals are positioned at the
nonconductive section of the sensor's rotary unit.
Aiming switch ``0''®``1''
lWhen the aiming switch is moved from ``0'' to ``1'', the sen-
sor's conductive section activates the relay. Power is sup-
plied through the relay to the motor. The headlamps will then
move in the ``DOWN'' direction.
lThe motor continues to rotate while the rotary unit of the
sensor moves from point A to point B.
lThe power terminals will then be positioned at the noncon-
ductive section, disconnecting the power to the motor. The
motor will then stop.
Aiming switch ``1''®``0''
lWhen the aiming switch is moved from ``1'' to ``0'', the sen-
sor's conductive section activates the relay. Power is sup-
plied through the relay to the motor. The motor will rotate to
move the headlamps in the ``UP'' direction.
lWhen the rotary unit of the sensor moves from point B to
point A, the motor will stop.
SEL465M
SEL364P
SEL365P
HEADLAMP Ð Headlamp Aiming Control Ð
EL-63

Wiring Diagram Ð H/AIM Ð
HEL330A
HEADLAMP Ð Headlamp Aiming Control Ð
EL-64

HEL331A
HEADLAMP Ð Headlamp Aiming Control Ð
Wiring Diagram Ð H/AIM Ð (Cont'd)
EL-65

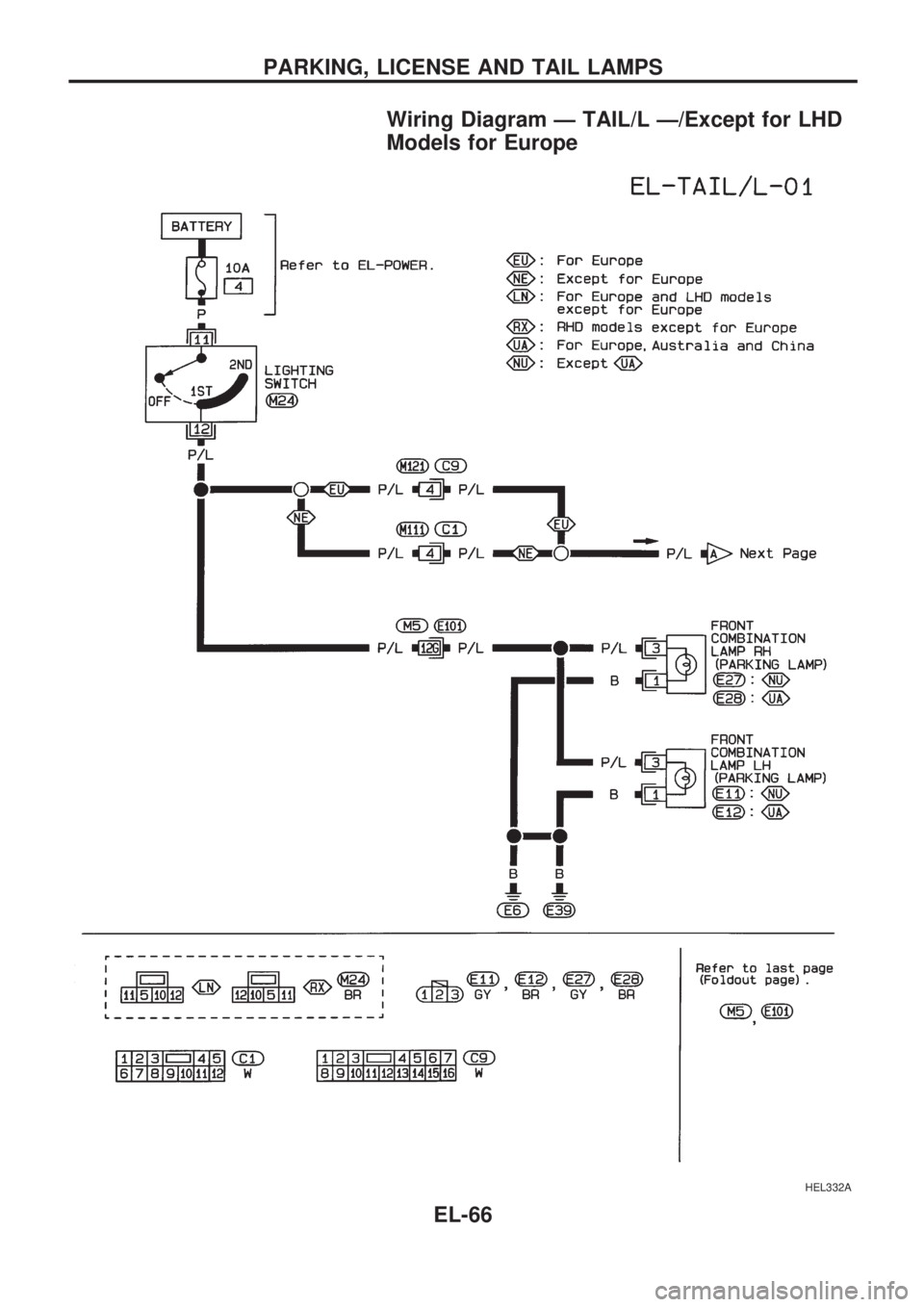

Wiring Diagram Ð TAIL/L Ð/Except for LHD
Models for Europe
HEL332A
PARKING, LICENSE AND TAIL LAMPS
EL-66

HEL333A
PARKING, LICENSE AND TAIL LAMPS

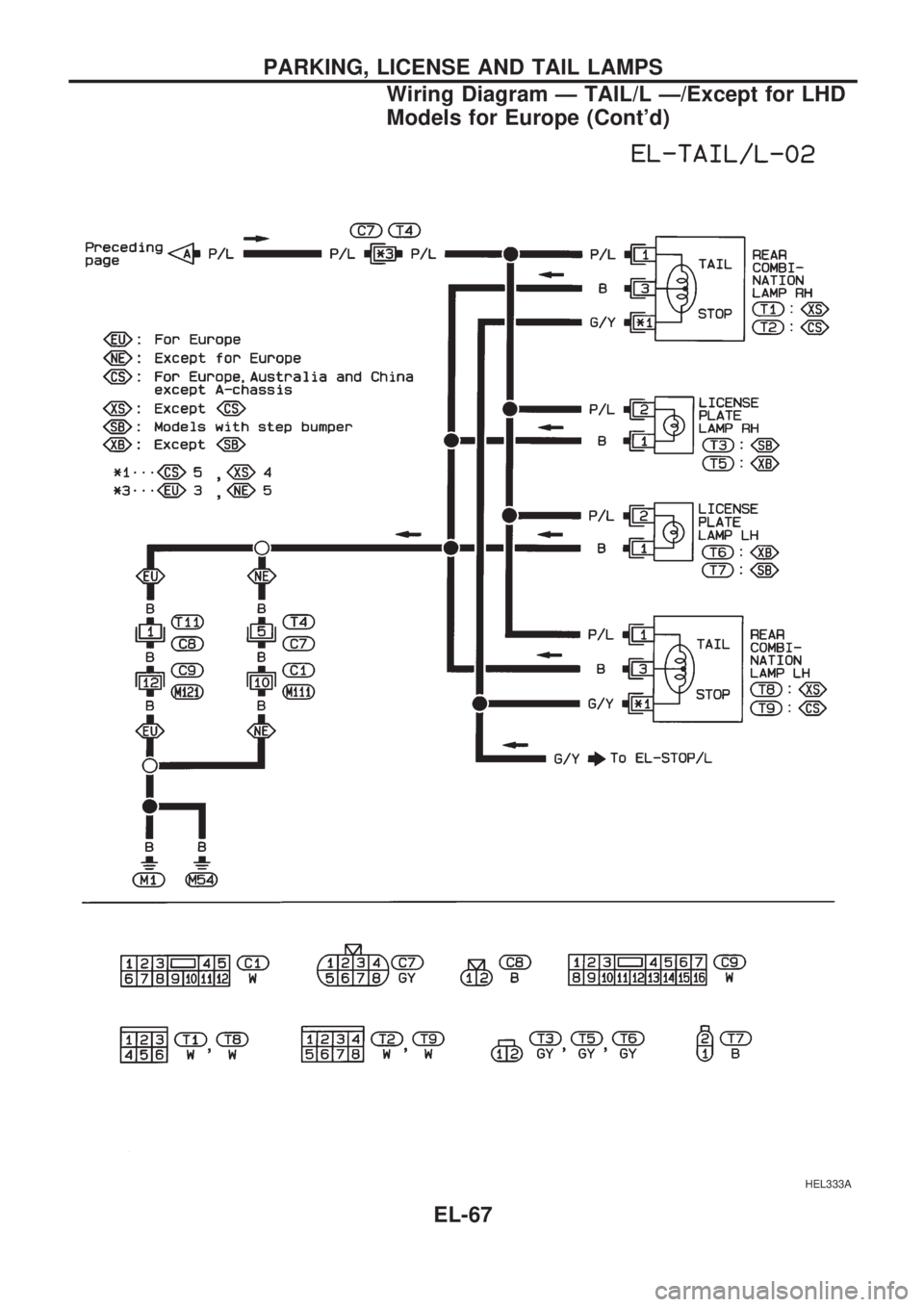

Wiring Diagram Ð TAIL/L Ð/Except for LHD
Models for Europe (Cont'd)
EL-67

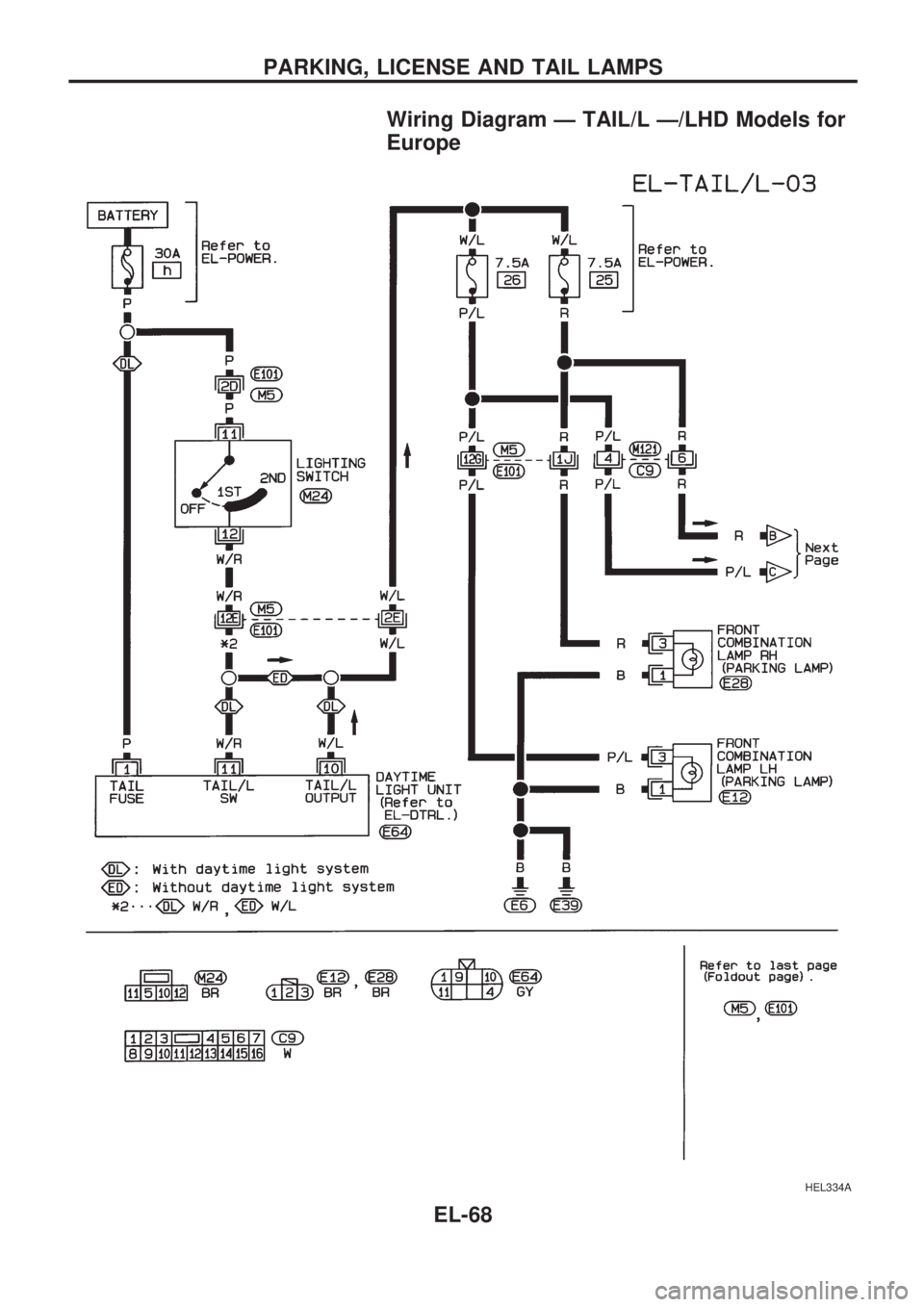

Wiring Diagram Ð TAIL/L Ð/LHD Models for
Europe
HEL334A
PARKING, LICENSE AND TAIL LAMPS
EL-68

HEL335A
PARKING, LICENSE AND TAIL LAMPS

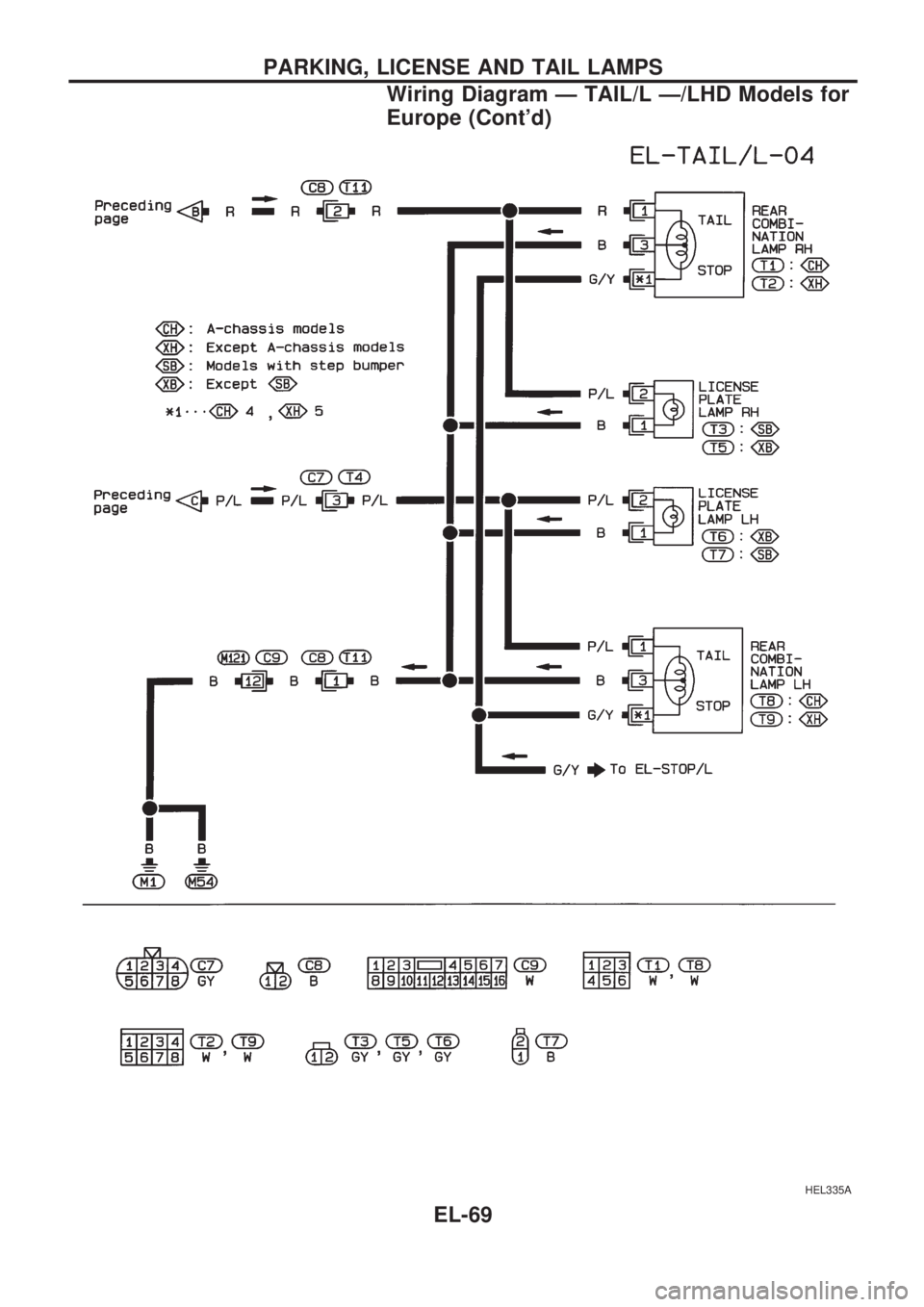

Wiring Diagram Ð TAIL/L Ð/LHD Models for
Europe (Cont'd)
EL-69

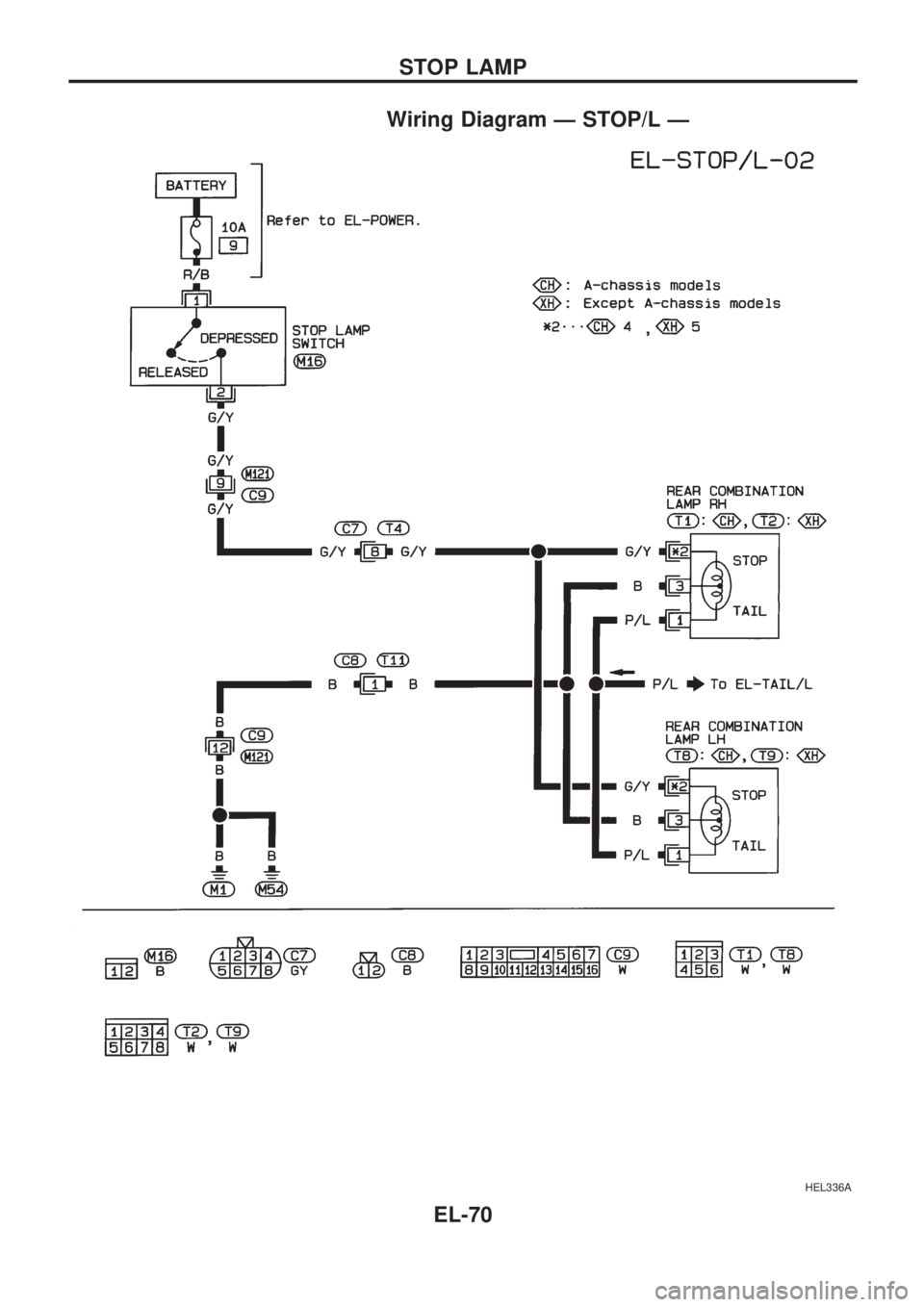

Wiring Diagram Ð STOP/L Ð
HEL336A
STOP LAMP
EL-70
