1998 NISSAN PICK-UP Repair Manual

2-pinion model
SPD425A
REAR FINAL DRIVEC200
PD-32

4-pinion model
SPD426A
REAR FINAL DRIVEC200
PD-33

Pre-inspection
Before disassembling final drive, perform the following inspec-
tion.
lTotal preload
a. Turn drive pinion in both directions several times to set bear-
ing rollers.
b. Check total preload with Tool.
Tool number: ST3127S000
Total preload:
1.2 - 2.3 N´m
(12 - 23 kg-cm, 10 - 20 in-lb)
lRing gear-to-drive pinion backlash.
Check backlash of ring gear with a dial indicator at several
points.
Ring gear-to-drive pinion backlash:
0.13 - 0.18 mm (0.0051 - 0.0071 in)
lRing gear runout
Check runout of ring gear with a dial indicator.
Runout limit: 0.05 mm (0.0020 in)
lTooth contact
Check tooth contact. Refer to ``ADJUSTMENT'', PD-49.
lSide gear-to-pinion mate gear backlash
Measure clearance between side gear thrust washer and
differential case with a feeler gauge.
Clearance between side gear thrust washer and dif-
ferential case:
Less than 0.15 mm (0.0059 in)
Differential Carrier
1. Remove rear cover and rear cover gasket.
2. Put match marks on one side of side bearing cap with paint
or punch to ensure that it is replaced in proper position dur-
ing reassembly.
Bearing caps are line-bored during manufacture and should
be put back in their original places.
SPD241
SPD196
SPD702
SPD198
SPD714
DISASSEMBLYC200
PD-34

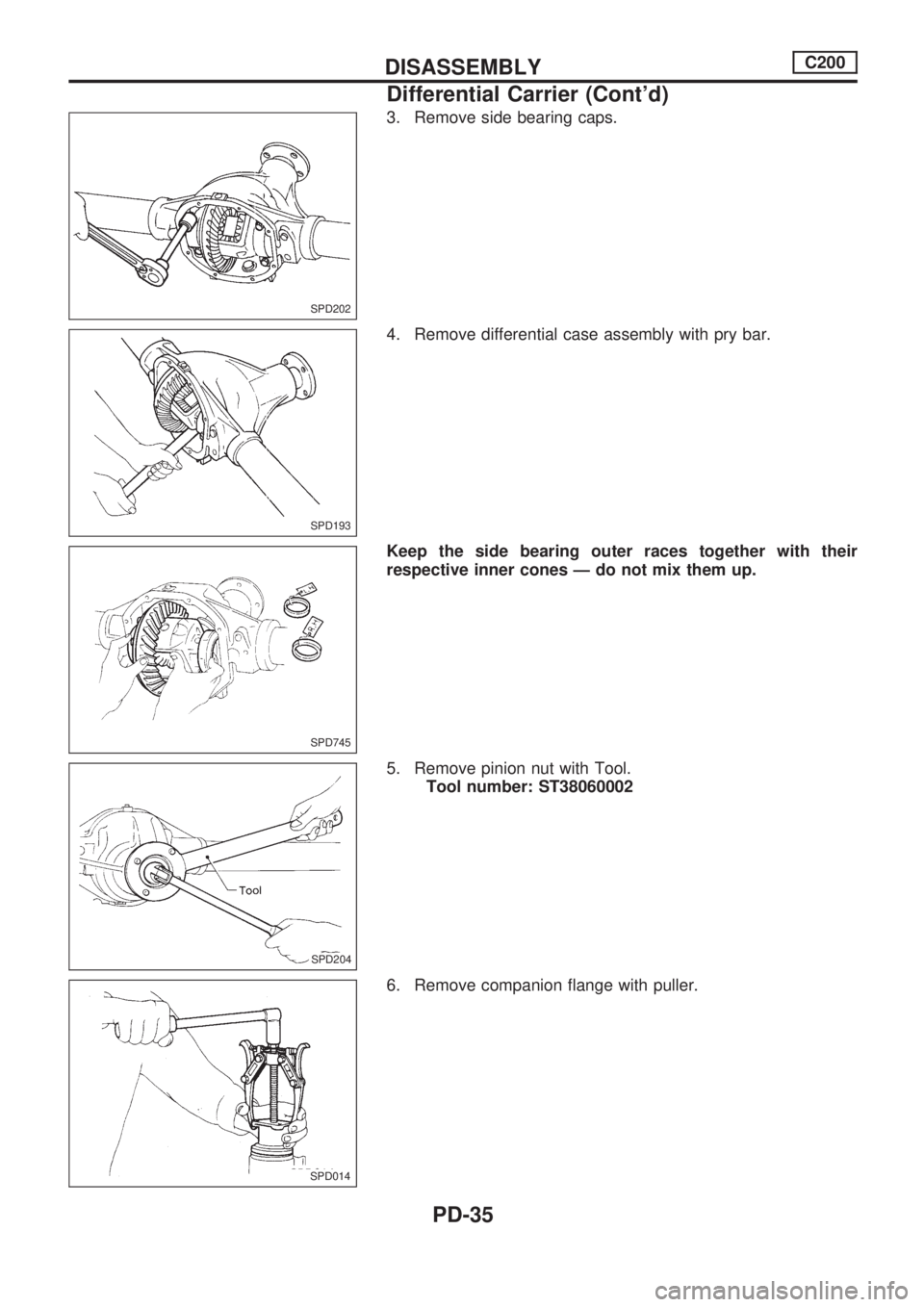

3. Remove side bearing caps.
4. Remove differential case assembly with pry bar.
Keep the side bearing outer races together with their
respective inner cones Ð do not mix them up.
5. Remove pinion nut with Tool.
Tool number: ST38060002
6. Remove companion flange with puller.
SPD202
SPD193
SPD745
SPD204.SPD204
SPD014.SPD014
DISASSEMBLYC200
Differential Carrier (Cont'd)
PD-35

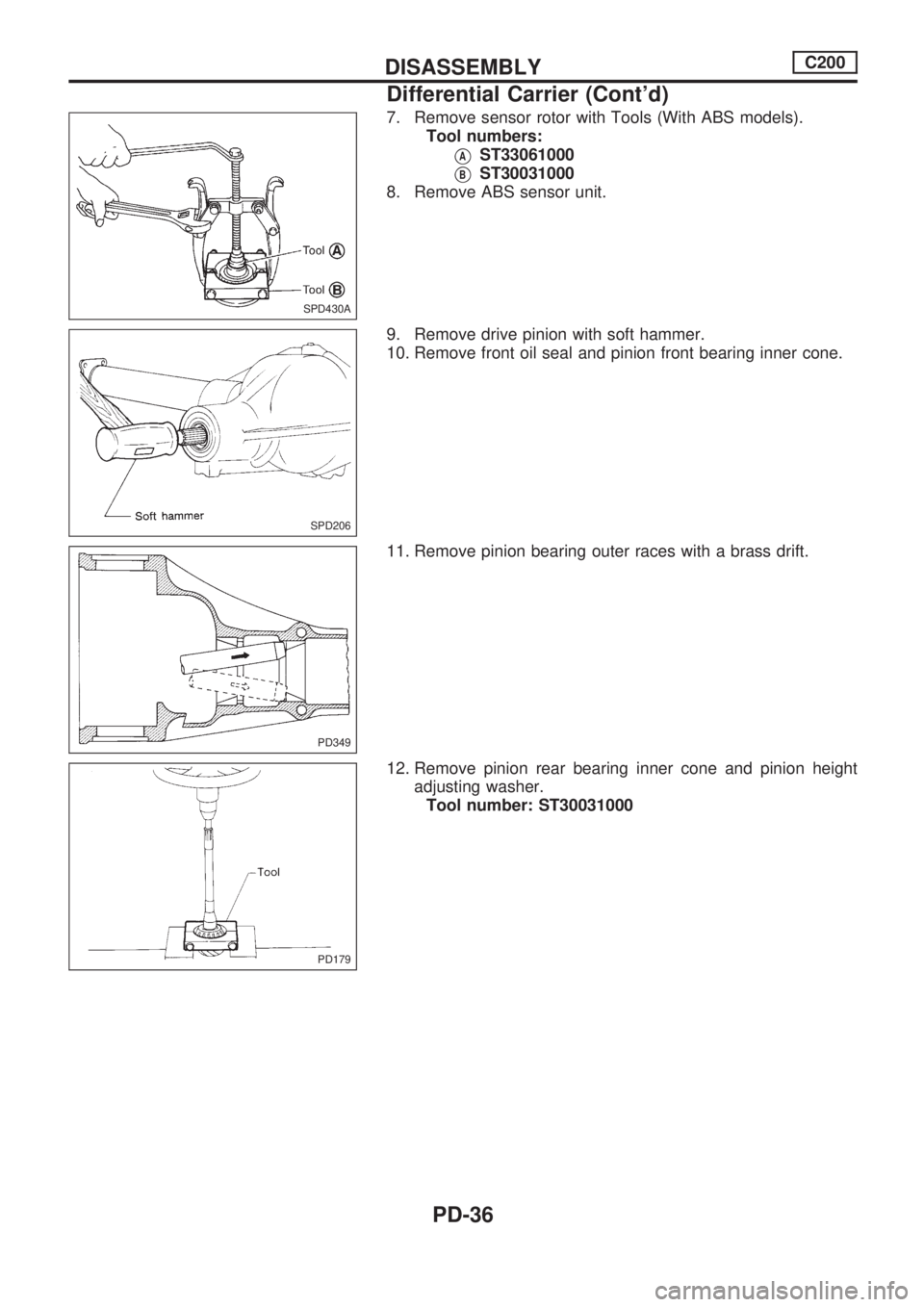

7. Remove sensor rotor with Tools (With ABS models).
Tool numbers:
VAST33061000
VBST30031000
8. Remove ABS sensor unit.
9. Remove drive pinion with soft hammer.
10. Remove front oil seal and pinion front bearing inner cone.
11. Remove pinion bearing outer races with a brass drift.
12. Remove pinion rear bearing inner cone and pinion height
adjusting washer.
Tool number: ST30031000
SPD430A
SPD206
PD349
PD179
DISASSEMBLYC200
Differential Carrier (Cont'd)
PD-36

Differential Case

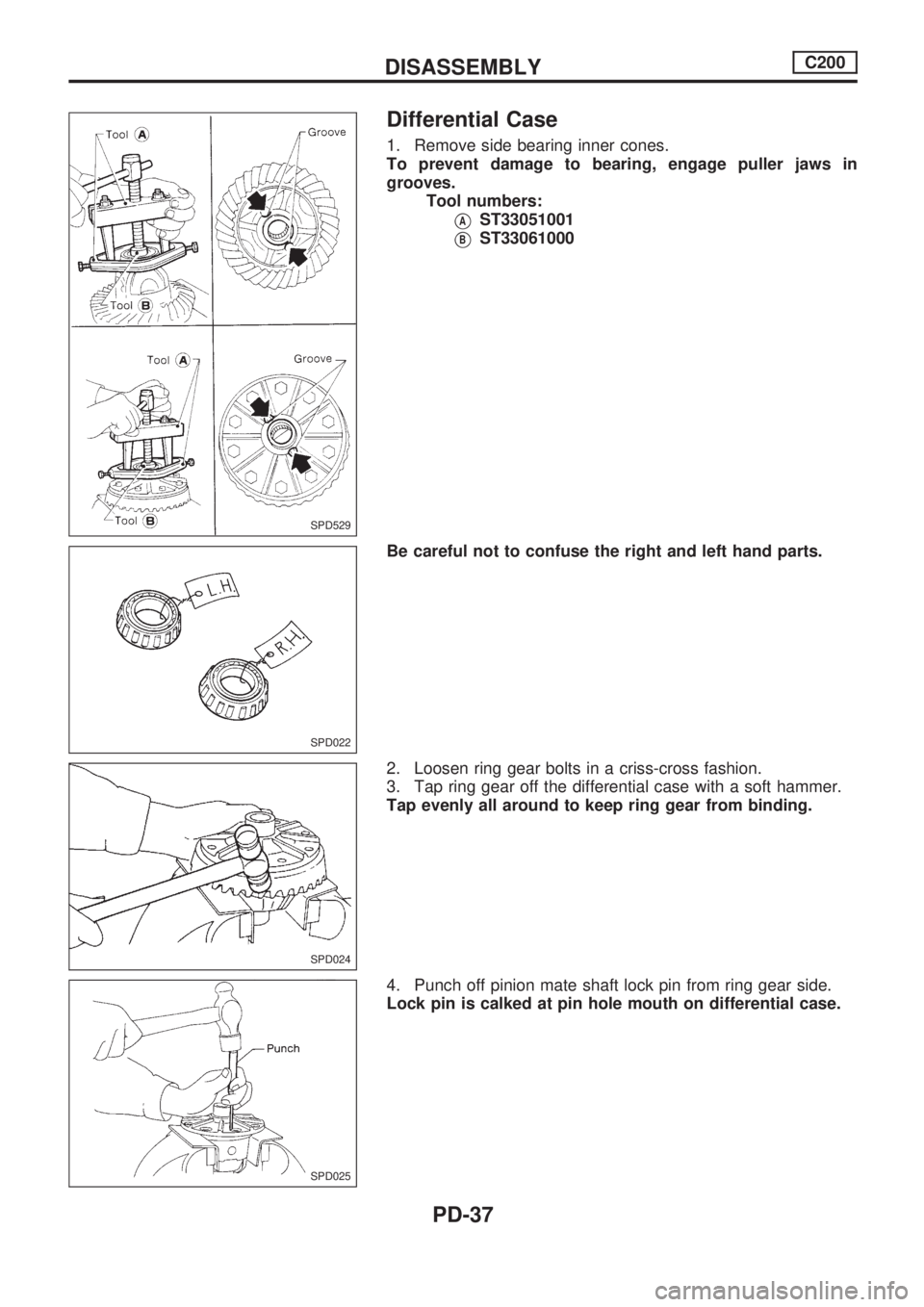

1. Remove side bearing inner cones.
To prevent damage to bearing, engage puller jaws in
grooves.
Tool numbers:
VAST33051001
VBST33061000
Be careful not to confuse the right and left hand parts.
2. Loosen ring gear bolts in a criss-cross fashion.
3. Tap ring gear off the differential case with a soft hammer.
Tap evenly all around to keep ring gear from binding.
4. Punch off pinion mate shaft lock pin from ring gear side.
Lock pin is calked at pin hole mouth on differential case.
SPD529
SPD022
SPD024
SPD025
DISASSEMBLYC200
PD-37

Ring Gear and Drive Pinion

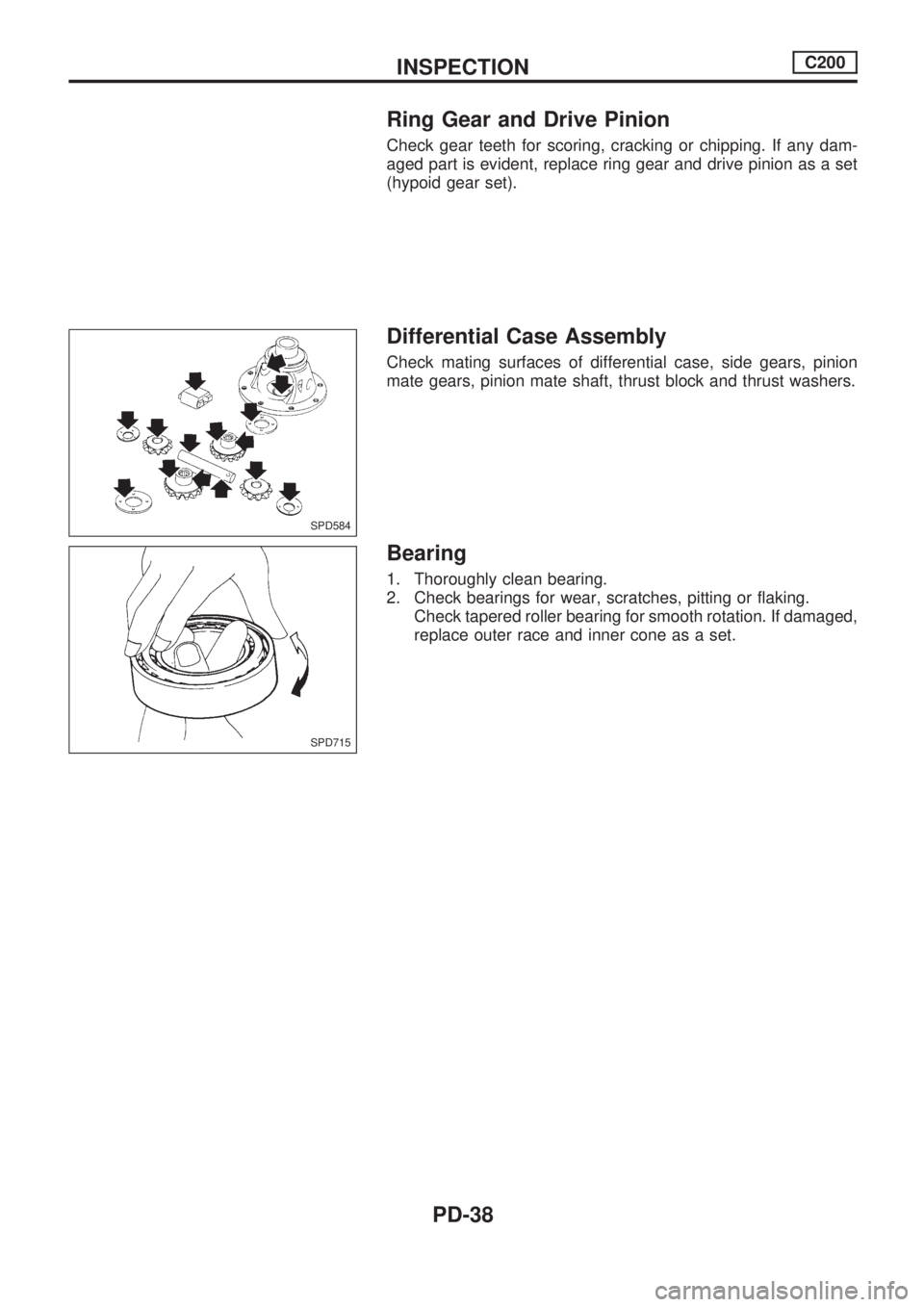

Check gear teeth for scoring, cracking or chipping. If any dam-
aged part is evident, replace ring gear and drive pinion as a set
(hypoid gear set).
Differential Case Assembly
Check mating surfaces of differential case, side gears, pinion
mate gears, pinion mate shaft, thrust block and thrust washers.
Bearing
1. Thoroughly clean bearing.
2. Check bearings for wear, scratches, pitting or flaking.
Check tapered roller bearing for smooth rotation. If damaged,
replace outer race and inner cone as a set.
SPD584
SPD715
INSPECTIONC200
PD-38

CAUTION:
Do not run engine when only one wheel (rear) is off the
ground.
Preparation for Disassembly
CHECKING DIFFERENTIAL TORQUE
Measure differential torque with Tools.
If it is not within the specifications, inspect components of limited
slip differential.
Differential torque:
88 - 108 N´m
(9.0 - 11.0 kg-m, 65 - 80 ft-lb)
Tool numbers:
VAKV38105110
VBKV38105120
Disassembly
1. Remove couple bolts using a press.
Tool number: ST33081000
2. Separate differential cases A and B.
Draw out component parts (discs and plates, etc.).
Put marks on differential cases so that they can be rein-
stalled in their original positions.
SPD419A
SPD415
SPD420A
LIMITED SLIP DIFFERENTIALC200
