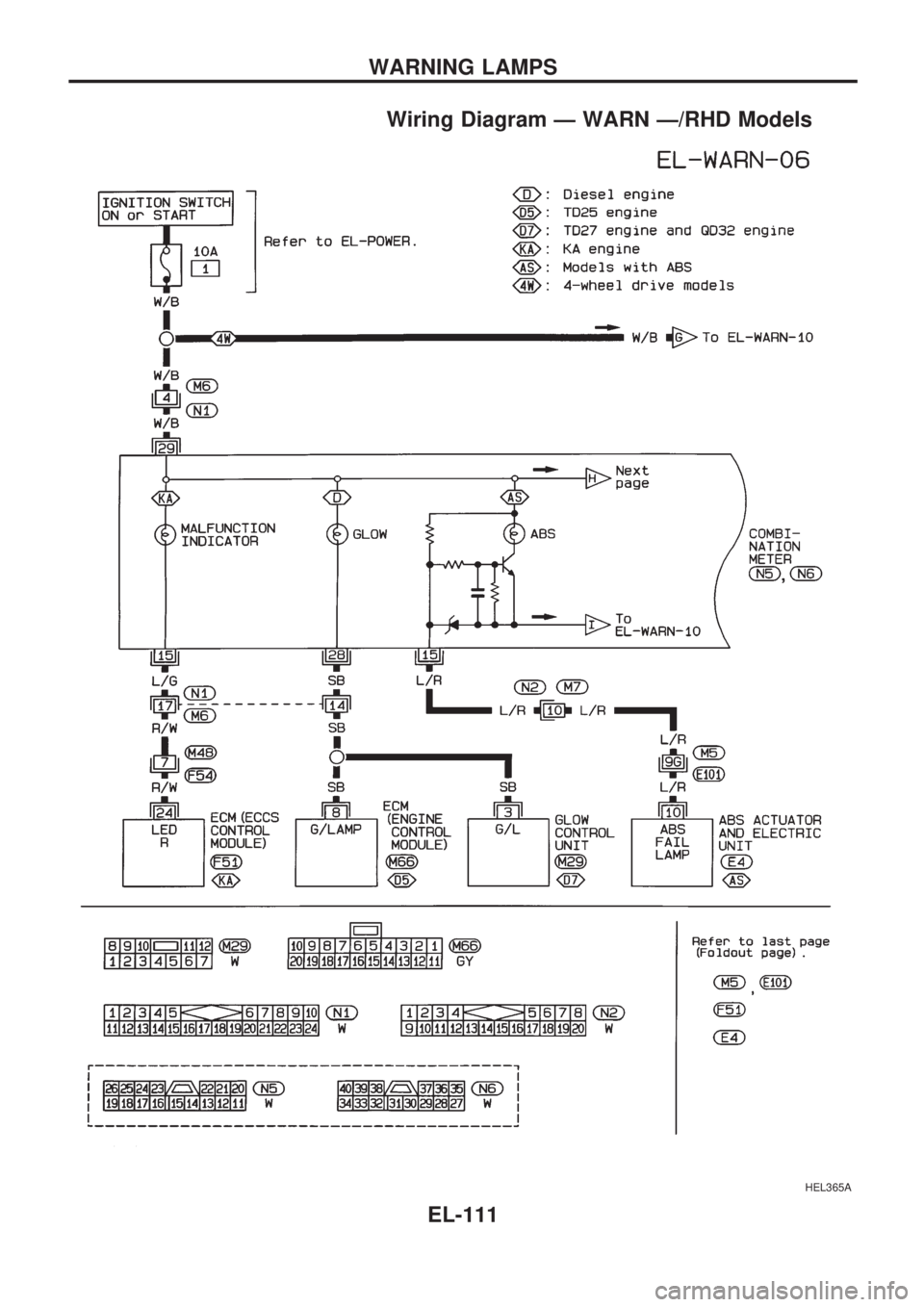

Wiring Diagram Ð WARN Ð/RHD Models
HEL365A
WARNING LAMPS
EL-111
Page 1410 of 1659

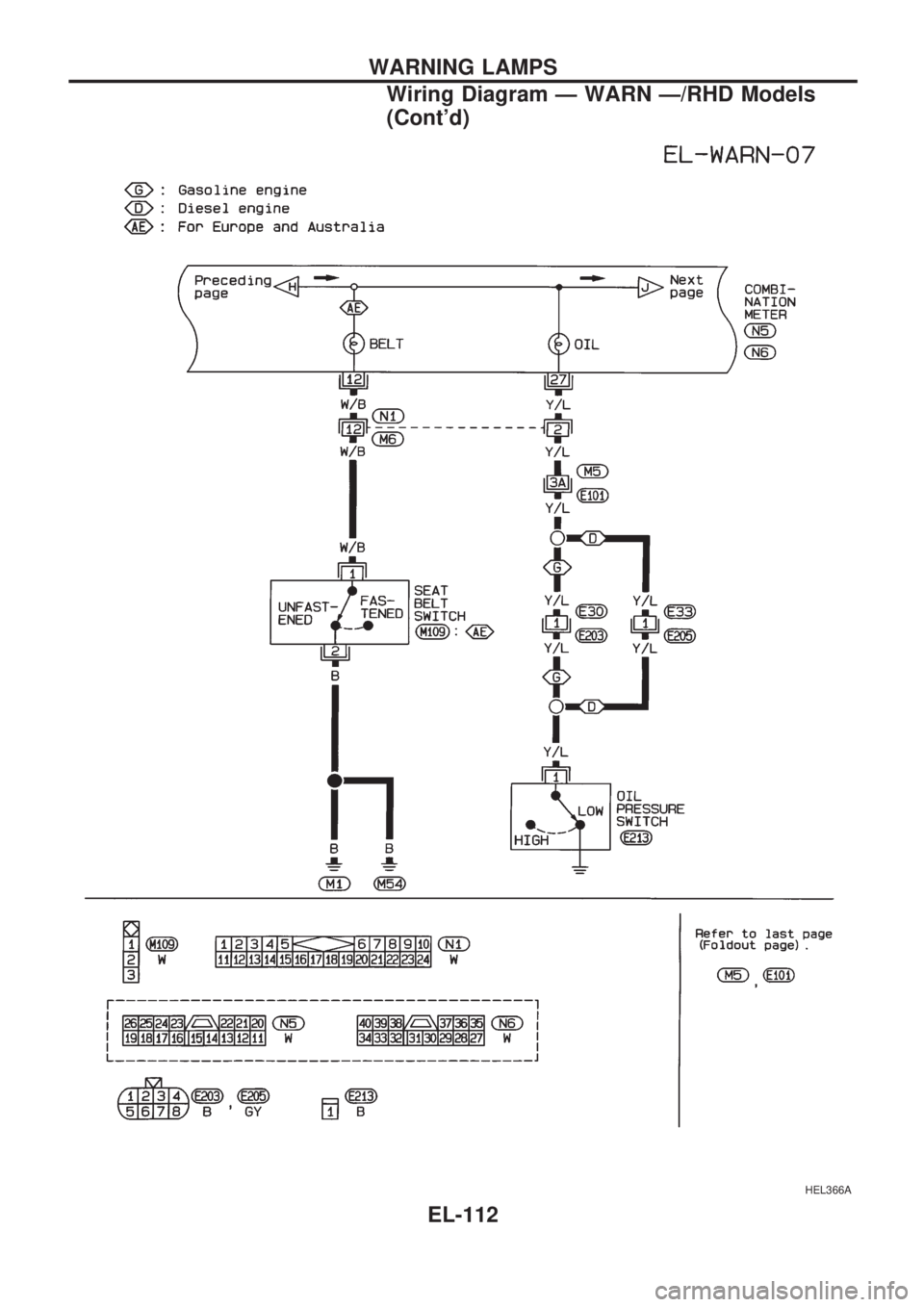

HEL366A
WARNING LAMPS
Wiring Diagram Ð WARN Ð/RHD Models
(Cont'd)
EL-112
Page 1411 of 1659

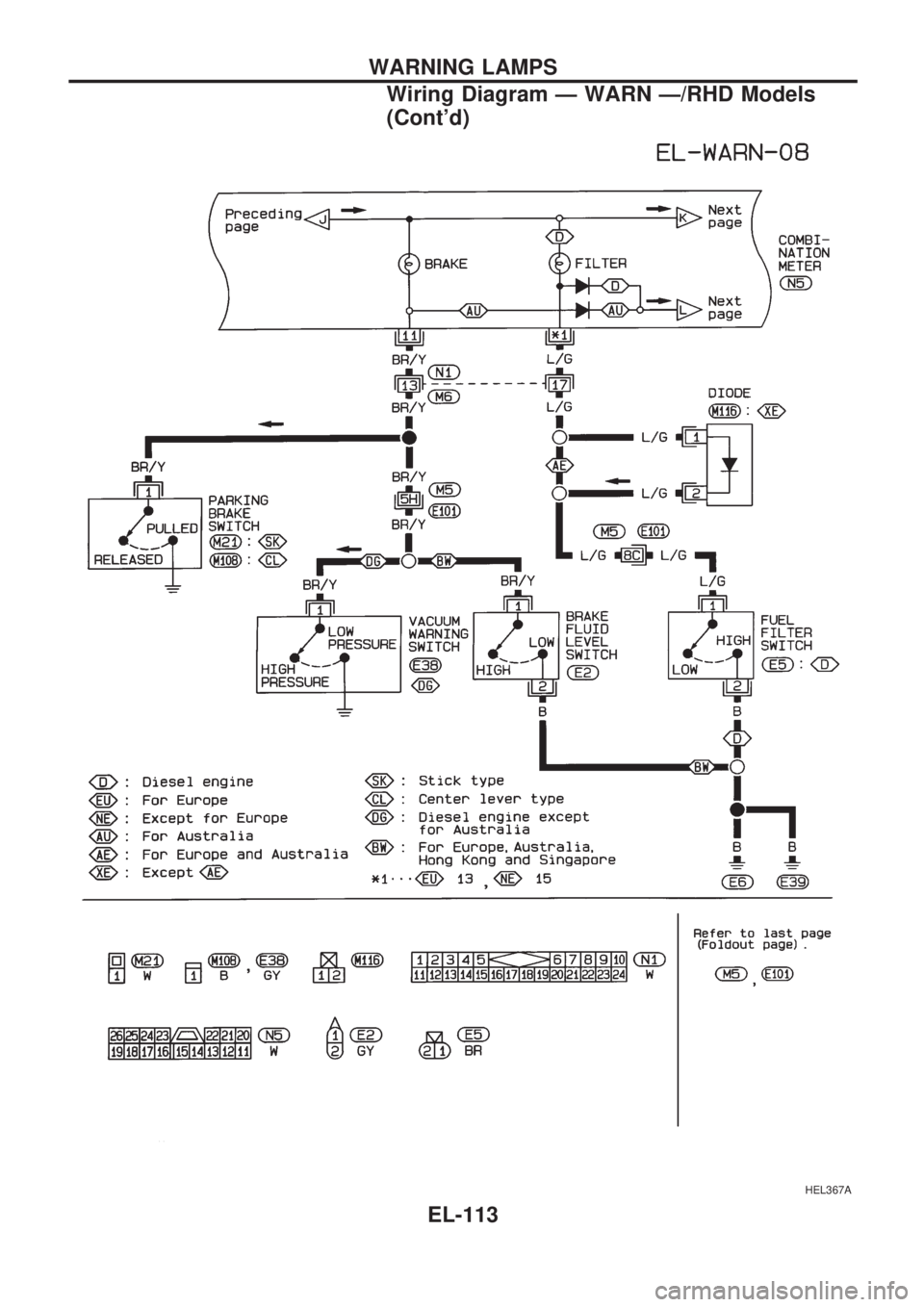

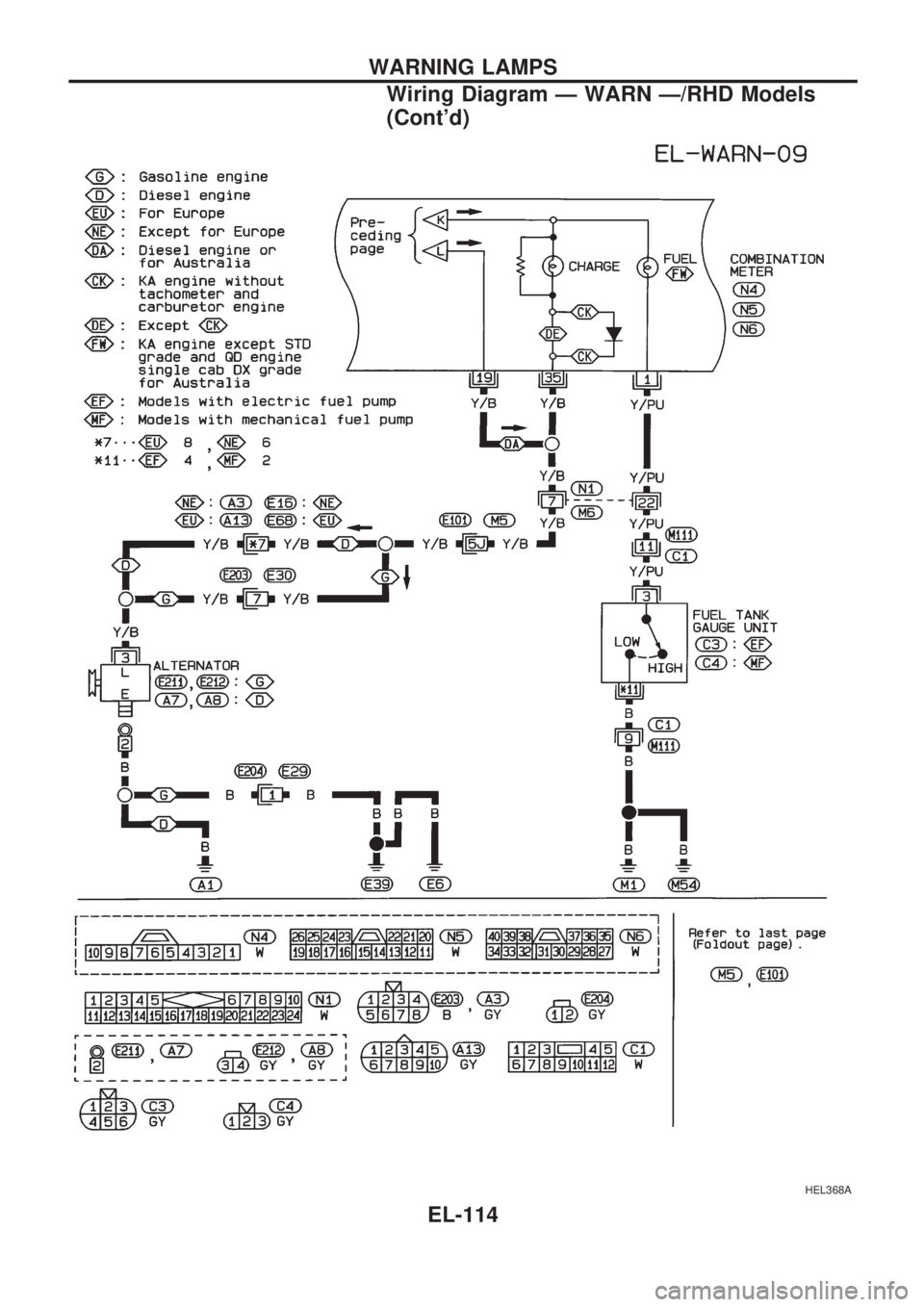

HEL367A
WARNING LAMPS
Wiring Diagram Ð WARN Ð/RHD Models
(Cont'd)
EL-113
Page 1412 of 1659

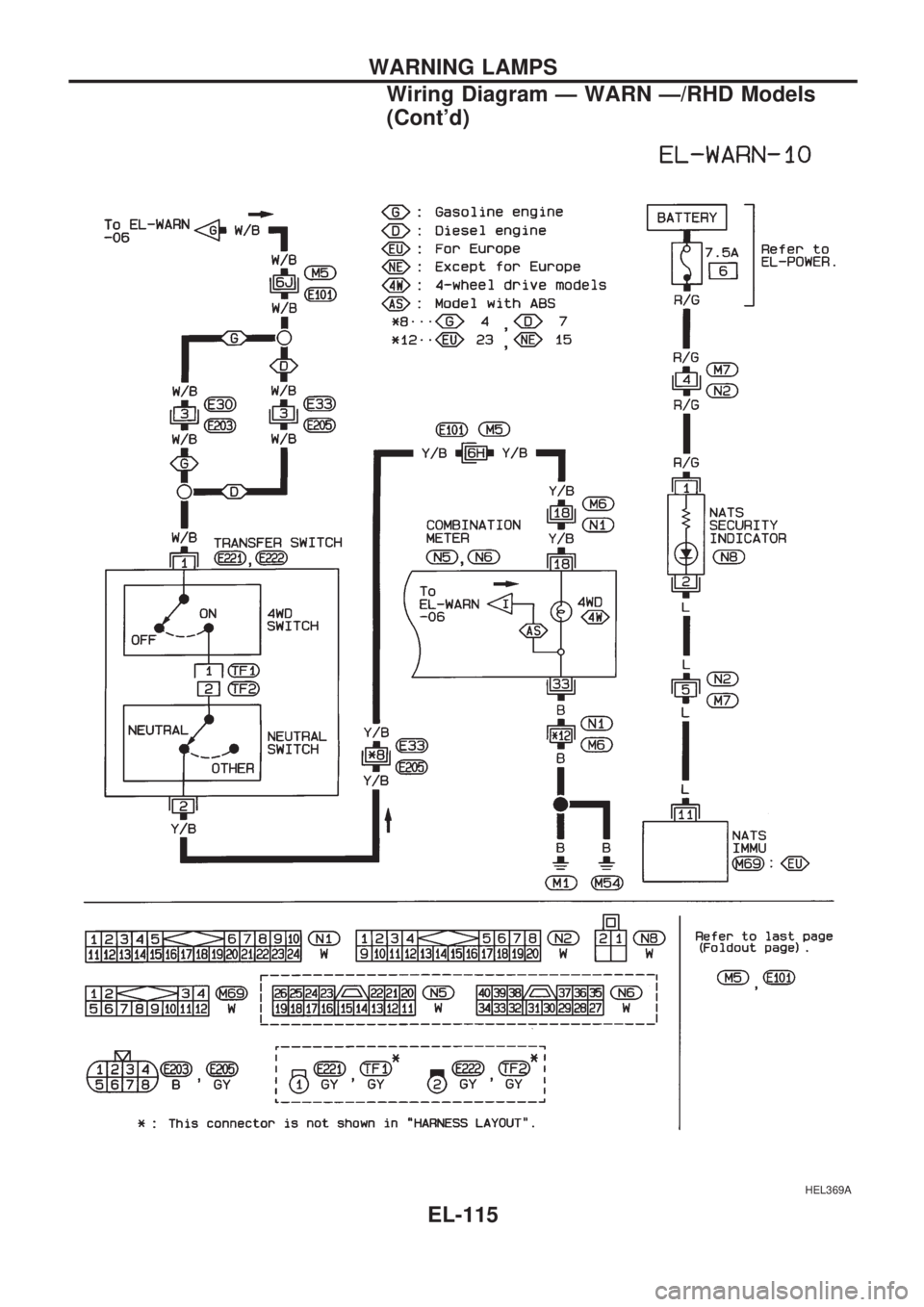

HEL368A
WARNING LAMPS
Wiring Diagram Ð WARN Ð/RHD Models
(Cont'd)
EL-114
Page 1413 of 1659
HEL369A
WARNING LAMPS
Wiring Diagram Ð WARN Ð/RHD Models
(Cont'd)
EL-115
Page 1414 of 1659
Electrical Components Inspection
FUEL WARNING LAMP SENSOR CHECK
lIt will take a short time for the bulb to light.
OIL PRESSURE SWITCH CHECK
Oil pressure
kPa (bar, kg/cm2, psi)Continuity
Engine startMore than 10 - 20
(0.10 - 0.20, 0.1 - 0.2,1-3)NO
Engine stopLess than 10 - 20
(0.10 - 0.20, 0.1 - 0.2,1-3)YES
Check the continuity between the terminals of oil pressure switch
and body ground.
DIODE CHECK
lCheck continuity using an ohmmeter.
lDiode is functioning properly if test results are as shown in
the figure at left.
NOTE: Specification may vary depending on the type of
tester. Before performing this inspection, be sure to
refer to the instruction manual for the tester to be
used.
lDiodes for warning lamps are built into the combination meter
printed circuit.
GEL191
MEL425F
SEL901F
GEL192
WARNING LAMPS
EL-116
Page 1415 of 1659
Wiring diagram Ð BUZZER Ð/LHD Models
for Europe
LIGHT WARNING BUZZER
HEL370A
WARNING BUZZER
EL-117
Page 1416 of 1659

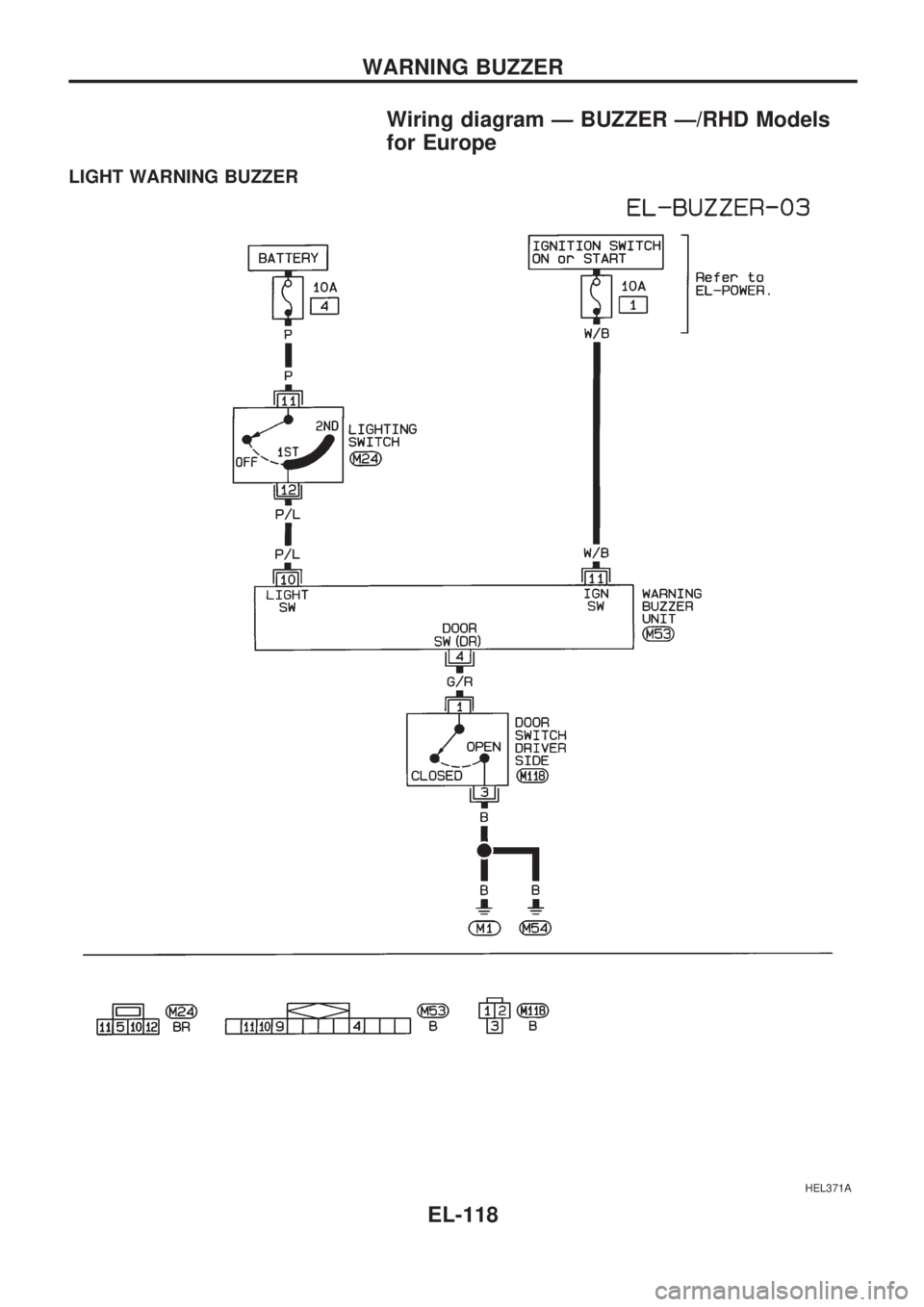

Wiring diagram Ð BUZZER Ð/RHD Models
for Europe
LIGHT WARNING BUZZER
HEL371A
WARNING BUZZER
EL-118
