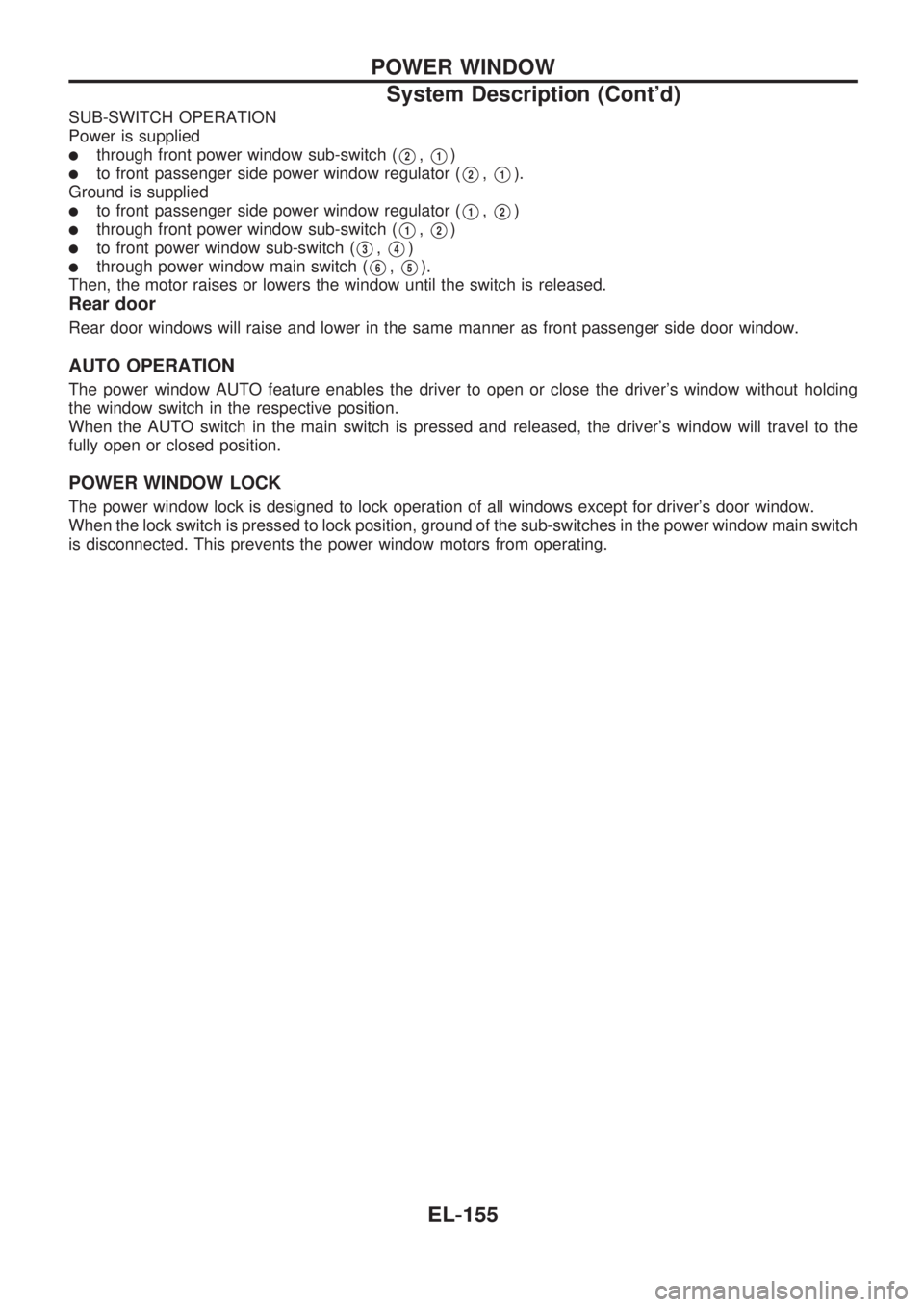

SUB-SWITCH OPERATION
Power is supplied
lthrough front power window sub-switch (V2,V1)
lto front passenger side power window regulator (V2,V1).
Ground is supplied
lto front passenger side power window regulator (V1,V2)
lthrough front power window sub-switch (V1,V2)
lto front power window sub-switch (V3,V4)
lthrough power window main switch (V6,V5).
Then, the motor raises or lowers the window until the switch is released.
Rear door
Rear door windows will raise and lower in the same manner as front passenger side door window.
AUTO OPERATION
The power window AUTO feature enables the driver to open or close the driver's window without holding
the window switch in the respective position.
When the AUTO switch in the main switch is pressed and released, the driver's window will travel to the
fully open or closed position.
POWER WINDOW LOCK
The power window lock is designed to lock operation of all windows except for driver's door window.
When the lock switch is pressed to lock position, ground of the sub-switches in the power window main switch
is disconnected. This prevents the power window motors from operating.
POWER WINDOW
System Description (Cont'd)
EL-155

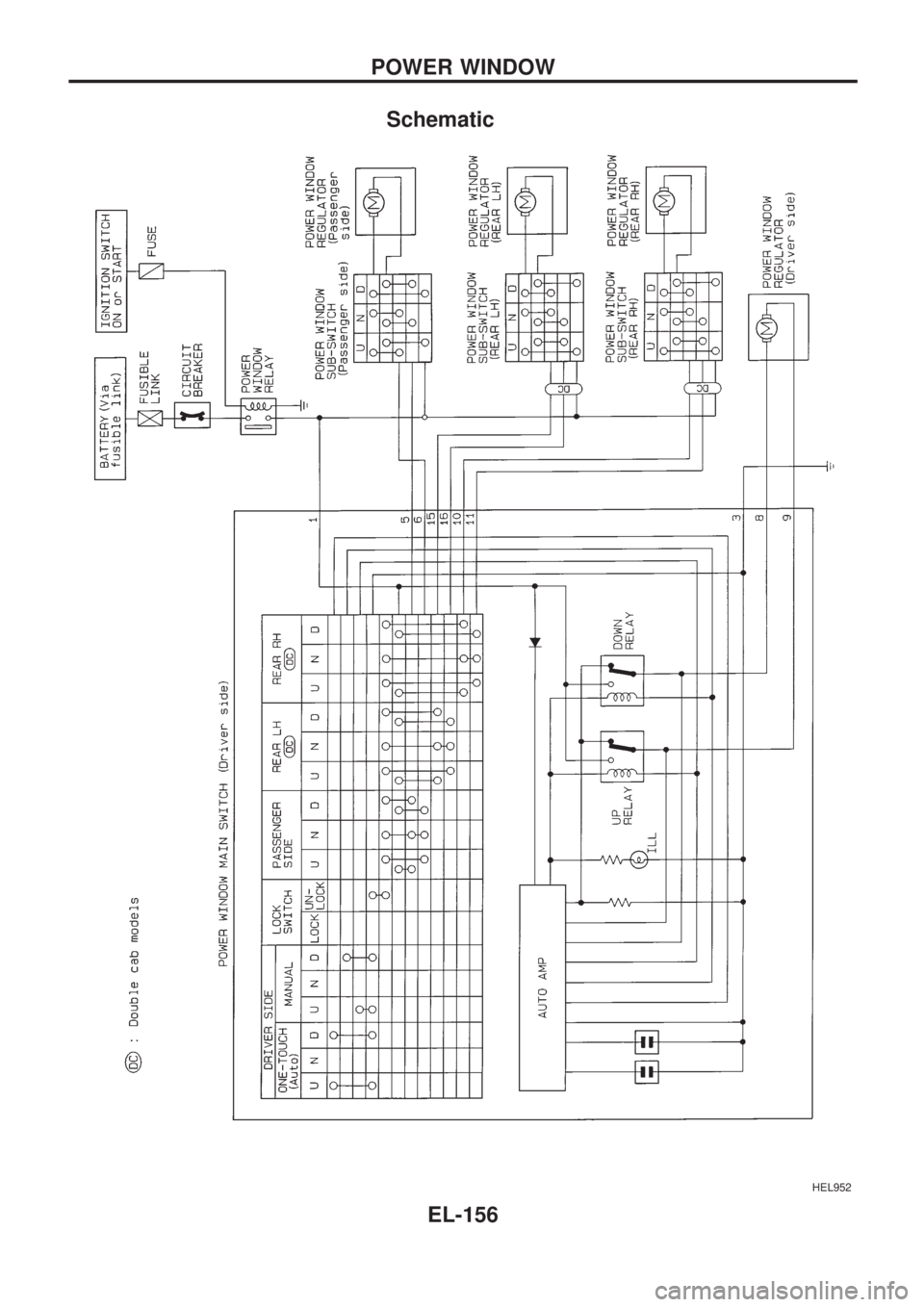

Schematic
HEL952
POWER WINDOW
EL-156

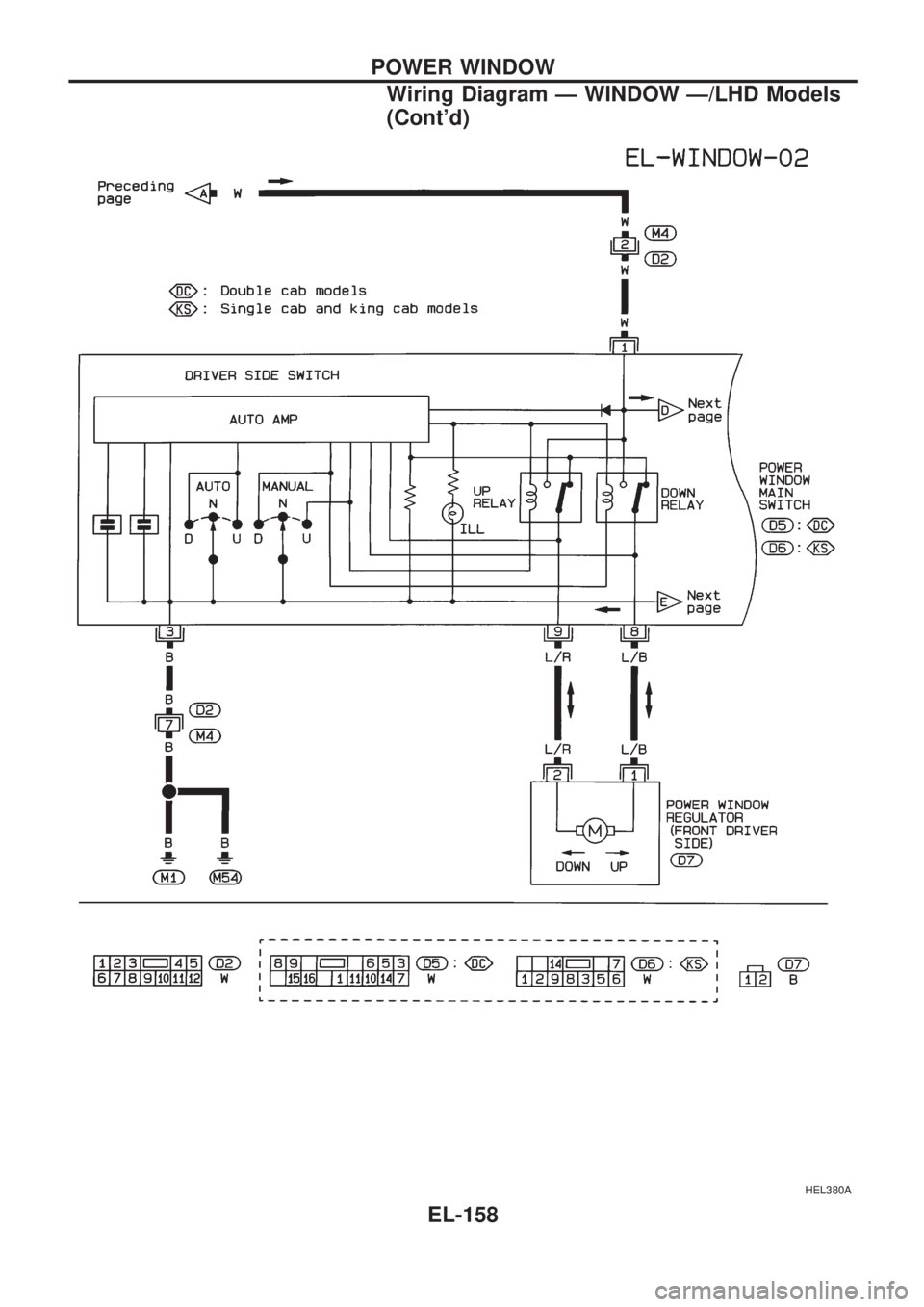

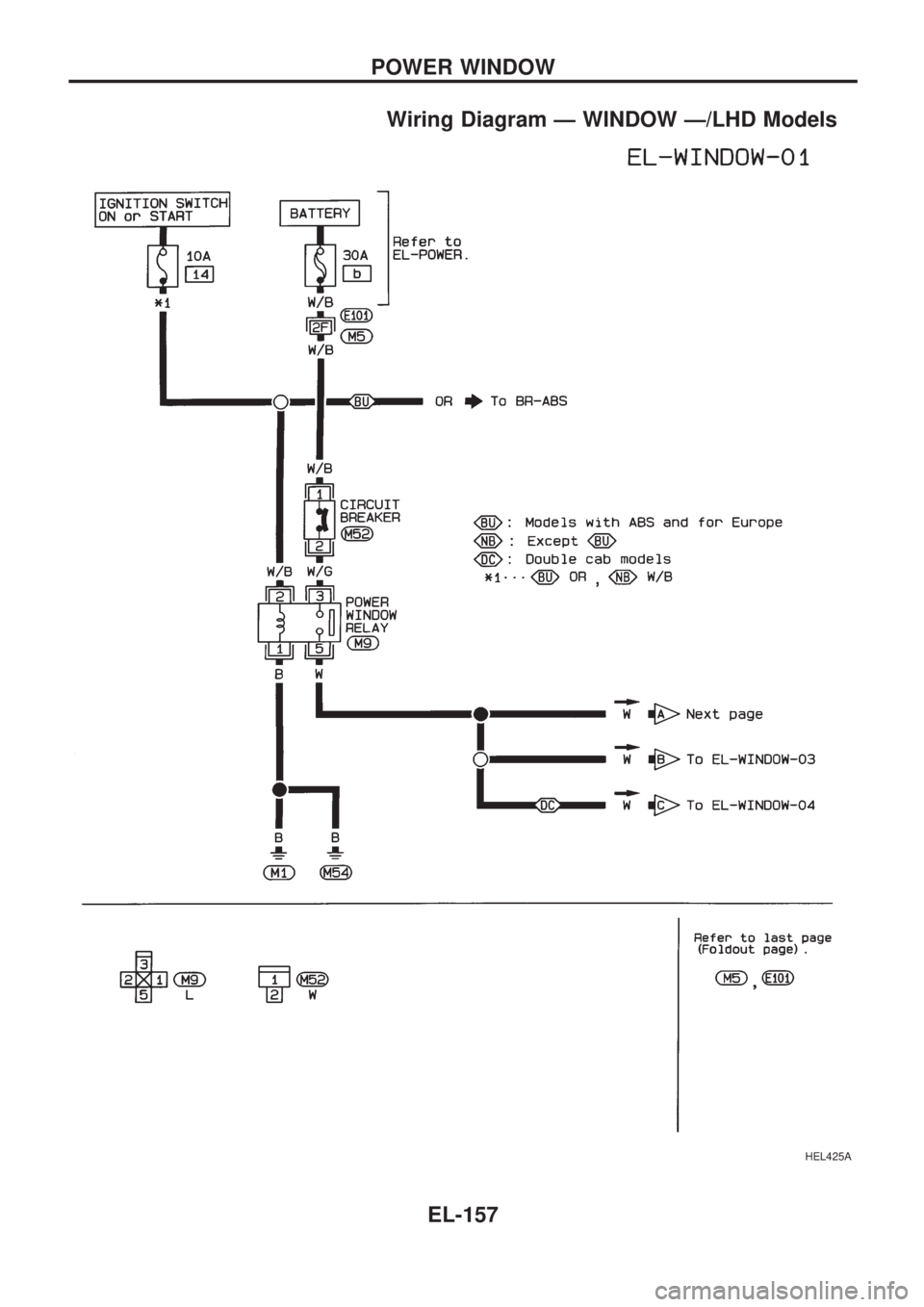

Wiring Diagram Ð WINDOW Ð/LHD Models
HEL425A
POWER WINDOW
EL-157

HEL380A

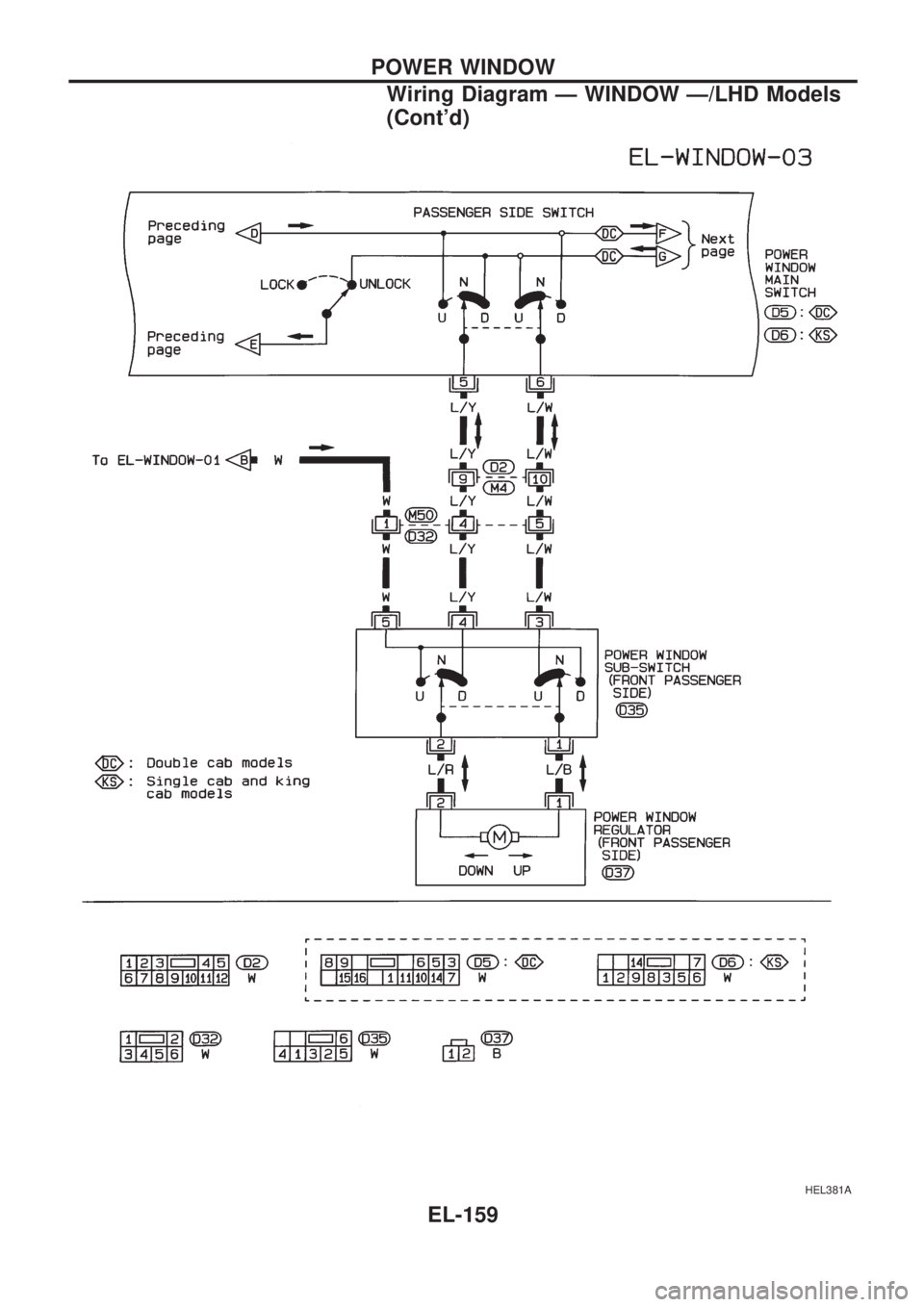

POWER WINDOW
Wiring Diagram Ð WINDOW Ð/LHD Models
(Cont'd)
EL-158

HEL381A

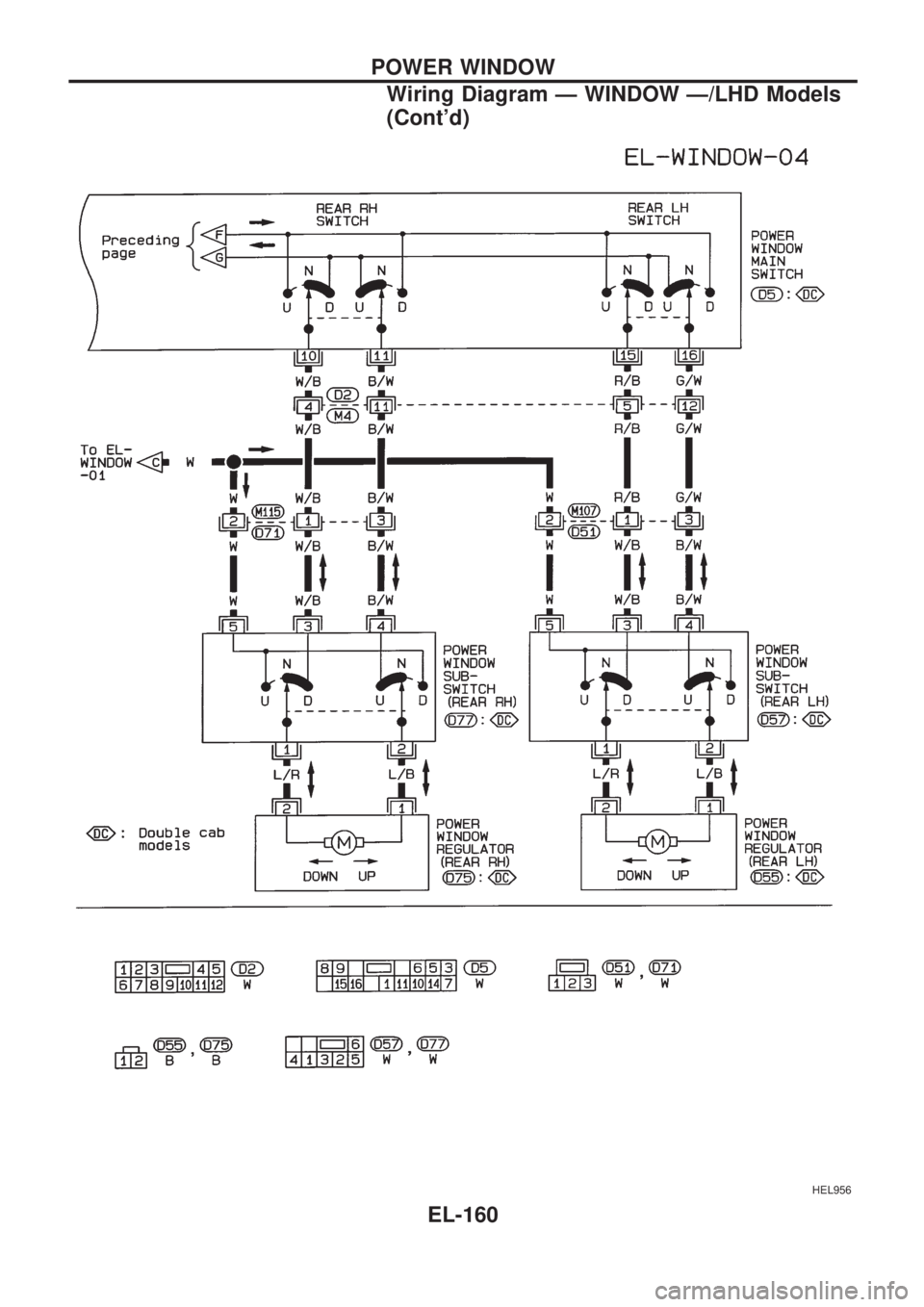

POWER WINDOW
Wiring Diagram Ð WINDOW Ð/LHD Models
(Cont'd)
EL-159

HEL956
POWER WINDOW
Wiring Diagram Ð WINDOW Ð/LHD Models
(Cont'd)
EL-160

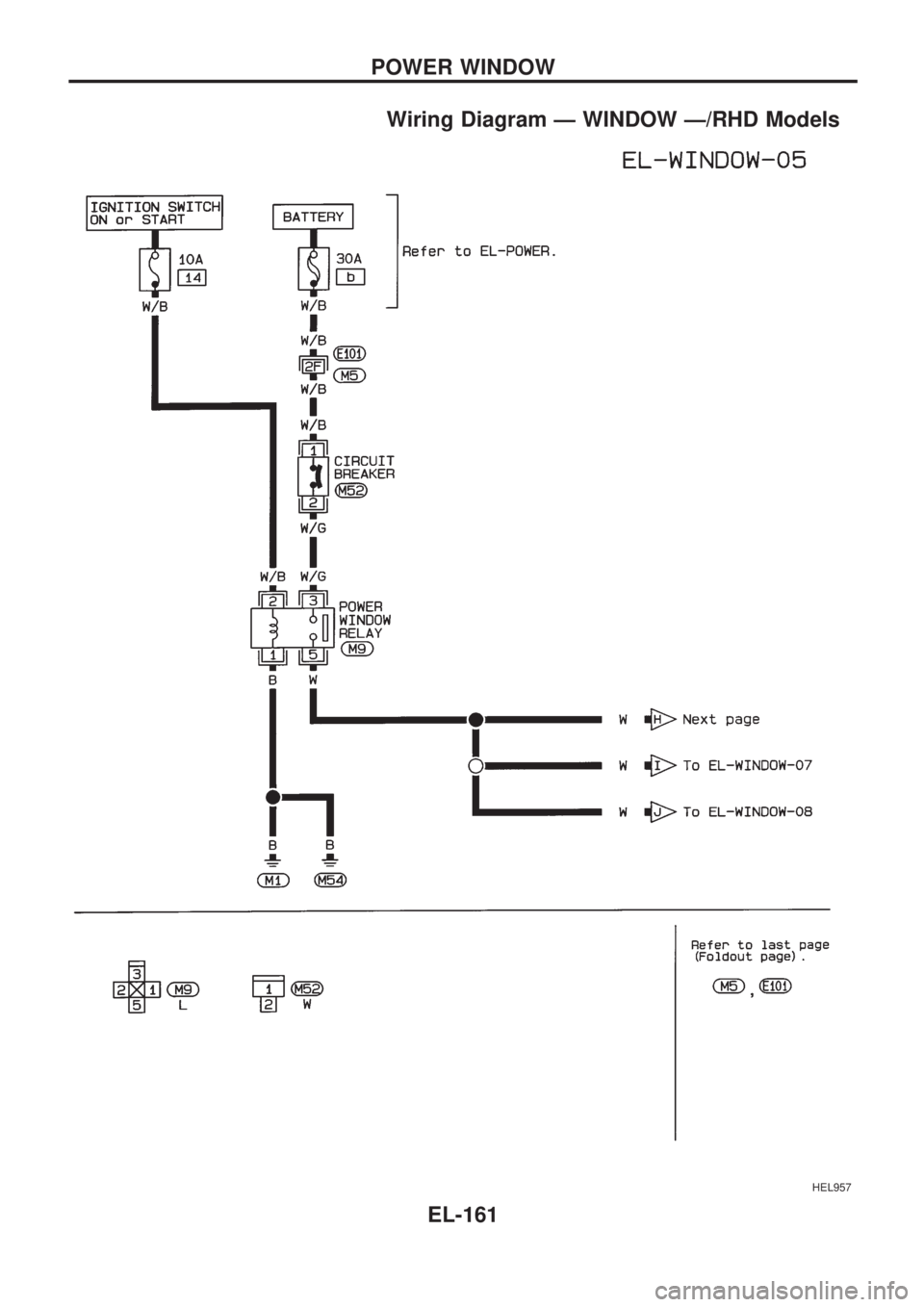

Wiring Diagram Ð WINDOW Ð/RHD Models
HEL957
POWER WINDOW
EL-161

HEL958
POWER WINDOW

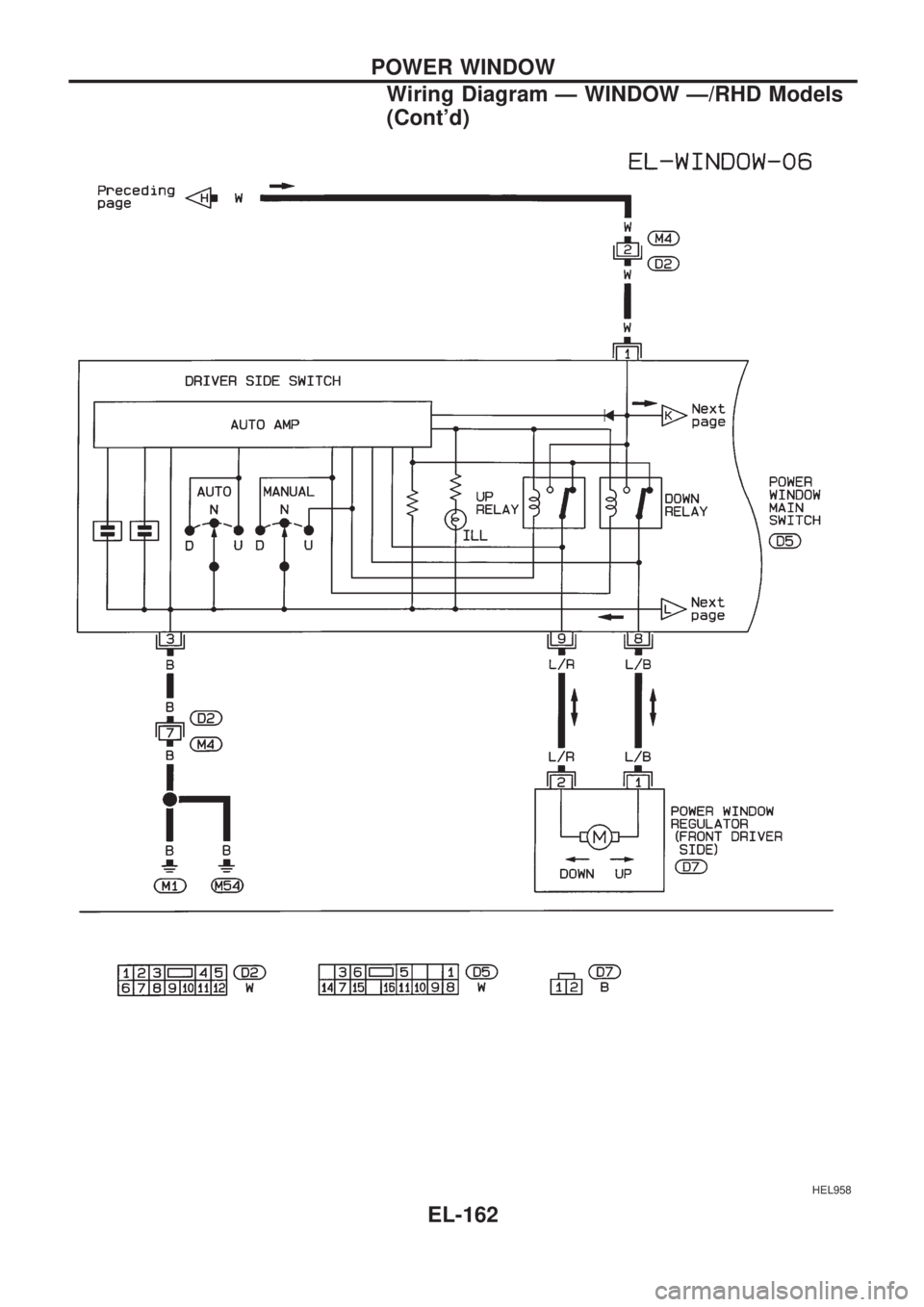

Wiring Diagram Ð WINDOW Ð/RHD Models
(Cont'd)
EL-162
