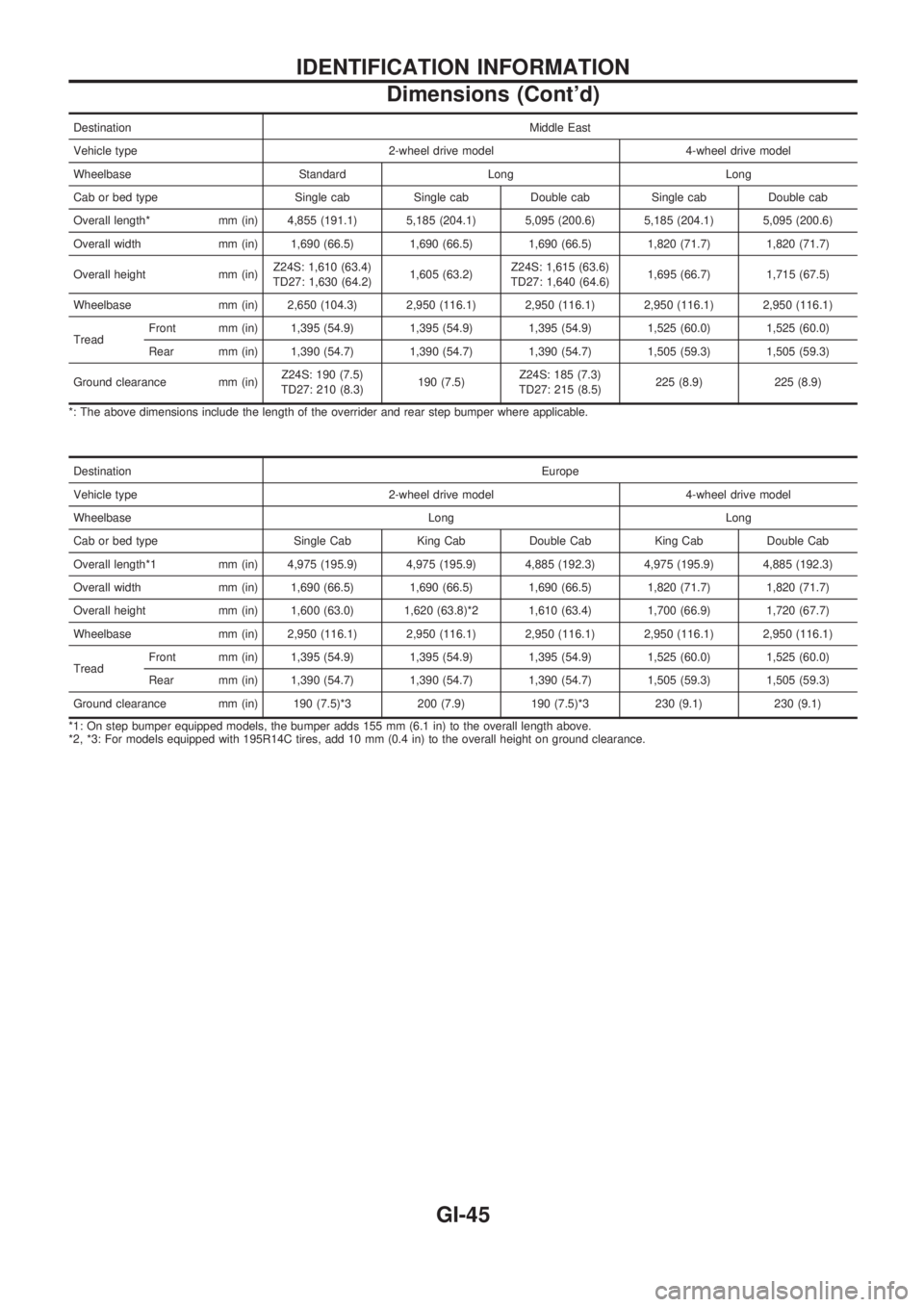

1998 NISSAN PICK-UP Repair Manual

DestinationMiddle East
Vehicle type 2-wheel drive model 4-wheel drive model
Wheelbase Standard Long Long
Cab or bed type Single cab Single cab Double cab Single cab Double cab
Overall length* mm (in) 4,855 (191.1) 5,185 (204.1) 5,095 (200.6) 5,185 (204.1) 5,095 (200.6)
Overall width mm (in) 1,690 (66.5) 1,690 (66.5) 1,690 (66.5) 1,820 (71.7) 1,820 (71.7)
Overall height mm (in)Z24S: 1,610 (63.4)
TD27: 1,630 (64.2)1,605 (63.2)Z24S: 1,615 (63.6)
TD27: 1,640 (64.6)1,695 (66.7) 1,715 (67.5)
Wheelbase mm (in) 2,650 (104.3) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1)
TreadFront mm (in) 1,395 (54.9) 1,395 (54.9) 1,395 (54.9) 1,525 (60.0) 1,525 (60.0)
Rear mm (in) 1,390 (54.7) 1,390 (54.7) 1,390 (54.7) 1,505 (59.3) 1,505 (59.3)
Ground clearance mm (in)Z24S: 190 (7.5)
TD27: 210 (8.3)190 (7.5)Z24S: 185 (7.3)
TD27: 215 (8.5)225 (8.9) 225 (8.9)
*: The above dimensions include the length of the overrider and rear step bumper where applicable.
DestinationEurope
Vehicle type 2-wheel drive model 4-wheel drive model
Wheelbase Long Long
Cab or bed type Single Cab King Cab Double Cab King Cab Double Cab
Overall length*1 mm (in) 4,975 (195.9) 4,975 (195.9) 4,885 (192.3) 4,975 (195.9) 4,885 (192.3)
Overall width mm (in) 1,690 (66.5) 1,690 (66.5) 1,690 (66.5) 1,820 (71.7) 1,820 (71.7)
Overall height mm (in) 1,600 (63.0) 1,620 (63.8)*2 1,610 (63.4) 1,700 (66.9) 1,720 (67.7)
Wheelbase mm (in) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1)
TreadFront mm (in) 1,395 (54.9) 1,395 (54.9) 1,395 (54.9) 1,525 (60.0) 1,525 (60.0)
Rear mm (in) 1,390 (54.7) 1,390 (54.7) 1,390 (54.7) 1,505 (59.3) 1,505 (59.3)
Ground clearance mm (in) 190 (7.5)*3 200 (7.9) 190 (7.5)*3 230 (9.1) 230 (9.1)
*1: On step bumper equipped models, the bumper adds 155 mm (6.1 in) to the overall length above.
*2, *3: For models equipped with 195R14C tires, add 10 mm (0.4 in) to the overall height on ground clearance.
IDENTIFICATION INFORMATION
Dimensions (Cont'd)
GI-45

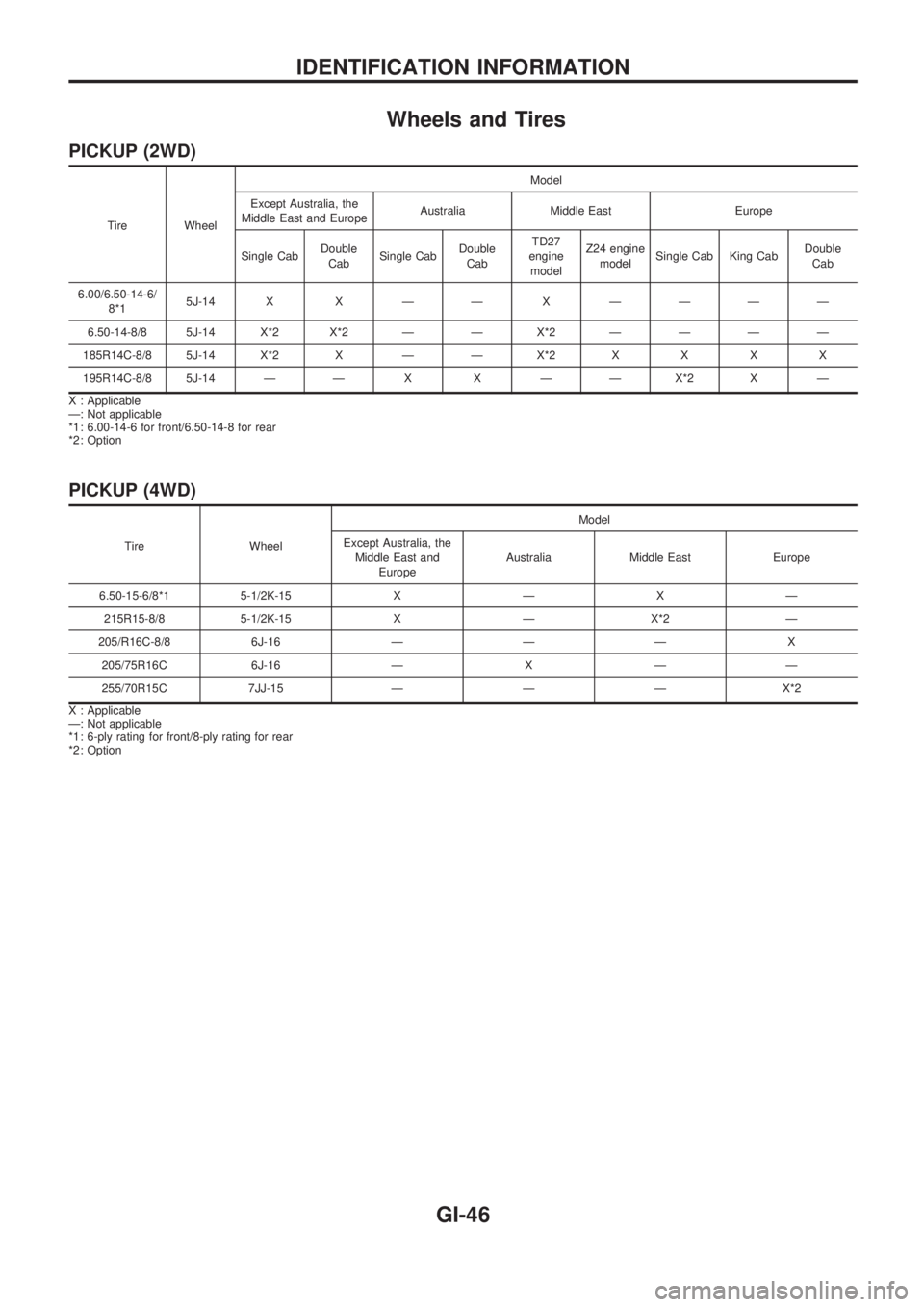

Wheels and Tires
PICKUP (2WD)
Tire WheelModel
Except Australia, the
Middle East and EuropeAustralia Middle East Europe
Single CabDouble
CabSingle CabDouble
CabTD27
engine
modelZ24 engine
modelSingle Cab King CabDouble
Cab
6.00/6.50-14-6/
8*15J-14 X X Ð Ð XÐÐÐÐ
6.50-14-8/8 5J-14 X*2 X*2 Ð Ð X*2ÐÐÐÐ
185R14C-8/8 5J-14 X*2 X Ð Ð X*2XXXX
195R14C-8/8 5J-14 Ð Ð X X Ð Ð X*2 X Ð
X : Applicable
Ð: Not applicable
*1 : 6.00-14-6 for front/6.50-14-8 for rear
*2 : Option
PICKUP (4WD)
Tire WheelModel
Except Australia, the
Middle East and
EuropeAustralia Middle East Europe
6.50-15-6/8*1 5-1/2K-15 X Ð X Ð
215R15-8/8 5-1/2K-15 X Ð X*2 Ð
205/R16C-8/8 6J-16 Ð Ð Ð X
205/75R16C 6J-16 Ð X Ð Ð
255/70R15C 7JJ-15 Ð Ð Ð X*2
X : Applicable
Ð: Not applicable
*1 : 6-ply rating for front/8-ply rating for rear
*2 : Option
IDENTIFICATION INFORMATION
GI-46

WARNING:
lNever get under the vehicle while it is supported only by the jack. Always use safety stands to
support the frame when you have to get under the vehicle.
lPlace wheel chocks at both front and back of the wheels on the ground.
Pantograph Jack
SGI054A
LIFTING POINTS AND TOW TRUCK TOWING
GI-47

Screw Jack
SGI055A
LIFTING POINTS AND TOW TRUCK TOWING
GI-48

Garage Jack and Safety Stand
CAUTION:
Place a wooden or rubber block between safety stand and vehicle body when the supporting body
is flat.
SGI971
LIFTING POINTS AND TOW TRUCK TOWING
GI-49

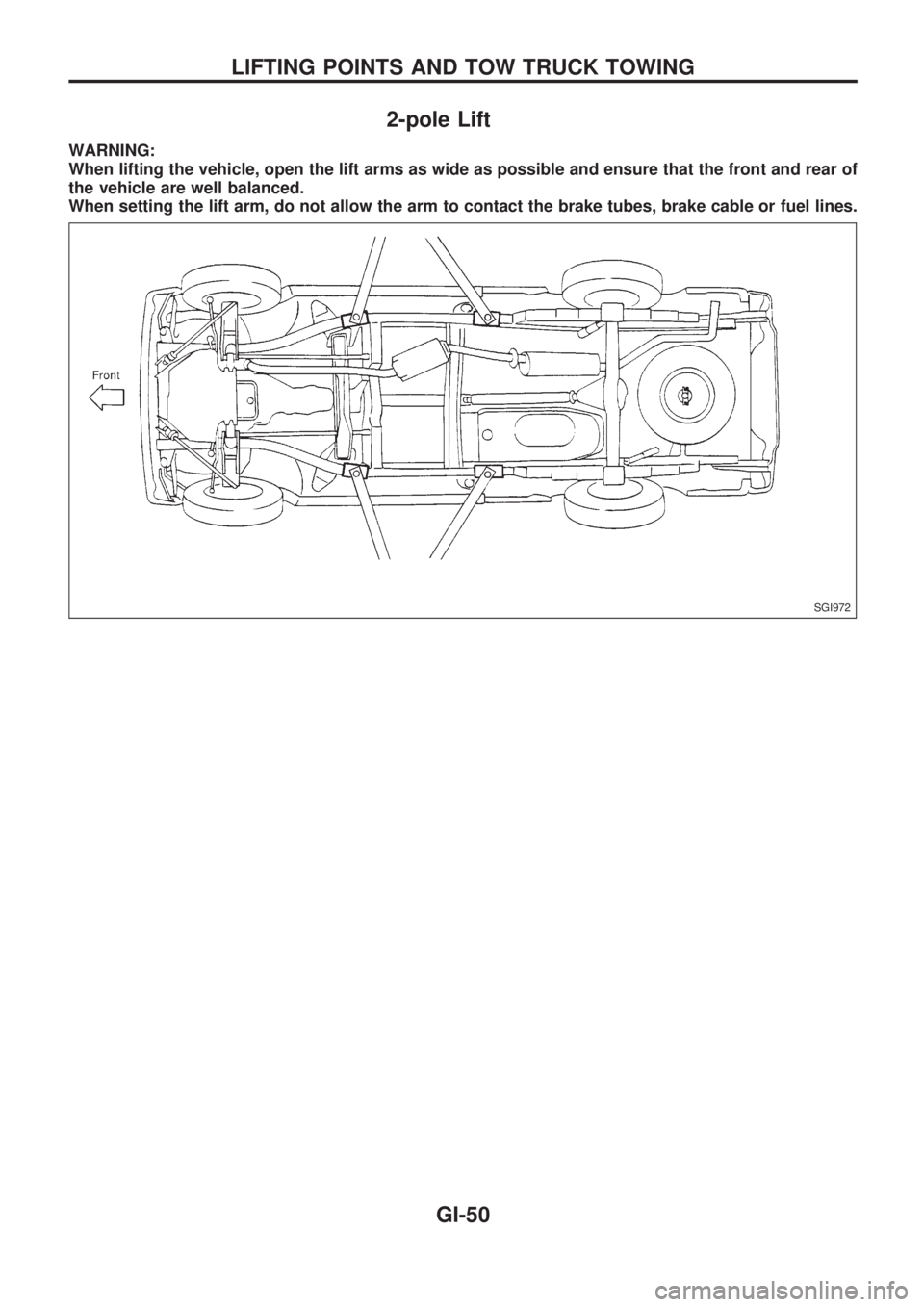

2-pole Lift
WARNING:
When lifting the vehicle, open the lift arms as wide as possible and ensure that the front and rear of
the vehicle are well balanced.
When setting the lift arm, do not allow the arm to contact the brake tubes, brake cable or fuel lines.
SGI972
LIFTING POINTS AND TOW TRUCK TOWING
GI-50

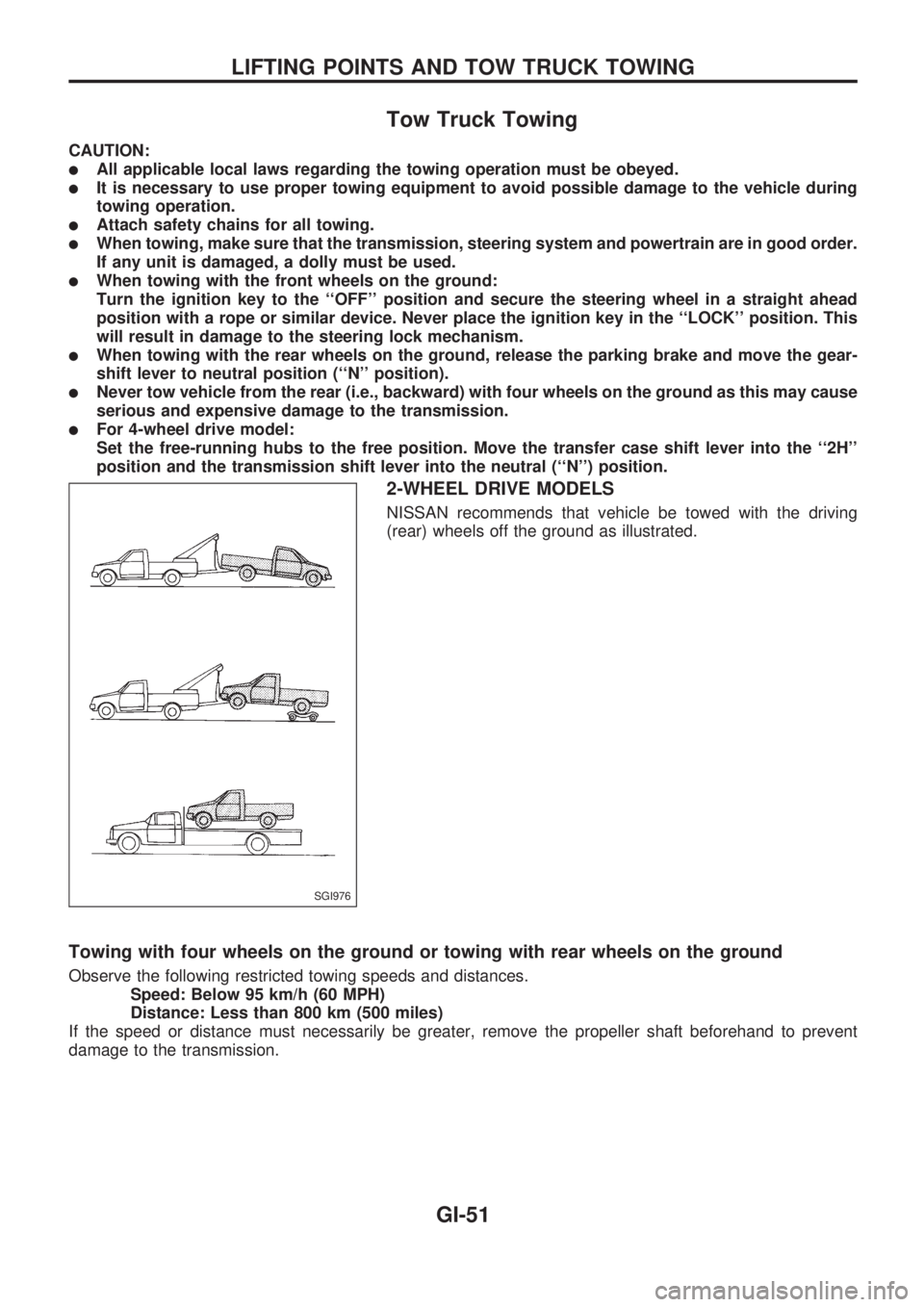

Tow Truck Towing
CAUTION:
lAll applicable local laws regarding the towing operation must be obeyed.
lIt is necessary to use proper towing equipment to avoid possible damage to the vehicle during
towing operation.
lAttach safety chains for all towing.
lWhen towing, make sure that the transmission, steering system and powertrain are in good order.
If any unit is damaged, a dolly must be used.
lWhen towing with the front wheels on the ground:
Turn the ignition key to the ``OFF'' position and secure the steering wheel in a straight ahead
position with a rope or similar device. Never place the ignition key in the ``LOCK'' position. This
will result in damage to the steering lock mechanism.
lWhen towing with the rear wheels on the ground, release the parking brake and move the gear-
shift lever to neutral position (``N'' position).
lNever tow vehicle from the rear (i.e., backward) with four wheels on the ground as this may cause
serious and expensive damage to the transmission.
lFor 4-wheel drive model:
Set the free-running hubs to the free position. Move the transfer case shift lever into the ``2H''
position and the transmission shift lever into the neutral (``N'') position.
2-WHEEL DRIVE MODELS
NISSAN recommends that vehicle be towed with the driving
(rear) wheels off the ground as illustrated.
Towing with four wheels on the ground or towing with rear wheels on the ground
Observe the following restricted towing speeds and distances.
Speed: Below 95 km/h (60 MPH)
Distance: Less than 800 km (500 miles)
If the speed or distance must necessarily be greater, remove the propeller shaft beforehand to prevent
damage to the transmission.
SGI976
LIFTING POINTS AND TOW TRUCK TOWING
GI-51

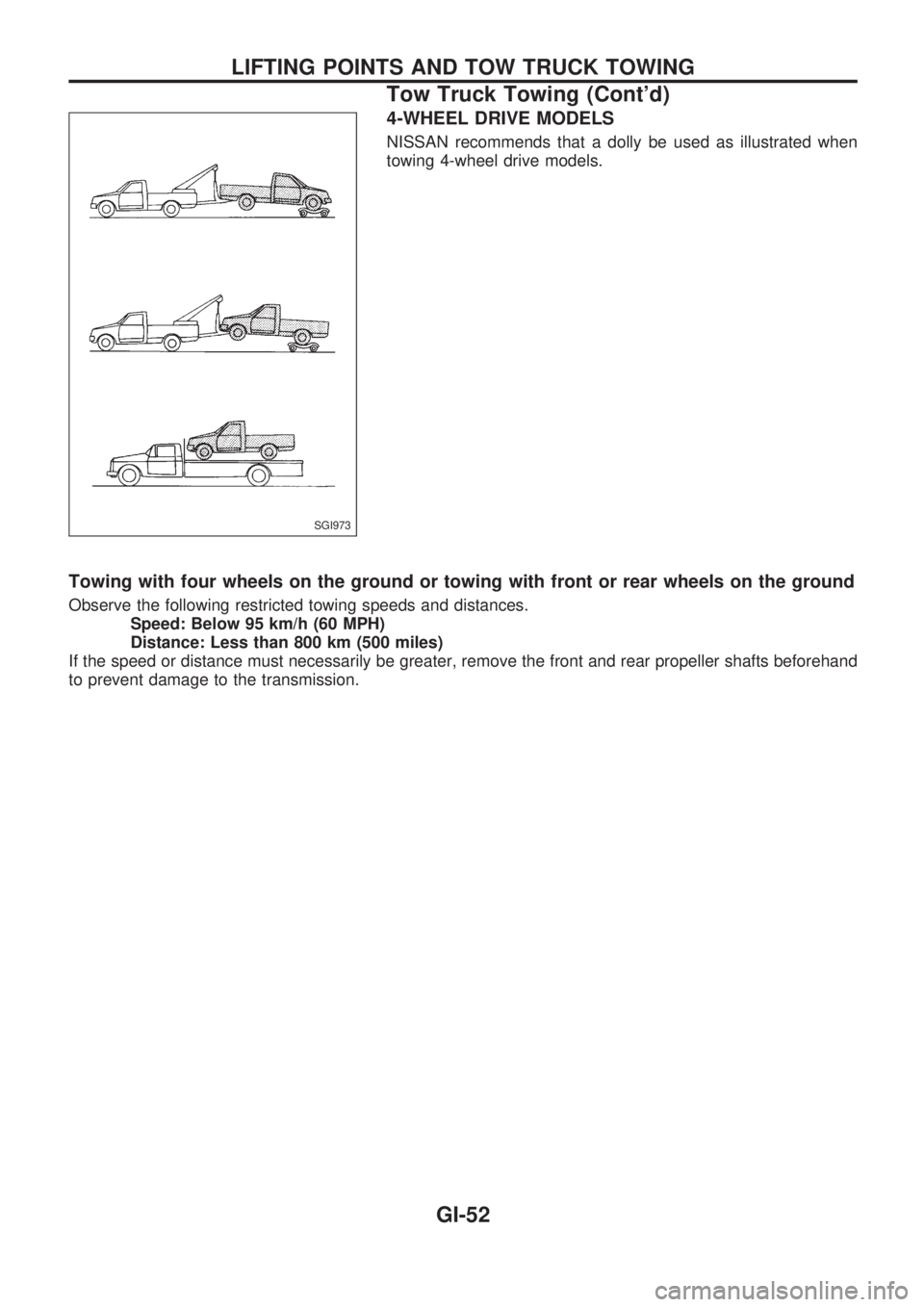

4-WHEEL DRIVE MODELS
NISSAN recommends that a dolly be used as illustrated when
towing 4-wheel drive models.
Towing with four wheels on the ground or towing with front or rear wheels on the ground
Observe the following restricted towing speeds and distances.
Speed: Below 95 km/h (60 MPH)
Distance: Less than 800 km (500 miles)
If the speed or distance must necessarily be greater, remove the front and rear propeller shafts beforehand
to prevent damage to the transmission.
SGI973
LIFTING POINTS AND TOW TRUCK TOWING
Tow Truck Towing (Cont'd)
GI-52
