1998 NISSAN PICK-UP Repair Manual

General maintenance includes those items which should be checked during the normal day-to-day opera-
tion of the vehicle. They are essential if the vehicle is to continue operating properly. The owners can per-
form the checks and inspections themselves or they can have their NISSAN dealers do them.
Item Reference pages
OUTSIDE THE VEHICLE
The maintenance items listed here should be performed from time to time, unless otherwise
specified.
TiresCheck the pressure with a gauge periodically when at a service station, including the
spare, and adjust to the specified pressure if necessary. Check carefully for damage, cuts or
excessive wear.Ð
Windshield wiper bladesCheck for cracks or wear if they do not wipe properly. Ð
Doors and engine hoodCheck that all doors, the engine hood, the trunk lid and back door
operate properly. Also ensure that all latches lock securely. Lubricate hinges, latches, rollers and
links if necessary. Make sure that the secondary latch keeps the hood from opening when the
primary latch is released.
When driving in areas using road salt or other corrosive materials, check for lubrication fre-
quently.MA-39
Tire rotationTires should be rotated every 10,000 km (6,000 miles) for 2WD models and every
5,000 km (3,000 miles) for 4WD models.MA-35
INSIDE THE VEHICLE
The maintenance items listed here should be checked on a regular basis, such as when per-
forming periodic maintenance, cleaning the vehicle, etc.
LightsMake sure that the headlights, stop lights, tail lights, turn signal lights, and other lights
are all operating properly and installed securely. Also check headlight aim.Ð
Warning lights and chimesMake sure that all warning lights and chimes are operating prop-
erly.Ð
Steering wheelCheck for change in the steering conditions, such as excessive free play, hard
steering or strange noises.
Free play: Less than 35 mm (1.38 in)Ð
Seat beltsCheck that all parts of the seat belt system (e.g. buckles, anchors, adjusters and
retractors) operate properly and smoothly, and are installed securely. Check the belt webbing for
cuts, fraying, wear or damage.MA-40
UNDER THE HOOD AND VEHICLE
The maintenance items listed here should be checked periodically e.g. each time you check the
engine oil or refuel.
Windshield washer fluidCheck that there is adequate fluid in the tank. Ð
Engine coolant levelCheck the coolant level when the engine is cold. MA-16, 25
Engine oil levelCheck the level after parking the vehicle on a level spot and turning off the
engine.MA-19, 24
Brake and clutch fluid levelMake sure that the brake and clutch fluid levels are between the
``MAX'' and ``MIN'' lines on the reservoir.MA-32, 35
BatteryCheck the fluid level in each cell. It should be between the ``MAX'' and ``MIN'' lines. Ð
GENERAL MAINTENANCE
MA-4

Depending on annual driving distance and engine types, different basic schedules are introduced here.
Please follow the appropriate schedule for the vehicle. Furthermore, according to the weather and atmo-
spheric conditions, varying road surfaces, individual driving habits and vehicle usage, additional or more

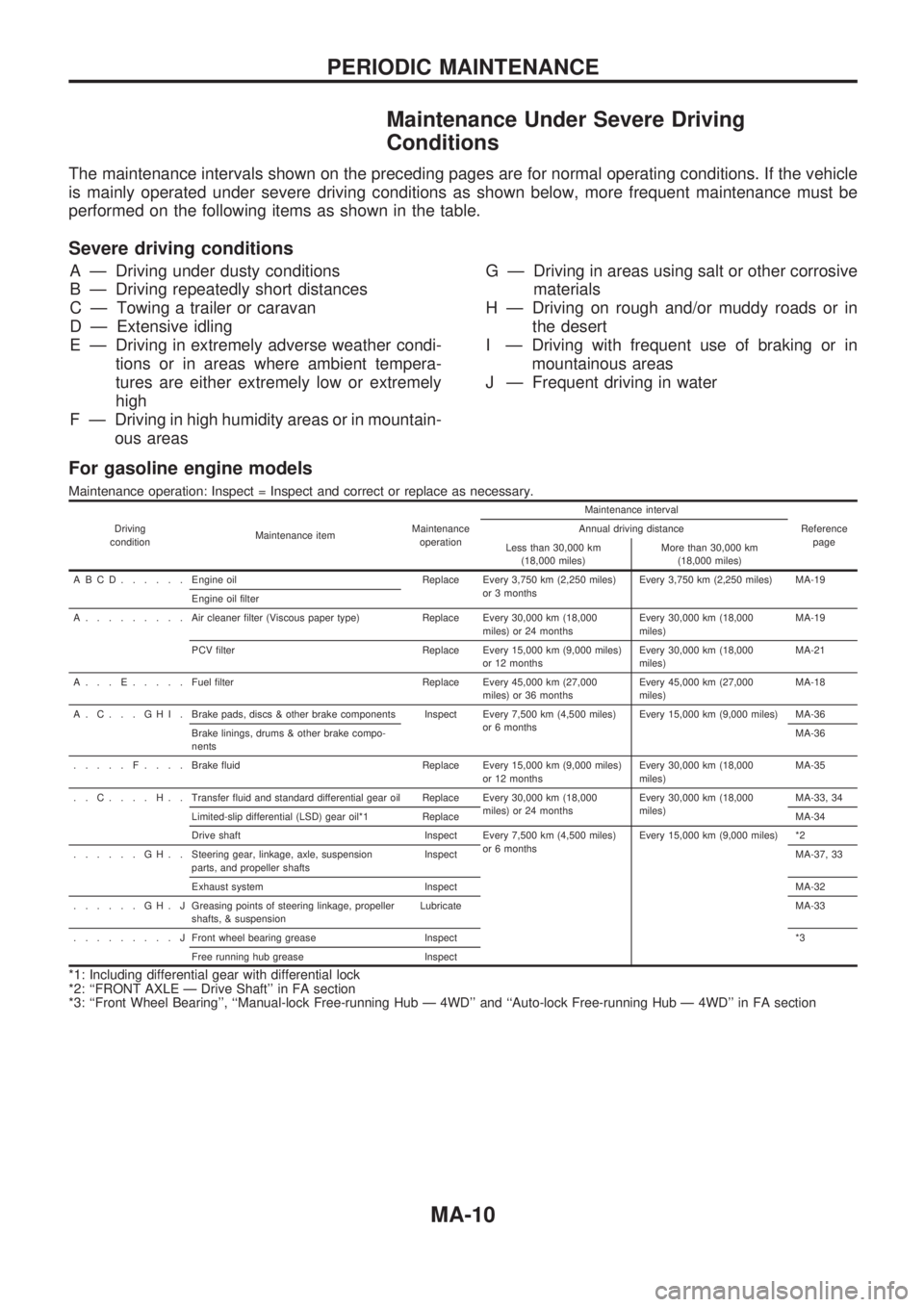

frequent maintenance may be required, as shown in ``Maintenance Under Severe Driving Conditions''.
Periodic maintenance beyond the last period shown on the tables requires similar maintenance.
Basic Schedule for Gasoline Engine Models
Engine maintenance for vehicles which drive less than 30,000 km/year (18,000 miles/year)
Abbreviations: R= Replace, I = Inspect and correct or replace as necessary.
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
page Perform at kilometer (mile) interval or month interval, whichever comes
first.km x 1,000 15 30 45 60 75 90
(Miles x 1,000) (9) (18) (27) (36) (45) (54)
Months 12 24 36 48 60 72
Engine oil (Use API SG or SH oil)*RRRRRRMA-19
Engine oil filter*RRRRRRMA-20
Drive beltsIIIIIIMA-15
Engine anti-freeze coolant (Ethylene glycol base) See NOTE (1) MA-16
Cooling systemIIIIIIMA-17
Air cleaner filter (Viscous paper type)*R MA-19
Fuel linesI I I MA-18
Fuel filter*R MA-18
Vapor linesI I I MA-22
Spark plugs (Conventional type)R R R MA-20
Ignition wiresI I MA-21
Heated oxygen sensor (Exhaust gas sensor)I I I MA-22
PCV filter*R R R MA-21
NOTE: (1) Replace at the first 90,000 km (54,000 miles) or 60 months, then every 60,000 km (36,000 miles) or 48 months,
whichever comes first.
* Maintenance item with ``*'' should be performed more frequently according to ``Maintenance Under Severe Driving Condi-
tions''.
PERIODIC MAINTENANCE
MA-5

Chassis and body maintenance for vehicles which drive less than 30,000 km/year (18,000 miles/year)
Abbreviations: R= Replace, I = Inspect and correct or replace as necessary, L = Lubricate, T = Tighten. [ ] = At the specified distance only.
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
page Perform at kilometer (mile) interval or month interval, whichever comes
first.km x 1,000 15 30 45 60 75 90
(Miles x 1,000) (9) (18) (27) (36) (45) (54)
Months 12 24 36 48 60 72
Headlamp aimingIIIIIINOTE (3)
Wheel alignment (If necessary, rotate & balance wheels)IIIIIIMA-35, NOTE (4)
Brake pads, discs & other brake components*IIIIIIMA-36
Brake linings, drums & other brake components*IIIIIIMA-36
Foot brake, parking brake & clutch (For free play, stroke & operation)IIIIIINOTE (5)
Brake booster vacuum hoses, connections & check valve I I I MA-36
Brake & clutch systemsIIIIIIMA-32, 35
Brake & clutch fluid (For level & leaks)IIIIIIMA-32, 35
Brake fluid*R R R MA-35
Power steering fluid & lines (For level & leaks)IIIIIIMA-37
Manual steering gear oil (For level & leaks)IIIIIIMA-38
Air bag system See NOTE (1) NOTE (6)
Manual transmission oil (Inspect for leaks or replace)IIIII[R]MA-32
Transfer fluid and standard differential gear oil (For leaks)* I I I R I I MA-33, 34
Limited-slip differential (LSD) gear oil (For level and leaks)* I I I R I I MA-34
Steering gear, linkage, axle, suspension parts & propeller shaft*IIIIIIMA-37, 33
Greasing point of steering linkage, propeller shaft & suspension* See NOTE (2)LLLLLLMA-33
Exhaust system*IIIIIIMA-32
Drive shaft*IIIIIINOTE (7)
Front wheel bearing grease (2WD models)I I I NOTE (8)
Front wheel bearing grease (4WD models)* I R I R I R NOTE (8)
Free-running hub grease (4WD models)*IIIIIINOTE (9)
Body mountingsTTTTTTNOTE (10)
Body corrosionAnnually MA-41
NOTE: (1) Inspect at the first 10 years, and then every 2 years.
(2) The propeller shaft should be re-greased daily if it is immersed in water.
(3) ``Aiming Adjustment'' in EL section
(4) ``Front Wheel Alignment'' in FA section
(5) ``Brake Pedal and Bracket'' in BR section, ``Adjusting Clutch Pedal'' in CL section
(6) ``Maintenance Items'' in RS section
(7) ``FRONT AXLE Ð Drive Shaft'' in FA section
(8) ``Front Wheel Bearing'' in FA section
(9) ``Manual-lock Free-running Hub Ð 4WD'' and ``Auto-lock Free-running Hub Ð 4WD'' in FA section
(10) ``CAB AND REAR BODY'' in BT section
* Maintenance item with ``*'' should be performed more frequently according to ``Maintenance Under Severe Driving Condi-
tions''.
PERIODIC MAINTENANCE
Basic Schedule for Gasoline Engine Models
(Cont'd)
MA-6

Engine maintenance for vehicles which drive more than 30,000 km/year (18,000 miles/year)
Abbreviations: R= Replace, I = Inspect and correct or replace as necessary.
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
page
Perform at kilometer (mile) interval.km x 1,000 15 30 45 60 75 90 105 120
(Miles x 1,000) (9) (18) (27) (36) (45) (54) (63) (72)
Engine oil (Use API SG or SH oil)*RRRRRRRRMA-19
Engine oil filter*RRRRRRRRMA-20
Drive beltsIIIIIIIIMA-15
Engine anti-freeze coolant (Ethylene glycol base) See NOTE (1) R MA-16
Cooling systemIIIIMA-17
Air cleaner filter (Viscous paper type)*R R MA-19
Fuel linesI I MA-18
Fuel filter*R MA-18
Vapor linesI I MA-22
Spark plugs (Conventional type)RRRRMA-20
Ignition wiresI MA-21
Heated oxygen sensor (Exhaust gas sensor)I I MA-22
PCV filter*R R MA-21
NOTE: (1) Replace at the first 90,000 km (54,000 miles), then every 60,000 km (36,000 miles).
* Maintenance item with ``*'' should be performed more frequently according to ``Maintenance Under Severe Driving Condi-
tions''.
Chassis and body maintenance for vehicles which drive more than 30,000 km/year (18,000 miles/year)
Abbreviations: R= Replace, I = Inspect and correct or replace as necessary, L = Lubricate, T = Tighten.
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
page
Perform at kilometer (mile) interval.km x 1,000 15 30 45 60 75 90 105 120
(Miles x 1,000) (9) (18) (27) (36) (45) (54) (63) (72)
Headlamp aimingIIIINOTE (3)
Wheel alignment (If necessary, rotate & balance wheels)IIIIMA-35, NOTE (4)
Brake pads, discs & other brake components*IIIIMA-36
Brake linings, drums & other brake components*IIIIMA-36
Foot brake, parking brake & clutch (For free play, stroke & operation)IIIINOTE (5)
Brake booster vacuum hoses, connections & check valve I I MA-36
Brake & clutch systemsIIIIMA-32, 35
Brake & clutch fluid (For level & leaks)IIIIMA-32, 35
Brake fluid*R R MA-35
Power steering fluid & lines (For level & leaks)IIIIMA-37
Manual steering gear oil (For level & leaks)IIIIMA-38
Air bag system See NOTE (1)NOTE (6)
Manual transmission oil (Inspect for leaks or replace) I I R I MA-32
Transfer fluid and standard differential gear oil (For leaks)* I R I R MA-33, 34
Limited-slip differential (LSD) gear oil (For level and leaks)* I R I R MA-34
Steering gear, linkage, axle, suspension parts & propeller shaft*IIIIMA-37, 33
Greasing point of steering linkage, propeller shaft & sus-
pension*See NOTE (2)LLLLMA-33
Exhaust system*IIIIMA-32
Drive shaft*IIIINOTE (7)
Front wheel bearing grease (2WD models)I I NOTE (8)
Front wheel bearing grease (4WD models)* I R I R NOTE (8)
Free-running hub grease (4WD models)*IIIINOTE (9)
Body mountingsTTTTNOTE (10)
Body corrosionAnnually MA-41
NOTE: (1) Inspect at the first 10 years, and then every 2 years.
(2) The propeller shaft should be re-greased daily if it is immersed in water.
(3) ``Aiming Adjustment'' in EL section
(4) ``Front Wheel Alignment'' in FA section
(5) ``Brake Pedal and Bracket'' in BR section, ``Adjusting Clutch Pedal'' in CL section
(6) ``Maintenance Items'' in RS section
(7) ``FRONT AXLE Ð Drive Shaft'' in FA section
(8) ``Front Wheel Bearing'' in FA section
(9) ``Manual-lock Free-running Hub Ð 4WD'' and ``Auto-lock Free-running Hub Ð 4WD'' in FA section
(10) ``CAB AND REAR BODY'' in BT section
* Maintenance item with ``*'' should be performed more frequently according to ``Maintenance Under Severe Driving Condi-
tions''.
PERIODIC MAINTENANCE
Basic Schedule for Gasoline Engine Models
(Cont'd)
MA-7

Basic Schedule for Diesel Engine Models
Engine maintenance for vehicles which drive less than 30,000 km/year (18,000 miles/year)
Abbreviations: R= Replace, I = Inspect and correct or replace as necessary. [ ] = At the specified distance only.
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
page Perform at kilometer (mile)
interval or month interval,
whichever comes first.km x 1,000 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
(Miles x 1,000) (4.5) (9) (13.5) (18) (22.5) (27) (31.5) (36) (40.5) (45) (49.5) (54)
Months 6 12 18 24 30 36 42 48 54 60 66 72
Engine oil (Use recommended
oil)*RRRRRRRRRRRRMA-24
Engine oil filter*RRRRRRRRRRRRMA-24
Drive beltsIIIIIIMA-23
Engine anti-freeze coolant
(Ethylene glycol base)See NOTE (1)R MA-25
Cooling systemIIIIIIMA-26
Air cleaner filter (Viscous paper type)* R R MA-29
Intake & exhaust valve clearance I I I MA-23
Fuel linesI I I MA-28
Fuel filter*R R R MA-27
Injection nozzles See NOTE (2)MA-29
NOTE: (1) Replace at the first 75,000 km (45,000 miles) or 60 months, then every 45,000 km (27,000 miles) or 36 months,
whichever comes first.
(2) If engine power decreases, black exhaust is emitted or engine noise increases, inspect and if necessary, adjust
the fuel injection nozzles starting pressure and the spray pattern.
* Maintenance item with ``*'' should be performed more frequently according to ``Maintenance Under Severe Driving Condi-
tions''.
Chassis and body maintenance for vehicles which drive less than 30,000 km/year (18,000 miles/year)
Abbreviations: R= Replace, I = Inspect and correct or replace as necessary, L = Lubricate, T = Tighten. [ ] = At the specified distance only.
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
page Perform at kilometer (mile) interval or
month interval, whichever comes first.km x 1,000 15 30 45 60 75 90
(Miles x 1,000) (9) (18) (27) (36) (45) (54)
Months 12 24 36 48 60 72
Headlamp aimingIIIIIINOTE (3)
Wheel alignment (if necessary, rotate & balance wheels)IIIIIIMA-35, NOTE (4)
Brake pads, discs & other brake components*IIIIIIMA-36
Brake linings, drums & other brake components*IIIIIIMA-36
Foot brake, parking brake & clutch (For free play, stroke & operation)IIIIIINOTE (5)
Brake booster vacuum hoses, connections & check valve I I I MA-36
Brake & clutch systemsIIIIIIMA-32, 35
Brake & clutch fluid (For level & leaks)IIIIIIMA-32, 35
Brake fluid*R R R MA-35
Power steering fluid & lines (For level & leaks)IIIIIIMA-37
Manual steering gear oil (For level & leaks)IIIIIIMA-38
Air bag system See NOTE (1)NOTE (6)
Manual transmission oil (Inspect for leaks or replace)IIIII[R]MA-32
Transfer fluid and standard differential gear oil (for leaks)* I I I R I I MA-33, 34
Limited-slip differential (LSD) gear oil (For level and leaks)* I I I R I I MA-34
Steering gear, linkage, axle, suspension parts & propeller shaft*IIIIIIMA-37, 33
Greasing point of steering linkage, propeller
shaft & suspension*See NOTE (2)LLLLLLMA-33
Exhaust system*IIIIIIMA-32
Drive shaft*IIIIIINOTE (7)
Front wheel bearing grease (2WD models) I I I NOTE (8)
Front wheel bearing grease (4WD models)* I R I R I R NOTE (8)
Free-running hub grease (4WD models)*IIIIIINOTE (9)
Body mountingsTTTTTTNOTE (10)
Body corrosionAnnually MA-41
NOTE: (1) Inspect at the first 10 years, and then every 2 years.
(2) The propeller shaft should be re-greased daily if it is immersed in water.
(3) ``Aiming Adjustment'' in EL section
(4) ``Front Wheel Alignment'' in FA section
(5) ``Brake Pedal and Bracket'' in BR section, ``Adjusting Clutch Pedal'' in CL section
(6) ``Maintenance Items'' in RS section
(7) ``FRONT AXLE Ð Drive Shaft'' in FA section
(8) ``Front Wheel Bearing'' in FA section
(9) ``Manual-lock Free-running Hub Ð 4WD'' and ``Auto-lock Free-running Hub Ð 4WD'' in FA section
(10) ``CAB AND REAR BODY'' in BT section
* Maintenance item with ``*'' should be performed more frequently according to ``Maintenance Under Severe Driving Conditions''.
PERIODIC MAINTENANCE
MA-8

Engine maintenance for vehicles which drive more than 30,000 km/year (18,000 miles/year)
Abbreviations: R= Replace, I = Inspect and correct or replace as necessary.
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
page
Perform at kilometer (mile) interval.km x 1,000 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
(Miles x 1,000) (4.5) (9) (13.5) (18) (22.5) (27) (31.5) (36) (40.5) (45) (49.5) (54)
Engine oil (Use recommended oil)*RRRRRRRRRRRRMA-24
Engine oil filter*RRRRRRRRRRRRMA-24
Drive beltsIIIIIIMA-23
Engine anti-freeze coolant (Ethylene glycol base) See NOTE (1)R MA-25
Cooling systemI I I MA-26
Air cleaner filter (Viscous paper type)*R MA-29
Intake & exhaust valve clearance I I I MA-23
Fuel linesI MA-28
Fuel filter*R MA-27
Injection nozzles See NOTE (2)MA-29
NOTE: (1) Replace at the first 90,000 km (54,000 miles), then every 60,000 km (36,000 miles).
(2) If engine power decreases, black exhaust is emitted or engine noise increases, inspect and if necessary, adjust
the fuel injection nozzles starting pressure and the spray pattern.
* Maintenance item with ``*'' should be performed more frequently according to ``Maintenance Under Severe Driving Condi-
tions''.
Chassis and body maintenance for vehicles which drive more than 30,000 km/year (18,000 miles/year)
Abbreviations: R= Replace, I = Inspect and correct or replace as necessary, L = Lubricate, T = Tighten.
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
page
Perform at kilometer (mile) interval.km x 1,000 30 60 90 120
(Miles x 1,000) (18) (36) (54) (72)
Headlamp aimingI I I I NOTE (3)
Wheel alignment (if necessary, rotate & balance wheels) I I I IMA-35,
NOTE (4)
Brake pads, discs & other brake components* I I I I MA-36
Brake linings, drums & other brake components* I I I I MA-36
Foot brake, parking brake & clutch (For free play, stroke & operation) I I I I NOTE (5)
Brake booster vacuum hoses, connections & check valve I I MA-36
Brake & clutch systems I I I I MA-32, 35
Brake & clutch fluid (For level & leaks) I I I I MA-32, 35
Brake fluid*R R MA-35
Power steering fluid & lines (For level & leaks) I I I I MA-37
Manual steering gear oil (For level & leaks) I I I I MA-38
Air bag system See NOTE (1)NOTE (6)
Manual transmission oil (Inspect for leaks or replace) I I R I MA-32
Transfer fluid and standard differential gear oil (for leaks)* I R I R MA-33, 34
Limited-slip differential (LSD) gear oil (For level and leaks)* I R I R MA-34
Steering gear, linkage, axle, suspension parts & propeller shaft* I I I I MA-37, 33
Greasing point of steering linkage, propeller
shaft & suspension*See NOTE (2) L L L L MA-33
Exhaust system*I I I I MA-32
Drive shaft*I I I I NOTE (7)
Front wheel bearing grease (2WD models) I I NOTE (8)
Front wheel bearing grease (4WD models)* I R I R NOTE (8)
Free-running hub grease (4WD models)* I I I I NOTE (9)
Body mountingsT T T T NOTE (10)
Body corrosionAnnually MA-41
NOTE: (1) Inspect at the first 10 years, and then every 2 years.
(2) The propeller shaft should be re-greased daily if it is immersed in water.
(3) ``Aiming Adjustment'' in EL section
(4) ``Front Wheel Alignment'' in FA section
(5) ``Brake Pedal and Bracket'' in BR section, ``Adjusting Clutch Pedal'' in CL section
(6) ``Maintenance Items'' in RS section
(7) ``FRONT AXLE Ð Drive Shaft'' in FA section
(8) ``Front Wheel Bearing'' in FA section
(9) ``Manual-lock Free-running Hub Ð 4WD'' and ``Auto-lock Free-running Hub Ð 4WD'' in FA section
(10) ``CAB AND REAR BODY'' in BT section
* Maintenance item with ``*'' should be performed more frequently according to ``Maintenance Under Severe Driving Condi-
tions''.
PERIODIC MAINTENANCE
Basic Schedule for Diesel Engine Models
(Cont'd)
MA-9

Maintenance Under Severe Driving
Conditions
The maintenance intervals shown on the preceding pages are for normal operating conditions. If the vehicle
is mainly operated under severe driving conditions as shown below, more frequent maintenance must be
performed on the following items as shown in the table.
Severe driving conditions
A Ð Driving under dusty conditions
B Ð Driving repeatedly short distances
C Ð Towing a trailer or caravan
D Ð Extensive idling
E Ð Driving in extremely adverse weather condi-
tions or in areas where ambient tempera-
tures are either extremely low or extremely
high
F Ð Driving in high humidity areas or in mountain-
ous areasG Ð Driving in areas using salt or other corrosive
materials
H Ð Driving on rough and/or muddy roads or in
the desert
I Ð Driving with frequent use of braking or in
mountainous areas
J Ð Frequent driving in water
For gasoline engine models
Maintenance operation: Inspect = Inspect and correct or replace as necessary.
Driving
conditionMaintenance itemMaintenance
operationMaintenance interval
Reference
page Annual driving distance
Less than 30,000 km
(18,000 miles)More than 30,000 km
(18,000 miles)
ABCD......Engine oil Replace Every 3,750 km (2,250 miles)
or 3 monthsEvery 3,750 km (2,250 miles) MA-19
Engine oil filter
A.........Aircleaner filter (Viscous paper type) Replace Every 30,000 km (18,000
miles) or 24 monthsEvery 30,000 km (18,000
miles)MA-19
PCV filter Replace Every 15,000 km (9,000 miles)
or 12 monthsEvery 30,000 km (18,000
miles)MA-21
A...E.....Fuel filter Replace Every 45,000 km (27,000
miles) or 36 monthsEvery 45,000 km (27,000
miles)MA-18
A.C...GHI.Brake pads, discs & other brake components Inspect Every 7,500 km (4,500 miles)
or 6 monthsEvery 15,000 km (9,000 miles) MA-36
Brake linings, drums & other brake compo-
nentsMA-36
.....F....Brake fluid Replace Every 15,000 km (9,000 miles)
or 12 monthsEvery 30,000 km (18,000
miles)MA-35
..C....H..Transfer fluid and standard differential gear oil Replace Every 30,000 km (18,000
miles) or 24 monthsEvery 30,000 km (18,000
miles)MA-33, 34
Limited-slip differential (LSD) gear oil*1 ReplaceMA-34
Drive shaft Inspect Every 7,500 km (4,500 miles)
or 6 monthsEvery 15,000 km (9,000 miles) *2
......GH..Steering gear, linkage, axle, suspension
parts, and propeller shaftsInspectMA-37, 33
Exhaust system InspectMA-32
......GH.JGreasing points of steering linkage, propeller
shafts, & suspensionLubricateMA-33
.........JFront wheel bearing grease Inspect*3
Free running hub grease Inspect
*1: Including differential gear with differential lock
*2: ``FRONT AXLE Ð Drive Shaft'' in FA section
*3: ``Front Wheel Bearing'', ``Manual-lock Free-running Hub Ð 4WD'' and ``Auto-lock Free-running Hub Ð 4WD'' in FA section
PERIODIC MAINTENANCE
MA-10

For diesel engine models
Maintenance operation: Inspect = Inspect and correct or replace as necessary.
Driving
conditionMaintenance itemMaintenance
operationMaintenance interval
Reference
page Annual driving distance
Less than 30,000 km
(18,000 miles)More than 30,000 km
(18,000 miles)
ABCD......Engine oil Replace Every 3,250 km (2,250 miles)
or 3 monthsEvery 3,250 km (2,250 miles) MA-24
ABCD......Engine oil filter Replace Every 7,500 km (4,500 miles)
or 6 monthsEvery 7,500 km (4,500 miles) MA-24
A.........Aircleaner filter (Viscous paper type) Replace Every 22,500 km (13,500
miles) or 18 monthsEvery 30,000 km (18,000
miles)MA-29
A...E.....Fuel filter Replace Every 15,000 km (9,000 miles)
or 12 monthsEvery 30,000 km (18,000
miles)MA-27
A.C...GHI.Brake pads, discs & other brake components Inspect Every 7,500 km (4,500 miles)
or 6 monthsEvery 15,000 km (9,000 miles) MA-36
Brake linings, drums & other brake compo-
nentsMA-36
.....F....Brake fluid Replace Every 15,000 km (9,000 miles)
or 12 monthsEvery 30,000 km (18,000
miles)MA-35
..C....H..Transfer fluid and standard differential gear
oilReplace Every 30,000 km (18,000
miles) or 24 monthsEvery 30,000 km (18,000
miles)MA-33, 34
Limited-slip differential (LSD) gear oil*1 ReplaceMa-34
Drive shaft Inspect Every 7,500 km (4,500 miles)
or 6 monthsEvery 15,000 km (9,000 miles) *2
......GH..Steering gear, linkage, axle, suspension
parts, and propeller shaftsInspectMA-37, 33
Exhaust system InspectMA-32
......GH.JGreasing points of steering linkage, propeller
shafts, & suspensionLubricateMA-33
.........JFront wheel bearing grease Inspect*3
Free running hub grease Inspect
*1: Including differential gear with differential lock
*2: ``FRONT AXLE Ð Drive Shaft'' in FA section
*3: ``Front Wheel Bearing'', ``Manual-lock Free-running Hub Ð 4WD'' and ``Auto-lock Free-running Hub Ð 4WD'' in FA section
Maintenance for off-road driving (for 4WD models only)
Whenever you drive off-road through sand, mud or water as deep as the wheel hub, more frequent main-
tenance may be required of the following items:
mBrake pads and discs
mBrake lining and drums
mBrake lines and hoses
mWheel bearing grease and free-running hub grease
mFree running hub grease
mDifferential, transmission oil and transfer fluid
mSteering linkage
mPropeller shafts and front drive shafts
mAir cleaner filter
mClutch housing (Check water entry. Refer to MA-33.)
PERIODIC MAINTENANCE
Maintenance Under Severe Driving
Conditions (Cont'd)
MA-11
